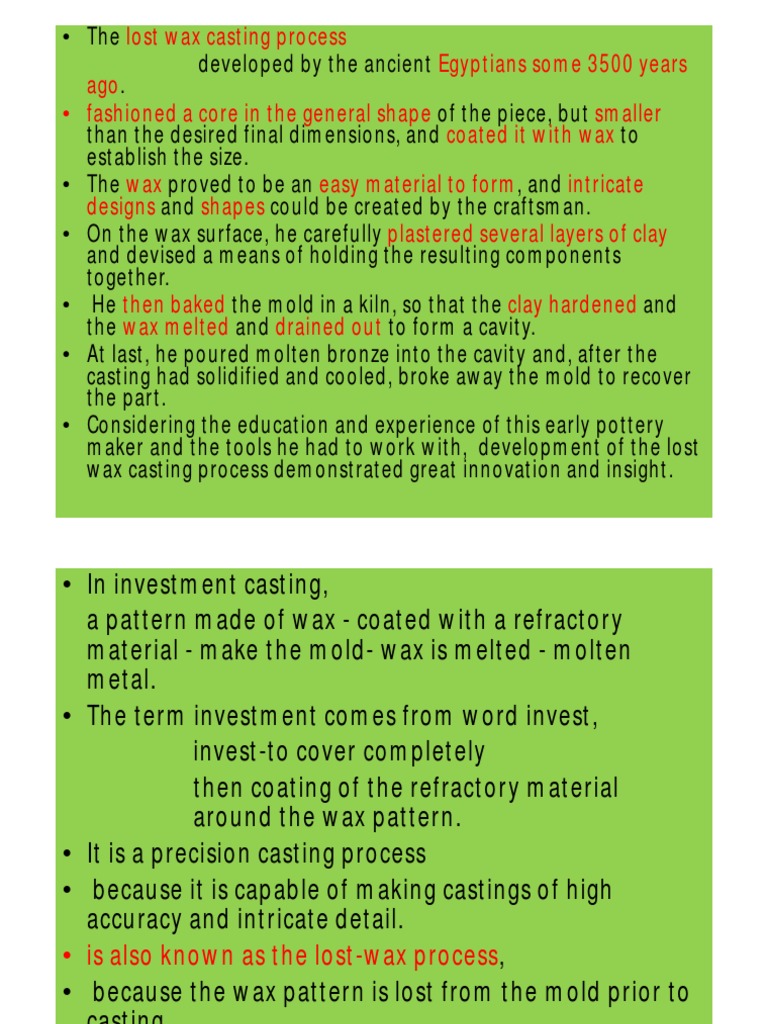

developed by the ancient Egyptians some 3500 years
ago. • fashioned a core in the general shape of the piece, but smaller than the desired final dimensions, and coated it with wax to establish the size. • The wax proved to be an easy material to form, and intricate designs and shapes could be created by the craftsman. • On the wax surface, he carefully plastered several layers of clay and devised a means of holding the resulting components together. • He then baked the mold in a kiln, so that the clay hardened and the wax melted and drained out to form a cavity. • At last, he poured molten bronze into the cavity and, after the casting had solidified and cooled, broke away the mold to recover the part. • Considering the education and experience of this early pottery maker and the tools he had to work with, development of the lost wax casting process demonstrated great innovation and insight. • In investment casting, a pattern made of wax - coated with a refractory material - make the mold- wax is melted - molten metal. • The term investment comes from word invest, invest-to cover completely then coating of the refractory material around the wax pattern. • It is a precision casting process • because it is capable of making castings of high accuracy and intricate detail. • is also known as the lost-wax process, • because the wax pattern is lost from the mold prior to casting. • Since the wax pattern is melted off after the refractory mold is made, a separate pattern must be made for every casting. • Pattern production is usually accomplished by a molding operation • Pouring or injecting the hot wax into a master die - designed with proper allowances - for shrinkage of both wax and subsequent metal casting. • Complex part geometry - several separate wax pieces joined to make the pattern. • In high production operations - several patterns are attached to a sprue, - made of wax, to form a pattern tree - this geometry will be cast out of metal. Schematic illustration of investment casting (lost-wax) process. Castings by this method can be made with very fine detail and from a variety of metals. • Coating with refractory accomplished dipping the pattern tree into a slurry of very fine grained silica or refractory (almost in powder form) + plaster (bond the mold into shape) • The small grain size of the refractory material - provides a smooth surface - captures the intricate details of the wax pattern. After this initial coating has dried, the pattern is coated repeatedly to increase its thickness for better strength • The final mold is accomplished by - repeatedly dipping the tree into the refractory slurry or - by gently packing the refractory around the tree in a container. • The mold is allowed to air dry for about 8 hours to harden the binder. • The one-piece mold is dried in air and heated to a temperature of 90° to 175°C. • It is held in an inverted position for a few hours to melt out the wax. • The mold is then fired to 650° to 105 0°C for 4 hours to drive off the water of crystallization (chemically combined water) and Wax patterns require careful handling because they are not strong enough unlike plastic patterns, wax can be recovered and reused. Advantages and disadvantages of investment casting include: (1) parts of great complexity and intricacy can be cast (2) close dimensional control—tolerances of 0.075 mm are possible (3) good surface finish is possible (4) the wax can usually be recovered for reuse (5) additional machining is not normally required—this is a net shape process. • Parts up to 1.5 m in diameter and weighing as much as 1140 kg have been cast successfully by this process. • many steps are involved - relatively expensive process. • Used normally small in size, parts with complex geometries • All types of metals, including steels, stainless steels, and other high temperature alloys, can be investment cast. • Examples of parts include complex machinery parts, blades, and other components for turbine engines, jewelry, and dental fixtures. IN INVESTMENT CASTING, a ceramic slurry is applied around a disposable pattern, usually wax, and allowed to harden to form a disposable casting mold. • The term disposable means that the pattern is destroyed during its removal from the mold and that the mold is destroyed to recover the casting. • There are two distinct processes for making investment casting molds solid investment (solid mold) process and the ceramic shell process. • The ceramic shell process has become the predominant technique for engineering applications, displacing the solid investment process . • By 1985, fewer than 20% of non-airfoil investment castings and practically no airfoil castings (the largest single application of investment casting) were being made by the solid Investment process • 2008 the solid investment process is primarily used to produce dental, jewelry castings and has only a small role in engineering applications, mostly for nonferrous alloys. Pattern Materials • grouped into waxes and plastics. • Waxes are more commonly used • plastic patterns much less • foamed polystyrene patterns are frequently used in conjunction with relatively thin ceramic shell molds Waxes • preferred base material for most investment casting patterns, • Waxes are usually modified to improve their properties through the addition of such materials as resins, plastics, fillers, plasticizers, antioxidants • The most widely used waxes for patterns are paraffins and microcrystalline waxes. • These two are often used in combination because their properties tend to be complementary. • Paraffin waxes are available in closely controlled grades with melting points varying by 2.8 C increments; melting points ranging from 52 to 68 C are the most common. • low cost of waxes, ready availability, convenient choice of grades, high lubricity, and low melt viscosity, accounts for their wide use. • Paraffins, Ozocerite, Fisher-Tropsch waxes, Polyethylene waxes, Candelilla is an imported vegetable wax, Carnauba is another imported vegetable wax, Beeswax is a natural insect wax,
