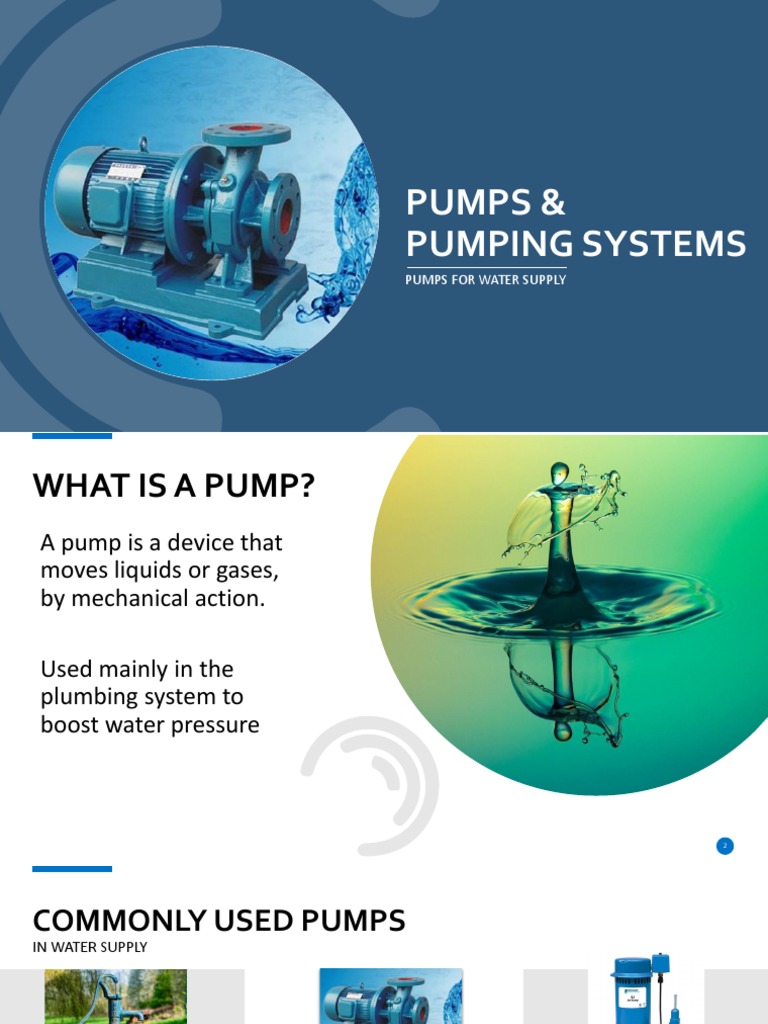

PUMPS &

PUMPING SYSTEMS
PUMPS FOR WATER SUPPLY
WHAT IS A PUMP?
A pump is a device that
moves liquids or gases,
by mechanical action.

Used mainly in the


plumbing system to
boost water pressure

2
COMMONLY USED PUMPS
IN WATER SUPPLY

RECIPROCATING PUMPS CENTRIFUGAL PUMPS JET PUMPS


• Operates with a to-and- • Impeller rotates inside • Also uses and impeller
fro motion boosting water pressure • Pump is connected to
• Uses positive • Needs electricity long pipes underground
displacement • Pump casing must be full • The impeller rotates
• Manual or powered of water to operate creating vacuum
pressure

3
RECIPROCATING PUMP TYPES

More
than 7m

LIFT PUMP PLUNGER PUMPS


DEEP-WELL PISTON PUMPS
• Simplest form • Can convey any liquid
• A “plunger” is driven • Similar to lift pumps but
• A shallow piston moves
backwards and forwards for deep wells
up and down creating
suction • Industrial applications with • The piston is lowered
deep, where the water is
• Locally called as ‘Poso’ high-pressure system

4
CENTRIFUGAL PUMPS
HOW DO THEY WORK?
1. Liquid enters through the
suction side
2. The impeller moves the liquid as
it rotates
3. Water exits out the pressure
side with added velocity.

5
https://theconstructor.org/
SUBMERSIBLE PUMPS
A SPECIAL KIND OF CENTRIFUGAL PUMP

• Submerged underwater

• Pushes water to the surface from


underneath

• Can also be used in pumping


water out in flooded basements

6
JET PUMPS

• Mounted above ground

• Non-submersible

• Can be used in shallow wells and


deep wells

https://www.pumpproducts.com/ 7
JET PUMPS
HOW DO THEY WORK? Shallow well Deep well

• Mounted above ground

• Non-submersible

• Can be used in shallow


wells and deep wells

https://www.popularmechanics.com/ 8
JET EJECTOR
WHAT IS IT IN JET PUMPS?

https://mechanicalboost.com/jet-pump/ 9
JET PUMPS
SHALLOW WELL VS DEEP WELL

https://electrical-engineering-portal.com/ 10
IMPORTANT REMINDER
Centrifugal pumps and jet pumps
need to primed before use because
otherwise the pump will get
damaged.

When we say primed, it means the


pump should be filled with water
before operating. Dry running a
pump can lead to a surge in
pressure, flow or overheating that
will instigate a pump failure.
11
