Group 54

Date 10
08-01-2013
No. Of Page 1 of 98
Doc. No. 086 MB FM-Basic-Function

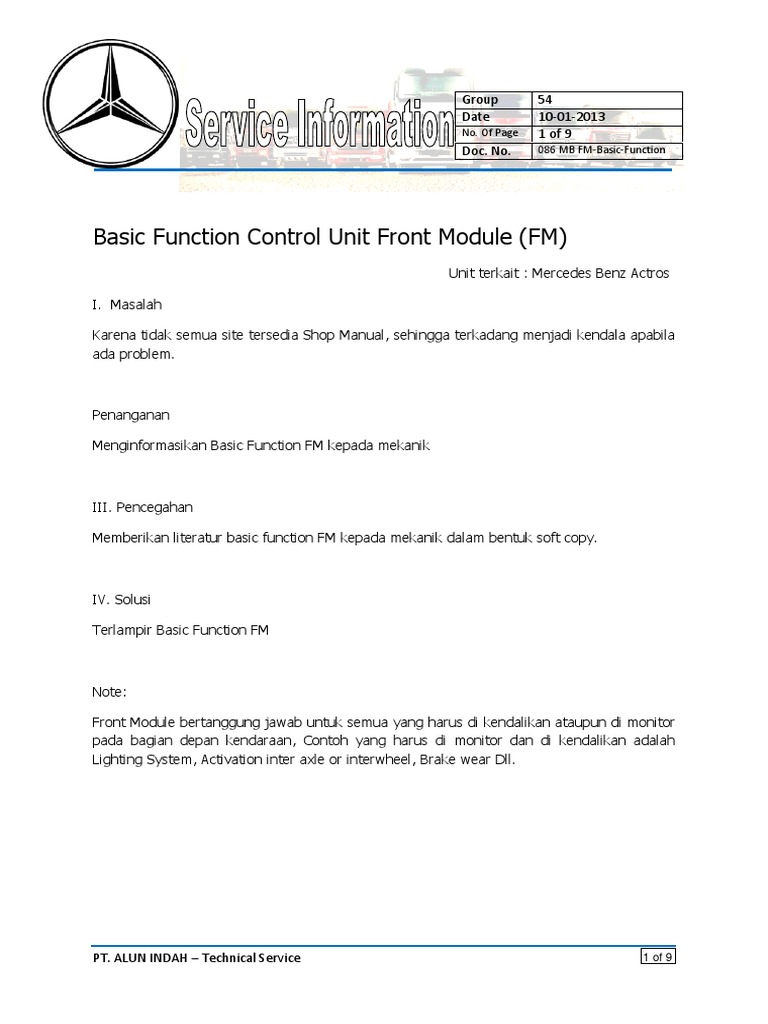

Basic Function Control Unit Front Module (FM)

Unit terkait : Mercedes Benz Actros

I. Masalah

Karena tidak semua site tersedia Shop Manual, sehingga terkadang menjadi kendala apabila
ada problem.

Penanganan

Menginformasikan Basic Function FM kepada mekanik

III. Pencegahan

Memberikan literatur basic function FM kepada mekanik dalam bentuk soft copy.

IV. Solusi

Terlampir Basic Function FM

Note:

Front Module bertanggung jawab untuk semua yang harus di kendalikan ataupun di monitor
pada bagian depan kendaraan, Contoh yang harus di monitor dan di kendalikan adalah
Lighting System, Activation inter axle or interwheel, Brake wear Dll.

PT. ALUN INDAH – Technical Service 1 of 9

GF54.35-W-0002MP Signaling system, function 30.4.02
MODEL 930, 932, 933, 934

1 Redundant CAN link

A7 Base module (GM)

A64 Front module (FM)
A65 Rear module (HM)
A68 Master switch module 4
CAN 2 Interior CAN
CAN 3 Frame CAN
H2 Horn
S1 Main power switch
S25 Combination switch
S25s5 Horn button
S29 Horn / air horn switch
Y45 Entrance air horn solenoid valve
Y50 Roof air horn solenoid valve

W54.35-1000-76

Requirement Transmitting the control function and actuation of the

The main power switch (S1) must be in the drive position (terminal
15 ON).
Reading the control function
Sounding the signaling horn
The horn button (S25s5) is pressed and the master switch
module 4 (A68) receives the appropriate switching signal.
or:
Sounding the signaling horn and air horn
In addition, the horn / air horn switch (S29) is in the "air horn"
position and the master switch module 4 (A68) reads the
appropriate CAN message over the ASIC sub-bus system.
signaling horn (and air horn if applicable)
The master switch module 4 (A68) transmits a
CAN message with information on the received control function
to the base module (A7).
The CAN message "Signaling horn actuated" is relayed from
the base module (A7) over the frame CAN (CAN 3) to the
front module (A64).
The CAN message is also transmitted redundantly from the
base module (A7) to the rear module (A65).
The front module (A64) actuates the signaling horn (H2).
If the CAN message also contains the message "Air horn
actuated", the base module (A7) directly actuates the solenoid
valves (Y45, Y50) of the air horns on the roof and in the
entrance.

Master switch module 4, location / task / GF54.25-W-4104MP

design
Base module (GM), location / task GF54.21-W-4014MP
Front module (FM), location / task GF54.21-W-4140MP
Rear module (HM), location / task GF54.21-W-4141MP

© Daimler AG, 1/9/13, G/11/12, gf54.35-w-0002mp, Signaling system, function 2 of1 9

Page of 1
MODEL 930, 932, 933, 934
GF54.21-W-4140-02MP Front module (FM), task

The front module is responsible for all the tasks which have to be - Right fog lamp (E7)
controlled and monitored at the front of the vehicle. - Left side marker lamp (E10)
These include the actuation and monitoring of - Right side marker lamp (E11)
- The front lights - Left combined turn signal and clearance lamp (E20)
- The level control (NR) and roll control (WR) systems - Right combined turn signal and clearance lamp (E21)
- The interaxle and interwheel differential locks on the front and Relays CAN messages to the base module (A7), and
rear axles redundantly to the rear module (A65).
and the interaxle differential lock and gears of the transfer case Information on the status of the lights.
- The maintenance system (WS)
- The headlamp range adjustment 2 Level control (NR) and roll control (WR)
- The temperature indicator, steering and The front module (A64) performs the slave function in the
- The horn
level control (NR) and roll control (WR). Its tasks are limited to
signal reception and signal output.
1 Front lights Reads the "frame height" measurement via the front axle
Reads CAN messages from the base module (A7). position sensor (B51).
With information concerning actuation of the lights. Reads CAN messages from the rear module (A65).
Actuates the lights of the front headlamp system. Information on the actuation of the front axle proportioning
- Left headlamp unit (E8) and right headlamp unit (E9) valves on the left (Y51) and right (Y52).
Turn signal lamps Actuates the left front axle proportioning valve (Y51) and right
Standing lamps front axle proportioning valve (Y52).
High beam
Low beam
- Left fog lamp (E6)
---------------------------------------------------------------------------------------- -----------------------------------------------------------------------------------------

Relays CAN messages to the rear module (A65). Information concerning the status of
Information on the "frame height" measurement from the The interaxle and interwheel differential locks on the rear
front axle position sensor (B51) and the status of the axles and
proportioning valves, diagnostic data. The interaxle differential lock of the transfer case.
- From the base module (A7)
3 The interaxle and interwheel differential locks on the front Information on the control functions (read via differential
and rear axles, the interaxle differential lock and gears of lock switches in differential lock switch module 6 (A82)).
the transfer case Actuates the following solenoid valves:
The front module (A64) performs the master function - Front axle interwheel differential lock solenoid valve (Y42)
- In shifting the interaxle and interwheel differential locks on the
- Rear axle interwheel differential lock solenoid valve (Y15)
front and rear axles, and
- Interaxle differential lock solenoid valve (Y43)
- In shifting the interaxle differential lock and gears of the
- Off-road gear solenoid valve (Y40)
transfer case
- Neutral position solenoid valve (Y41)
It controls the shift operations and is also responsible for signal
reception and signal output. Relays CAN messages to the base module (A7), and
Reads the status of the interaxle and interwheel differential redundantly to the rear module (A65).
locks on the front axles via the switch positions of the following Information
switches: - For actuation of the indicator lamps and
- 1st front axle interwheel differential lock indicator switch (S12) - On the status of the interaxle and interwheel differential locks
- 2nd front axle interwheel differential lock indicator switch on the front and rear axles, the interaxle differential lock and
(S13) gears of the transfer case.
- Front interaxle differential lock indicator switch (S16)
Reads CAN messages.
- From the rear module (A65)
-----------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------

4 Maintenance system (WS) 6 Temperature indicator, steering

The front module (A64) performs the slave function and is also Reads the "outside temperature" measurement from the outside
responsible for signal reception and signal output. temperature sensor (B4).
Reads the "front axle brake lining wear" measurement via the Reads the "steering oil expansion reservoir level" measurement
brake wear sensors for the 1st front axle, left (B36), from the steering oil level switch (S19).
1st front axle, right (B37), 2nd front axle, left (B38) and Reads the "steering oil pressure" measurement from the power
2nd front axle, right (B39). steering pressure switch (B20).
Reads the "front axle oil temperature" measurement from the Relays CAN messages to the base module (A7), and
front axle temperature sensor (B48). redundantly to the rear module (A65).
Relays CAN messages to the rear module (A65). Information concerning the received measurements.
Information concerning the received measurements.
7 Horn
5 Headlamp range adjustment Reads CAN messages from the base module (A7).
Reads CAN messages from the base module (A7). Information on the control function.
Information on the "headlamp range adjustment" control Actuates the horn (H2).
function.
Actuates the left headlamp range adjustment motor (E8m1) and
right headlamp range adjustment motor (E9m1).
Relays CAN messages to the base module (A7), and
redundantly to the rear module (A65).
Information on the status of the headlamp range adjustment.
© Daimler AG, 1/9/13, G/11/12, gf54.21-w-4140-02mp, Front module (FM), task Page 1 of 1
MODEL 930, 932, 933, 934
