LEAP-1B

Walkaround Inspection Tips

(extracts from videos “LEAP-1B Pilot Walkaround video V1.1” & “LEAP-1B standalone presentation V1.4b”)

October 2018

CFM, CFM56, LEAP and the CFM logo are trademarks of CFM International, a 50/50 joint company between Snecma (Safran group) and GE. The information in this document is
CFM Proprietary Information and is disclosed in confidence. It is the property of CFM International and its parent companies, and shall not be used, disclosed to others or
reproduced without the express written consent of CFM. If consent is given for reproduction in whole or in part, this notice shall appear in any such reproduction in whole or in
part. The information contained in this document may also be controlled by the U.S. and French export control laws. Unauthorized export or re-export is prohibited.

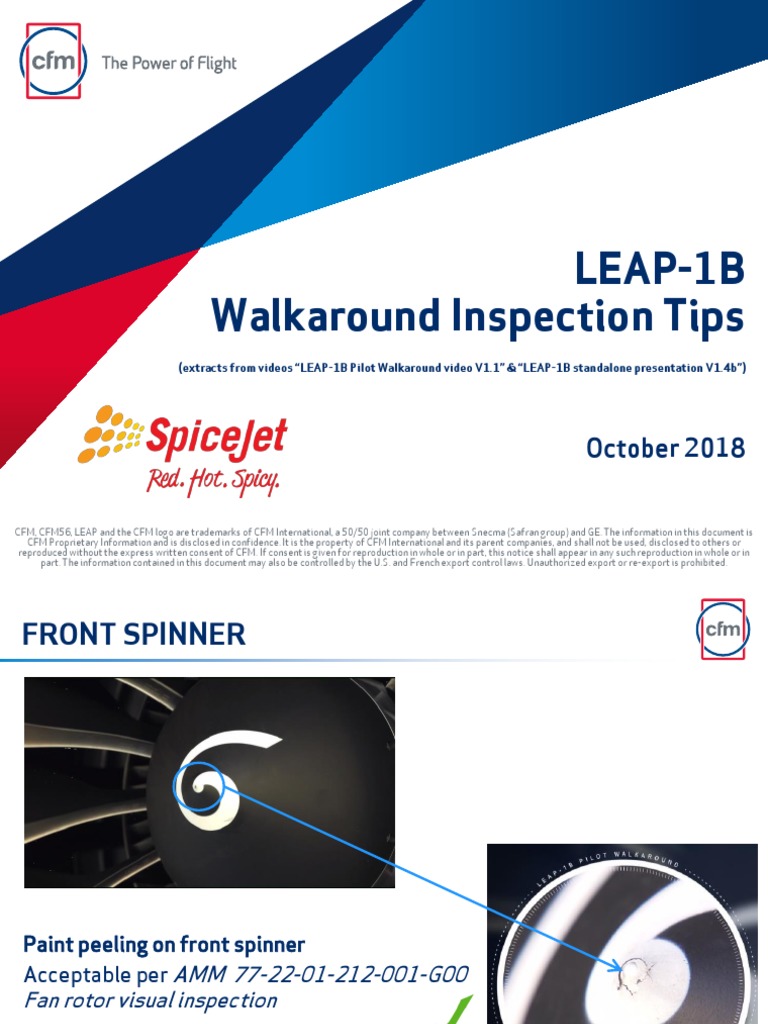

FRONT SPINNER

Paint peeling on front spinner

Acceptable per AMM 77-22-01-212-001-G00
Fan rotor visual inspection

2 / CFM Proprietary Information subject to restrictions on the cover

FAN ROTOR

Painting irregularities
Acceptable per AMM 72-22-00-220-015-G00
Fan Blade Platform visual inspection

3 / CFM Proprietary Information subject to restrictions on the cover

 FAN BLADE (1/6)

Fan blade paint peeling

Acceptable per AMM 72-22-02-211-003-G00
Black paint coat

4 / CFM Proprietary Information subject to restrictions on the cover

 FAB BLADE (2/6)

Tip Crease
Acceptable per AMM 72-22-02-200-801-G00
Visual Inspection of the Fan Blade

5 / CFM Proprietary Information subject to restrictions on the cover

 FAN BLADE (3/6)

Material deposit on the surface

Acceptable per AMM 72-22-02-211-003-G00
Fan Blade Detailed Inspection

6 / CFM Proprietary Information subject to restrictions on the cover

FAN BLADE (4/5)
Tib Rubbing
Acceptable per AMM 72-22-02-211-003-G00
Fan Blade Detailed Inspection

7 / CFM Proprietary Information subject to restrictions on the cover

FAN BLADE (5/6)

These visible P/N & S/N are

manufacture MLE* P/N & S/N

Fan Blade P/N & S/N are located on the root,

only visible if uninstalled

* Metalic Leading Edge

8 / CFM Proprietary Information subject to restrictions on the cover
FAN BLADE (6/6)
Crack / disbonding / tears …
Investigate per AMM 72-22-02-211-003-G00
Fan Blade Detailed Inspection

Book of leap fan blades visual findings available

On MyCFM portal
9 / CFM Proprietary Information subject to restrictions on the cover
 FAN ABRADABLE (1/5)

Rubbing Marks
Acceptable per AMM 72-21-00-211-001-G00
Fan Case Module Inspection

10 / CFM Proprietary Information subject to restrictions on the cover

FAN ABRADABLE (2/4)

Axial Cracks
Acceptable per AMM 72-21-00-211-001-G00
Fan Case Module Inspection

11 / CFM Proprietary Information subject to restrictions on the cover

FAN ABRADABLE (3/4)
Pitting, Impact Marks of Craters
Accepted if within ¼ VISA card and not showing through carbon
Investigate per AMM 72-21-00-211-001-G00
if larger than ¼ VISA card or composite visible

12 / CFM Proprietary Information subject to restrictions on the cover

FAN ABRADABLE (4/4)

Spots and fills on abradable

Acceptable per AMM 72-21-00-200-802-G00
Fan Case Module Inspection

13 / CFM Proprietary Information subject to restrictions on the cover

 OUTLET GUIDE VANE - OGV

Paint peeling
Acceptable per AMM 72-23-00-211-013-G00
Visual Inspection of the Outlet Guide Vanes (OGVs)

14 / CFM Proprietary Information subject to restrictions on the cover

LOW PRESSURE TURBINE BLADES

LPT blades discoloration & color differences

Acceptable per AMM 72-00-00-220-036-G00
Visual Inspection of the LPT Blades

15 / CFM Proprietary Information subject to restrictions on the cover

 CENTER VENT TUBE

Cocked and liquid oil presence

Acceptable per IFIM G71-05-00-810-812
Engine Smoke from CVT

16 / CFM Proprietary Information subject to restrictions on the cover

 FAN DRAIN MAST & CORE DRAIN MAST (1/2)

Oil Marks near the drain masts

Acceptable per AMM 71-71-00-200-801-G00
Engine Vents & Drains Inspection

17 / CFM Proprietary Information subject to restrictions on the cover

FAN DRAIN MAST & CORE DRAIN MAST (2/2)
Oil or Fuel Puddle
Acceptable per AMM 71-71-00-200-801-G00
Engine Vents & Drains Inspection

18 / CFM Proprietary Information subject to restrictions on the cover

ASSEMBLY OIL…NOT LEAKAGE
Engine oil is fluid and light golden.

Assembly lubricant is sticky and dark brown.

19 / CFM Proprietary Information subject to restrictions on the cover

ENGINE COWL LATCHS

NOT Acceptable

20 / CFM Proprietary Information subject to restrictions on the cover

FAN WINDMILLING STOPPING BY HAND

NOT Acceptable Preferred

(With FOD precaution to avoid scratchs)

21 / CFM Proprietary Information subject to restrictions on the cover
