Program Metric Module Involute Splines

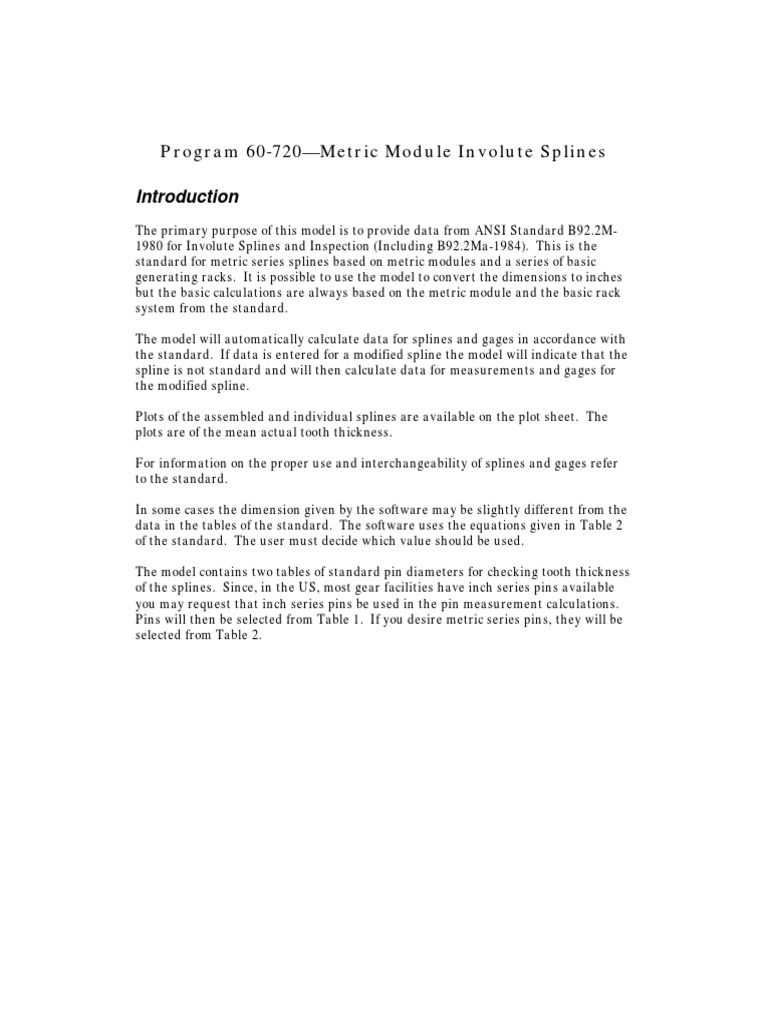

Program 60-720—Metric Module Involute Splines
Introduction
The primary purpose of this model is to provide data from ANSI Standard B92.2M-
1980 for Involute Splines and Inspection (Including B92.2Ma-1984). This is the
standard for metric series splines based on metric modules and a series of basic
generating racks. It is possible to use the model to convert the dimensions to inches
but the basic calculations are always based on the metric module and the basic rack
system from the standard.
The model will automatically calculate data for splines and gages in accordance with
the standard. If data is entered for a modified spline the model will indicate that the
spline is not standard and will then calculate data for measurements and gages for
the modified spline.
Plots of the assembled and individual splines are available on the plot sheet. The
plots are of the mean actual tooth thickness.
For information on the proper use and interchangeability of splines and gages refer
to the standard.
In some cases the dimension given by the software may be slightly different from the
data in the tables of the standard. The software uses the equations given in Table 2
of the standard. The user must decide which value should be used.
The model contains two tables of standard pin diameters for checking tooth thickness
of the splines. Since, in the US, most gear facilities have inch series pins available
you may request that inch series pins be used in the pin measurement calculations.
Pins will then be selected from Table 1. If you desire metric series pins, they will be
selected from Table 2.
UTS Integrated Gear Software
Table 1
2
60-720—Metric Module Involute Splines
Table 2
3
Examples
Example 1
This is a 20 tooth, 10 mm module, flat root spline. The tolerance and fit class for the
internal will be “7H” and for the external will be “7d”. The spline length of
engagement is 150 mm. We wish to use the “Standard” gaging method and will print
all data needed to manufacture the gages, including tapered external master to
calibrate the ring gages for the external spline. We will use metric series pins for
measurement.
Using the wizard data entry form, enter the data as shown in Figure 1-1 Note that
metric units are used. Report 1-1 is the solved model.
Fig. 1-1
4
Report 1-1
Model Title : Program 60-720

Unit System: US
Description Value Unit Comment
COMMON
Number of Teeth 20
Module 10.000000 mm `
Diametral Pitch 2.540000 1/in `
Standard Pressure Angle 30 deg
Length of Engagement 150.0000 mm
Pitch Diameter 200.00000 mm
Base Dia 173.20510 mm
Max_Effective Clearance 0.5350 mm
Min_Effective Clearance 0.1700 mm
Max_Actual Clearance 0.7620 mm
Min_Actual Clearance 0.3980 mm
Radial Form Clearance (Standard) 1.0000 mm
Ref Line to Root TIF on Basic Rack 6.0000 mm
Inch('i) / Metric('m) Measuring Pins m
INTERNAL SPLINE
Internal Spline ANSI B92.2M-1980? Yes

Fillet or Flat Root ('fil/'flt) flt
Major Diameter - Max 215.510 mm
Form Diameter 212.000 mm
5

Unit System: US
Roll Angle at Form Diameter 40.439 deg
Fillet_Radius 2.0000 mm
Minor Diameter - Min 191.150 mm
Minor Diameter - Max 192.070 mm
Tolerance and Fit Class: "7H"
Tooth Thickness Reduction 0.00000 mm
Machining Tolerance 0.1820 mm
Effective Variation 0.1140 mm
Total Tolerance 0.2960 mm

Min_Effective_Space Width 15.7080 mm
Specification Required or Reference Required
Plug Gage Type-Composite or Sector GO Cmp
Max_Effective_Space Width 15.8900 mm
Specification Required or Reference Reference
Plug Gage Type-Composite or Sector None
Min_Actual_Space Width 15.8220 mm
Max_Actual_Space Width 16.0040 mm
Plug Gage Type-Composite or Sector NO GO Sec
INTERNAL SPLINE Size Between Pins
Pin Diameter, mm 18.0000 mm `

Pin Diameter, inch 0.70866 in `
6

Unit System: US
Min_Between 2 Pins 172.6830 mm
Max_Between 2 Pins 173.0590 mm
Min_Diameter Under 3 Pins 172.6830 mm
Max_Diameter Under 3 Pins 173.0590 mm
Min_Pin Contact Diameter 198.8850 mm
Max_Pin Contact Diameter 199.3250 mm
INTERNAL SPLINE Analytical Inspection
Total_Index Variation 0.1440 mm

Total_Profile Variation 0.1190 mm
Lead Variation 0.0340 mm
EXTERNAL SPLINE
External Spline ANSI B92.2M-1980? Yes

Fillet or Flat Root ('fil/'flt) flt
Major Diameter - Min 208.780 mm
Tolerance and Fit Class "7d"
7

Unit System: US
Max_Eff_Tooth Thickness 15.5380 mm
Ring Gage Type-Composite or Sector GO Cmp
Min_Eff_Tooth Thickness 15.3560 mm
Specification Required or Reference REF
Ring Gage Type-Composite or Sector None
Max_Actual_Tooth Thickness 15.4240 mm
Min_Actual_Tooth Thickness 15.2420 mm
Ring Gage Type-Composite or Sector NO GO Sec
EXTERNAL SPLINE Size Over Pins

Max_Over 2 Pins 234.6920 mm
Min_Over 2 Pins 234.4220 mm
Max Pin Contact Diameter 201.8320 mm
Min Pin Contact Diameter 201.5950 mm
EXTERNAL SPLINE Analytical Inspection

8

Unit System: US
Plot Data
Mark mod/inv/fil intersections? y

Number of teeth on plot 1
GAGES
Dimensioning Method (Def='std, 'A, 'B) std

INTERNAL SPLINE GAGES
Major Diameter External 212.0500 mm

Major Diameter Internal 212.0040 mm
Minor Diameter, Max 188.1450 mm
Tooth Thickness External, New 15.7210 mm
Tooth Thickness Internal, New 15.7110 mm
Tooth Thickness, Wear Limit 15.7070 mm
Effective Gage Variation 0.00800 mm
Min Gage Length 60.000 mm
Max Size Over Pins - New 235.13140 mm
Min Size Over Pins - New 235.11660 mm
Size Over Pins - Wear Limit 235.11070 mm
NOT GO Composite Plug Gage
Major Diameter External mm

Major Diameter Internal mm
9

Unit System: US
Form Diameter mm
Minor Diameter, Max mm
Tooth Thickness External mm
Tooth Thickness Internal mm
Effective Gage Variation mm
Min Gage Length mm
Max Size Over Pins mm
Min Size Over Pins mm
NOT GO Sector Plug Gage

Tooth Thickness External 16.0050 mm
Tooth Thickness Internal 15.9950 mm
Max Size Over Pins 235.54970 mm
Min Size Over Pins 235.53500 mm
Number of Teeth in Sector 2
10

Unit System: US
EXTERNAL SPLINE GAGES

Minor Diameter, Min 188.8770 mm
Major Diameter, Min 212.7060 mm
Space Width External, New 15.5370 mm
Space Width Internal, New 15.5230 mm
Space Width, Wear Limit 15.5410 mm
Min Size Between Pins - New 172.05950 mm
Max Size Between Pins - New 172.08890 mm
Size Between Pins - Wear Limit 172.09740 mm
Tapered External Master For GO Composite Ring Gage

Minor Diameter, Max Tooth Thickness 186.9100 mm
End of Lead Length, CC 15.5230 mm
End of Fit Range, BB 15.5370 mm

End of Wear Range, AA 15.5410 mm
11

Unit System: US
Taper On One Side of Teeth 0.02 %
Ball Diameter 21.20000 mm
Size Over Balls at CC 234.83890 mm
Size Over Balls at BB 234.85960 mm
Size Over Balls at AA 234.86550 mm
Tapered External Master NOT GO Composite Ring Gage
Minor Diameter, Max mm

Minor Diameter, Min mm
Form Diameter mm
Major Diameter, Min mm
Space Width External mm
Space Width Internal mm
Min Gage Length mm
Min Size Between Pins mm
Max Size Between Pins mm
Tapered External Master For NOT GO Composite Ring Gage
Major Diameter External mm

Major Diameter Internal mm
Form Diameter mm
Minor Diameter, Max Tooth Thickness mm
End of Lead Length, CC mm
12

Unit System: US
End of Fit Range, BB mm
Taper On One Side of Teeth %
Size Over Balls at CC mm
Size Over Balls at BB mm
Tapered External Master NOT GO Sector Ring Gage

Space Width External 15.2530 mm
Space Width Internal 15.2390 mm
Min Size Between Pins 171.45740 mm
Max Size Between Pins 171.48730 mm
Tapered External Master For NOT GO Sector Ring Gage

13

Unit System: US
Number of Teeth in Master 2
A plot of the teeth in assembly is available on the TK Solver Plot Sheet or Toolbar
list. (See Figure 1-2.) Individual plots of the internal and external splines are also
available.
14
Fig. 1-2
15
Example 2.
This is a 6 tooth, 1 mm module, 37.5 deg, fillet root spline. The tolerance and fit class
for the internal will be “4H” and for the external will be “4h". The spline length of
engagement is 4 mm. We wish to use the “A” gaging method and will print all data
needed to manufacture the gages including tapered external master to calibrate the
ring gages for the external spline. We will use inch series pins for measurement.
Using the wizard data entry form, enter the data as shown in Figure 2-1. The
application will attempt to solve the model automatically after the necessary data is
entered, but in this case a complete solution is not possible because of problem with
the pin diameter for some of the gages.
The model will stop the solution and give you an error message indicating that the
measuring pins would contact the NO GO Composite Ring Gage below the base
diameter. Sheet 2-1 shows the part of the TK Solver Variable Sheet where the
problem lies.
Sheet 2-1
16
We will select the next smaller size pin from Table 1 and enter the value for “Pin
Diameter, inch” in the Power User form (Figure 2-2).
Fig. 2-2
Another attempt at a solution produces another problem and error message: the
measuring pins contact below the base diameter of the sector ring gage. Sheet 2-2
shows the problem.
Sheet 2-2
17
Once again we will select the next smaller size pin from Table 1 and enter the value
for “Pin Diameter, inch” (Figure 2-3).
Fig. 2-3
Solve again and this time you should be successful (Report 2).
18
Report 2

Unit System: US
COMMON
Number of Teeth 6
Module 1.000000 mm `
Standard Pressure Angle 37.5 deg
Base Dia 4.76010 mm
Inch('i) / Metric('m) Measuring Pins i
INTERNAL SPLINE

Fillet or Flat Root ('fil/'flt) fil
19

Unit System: US

Plug Gage Type-Composite or Sector NO GO Cmp

20

Unit System: US

EXTERNAL SPLINE

Tolerance and Fit Class "4h"
21

Unit System: US
Ring Gage Type-Composite or Sector NO GO Cmp


22

Unit System: US
Plot Data

GAGES
Dimensioning Method (Def='std, 'A, 'B) A



23

Unit System: US

24

Unit System: US



25

Unit System: US


26

Unit System: US


27

Unit System: US
A plot of the teeth in assembly is available on the plot sheet. (See Figure 2-4.)
Figure 2-5 shows all the teeth. Individual plots of the internal and external splines
are also available.
28
Fig. 2-4
29
Fig. 2-5
30
Example 3
This is a 10 tooth, 45 degree, fillet root spline. The tolerance and fit class for the
internal will be “4H” and for the external will be “4d". The spline length of
engagement is 12 mm. We do not need any gages or analytical inspection data for
this example and will request only the basic spline data and size over and between
pins to control manufacturing. (However, the model will still calculate the gage data
and so we will enter “std” for the gage method. We will use metric series pins for
measurement.
Using the wizard data entry form, enter the data as shown in Figure 3-1. Report 3-1
shows the solved model.
Fig. 3-1
31
Report 3-1

Unit System: Metric
COMMON
Number of Teeth 10
Inch('i) / Metric('m) Measuring Pins m
INTERNAL SPLINE

32

Unit System: Metric


33

Unit System: Metric

EXTERNAL SPLINE

34

Unit System: Metric
Plot Data
35
A plot of the teeth in assembly is available on the plot sheet (see Figure 3-2). This
time we have plotted all 10 teeth.
Fig. 3-2
36
Example 4
This is a 28 tooth, 1 module, fillet root spline. A Class “4H” tolerance is desired on
the internal spline and a Class “4d” on the external spline. (Different tolerance
classes can be used on each spline if desired.) We also wish to use dimensioning
method “A” gaging method and will print all data needed to manufacture the splines
and the gages.
Enter the data shown in Figure 4-1 in the wizard data entry form. This will give us a
standard spline. The solved model is shown in Report 4-1.
Fig. 4-1
37
Report 4-1

Unit System: Metric
COMMON
Number of Teeth 28
INTERNAL SPLINE

38

Unit System: Metric


39

Unit System: Metric

EXTERNAL SPLINE

40

Unit System: Metric


41

Unit System: Metric
Plot Data

GAGES
Dimensioning Method (Def='std, 'A, 'B) A



42

Unit System: Metric

43

Unit System: Metric



44

Unit System: Metric


45

Unit System: Metric


46

Unit System: Metric
47
Figure 4-2 is a plot of the teeth in assembly for the standard spline.
Fig. 4-2
48
Note that the minimum effective clearance is 0.065 mm. Let us assume that this is
not enough clearance and we wish to increase the minimum effective clearance to
0.120 mm.
To increase the effective clearance by 0.055 mm we will reduce the tooth thickness of
the external spline by 0.030 mm and increase the space width of the internal spline
by 0.025. (Usually the external spline is modified and the internal left standard. We
will change both for illustration purposes.) We will assume that a “standard” shaper
cutter will be used to manufacture the internal and a “standard” hob will be used to
manufacture the external.
To increase the space width of the internal by 0.025 mm the shaper cutter will need
to be fed deeper by 0.022 mm (.5 * space width change / tan(PA)). This will increase
the major and form diameters. We will also increase the minor diameter to insure
clearance between the external form diameter and the minor diameter. (This does
not always have to be done but should be checked to insure that there will be no
interference if the relative movement of the spline is maximum.)
To decrease the tooth thickness of the external by 0.030 mm the hob will need to be
fed deeper by 0.026 mm (.5 * tooth thick change / tan(PA)). This will decrease the
minor and form diameters. We will also decrease the major diameter to insure
clearance between the internal form diameter and the major diameter. (This does
not always have to be done but should be checked to insure that there will be no
interference if the relative movement of the spline is maximum.)
Enter the new data in the Power User form as shown in Figures 4-3a and 4-3b, and
solve the model. Caution messages state that the internal and external splines do
not conform with ANSI B92.2M. After solving you should have the data in Report 4-
2.
49
Fig. 4-3a
50
Fig. 4-3b
51
Report 4-2

Unit System: Metric
COMMON
Number of Teeth 28
INTERNAL SPLINE
Internal Spline ANSI B92.2M-1980? No

52

Unit System: Metric


53

Unit System: Metric
EXTERNAL SPLINE
External Spline ANSI B92.2M-1980? No
54

Unit System: Metric
Plot Data
55
Note that the minimum effective clearance is now 0.120 mm. Note that the internal
and external spline gage dimensions have been modified to reflect the change in
spline specifications. Also, as discussed above, both splines have been designated as
not standard. The marking designations for the gages no longer include “ANSI
B92.2M”, as the splines no longer meet this standard.
Figure 4-4 is a plot of the teeth in assembly for the modified spline.
56
Fig. 4-4
57

Program Metric Module Involute Splines

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Program Metric Module Involute Splines

Uploaded by

Copyright:

Available Formats

Program 60-720—Metric Module Involute Splines

Model Title : Program 60-720

Internal Spline ANSI B92.2M-1980? Yes

Model Title : Program 60-720

Total Tolerance 0.2960 mm

Pin Diameter, mm 18.0000 mm `

Model Title : Program 60-720

Total_Index Variation 0.1440 mm

External Spline ANSI B92.2M-1980? Yes

Model Title : Program 60-720

Pin Diameter, mm 21.2000 mm `

Total_Index Variation 0.1440 mm

Model Title : Program 60-720

Mark mod/inv/fil intersections? y

Dimensioning Method (Def='std, 'A, 'B) std

Major Diameter External 212.0500 mm

Major Diameter External mm

Model Title : Program 60-720

Major Diameter External 208.0360 mm

Major Diameter Internal 207.9640 mm

Model Title : Program 60-720

Minor Diameter, Max 188.9230 mm

Major Diameter External 206.7800 mm

End of Fit Range, BB 15.5370 mm

Model Title : Program 60-720

Minor Diameter, Max mm

Major Diameter External mm

Model Title : Program 60-720

Minor Diameter, Max 192.6420 mm

Major Diameter External 206.7800 mm

Model Title : Program 60-720

Model Title : Program 60-720

Internal Spline ANSI B92.2M-1980? Yes

Model Title : Program 60-720

Total Tolerance 0.0290 mm

Pin Diameter, mm 1.7780 mm `

Model Title : Program 60-720

Total_Index Variation 0.0140 mm

External Spline ANSI B92.2M-1980? Yes

Model Title : Program 60-720

Pin Diameter, mm 3.3251 mm `

Total_Index Variation 0.0140 mm

Model Title : Program 60-720

Mark mod/inv/fil intersections? y

Dimensioning Method (Def='std, 'A, 'B) A

Major Diameter External 7.1160 mm

Major Diameter External 6.7400 mm

Model Title : Program 60-720

Major Diameter External 6.7400 mm

Major Diameter Internal 6.7260 mm

Model Title : Program 60-720

Minor Diameter, Max 5.1080 mm

Major Diameter External 6.5100 mm

End of Fit Range, BB 1.5690 mm

Model Title : Program 60-720

Minor Diameter, Max 5.4130 mm

Major Diameter External 6.5100 mm

Model Title : Program 60-720

Minor Diameter, Max 5.4130 mm

Major Diameter External 6.5100 mm

Model Title : Program 60-720

Model Title : Program 60-720

Internal Spline ANSI B92.2M-1980? Yes
