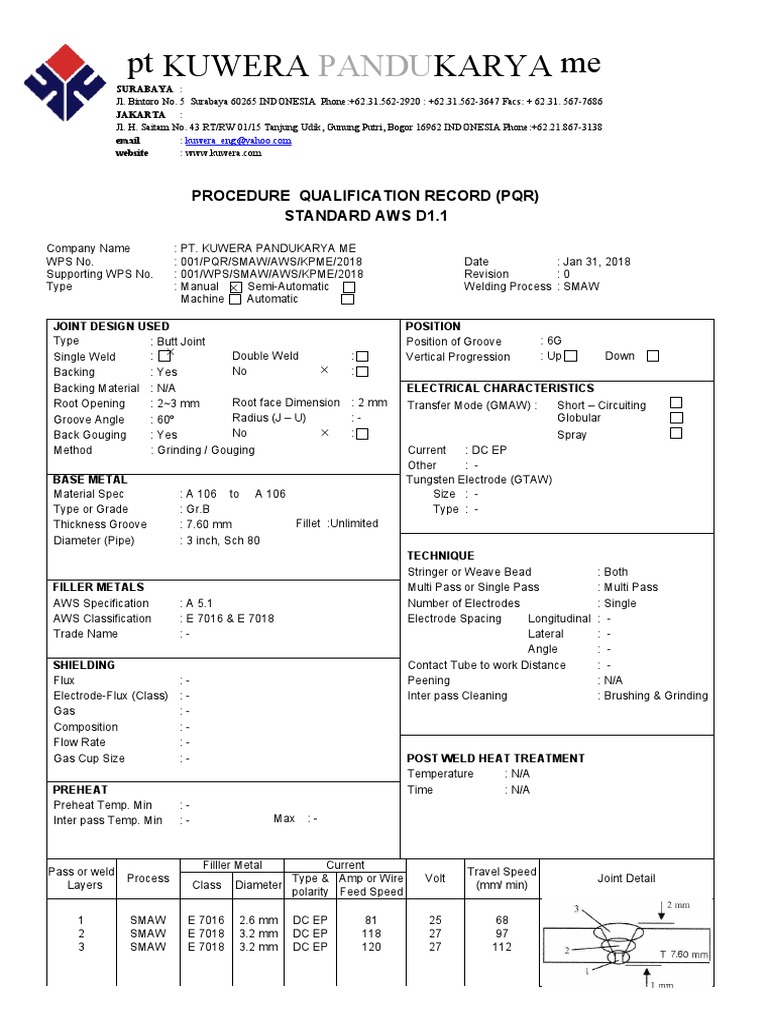

PROCEDURE QUALIFICATION RECORD (PQR)

STANDARD AWS D1.1

Company Name : PT. KUWERA PANDUKARYA ME

WPS No. : 001/PQR/SMAW/AWS/KPME/2018 Date : Jan 31, 2018
Supporting WPS No. : 001/WPS/SMAW/AWS/KPME/2018 Revision :0
Type : Manual × Semi-Automatic Welding Process : SMAW
: Machine Automatic

JOINT DESIGN USED POSITION

Type : Butt Joint Position of Groove : 6G
Single Weld : × Double Weld : Vertical Progression : Up × Down
Backing : Yes No × :
Backing Material : N/A ELECTRICAL CHARACTERISTICS
Root Opening : 2~3 mm Root face Dimension : 2 mm Transfer Mode (GMAW) : Short – Circuiting
Groove Angle : 60º Radius (J – U) :- Globular
Back Gouging : Yes No × : Spray
Method : Grinding / Gouging Current : DC EP
Other : -
BASE METAL Tungsten Electrode (GTAW)
Material Spec : A 106 to A 106 Size : -
Type or Grade : Gr.B Type : -
Thickness Groove : 7.60 mm Fillet :Unlimited
Diameter (Pipe) : 3 inch, Sch 80
TECHNIQUE
Stringer or Weave Bead : Both
FILLER METALS Multi Pass or Single Pass : Multi Pass
AWS Specification : A 5.1 Number of Electrodes : Single
AWS Classification : E 7016 & E 7018 Electrode Spacing Longitudinal : -
Trade Name :- Lateral : -
Angle : -
SHIELDING Contact Tube to work Distance : -
Flux :- Peening : N/A
Electrode-Flux (Class) :- Inter pass Cleaning : Brushing & Grinding
Gas :-
Composition :-
Flow Rate :-
Gas Cup Size :- POST WELD HEAT TREATMENT
Temperature : N/A
PREHEAT Time : N/A
Preheat Temp. Min :-
Inter pass Temp. Min :- Max :-

Filller Metal Current

Pass or weld Travel Speed
Process Type & Amp or Wire Volt Joint Detail
Layers Class Diameter (mm/ min)
polarity Feed Speed

1 SMAW E 7016 2.6 mm DC EP 81 25 68

2 SMAW E 7018 3.2 mm DC EP 118 27 97
3 SMAW E 7018 3.2 mm DC EP 120 27 112
