TH97/10561QM TW00/17276EM IATF 0060636

SGS TH07/1033

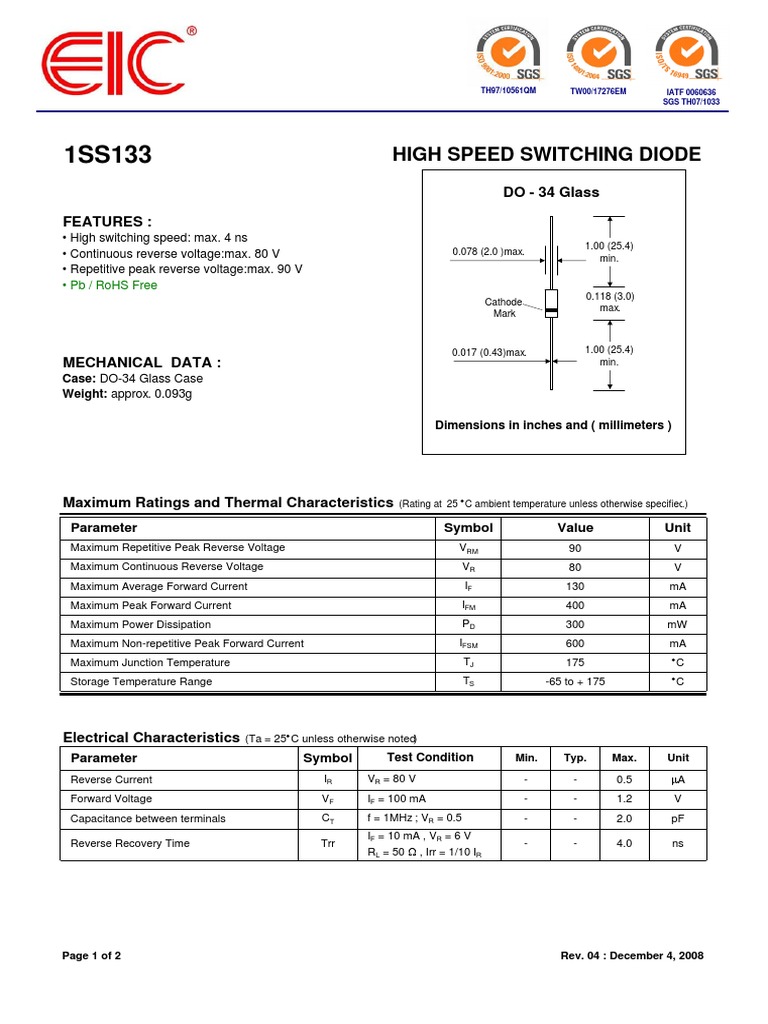

1SS133 HIGH SPEED SWITCHING DIODE


DO - 34 Glass

FEATURES :
• High switching speed: max. 4 ns
1.00 (25.4)
• Continuous reverse voltage:max. 80 V 0.078 (2.0 )max.
min.
• Repetitive peak reverse voltage:max. 90 V
• Pb / RoHS Free
0.118 (3.0)
Cathode
max.
Mark

0.017 (0.43)max. 1.00 (25.4)


MECHANICAL DATA : min.
Case: DO-34 Glass Case
Weight: approx. 0.093g

Dimensions in inches and ( millimeters )

Maximum Ratings and Thermal Characteristics (Rating at 25 °C ambient temperature unless otherwise specified.)

Parameter Symbol Value Unit


Maximum Repetitive Peak Reverse Voltage VRM 90 V
Maximum Continuous Reverse Voltage VR 80 V
Maximum Average Forward Current IF 130 mA
Maximum Peak Forward Current IFM 400 mA
Maximum Power Dissipation PD 300 mW
Maximum Non-repetitive Peak Forward Current IFSM 600 mA
Maximum Junction Temperature TJ 175 °C
Storage Temperature Range TS -65 to + 175 °C

Electrical Characteristics (Ta = 25°C unless otherwise noted)


Parameter Symbol Test Condition Min. Typ. Max. Unit

Reverse Current IR VR = 80 V - - 0.5 μA


Forward Voltage VF IF = 100 mA - - 1.2 V
Capacitance between terminals CT f = 1MHz ; VR = 0.5 - - 2.0 pF
IF = 10 mA , VR = 6 V
Reverse Recovery Time Trr - - 4.0 ns
RL = 50 Ω , Irr = 1/10 IR

Page 1 of 2 Rev. 04 : December 4, 2008


TH97/10561QM TW00/17276EM IATF 0060636
SGS TH07/1033

RATING AND CHARACTERISTIC CURVES ( 1SS133 )

FIG.1 - DERATING CURVE FOR OUTPUT FIG.2 - POWER DARATING CURVE


RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT

150 500

POWER DISSIPATION , mW
120 400
CURRENT, mA

90 300

60 200

30 100

0 0
0 25 50 75 100 125 150 175 0 25 50 75 75 100 125 150 175

AMBIENT TEMPERATURE, ( °C) AMBIENT TEMPERATURE, ( °C)

FIG.3 - TYPICAL FORWARD CHARACTERISTICS FIG.4 - TYPICAL REVERSE CHARACTERISTICS

100 10μA
FORWARD CURRENT, mA

Ta = 100 °C
REVERSE CURRENT, nA

10 1000

1 10
Ta = 25 °C

Ta = 25 °C
10
0 0.2 0.4 0.6 0.8 1.0 1.2 1..4 1.6 1. 2.0
8
FORWARD VOLTAGE, VOLTS

0 20 40 60 80 100 120 140

PERCENT OF RATED REVERSE


VOLTAGE, (%)

Page 2 of 2 Rev. 04 : December 4, 2008
