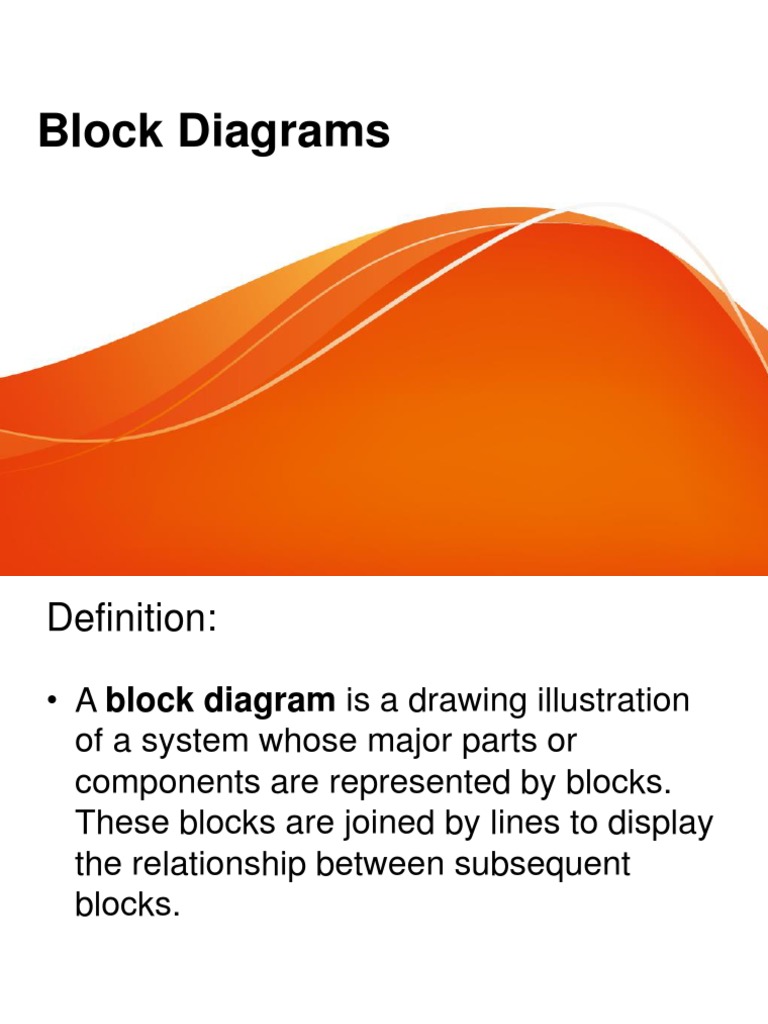

of a system whose major parts or components are represented by blocks. These blocks are joined by lines to display the relationship between subsequent blocks. • We use block diagrams to visualize the functional view of a system. It uses blocks connected with lines to represent components of a system. With a block diagram, you can easily illustrate the essential parts of a software design or engineering system and depict the data flow in a process flow chart. You can learn everything about a block diagram, including its uses and types. Block Diagram Symbols and Basic Components
Symbol Name Function
Blocks Rectangular blocks in a block diagram represent operations in the system. It is usually connected with two lines from left and right, and one of the lines carries the input while the other gives the output. Lines Lines in a block diagram depicts the system process flow and the interrelationship of components and operations. You can use a straight line to connect blocks and arrowhead to represent the process flow. Summation A cross inside a circle is the summation symbol in a block diagram. It is commonly used in charts from engineering systems, and it sums two inputs together and gives a single output. Differentiator We use “S” in a small block as the differentiator symbol in a block diagram, and it computes the rate of input and output in the system. You can also use it as a rate take symbol by replacing the "S" with "rate". Integrator We use the mathematical symbol for integration to illustrate an integrator in a block diagram. You can use various shapes with the integration symbol to customize your integrator. These block components are mainly five and include:
• Block: It represents the logical and physical components
of the system. • Part: It comprises all aspects modeled using aggregation and association. • Reference: It has all the parts which were developed using aggregation and association. • Standard Port: This is the point of interaction between a system block and the corresponding environment. • Flow Port: This is the point of interaction where a block can emerge from or to. It is essential to understand the terms used in describing the relationships within Block Diagrams. These are: • Association: It explains the communication amongst the blocks. • Aggregation: This term describes how a unit gets made of parts. • Composition: It is a proper form of aggregation in which the existence of an object which is part of a unit relies on the presence of the group. • Generalization: Is a leading relationship between blocks in which a designated block contains all the properties of the entire block diagram. Why are block diagrams important • What significant role do Block Diagrams play? Well, a Block Diagram is a fundamental way that hardware and software developers utilize to describe these systems while illustrating their workflows and processes. Electricians, on another hand, need them to represent systems and their shifting, for example, the mechatronic systems in the trucking industry. • They make it easier to represent complicated algorithms or flows of details or communication among precise components, for instance, in a mass production facility. Graphically represented project processes are less strenuous to understand than when they are in text form. • When you walk into a room with a block diagram, you will be able to easily decipher the system’s details, interface, and such as structure aspects. It is all thanks to how the blocks are connected intellectually to one another by lines. Blocks are convenient when designing new processes and upgrading those that already exist. Block Diagrams for process control • This block diagram example is of a feedback control system. It is used to display the essential elements of the system through simple and clear interconnectedness. While studying one, it is very crucial to keep in mind that a block diagram only represents flow paths of control signals. Do not be misled to thinking that it also shows how energy gets transferred throughout the system or process. Tips for making a block diagram • Study and understand the system firsthand. Find out the method that you will use to make a block diagram. Figure out its components, inputs, and outputs. • Design and mark the diagram. Use symbols intellectually to represent specific parts of the system. Always connect the blocks using arrows to show the flow of the process. Naming the blocks is very crucial for easy identification. • Show the Input and Output. Ensure you exactly mark the input, which indicates the start, and the output, that indicates the end of a process in a block diagram. • Accuracy verification. Before putting the diagram out there for use, confirm with the concerned and involved team about its accuracy. You should all be on the same page regarding the block diagram’s correctness. Signal Flow Graph Definition • A signal flow graph consists of a network in which nodes are connected by directed branches.
• It depicts the flow of signal from one point of a
system to another and gives the relationship among the signal. Fundamentals of Signal Flow Graphs • Consider a simple equation below and draw its flow graph:
• The signal flow graph of the equation is shown below:
• Every variable in a signal flow graph is designed by a Node.
• Every transmission function in a signal flow graph is designed by a Branch. • Branch is a line segment which joins two nodes. • Branches are always unidirectional. • The arrow in the branch denotes the direction of the signal flow. Terminology • Node is a point which represents either a variable or signal. • An input node or source contain only the outgoing branches. i.e., X1 • An output node or sink contain only the incoming branches. i.e., X4 • A path is a continuous, unidirectional succession of branches along which no node is passed more than ones. i.e., X1 to X2 to X3 to X4 X1 to X2 to X4 X2 to X3 to X4 • A forward path is a path from the input node to the output node. i.e., X1 to X2 to X3 to X4, and X1 to X2 to X4, are forward paths. • A feedback path or feedback loop is a path which originates and teminates on the same node, i.e.; X2 to X3 and back to X2 is a feedback path. Mason’s Rule (Mason, 1953) • The block diagram reduction technique requires successive application of fundamental relationships in order to arrive at the system transfer function.
• On the other hand, Mason’s rule for reducing a signal-
flow graph to a single transfer function requires the application of one formula.
• The formula was derived by S.J. Mason when he related
the signal-flow graph to the simultaneous equations that can be written from the graph. Mason’s Rule
Where,
n = number of forward paths.
Pi = the i th forward-path gain
∆i = Determinant of the i th forward path
∆ is called the signal flow graph determinant or characterictic
function
Since, ∆ = 0 is the system characteristic equation.
Mason’s Rule
∆ = 1- (sum of all individual loop transmittance) + (sum of the products
of loop transmittance of all possible pairs of Non Touching loops) - (sum of the products of loop transmittance of Triple of Non touching loop) + ...
∆i = Calculate ∆ for ith path
= 1 - (loop transmittance of single Non Touching loops with forward path) + (loop transmittance of pair of Non Touching loops with forward path) Systematic Approach • Calculate forward path gain Pi for each forward path i. • Calculate all loops transfer function. • Consider non touching loops 2 at a time • Consider non touching loops 3 at a time • Calculate ∆ from steps 2,3,4 and 5 • Calculate ∆i as portion of ∆ not touching forward path i. Example: Thank You
