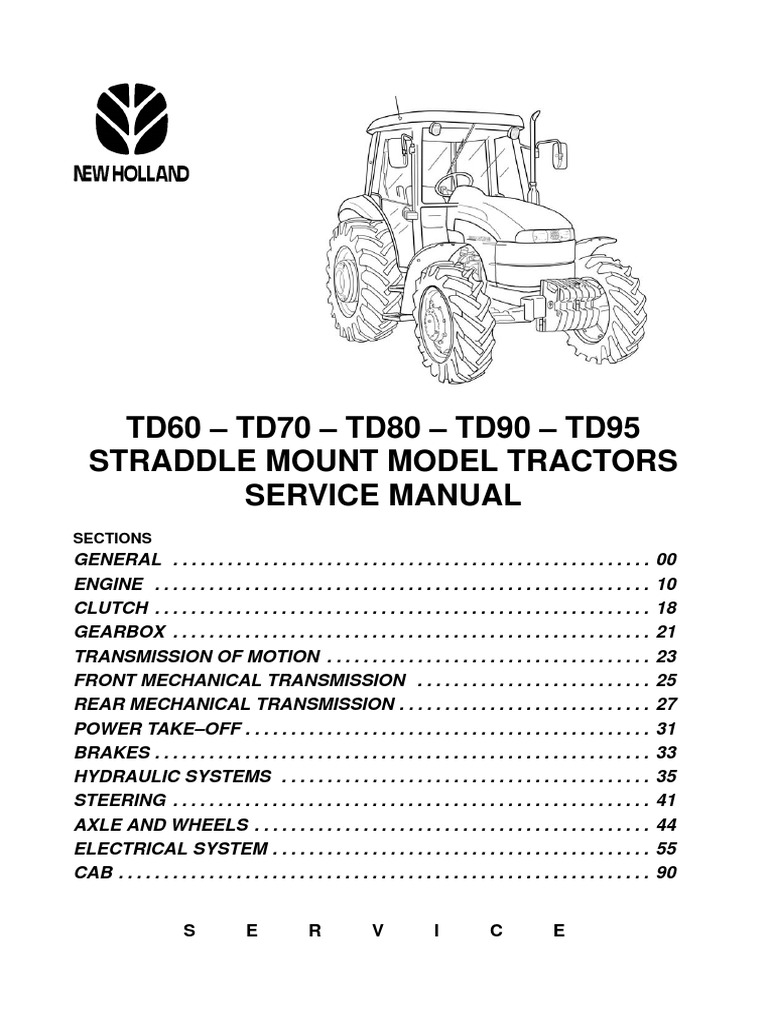

S E R V I C E
INTRODUCTION
◊ This manual is divided into sections identified by two–figure numbers. Each section has independent page
numbering.
For ease of reference, these sections have the same numbers and names as the Repairs Rate Book sections.
◊ The different sections can easily be found by consulting the table of contents on the following pages.
◊ The document number of the manual and the edition/update dates are given at the bottom of each page.
◊ Pages updated in the future will be identified by the same document number followed by a two–figure update
number (for example: 1st update 603.54.331.01; 2nd update 603.54.331.02; etc.) and the corresponding is-
sue date.
These pages will be supplemented by a reprint of the updated contents page.
◊ The information contained in this manual was current on the date printed on each section. As NEW HOLLAND
constantly improves its product range, some information may be out of date subsequent to modifications im-
plemented for technical or commercial reasons or to meet legal requirements in different countries.
In the event of conflicting information, consult the NEW HOLLAND Sales and Service Departments.
IMPORTANT WARNINGS
◊ All maintenance and repair work described in this manual must be performed exclusively by NEW HOLLAND
service technicians in strict accordance with the instructions given and using any specific tools necessary.
◊ Anyone who performs the operations described herein without strictly following the instructions is personally
responsible for resulting injury or damage to property.
◊ The Manufacturer and all organisations belonging to the Manufacturer’s distribution network, including but
not restricted to national, regional or local distributors, will accept no responsibility for personal injury or dam-
age to property caused by abnormal function of parts and/or components not approved by the Manufacturer,
including those used for maintenance and/or repair of the product manufactured or marketed by the Manufac-
turer.
In any case, the product manufactured or marketed by the Manufacturer is covered by no guarantee of any
kind against personal injury or damage to property caused by abnormal function of parts and/or components
not approved by the Manufacturer.
PRINTED IN ?????
CONTENTS
GENERAL SECTION 00
ENGINE SECTION 10
CLUTCH SECTION 18
Clutches Chapter 1
Section Description Page
GEARBOX SECTION 21
STEERING SECTION 41
Steering Chapter 1
Section Description Page
Instruments Chapter 1
Section Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
Components Chapter 2
Section Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
55 500 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Component description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Battery Chapter 5
Section Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
90 000 Disassembly–Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SECTION 00 – GENERAL – CHAPTER 1 1
GENERAL INSTRUCTIONS
IMPORTANT NOTICE
All maintenance and repair operations described in this manual should be carried out exclusively by the FIATA-
GRI authorised workshops. All instructions detailed should be carefully observed and special equipment indi-
cated should be used if necessary.
Everyone who carries out service operations described without carefully observing these prescriptions will be
directly responsible of deriving damages.
SHIMMING
At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up
recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on rated value
indicated for each shim.
O RINGS
Lubricate the O rings before inserting them into their seats. This will prevent the O rings from rolling over and
twine during mounting which will jeopardise sealing.
SEALERS
Apply one of the following sealers: RTV SILMATE, RHODORSIL CAF 1, or LOCTITE PLASTIC GASKET over
the mating surfaces marked with an X.
Before applying the sealer, prepare the surface as follows:
– remove possible scales using a metal brush;
– thoroughly degrease the surfaces using one of the following cleaning agent: trichlorethylene, petrol or a water
and soda solution.
BEARINGS
It is advisable to heat the bearings to 80 to 90°C before mounting them on their shafts and cool them down before
inserting them into their seats with external tapping.
ROLL PINS
When fitting straight roll pins, ensure that the pin notch is oriented in the direction of the effort to stress the pin.
Coil roll pins can be installed in any position.
???
2 SECTION 00 – GENERAL – CHAPTER 1
Only genuine parts guarantee same quality, life, safety as original components as they are the same as mounted
in production.
Only the NEW HOLLAND genuine spare parts can offer this guarantee.
All spare parts orders should be complete with the following data:
– tractor model (commercial name) and frame number;
– engine type and number;
– part number of the ordered part, which can be found on the “Microfiches” or the “Spare Parts Catalogue”,
which is the base for order processing.
NOTICES
Wear limits indicated for some details should be intended as advised, but not binding values. The words “front”,
“rear”, “right hand”, and “left hand” referred to the different parts should be intended as seen from the operator’s
seat oriented to the normal sense of movement of the tractor.
SAFETY RULES
???
4 SECTION 00 – GENERAL – CHAPTER 1
◊ Use exclusively specified towing points for tow- ◊ In case of operations outside the workshop, drive
ing the tractor. Connect parts carefully. Ensure the tractor to a flat area and block it. If working on
that foreseen pins and/or locks are steadily fixed an incline cannot be avoided, first block the trac-
before applying traction. Do not stop near towing tor carefully. Move it to a flat area as soon as pos-
bars, cables or chains working under load. sible with a certain extent of safety.
◊ To transfer a failed tractor, use a trailer or a low ◊ Ruined or plied cables and chains are unreliable.
loading platform trolley if available. Do not use them for lifting or trailing. Always han-
◊ To load and unload the machine from the trans- dle them wearing gloves of proper thickness.
portation mean, select a flat area providing a firm
◊ Chains should always be safely fastened.
support to the trailer or truck wheels. Firmly tie
Ensure that fastening device is strong enough to
the machine to the truck or trailer platform and
hold the load foreseen. No persons should stop
block wheels as required by the forwarder.
near the fastening point, trailing chains or cables.
◊ For electrical heaters, battery–chargers and sim-
ilar equipment use exclusive auxiliary power ◊ The working area should be always kept CLEAN
supplies with a efficient ground to avoid electrical and DRY. Immediately clean any spillage of
shock hazard. water or oil.
◊ Always use lifting equipment and similar of ◊ Do not pile up grease or oil soaked rags, as they
appropriate capacity to lift or move heavy compo- constitute a great fire hazard. Always place them
nents. into a metal container.
Before starting the tractor or its attachments,
◊ Pay special attention to bystanders. check, adjust and block the operator’s seat. Also
◊ Never pour gasoline or diesel oil into open, wide ensure that there are no persons within the trac-
and low containers. tor or attachment operating range.
◊ Never use gasoline, diesel oil or other flammable ◊ Do not keep into your pockets any object which
liquids as cleaning agents. Use non–flammable might fall unobserved into the tractor’s inner
non–toxic proprietary solvents. compartments.
◊ Wear protection goggles with side guards when ◊ Whenever there is the possibility of being
cleaning parts using compressed air. reached by ejected metal parts or similar, use
protection eye mask or goggles with side guards,
◊ Do not exceed a pressure of 2.1 bar, in accor-
helmets, special footwear and heavy gloves.
dance with local regulations.
◊ Do not run the engine in a closed building without ◊ Wear suitable protection such as tinted eye
proper ventilation. protection, helmets, special clothing, gloves and
footwear whenever it is necessary to carry out
◊ Do not smoke, use open flames, cause sparks in welding procedures. All persons standing in the
the nearby area when filling fuel or handling vicinity of the welding process should wear tinted
highly flammable liquids. eye protection. NEVER LOOK AT THE WELD-
ING ARC IF YOUR EYES ARE NOT SUITABLY
◊ Do not use flames as light sources when working
PROTECTED.
on a machine or checking for leaks.
◊ Move with caution when working under a tractor, ◊ Metal cables with the use get frayed. Always
and also on or near a tractor. Wear proper safety wear adequate protections (heavy gloves, eye
accessories: helmets, goggles and special foot- protection, etc.)
wear.
◊ Handle all parts with the greatest caution. Keep
◊ During checks which should be carried out with your hands and fingers far from gaps, moving
the engine running, ask an assistant to seat at the gears and similar. Always use approved protec-
operator’s seat and keep the service technician tive equipment, such as eye protection, heavy
under visual control at any moment. gloves and protective footwear.
????
SECTION 00 – GENERAL – CHAPTER 1 5
◊ Always disconnect the batteries before perform- ◊ Do not twine chains or metal cables. Always wear
ing any type of service on the electrical system. protection gloves to handle cables or chains.
???
6 SECTION 00 – GENERAL – CHAPTER 1
CONSUMABLES
QUANTITY NEW HOLLAND
COMPONENT TO BE FILLED OR INTERNATIONAL
RECOMMENDED
TOPPED UP litres/dm3 US gal IMP gal SPECIFICATION
PRODUCTS
Cooling system:
Water & liquid
AMBRA AGRIFLU
models TD60, TD70 . . . . . . . . . . . 12 3.2 2.64 –
50% + 50%
models TD80, TD90, TD95 . . . . . 14 3.7 3.08
(NH 900 A)
Decanted and
Fuel tank........................................... 77 20.34 16.94 filtered –
diesel fuel
Engine sump:
without filter : AMBRA Supergold
TD60 and TD70............................... SAE 15W – 40
7.6 1.98 1.67 (NH 330G)
TD80, TD90andTD95...................... 10.5 2.77 2.31 API CF–4/SG
AMBRA Supergold
with filter : CCMC D4
SAE 10W – 30..
MIL–L–2104E
TD60 and TD70 HP models . . . . . . . 8.3 2.19 1.83 (NH 324G)
TD80, TD90 andTD95models.......... 11.2 2.96 2.46
Hydrostatic steering circuit . . . . . . . . . . 2.0 0.5 0.44
Front axle:
– axle housing:
models TD60, TD70 . . . . . . . . . . . 4.5 1.2 0.99
models TD80, TD90, TD95 . . . . . 7.0 1.8 1.54
– final drives (each):
models TD60, TD70 . . . . . . . . . . 0.8 0.2 0.18
models TD80, TD90, TD95 . . . . . 1.25 0.3 0.28
Rear transmission (bevel drive and Oil API GL4
brakes), gearbox, hydraulic lift and AMBRA MULTI G ISO 32/46
PTO (NH 410B) SAE 10W–30
models TD60,TD70, TD80, TD90,
TD95 . . . . . . . . . . . . . . . . . . . . . . . . 46 12.15 10.12
– with synchro–reverser:
models TD60, TD70, TD80, TD90,
TD95 . . . . . . . . . . . . . . . . 46 12.15 10.12
Rear final drives (each) . . . . . . . . . . . .
models TD60, TD70 . . . . . . . . . . . . 3.9 1.03 0.86
models TD80, TD90 and TD95 . . 5.3 1.40 1.17
Front wheel hubs . . . . . . . . . . . . . . . . . . – – – Grease
AMBRA GR9 NLGI 2
Grease fittings . . . . . . . . . . . . . . . . . . . . – – – (NH 710A)
WARNING
In order to correctly fill the oil and water tanks observe the existing level indications (e.g.: the level on
the oil dipstick). Park the tractor on level ground and, where possible, ensure that all of the hydraulic
cylinders are fully extended before checking oil levels.
????
SECTION 10 – ENGINE – CHAPTER 1 1
SECTION 10 – ENGINE
Chapter 1 – Engine
CONTENTS
Section Description Page
603.54.471.00 – 03 – 2004
2 SECTION 10 – ENGINE – CHAPTER 1
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 3
(continued)
GENERAL SPECIFICATION 3–cylinder 4–cylinder
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . forced, with gear pump
Normal oil pressure, with engine hot and at fast idling speed: . 2.9 to 3.9 bar (3 to 4 kg/cm2)
Radiator on TD60, TD70, TD80 and TD90 models . . . . . . . . . . 3–row vertical pipes with copper fins
603.54.471.00 – 03 – 2004
4 SECTION 10 – ENGINE – CHAPTER 1
(continued)
GENERAL SPECIFICATIONS 3–cylinder 4–cylinder
Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . overhead valves operated by a camshaft
located in the engine block through tap-
pets, pushrods and rockers. Camshaft is
driven by the crankshaft through helical
gears.
Intake:
– start: before T.D.C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12°
– end: after B.D.C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31°
Exhaust:
– start: before B.D.C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50°
– end: after T.D.C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16°
Valve clearance for timing check . . . . . . . . . . . . . . . . . . . . . . . . . . 0.45 mm
Valve clearance for normal running (engine cold):
– intake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.30 " 0.05 mm
– exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.30 " 0.05 mm
For further timing data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See page 20
Fuel System
Air cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual cartridge dry air filter with clogged
filter indicator, centrifugal pre–filter and
automatic dust ejector
Fuel pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . double diaphragm
For fixed advance (pump setting for start of delivery before refer to the data for the relevant engine
TDC) – Pressure setting – Injection order, and other informa- type in the table on pages 5 to 15
tion regarding the BOSCH pump
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 5
DATA
BOSCH pump:
Fuel Injectors:
BOSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
– Nozzle type . . . . . . . . . . . . . . . . . . . . . . . .
Number of nozzles 5 6
– Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
– Dimensions . . . . . . . . . . . . . . . . . . . . mm – – – – –
603.54.471.00 – 03 – 2004
6 SECTION 10 – ENGINE – CHAPTER 1
1. START OF DELIVERY
Plunger pre–lift from TDC: Pump rotation (viewed from drive side): Injection order: 1–2–3
mm anti–clockwise
7. DELIVERY AT STARTING
Rev/min: 100 Delivery: 80 – 110 mm3/per crank cycle
10. BACKFLOW
Rev/min – –
Backflow cm3 /10 sec – –
(continued)
Note: the values shown above in brackets must be used for checking purposes only.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 7
(cont)
603.54.471.00 – 03 – 2004
8 SECTION 10 – ENGINE – CHAPTER 1
1. START OF DELIVERY
Plunger pre–lift from TDC: Pump rotation (viewed from drive side): Injection order: 1–2–3
mm anti–clockwise
7. DELIVERY AT STARTING
Rev/min: 100 Delivery: 80 – 110 mm3 per crank cycle
10. BACKFLOW
Rev/min. – –
Backflow cm3 /10 sec – –
(continued)
Note: the values shown above in brackets must be used for checking purposes only.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 9
(continued)
603.54.471.00 – 03 – 2004
10 SECTION 10 – ENGINE – CHAPTER 1
mm – – 36,9–40,9 40,1–45,5 Test liquid: ISO 4113 at a temperature of 40° " 2°C.
1. START OF DELIVERY
Plunger pre–lift from TDC: Pump rotation (viewed from drive side): Injection order: 1–3–4–2
mm anti–clockwise
7. DELIVERY AT STARTING
Rev/min: 100 Delivery: 80 – 110 mm3 per crank cycle
10. BACKFLOW
Rev/min. – –
Backflow cm3 – –
(continued)
Note: the values shown above in brackets must be used for checking purposes only.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 11
(continued)
603.54.471.00 – 03 – 2004
12 SECTION 10 – ENGINE – CHAPTER 1
1. START OF DELIVERY
Plunger pre–lift from TDC: Pump rotation (viewed from drive side): Injection order: 1–3–4–2
mm anti–clockwise
7. DELIVERY AT STARTING
Rev/min: 100 Delivery: 80 – 110 mm3 per crank cycle
10. BACKFLOW
Rev/min. – –
Backflow cm3 – –
(continued)
Note: the values shown above in brackets must be used for checking purposes only.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 13
(continued)
603.54.471.00 – 03 – 2004
14 SECTION 10 – ENGINE – CHAPTER 1
1. START OF DELIVERY
Plunger pre–lift from TDC: mm Pump rotation (viewed from drive side): Injection order: 1–3–4–2
anti–clockwise
8. DELIVERY AT STARTING
Rev/min: 100 Delivery: 80 – 110 mm3 per crank cycle
11. BACKFLOW
Rev/min.
Backflow cm3
(continued)
Note: the values shown above in brackets must be used for checking purposes only.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 15
(continued)
603.54.471.00 – 03 – 2004
16 SECTION 10 – ENGINE – CHAPTER 1
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 17
Main bearing shell undersizes (internal diameter) . . . . . . . . . . . . . 0.254 – 0.508 – 0.762 – 1.016
Big–end bearing shell undersizes (internal diameter) . . . . . . . . . . 0.254 – 0.508 – 0.762 – 1.016
603.54.471.00 – 03 – 2004
18 SECTION 10 – ENGINE – CHAPTER 1
(continued)
Inside diameter of small end bushing (measured after fitting) . . . 38.004 to 38.014
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 19
mm
PISTON DATA
TD60, TD80 TD70, TD90,
TD95
– Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.50
603.54.471.00 – 03 – 2004
20 SECTION 10 – ENGINE – CHAPTER 1
TAPPET DATA mm
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 21
Cam lift:
603.54.471.00 – 03 – 2004
22 SECTION 10 – ENGINE – CHAPTER 1
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 23
mm
LUBRICATION SYSTEM DATA TD60, TD80 TD70, TD90 and
TD95
Assembly clearance between oil pump drive shaft and bushing . 0.016 to 0.055 –
Clearance between shaft and driven gear . . . . . . . . . . . . . . . . . . . . 0.033 to 0.066 –
Tooth backlash between drive and driven gears . . . . . . . . . . . . . . . 0.100 –
Radial clearance between drive and driven gears and housing . 0.060 to 0.170 –
Thickness of drive and driven gears . . . . . . . . . . . . . . . . . . . . . . . . . 40.961 to 41.000 –
Height of gear seat in pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.025 to 41.087 –
Endfloat between gears and gear housing in pump . . . . . . . . . . . . 0.025 to 0.126 –
Pressure relief valve spring: –
– free length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 35.9
– length under load of 45 to 49 N (4.6 to 5 kg) . . . . . . . . . . . . . . . 37.5 –
– length under load of 88 to 94 N (9 to 9.6 kg) . . . . . . . . . . . . . . . 30.5 –
– length under load of 127.8 to 141.2 N (130 to 144 kg)
(2, fig. 182) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – 29
– length under load of 233.4 – 258 N (238 to 263 kg) (2, fig. 182) – 23.2
For further lubrication system data . . . . . . . . . . . . . . . . . . . . . . . . . . See page 3
603.54.471.00 – 03 – 2004
24 SECTION 10 – ENGINE – CHAPTER 1
Preliminary torque
PART Th d
Thread A l
Angle
Nm kgm
Tightening torque
PART Thread
Nm kgm
Rocker shaft pedestal bolts (1) fig. 3 or 5 . . . . . . . . . . . . . . . . . . . . M8 25 2.5
Crankshaft hub retaining nut (7) fig. 3 or 5 . . . . . . . . . . . . . . . . . . . M 30 x 1.5 294 30
Fan and alternator pulley bolts (6) fig. 3 or 5 . . . . . . . . . . . . . . . . . M 10 x 1.25 55 5.6
Additional counterweight retaining bolts (1) fig. 6 for TD80, TD90
and TD95 models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 12 x 1.25 110 11,2
Inlet manifold retaining bolts (1) fig. 68 . . . . . . . . . . . . . . . . . . . . . . M8 25 2.6
Alternator and belt tension adjustment nut (1) fig. 54 . . . . . . . . . . M 10 x 1.25 55 5.6
Coolant pump retaining bolts (1) fig. 59 . . . . . . . . . . . . . . . . . . . . . . M 10 x 1.25 55 5.6
Nuts for injector mounting studs (1) fig. 138 . . . . . . . . . . . . . . . . . . M8 25 (*) 2.6 (*)
Rocker cover nuts (1) fig. 80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M8 15 1.5
Rocker shaft pedestal bolts (2) fig. 81 . . . . . . . . . . . . . . . . . . . . . . . M8 25 2.5
Oil pump and pump cover retaining bolts (1) fig. 89 . . . . . . . . . . . M8 25 2.6
Timing gear case and cover bolts (1) fig. 93 . . . . . . . . . . . . . . . . . . M8 25 2.6
Intermediate flanged journal bolts (1) fig. 96 . . . . . . . . . . . . . . . . . . M 10 x 1.25 55 5.6
Camshaft thrust plate retaining bolts (4) fig. 97 . . . . . . . . . . . . . . . M8 35 3.6
Rear crankcase cover bolts (2) fig. 117 . . . . . . . . . . . . . . . . . . . . . . M8 25 2.6
Tappet adjuster screw locknuts (1) fig. 137 . . . . . . . . . . . . . . . . . . . M8 22 2,2
Exhaust manifold retaining bolts (1) fig. 64 . . . . . . . . . . . . . . . . . . . M8 25 2.6
Injection pump mounting nuts (1) fig. 70 . . . . . . . . . . . . . . . . . . . . . M8 25 2.6
Sump pan retaining bolts (4) fig. 86, to
– inner rear timing cover and gear case . . . . . . . . . . . . . . . . . . . . . M 10 X 1.25 39 to 49 4 to 5
– cylinder block and flywheel case
• TD60, TD70, TD80 and TD90 models . . . . . . . . . . . . . . . . . . . . M 10 X 1.25 49 to 59 5 to 6
• TD95 models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 10 X 1.25 49 to 69 5 to 7
(*) Tighten the nuts in two stages: see the operation in figure 141.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 25
X 291309 Compression test kit (complete with 293671 Injector cleaning kit.
dummy injector 293862).
293760 Injector splitting support.
291966 Digital rev counter.
X 293761 Wrench set for injector dismantling.
291979 Digital temperature gauge.
293780 Injection check hand pump.
292870 Engine oil pressure test kit.
290284 Hand pump for injector calibration
293240 Check set, turbocharger (TD95 test.
model).
X 291883 Wrench for valve clearance adjust- X 295042 Extractor for injection pump drive
ment. gear.
603.54.471.00 – 03 – 2004
26 SECTION 10 – ENGINE – CHAPTER 1
26102
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 27
26103
603.54.471.00 – 03 – 2004
28 SECTION 10 – ENGINE – CHAPTER 1
MIG0491A
3
Longitudinal section of 3–cylinder TD60 and TD70 Models
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 29
MIG0492A
4
Cross–section of 3–cylinder TD60 and TD70 Models
603.54.471.00 – 03 – 2004
30 SECTION 10 – ENGINE – CHAPTER 1
MIG0493A
5
Longitudinal section of 4–cylinder model TD80, TD90 and TD95 Models
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 31
MIG0494A
6
Cross–section of 4–cylinder model TD80, TD90 and TD95
603.54.471.00 – 03 – 2004
32
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1
7
Lubrication system of normally aspirated 3–cylinder engines
1. Oil filler cap 2. Filter safety valve (opens when oil pressure at filter inlet exceeds the outlet pressure by 1.5–1.7 bar/cm2)
3. Filter. 4. Switch for low engine oil pressure warning (on dashboard). 5. Dipstick.
6. Pump. 7. Oil pressure limiting valve. 8. Screen filter on pick–up pipe
SECTION 10 – ENGINE – CHAPTER 1
603.54.471.00 – 03 – 2004
33
34 SECTION 10 – ENGINE – CHAPTER 1
1 2
3
4
25363
5
6
1
d
2
3
4
25364 6 5
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 35
ENGINE TROUBLESHOOTING
Engine does not start. 1. Batteries partially discharged. Check and recharge battery. Replace
if necessary.
603.54.471.00 – 03 – 2004
36 SECTION 10 – ENGINE – CHAPTER 1
ENGINE TROUBLESHOOTING
(continued)
5. Coolant pump and fan drive belt Check and adjust belt tension.
slack.
6. Coolant level low. Top up expansion tank with specified
coolant mixture.
9. Air cleaner restricted. Clean filter unit and replace filter ele-
ment if necessary.
Engine lacks power and 1. Incorrect injection pump timing. Adjust pump timing.
runs unevenly.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 37
ENGINE TROUBLESHOOTING
(continued)
Engine produces abnormal 1. Injectors partially obstructed or Clean and overhaul injectors and ad-
knocking noises. damaged. just pressure setting.
603.54.471.00 – 03 – 2004
38 SECTION 10 – ENGINE – CHAPTER 1
ENGINE TROUBLESHOOTING
(continued)
Engine produces excessive 1. Maximum delivery of injection Adjust injection pump on test bench to
black or dark grey smoke. pump too high. the values specified in calibration
chart.
Blue, grey–blue or grey– 1. Injection pump delivery Adjust injection pump/engine timing
white smoke. excessively retarded or or check automatic advance regula-
automatic advance regulator tor.
damaged.
3. Oil leaking past piston rings due Replace damaged parts or, if neces-
to sticking rings or cylinder liner sary, overhaul the engine.
wear.
Engine runs on after swit- 1. Engine stop solenoid damaged. Replace solenoid.
ching off.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 39
ENGINE
Removal – Installation (Operation 10 001 10)
DANGER
Lift and handle all heavy parts using suitable lifting
equipment.
Make sure that assemblies or parts are supported by
means of suitable slings and hooks.
Check that no one is in the vicinity of the load to be
lifted.
WARNING
Always use suitable tools to align holes in parts.
NEVER USE FINGERS OR HANDS.
25621
10
TRE0601A
11
603.54.471.00 – 03 – 2004
40 SECTION 10 – ENGINE – CHAPTER 1
TRE0602A
12
6. Remove the exhaust pipe, attach lifting chains to
the bonnet (1) and attach the chain to the hoist. 1
24872
13
7. Disconnect the electrical leads (1) from
headlamps (2).
1
2
24873
14
8. Detach the gas struts (1) from the bonnet.
1
TRE0603A
15
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 41
TRE0604A
16
10. Remove the wire mesh guard (1) from right–
hand side of the fan.
1
25028
17
25046
18
12. Detach the throttle control spring (1) and remove
the throttle lever (2). 1
25183
19
603.54.471.00 – 03 – 2004
42 SECTION 10 – ENGINE – CHAPTER 1
24892
20
25411
21
TRE0605A
22
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 43
TRE0606A
23
TRE0607A
24
18. Remove the hose (1) from the lift pump suction
pipe.
1
TRE0608A
25
603.54.471.00 – 03 – 2004
44 SECTION 10 – ENGINE – CHAPTER 1
TRE0609A
26
TRE0610A
27
21. Remove the fuel filter (1) complete with its sup-
port.
25035
28
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 45
25038
29
23. Remove the circlip (2) from the front of the prop
1 2
shaft and slide the sleeve (1), in the direction
shown by the arrow, until it is free of the splines
on the front axle.
25039
30
24. Remove the circlip (2) from the rear of the prop
shaft and slide the sleeve (1), in the direction 1
shown by the arrow, until it is free of the spines
on the crankshaft.
25040
31
25041
32
603.54.471.00 – 03 – 2004
46 SECTION 10 – ENGINE – CHAPTER 1
TRE0611A
33
27. Unscrew the nuts (1) and the bolts securing the
engine to the transmission. Access is through
the two slots in the cab floor.
1
TRE0612A
34
25049
35
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 47
25050
36
30. Insert a wooden block between the stands and
the tractor.
25051
37
31. Place a fixed stand (1) underneath the drawbar
support and apply the handbrake.
1
25052
38
25055
39
603.54.471.00 – 03 – 2004
48 SECTION 10 – ENGINE – CHAPTER 1
1 2
25056
40
25057 2
41
TRE0613A
42
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 49
25060
43
39. Remove the lift pump (1) complete with its filter
by unscrewing the four retaining bolts.
TRE0614A
1
44
TRE0615A
45
603.54.471.00 – 03 – 2004
50 SECTION 10 – ENGINE – CHAPTER 1
TRE0616A
46
TRE0617A
47
43. Unscrew the bolts (1) securing the silencer to its
bracket.
1
TRE0618A
48
44. Undo the hose clamp and disconnect the top
radiator hose (1). 1
45. Unscrew the three nuts securing the silencer to
the manifold and lift off the entire silencer assem-
bly.
TRE0619A
49
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 51
1
25068
50
25069
51
To re–install the engine, proceed as follows: — Reconnect all electrical leads: thermostart
— Attach the three hooks of an adjustable lifting glow plug, coolant temperature sensor, ‘air
chain to the three eye bolts on the engine. Raise filter blocked’ sensor, horn, front axle support
the engine from the platform and position it in earth, engine stop on injection pump, leads to
front of the front axle support. Join the two units the alternator and relay, oil pressure sensor,
using the four securing bolts. starter motor, fuel dryer filter. Secure all leads
with plastic ties.
— Reposition the moveable stand from under the
front axle differential housing to under the engine — Refit the clutch using tool 295022. Fix the
sump, inserting a suitably shaped block of wood clutch to the engine flywheel using the six
between the stand and the sump pan. retaining bolts.
— Attach the top radiator hose to the thermostat — Reconnect the oil delivery pipe to the 4WD
housing and secure with an adjustable hose control valve. Tighten the pipe union on the
clamp. anti–cavitation accumulator; fix the bracket on
the left–hand side near the engine oil filter.
— Connect the bottom radiator hose to the coolant
pump and secure at both ends with adjustable — Clean the distance collar and the mating surfa-
hose clamps. ces of the overdrive clutch housing; scrape
away all traces of old sealing compound.
— Refit the fuel pump.
— Apply LOCTITE sealing compound to the
— Detach the lifting chain from the engine. mating surfaces of engine and distance collar.
— Connect the rigid pipe from the air cleaner to the Fit the distance ring on the engine studs.
inlet manifold and secure with the relative clamp.
603.54.471.00 – 03 – 2004
52 SECTION 10 – ENGINE – CHAPTER 1
— Apply LOCTITE sealing compound to the mating — Connect the two flexible power steering pipes to
surfaces of the overdrive clutch housing. the union on the left–hand side of the front axle.
Secure the two pipes with the special clamp and
— Remove the fixed stand from under the front screw the clamp to the tractor.
weight support. Remove the wooden wedges from
under the front wheels. — Fit the tachometer cable and secure the sleeve
with the retaining ring.
— Attach the adjustable lifting chain to the eyebolts
on the engine. — Fit the silencer onto the exhaust manifold,
remembering to replace the gas seal. Fix the
— Place wooden wedges under the rear wheels, front of the silencer to the vertical support
check that the handbrake is fully on and that the bracket. Attach the flexible DONASPIN pipe.
fixed and moveable stands are firmly in place.
— Attach the bonnet stay bracket to the radiator
— Detach the lifting chain from the engine. Connect bracket.
the two wires still attached to the cab handrail to
the hook of the hoist. Raise the front part of the — Refit the 4WD propeller shaft and the guard.
cab about 6 cm.
— Re–connect the throttle cable to the accelerator
— Replace and tighten all the bolts securing the pedal. It may be necessary to adjust the cable at
engine to the overdrive clutch housing. the injection pump lever end.
— Bolt the brake pipe support bracket to the right– — Refit the clutch cable to the clutch pedal. Fix the
hand side of the engine. Lower the hoist and de- sleeve to the travel stop.
tach the cables from the cab handrail.
— Replace the plastic plugs in the holes in the cab
— Lower the stands under the engine sump and the floor. Replace the mat.
clutch housing. Remove tool 292320 and the
— Refit the steering column cover panels.
stand from under the drawbar support.
— Replace the wire mesh fan guards.
— Fix the cab in place with the two front securing
bolts. — Attach slings to the bonnet in the manner descri-
bed previously in the engine removal instruc-
— Connect the injector leak–off pipe. Connect the tions. Screw the bonnet hinge to its bracket. At-
pipes to the glowplug and to the fuel dryer filter. tach the gas strut, the electrical leads to the
headlamps and then remove the slings.
— Refit the fuel filter mounting to the engine. Connect
the two semi–rigid pipes to the mounting. — Refit the secondary bracket (battery support) to
the overdrive clutch housing. Fit the rotating
— Connect the oil suction pipes to the pumps;
bracket with the battery to the fixed support.
secure the rubber hoses with hose clamps.
— Refit the front weights and secure with the lock
— Connect the rigid lift control valve supply pipe to the pin.
relative pump, remembering to first fit the O–ring.
— Refit the tool box support bracket and then the
— Secure the three pipes with the adjustable hose tool box.
clamp.
— Fill the transmission/gearbox with oil.
— Connect up all the electrical leads to the
connectors on the vertical support bracket. — Fill the radiator with coolant.
— Fit the cab heater pipe union on the engine/ — Connect the battery positive and negative leads.
clutch distance collar. Connect the rubber heater Replace the plastic battery cover.
hoses to the union.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 53
ENGINE
Removal – Installation (Operation 10 001 54) 1
WARNING
Handle all parts carefully. Do not put your hands or
fingers between parts.
Wear suitable safety clothing, safety goggles, gloves
and footwear.
52
2. Remove the bonnet catch support side retaining
bolts (1) and back retaining bolts (2) take off the
bonnet catch and the bonnet stay bracket.
1
25071
53
3. Loosen the alternator pivot bolt.
1
4. Loosen the belt tension adjustment bolt (1).
5. Release the belt tension adjustment arm by
unscrewing the retaining nut.
6. Remove the alternator and coolant pump drive
belt.
25072
54
7. Unscrew the bolts securing the fan (1) and pulley
to the coolant pump. Remove the fan and pulley.
25073
55
603.54.471.00 – 03 – 2004
54 SECTION 10 – ENGINE – CHAPTER 1
25074
56
9. Loosen the hose clamp (1) and detach the hose
from the coolant pump. Remove the curved hose
and flexible cab heater hoses.
25075
57
10. Remove the union (1) in order to gain access to
the pump retaining bolt.
25077
58
11. Unscrew the coolant pump retaining bolts (1)
and remove the pump. 1
25076
59
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 55
25078
60
13. Fit mounting bracket (1) of the set 293860 to
permit attachment of the engine to the rotary
stand 290090.
25079
61
14. Fit an eyebolt (1) on the front of the engine in
place of the silencer support.
15. Raise the engine from the wooden platform and 1
move it to the rotary stand 290090 (2). Secure it
to the stand by means of the bracket (3) of the set
293860.
3 2
25080
62
16. Undo the alternator support retaining bolts (1)
and remove the complete alternator assembly.
1
25081
63
603.54.471.00 – 03 – 2004
56 SECTION 10 – ENGINE – CHAPTER 1
25082
64
18. Detach the throttle control lever (1) from the
injection pump.
1
25083
65
19. Remove the thermostat housing retaining bolts
(1) and remove the thermostat housing.
25084
66
20. Unscrew the high pressure fuel line unions (1) on
the injection pump and remove the fuel lines.
1
25085
67
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 57
25086
68
22. Unscrew the unions (1) on the fuel supply pump
and detach the fuel lines.
25087
69
23. Unscrew the nuts (1) securing the injection pump
to the timing gear case. 1
25088
70
24. Undo screws (1) and remove the injection pump
drive gear cover. 1
25089
71
603.54.471.00 – 03 – 2004
58 SECTION 10 – ENGINE – CHAPTER 1
25090
72
26. Extract the injection pump gearing using tool
295942 (1) and remove the injection pump.
25091
73
27. Undo the fuel line unions (1) on the fuel
sedimentation filter.
25092
74
28. Unscrew the bolts securing the sedimentation
1
filter support to the engine block and recover the
complete filter assembly.
25093
75
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 59
25094
76
30. Unscrew the power steering pump retaining
bolts (1) and remove the pump complete with
filter and accumulator on the delivery line.
25095
77
31. Remove spacer (3), gasket (2) and the pump
drive connector (1).
1
2
25096
3
78
32. Unscrew the starter motor retaining bolts (1) and
remove starter motor.
25097
79
603.54.471.00 – 03 – 2004
60 SECTION 10 – ENGINE – CHAPTER 1
25098
80
35. Remove the rocker shaft retaining bolts (2), then
remove the entire rocker shaft assembly (1).
2
1
25099
81
36. Remove the valve collets (1) and withdraw the
pushrods (2). Retain the collets and pushrods for 1
re–installation later. 2
25100
82
37. Unscrew the cylinder head bolts (1) and remove
the head using a hoist and lifting hook 290740.
38. Remove the cylinder head gasket.
25101 1
83
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 61
25102
2
84
40. Unscrew the retaining bolts and remove the oil
1
pick–up pipe (1) complete with the strainer and
seal.
41. Unscrew the retaining bolts (2) and free the
counterweight housing (3) by moving it outward. 4
Remove the sleeve coupling (4) and housing.
85
42. Unscrew the sump pan retaining bolts (4) and 1 2
remove the sump pan using a hoist, lifting hook
290740 and lifting chain with eyeholes.
43. Remove the half–gaskets (1) and (3) between
the crankcase and sump pan and the gasket (2)
between the timing gear carrier and sump pan.
3
25104
86
44. Remove the gasket (1) between the flywheel
carrier and the sump pan.
NOTE: When fitting the gaskets (1) and (3) (fig. 86),
apply RHODORSIL CAF1 silicone sealing com-
pound to the mating surfaces.
1
25105
87
603.54.471.00 – 03 – 2004
62 SECTION 10 – ENGINE – CHAPTER 1
25106
88
46. Undo the retaining bolts (1) and remove the
complete oil pump assembly.
1
25107
89
47. Unscrew the retaining bolts (2) and remove the
crankshaft pulley (1). 1
25108
90
48. Straighten the lock tab, preventing rotation of the
crankshaft and unscrew nut (1).
25109
91
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 63
49. Pull the pulley hub off the crankshaft using tool
291504 (1) and retain the woodruff key for re–
use.
25110
92
50. Unscrew the retaining bolt (1) and remove the
timing cover and its gasket.
25111
93
51. Unscrew the retaining bolts and remove the lift
pump drive gear carrier (1).
1
25112
94
52. Remove the circlip (1) and remove the thrust
washer and the intermediate gear (2).
1 2
25113
95
603.54.471.00 – 03 – 2004
64 SECTION 10 – ENGINE – CHAPTER 1
25114
96
54. Unscrew the retaining bolts (4) and withdraw the
camshaft (2) complete with the camshaft gear
(1) and the end plate (3).
1
2
4
25115
97
55. Remove the circlip (1) and the thrust washer.
Withdraw the gear with fuel supply pump
camshaft (2) from the opposite side.
1
25108
98
56. Unscrew the bolts (1) and remove the timing
gear case.
25109
99
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 65
25118
100
59. Rotate the engine on the stand through 90.
Unscrew the big–end cap bolts (2) and remove 1
the big–end caps (1), complete with their half
shell bearings.
25119
101
60. Slide the pistons (1), complete with rings,
gudgeon pins and connecting rods, out of the
cylinder liners.
25108
102
61. Rotate the engine on the stand through 90 back
to the horizontal position. Unscrew the flywheel
bolts and remove the flywheel with the aid of a 1
hoist and hook 290740.
62. Unscrew retaining bolts and remove the rear oil
seal carrier (1) complete with gasket.
25109
103
603.54.471.00 – 03 – 2004
66 SECTION 10 – ENGINE – CHAPTER 1
25122
104
65. Turn the engine on the stand 290090 (2) through
180. Attach the lifting chain with eye holes to the
1
crankcase as shown in the figure. Raise the hook
290740 with the hoist so that the lifting chain is
under slight tension. Unscrew the bolts securing
the crankcase to the stand (2) and mounting
bracket (3) (from set 293860).
66. Lift the engine clear of the stand. 3 2
67. Unscrew retaining bolts and remove the rear
crankcase housing (1) and its gasket.
25123
105
NOTE: The figure shows the oil pump for the TD90
and TD95 models
4
26106
106
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 67
1 2 3 4 5 6 7
28 8
27
26
25
24
23
22 21 11
25160
20 19 18 17 16 15 14 13 12 10 9
Sectional view of dynamic balancer 108
603.54.471.00 – 03 – 2004
68 SECTION 10 – ENGINE – CHAPTER 1
Proceed as follows:
24914
110
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 69
Proceed as follows:
— Install the tappets in their crankcase bores.
— Lubricate the main bearing seats (2) with engine
oil and install the half shell bearings (1).
— Stick the semi–circular thrust washers (3) to both
sides of the penultimate main bearing with
grease.
25109
111
24718
112
25108
113
603.54.471.00 – 03 – 2004
70 SECTION 10 – ENGINE – CHAPTER 1
24720
114
— Tighten each cap bolt (1) through a further 90°
using tool 292248 (2).
1
2
24744
115
— Check that crankshaft endfloat does not exceed
the value specified on page 17.
24760
116
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 71
Proceed as follows:
— Fit the rear oil seal carrier (3) with the outer seal.
Tighten retaining bolts (2) to the torque specified
3
on page 24. Using a feeler gauge (1), check that 2
the crankshaft flange is coaxial with the carrier.
24752
117
— Fit the inner rear oil seal using installer and hand
grip 50139 (1).
1
24761
118
— Fit the flywheel and tighten the retaining bolts (1)
to a torque of 40 Nm (4.1 kgm).
24762
119
— Using tool 292248 (1), tighten each flywheel bolt
(2) through a further 60°.
1
24763
120
603.54.471.00 – 03 – 2004
72 SECTION 10 – ENGINE – CHAPTER 1
25164
122
— Using tool 292248 (1), tighten each big–end cap
bolt (2) through a further 60°. 1 2
25165
123
— Rotate the engine on the stand through 180° and
clean the upper face of the cylinder block. Bring
the pistons (2) up to TDC and, using a dial gauge 1 2
with a magnetic base (1), check that the piston
protrusion from the cylinder block face is within
the tolerance limits specified on page 19.
25166
124
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 73
Proceed as follows:
25167
125
— The flywheel is marked in degrees BTDC. Rotate
the crankshaft to bring cylinder no. 1 to TDC of
the compression stroke. Look through the in-
spection window and check that the notch aligns
with the appropriate index mark, according to the
type of BOSCH pump installed on the tractor
(see pages 6, 8, 10, 12 and 14).
26107
126
— Fit the timing gears making sure that the various
reference marks on the mating gears (indicated
by the arrows in the figure) are aligned.
25169
127
603.54.471.00 – 03 – 2004
74 SECTION 10 – ENGINE – CHAPTER 1
25170
128
— Turn the rotating counterweight unit over and
insert the locating pin (2) in its hole. The pin 1 2
serves to hold the counterweights in the correct
timing position during installation of the unit.
— Using the hoist and a lifting chain, lower the
counterweight unit onto its seating in the sump.
25171
129
— Slide the coupling sleeve (1) over the splines of
the counterweight drive gear as shown in figure
85.
1
— Slide the other end of the coupling sleeve (1)
over the splined shaft of the counterweight drive
gear, so that the master spline in the sleeve
coincides with the master spline (3) on the shaft
(2).
— Tighten the dynamic balancer housing retaining
bolts (1) fig. 129 to the torque specified on page
24. 2
3
25172
130
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 75
2
25181
131
Proceed as follows:
25173
132
603.54.471.00 – 03 – 2004
76 SECTION 10 – ENGINE – CHAPTER 1
Proceed as follows:
— Lower the cylinder head onto the block and
screw in the cylinder head bolts (1) fig. 135,
finger tight.
— fig. 133 – Tightening sequence for cylinder head
bolts on 3–cylinder engines to be followed for
each of the four tightening stages (A = fan end).
25174
133
— Fig. 134 – Tightening sequence for cylinder head
bolts on 4–cylinder engines to be followed for
each of the four tightening stages (A = fan end).
25175
134
— First phase – Tighten the bolts (1) to a torque of
70 Nm (7.1 kgm) in the sequence shown in the
above figures (fig. 133/134).
— Second phase – Recheck the torque of all the
bolts in the sequence indicated above (fig.
133/134).
1
25176
135
99. Using the angular tightening tool 292248 (1),
tighten each bolt (2) in sequence through 90° 1
(third phase) and then through a further 90°
(fourth phase) in the sequence indicated above
(figures 133/134).
2
25177
136
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 77
25178
137
Proceed as follows:
603.54.471.00 – 03 – 2004
78 SECTION 10 – ENGINE – CHAPTER 1
WARNING
Handle all parts carefully. Do not put your hands or
fingers between parts.
Wear suitable safety clothing, safety goggles, gloves
and footwear.
1
25307
139
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 79
25308
140
25310
141
a,b. Position of dial gauge to measure liner inside X. Area for measurement of inside diameter of
diameter. worn liner (area swept by piston rings) to
c. TD70, TD90 and TD95 Models. determine ovality and taper (measure along
C. Dimension to achieve after press–fitting and axes a and b, respectively parallel and at right
reaming of liner. angles to crankshaft).
Z. Area for measurement of inside diameter of 1,2,3. Points at which to measure inside diameter
used liner to determine piston running of new or rebored liners along axes a and b.
clearance (measured along axis b at right
angles to crankshaft).
603.54.471.00 – 03 – 2004
80 SECTION 10 – ENGINE – CHAPTER 1
WARNING:
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing,
safety goggles, gloves and footwear.
Crankshaft
Clean parts carefully before proceeding with
operations described below.
Carefully inspect the crankshaft. Any cracks, even
minor ones, will necessitate replacement of the
crankshaft.
Inspect the crankshaft journals and crankpins;
slight scoring or seizure marks can be removed with
very fine grade emery cloth.
If scoring, ovality or taper exceeds 0.05 mm, the
crankshaft will have to be reground.
Measure journal diameter, fig. 142 to determine the
nearest undersize (see page 17).
After regrinding, restore the journal and crankpin
radii and fillets as shown in the details in fig. 143 and
check that:
— main bearing journal and crankpin ovality does
not exceed 0.008 mm;
— main bearing journal and crankpin taper does 25311
not exceed 0.01 mm;
142
a
b
d
d
e e
25312 25313
143
Standard dimensions (mm) of main bearing journals and crankpins, main bearings
and semi–circular thrust washers.
a. TD60 and TD70 models. d. Normal crankshaft journal radii and fillets.
b. TD80, TD90 and TD95 models. e. Radii and fillets of crankshaft journal with
c. Crankpin radii and fillets. thrust washers.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 81
— with the crankshaft resting on parallel gauge — the run–out measured with the dial gauge
blocks, the maximum misalignment of the main contact point resting on surface (A) or (B),
bearing journals does not exceed 0.10 mm (D) fig. 144, does not exceed the measurement
fig. 161; given in the chart on page 18;
— the centrelines of the crankpins (mod. TD70) or
of each pair of crankpins (TD70, TD80, TD90
— the oil plugs seal against an oil pressure of 14.7
and TD95 models) lie in the same plane as the
bar (15 kg/cm2);
main journal centrelines, with a maximum
deviation of"0.25 mm as measured perpen-
dicularly to the same plane (see fig. 143);
— the distances between the outer surfaces of the — if new plugs are fitted, punch–lock in position
crankpins and the crankshaft centreline are and re–check oil tightness with the system
equal with a tolerance of " 0.10 mm; pressurised.
b
B
a
25314
c
B
a
25315
144
Maximum tolerances for alignment of main bearing journals and crankpin relative to
crankshaft centreline and alignment of crankpins relative to main bearing journals (a)
603.54.471.00 – 03 – 2004
82 SECTION 10 – ENGINE – CHAPTER 1
Bearings
Check the clearance between the crankshaft
journals and bearing shells using a calibrated wire
1 2
gauge as follows:
— make sure that all parts are perfectly clean and 3
remove all traces of oil;
— locate the half–shells in their respective seats (5); 6
— install the crankshaft; 4
— position lengths of calibrating wire (6) on the 5
crankshaft journals (4) corresponding with the
crankshaft centreline.
25316
— fit the caps (1) complete with half–shells (2) to
the respective journals; 145
25318
146
25317
1
147
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 83
Flywheel
25319
149
603.54.471.00 – 03 – 2004
84 SECTION 10 – ENGINE – CHAPTER 1
CAUTION
Handle all parts carefully. Do not place hands or fin-
gers between one part and another. Wear the recom-
mended safety clothing such as goggles, gloves and
safety boots.
150
Also check that the oil ways (L and M) fig. 150 are
not obstructed by scale or impurities.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 85
WARNING
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing,
safety goggles, gloves and footwear.
25322
a. Checking piston diameter at a distance (L) from c. Checking the end gap with ring in cylinder bore.
the base of the skirt. L. Distance from base of piston skirt: 12 mm.
b. Checking piston ring groove clearance.
603.54.471.00 – 03 – 2004
86 SECTION 10 – ENGINE – CHAPTER 1
MIG0495A
153
Dimensions (mm) of standard pistons, gudgeon pins and rings.
1
Fit rings in grooves in the order indicated in fig. 153.
154
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 87
25108
155
NOTES:
1
— Oil the pistons, rings and liners before inserting
the pistons in their bores.
— Before fitting the ring clamp 291048 (1) to
compress the rings for insertion in the liner,
check that the ring end gaps are offset by an
angle of 180° i.e., opposite one another.
156
25327
157
603.54.471.00 – 03 – 2004
88 SECTION 10 – ENGINE – CHAPTER 1
WARNING
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing,
safety goggles, gloves and footwear.
Valves
Use tool 291050 for valve removal and installation.
In the case of minor sealing faults, the valves and
their seats in the cylinder head may be re–faced
using a pneumatic grinder or universal grinder. In
case of more serious defects, re–face the seats and
grind the valves as shown in the relative chapter.
After grinding, check that the step below the valve
contact band is no less than 0.5 mm.
Dimensions (mm) of valves and valve guides
A. Intake.
B. Distance to be obtained by reaming fitted valve
guide.
S. Exhaust.
25330
158
Tappets
Check that the tappets slide freely in their bores
without excessive play.
In the case of excessive tappet–to–bore clearance,
rebore the seats and fit oversize tappets (see page
20).
Pushrods must be perfectly straight, and the con-
cave contact surface with the rocker arm adjuster
screw must not show signs of seizure or excessive
wear, otherwise the rod must be replaced.
In case of refacing of the contact surfaces, remove
as little material as possible.
25329
159
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 89
Camshaft
25331
161
Dimensions (mm) of camshaft journals and relative seats in cylinder block.
NOTE: The value indicated for the bushing inside diameter is for an installed bush.
603.54.471.00 – 03 – 2004
90 SECTION 10 – ENGINE – CHAPTER 1
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 91
WARNING
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing,
safety goggles, gloves and footwear.
25108
164
603.54.471.00 – 03 – 2004
92 SECTION 10 – ENGINE – CHAPTER 1
VALVE GUIDES
Replacement (Operation 10 101 53)
WARNING
Lift and handle all heavy parts using suitable lifting
equipment.
Make sure that assemblies or parts are supported by
means of suitable slings and hooks.
Check that no one is in the vicinity of the load to be
lifted.
WARNING
Always use suitable tools to align holes in parts.
NEVER USE FINGERS OR HANDS.
25334
165
3. Turn the head upside down, and force fit the new
valve guide with the enlarged bore using drift
291046 (1) and bush 293231 (2).
25335
166
4. Ream out the valve guide bore (2) using reamer
(1) 292177.
25336
167
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 93
25337
168
The depth of taper milling is given by:
B–L=C
where:
B = 43.1 to 43.6 mm
L = 34 mm (distance measured). 1 2
169
7. Slide the cutter (1) of tool 294028, complete with
depth stop (2), into the previously located guide
bush until the cutting head is in contact with the
valve guide.
1
2
25339
170
603.54.471.00 – 03 – 2004
94 SECTION 10 – ENGINE – CHAPTER 1
25340
171
9. Position the depth stop (1) at a distance (D) =
35.9 to 336.4 mm from the end of the cutter
shank and fix in place with its set screw.
D=A–C 1
where:
Example
A = 45.5 mm
C = 9.1 to 9.6 mm
10. Turn the cutting tool (2) until the plate (3) is
brought up to the cylinder head face by the depth
stop (1). 2
25342
3
173
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 95
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing,
safety goggles, gloves and footwear.
25343
174
MIG0496A
175
603.54.471.00 – 03 – 2004
96 SECTION 10 – ENGINE – CHAPTER 1
WARNING
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing,
safety goggles, gloves and footwear.
25345
176
177
5. Screw part (11) fig. 179) fully into the previously
cut thread and turn nut (1) to withdraw the injec-
tor sleeve (12) from the head.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 97
10. Press by hand on the ring nut (or tap gently with
a rubber mallet) to release the inside of the guide
bush 293746 (10) fig. 179.
11. Remove the guide bush, and fit the milling cutter
293790 (8) fig. 179 in the bush. Install the bush
in the sleeve (12) and fix in position by turning the
ring nut (9) clockwise.
12. Work with the cutter to remove material until the
seating is perfectly smooth and free from all
marks.
13. This done, remove the cutter, fit the injector and
check that stand–out is as specified on page 22.
25343
178
7 8
2
5 9
1 4
3 6 10
12 11
25348
603.54.471.00 – 03 – 2004
98 SECTION 10 – ENGINE – CHAPTER 1
1 2 3 4 5 6 7 8 9
28
27
26
25
24
23 22 21 20 19 18 17 16 15 14 13 12 11 10
22605
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 99
WARNING
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing,
safety goggles, gloves and footwear. 1
25354
Cross–sectional view of engine lubrication oil
181
pump models TD60 and TD80 Models
1. External drive gear.
2. Bushing.
3. Drive shaft and gear. 1
4. Driven shaft and gear.
5. Pressure relief valve.
2
Cross–sectional view of engine lubrication oil
pump models TD90 and TD95 Models
1. Pressure relief valve.
2. Spring.
3. Pump housing.
4. Internal gears.
4 3
26109
182
MIG0497A
183
603.54.471.00 – 03 – 2004
100 SECTION 10 – ENGINE – CHAPTER 1
— oil the outer part of the seal in contact with the Degrees °C –8 –15 –25 –35
mounting on the crankcase; % in volume of
“AMBRA 20 30 40 50
— screw on the new cartridge until the seal is up AGRIFLU”
against the mounting;
— low oil pressure (the warning lamp also Two valves are built into the radiator cap, one
illuminates in normal conditions, with no faults compression valve and one depression valve. Check
present, when the engine is hot and idling at low periodically that they are working correctly.
speed);
When overhauling, remove deposits of lime scale in
— control switch malfunction. the radiator by means of a solution of water and
de–scaling agent in the proportions shown on the
If the red lamp fails to illuminate when the engine is container.
stopped and the ignition switch is turned to the power
on position, the possible causes are: It is never advisable to limit flushing to the radiator
only – always extend it to the entire cooling circuit
— blown fuse; and top up the engine with the solution referred to
above.
— blown lamp;
Run the engine for about an hour. With the engine off,
— interruption in wire to the control switch. drain the solution through the drain plug aperture.
THERMOSTAT – Replacement
The thermostat (1), fig. 9 is fitted in the cylinder head
coolant outlet union. The thermostat cannot be
adjusted and therefore must be replaced if does not
meet the temperature specifications in the table on
page 3.
RADIATOR
Removal – Installation (Operation 10 406 10)
DANGER
Lift and handle all heavy parts using suitable lifting
equipment.
Make sure that assemblies or parts are supported by
means of suitable slings and hooks.
Check that no one is in the vicinity of the load to be
lifted.
25028
185
4. Remove the hose clamp, detach the bottom radi-
ator hose (1) and drain off the coolant.
1
25124
186
5. Unscrew the front axle earth cable fixing bolt (1).
6. Disconnect electrical leads from the horn.
1
25125
187
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 103
TRE0620A
188
8. Remove the clamp (1) on the inlet manifold hose.
189
9. Remove the clamp (1) on the air filter hose.
25129
190
10. Remove the air filter restriction sensor (1) and re-
cover the pipe.
TRE0620A
191
603.54.471.00 – 03 – 2004
104 SECTION 10 – ENGINE – CHAPTER 1
25131
192
12. Unscrew the hose clamp (1) and remove the top
radiator hose. 1
TRE0619A
193
13. Unscrew the clamp and remove the pipe (1) from
the radiator cap.
1
25133
194
14. Unscrew the two bolts (1) securing the radiator
to the front axle support and remove the bolts,
rubber mountings and spacers.
1
25134
195
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 105
1
To refit the radiator proceed as follows:
— Replace the radiator and secure with the two
bolts. 25135
603.54.471.00 – 03 – 2004
106 SECTION 10 – ENGINE – CHAPTER 1
DANGER
Lift and handle all heavy parts using suitable lifting
equipment. Make sure that assemblies or parts are
supported by means of suitable slings and hooks.
Check that no one is in the vicinity of the load to be
lifted.
25028
197
4. Remove the hose clamp, detach the bottom
hose (1) and drain off the coolant.
1
25124
198
5. Unscrew the front axle earth cable fixing bolt (1).
6. Disconnect electrical leads from the horn.
1
25125
199
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 107
TRE0620A
200
8. Remove the clamp (1) on the inlet manifold hose.
201
9. Remove the clamp (1) on the air filter hose.
25129
202
10. Remove the air filter restriction sensor (1) and
pipe.
TRE0620A
203
603.54.471.00 – 03 – 2004
108 SECTION 10 – ENGINE – CHAPTER 1
25131
204
12. Unscrew the hose clamp remove the top radiator
hose (1). 1
TRE0619A
205
13. Unscrew the clamp and remove the pipe (1) from
the radiator cap.
1
25133
206
14. Unscrew the two bolts (1) securing the radiator
to the front axle support and remove the bolts,
rubber mountings and spacers.
1
25134
207
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 109
25135
208
16. Loosen the alternator pivot bolt.
25136
209
17. Loosen the belt tension adjuster bolt (1) and re-
move the belt. 1
25137
210
18. Remove the radiator fan (1).
1
25138
211
603.54.471.00 – 03 – 2004
110 SECTION 10 – ENGINE – CHAPTER 1
25139
212
25140 1
213
25141
214
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 111
603.54.471.00 – 03 – 2004
112 SECTION 10 – ENGINE – CHAPTER 1
COOLANT PUMP
Removal–Installation (Operation 10 402 10) 1
WARNING
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
25124
217
5. Remove the fan shroud (1) retaining bolts.
25143
218
6. Remove the two strips (1) from the sides of the
radiator.
1
25144
219
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 113
25145
220
9. Loosen the alternator pivot bolt (2).
10. Loosen the belt tension adjustment bolt (1).
25146
221
11. Remove the coolant pump pulley (1).
25147
222
12. Loosen the hose clamp (1) and detach the hose
from the coolant pump.
25148
223
603.54.471.00 – 03 – 2004
114 SECTION 10 – ENGINE – CHAPTER 1
25149
224
14. Remove pump connection pipe (1) to gain
access to the coolant pump retaining bolt (2). 2
1
25150
225
15. Unscrew the four bolts (1) fig. 226 securing the
coolant pump to its mounting.
25152
227
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 115
WARNING
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
228
3. Disconnect the electrical leads (1) from headlamps
(2).
1
2
24873
229
4. Detach the gas struts (1) from the bonnet.
1
TRE0603A
230
5. Remove the four bonnet hinge bolts (1) and lift
the bonnet clear.
1
TRE0604A
231
603.54.471.00 – 03 – 2004
116 SECTION 10 – ENGINE – CHAPTER 1
24804
232
7. Remove the wire mesh guard (1) from the right–
1
hand side of the radiator.
25028
233
8. Unscrew the hose clamp and disconnect the
hose (1) connecting the radiator to the 1
thermostat housing.
TRE0619A
234
9. Remove the thermostat housing cover screws
(1).
1
25156
235
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 117
25157
236
1
25158
237
603.54.471.00 – 03 – 2004
118 SECTION 10 – ENGINE – CHAPTER 1
Op. 10 246 14
BOSCH INJECTION PUMP Removal–Instal-
lation, timing and air bleeding
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear the prescribed safety
clothing, including goggles, gloves and safety foot-
wear.
CAUTION
Always use appropriate tools to align fixing holes.
NEVER USE FINGERS OR HANDS.
Proceed as follows:
25704
239
6. Disconnect the throttle control cable (1) from the
lever on the injection pump, the engine cut–out
electromagnet connection and the connection of
the thermometric circuit breaker cutting out star-
ting advance according to temperature (KSB).
27756
240
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 119
27757
241
9. Unscrew the injection pump locknut on the relati-
ve gearing (1).
27759
242
10. Using tool X295042 (1) remove the injection
pump from the gearing and recover the pump.
27760
243
11. Unscrew the bolts (1) securing the injection
pump.
27758
244
603.54.471.00 – 03 – 2004
120 SECTION 10 – ENGINE – CHAPTER 1
CAUTION
Always use appropriate tools to align fixing holes.
NEVER USE FINGERS OR HANDS.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 121
245
14. Make sure that the KSB fork (1) is free to move.
MIG0498A
246
15. Unscrew the unions of the fuel supply lines (1),
detaching them from the injection pump.
If necessary, disconnect the injection pump sup-
ply and return lines (2 and 3) and the LDA/intake
manifold connecting pipe.
27757
247
16. Remove the flywheel inspection window cover
(1) and the tappet cover.
17. Rotate the crankshaft to bring cylinder no. 1 at
T.D.C. and make sure the valves are closed
(compression stroke).
25704
248
603.54.471.00 – 03 – 2004
122 SECTION 10 – ENGINE – CHAPTER 1
26107
249
19. With the injection pump in its seat, remove the
plug (1) on the pump cover.
20. Fit dial gauge 291754 (1) fig. 251 and the asso-
ciated tool 291755 (2), pre–loading the shaft by 1
approximately 2.5 mm.
21. Turn the flywheel slowly backwards, so as to
bring the plunger to B.D.C. at the start of the deli-
very stroke (the point at which the dial gauge ne-
edle stops falling).
25711
250
22. Zero–set the dial gauge and slowly turn the
flywheel clockwise (as viewed from the fan end
of the engine) until the pointer lines up with
reference marks 4 for TD60 models, 0 for
TD70 and TD95 models, or 1 for TD80 and
TD90 models.
23. Check on the dial gauge that the plunger has
completed a stroke of 1 mm up to this point, if not,
slacken off the pump mounting bolts.
If the plunger stroke is checked with the pointer
at the T.D.C. there must be a stroke of: 1.47 mm 1 2
for mod. TD60 or 1.00 mm for mod. TD70 and
TD95, or 1.12 mm for mod. TD80 and TD90. 25712
24. Turn the pump anti–clockwise if the plunger has
251
completed a shorter stroke and clockwise if the
stroke is longer, repeating the test until the cor-
rect stroke is obtained.
25. Having obtained the correct plunger stroke, fix
the pump in position by tightening the mounting
nuts to the torque specified on page 24.
26. Remove the dial gauge 291754 (1) and relative
tool 291755 (2) and replace the plug and tighten
to a torque of 8 – 10 Nm (0.8 – 1 kgm).
27. Disconnect the KSB external power supply unit.
28. Refit other parts in the reverse of the dismantling
order.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 123
25198
252
2. Operate the priming lever (1) fig. 253 on the fuel
supply pump until the fuel coming out of the filter
orifice is free of bubbles, then replace and tighten
plug (1) fig. 252.
25199
253
3. Slacken the fuel line unions (1) on the injectors,
start the engine and then re–tighten the union (1)
when the fuel flows out free of bubbles.
25200
254
603.54.471.00 – 03 – 2004
124 SECTION 10 – ENGINE – CHAPTER 1
FUEL INJECTORS
Removal–Installation (Operation 10 218 30) 1
WARNING
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
255
3. Disconnect the electrical leads (1) from head-
lamps (2).
1
2
24873
256
4. Detach the gas struts (1) from the bonnet.
1
TRE0603A
257
5. Remove the four bonnet hinge bolts (1) and lift
the bonnet clear.
1
TRE0604A
258
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 125
25301
259
7. Unscrew the union (1) of the high–pressure fuel
line on the injector.
25302
1
260
8. Unscrew the two retaining nuts (1) and withdraw
the injector. 1
603.54.471.00 – 03 – 2004
126 SECTION 10 – ENGINE – CHAPTER 1
24872
262
3. Disconnect the electrical leads (1) from
headlamps (2).
1
2
24873
263
4. Detach the gas struts (1) from the bonnet.
1
TRE0603A
264
5. Remove the four bonnet hinge bolts (1) and lift
the bonnet clear.
1
TRE0604A
265
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 127
TRE0618A
266
9. Unscrew the four rocker cover nuts (1) and
remove cover.
25305
267
10. Remove the flywheel inspection window cover
(1).
25190
268
11. Adjust the clearance between the valves and the
rocker arms using a feeler gauge, wrench (1) and
the special tool 291883 (2). 1
NOTE: Before proceeding with adjustment
operations, position the valves as described on the 2
following page.
25306
269
603.54.471.00 – 03 – 2004
128 SECTION 10 – ENGINE – CHAPTER 1
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 129
5976
271
2
21663
273
603.54.471.00 – 03 – 2004
130 SECTION 10 – ENGINE – CHAPTER 1
ENGINE 5) Turn the engine over a few times with the starter
motor in order to expel any carbon residue.
Compression test (Operation 10 001 30)
6) Fit the dummy injector 293862 in place of the injec-
In case of poor engine performance, in addition to tor removed previously, inserting the copper sealing
checking the fuel injection system (injector nozzles washer.
and injection pump), also test the compression on
each cylinder. 7) Connect the compression tester 291309/1 and
take readings while turning the engine over with the
starter motor.
DANGER
Do not use matches, lighters, blow torches or any On engines in perfect working order, with the sump
naked flame as a source of light when inspecting the oil at approx. 40C, at sea level (760 mm mercury)
engine due to the presence of inflammable fluids and and at an engine speed of 200 – 280 rev/min, the
compression should be 25.5 – 27.5 bar (26 to 28 kg/
vapour.
cm2).
Uniform compression in all the cylinders ensures that Every 100 metres above sea level corresponds to a
they all perform an equal amount of work, provided reduction in compression by about 1%.
of course that each cylinder is injected with the same
quantity of fuel at the right time.
CONSIDERATIONS:
Low compression not only reduces engine perform-
ance, it also causes incomplete fuel combustion due
to the lack of available combustion air. Uniform compression
The engine therefore gives poor performance with Although high compression is important, it is more
excessive fuel consumption, and consequently ex- important as regards smooth running that the com-
haust smoke and restriction of the exhaust pass- pression is the same in all cylinders.
ages.
Low compression readings
As the compression ratio also varies with the tem-
perature of the engine (cold engines produce lower If very low compression readings are obtained on
compression values than hot engines) the compres- one cylinder it is advisable to repeat the test.
sion should only be tested when the engine is at nor-
mal operating temperature. Before testing this time, pour about a spoonful of en-
gine oil into the cylinder through the injector bore.
Compression should be tested using the compres-
sion test kit 291309 as follows: Turn the engine over a few times to distribute the oil
evenly over the cylinder walls, and then repeat the
test.
1) Run the engine until it reaches normal operating
temperature. If the second test readings are significantly higher,
suspect worn piston rings, out–of–round or damaged
2) Switch off the engine. pistons or liners.
3) Disconnect the lead from the engine stop solenoid If the second test readings are not higher, the prob-
on the injection pump in order to close the solenoid lem will be the valves.
valve and block the flow of fuel to the injectors.
On the other hand, if the second test reading shows
4) Remove the injector from the cylinder to be tested. only a slight improvement, the problem will be due to
both the valves and the rings.
603.54.471.00 – 03 – 2004
SECTION 10 – ENGINE – CHAPTER 1 1
SECTION 10 – ENGINE
CONTENT
SPECIFICATIONS
Normal oil pressure, warm engine running at max. speed: . . . . 2.9 to 3.9 bar (42 – 56 psi)
Radiator on TD60, TD70, TD80 and TD90 . . . . . . . . . . . . . . . . . 3–row vertical pipes with copper fins
Minimum fuel flow rate with pump shaft rotating at 1600 rev/min 100 litres/hour (.44 gpm)
For fixed advance (pump setting for start of delivery before refer to the data for the relevant engine
TDC) – Pressure setting – Injection order, and other type in the table in chapter 2.
information regarding the BOSCH pump
6 SECTION 10 – ENGINE – CHAPTER 1
Internal diameter of installed and reamed bushings . . . . . . . . . . . 32.050 to 32.075 (1.261 – 1.262)
Assembly clearance between shaft and bushings . . . . . . . . . . . . . 0.050 to 0.100 (0.001 – 0.003)
mm (in.)
CRANKCASE/CYLINDER BLOCK DATA 100 mm 104 mm
(3.93 in.) bore (4.09 in.) bore
Cylinder block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . cast–iron monobloc with replaceable
dry–fitted cylinder liners, incorporating
seatings for crankshaft bearings,
camshaft and pushrod/tappet
assemblies
Internal diameter of cylinder liners (1) . . . . . . . . . . . . . . . . . . . . . . . 100.000 to 100.024 104.000 to 104.024
(3.937 – 3.938) (4.094 – 4.095)
External diameter of cylinder liners . . . . . . . . . . . . . . . . . . . . . . . . . . 103.020 to 103.050 107,020 to 107.050
(4.055 – 4.057) (4.213 – 4.214)
Diameter of cylinder bores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102.850 to 102.900 106.850 to 106.900
(4.049 – 4.051) (4.206 – 4.208)
Interference fit between cylinder liners and bores . . . . . . . . . . . . . 0.120 to 0.200 (0.004 – 0.007)
Liner internal diameter oversizes . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 to 0.8 (0.015 – 0.031)
Liner external diameter oversizes . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 (0.007)
Maximum permissible liner ovality or taper due to wear (2) . . . . . 0.12 (0.004)
Diameter of main shell bearing seats . . . . . . . . . . . . . . . . . . . . . . . . 84.200 to 84.230(3.314 – 3.316)
Diameter of camshaft bearing seats:
– front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54.780 to 54.805(2.156 – 2.157)
– center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54.280 to 54.305(2.137 – 2.138)
– rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53.780 to 53.805(2.117 – 2.118)
Diameter of standard tappet bores in crankcase . . . . . . . . . . . . . . 15.000 to 15.018(0.590 – 0.591)
Tappet oversizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1 – 0.2 – 0.3(0.003 – 0.007 – 0.011)
mm (in.)
CRANKSHAFT AND BEARINGS DATA 100 mm 104 mm
(3.93 in.) bore (4.09 in.) bore
Crankshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . balanced with integral counterweights
Main bearing shell undersizes (internal diameter) . . . . . . . . . . . . . 0.254 – 0.508 – 0.762 – 1.016
(0.01 – 0.02 – 0.03 – 0.04)
Bearing shell to journal clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.034 to 0.103 (0.001 – 0.004)
Big–end bearing shell undersizes (internal diameter) . . . . . . . . . . 0.254 – 0.508 – 0.762 – 1.016
(0.01 – 0.02 – 0.03 – 0.04)
Big–end bearing shell to crankpin clearance . . . . . . . . . . . . . . . . . . 0.033 to 0.087 (0.001 – 0.003)
Width of main bearing including thrust washers . . . . . . . . . . . . . . . 31.766 to 31.918 (1.251 – 1.256)
Maximum ovality or taper of journals and crankpin after regrinding 0.01 (0.0004)
mm (in.)
CRANKSHAFT AND BEARINGS DATA
100 mm 104 mm
(3.93 in.) bore (4.09 in.) bore
mm (in.)
CONNECTING ROD DATA 100 mm 104 mm
(3.93 in.) bore (4.09 in.) bore
Inside diameter of small end bushing (measured after fitting) . . . 38.004 to 38.014
(1.496 – 1.50)
Max. tolerance for parallelism between the small end and big end
axes measured at 25 mm (.984 in.) . . . . . . . . . . . . . . . . . . . . . . . . . ± 0.07 (± 0.002)
Max. weight difference between con rods in same engine . . . . . . 25 grams (.88 oz)
SECTION 10 – ENGINE – CHAPTER 1 9
mm (in.)
PISTON DATA 100 mm 104 mm
(3.93 in.) bore (4.09 in.) bore
Piston protrusion at TDC from cylinder block face . . . . . . . . . . . . . 0.355 to 0.761 (0.013 – 0.029)
Gudgeon pin to small end bearing clearance . . . . . . . . . . . . . . . . . 0.014 to 0.031 (0.0005 – 0.001)
Max. weight difference between pistons in same engine 20 grams (0.7 oz)
Interference between bearings and seats in cylinder block . . . . . 0.070 to 0.150 (0.002 – 0.006)
Clearance between camshaft journals and bearings . . . . . . . . . . . 0.080 to 0.160 (0.003 – 0.006)
mm (in.)
TAPPET DATA 100 mm 104 mm
(3.93 in.) bore (4.09 in.) bore
Tappet bore in crankcase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15.000 to 15.018 (0.59 – 0.591)
mm (in.)
ROCKER ARM – VALVE DATA 100 mm 104 mm
(3.93 in.) bore (4.09 in.) bore
Cam lift:
Clearance between intermediate gear shaft (9) and related bushing 0.013 to 0.061 (.0004 – .002)
Tooth backlash between meshed gears . . . . . . . . . . . . . . . . . . . . . . 0.080 (.003)
12 SECTION 10 – ENGINE – CHAPTER 1
mm (in.)
CYLINDER HEAD DATA 100 mm 104 mm
(3.93 in.) bore (4.09 in.) bore
Cylinder head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . with valve seats cut directly in the
casting and press–fitted steel valve
guides.
Original height of cylinder head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 (3.62)
Max. face re–grinding depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 (.019)
Diameter of standard valve guide bores in head . . . . . . . . . . . . . . 13.950 to 13.983 (.549 – .550)
Outside diameter of standard valve guides . . . . . . . . . . . . . . . . . . . 13.993 to 14.016 (.550 – .551)
Guide interference fit in bores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.010 to 0.066 (.0004 – .0025)
Inside diameter of valve guide (fitted in head) . . . . . . . . . . . . . . . . 8.023 to 8.043 (.315 – .316)
Valve stem diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7. 985 to 8.000 (.314 – .315)
Assembly clearance between valve stem and guide . . . . . . . . . . . 0.023 to 0.058 (.001 – .002)
Maximum permissible clearance (wear limit) . . . . . . . . . . . . . . . . . 0.13 (.005)
Maximum run–out of valve guide on its stem measured through
360 with dial gauge contact point resting on valve head contact
band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.03 (.001)
Valve guide oversizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 (.0078)
Valve seat angle in head:
– inlet valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60o ± 5’
– exhaust valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45o ± 5’
Valve face angle:
– inlet valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60o 30’ ± 7’
– exhaust valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45o 30’ ± 7’
Valve head diameter:
– inlet valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45.300 to 45.500 (1.783 – 1.791)
– exhaust valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37.500 to 37.750 (1.476 – 1.486)
Valve stand–in relative to cylinder head face . . . . . . . . . . . . . . . . . 0.7 to 1.0 (.027 – .039)
Max. permissible valve stand–in . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3 (.051)
Inlet and exhaust valve springs:
– free length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44.6 (1.755)
– length with valve closed, under load of 256 to 284 N (57.5 to
63.7 lbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 (1.338)
– length with valve open, under load of 502 to 544 N (112 to 124
lbs) . . . . . . . . . . . . . . . . . 23.8 (.937)
Injector protrusion relative to head face:
BOSCH injector part 0.05 to 0.7 (.002 – .027)
0.3 to 1.1 (.011 – .043)
SECTION 10 – ENGINE – CHAPTER 1 13
mm (in.)
LUBRICATION SYSTEM DATA TD60, TD70, TD80 TD95
and TD90
Assembly clearance between oil pump drive shaft and bushing . . . 0.016 to 0.055 –
(.0006 – .002)
Clearance between shaft and driven gear . . . . . . . . . . . . . . . . . . . . 0.033 to 0.066 –
(.001 – .0025)
Tooth backlash between drive and driven gears . . . . . . . . . . . . . . . 0.100 (.004) –
Radial clearance between drive and driven gears and housing . . 0.060 to 0.170 –
(.002 – .006)
Thickness of drive and driven gears . . . . . . . . . . . . . . . . . . . . . . . . . 40.961 to 41.000 –
(1.612 – 1.614)
Height of gear seat in pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.025 to 41.087 –
(1.615 – 1.617)
Endfloat between gears and gear housing in pump . . . . . . . . . . . . 0.025 to 0.126 –
(.001 – .005)
Pressure relief valve spring: –
– free length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 (1.77) 35.9 (1.41)
– length under load of 45 to 49 N (10.1 to 11 lbs) . . . . . . . . . . . . . 37.5 (1.47) –
– length under load of 88 to 94 N (9.8 to 21 lbs) . . . . . . . . . . . . . . 30.5 (1.2) –
– length under load of 127.8 to 141.2 N (286 to 317 lbs)
(2, fig. 185) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – 29 (1.14)
– length under load of 233.4 to 258 N (525 to 580 lbs)
(2, fig. 185) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – 23.2 (.913)
For further lubrication system data . . . . . . . . . . . . . . . . . . . . . . . . . . see page 4
mm
COOLING SYSTEM DATA
100 mm bore 104 mm bore
Interference fit between pump impeller and shaft . . . . . . . . . . . . . 0.017 to 0.059
(.0006 – .002)
Interference fit between fan hub and shaft . . . . . . . . . . . . . . . . . . . 0.024 to 0.058
(.001 – .002)
Interference fit between front seal bushing and impeller . . . . . . . . 0.012 to 0.058
(.0004 – .002)
For further cooling system data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see page 4
14 SECTION 10 – ENGINE – CHAPTER 1
TIGHTENING TORQUES
Preliminary torque
PART Thread size Angle
Nm ft-lbs
SPECIAL TOOLS
List of specific tools required for the various X 380000276 Twist bit for enlarging valve guide
operations described in this section. bore.
380000236 Tractor disassembly stand. X 380000277 Twist bit for enlarging valve guide
bore 8°.
26101
26102
2
Splining tool to be manufactured for assembling the
crankshaft rear seal (print on the tool no. 50139 – val-
ues in mm).
Material UNI C40.
26103
3
SECTION 10 – ENGINE – CHAPTER 1 17
26104
4
Rear mountings for lifting hood (No. 50131 – measurements in mm).
Make with UNI Fe 42C – Quantity = 2.
Front hook for lifting hood (50132 – Measurements
in mm).
Make with UNI C40.
26105
5
18 SECTION 10 – ENGINE – CHAPTER 1
5 4 3
25355
6
Longitudinal section of 3–cylinder models TD60 and TD70
25356
7
Cross–section of 3–cylinder models TD60 and TD70
20 SECTION 10 – ENGINE – CHAPTER 1
5
6 4 3
25357
8
Longitudinal section of 4–cylinder models TD80, TD90 and TD95
25358
9
Cross–section of 4–cylinder models TD80, TD90 and TD95
1. Oil filler cap 2. Filter safety valve (opens when oil pressure at filter inlet exceeds the pressure at the outlet by 1.5 – 1.7 bar/cm2(21.7 – 24.6 psi) 3. Filter.
4. Switch for low engine oil pressure warning (on dashboard). 5. Dipstick. 6. Pump. 7. Oil pressure limiting valve. 8. Screen filter on pick–up pipe.
SECTION 10 – ENGINE – CHAPTER 1
11
Lubrification system of 4 – cylinder engine
1. Oil filler cap 2. Filter safety valve (opens when oil pressure at filter inlet exceeds the pressure at the outlet by 1.5 – 1.7 bar/cm2(21.7 – 24.6 psi) 3. Filter.
4. Switch for low engine oil pressure warning light (on dashboard). 5. Dipstick. 6. Pump. 7. Oil pressure limiting valve. 8. Screen filter on pick–up pipe.
23
24 SECTION 10 – ENGINE – CHAPTER 1
1 2
3
4
25363
5
6
1
d
2
3
4
25364 6 5
TROUBLESHOOTING
Engine does not start. 1. Battery partially discharged. Check and recharge battery. Replace
if necessary.
5. Coolant pump and fan drive belt Check and adjust belt tension.
slack.
6. Coolant level low. Top up expansion tank with specified
coolant mixture.
9. Air filter blocked. Clean filter unit and replace filter ele-
ment if necessary.
Engine lacks power and 1. Injection pump timing incorrect. Adjust pump timing.
runs unevenly.
Engine produces abnormal 1. Injectors partially obstructed or Clean, overhaul and calibrate injectors.
knocking noises. damaged.
2. Impurities accumulating in fuel Clean fuel lines and replace severely
lines. dented pipes. Clean injection pump if
necessary.
3. Incorrect injection pump timing. Adjust injection pump timing.
4. Crankshaft knocking due to Re–grind crankshaft journals and
excessive play in one or more main crankpins. Fit oversize shell bearings
or big–end bearings or excessive and thrust washers.
endfloat.
5. Crankshaft out of balance. Check crankshaft alignment and bal-
ance; replace if necessary.
6. Flywheel bolts loose. Replace any bolts that have worked
loose and tighten all bolts to the speci-
fied preliminary and angular torque
values.
7. Connecting rod axes not parallel. Straighten connecting rods, check
axes parallelism; replace con rods if
necessary.
8. Piston knock due to excessive Rebore cylinder liners and fit oversize
wear. pistons.
9. Noise caused by excessive play Fit oversize gudgeon pin, rebore pis-
of gudgeon pins in small–end and ton seats and small–end bushings.
piston bushings, or loose fit of Replace bushings.
small–end bushing.
10. Excessive tappet/valve noise. Check for broken springs or exces-
sive play between valve stems and
guides, cam followers and bores. Ad-
just valve clearances.
(continued)
28 SECTION 10 – ENGINE – CHAPTER 1
Engine produces excessive 1. Maximum delivery of injection Adjust injection pump on test bench to
black or dark grey smoke. pump too high. the values specified in calibration
chart.
2. Injection pump delivery excessively Adjust injection pump/engine timing or
retarded or automatic advance check automatic advance regulator.
regulator damaged.
3. Injection pump delivery excessively Adjust injection pump/engine timing.
advanced.
4. Injectors partially or totally Clean and overhaul injectors and ad-
obstructed or incorrectly adjusted. just pressure setting; replace if nec-
essary.
Blue, grey–blue or grey– 1. Injection pump delivery Adjust injection pump/engine timing or
white smoke. excessively retarded or automatic check automatic advance regulator.
advance regulator damaged.
3. Oil leaking past piston rings due Replace damaged parts or, if neces-
to sticking rings or cylinder liner sary, recondition engine.
wear.
Engine runs on after switch- 1. Engine stop solenoid damaged. Replace solenoid.
ing off.
OVERHAUL
ENGINE
Removal
DANGER
Lift and handle all heavy parts using suitable lifting
equipment.
Make sure that the load is supported by means of
suitable slings and hooks.
Make sure that no–one is standing in the vicinity of
the load to be lifted.
CAUTION
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
25621
13
1
TRE3107A
14
30 SECTION 10 – ENGINE – CHAPTER 1
5. Remove the weights (1) from the front support
(2).
1
2
TRE3107A
15
6. Remove the exhaust pipe, attach lifting chains to
the hood (1) using tools 50131 and 50132 and 1
attach the chain to the hoist.
24872
16
7. Detach the electrical leads (1) from the
headlamps (2).
1
2
24873
17
8. Detach the gas struts (1) from hood.
1
TRE0603A
18
SECTION 10 – ENGINE – CHAPTER 1 31
9. Remove the four hood hinge bolts (1) and lift the
hood clear.
1
TRE0604A
19
10. Remove the wire mesh guard (1) from right–
hand side of the fan.
TRE1319B
20
25046
21
12. Detach the throttle control spring (1) and remove
the throttle lever (2). 1
25183
22
32 SECTION 10 – ENGINE – CHAPTER 1
13. Detach the fusebox by unscrewing the nut (1) 1
TRE0606A
23
TRE0607A
24
15. Remove the hose (1) from the lift pump suction
pipe.
1
TRE0608A
25
SECTION 10 – ENGINE – CHAPTER 1 33
16. Detach the lift pump delivery pipe (1).
TRE0609A
26
TRE0610A
27
18. Remove the fuel filter (1) complete with its
support.
25035
28
34 SECTION 10 – ENGINE – CHAPTER 1
19. Remove the front, center and rear retaining bolts
from the front axle drive shaft guard and remove
the guard.
25038
29
20. Remove the circlip (2) from the front of the prop
1 2
shaft and slide the sleeve (1), in the direction
shown by the arrow, until it is free of the splines
on the front axle.
25039
30
21. Remove the circlip (2) from the rear of the prop
shaft and slide the sleeve (1), in the direction 1
shown by the arrow, until it is free of the spines
on the drive shaft.
2
25040
31
25041
32
SECTION 10 – ENGINE – CHAPTER 1 35
23. Unscrew the four lower bolts (1) securing the
engine to the transmission.
TRE3048A
33
24. Position stand 380000236 underneath the trac-
tor and insert a wedge (1), either side of the axle,
to prevent the axle from pivoting.
25050
34
25. Insert a wooden block between the stands and
the tractor.
25051
35
26. Place a fixed stand (1) underneath the drawbar
support and apply the handbrake.
1
25052
36
36 SECTION 10 – ENGINE – CHAPTER 1
28. Unscrew the four remaining bolts securing the
engine to the transmission. 1
29. Separate the engine from the transmission.
25055
37
1 2
25056
38
31. Insert tool 295022 (1) in the clutch center hole.
Unscrew the six bolts (2) securing the clutch to
the flywheel and remove complete clutch as-
sembly.
25057 2
39
SECTION 10 – ENGINE – CHAPTER 1 37
32. Remove the radiator mounting bolt (1).
TRE0613A
40
25060
41
34. Remove the lift pump (1) complete with its filter
by unscrewing the four retaining bolts.
TRE0614A
1
42
38 SECTION 10 – ENGINE – CHAPTER 1
35. Disconnect all electrical connectors and remove
the complete wiring harness (1).
TRE0615A
43
36. Slacken of the hose clamp and detach hose (1)
from the inlet manifold.
1
TRE0616A
44
TRE0617A
45
38. Unscrew the bolts (1) securing the silencer to its
bracket.
1
TRE0618A
46
SECTION 10 – ENGINE – CHAPTER 1 39
39. Undo the hose clamp and disconnect the top
radiator hose (1). 1
40. Unscrew the three nuts securing the silencer (2) to
the manifold and lift off the entire silencer assem-
bly.
TRE0619A
47
41. Using the hoist, raise the engine slightly and
position the moveable stand (1) under the front
axle.
1
25068
48
42. Undo the hose clamp and disconnect the bottom
radiator hose (1). 1
43. Unscrew the four bolts (2) securing the engine to
the front axle support, and lower the engine onto
a wooden platform.
25069
49
40 SECTION 10 – ENGINE – CHAPTER 1
Installation — Reconnect all electrical leads: thermostart
glow plug, coolant temperature sensor, ‘air
To re–install the engine, proceed as follows:
filter blocked’ sensor, horn, front axle support
— Attach the three hooks of an adjustable lifting earth, engine stop on injection pump, leads to
chain to three eye bolts on the engine. Raise the the alternator and relay, oil pressure sensor,
engine from the platform and position it in front starter motor, fuel dryer filter. Secure all leads
of the front axle support. Join the two units using with plastic ties.
the four securing bolts.
— Refit the clutch Fix clutch to the engine fly-
— Move the mobile stand from under the front axle wheel using the six retaining bolts.
differential housing to under the engine sump,
inserting a suitably shaped block of wood — Reconnect the oil delivery pipe to the DT control
between the stand and the sump pan. valve. Tighten the pipe union on the
anti–cavitation accumulator; fix the bracket on
— Attach the top radiator hose to the thermostat the left–hand side near the engine oil filter.
housing and secure with an adjustable hose
clamp. — Clean the distance collar and the mating sur-
faces of the overdrive clutch housing; scrape
— Connect the bottom radiator hose to the coolant away all traces of old sealing compound.
pump and secure at both ends with adjustable
hose clamps. — Apply LOCTITE sealing compound to the mat-
ing surfaces of engine and distance collar. Fit
— Refit the lift pump. the distance ring on the engine studs.
— Detach the lifting chain from the engine.
— Connect the rigid pipe from the air cleaner to the
inlet manifold and secure with the relative clamp.
SECTION 10 – ENGINE – CHAPTER 1 41
— Apply LOCTITE sealing compound to the mating — Connect the two flexible power steering pipes to
surfaces of the overdrive clutch housing. the union on the left–hand side of the front axle.
Secure the two pipes with a special clamp and fix
— Remove the fixed stand from under the bfront the clamp to the tractor with a screw.
weight support. Remove the wooden wedges from
under the front wheels. — Fit the tachometer cable and secure the sleeve
with the retaining ring.
— Attach the adjustable lifting chain to the eyebolts
on the engine. — Fit the silencer onto the exhaust manifold,
remembering to replace the gas seal. Fix the
— Place wooden wedges under the rear wheels, front of the silencer to the vertical support
check that the handbrake is fully on and that the bracket. Attach the flexible DONASPIN pipe.
fixed and moveable stands are firmly in place.
— Attach the hood stay bracket to the radiator
— Detach the lifting chain from the engine. Attach bracket.
the two cables still attached to the cab handrail
to the hook of the hoist. Raise the front part of the — Refit the 4WD transmission shaft and the guard.
cab about 6 cm. (2.36 in.)
— Re–connect the throttle cable to the accelerator
— Replace and tighten all the bolts securing the pedal. It may be necessary to adjust the cable at
engine to the overdrive clutch housing. the injection pump lever end.
— Bolt on the brake pipe support bracket on the — Refit the clutch cable to the clutch pedal. Fix the
right–hand side of the engine. Lower the hoist sleeve to the travel stop.
and detach the cables from the cab handrail.
— Refit the steering column cover panels.
— Lower the stands under the engine sump and the
— Replace the wire mesh fan guards.
clutch housing. Remove tool 292320 and the
stand from under the drawbar support. — Attach slings to the hood in the manner described
previously in the engine removal instructions.
— Connect the injector leak–off pipe. Connect the
Screw the hood hinge to its bracket. Attach the gas
pipes to the glowplug and to the fuel dryer filter.
strut, the electrical leads to the headlamps, and
— Refit the fuel filter mounting to the engine. Connect then remove the slings.
the two semi–rigid pipes to the mounting. — Refit the secondary bracket (battery support) to
the overdrive clutch housing. Fit the rotating
— Connect the oil suction pipes to the pumps;
bracket with the battery to the fixed support.
secure the rubber hoses with hose clamps.
— Refit the front weights and secure with the lock
— Connect the rigid lift control valve supply pipe to the
pin.
relative pump, remembering to first fit the O–ring.
— Refit the tool box support bracket and then the
— Secure the three pipes with the adjustable hose
tool box.
clamp.
— Fill the transmission/gearbox with oil.
— Connect up all the electrical leads to the
connectors on the vertical support bracket. — Fill the radiator with coolant mixture.
Compression Test On engines in perfect working order, with the sump oil
at approx. 40C (104F), at sea level (760 mm of
In case of poor engine performance, in addition to mercury) and at an engine speed of 200 to 280 rpm,
checking the fuel injection system (injector nozzles the compression should be 25.5 to 27.5 bar (370 to 400
and injection pump), also test the compression on psi).
each cylinder.
DANGER 8) Test the compression on the other cylinders, re-
Do not use matches, lighters, blow torches or any peating steps 4, 5, 6 and 7, bearing in mind that:
naked flame as a source of light when inspecting the
The minimum permissible compression on a used
engine due to the presence of inflammable fluids and engine is 21.6 bar (313 psi).
vapour.
The maximum permissible compression difference
between cylinders is 3 bar (43 psi).
Compression Ratio
Every 100 meters (328 ft) above sea level corre-
The compression ratio is a measure of the quantity sponds to a reduction in compression by about 1%.
of air drawn into the cylinder and provides an
indication of the efficiency of the sealing elements in
the cylinder (piston rings and valves). CONSIDERATIONS:
Uniform compression
Uniform compression in all the cylinders ensures that
they all perform an equal amount of work, provided
of course that each cylinder is injected with the same Although high compression is important, it is more
quantity of fuel at the right time. important as regards smooth running that the
compression is the same in all cylinders.
Low compression not only reduces engine
performance, it also causes incomplete fuel
combustion due to the lack of available combustion Low compression readings
air.
If very low compression readings are obtained on
The engine therefore gives poor performance with one cylinder it is advisable to repeat the test.
excessive fuel consumption, and consequently
exhaust smoke and restriction of the exhaust Before testing this time, pour about a spoonful of
passages. engine oil into the cylinder through the injector bore.
As the compression ration also varies with the tem- Turn the engine over a few times to distribute the oil
perature of the engine (cold engines produce lower evenly over the cylinder walls, and then repeat the
compression values than hot engines) the compres- test.
sion should only be tested when the engine is at nor-
mal operating temperature. If the second test readings are significantly higher,
suspect worn piston rings, out–of–round or damaged
Compression should be tested using the compression pistons or liners.
test kit 380000303 as follows:
1) Run the engine until it reaches normal operating If the second test readings are not higher, the problem
temperature; will be the valves.
2) Switch off the engine;
3) Disconnect the lead from the engine stop solenoid On the other hand, if the second test reading shows
on the injection pump in order to close the valve and only a slight improvement, the problem will be due to
block the flow of fuel to the injectors; both the valves and the rings.
4) Remove the injector from the cylinder to be tested;
5) Turn the engine over a few times with the starter
motor in order to expel any carbon residue;
6) Fit the dummy injector 293862 in place of the
injector removed previously, inserting the copper
sealing washer.
7) Connect the compression tester 380000303/1 and
take readings while turning the engine over with the
starter motor.
SECTION 10 – ENGINE – CHAPTER 1 43
Disassembly
1
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts.
Wear suitable safety clothing – safety goggles,
gloves and shoes.
50
2. Remove the hood catch lever retaining screw (1)
and take off the hood catch and the hood stay
bracket.
1
25071
51
3. Loosen the alternator pivot bolt.
1
4. Loosen the belt tension adjustment bolt (1).
5. Release the belt tension adjustment arm by
unscrewing the retaining nut.
6. Remove the alternator and coolant pump drive
belt.
25072
52
7. Unscrew the bolts securing the fan (1) and pulley
to the coolant pump. Remove the fan and pulley.
25073
53
44 SECTION 10 – ENGINE – CHAPTER 1
8. Remove the union (1) in order to gain access to
the pump retaining bolt.
25077
54
9. Unscrew the coolant pump retaining bolts (1)
and remove the pump. 1
25076
55
10. Unscrew the pump support bolts (1) and the
silencer support bolt. Remove the two supports.
25078
56
11. Fit mounting bracket (1) of the set 380000313 to
permit attachment of the engine to the rotary
stand 380000301.
25079
57
SECTION 10 – ENGINE – CHAPTER 1 45
12. Fit an eyebolt (1) on the front of the engine in
place of the silencer support.
13. Raise the engine from the wooden platform and 1
move it to the rotary stand 380000301 (2). Se-
cure it to the stand by means of the bracket (3)
of the set 380000313.
3 2
25080
58
14. Undo the alternator support retaining bolts (1)
and remove the complete alternator assembly.
1
25081
59
15. Unscrew the bolts (1) securing the exhaust
manifold to the cylinder head and remove the
manifold.
25082
60
16. Detach the throttle control lever (1) from the
injection pump.
1
25083
61
46 SECTION 10 – ENGINE – CHAPTER 1
17. Remove the thermostat housing retaining bolts
(1) and remove the thermostat housing.
25084
62
18. Unscrew the high pressure fuel line unions (1) on
the injection pump and remove the fuel lines.
1
25085
63
19. Unscrew the bolts (1) securing the inlet manifold
to the cylinder head and remove the manifold. 1
25086
64
20. Unscrew the unions (1) on the fuel supply pump
and detach the fuel lines.
25087
65
SECTION 10 – ENGINE – CHAPTER 1 47
21. Unscrew the nuts (1) securing the injection pump
to the timing gear case. 1
25088
66
22. Undo screws (1) and remove the injection pump
drive gear cover. 1
25089
67
23. Unscrew the nut (1) securing the injection pump
shaft to the drive gear. 1
25090
68
24. Withdraw the injection pump drive gear using
tool 295942 (1) and remove the injection pump
and the woodruff key.
25091
69
48 SECTION 10 – ENGINE – CHAPTER 1
25. Undo the fuel line unions (1) on the fuel
sedimentation filter.
25092
70
26. Unscrew the bolts securing the sedimentation
1
filter support to the engine block and recover the
complete filter assembly.
25093
71
27. Unscrew the retaining nut (1) and remove the
fuel pump support complete with the pump.
Retain the gasket for re–use, if undamaged.
25094
72
28. Unscrew the power steering pump retaining
bolts (1) and remove the pump complete with
filter and accumulator on the delivery line.
25095
73
SECTION 10 – ENGINE – CHAPTER 1 49
29. Remove spacer (3), gasket (2) and the pump
drive connector (1).
1
2
25096
3
74
30. Unscrew the starter motor retaining bolts (1) and
remove starter motor.
25097
75
31. Remove the injector mounting nuts and the
spherical washers beneath, then the supports 1
and the injectors themselves.
32. Remove the rocker cover bolts (1), washers and
seals and then the rocker cover and its gasket.
25098
76
33. Remove the rocker shaft retaining bolts (2), then
remove the entire rocker shaft assembly (1).
2
1
25099
77
50 SECTION 10 – ENGINE – CHAPTER 1
34. Remove the valve collets (1) and withdraw the
pushrods (2). 1
2
25100
78
35. Unscrew the cylinder head bolts (1) and remove
the head using a hoist and lifting hook
380000216.
36. Remove the cylinder head gasket.
25101 1
79
37. Turn the engine upside down on the rotary stand.
Remove the sump pan bolts, the sump pan (1)
and its gasket (2).
1
25102
2
80
38. Unscrew the retaining bolts and remove the oil
1
pick–up pipe (1) complete with the strainer and
seal.
39. Unscrew the retaining bolts (2) and free the coun-
terweight housing (3) by moving it outward. Re- 4
move the sleeve coupling (4) and housing.
81
SECTION 10 – ENGINE – CHAPTER 1 51
40. Unscrew the sump pan retaining bolts (4) and 1 2
remove the sump pan using a hoist, lifting hook
290740 and lifting chain with eyeholes.
41. Remove the half–gaskets (1) and (3) between
the crankcase and sump pan and the gasket (2)
between the timing gear carrier and sump pan.
3
25104
82
42. Remove the gasket (1) between the flywheel
carrier and the sump pan.
25105
83
43. Remove the rotating counterweight oil seal O–ring
(1) installed on the crankcase mating surface.
25106
84
44. Unscrew retaining bolts (1) and remove the
complete oil pump unit.
1
25107
85
52 SECTION 10 – ENGINE – CHAPTER 1
45. Unscrew the retaining bolts (2) and remove the
crankshaft pulley (1). 1
25108
86
46. Straighten the lock tab, preventing rotation of the
crankshaft and unscrew nut (1).
25109
87
47. Pull the pulley hub off the crankshaft using tool
380000226 (1) and retain the woodruff key for
re–use.
25110
88
48. Unscrew the retaining bolt (1) and remove the
timing cover and its gasket.
25111
89
SECTION 10 – ENGINE – CHAPTER 1 53
49. Unscrew the retaining bolts and remove the lift
pump drive gear carrier (1).
1
25112
90
50. Remove the circlip (1) and remove the thrust
washer and the intermediate gear (2).
1 2
25113
91
51. Unscrew the retaining bolts (1) and remove the
intermediate gear journal.
1
25114
92
52. Unscrew the retaining bolts (4) and withdraw the
camshaft (2) complete with the camshaft gear
(1) and the end plate (3).
1
2
4
25115
93
54 SECTION 10 – ENGINE – CHAPTER 1
53. Remove the circlip (1) and the thrust washer.
Withdraw the gear with fuel supply pump
camshaft (2) from the opposite side.
1
25108
94
54. Unscrew the bolts (1) and remove the timing
gear case.
25109
95
55. Renew the O–ring seal (1) installed in the lift
pump drive shaft lubrication line.
56. Remove the crankcase – timing gear case gasket.
25118
96
57. Rotate the engine on the stand through 90.
Unscrew the big–end cap bolts (2) and remove 1
the big–end caps (1), complete with their half
shell bearings.
25119
97
SECTION 10 – ENGINE – CHAPTER 1 55
58. Slide the pistons (1), complete with rings, wrist
pins and connecting rods, out of the cylinder
liners.
25108
98
59. Rotate the engine on the stand through 90 back
to the horizontal position. Unscrew the flywheel
bolts and remove the flywheel with the aid of a 1
hoist and hook 380000216.
60. Unscrew retaining bolts and remove the rear oil
seal carrier (1) complete with gasket.
25109
99
61. Unscrew the main bearing cap bolts (1) and
remove the main bearing caps with related
bearing shells. Remove the thrust washers
located on the penultimate main bearing, as
shown in the figure.
62. Lift the crankshaft clear of the crankcase using
a hoist and nylon sling. Remove the bearing
shells, thrust washers and tappets. 1
25122
100
63. Turn the engine on the stand 38000301 (2)
through 180. Attach the lifting chain with eye
1
holes to the crankcase as shown in the figure.
Raise the hook 380000216 with the hoist so that
the lifting chain is under slight tension. Unscrew
the bolts securing the crankcase to the stand (2)
and mounting bracket (3) (from set 380000313).
64. Lift the engine clear of the stand. 3 2
65. Unscrew retaining bolts and remove the rear
crankcase housing (1) and its gasket.
25123
101
56 SECTION 10 – ENGINE – CHAPTER 1
4
26106
102
NOTE: Operations 1. to 9. relative to the dismantling 2
of the rotating counterweight dynamic balancer only 1
apply to 4–cylinder models.
1 2 3 4 5 6 7
28 8
27
26
25
24
23
22 21 11
25160
20 19 18 17 16 15 14 13 12 10 9
Sectional view of dynamic balancer. 104
24913
4 3 2
105
— The intermediate gear (3) fig. 105 must be
installed with the longer side of its hub towards 1
the casing side;
— The holes for the roll pins (1) in the counterweight
shafts (2) must be aligned with corresponding
holes in the casing.
— Install the counterweight assembly on the sump
carrying out on page 58. 2
24914
106
SECTION 10 – ENGINE – CHAPTER 1 59
Tappets, Main Bearings and Crankshaft
Proceed as follows:
— Install the tappets in their crankcase bores.
— Lubricate the main bearing seats with engine oil
and install the half shell bearings (3).
— Stick the semi–circular thrust washers to both
sides of the penultimate main bearing with
grease.
25109
107
— Lubricate the upper surfaces of the main bearing
shells with engine oil and lower the crankshaft (1) 1
into position taking care not to dislodge the
semi–circular thrust washers installed previously.
24718
108
— Lubricate the crankshaft journals with engine oil
and fit the main bearing caps (3) with the
half–shells (4), fitting the top semi–circular thrust 1 2
3
washers (2) to the penultimate bearing cap.
— Rotate the crankshaft (1) a few times to allow the
parts to settle into position.
— Insert the main bearing cap bolts and screw in
until the head of the bolt is up against the cap. 4
25108
109
60 SECTION 10 – ENGINE – CHAPTER 1
24720
110
— Tighten each cap bolt (1) through a further 90o
using tool 380000304 (2).
1
2
24744
111
— Check that crankshaft endfloat does not exceed
the value specified on page 7.
24760
112
SECTION 10 – ENGINE – CHAPTER 1 61
Installing Rear Cover Seal, and Flywheel
(Disassembly operation 62)
1
Proceed as follows:
— Fit the rear oil seal carrier (3) with the outer seal.
Tighten retaining bolts (2) to the torque specified
on page 14. Using a feeler gauge (1), check that
3
the crankshaft flange is coaxial with the carrier. 2
24752
113
— Fit the inner rear oil seal using installer and hand
grip 50139 (1).
1
24761
114
— Fit the flywheel and tighten the retaining bolts (1)
to a torque of 40 Nm (29 ft-lbs).
24762
115
— Using tool 380000304 (1), tighten each flywheel
bolt (2) through a further 60o.
1
24763
116
62 SECTION 10 – ENGINE – CHAPTER 1
Piston Assembly and Installation
(Disassembly operations 59 and 60)
Proceed as follows:
— Lubricate pistons, rings and cylinder liners with
engine oil prior to fitting.
— Fit the piston rings using piston ring pliers
291160. Make sure that the piston ring gaps are
offset 180o apart.
— Fit piston ring clamp 380000220 (1) to compress
the rings, making sure that the piston ring gaps
remain180o apart.
— Insert the piston/connecting rod into the cylinder 25163
25164
— Using tool 380000304 (1), tighten each big–end
cap bolt (2) through a further 60o. 118
1 2
25165
— Rotate the engine on the stand through 180o and
clean the upper face of the cylinder block. Bring 119
the pistons (2) up to TDC and, using a dial gauge
with a magnetic base (1), check that the piston
protrusion from the cylinder block face is within 1 2
the tolerance limits specified on page 9.
25166
120
SECTION 10 – ENGINE – CHAPTER 1 63
Synchronizing the Timing Gears
(Disassembly operations 51 – 55)
Proceed as follows:
25167
121
— The flywheel is marked in degrees BTDC. Turn
the drive shaft so as to bring cylinder No. 1 to
TDC on the compression stroke. Look through
the inspection window and check that the notch
aligns with the appropriate index mark, accord-
ing to the type of BOSCH pump installed on the
tractor (see chapter 2)
26107
122
— Fit the timing gears making sure that the various
reference marks on the mating gears (indicated by
the arrows in the figure) are aligned.
25169
123
64 SECTION 10 – ENGINE – CHAPTER 1
Counter–Rotating Balancer Installation/Timing
(Disassembly operation 41)
25170
124
— Turn the rotating counterweight unit over and
insert the locating pin (2) in its hole. The pin 1 2
serves to hold the counterweights in the correct
timing position during installation of the unit.
— Using the hoist and a lifting chain, lower the
counterweight unit onto its seating in the sump.
25171
125
— Slide the coupling sleeve (1) over the splines of
the counterweight drive gear as shown in figure
133.
1
— Slide the other end of the coupling sleeve (1)
over the splined shaft of the counterweight drive
gear, so that the master spline in the sleeve
coincides with the master spline on the shaft (3).
— Tighten the dynamic balancer housing retaining
bolts (1) fig. 125 to the torque specified on page
14.
2
3
25172
126
SECTION 10 – ENGINE – CHAPTER 1 65
Injection Pump Installation/Timing
(Disassembly operations 23 – 26)
2
25181
127
Proceed as follows:
25173
128
Cylinder Head Installation
(Disassembly operation 37)
Proceed as follows:
— Lower the cylinder head onto the block and
screw in the cylinder head bolts (1) fig. 131,
finger tight.
— Fig. 129 – Tightening sequence for cylinder head
bolts on 3–cylinder engines to be followed for
each of the four tightening stages (A = fan end).
25174
129
66 SECTION 10 – ENGINE – CHAPTER 1
— Fig. 130 – Tightening sequence for cylinder head
bolts on 4–cylinder engines to be followed for
each of the four tightening stages (A = fan end).
25175
130
— 1st. stage – Tighten the bolts (1) to a torque of
70 Nm (51 ft-lbs) in the sequence indicated
above (figs. 129/130).
— 2nd. stage – Recheck the torque of all the bolts
in the sequence indicated above (figs. 129/130).
25176
131
100. Using the angular tightening tool 380000304
(1), tighten each bolt (2) in sequence through 1
90o (3rd. stage) and then through a further 90o
(4th. stage) in the sequence indicated above
(figs. 129/130).
2
25177
132
Adjusting Valve/Rocker Arm Clearance
(Disassembly operation 34)
SECTION 10 – ENGINE – CHAPTER 1 67
25178
133
Fitting the Injectors
(Disassembly operation 33)
Proceed as follows:
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts.
Wear suitable safety clothing – safety goggles,
gloves and shoes.
25307
135
SECTION 10 – ENGINE – CHAPTER 1 69
— Press the worn liner out of the block, operating
from the bottom of the crankcase, using a
stepped plate of appropriate diameter.
— Check the ovality of the bore in the block and
rebore if necessary to 0.22 mm (.008 in.)
oversize.
— Press–fit the new liner (0.22 mm (.008 in.)
oversize if necessary) from the top of the block,
using the stepped plate referred to above.
— Rebore and ream the liner to the specified inside
diameter (see page 6).
25308
136
25309
25310
Standard dimensions (mm) of cylinder liners and bores in cylinder block 137
and positions for checking liner wear.
a,b. Perpendicular positions of dial gauge to mea- X. Area for measurement of inside diameter of
sure liner inside diameter. worn liner (area swept by piston rings) to
c. Models TD60 and TD80. determine ovality and taper (measure along
d. Models TD70, TD90 and TD95. axes a and b, respectively parallel and
C. Dimension to obtain after press–fitting and perpendicular to crankshaft).
reaming of liner. 1,2,3. Points at which to measure inside diameter
Z. Area for measurement of inside diameter of used of new or rebored liners along axes a and b.
liner to determine piston running clearance
(measured along axis b perpendicular to
crankshaft).
70 SECTION 10 – ENGINE – CHAPTER 1
Crankshaft, Main Bearings and Flywheel
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing
– safety goggles, gloves and shoes.
Crankshaft
Clean parts carefully before proceeding with
operations described below.
Carefully inspect the crankshaft. Any cracks, even
minor ones, will necessitate replacement of the
crankshaft.
Inspect the crankshaft journals and crankpins;
slight scoring or seizure marks can be removed with
very fine grade emery cloth.
If scoring, ovality or taper exceeds 0.05 mm (.002
in.), the crankshaft will have to be reground.
Measure journal diameter, fig.138, to determine the
nearest undersize (see page 7).
After regrinding, restore the journal and crankpin ra-
dii and fillets as shown in the details in fig.139 and
check that:
— main bearing journal and crankpin ovality does
not exceed 0.008 mm (.0003 in.);
— main bearing journal and crankpin taper does 25311
a
b
d
d
e e
25312 25313
139
Standard dimensions (mm) of main bearing journals and crankpins, main bearings
and semi–circular thrust washers.
a. Models TD60 and TD70. d. Normal crankshaft journal radii and fillets.
b. Models TD80, TD90, and TD95. e. Radii and fillets of crankshaft journal with
c. Crankpin radii and fillets. thrust washers.
SECTION 10 – ENGINE – CHAPTER 1 71
— with the crankshaft resting on parallel gauge — the run–out measured with the dial gauge contact
blocks, the maximum misalignment of the main point resting on surface (A) or (B), fig.140, does
bearing journals does not exceed 0.10 mm not exceed the value specified in the table on
(.0004 in.) (D) fig. 161; page 8;
— the centerlines of the crankpins (TD70) or of
each pair of crankpins (models TD70, TD80,
— the oil plugs seal against an oil pressure of 14.7
TD90 and TD95) lie in the same plane as the
bar (213 psi);
main bearing journal centerlines, with a maxi-
mum deviation of "0.25 mm (.009 in.) as
measured perpendicularly to the same plane
(see fig.139); — if new plugs are fitted, punch–lock in position and
— the distances between the outer surfaces of the re–check oil tightness with the system
crankpins and the crankshaft centerline are pressurised.
equal with a tolerance of " 0.10 mm (.0004 in.);
b
B
a
25314
c
B
a
25315
140
Maximum tolerances for alignment of main bearing journals and crankpin relative to
crankshaft centerline and alignment of crankpins relative to main bearing journals (a).
25318
142
25319
145
74 SECTION 10 – ENGINE – CHAPTER 1
Connecting Rods
WARNING
Handle all parts with great care. Do not put your
hands or fingers between one part and another.
Wear the recommended safety clothing, i.e. goggles,
gloves and protective shoes.
25320
146
Also check that the oil ways (L and M) fig.146 are not
obstructed by scale or impurities.
SECTION 10 – ENGINE – CHAPTER 1 75
Pistons
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing
– safety goggles, gloves and shoes.
25322
a. Checking piston diameter at a distance (L) from c. Checking the end gap with ring in cylinder bore.
the base of the skirt. L. Distance from base of piston skirt: 57 mm (2.24 in.).
b. Checking piston ring groove clearance.
76 SECTION 10 – ENGINE – CHAPTER 1
25323
149
Dimensions (mm) of standard pistons, gudgeon pins and rings.
1
Fit rings in grooves in the order indicated in fig. 149.
150
SECTION 10 – ENGINE – CHAPTER 1 77
Check that the piston/connecting rod assembly is
perfectly square.
25108
151
NOTES:
152
25327
153
78 SECTION 10 – ENGINE – CHAPTER 1
Camshaft, Tappets and Valves
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing
– safety goggles, gloves and shoes.
Clean all parts carefully before carrying out the
following operations.
Valves
Use tool 380000302 for valve removal and installa-
tion.
In the case of minor sealing faults, the valves and
their seats in the cylinder head may be re–faced us-
ing pneumatic grinder or universal grinder. In case of
more serious defects, re–face the seats and grind
the valves as shown in the relative chapter.
After grinding, check that the step below the valve
contact band is no less than 0.5 mm (.019 in.).
25330
154
Tappets
25331
157
Dimensions (mm) of camshaft journals and relative seats in cylinder block.
NOTE: The value indicated for the bushing inside diameter is for an installed bush.
80 SECTION 10 – ENGINE – CHAPTER 1
Valve timing check
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing
– safety goggles, gloves and shoes.
25108
160
82 SECTION 10 – ENGINE – CHAPTER 1
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing
– safety goggles, gloves and shoes
1 2 3 4 5 6 7 8 9
28
27
26
25
24
23 22 21 20 19 18 17 16 15 14 13 12 11 10
22605
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing
– safety goggles, gloves and shoes.
Oil Pump
To access the oil pump, remove the sump pan.
When servicing the pump, check component wear
against dimensions specified in the table. 1
25354
162
4 3
26109
163
84 SECTION 10 – ENGINE – CHAPTER 1
Oil Filter COOLING SYSTEM
The oil filter (3) figs. 10 and 11 is of the full–flow, Clean all parts carefully before proceeding with the
integral paper cartridge type, and is installed in the operations described below.
pump delivery line.
Should the filter become clogged, the safety valve (2) The cooling system is filled with a permanent coolant
will open to allow the oil to by–pass the filter, thus mixture consisting of water and ”AKCELA Premium
ensuring that the engine continues to be lubricated, Anti Freeze” antifreeze (up to 50% in volume). This
although with unfiltered oil. mixture prevents freezing down to the following
temperatures:
Replace the cartridge periodically (every 400
operating hours), remembering to: Degrees oF 17.6 5 –13 –31
Degrees oC –8 –15 –25 –35
— oil the outer part of the seal in contact with the
mounting on the crankcase; % in volume of
— screw on the new cartridge until the seal is up ”AKCELA Premium 20 30 40 50
against the mounting; Anti Freeze”
— tighten the cartridge by hand only through a
further 3/4 turn. This mixture also has anti–oxidant, anti–corrosion,
anti–foaming and anti–scaling properties to ensure
long–term protection of the cooling system.
The same mixture can be kept in the cooling system
Low Oil Pressure Indicator
for a maximum of 2 years or 1600 operating hours,
The indicator consists of a control switch (4) figs. 10 whichever comes sooner, after which it must be
and 11 and a red warning lamp in the instrument changed.
panel, which illuminates in the following conditions:
— low oil pressure (the warning lamp also illuminates Radiators
in normal conditions, without signifying a fault,
Two valves are built into the radiator cap, one
when the engine is hot and idling at low speed);
compression valve and one depression valve. Check
— control switch malfunction. periodically that they are working correctly.
If the red lamp fails to illuminate when the engine is When overhauling, remove deposits of lime scale in
stopped and the ignition switch is turned to the power the radiator by means of a solution of water and
on position, the possible causes are: de–scaling agent in the proportions shown on the
— blown fuse; container.
— blown lamp; It is never advisable to limit flushing to the radiator
— interruption in wire to the control switch. only – always extend it to the entire cooling circuit
and top up the engine with the solution referred to
above.
Run the engine for about an hour. With the engine off,
drain the solution through the drain plug aperture.
If the system is leaking, check the radiator seal by
immersing it in a tank of water at the temperature of
20–40oC (68o – 104oF), blowing air into the radiator
at a pressure of 0.98 bar (14 psi) for approximately
two minutes (repeat the test at least three times).
SECTION 10 – ENGINE – CHAPTER 1 85
VALVE GUIDES
CAUTION
Lift and handle all heavy parts using suitable lifting
equipment.
Make sure that the load is supported by means of
suitable slings and hooks.
Make sure that no–one is standing in the vicinity of
the load to be lifted.
CAUTION
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
25334
164
3. Turn the head upside down, and force fit the new
valve guide with the enlarged bore using drift
380000219 (1) and bush 380000242 (2).
25335
165
4. Ream out the valve guide bore (2) using reamer
292177 (1).
25336
166
86 SECTION 10 – ENGINE – CHAPTER 1
25337
167
The depth of taper milling is given by:
B–L=C
where:
2
25339
169
SECTION 10 – ENGINE – CHAPTER 1 87
8. Position the plate (3) of tool 294028 flush against
the cylinder head face and slide the depth stop
(2) up to the plate. Measure the distance (A)
2
between the depth stop and the end of the cutter 1 3
shank (1).
25340
170
9. Position the depth stop (1) at a distance
(D) = 35.9 to 36.4 mm (1.414 to 1.433 in.) from
the end of the cutter shank and fix in place with
its set screw.
D=A–C 1
where:
Example
25342
3
172
88 SECTION 10 – ENGINE – CHAPTER 1
VALVE SEATS IN CYLINDER HEAD
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing
– safety goggles, gloves and shoes.
25343
173
25344
174
SECTION 10 – ENGINE – CHAPTER 1 89
CRANKSHAFT FRONT OIL SEAL
Removal
DANGER
Lift and handle all heavy parts using suitable lifting
equipment. Make sure that the load is supported by
means of suitable slings and hooks. Make sure that
no–one is standing in the vicinity of the load to be
lifted.
TRE1319B
175
4. Remove the hose clamp, detach the bottom
radiator hose (1) and drain off the coolant.
1
25124
176
5. Unscrew the front axle earth cable fixing bolt (1).
6. Disconnect electrical leads from the horn.
1
25125
177
90 SECTION 10 – ENGINE – CHAPTER 1
7. Disconnect electrical leads (1) from air filter
restriction sensor.
TRE0620A
178
8. Remove the clamp (1) on the inlet manifold hose.
179
9. Remove the clamp (1) on the air filter hose.
25129
180
10. Remove the air filter restriction sensor (1) and
pipe.
TRE0620A
181
SECTION 10 – ENGINE – CHAPTER 1 91
25131
182
12. Unscrew the hose clamp remove the top radiator
hose (1). 1
TRE0619A
183
13. Unscrew the clamp and remover the pipe (1)
from the radiator cap.
1
25133
184
14. Unscrew the two bolts (1) securing the radiator
to the front axle support and remove the bolts,
rubber mountings and spacers.
1
25134
185
92 SECTION 10 – ENGINE – CHAPTER 1
15. Remove the radiator (1) and the upper rubber
mountings.
25135
186
16. Loosen the alternator pivot bolt (1).
25136
187
17. Loosen the belt tension adjuster bolt (1) and re-
move the belt. 1
25137
188
SECTION 10 – ENGINE – CHAPTER 1 93
18. Remove the radiator fan (1).
1
25138
189
19. Unscrew the retaining bolts (1) and remove the
crankshaft pulley.
25139
190
20. Straighten the tab on the lock washer, hold the
crankshaft against rotation and unscrew nut (1).
25140 1
191
21. Remove the pulley hub from the crankshaft using
tool 380000226 (1) and retrieve the woodruff key.
25141
192
94 SECTION 10 – ENGINE – CHAPTER 1
22. Remove the oil seal (1) from it seat.
Installation
To install the front oil seal, proceed as follows:
— Install the oil seal.
— Refit the crankshaft hub and retaining nut; bend
tab over on lock washer.
— Refit fan.
— Refit the drive belt, adjust tension and tighten
alternator bolts.
— Replace the radiator and secure with the two 25142
1
bolts.
— Refit the two rubber hoses to the coolant pump 193
and the thermostat housing.
— Reconnect the pipe to the radiator cap.
— Reconnect the hood stay bracket to the bracket
mounted on the radiator and replace the
retaining bolts.
— Refit the hose to the exhaust aspirator.
— Refit the hose connecting the air cleaner to the
inlet manifold. Refit the air filter restriction
sensor.
— Refit the two wire mesh guards around the fan.
— Fill the radiator with coolant.
— Reconnect the negative battery lead; close the
hood.
SECTION 10 – ENGINE – CHAPTER 1 95
VALVE CLEARANCE
Adjustment
1
CAUTION
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
194
3. Disconnect the electrical leads (1) from headlamps
(2).
1
2
24873
195
4. Detach the gas struts (1) from the hood.
1
TRE0603A
196
5. Remove the four hood hinge bolts (1) and lift the
hood clear.
1
TRE0604A
197
96 SECTION 10 – ENGINE – CHAPTER 1
6. Undo the hose clamp and detach the hose from
the silencer ejector. 1
7. Unscrew the two screws securing the silencer front
support.
8. Unscrew the retaining nuts securing the silencer
to the exhaust manifold and remove the silencer.
TRE0618A
198
9. Unscrew the four rocker cover nuts (1) and
remove cover.
25305
199
10. Remove the flywheel inspection window cover (1).
25190
200
11. Adjust the clearance between valves and rocker
arms using a feeler gauge, spanner (1) and
special tool 380000232 (2). 1
NOTE: Prior to adjustment, position the valves as
described on the following page. 2
25306
201
SECTION 10 – ENGINE – CHAPTER 1 97
To adjust valve clearances on the 3–cylinder TD60
and TD70, proceed as follows:
— Turn the crankshaft so that the inlet and exhaust
valves of cylinder no.1 are balanced (start of
induction stroke). In this position the pointer will
be aligned with the reference mark PMS 1 (TDC
1) on the flywheel.
— Rotate the crankshaft through a full revolution,
returning to TDC 1, then check that the valve
clearances correspond with the values specified
in the table on page 5.
— Repeat this operation for the other valve pairs.
Note that the TDC positions of cylinders 2 and 3
are not marked on the flywheel.
To check valve clearances on 4–cylinder models
TD80, TD90, and TD95, proceed as follows:
— Turn the crankshaft so that the inlet and exhaust
valves of cylinder no. 1 are balanced (start of in-
duction stroke). In this position the pointer will be
aligned with the reference mark PMS 1 (TDC 1)
on the flywheel.
— Check that the clearance between valves and
rocker arms on cylinder no. 4 corresponds with the
values specified in the table on page 5. Rotate the
crankshaft through 360 and check valve
clearances on the opposing cylinder (No. 1).
— Repeat this operation for the other valve pairs.
Note that the opposing cylinders are 1–4 and
2–3.
To reassemble proceed as follows:
— Refit the rocker cover.
— Refit the flywheel inspection window cover.
— Refit the exhaust silencer.
— Refit the hood.
— Reconnect the negative battery lead.
98 SECTION 10 – ENGINE – CHAPTER 1
Thermostat – Replacement
The thermostat (1) fig. 12 is fitted in the cylinder head
coolant outlet union. The thermostat cannot be
adjusted and therefore must be replaced if does not
meet the temperature specifications in the table on
page 4.
202
SECTION 10 – ENGINE – CHAPTER 1 99
WATER PUMP
Removal
CAUTION
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
203
4. Remove the hose clamp, detach the bottom
radiator hose (1) and drain off the coolant.
1
25124
204
5. Remove the fan shroud (1) retaining bolts.
25143
205
6. Remove the two strips (1) from the sides of the
radiator.
1
25144
206
100 SECTION 10 – ENGINE – CHAPTER 1
7. Move the fan shroud towards the engine.
8. Unscrew the three bolts securing the fan to the
water pump shaft. Remove the fan and the fan
cowling.
25145
207
9. Loosen the alternator pivot bolt (2).
10. Loosen the belt tension adjustment bolt (1).
25146
208
11. Remove the water pump pulley (1).
25147
209
12. Loosen the hose clamp (1) and detach the hose
from the water pump.
25148
210
SECTION 10 – ENGINE – CHAPTER 1 101
13. Unscrew the belt tension adjustment arm retaining
nut (1) and move the alternator outward.
25149
211
14. Remove pump connection pipe (1) to gain access
to the water pump retaining bolt (2). 2
1
25150
212
15. Unscrew the four bolts (1) fig. 220 securing the
water pump to its mounting.
25151
213
102 SECTION 10 – ENGINE – CHAPTER 1
Disassembly
1 2
3
CAUTION
Use the appropriate tools for aligning the holes. NEV- 4
ER USE YOUR HANDS OR FINGERS.
5
NOTE: The bearing (9) forms a single piece with the
control shaft (10). It is a sealed unit and requires no
6
lubrication during running. 10 9 8 7
14262
NOTE: Remove the seal (8) fig. 221 only when it 215
needs to be changed.
Assembly
Refit the parts, proceeding in the following way:
— Fit the shaft (10) fig. 221 complete with bearing
(9) and hub (1) on the pump housing (6) and se-
cure it with the retaining screw (2), having first
21662
coated it with LOCTITE 242.
— If changing the seal (8) fig. 221, fit the seal into 216
the seat using tool 38000247 (1) fig. 223.
— Heat the rotor (1) fig. 221 in an air oven, until it 1
reach a temperature of 130–150oC higher than
the shaft (2).
— Place the rotor (1) on the shaft (2), easing it onto
the end so as not to damage the bearing, until
you obtain the operating clearance of G =
0.5–0.7 mm (.019 – .027 in.) (see fig. 221).
— Fit the seal (3) fig. 221 and the cover (4), secur-
ing it with the relevant screws.
21663
2
217
SECTION 10 – ENGINE – CHAPTER 1 103
Installation
To refit the water pump proceed as follows:
— Refit the water pump. Be careful not to lose the
seals on the vertical hose connecting the pump
to the thermostat housing. 1
— Refit the connection pipe to the pump, and re-
place the two retaining bolts.
— Refit the coolant pump pulley and the fan. Refit
the fan shroud and the two vertical side strips to
the radiator. Fix the belt tension adjustment arm.
Tighten the alternator pivot bolt.
25152
— Refit the bottom radiator hose to the connection
pipe on the water pump and the radiator. 218
— Refit the right–hand wire mesh guard.
— Refit the left–hand wire mesh guard.
— Fill the cooling system from the radiator cap.
— Reconnect the negative battery lead and refit the
exhaust pipe.
CAUTION
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
1
2
24873
220
104 SECTION 10 – ENGINE – CHAPTER 1
4. Detach the gas struts (1) from hood.
1
TRE0603A
221
5. Remove the four hood hinge bolts (1) and lift the
hood clear.
1
TRE0604A
222
6. Drain the cooling system from the drain plug on
the engine block.
24804
223
7. Remove the wire mesh guard (1) from the right–
1
hand side of the radiator.
25028
224
SECTION 10 – ENGINE – CHAPTER 1 105
8. Unscrew the hose clamp and disconnect the hose
(1) connecting the radiator to the thermostat 1
housing.
TRE0619A
225
9. Remove the thermostat housing cover screws
(1).
1
25156
226
106 SECTION 10 – ENGINE – CHAPTER 1
10. Lever the cover (1) off the housing using a
screwdriver and remove the cover.
1
25157
227
11. Remove the thermostat valve (1).
228
Installation
To refit the thermostat proceed as follows:
— Fit the thermostat in its housing and locate the
gasket. Refit the cover to the housing.
— Connect the top radiator hose to the thermostat
housing and secure with a hose clamp.
— Refit the hood stay.
— Refit the right–hand wire guard to the fan.
— Refit the hood.
— Fill the cooling system. Top up if necessary.
— Reconnect the negative battery lead. Close the
hood and refit the exhaust pipe.
SECTION 10 – ENGINE – CHAPTER 1 107
RADIATOR
Removal
DANGER
Lift and handle all heavy parts using suitable lifting
equipment.
Make sure that the load is supported by means of
suitable slings and hooks.
Make sure that no–one is standing in the vicinity of
the load to be lifted.
25028
229
4. Remove the hose clamp, detach the bottom
radiator hose (1) and drain off the coolant.
1
25124
230
5. Unscrew the front axle earth cable fixing bolt (1).
6. Disconnect electrical leads from the horn.
1
25125
231
108 SECTION 10 – ENGINE – CHAPTER 1
TRE0620A
232
8. Remove the clamp (1) on the inlet manifold hose.
233
9. Remove the clamp (1) on the air filter hose.
25129
234
10. Remove the air filter restriction sensor (1) and
recover the pipe.
TRE0620A
235
SECTION 10 – ENGINE – CHAPTER 1 109
25131
236
12. Unscrew the hose clamp remove the top radiator
hose. 1
TRE0619A
237
13. Unscrew the clamp and remover the pipe (1)
from the radiator cap.
1
25133
238
14. Unscrew the two bolts (1) securing the radiator
to the front axle support and remove the bolts,
rubber mountings and spacers.
1
25134
239
110 SECTION 10 – ENGINE – CHAPTER 1
15. Remove the radiator (1) and the upper rubber
mountings.
25135
Installation 240
To refit the radiator proceed as follows:
— Replace the radiator and secure with the two
bolts.
— Refit the two rubber hoses to the coolant pump
and the thermostat housing. Reconnect the
pipe to the radiator cap.
— Reconnect the hood stay bracket to the bracket
mounted on the radiator and replace the retaining
bolts.
— Refit the hose to the exhaust aspirator.
— Refit the hose connecting the air cleaner to the
inlet manifold. Refit the air filter clogging sensor.
— Reconnect the electrical leads to the horn, air
filter restriction sensor and the front axle earth
lead.
— Refit the two wire mesh guards around the fan.
— Fill the radiator with coolant.
— Reconnect the negative battery lead; close the
hood.
SECTION 10 – ENGINE – CHAPTER 1 111
SECTION 10 – ENGINE – CHAPTER 2 1
SECTION 10 – ENGINE
CONTENT
SPECIFICATIONS
GENERAL SPECIFICATIONS 3–cylinder 4–cylinder
Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . overhead valves operated by a camshaft
located in the engine block through
tappets, pushrods and rockers. Camshaft
is driven by the crankshaft through helical
gears.
Inlet:
– start: before TDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12o
– end: after BDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31o
Exhaust:
– start: before BDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50o
– end: after TDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16o
Valve clearance for timing check . . . . . . . . . . . . . . . . . . . . . . . . . . 0.45 mm (.017 ins)
Valve clearance for normal running (engine cold):
– inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.30 to 0.05 mm (.011 – .002 ins)
– exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.30 to 0.05 mm (.011 – .002 ins)
For further timing data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See page 2
Fuel system
Air cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual cartridge dry air filter, with clogged
filter indicator with centrifugal pre–filter
and automatic dust ejector
Fuel supply pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . double diaphragm
Minimum fuel flow rate with pump shaft rotating at 1600 rev/min 100 litres/hour (.44 gal/min)
For fixed advance (pump setting for start of delivery before refer to the data for the relevant engine
TDC) – Pressure setting – Injection order, and other type in the table on page 3
information regarding the BOSCH pump
SECTION 10 – ENGINE – CHAPTER 2 3
100 mm 104 mm
Injectors:
BOSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
– Nozzle type . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Number of nozzles 5 5
– type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TIGHTENING TORQUES
Nuts for injector mounting studs (1. fig. 11) . . . . . . . . . . . . . . . . . . . M8 25 Nm (*) 18 ft-lbs
SPECIAL TOOLS
X 380000246 Set of grinding tools for regrinding 380000229 Device for BOSCH injection pump
injector seat. timing on engine (with 380000228).
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing
– safety goggles, gloves and shoes.
25345
Removal
241
If injector protrusion exceeds the specified limit, the
injector sleeve must be replaced using tool kit
380000246 and proceeding as follows:
242
16. Screw part (11) fig. 244 fully into the previously
cut thread and turn nut (1) to withdraw the injec-
tor sleeve (12)from the head.
Installation
1. Fit seals (6) fig. 244 onto the new injector sleeve
and fit the sleeve into its bore, making sure that
the sleeve butts up against the bottom of the
seating in the cylinder head, and dress with
dressing tool 293861 (5).
6 SECTION 10 – ENGINE – CHAPTER 2
2. Fit guide bush 293746 (10) fig.244 in the new
sleeve (12), securing it in position by turning the
ring nut (9) clockwise. Insert reamer (7) 293747
in guide bush (10) and ream the lower part of the
sleeve.
3. Remove the reamer (7) fig. 244 and back–off the
ring nut (9) by about 10 mm (.393 ins).
25343
243
7 8
2
5 9
1 4
3 6 10
12 11
25348
244
Disassembly, removal of residue, installation and reaming of injector sleeve
in cylinder head using tool kit 293270.
CAUTION
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
245
3. Disconnect the electrical leads (1) from
headlamps (2).
1
2
24873
246
4. Detach the gas struts (1) from the hood.
1
TRE0603A
247
5. Remove the four hood hinge bolts (1) and lift the
hood clear.
1
TRE0604A
248
8 SECTION 10 – ENGINE – CHAPTER 2
6. Unscrew the fuel leak–off pipe union (1) on the
injector. 1
25301
249
7. Unscrew the union (1) of the high–pressure fuel
line on the injector.
25302
1
250
8. Unscrew the two retaining nuts (1) and withdraw
the injector. 1
Installation
To refit the injector, proceed as follows:
— Insert the injector into its seat.
— Replace and tighten the two retaining nuts in two
stages. 1st stage: tighten nuts to 10 Nm
(7.3 ft-lbs)
(1 kgm) 2nd stage: tighten nuts to 25 Nm
(18 ft-lbs) (2.6 kgm).
— Reconnect the fuel leak–off pipe union. 25303
CAUTION
Handle all parts carefully. Do not put your hands or
fingers between parts. Wear suitable safety clothing
– safety goggles, gloves and shoes.
CAUTION
Always use suitable tools to align holes in parts.
NEVER USE YOUR FINGERS OR HANDS.
25621
252
3. Unscrew the three retaining bolts, and remove the
wire mesh guard (1) from the right–hand side of the
fan.
1
25182
253
4. Detach the throttle control spring (1) and remove
the throttle lever (2). 1
25183
254
10 SECTION 10 – ENGINE – CHAPTER 2
5. Unscrew the hose clamp (1) and disconnect the
flexible pipe (2) connected to the thermostart. 1
2
25184
255
6. Disconnect the electrical lead (1) from the engine
stop solenoid.
1
25185
256
7. Unscrew union (1) on the fuel supply pump and 1
union (2) on the injection pump.
25186
257
8. Unscrew the unions on the fuel filter and recover
the fuel lines (1) and (2).
1
2
25187
258
SECTION 10 – ENGINE – CHAPTER 2 11
9. Unscrew the unions (1) of the high–pressure fuel
1
lines from the injection pump to the injectors and
remove the fuel lines.
25188
259
10. Unscrew the retaining bolts (1) of the injection
pump gear cover (2). 1
25189
260
11. Remove the cover from the flywheel ring gear
inspection window (1).
25190
261
12. Rotate the flywheel, using a screwdriver as a
lever, until the two 4 reference marks stamped
on the gears (1) and (2) coincide.
1
25191
262
12 SECTION 10 – ENGINE – CHAPTER 2
13. Unscrew the nut (1) securing the injection pump
drive gear to the pump shaft.
25192
263
14. Unscrew the nuts (1) securing the injection pump
to the timing gear case. 1
25193
264
15. Withdraw the injection pump drive gear (1) using
puller 295942 (2).
1
2
25194
265
16. Lift off the injection pump (1).
1
NOTE: On engine model TD70, the fuel filter must be
removed prior to removing the injection pump.
25195
266
SECTION 10 – ENGINE – CHAPTER 2 13
17. Recover gasket (1), spacer (2) and gasket (3).
2
3
1
22650
267
Installation
To refit the injection pump, proceed as follows:
— Refit the drive gear and the injection pump, fitting
the gear in its tapered housing and securing with
the nut. Secure the pump with the three retaining
nuts.
— Refit the gear cover.
— Refit the two semi–rigid pipes connecting the
injection pump to the filter and the fuel supply
pump to the filter. This job is made easier if you
tighten the unions on the filter first.
— Reconnect the engine stop solenoid lead.
Reconnect the high–pressure fuel lines to the
injection pump and the injectors.
— Refit the throttle control lever spring on the
injection pump. Reconnect all the flexible hoses
previously removed.
— Replace the flywheel inspection window cover.
— Refit the wire meshguard to the right–hand side
of the fan.
— Refit the power steering control valve delivery
pipe to the anti–cavitation accumulator.
— Reconnect the negative battery lead. Close the
hood and refit the exhaust pipe.
14 SECTION 10 – ENGINE – CHAPTER 2
Timing
If the engine does not run evenly, if the timing marks
(1) are not visible, or should you be in doubt as to
whether the marks are correct, time the injection 1
pump as follows:
2
25181
268
1. Unscrew the unions of the high–pressure fuel
lines connecting the pump to the injectors and 1
remove the fuel lines.
25188
269
2. Remove the injection pump gear cover.
3. Check that 4 timing marks on gears (1) and (2)
are aligned. 1
25191
270
4. Remove the flywheel inspection window cover (1).
5. Turn the crankshaft to bring cylinder no. 1 to TDC
of the compression stroke. 1
25190
271
SECTION 10 – ENGINE – CHAPTER 2 15
6. Check through the inspection window that the
pointer is aligned with the BOSCH reference
mark.
26107
272
7. With the injection pump in position but with the
mounting bolts loose, remove the plug (1) fig.
273 on the pump housing.
8. Fit dial gauge 380000230 (1) fig. 274 and related 1
tool 380000229 (2) and pre–load the shaft by
about 2.5 mm (0.098 ins).
9. Turn the flywheel slowly backwards so as to
bring the plunger to BDC at the start of the
delivery stroke (the point at which the dial gauge
needle stops falling).
25196
273
10. Set the dial gauge to zero and slowly turn the
flywheel clockwise (as viewed from the fan end
of the engine) until the pointer lines up with the
BOSCH reference mark.
11. Check on the dial gauge that the plunger has
completed a stroke of 1 mm (0.039 ins) up to this
point. If not, slacken off the pump mounting bolts.
12. Turn the pump anti–clockwise if the plunger
stroke is less than 1 mm (0.039 ins) and clock-
wise if the stroke is greater than 1 mm (0.039 1 2
ins), and repeat test until the correct stroke is ob-
tained.
25197
13. Having obtained the correct plunger stroke, fix the
pump in position by tightening the securing nuts (1) 274
(fig. 264)
14. Stamp pump timing marks (1) fig. 27 on the
pump mounting flange, distance piece and
casing.
15. Remove the dial gauge 380000230 (1) fig. 274
and the related tool 380000229 (2). Replace the
plug and tighten to a torque of 8 to 10 Nm (6 to
7.3 ft-lbs).
16. Refit other parts in the reverse of the dismantling
order.
16 SECTION 10 – ENGINE – CHAPTER 2
Air Bleeding
1. Unscrew the plug (1) on the first filter.
1
25198
275
2. Operate the priming lever (1) fig. 276 on the fuel
supply pump until the fuel coming out of the filter
orifice is free of bubbles, then replace and tighten
plug (1) fig. 275.
25199
276
3. Slacken the fuel line unions (1) on the injectors,
start the engine and then re–tighten the union (1)
when the fuel flows out free of bubbles.
25200
277
SECTION 18 – CLUTCH – CHAPTER 1 1
SECTION 18 – CLUTCH
Chapter 1 – Clutch
CONTENTS
Section Description Page
Clearance between PTO clutch release sleeve and housing . . . mm 0.050 to 0.151
603.54.411.00–07–2002
2 SECTION 18 – CLUTCH – CHAPTER 1
Clearance between clutch release sliding sleeve and support . . mm 0.050 to 0.151
Clearance between PTO clutch release sleeve and support mm 0.060 to 0.180
Release lever coplanarity adjustment . . . . . . . . . . . . . . . . . . . . . . . mm see page 20
Clutch controls adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm see page 21
TIGHTENING TORQUE
Tightening torque
PART Thread
Nm kgm
11”/11” clutch/flywheel retaining bolts(1, fig. 46) . . . . . . . . . . . . . . . M 8 x 1.25 25 2.6
Nut for sleeve cover fixing stud (6, fig. 1) . . . . . . . . . . . . . . . . . . . . M 8 x 1.25 17 1.7
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 3
TOOLS
List of specific tools required for the various
operations described in this section.
292320 Tractor dismantling stand.
291184 Dowel for centering and adjust-
ment of 11”/11
295022 Dowel for centering and adjust-
ment of, 12”, 12”/12” clutches.
295023 Clutch adjustment gauge (with
295022)
293763 Set of wrenches for adjustment of
levers in 11”/11” , VALEO
clutches.
2294078 Locating dowel for assembly of
clutch housing on engine.
Longitudinal section of clutch VALEO 11”/11”
–C2–Clutch housing capscrews
603.54.411.00–07–2002
4 SECTION 18 – CLUTCH – CHAPTER 1
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 5
25371 11 10 9 8 7 6
3
603.54.411.00–07–2002
6 SECTION 18 – CLUTCH – CHAPTER 1
25371 11 10 9 8 7 6
4
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 7
CLUTCH TROUBLESHOOTING
Clutch slips 4. Worn friction discs (8 and 9, Check and compare the data given in
page 3–4), woflywheel pres- the pages indicated; replace any
sure plates, and flywheel parts which are worn up to or over the
worn. limit and adjust levers and clutch con-
trol linkage.
5. Belleville spring disc (1, page Replace the Belleville spring disc.
3–4) distorted or otherwise da-
maged.
6. Friction linings of discs (8 and Replace friction discs; identify and
9, page 3– 4) disc contami- eliminate the source of lubricant in-
nated with oil and grease. side the clutch housing and thorough-
ly clean the friction surfaces.
Fierce clutch 1. Partial seizure of the external Check linkage pivots and lubricate.
control linkage.
2. Friction disc (9, page 3–4) dis- Replace disc and adjust clutch control
torted. lever.
3. Friction disc (9, page 3–4) with Replace friction disc.
damaged hub springs or loose
hub rivets.
4. Oil or grease contaminating Replace the discs, identify and elimi-
the friction lining of discs nate the source of lubricant inside the
(8 and 9, page 3–4) clutch housing and thoroughly clean
the friction surfaces.
Clutch sticks and drags 1. Clutch disc friction linings (8 Replace discs and adjust the disks.
and 9, page 3–4) or disc de-
formed.
2. Seizure of external control lin- Check, replace faulty parts and lubri-
kage. cate.
3. Controls badly adjusted. Adjust controls (see page 21).
Clutch pedal too stiff 1. Partial seizure of external con- Check linkage pivots and lubricate.
trol linkages.
2. Partial seizure of pedal pivot. Check pivot and lubricate.
603.54.411.00–07–2002
8 SECTION 18 – CLUTCH – CHAPTER 1
CLUTCH
Removal–Refitting (Op. 18 110 10)
To access the clutch it is necessary to separate the
engine complete with the front axle from the trans-
mission.
DANGER
Lift and handle all heavy parts using suitable lifting
equipment.
make sure that the load is held and supported by suit-
able slings and hooks. Make sure that no–one is
standing in the vicinity of the load.
WARNING
Use suitable tools to align holes. NEVER USE FIN-
GERS OR HANDS.
Proceed as follows:
1. Disconnect the negative battery lead.
2. Drain off the oil from the gearbox/transmission 1
casing.
25621
TRE0159A
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 9
TRE0159A
7
7. Remove the electrical connections (1)
TRE185A
8
8. Disconnect the oil pipes (1) to the hydrostatic
steering control valve unit.
1
TRE0028A
TRE0410A
30
603.54.411.00–07–2002
10 SECTION 18 – CLUTCH – CHAPTER 1
TRE0411A
11
25183
11. Undo the hose clamp (1) from around the rigid
pump and lift delivery pipes. 1
25029
14
TRE0184A
15
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 11
TRE0183A
16
14. Disconnect the fuel line (1) from the glow plug.
1
TRE0183A
17
15. Remove the front, centre and rear screws secur-
ing the front axle prop shaft guard and remove 1
the guard (1).
25038
18
16. Remove circlip (2) and move sleeve (1) in the di-
rection shown by the arrow to disengage it from 1 2
the splined shaft of the front axle.
25039
19
603.54.411.00–07–2002
12 SECTION 18 – CLUTCH – CHAPTER 1
17. Remove circlip (2) and move sleeve (1) in the di-
rection shown by the arrow to disengage it from 1 2
the splined shaft of the drive.
25040
20
25041
21
TRE3048A
24
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 13
2 1
25050
25
21. Position another mobile stand 292320 under the
front ballast carrier to prevent any possibility of 1
the engine turning or tipping forwards when the
transmission housing is removed.
26
23. Position a fixed stand (1) under the draw bar sup-
port and pull on the hand brake. 1
25052
27
24. Remove the distance collar (1) between the en-
gine and the transmission. ( TD95 Model ) 1
25055
28
603.54.411.00–07–2002
14 SECTION 18 – CLUTCH – CHAPTER 1
25055
29
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 15
Check condition of ball bearings pressed in flywheel; Remove the stands of tool 292320 from under the
replace in the event of excessive noise or binding. engine and the gearbox/transmission and the stand
To install a new bearing,pack lubricate with grease under the draw bar.
Position the clutch using tool 295022 (TD95 mod. ) Connect the flexible power steering pipes of the
Fix the clutch to the flywheel with the six bolts. front axle and add oil to the system.
Before Connecting tranmission casing to engine – Refit the front ballast and secure with the vertical
front axle assembly, grease discs hubs. lock pin.
Chock up the rear wheels with wooden wedges, Fiil oil to gearbox/transmission.
check that the hand brake is fully on and that the
fixed and mobile stands are well positioned.
Fill the coolant to engine cooling system.
Fit and tighten the bolts securing the clutch housing Connect the negative battery lead
to the engine.
603.54.411.00–07–2002
16 SECTION 18 – CLUTCH – CHAPTER 1
24791
30
2. Recover the pressure plate (1) with the three coil
springs (2) and the three washers. 1
24792
31
3. Position three clamps (1) at intervals of 120° on
the clutch body and evenly and progressively
compress the Belleville spring disc.
1
24793
32
4. Remove the spring retaining clips (1) from their
seatings. 1
24794
33
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 17
24975
34
6. Slacken off the three locknuts (1) of the main
clutch lever adjustment screws. 1
24976
35
7. Unscrew the three main clutch lever adjustment
screws (1). 1
24977
36
8. Recover the main clutch pressure plate (1).
1
24978
37
603.54.411.00–07–2002
18 SECTION 18 – CLUTCH – CHAPTER 1
24979
38
10. Remove the springs (1) of the PTO clutch control
levers. 1
24980
39
11. Withdraw the pivot pins (1) of the PTO clutch
control levers. 1
24981
40
12. Remove the springs (1) of the main clutch control
levers. 1
24982
41
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 19
24983
42
603.54.411.00–07–2002
20 SECTION 18 – CLUTCH – CHAPTER 1
WARNING
Handle all parts with great care.
Never put your hands or fingers between one part
and another. Wear suitable safety clothing, i.e. safety
goggles, gloves and footwear.
0,5
Dimensions of components of the 11”/11”
LUK dual clutch
A w 18 mm; B w 24.2 mm; C w 88.2 mm;
D w 71.2 mm
1. Flywheel
2. PTO clutch pressure plate. D
3. Main clutch pressure plate. A B C
25365
4. Clutch cover.
Dimensions of components of the 12”/12” 43
VALEO dual clutch
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 21
When parts (1), (2), (3) and (4) ( figs. 43 and 44) are
to be repaired by removing material, proceed as fol-
lows:
A
C
For flywheels with 11”/11” and 12”/12” (see fig. 45)
dual clutches, after refacing, it will also be necessary
to restore the external recess of 0.5 mm as shown in
the figure.
26166
11’’ flywheel
flywheel 45
Valeo
A = 340 mm B = 290 mm C = 78.5 mm
Luk
A = 327 mm B = 285 mm C = 78.5 mm
12’’ flywheel
Valeo
A =360 mm B = 321 mm C = 73.5 mm
Luk
A = 352 mm B = 313 mm C = 73.5 mm
603.54.411.00–07–2002
22 SECTION 18 – CLUTCH – CHAPTER 1
4
25366
46
603.54.411.00–07–2002
SECTION 18 – CLUTCH – CHAPTER 1 23
TRE3101A
48
2
TRE0044A
49
50
–Loosen the locknut, (1) and remove the split pin (2).
–Turn the sleeve (3) to lenghten or shorten the oper-
ating rod, as required. 1
–Secure the split pin (2), and tighten the locknut (1).
2
3
C
TRE0173A
51
603.54.411.00–07–2002
24 SECTION 18 – CLUTCH – CHAPTER 1
603.54.411.00–07–2002
SECTION 21 – TRANSMISSIONS – CHAPTER 1 1
SECTION 21 – TRANSMISSIONS
Chapter 1 – Mechanical Transmission (12 x 4)
CONTENTS
Section Description Page
– Reduction ratios :
D Slow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23x17
= 1:(5.49)
43x50
D Normal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23x27
= 1:(2.35)
43x34
D Fast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Diameter of power take off (PTO) clutch shaft (4, page. 5) . . . . . mm 24.979 – 25.000
Clearance between PTO clutch shaft and relative bushing . . . . . mm 0.040 – 0.113
Springs (16, page 7) for detent balls on gearbox and range gear
control rods :
– Spring free length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm 30
– Length of spring under load of 50–56 N (5.13–5.67 kg) . . . . . . mm 25.5
Gearbox and range gear control lever retaining springs :
– Spring free length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm 75
– Length of spring under load of 94–104 N (9.6–10.6 kg) . . . . . . mm 42
(1) Measurement to obtain after fitting without reaming.
TORQUE VALUES
Torque settings
PARTS Thread
Nm kgm
Bolts for securing PTO box to transmission / gearbox (C3) . . . . . M 16 x 1.5 221 22.5
Bolts for securing flexion bar to transmission / gearbox case (C4) M 16 x 1.5 221 22.5
Nuts for securing steel plate disc to wheel drive hub (C6) . . . . . . M 18 x 1.5 255 26
Nuts for bolts securing steel plate disc to drive wheel rim (C7) . . M 16 x 1.5 245 25
Ring bevel gear retaining bolts (C8) ........................ M 12 x 1.25 123 12.5
???.??.???.?? – ?? – ????
SECTION 21 – TRANSMISSIONS – CHAPTER 1 3
C1 59 Nm C2 98 Nm
C4 221 Nm C3 221 Nm
C9 59 Nm
C7 245 Nm
C6 255Nm
C8 123 Nm
C5 98 Nm
TRE0550A
26215
26216
26217
4
Tool to be made for removal of rear bearing of range gear driving shaft and the driving gear for the slow
speeds (tool to be stamped no. 50028 – Measurements in mm).
Make in UNI C40.
Note – Make two parts from the tool shown at Figure 4, uppermost one .
???.??.???.?? – ?? – ????
SECTION 21 – TRANSMISSIONS – CHAPTER 1 5
5
Longitudinal cutaway section through gearbox and range gear.
1. Power take–off (PTO) shaft support bushing. 11. Retaining half–rings.
2. Seal. 12. Driven gear for reverse speeds.
3. Gearbox driving shaft. 13. Driven gear for low speeds.
4. PTO shaft. 14. Selector sleeve for high and low speeds.
5. Driving shaft adjustment ring. 15. Circlip.
6. Range gear driving shaft. 16. Synchroniser for 1st and 2nd speeds.
7. Control gear for reverse and middle speeds. 17. Support bushings for gearbox driven gears.
8. Upper cover. 18. Synchroniser for 3rd and 4th speeds.
9. Driving gear for middle speeds. 19. Gearbox driven shaft.
10. Bevel pinion shaft.
Note – On assembly apply sealant to surfaces X following the indications given on page 6 in this Section.
???.??.???.?? – ?? – ????
6 SECTION 21 – TRANSMISSIONS – CHAPTER 1
TRE0556A
Sealing compound application diagram for mating surfaces between engine, clutch casing and rear
transmission–gearbox.
The types of sealing compound to use are indicated on page 1, Sect. 00.
???.??.???.?? – ?? – ????
SECTION 21 – TRANSMISSIONS – CHAPTER 1 7
TRE0557A
Note –Before plugs (19 and 22) are bolted in, they must be covered with one of the sealants listed on page 1,
Sect. 00.
???.??.???.?? – ?? – ????
8 SECTION 21 – TRANSMISSIONS – CHAPTER 1
4–speed gearbox with constant–mesh helical gears The range gear provides 3 forward ranges and 1 re-
controlled by two synchronisers. verse range.
The range gear has cascade–type constant–mesh The gearbox and the range gears are controlled by
spur gears, excluding reverse. two independent levers located on the right–hand
The driven gears of the range gear are keyed directly side of the operator.
onto the bevel pinion shaft.
Difficulty in engaging the gearbox 1. Control levers and linkages in- Adjust correctly.
and range gear. correctly adjusted.
5. Internal controls do not slide Perform the checks and overhaul for
freely : rods, forks and needed parts.
sleeves.
Gearbox or range gear unduly 1. Internal component/s worn or Remove the transmission / gearbox
noisy. defective. and replace the worn / defective
parts.
???.??.???.?? – ?? – ????
SECTION 21 – TRANSMISSIONS – CHAPTER 2 1
SECTION 21 – TRANSMISSIONS
Chapter 2 – Reverser
CONTENTS
Gearbox and reduction unit controls . . . . . . . . . . . . . . . . . . . . . . . . Independent, with two hand levers
located on right–hand side of the
operator
???.??.???.?? – ?? – ????
2 SECTION 21 – TRANSMISSIONS – CHAPTER 2
TORQUE VALUES
Torque Settings
PARTS Thread
Nm kgm
C1 98 Nm
C2 17 Nm
C3 28 Nm
C4 6 Nm
C5 98 Nm
TRE0558A
???.??.???.?? – ?? – ????
SECTION 21 – TRANSMISSIONS – CHAPTER 2 3
4 5 6
3 7
10
9 8
TRE0559A
???.??.???.?? – ?? – ????
4 SECTION 21 – TRANSMISSIONS – CHAPTER 2
TRE0560A
10
The synchroniser reverser is a mechanical device fected by means of a synchroniser located in the
which makes it possible to obtain 12 forward and 12 group of gears.
reverse gears. It is controlled by a specific lever loca-
ted on the platform to the left of the operator. The synchroniser reverser is installed inside the
clutch casing between the clutch and the gearbox.
The synchroniser reverser is comprised of a group
of three spur gears : driving reverser gear, interme- It is lubricated by the oil in the rear transmission /
diate gear and driven reverser gear. Selection is ef- gearbox.
5. Internal controls do not slide Perform the checks and overhaul for
freely : rods, forks and needed parts.
sleeves.
Synchroniser reverser unduly noi- 1. Worn or damaged internal Remove the clutch casing and re-
sy part/s. place damaged part/s.
???.??.???.?? – ?? – ????
6 SECTION 21 – TRANSMISSIONS – CHAPTER 2
CLUTCH/REVERSER CASING
Replacement (Op. 21 110 85)
WARNING
Handle all parts with great care.
Never insert fingers or hands between one piece and
another. Wear suitable safety clothing, i.e., safety
goggles, gloves and shoes.
24984
11
26185
12
3. Unscrew the retaining bolt (1) and recover the
detent ball and spring. 1
24989
13
???.??.???.?? – ?? – ????
SECTION 21 – TRANSMISSIONS – CHAPTER 2 7
26186
14
5. Remove the reverser driving gear (1) complete
with roller bearings. 1
24994
15
24995
16
24997
17
???.??.???.?? – ?? – ????
8 SECTION 21 – TRANSMISSIONS – CHAPTER 2
24999
18
9. Unscrew the retaining bolts and remove the
sleeve cover / support (1). 1
25000
19
10. Unscrew the two securing bolts (1) of the sliding
sleeve control forks (2). 1 2
25001
20
11. Withdraw the external clutch control levers (1)
and remove the forks (2). 1
2
25002
21
???.??.???.?? – ?? – ????
SECTION 21 – TRANSMISSIONS – CHAPTER 2 9
???.??.???.?? – ?? – ????
10 SECTION 21 – TRANSMISSIONS – CHAPTER 2
???.??.???.?? – ?? – ????
SECTION 21 -- TRANSMISSIONS -- CHAPTER 3 1
SECTION 21 -- TRANSMISSIONS
CONTENTS
21 000 -- MAIN DATA -- TIGHTENING TORQUES -- SECTION VIEWS -- TOOLS -- DESCRIPTION AND
OPERATION -- FAULT DIAGNOSIS
???.??.???.?? -- ?? -- ????
2 SECTION 21 -- TRANSMISSIONS -- CHAPTER 3
TORQUE VALUES
Torque Settings
PARTS Thread
Nm kgm
Bolt or nut securing clutch casing -- reverser and creeper unit to the
engine (C1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 12 x 1.25 98 10
Gearbox driving and driven shaft bearings cover screws (C4) . . M 8 x 1.25 28 2.9
Bolt securing clutch casing -- reverse and creeper unit to the rear
transmission--gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 12 x 1.25 98 10
TRE0561A
23
???.??.???.?? -- ?? -- ????
SECTION 21 -- TRANSMISSIONS -- CHAPTER 3 3
26191
26192
24
Tool for gearbox driving shaft seal (mark tool 50137)
(Dimensions in mm)
make tool in UNI C40.
???.??.???.?? -- ?? -- ????
4 SECTION 21 -- TRANSMISSIONS -- CHAPTER 3
2 3 4 5 6
10 8 7
9
TRE0562A
25
1. Reverser and creeper unit control shaft. 6. Gearbox driving shaft control gear.
2. Seal. 7. Creeper unit driven gear.
3. Circlip. 8. Thrust washer.
4. Creeper unit control gear. 9. Reverser driven shaft.
5. Reverser--creeper unit synchroniser. 10. Seal.
Note -- On assembly apply sealing compound to the surfaces X following the indications given on page 6 in chap-
ter 1.
???.??.???.?? -- ?? -- ????
SECTION 21 -- TRANSMISSIONS -- CHAPTER 3 5
TRE0563A
26
The reverser--creeper unit is a mechanical device and is controlled by a hand lever located on the right--
providing the possibility to obtain 20 forward speeds hand side of the operator.
and 12 reverse speeds.
The reverser comprises three spur gears : the re-
The creeper unit engages only in slow and middle verser driving gear, an intermediate gear and the re-
ranges, a mechanical interlock prevents creeper en- verser driven gear; the reverser is engaged by
gagement in the fast ranges. means of a synchroniser located in the gear assem-
bly.
The creeper unit comprises a group of three spurs
gears : a sliding control gear, a synchroniser control The reverser--creeper unit is installed inside the
gear and a driven gear; the unit utilises the same syn- clutch casing between the clutch and the gearbox.
chroniser as the reverser.
Lubrication is provided by the oil contained in the rear
The creeper is installed in series with the reverser transmission--gearbox.
15. Synchroniser teeth damaged. Remove the clutch casing and re-
place the synchroniser.
16. Engagement travel incom- Eliminate the cause and restore full
plete. travel.
Difficulty in engaging the revers- 1. External levers and linkages Adjust correctly.
er--creeper unit. incorrectly adjusted.
Reverser--creeper unit unduly 1. Internal component/s worn or Remove clutch casing and replace
noisy. defective. defective parts.
???.??.???.?? -- ?? -- ????
SECTION 21 -- TRANSMISSIONS -- CHAPTER 3 7
22893
27
22894
28
3. Remove circlip (1) of reverser transmission driv-
ing shaft.
26198
29
???.??.???.?? -- ?? -- ????
8 SECTION 21 -- TRANSMISSIONS -- CHAPTER 3
26199
30
26200
31
6. Withdraw the driven shaft gear (1) together with
the roller bearings and remove the thrust wash-
er.
26201
32
7. Remove the control fork retaining springs (2) and
withdraw the clutch pressure plate bearing as-
sembly (1).
26202
33
???.??.???.?? -- ?? -- ????
SECTION 21 -- TRANSMISSIONS -- CHAPTER 3 9
26203
34
26204
35
10. Unscrew the retaining bolts and remove the cov-
er (1).
22902
36
11. From the rear of the casing, withdraw the shaft
(1) complete with the relative bearing.
26205
37
???.??.???.?? -- ?? -- ????
10 SECTION 21 -- TRANSMISSIONS -- CHAPTER 3
26206
38
26207
39
14. Remove the circlip (1).
26208
40
15. Remove the driveshaft seal (1) using a suitable
implement.
26209
41
???.??.???.?? -- ?? -- ????
SECTION 21 -- TRANSMISSIONS -- CHAPTER 3 11
WARNING
Always use suitable tools to align holes. NEVER
USE YOUR FINGERS OR HANDS.
26210
42
???.??.???.?? -- ?? -- ????
12 SECTION 21 -- TRANSMISSIONS -- CHAPTER 3
Note -- Leave the drift (1) with the nut in the position
reached on completion of the installation operation,
and on future seal installation operations simply
check that the distance (H, fig. 20) is as prescribed.
21. Remove the drift (1), the bracket (2) and the cir-
clip (1, fig. 18).
22. Locate the new seal in its seat (see page 6 for
correct orientation of seal), refit the bracket (2)
on the clutch casing and insert the drift in the
26211
bracket.
43
23. Force the seal in until the nut (1, fig. 20) reaches
up against the bracket (2).
24. Dismantle the bracket (2), remove the drift (1)
and proceed with the installation of the other
components.
???.??.???.?? -- ?? -- ????
SECTION 23 – DRIVE LINES – CHAPTER 1 1
CONTENTS
MAIN SPECIFICATION
???
2 SECTION 23 – DRIVE LINES – CHAPTER 1
TORQUE SETTINGS
C12
C13
TRE0401A
TRE0400A
Torque setting
PART TO BE TORQUED Thread
Nm kgm
Transmission shaft central support retaining bolt ( C12 ) . . . . . . . . M 12 x 1.5 98 10
Drive gear housing retaining bolt (C13) . . . . . . . . . . . . . . . . . . . . . . M 12 x 1.25 98 10
TOOLS
293836 Drive shaft seal key
???
SECTION 23 – DRIVE LINES – CHAPTER 1 3
5
22
6
25
1
x
10
C12 11
30
4
56 39 27
28 2
29 12 3
TRE0402A
TRE0403A
2
Sectional views of transfer box:
C12 = Drive shaft centre bearing capscrew
C13 = Axle drive housing capscrew
X = On assembly,thoroughly clean and degrease
mating surface X .
1. Brake driven discs 12. Four – wheel drive engagement sleeve
2. Brake linings 22. Dentent plunger
25. Roll pin
3. Brake shoe
26. Intermediate shaft
4. Driven gear 27. Dust exculuder
5. Intermediate gear 28. Seal
6. Needle roller bearing 29. Retaining ring
30. Splined driven shaft
10. Driven shaft 39. Drive shaft guard
11. Guide screws 56. Centre bearing
???
4 SECTION 23 – DRIVE LINES – CHAPTER 1
Op. 23 101 26
TRANSMISSION SHAFTS AND GUARD
Disassembly – Assembly
WARNING
Handle all parts with great care.
Do not place hands or fingers between one part and
another.
Always wear the prescribed safety clothing, including
protective glasses, gloves and shoes.
25621
3
2.Remove the front, centre and rear screws securing
the front axle prop shaft guard and remove the 1
guard (1).
3.Remove circlip (2) fig. 5 and move sleeve (1) in the
direction shown by the arrow to disengage it from
the splined shaft of the front axle.
4.To re–fit the transmission shaft and guard, proceed
as follows:
WARNING
Use suitable tools to align holes. NEVER USE FIN- 25038
GERS OR HANDS.
4
1 2
–Fit and secure the transmission shaft in position
NOTE:
Move the front splined sleeve (27) against
retaining ring (28). Using a feeler gauge,
measure gap between the sleeve and the
retaining ring (26) and install shim (S 5) to
obtain sleeve end play (L) of 1 to 1.5 mm (see
Section 25 page 9).
25040
– Fit and secure the guard.
5
???
SECTION 23 – DRIVE LINES – CHAPTER 1 5
Op. 23 101 40
DRIVE GEAR HOUSING ASSEMBLY
Removal– Installation
WARNING
Handle all parts with great care.
Do not place hands or fingers between one part and
another.
Always wear the prescribed safety clothing, including
protective glasses, gloves and shoes.
TRE0404A
TRE0405A
7
4.Remove the screws (1) that hold the drive gear
housing (transfer box) to the transmission housing. 1
TRE0406A
???
6 SECTION 23 – DRIVE LINES – CHAPTER 1
WARNING
Use suitable tools for aligning holes. DO NOT USE
YOUR HANDS OR FINGERS.
–Refer to the tightening torques shown on page 2.
–Carefully clean the contact surfaces.
26283
???
SECTION 23 – DRIVE LINES – CHAPTER 1 7
WARNING
Handle all parts with great care.
Do not place hands or fingers between one part and
another.
Always wear the prescribed safety clothing, including
protective glasses, gloves and shoes.
25725
10
3.Use the special punch to withdraw the snap ring
1 2 3
(1), then the pin (2). Remove the roller bearing, the
spacer, the thrust washers and the intermediate
gear (3).
TRE0407A
11
5.Use a screwdriver to remove the dust ring (1).
1
6.Remove the splined driven shaft, complete with
parts, parking brake discs and the driven gear,
TRE0408A
12
???
8 SECTION 23 – DRIVE LINES – CHAPTER 1
WARNING
Use suitable tools to align holes. NEVER USE FIN- TRE0119A
GERS OR HANDS.
13
–Using tool 293836, fit the seal and dust ring (use
the spacer to fit the dust ring )
???
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 1
MAIN DATA
???
2 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
MAIN DATA
Bevel Drive and Differential
-- Thickness of pinion bearing adjustment spacer
TD60 and TD70 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm 2.5--2.55--2.6--2.65--2.7--2.75--2.8--
2.85--2.9--2.95--3.00--3.05--3.10--
3.15--3.2--3.25--3.3--3.35--3.4--3.45
--3.5--3.55--3.6--3.65-- 3.7
TD80 , TD90 and TD95 Models . . . . . . . . . . . . . . . . . . . . . . . mm 2.2--2.25--2.30--2.35--2.40--2.45--2.
5--2.55--2.6--2.65--2.7--2.75--2.8--2.
85--2.9--2.95--3.00--3.05--3.1--3.15
--3.2--3.25--3.3--3.35--3.4
-- Thickness of crown wheel position adjustment spacer
TD60 and TD70 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm 2.5--2.6--2.7--2.8--2.9--3.00--3.1--
3.2--3.3--3.4--3.5--3.6--3.7
TD80 , TD90 and TD95 Models . . . . . . . . . . . . . . . . . . . . . . . mm 2.2--2.3--2.4--2.5--2.6--2.7--2.8--2.9
--3.0--3.1--3.2--3.3--3.4--3.5
-- Clearance between sides of planet and side pinion teeth . . . . . mm 0.15
-- Thickness of planet pinion thrust washers . . . . . . . . . . . . . . . . . mm 1.470 -- 1.530
-- Thickness of side gear thrust washers . . . . . . . . . . . . . . . . . . . . mm 1.50 to 1.60
-- Diameter of cross pin for planet pinions
TD60 and TD70 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm 21.939 -- 21.960
TD80 , TD90 and TD95 Models . . . . . . . . . . . . . . . . . . . . . . . mm 23.939 -- 23.960
-- Side diameter cross pin bore diameter
TD60 and TD70 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm 22.040 -- 22.961
TD80 , TD90 and TD95 Models . . . . . . . . . . . . . . . . . . . . . . . mm 23.940 -- 23.961
-- Clearance between cross pin and bores . . . . . . . . . . . . . . . . . . . 0.080 -- 0.122
-- Diameter of outer axle shafts and corresponding bushes
TD60 and TD70 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm 37.961 -- 38.000
TD80 , TD90 and TD95 Models . . . . . . . . . . . . . . . . . . . . . . . mm 43.961 -- 44.000
-- Inside diameter of installed bushes 0.77 -- 0.83
TD60 and TD70 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm 38.080 -- 38.199.
TD80 , TD90 and TD95 Models . . . . . . . . . . . . . . . . . . . . . . . mm 44.080 -- 44.119
-- Clearance between axle shafts and bushes ............... mm 0.080 -- 0.158
(continued overleaf)
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 3
MAIN DATA
(continued overleaf)
???
4 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
TIGHTENING TORQUES
Tightening torque
PART Thread
Nm kgm
Front axle
-- models TD60, TD70, TD80, TD90 and TD95 . . . . . . . . . . . . . . . M 12 x 1.25 113 11.5
C3 -- 113 Nm C12 -- 64 Nm
C4 (*) C6 -- 392 Nm
26125
C7 -- 64 Nm
C2 -- 113 Nm C1 -- 294 Nm
26124
C11 -- 314 Nm
C9 -- 314 Nm
26126
C10 -- 113 Nm C9 -- 314 Nm
1
(*) See pages 25 to 26
???
6 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
TOOLS
293812 Dowels (M 16x 1.25 ) for removal / X 293665 Wrench for front differential case
installation of front axle wheels. bearing adjustment nut (TD80, TD90,
TD95 models).
293743 Overhaul support for front axle diffe-
rential casing. X 293857 Front axle pivot pin removal tool.
293400 Universal gauge for positioning of X 292161 Front axle pivot bearing outer ring
front bevel drive pinion. removal tool.
TRE0414A
TRE0415A
TRE0416A
DANGER
Lift and handle all heavy parts using suitable lifting
equipment with a sufficient lifting capacity.
Check that the assemblies or parts are held firmly
and supported by suitable slings and hooks. Make
sure nobody is standing near to the load.
Proceed as follows:
NOTE: The front axle assembly can be removed
from the tractor either with or without previously re-
moving the drive shaft. The description below refers
to removal of the front axle with the drive shaft instal-
led on the tractor. For removal of the drive shaft refer
to section 23.
25621
5
2. Unscrew bolts (1) and remove the front mud-
guard supports (2). 2
25575
6
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 11
TRE0159A
25576
8
5. Remove the circlip (1) from the front of the drive
shaft. Slide the sleeve rearwards and detach the 1
drive shaft from the front axle.
25584
9
6. Pass two nylon slings around the front axle and
attach them to a hoist.
TRE3201A
10
???
12 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
TRE0417A
11
8. Unscrew unions (1) of the rigid pipes to the
power steering cylinders and detach the two
flexible hoses
TRE0176A
12
25582
13
10. Unscrew the front axle rear support retaining
bolts (1).
1
25585
14
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 13
25586
15
12. Using a hoist and two nylon cables (one for each
side) detach the front axle from the tractor.
13. Refit the front axle following the instructions
below.
WARNING
Always use appropriate tools to align fixing holes.
NEVER USE YOUR FINGERS OR HANDS.
— Refit the axle and bolt the front and rear supports TRE3301A
in position.
— Reconnect the the power steering pipes. 16
— Fit the front wheels.
— Raise the front of the tractor using the hoist.
— Remove the fixed stand.
— Detach the nylon cables.
— Reconnect the drive shaft and refit the drive
shaft guard.
— Refit the two front mudguards.
— Attach a nylon cable to the front weights, lift, refit
to the tractor and secure with the locking screws.
— Reconnect the negative battery lead.
— Adhere to the tightening torques indicated on
page 4.
???
14 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
FRONT AXLE
Removal--Installation (Op 25 100 38 ) C6 2 1
TD60 and TD70 Models
WARNING
Handle all parts with care.
Do not insert hands or fingers between one part and
another. Wear suitable safety clothing, i.e. safety
goggles, gloves and shoes.
TRE0418A
17
1. Unscrew the drain plug and drain the oil from the
axle casing. 7 6
5 4
2. Remove the planetary final drive housing (1)
complete with planet wheels.
3. Remove sun gear (2).
3
4. Remove planetary final drive ring gear--fixed
gear unit , slacken lock ring using wrench 295030
(for TD60 and TD70 models) or 293880 (for
TD80, TD90 and TD95 models).
5. and removing assy from knuckle.
6. Remove wheel hub (6) with taper roller bearing
cups (7) and associated seal. Be careful to TRE0419A
prevent seal damage.
18
7. Remove steering knuckle (10) with wheel hub
support.
8. Remove articulated axle shaft (9) with bearing 6
housing. Back off the capscrew before withdraw-
ing the axle shaft.
9. Replace worn bearings using suitable punches
and universal pullers. Check seal efficiency.
19
8 9
TRE0421A
10
20
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 15
WARNING
Handle all parts with care.
Do not insert hands or fingers between one part and
another. Wear suitable safety clothing, i.e. safety
goggles, gloves and shoes.
21
1. Unscrewthe plug (1) and drain the oil from the
axle casing.
1
25588
22
2. Unscrew plug (1) on the left--hand epicyclic final
drive casing. Repeat this operation on the 1
right--hand casing.
25589
23
3. Remove the front axle rear support (1). Remove
the front support and retrieve the washer.
25590
24
???
16 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
25591
25
5. Using a suitable puller, withdraw the pins from
their bores in the stub axle housing and remove
the track rod.
24080
26
6. Remove the circlips (2) from the cylinder rod
pivot pins, unscrew the pin retaining bolts of the
1 2
cylinder (1), withdraw the pins and detach the
two cylinders.
Retrieve the four pins, washers, spacers and
cylinders, complete with hoses.
25593
27
25594
28
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 17
25595
29
9. Remove the inner circlip (1) from the stub axle
shaft.
1
25596
30
10. Remove the staking (1) on the wheel hub bearing
lock ring (2).
1 2
25597
31
25598
32
???
18 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
12. Remove the wheel hub (1) with the ring gear (2).
Retrieve all disassembled parts.
1 2
25599
33
13. Unscrew the three retaining bolts (1) of the lower
pin of the stub axle housing. Recover the lower
pivot pin and the related adjustment shims. 1
25600
34
14. Unscrew the three retaining bolts (1) of the
mudguard bracket (2).
2
1
25601
35
15. Withdraw the upper pivot pin (1) and detach the
stub axle housing (2). Retrieve the disassembled 2
parts. 1
25602
36
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 19
25604
37
17. Remove bracket (1), unscrew the union (3) and
detach the front brake pipe (2). 1 2 3
25605
38
18. Unscrew two of the bolts fixing the bevel
drive--differential support to the axle casing.
Screw in the two dowels 292255 (1). Remove the 2 3
remaining bolts and separate the bevel drive--dif-
ferential support from the axle casing. Attach a 1
cable (2) to the support and take up the strain
with the hoist. Remove the bevel drive--differen-
tial support (3) from the axle casing.
25606
39
19. Install tool 380000255 (1) in the vice on the work
bench. Bolt the bevel drive--differential support
on to the tool. Detach the lifting cable. 1 2
20. Unscrew the bolt (2) and remove the ring nut lock
tab (3).
25607
40
???
20 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
TRE0231A
41
TRE0422A
42
23. Remove the front brake hub gear (1),
TRE0233A
25609
43
24. Remove the friction discs (1)and metal discs (2).
1
TRE0234A
44
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 21
TRE0235A
45
26. Unscrew the two bolts (2) of the crown wheel--dif-
ferential support caps (1).
1
TRE0232A
46
27. Remove the crown wheel--differential assembly 46
(2) from the housing (1). 1 2
TRE0423A
47
28. Remove the circlip (1) from the splined shaft (2).
1 2
25614
48
???
22 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
25615
49
25616
50
31. Recover the splined shaft detent ball (1)
1
25617
51
32. Withdraw the bevel drive pinion shaft (1) from the
rear of the casing and recover the spacer, the ad-
justment shims and the bearing.
1
25618
52
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 23
25619
53
--Refer to the illustrations on pages 7, 8 and 9 -- Install the bevel drive--differential housing on the
to check the orientation of the various compo- front axle casing and fit the external front brake
nents. pipe.
--Respect the tightening torques prescribed on --Install the axle shaft and relative bolt.
page 4.
--Fit the stub axle, the adjustment shims, the upper
--Carry out the adjustments described on pages 28 and lower pivot pins, the mudguard bracket and
to 34. related bolts.
--Install the rear bearing, the seal, the dust seal, --Fit the wheel hub, the ring gear of the final drive
the adjustment shims, the spacer and the bevel unit and the lock ring. Tighten to the prescribed
drive pinion shaft complete with front bearing. torque value, while simultaneously turning the
wheel hub, to ensure that the bearings are
--Position the detent ball, screw in the bevel drive correctly seated.
pinion lock nut and secure in position by staking.
Finally, replace the circlip. --Fit the securing and stop circlips, the sun gear
and the cover of the final drive unit.
--Install the crown wheel--differential assembly, the
support caps and tighten the relative bolts --Fit the pins, washers, spacers and steering
cylinders.
???
24 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
WARNING
Handle all parts with great care.
Do not put your fingers or hands between one piece
and another. Wear suitable safety clothing, i.e. safety
goggles, gloves and footwear.
24596
54
6. Using extractor tool 292161 (1) remove the
steering knuckle bearings.
1
7. Re--install the steering knuckle bearings using a
suitable drift.
24599
55
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 25
WARNING
Handle all parts with great care.
Do not put your fingers or hands between one piece
and another. Wear suitable safety clothing, i.e. safety
goggles, gloves and footwear.
24076
56
24077
57
4. Using a torque wrench and tool 292220 (1),
check that the torque required to rotate the
casing (ignoring the initial torque) is as follows:
models TD60 and TD70 .2.9 Nm (0.3 kgm) 1
(with torque increment of 0.98 Nm -- 0.1 kgm)
???
26 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
proceed as follows:
-- Install wheel hub and fixed gear unit onto the
steering knuckle;
-- Using a torque wrench and lock ring wrench
295030 (for TD60 and TD70 models) or 293880
(for TD80, TD90 and TD95 models)., progres-
sively tighten the lock ring (C6) (page 8) to147 --
196 Nm (15 -- 20 kgm).While tightening the lock
24093
ring, rotate the hub to settle the bearings.
60
???
28 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
M E
WARNING
8 7
Handle all parts with care.
Do not insert hands or fingers between one part and
another. Wear suitable safety clothing, i.e. safety
goggles, gloves and footwear. 9
TRE0424A
Proceed as follows. 61
1. Install the bevel pinion bearing cones (7) and H4
(9) with spacer (8) on tool 293438 (E) with
centralizer (G) M
2. Fully tighten tool nut (M).
7
E
3. Measure dimension (H4) between the tool pin 8 G
end and top face.
9
TRE0425A
62
63
S1= H3 -- H4 + 0.10 mm S1
M
If necessary, round off (S1) to the nearest 0.05 mm
7
E
NOTE On completing the adjustment, do not remove G
the adjustment tool from the bevel drive--differential 8
housing. Leave in place for adjustment of the drive
pinion position. See following subject matter. 9
TRE0427A 10
64
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 29
???
30 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
Example 1:
Example 2:
Example 3:
67
TRE0428A
68
???
32 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
69
24592
70
1
If bevel drive blacklash is not within the speci-
fied tolerance range, back off one lock ring and
tighten the other by exactly the same amount
to restore axial pre--load and obtain the speci-
fied backlash.
71
A2 = A1 + 1 -- 1.5 Nm (0.10 -- 0.15 kgm)
where:
A2 = pinion--crown wheel rolling resistance
torque;
A1 = rolling resistance torque of pinion only, as
measured previously;
24590
72
F2 = F1 + F3
Where:
F2 = Pinion/ring gear assy revolving torque deter-
mined by spring balance/string method
24587
F2 =Revolving torque for pinion alone, as mea-
sured earlier by balance/string method, namely: 73
24596
74
Mastic application diagram for assembly of
bevel drive unit and epicyclic final drive unit.
The types of mastic to use are listed on page 1 of
section 00
???
34 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
Proceed as follows:
75
6. Repeat the above operations to measure the
endfloat on the right--hand side gear (Gd).
The endfloat should be 0.25 mm.
Therefore the shims to be inserted in the differ-
ential housing are given by:
Ss = Gs -- 0.25 mm for the left--hand side gear;
Sd = Gd -- 0.25 mm for the right--hand side gear.
76
SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1 35
WARNING
Handle all parts with carefully.Do not put your hands
or fingers between parts. Wear suitable safety
clothing, safety goggles, gloves and footwear.
???
36 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
79
81
Section through differential with NO--SPIN unit
???
38 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
NOTE:
Check NO SPIN differential unit operation as When the tractor is in a straight forward or reverse
follows: mode of operation, the NO SPIN allows equal
speed to be distributed to both wheels.
--With the engine off, engage a gear and the front
wheel drive, apply parking brake and raise front of When the tractor makes a turn or a front wheel
tractor. passes over an obstruction, the outer wheel or the
wheel on the obstruction must travel faster and
--Rotate the front wheels in a forward direction to farther than the other. To do this it automatically
eliminate play. Hold the L.H. wheel and rotate the disengages, passes over the obstruction or nego-
R.H. wheel rearwards. The NO SPIN differential tiates the curve and re--engages again automati-
will disengage and the wheel will rotate with an cally.
indexing or metallic clicking sound.
If one wheel should Iose traction momentarily, the
-- Stop the R.H.wheel, then turn forwards slightly. opposite wheel, which still has traction, continues
The NO SPIN differential will engage and stop the to pull the vehicle until traction is regained by both
wheel. Rotate both wheels backwards to eliminate wheels.
play, hold the L.H.wheel and rotate the R.H. wheel
forwards. The NO SPIN differential will disengage Turning: In a left turn, for instance,the right--hand
and the wheel will rotate with an indexing or wheel increases speed. The axle shaft (14) (page
metallic clicking sound. 37), transmits this speed increase to the left side
gear (3) to the left driven clutch (10) and to the
--Stop R.H. wheel, then tum backwards slightly. associated cam holdout ring (9). When the speed
The NO SPIN differential will engage and stop the difference between the two wheels reaches a
wheel. given value, ring (9) and clutch (10) overcome
spring Ioad and disengage from the centre cam
--Repeat the above operations while holding the
(11), remaining in this position until1he end of the
R.H. wheel.
curve.
OPERATlON
NOTE: For correct NO SPIN differential operation,
The NO SPIN differential performs the following key tyres must be equal (within a few millimetres) in
functions: rolling circumference. Small differences may be
corrected by adjusting tyre inflation pressure. To
--Permits full use of tractor pull. check the rolling circumference of a tyre, proceed as
follows:
--Prevents wheel--spin when one wheel Ioses
traction. With the tractor on a hard, level surface, mark the
edge of the tyre, with chalk, at the lowest point
--Compensates for differences in wheel travel which
(where it contacts the ground). Mark the ground at
occur when turning or traveling over uneven ground.
the same spot.
???
40 SECTION 25 -- MECHANICAL FRONT AXLE -- CHAPTER 1
1
6. If it is necessary to correct the wheel alignment,
remove nut (2) and pull the track rod end (1) out
of its housing. Slacken off locknut (3) and screw
the track rod end (1) in or out to increase or
decrease the distance (2) fig. 84.
Reposition the track rod end (1) in its housing
and re--check alignment as described in points 4
and 5 above.
After having adjusted the alignment to within the
prescribed limits, tighten locknut (3) to a torque 3
of 180 Nm (183 kgm) and nut (2) to 100 Nm 2
(10.2 kgm). 24667
NOTE: The self--locking nut (2) must be renewed
each time it is removed or partially unscrewed. 85
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 1
SECTION 27 -- REAR AXLE AND TRANSMISSION
Chapter 1 -- Rear axle and transmission
CONTENTS
Release for mechanically controlled differential lock . . . . . . . . controlled by foot brake pedals
25.040--25.061
24.040 -- 24.061 (for TD80--TD90)
Differential pinion internal seat diameter . . . . . . . . . . . . . . . . . . mm 28.040--28.061
(for TD95)
Clearance between differential pinions and their pins . . . . . . . mm 0.080 -- 0.122 0.080 -- 0.122
Clearance between side gears and their seats . . . . . . . . . . . . . mm 0.080 -- 0.158 0.100 -- 0.192
Bevel pinion positioning adjustment . . . . . . . . . . . . . . . . . . . . . . see pages 29 and 30
Adjuster shims for bevel pinion positioning . . . . . . . . . . . . . . . . . mm 1.85 -- 1.90 -- 1.95 -- 2.00 -- 2.05 --
2.10 -- 2.15 -- 2.20 -- 2.40 -- 2.45 --
2.50 -- 2.55 -- 2.60 -- 2.65 -- 2.70
11:67=1:6.1
Reduction ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11:62= 1:5.6 (for TD80--TD90)
11:68=1:6.2
(for TD95)
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 3
Torque settings
PART TO BE TIGHTENED Thread
Nm kgm
Bolts for securing PTO box to transmission / gearbox case (C3) M 16 x 1.5 221 22.5
Bolts for securing torsion bar to transmission / gearbox case (C4) M 16 x 1.5 221 22.5
Nuts for securing steel disc to drive wheel hub (C6) . . . . . . . . . . . M 18 x 1.5 255 26
Nuts for bolts securing steel disc to drive wheel rim (C7) . . . . . . . M 16 x 1.5 245 25
???.??.???.?? -- ?? -- ????
4 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
SECTIONAL VIEWS
C1 59 Nm C2 98 Nm
C4 221 Nm C3 221 Nm
C9 59 Nm
C7 245 Nm
C6 255Nm
C8 123 Nm
C5 98 Nm
C10 888Nm
TRE0550A
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 5
26259
Tool to be constructed for adjusting the installation position of bevel pinion shaft (Stamp number 50004 on
the tool -- measurement in mm)
26260
???.??.???.?? -- ?? -- ????
6 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
TRE0551A
NOTE: Screw in plugs 12 and 14 using one of the sealing compounds listed on page 1, Section 00.
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 7
15
10
C3 14 7 9
15 10
C3 14 7 9 3 6
3 6
16
16
4
4
C4
C4
17
17 11
11 13 5
13 2
X
2 5
C5
C5 18 8 19
18
8 19
1 20
1 X 12 X
12
C1 C1
TRE0552A 1
5
NOTE: During installation, apply sealing compound to surfaces X as shown in Section 00, Chapter 1, page 1.
???.??.???.?? -- ?? -- ????
8 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
38 38
TRE0554A
Transmission noisy while the trac- 1. Incorrect adjustment of bevel Remove the rear transmission box
tor is moving, even when the gear- pinion and / or ring bevel gear and adjust the pinion and ring bevel
box is in neutral (not arising from bearings. gear bearings correctly (page 28).
final drives).
Transmission noisy when tractor 2. Excessive clearance between Remove the rear transmission box
ia operated with or without load. pinion and ring gear teeth. and correctly adjust the pinion and
ring gear bearings (page 28).
Differential repeats noise within 3. An internal component is bro- Remove the rear transmission box,
short intervals. ken or defective. replace the worn parts and correctly
adjust the differential gear clearance
(page 32).
Transmission noisy and assembly 4. Pinion and / or ring gear Remove the rear transmission box
overheats. bearing clearances insuffi- and correctly adjust the pinion and
cient. ring bevel gear bearings (page 28).
???.??.???.?? -- ?? -- ????
10 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
WARNING
Lift and handle all heavy parts using proper equip-
ment of adequate lifting capacity.
Make sure that the assemblies and parts are sup-
ported by appropriate tools and hooks. Keep person-
nel away from the vicinity of the load to be lifted.
TRE0209A
7
2. Remove the drain plug from the 4WD transfer
box (1) and drain the oil into a suitable container.
TRE0564A
8
3. Place the tractor dismantling stand 292320, so
that the fixed support (1) is beneath the rear
transmission case in supporting the engine
coupling flange and the moveable support (2)
under the engine in supporting the flange
attached to the gearbox case.
25050
9
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 11
25051
10
5. Remove electrical connections (1) going to the
instrument panel.
TRE0185A
11
6. Remove the socket (1) with its cable that passes
from the instrument panel and over the gearbox
to the rear fender.
TRE0216A
12
7. Remove the support bolt (1) from the injection
pump and disconnect the hand and foot throttle
cables.
TRE0177A
13
???.??.???.?? -- ?? -- ????
12 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
TRE0160A
14
9. Disconnect the proofmeter drive cable from its
adapter (1) and remove the retaining bolt (2).
TRE0501A
15
10. Remove the filter line (1) and pressure pipe (2)
from hydraulic pump.Remove both footboards
as described in section 90.
TRE0201A
16
11. Remove the securing nuts (1) from the brake
pedal retaining bolts. Remove the pedals from
the upper surface of the operator environment/
platform.
TRE0195A
17
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 13
TRE0194A
18
13. Remove the split pins (1) and disconnect the
synchronised PTO engagement lever.
TRE0198A
19
14. Remove the retaining pin (1) of MFD engage-
ment lever and take the lever.
TRE0212A
20
15. Remove the indicator and light connections (1)
on both sides of tractor.
TRE0192A
21
???.??.???.?? -- ?? -- ????
14 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
TRE0503A
22
TRE0504A
23
18. Disconnect the auxiliary valve nuts (1) from their
pipes.
TRE0200A
24
19. Remove the split pins (1) and respective draft
and position control levers.
TRE0505A
25
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 15
20. Remove the 4WD shaft guard from its front (1),
middle (2) and rear retaining bolts.
TRE0207A
26
21. Remove the snap ring (2) and withdraw the
sleeve (1) from DT transfer box in the direction 2
of the arrow.
1
25039
27
22. Remove the snap ring (2) and withdraw the
sleeve (1) from the DT transfer box in the direc- 1 2
tion of the arrow.
25040
28
23. Remove the middle support bolts (1) from drive
shaft and take the shaft complete with support.
1
25041
29
???.??.???.?? -- ?? -- ????
16 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
TRE0188A
30
TRE0187A
31
26. Use a chain to attach the tow hook and PTO to
the hoist. Remove the three retaining bolts (1) for
both side and remove the unit from rear trans-
mission--gearbox case.
32
27. Unscrew the nut (1), remove the bolt, take the
lower arm (3) out and its spacer (2) by complet-
ing the operations for both side. 1 2 3
25773
33
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 17
28. Connect the ends of flexion bar (1) using belt that
strong enough to be lifted the assembly up. Re- 1
move the retaining bolts (2) and take the as-
sembly.
TRE0508A
34
29. Remove the bolts, and then lift the gearbox cover
(1).
TRE0104A
35
30. Remove the bolt (1) and rear transmission case
internal oil tank complete (2). 2
1
25774
36
31. Connect the rear transmission--gearbox case to
the hoist by chain. Begin to remove the rear
transmission--gearbox case using stand
380000236.
TRE0189A
37
???.??.???.?? -- ?? -- ????
18
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
TRE0553A
1. For the correct orientation of the various parts, 19. Screw on the rear transmission--gearbox case oil
refer to the illustrations on pages 5, 7, and 8. discharge plugs and the fuel tank discharge plug.
2. Before installing boxes, supports and covers, 20. Connect the fast raise/lower control cable.
thoroughly clean and degrease the mating sur-
faces and apply a strip of sealing compound of 21. Connect the differential lock mechanical control
about 2 mm (.078 ins) diameter as shown in the rod.
diagram on page 26.
22. Connect the parking brake control rod.
3. Apply the torque settings given on page 4. 23. Install the gearbox and final drive control levers.
4. Using the stand 380000236, install the rear 24. Install the reverser control lever.
transmission--gearbox case onto the clutch box.
25. Connect the PTO speed selection cable.
5. Install the flexion bar support complete with inter-
nal connecting rod. 26. Connect the synchronised PTO control lever.
TRANSMISSION--GEARBOX CASE
Disassembly
WARNING
Handle all parts with great care.
Never place your hands or fingers between one part
and another. Wear the prescribed safety clothing, in-
cluding glasses, gloves and protective footwear.
39
2. Turn the box by 180°, undo the bolts (1) and re-
move the transfer box (2).
2
TRE0510A
40
3. Turn the box by 180°, then use a punch to re-
move the elastic pins (1) and take out the shift
rails, the prongs, the gearbox and final drive con-
trol forks.
25783
41
TRE0511A
42
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 21
5. Remove the elastic pin (2) and take out the exter-
nal lever (1) that controls the PTO synchronised
with the gearbox.
1
2
TRE0512A
43
6. Withdraw the internal lever (2) complete with
spring (1) and slide (3). 3
1 2
25791
44
7. Straighten out the notches and undo the driven
shaft locking nut (1).
1
25792
45
8. Remove from the rear the snap ring (1) that re-
tains the final drive driving shaft bearing.
1
25793
46
???.??.???.?? -- ?? -- ????
22 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
25794
47
10. Withdraw the final drive driving shaft (1).
1
25795
48
11. Remove the snap ring (1) that holds the bearing
(2) onto the gearbox drive shaft.
1 2
25796
49
12. Install the tool 50006 (2) (see Sect. 21) onto the
driving shaft and use the extractor (1) to with- 1 2
draw the driving shaft. Remove the bearings,
gears and respective bushings.
25797
50
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 23
25799
51
14. Screw the adapter 293940 (2) onto the pinion (3)
and use the extractor with sliding weight 292927
1 2 3
(1) to move the pinion by a few millimetres in the
direction shown.
25901
52
15. Move the engagement sleeve (1) until it is pos-
sible to gain access with pliers (2) to remove the 1 2
retaining snap ring.
25800
53
16. Move the gear (1) in the direction shown and re-
move the two retaining half--rings (2). Undo the
1 2 3
nut (3) completely and withdraw the pinion, re-
moving all parts.
25902
54
???.??.???.?? -- ?? -- ????
24 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
17. Undo the bolts (3), take out the support plate (1)
and remove the bearing (2).
1 2
25903
55
18. Use a brass punch (2) and a hammer to move the
driven shaft (1), withdraw the shaft and remove 2
1
all the parts.
19. Mount the rear transmission--gearbox case by
following sectional views and instructions given.
20. Apply the torque settings listed on page 4.
25904
56
Assembly
1 2
WARNING
Use appropriate tools to align the holes. NEVER
USE YOUR FINGERS OR HANDS.
25907
57
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 25
25908
58
3. Install the bearing (2) in its housing on the box
(front end) and lock it using the plate (1).
1 2
25903
59
4. Insert the gear shift forks (1 and 3) on the sliding
rings (2 and 4) of the synchronisers. 1 2 3
5. Install the pinion shaft complete with all the parts
and carry out the adjustments given on pages 4
36, 37 and 38.
25912
60
6. Install the gearbox drive shaft complete with all
parts and the adjuster shim, then position the
bearing (2) and lock it using the snap ring (1).
1 2
25796
61
???.??.???.?? -- ?? -- ????
26 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
25913
62
63
11. Install the piston and the corresponding differen-
tial lock control union.
12. Install all the rods, forks and gearbox and final
drive control prongs.
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 27
ADJUSTMENTS
3
25910
64
3. Measure the height (C) of the tool 50007 and the
thickness of the internal rings of the two rear
bearings (1 and 2). B
1 2
4. The adjuster shim to be installted is given by :
A C
S = H + C -- A -- B
where :
H = measured clearance
A and B = measured thickness of the bearings
C = height of the tool.
H
Example :
-- measured clearance H = 1.3 mm (.051 ins)
-- height of tool = 43.5 mm (1.712 ins)
25911
-- thickness of ball bearing (1) = 22.9 mm
(.901 ins) 65
-- thickness of roller bearing (2) = 18 mm
(.708 ins)
Thickness of adjuster ring :
S = 1.3 + 43.5 -- 22.9 -- 18 = 3.9 mm
(S = .051 + 1.712 -- .901 -- .708 = .154 ins)
???.??.???.?? -- ?? -- ????
28 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
WARNING
Use appropriate tools to align the holes. NEVER
USE YOUR FINGERS OR HANDS.
Proceed as follows :
TRE0513A
66
4. Clearance (G) measured between differential
lock sleeve (7) and differential bearing (8) should
be verified according to the models as follows:
TD60 and TD70: 2 mm (.078 ins).
TD80, TD90 and TD95: 0.5 mm (.020 ins).
TRE0515A
68
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 29
25915
69
2. Position the bearing (2) on tool 50004 (1, see
page 4), insert the bearing (3) and lock the tool
(1).
1
2 3
25916
70
3. Position the tool 380000249 (2) with two conical
parts in the differential supports and insert the
micrometer (1) with depth rod into its seat and
1 2
lock using the bolt.
25917
71
4. Screw down or unscrew the cones (1 and 2) so
that to move the micrometer rod to the position
of the bearing, adjust the cones (1 and 2) manu-
1
ally to lock the tool on the supports and eliminate
any axial clearance.
H1
5. Move the depth rod of the micrometer into con-
tact with the bearing and measure the value (H1).
2
25918
72
???.??.???.?? -- ?? -- ????
30 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
Examples :
Distance measured with the micrometer gauge
H1 = 145.9 mm (5.744 ins).
1
Thickness of test ring Sp = 1.90 mm (.074 ins).
Nominal distance between the ring gear axis and H1
major base of the pinion H2 = 145.5 mm (5.728
ins).
a) Correction value C = + 0.2 mm (.0078 ins).
Corrected nominal distance H3 = 145.5 + 0.2 =
2
145.7 mm (5.728 + .0078 = 5.736 ins).
Thickness of adjuster ring :
S = 145.9 + 1.90 -- 145.7 = 2.10 mm (S = 5.744 25918
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 31
25799
74
25919
75
TRE0516A
76
???.??.???.?? -- ?? -- ????
32 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
WARNING
Handle all parts with great care.
Never place your hands or fingers between one part
and another. Wear the prescribed safety clothing, in-
cluding glasses, gloves and protective footwear.
WARNING
Always use appropriate tools to align the holes. NE-
VER USE YOUR FINGERS OR HANDS.
Proceed as follows :
27300
77
2. Install RH support and tighten to 49 Nm (36 ft-
lbs).
Install and tighten RH ring nut while turning the 1
ring gear to seat the bearings. Tighten ring nut
until pinion ring gear assembly rolling torque is
9.8 -- 14.7 Nm (7.23 -- 10.85 ft-lbs). Torque can
be measured using spring scale and a cord
wrapped around differential carrier flange. Spe-
cified rolling torque is equivalent to a spring scale
force of 95 -- 147 N (22 -- 33 lbs).
TRE0517A
78
3. Use a dial gauge (1) to check the backlash (G)
of the ring and pinion (three measurements at
120° and average of the readings). Compare the
1
average of the three values with the normal pre-
scribed clearance: 0.18--0.23 mm, mean 0.21
mm (.007 -- .009, average .008 ins).
TRE0518A
79
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 33
Z = (G--0.21) x 1.4
(Z = [G--.008]) x 1.4
where :
G = Ring gear backlash as previously measured.
NOTE: If Z < 0 then take the ring gear away from
the pinion and if Z > 0 or if Z = 0 then place the
ring gear closer to the pinion.
28118
80
???.??.???.?? -- ?? -- ????
34 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
WARNING
All parts of differential must be cleaned so that oil
residue will not effect the accuracy of the adjustment.
8
25920
82
2. Move the LH side gear to bring it in complete con-
tact with the planetary gear, then push it up
against the differential box. Use a dial gauge to
measure the side gear movement. Make two
measurements in diametrically opposit positions
and take the arithmetic mean of the two values H1
as H1.
24597
83
3. Do the same operations on the RH side gear.
H2
24598
84
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 35
???.??.???.?? -- ?? -- ????
36 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
TRE0554A
86
Longitudinal and Cross Sectional Views of Bevel Gear Pair and Differential Unit
a. TD60 and TD70 models 12. Side gear shim
b. TD80, TD90 and TD95 models 13. Side gear shim
c. Longitudinal section for all models 14. Differential box
C1. Ring gear retaining screw 15. Bevel pinion shaft
C2. Differential support retaining screw 16. PTO shaft
S. Bevel pinion positioning shim 17. PTO control sleeve
1. Differential support 18. Fork
2. Differential support 19. Differential lock shaft
3. Taper roller bearing 20. Range gear retaining ring
4. Taper roller bearing 21. Bevel pinion securing plate
5. Differential lock sleeve 22. Differential bearing ring nut
6. Ring gear 33. Reverse driven gear
7. Side gear 34. Driven gear for slow speed gears
8. Side gear 35. Engagement sleeve for slow and fast speed
9. Differential pinion gears
10. Differential pinion shaft 36. Transmission driven shaft ring
11. Differential pinion shaft retaining screw 37. Retaining half--ring
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 37
WARNING
Handle all parts with great care.
Never place your hands or fingers between one part
and another. Wear the prescribed safety clothing, in-
cluding glasses, gloves and protective footwear.
WARNING
Always use appropriate tools to align the holes.
NEVER USE YOUR FINGERS OR HANDS.
CAUTION
Raise and handle all heavy components using a
suitable lift.
Ensure that units or parts are supported by suitable
slings or hooks. Ensure that there is no one in the
vicinity of the load to be lifted
TRE3011A
87
Disassembly (Cover)
???.??.???.?? -- ?? -- ????
38 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
TRE3012A C5
88
7. Withdraw driven gear (8). Fig. 5, page 7 from
wheel shaft (2) using puller as shown in Fig. 89
TRE3013A
89
Wheel shaft removal (installation) (Fig. 90)
(Arrow indicates shaft removal direction) 4 2 21 7
3
8. Knock out wheel shaft (2) by beating with lead
hammer in the direction shown by arrow in Fig.
90.
9. Use puller to withdraw outer ring (7) from cover
(3);
10. Finally, withdraw the bearing (4) from cover,
having first removed retaining circlip (21).
TRE3014A
90
DISASSEMBLY (housing) (Fig. -- 91)
11. Remove the bearing (5) from the housing (10)
Fig. 91, with a suitable puller; 10
12. Remove retaining ring (17) Fig. 91, and withdraw 5
axle shaft (9) Fig. 91, together with bearing (6)
Fig. 91, in the direction shown by arrow. 6
9
7
TRE3015A 17
91
???.??.???.?? -- ?? -- ????
SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1 39
TRE3016A
92
ASSEMBLY
Carry out the above operations in the reverse order,
bearing in mind the following:
1. Place the roller bearing (7) Fig. 90, outer ring in
its seat in the final drive cover with mark on the
outside;
3. Fit the half shaft and wheel shaft, taking care not
to damage the seals (11--12) Fig. 5;
???.??.???.?? -- ?? -- ????
40 SECTION 27 -- REAR AXLE AND TRANSMISSION -- CHAPTER 1
???.??.???.?? -- ?? -- ????
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 1
CONTENTS
Ground speed PTO. Rear wheel speed with PTO shaft wheel
rotating at 540 rev/min speed see 540 rev/min PTO
(30 and 40 km/h versions) . . . . . . . . . . . . . . . . . . . . . . . . . . . . rev/min
Ground speed PTO. Rear wheel speed with PTO shaft wheel
rotating at 750 rev/min speed
(30 km/h version) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rev/min 10.51 11.4
Ground speed PTO. Rear wheel speed with PTO shaft wheel
rotating at 750 rev/min speed
(40 km/h 4WD version) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rev/min 8.59 9.36
(continued overleaf)
??????????? -- 05 -- 2002
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 3
Ground speed PTO. Rear wheel speed with PTO shaft wheel
rotating at 1000 rev/min speed
(30 km/h version) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rev/min 14.1 15.2
Ground speed PTO. Rear wheel speed with PTO shaft wheel
rotating at 1000 rev/min speed
(40 km/h 4WD version) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rev/min 11.5 12.4
Clearance between shaft and front and centre bushings . . mm 0.009 -- 0.073
TOOLS
Important -- The operations described in this section 291517 Hook for lifting PTO
must be performed solely with the ESSENTIAL tools
marked below with (X).
To work in complete safety and to ensure optimal
technical results with a minimum of time and effort, 293812 Guide pins for PTO unit
they must however be supplemented with the
specific tools recommended below and with those to
be specially constructed by you and for which the 291928 Installer for PTO driving shaft
construction diagrams are given in this manual. bearings
??????????? -- 05 -- 2002
4 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
TORQUE SETTINGS
C1 -- 221 Nm C2 -- 25 Nm C3 -- 162 Nm
C4 -- 294 Nm
26276
TORQUE SETTINGS
Torque setting
PART TO BE TORQUED Thread
Nm kgm
Bearing support securing screws (2-- and 3--speed PTO) . . . . . . . . M 12 x 1.25 98 10
PTO box securing screws (C1, fig. 1) . . . . . . . . . . . . . . . . . . . . . . . M 16 x 1.5 221 22.5
PTO guard securing screws (C2, fig. 1) . . . . . . . . . . . . . . . . . . . . . . M 8 x 1.25 25 2.6
Self--locking nuts for securing splined shaft
(C3, fig. 1 for 2--speed PTO) or M 12 x 1.25 162 16.5
1 2
28 3
4
27
5
26
6
25
24
7
23
22
21
8
20
19 9
18
X X
10
17
16
11
15
14 13 12
NOTE: When installing use sealing compound of the type shown on page 1 section 00 on surface X as shown above.
??????????? -- 05 -- 2002
6 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
4
27
5
6
25
24
7
23
22
21
8
20
19 9
X
10
11
NOTE: When installing use sealing compound of the type shown on page 1 section 00 on surface X as shown above.
??????????? -- 05 -- 2002
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 7
TRE0308A
??????????? -- 05 -- 2002
8 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
2
10
3
1
9
TRE0990A
Section views -- 540 -- 1000 rev/min PTO North American version (available on request), not
synchronised with gearbox, with speed selection by replacement of splined output shaft.
1. Splined 1 3/8” output shaft (6 splines) for 540 rpm
PTO, or 1 3/8” output shaft (21 splines) for 1000
6. Return spring.
rpm PTO.
2. Driven shaft. 7. Return rod.
3. Snap ring securing part (1). 8. Speed selector lever support.
4. Speed selector rod. 9. Speed selector lever.
5. Speed selector sleeve control fork. 10. Speed selector sleeve.
??????????? -- 05 -- 2002
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 9
6
— two--speed PTO, 540/750 rev/min (option)
Independent PTO
Proceed as follows:
— with the PTO clutch disengaged, i.e. with the
control lever (1) fig. 7, rearward at position A;
1
— move the PTO selector lever (1) fig. 8, to position
B so as to engage the PTO sleeve (3) fig. 9, with
the toothed coupling of the shaft (2) which is
driven by the engine;
A
— engage the PTO by slowly moving the lever (1)
fig. 7, forward to position D.
D
TRE0106A
When engaged, the PTO shaft rotates and the PTO
warning lamp on the instrument panel lights up. 7
TRE0043A
8
??????????? -- 05 -- 2002
10 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
Proceed as follows:
— with the PTO clutch control lever (1) fig. 7, at
position D;
— fully depress the gearbox/engine clutch pedal;
— wait briefly, then move the PTO speed selector
(1) fig. 8, forward to position C and release the
gearbox/engine clutch pedal;
In these conditions the PTO coupling sleeve (3) fig. 9,
is turned directly by the toothed coupling of gear (1) in
the gearbox.
When the tractor is stationary the PTO shaft does not
turn. When changing from forward to reverse gear,
the direction of rotation of the PTO shaft reverses.
10
Slipping with loss of speed of PTO Wear of clutch disc or of engine Check the data given in the
output shaft. flywheel pressure plate. appropriate pages of section 18,
Poor adjustment of PTO clutch replace the worn parts and adjust the
control lever. clutch control lever.
Difficulty in selecting PTO speed External control stiff. Check the control lever.
by means of lever (2) fig. 10.
??????????? -- 05 -- 2002
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 11
WARNING
Lift and handle all heavy parts using lifting tackle of
sufficient capacity.
Make sure that the units or parts are supported by
suitable harnesses and hooks. Check that no one is
in the vicinity of the load to be lifted.
24952
11
3. Remove the tow hook (1), if fitted.
1
24953
12
4. Remove the tow bar (1), if fitted.
1
24954
13
??????????? -- 05 -- 2002
12 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
24955
14
6. Drain out the transmission/gearbox oil and
collect it in a suitable container.
24956
15
7. Remove the PTO speed selector control lever
(1).
TRE0002A
16
8. Remove the screws (2) that fasten the retaining
bracket (1) for the PTO speed selector control.
1
2
TRE0002B
17
??????????? -- 05 -- 2002
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 13
24957
18
10. Insert the two guide pins 293812 (1) and remove
the two lower screws (2) which fasten the PTO 1
unit to the transmission.
2
24958
19
11. Engage the lever (1) fig. 8, in position (C), ground
speed PTO, so that the sleeve (3) fig. 9, rests on 1
the shaft (2) during the removal operation.
Withdraw the PTO unit by a few centimetres and
detach using the hook with lifting chain 291517 (1).
To reinstall proceed as follows:
— Clean the mating surfaces between the trans-
mission and PTO cover and apply sealing com-
pound as shown in figure 21.
— Raise the PTO unit and position it directly behind
the transmission casing. Slide the PTO cover
onto the guide pins 293812, for ease of assem-
bly. 24961
— Remove the hook with chain (1) fig. 20, and
fasten the PTO unit using the two lower screws. 20
— Remove the two guide pins 293812 and install
the two upper screws.
— Reinstall the bracket (1) fig. 17, that retains the
PTO speed selector control lever.
— Refit the tow bar support.
— Refit the tow bar, the tow hook and the three--
point linkage top link.
— Screw in and tighten the oil drain plug and fill the
transmission/gearbox with oil.
— Reconnect the negative battery cable.
26282
21
??????????? -- 05 -- 2002
14 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
WARNING
Handle all parts with great care.
Do not place hands or fingers between one part and
another.
Always wear the prescribed safety clothing, including
protective glasses, gloves and shoes.
24962
22
13. Use a punch to straighten the corrugations (1) on
the ring nut that retains the driven shaft
components.
1
24963
23
14. Remove the ring nut (1) from the driven shaft.
1
24964
24
??????????? -- 05 -- 2002
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 15
24965
25
16. Remove the pin (1) securing the fork rod.
TRE0153A
26
17. Withdraw the rod (1) from the rear cover.
1
24967
27
18. Partially withdraw the PTO output shaft (1) and
remove the internal support (3) together with the 1 2
drive shaft (2), the driven gears (4), the sleeve
and the engagement/disengagement/neutral
control fork of the 540/750 PTO. Also, retain the
thrust washer from the gear (24) fig 2 or 3, for
reuse during reassembly.
3
24968
28
??????????? -- 05 -- 2002
16 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
24969
29
24970
30
??????????? -- 05 -- 2002
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 17
WARNING
Handle all parts with great care.
Do not place hands or fingers between one part and
another.
Always wear the prescribed safety clothing, including
protective glasses, gloves and shoes.
24962
31
22. Remove the bolts (1) and take off the cover (2).
1
2
TRE1000A
32
23. Remove the spacer (1).
TRE1001A
33
??????????? -- 05 -- 2002
18 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
TRE1002A
34
25. Withdraw two rods (1) from the cover.
C1: Shaft securing nut tightening torque: 26 kgm
(255Nm)
C2: Cover retaining bolts tightening torque: 10 kgm 1
(98 Nm)
C1
C2
TRE1003A
35
26. Remove the nut (1) securing the shaft and take
off the 4 bolts (2).
TRE1004A
36
27. Remove the socket head screw bolt (1) on the
side of the cover.
1
TRE1005A
37
??????????? -- 05 -- 2002
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 19
TRE1006A
38
29. Remove the washer (1) and take off the gear (2).
2
1
TRE1007A
39
30. Remove the rod (1), spring (2), fork (3) and the
synchroniser (4). 4 3
1
TRE1008A
40
31. Remove the driven gear (1).
1
TRE1009A
41
??????????? -- 05 -- 2002
20 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
TRE1010A
42
33. Remove the drive shaft(1).
1
TRE1011A
43
34. Remove both bearings (1) and (2) .
2
TRE1012A
44
35. Remove the shaft (1) and the plate (2).
1 2
TRE1013A
45
??????????? -- 05 -- 2002
SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1 21
??????????? -- 05 -- 2002
22 SECTION 31 -- POWER TAKE--OFF -- CHAPTER 1
??????????? -- 05 -- 2002
SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1 1
MAIN SPECIFICATION
Type:
Control:
Disc thickness:
-- service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm 4
(see over)
603.54.331.00 -- 12 -- 1996
2 SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1
MAIN SPECIFICATION
(cont.)
TORQUE SETTINGS
Torque setting
PARTS TO BE TORQUED Thread
Nm kgm
Bolts for securing shaft for parking brake driven shaft (C2) . . . . .
M 10 x 1.25 64 6.5
Guide dowels for parking brake friction discs (C3) . . . . . . . . . . . . . M 12 x 1.25 24 2.5
Bolts for securing parking brake support to transmission box (C4) M 12 x 1.25 98 10
C2 -- 64 Nm
C3 -- 24 Nm
C4 -- 98 Nm
TRE0300A
C1 -- 98 Nm
1
603.54.331.00 -- 12 -- 1996
SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1 3
19 12
13
18
17
16
15 14 C
26288
TRE0301A
2
Sectional drawing of service and parking brakes
a. TD60 and TD70 models. 10. Boot cover plate.
b. TD80, TD90 and TD95 models. 11. Boot.
c Parking brake drawing 12 Driven gear.
1. Brake link. 13 Driven gear pin.
2. Pin. 14 Parking brake friction discs.
3. Ball. 15 Parking brake steel discs.
4. Brake actuator. 16 Parking brake internal control lever.
5. Brake discs. 17 Parking brake support.
6. Back--up discs 18 Snap ring.
7. Actuator pull--off spring. 19 Thrust bearing.
8. Differential support.
9. Axle shaft.
N.B. -- When mounting apply sealing compound to surfaces X as shown on page 1 section 00.
603.54.331.00 -- 12 -- 1996
4 SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1
3
4
Lm T
Pd
4 8 c
6
Ps 5
M 9
12
1 3
a
4 d
3
3
7 b
12975
3
View of service and controls
a. R.H. brake pedal in rest position and L.H. brake ap- 1. Brake links.
plied. 3. Actuator ball.
b. Brakes in rest position. 4. Brake actuator.
c. Brakes applied. 5. Brakes discs.
d. Brakes in rest position. 6. Back--up discs.
Lm. Parking brake hand lever. 7. Actuator return spring.
M. Brake pedal return springs. 8. Differential support.
Pd. R.H. brake pedal. 9. Axle shaft.
T. Parking brake link. 12. Final drive housing.
603.54.331.00 -- 12 -- 1996
SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1 5
EQUIPMENT
List of special tools necessary for the various opera-
Warning -- The operations described in this section tions described in this section.
must be performed only with the ESSENTIAL equip-
ment marked with (X). X 293847 Driver for boot installation.
To operate safely and achieve best results however, 291517 Lifting hook.
while saving time and effort, essential equipment
must be used in conjunction with the special tools
recommended below, and tools which you must
make yourself and for which you will find the design
in this manual.
603.54.331.00 -- 12 -- 1996
6 SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1
BRAKE TROUBLESHOOTING
Unbalanced braking. 1. Incorrect tyre pressure. Inflate the tyres to the correct pres-
sure.
2. Friction material on one of the Replace the discs.
brake discs worn.
603.54.331.00 -- 12 -- 1996
SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1 7
DANGER
Lift and handle all heavy parts using lifting equipment
of adequate capacity.
Make sure that the units or parts are supported by
appropriate harnesses and hooks. Make sure that
there is no one in the vicinity of the load to be lifted.
25621
4
3. Remove the vertical rod (1) and the LH stabiliser
strut (2).
1
26253
5
4. Raise the rear section of the tractor and place a
stand beneath the tow bar support.
25647
603.54.331.00 -- 12 -- 1996
8 SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1
25646
7
6. Remove the plug (1) and drain the oil from the
rear transmission--gearbox casing.
1
25622
8
7. Fit lifting hooks (1) 291517 onto the lateral final
drive box. Connect a hydraulic lift to the hooks,
undo the retaining bolts and remove the LH later-
al final drive box from the transmission box.
TRE0188A
9
8. Remove the cotter pin (1). Withdraw the linkage
(2) from link.
1
TRE0214A
10
603.54.331.00 -- 12 -- 1996
SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1 9
11. Back off link (1) from spring side and remove the
complete brake unit. 1
TRE0215A
11
WARNING
Use appropriate tools to align the holes. NEVER
USE YOUR FINGERS OR HANDS.
10. Refit the lateral final drive box to the rear trans-
mission box as follows:
— Refer to the illustrations on page 3 for the correct TRE0303A
orientation of the various components.
12
— Before refitting the lateral final drive box to the
rear transmission box, thoroughly clean and de-
grease the mating surfaces and apply a strip of
sealing compound of diameter about 2 mm as
shown in the illustration on page 10.
— Apply the torque settings listed on page 2.
— Using tool 293847 as shown, to position the boot
(11) correctly on the brake link (1). ( See fig. 12
)
— Fit the brake disc and spacers.
— Using hooks (tool 291517) and a hydraulic lift,
refit the lateral final drive complete with axle
shaft and rear reflector.
— Fit the LH wheel.
— Fit the stabiliser strut and the vertical rod.
— Remove the stands.
— Screw in the oil drain plug and refill.
— Connect the negative battery cable.
603.54.331.00 -- 12 -- 1996
10 SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1
TRE0304A
13
Diagram for application of sealing compound when fitting braking assembly and lateral final drives
to transmission box.
The types of sealing compound to be used are specified on page 1 sect. 00.
603.54.331.00 -- 12 -- 1996
SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1 11
ADJUSTMENTS
HEIGHT OF SERVICE BRAKE PEDALS
TRE3875A
14
3. If adjustment is required, move brake hand lever
downwards. Slacken the lock nuts (A) and tight-
en or slacken the sleeves (B) until the required A
free travel is 45 mm (1.77 ins). Lastly tighten the
lock nuts (A).
B
TRE0229A
15
603.54.331.00 -- 12 -- 1996
12 SECTION 33 -- BRAKING SYSTEM -- CHAPTER 1
Proceed as follows.
TRE0217A
16
603.54.331.00 -- 12 -- 1996
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 1
CONTENTS
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 3
Filter
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . paper cartridge
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mounted on pump body, suction
side
Pump
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . gear type with oil suction from
transmission casing
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . behind timing gear cover
Model A31
Make . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BOSCH
Operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . driven by timing gears
Direction of rotation (as seen from drive side) . . . . . . . . . . . . . . . . Counter Clockwise
Engine speed to pump speed ratio . . . . . . . . . . . . . . . . . . . . . . . . . . 1:0931
Maximum speed of rotation (with engine at maximum power) . . . . . rpm 2328
Corresponding rated output . . . . . . . . . . . . . . . . . . . . . . . . dm3/min (l/min) 44
Bench output at 1450 rpm and pressure of
172 bar ( 175 kg/cm2):
-- for new or reconditioned pump . . . . . . . . . . . . . . . . . . . dm3/min (l/min) 19
-- for worn pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dm3/min (l/min) 13.3
-- test oil temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C° 55 ÷ 65
-- test oil viscosity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SAE 20
(continued overleaf)
??.??.???.?? -- ?? -- ????
4 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
Filter
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . paper cartridge
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . fixed to the pump housing on
suction side
Pump
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . gear type with oil suction from
transmission casing
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flanged on the rear left--hand
side of the engine
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bosch--Rexroth
Actuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . by means of the engine gears
Direction of rotation (as seen from drive side) . . . . . . . . . . . . . . . . left
Engine speed to pump speed ratio . . . . . . . . . . . . . . . . . . . . . . . . . . 1 : 1.080
Maximum speed of pump rotation (with engine at maximum
power equivalent to 2500 rpm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rpm 2700
Rated output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dm3/turn 0.01950
Corresponding rated output for new pump . . . . . . . . . . dm3/min (l/min) 48
Corresponding rated output for pump with 300 hours
of work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dm3/min (l/min) 43
Bench output at 1500 rpm and a pressure of 2175 psi (150 bar):
-- for new pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dm3/min (l/min) 24.8
-- for pump with 300 hours of work . . . . . . . . . . . . . . . dm3/min (l/min) 22.3
-- test oil temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °F 131 to 149
(°C) (55 to 65)
-- test oil viscosity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 CST
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 5
TORQUE SETTINGS
Torque setting
Thread
Nm kgm
Lift
Capscrew, lift to rear transmission case (C1, Fig.1) . . . . . . . . . . . . . M 12 x 1.25 98 10
Capscrew, control valve body to lift (C3, Fig.28) . . . . . . . . . . . . . . . . . M 8 x 1.25 26 2,7
Capscrew, lift arm plates (C2, Fig.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . M 14 x 1.5 147 15
Plug, max. arm raising adjustment (3, Fig.28) . . . . . . . . . . . . . . . . . . M 12 x 1.25 103 10,5
Nut, position control shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 10 x 1.25 59 6
Nuts for lever quadrant bracket securing stud bolts (2, Fig.32) . . . . M8x1.25 25 2.6
Lift cylinder securing bolts: M14x1,5 211 21,5
M16x1.5 260 26.5
Securing bolts for top link attachment bracket . . . . . . . . . . . . . . . . . . M14x1.5 147 15
Inner lift arm securing bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 10 x 1.25 61 6.2
Capscrew, suction connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 12 x 1.25 98 10
Capscrew, delivery connection on lift control valve . . . . . . . . . . . . . . M 10 x 1.25 59 6
Capscrew, lift pump (Fig.86) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M6x1 8 0,8
Nut, pump cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 10 x 1.25 41 4.2
Capscrew, flexion bar support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 16 x 1.5 221 22,5
Capscrew, chain support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 16 x 1.5 221 22,5
Capscrew, check link support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 16 x 1.5 221 22,5
Nut, tow bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 18 x 1.5 343 35
Control valves
Nut, control valve links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -- 20 2
Connection, outlet to fit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -- 20 2
Plug, relief bar spring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -- 20 2
??.??.???.?? -- ?? -- ????
6 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
TOOLS
However, to ensure greater safety and obtain the X 291863 Wrench for lift pressure relief valve
best results while saving time and effort, we recom- setting ring nut.
mend that these essential tools are used in conjunc-
tion with the specific tools listed below as well as cer- 290284 Hand pump for valve calibration.
tain tools which are to be made following the
construction drawings given in this manual.
X 290828 Union for cylinder safety valve cal-
ibration.
X 293843 Ring for fitting piston with lift seals X 290824 Union for lift pressure relief valve
(TD60 and TD70 models). calibration.
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 7
TRE0700A
??.??.???.?? -- ?? -- ????
8 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
TRE0701A
2
Sectional drawing of hydraulic lift control valve block
a. Detail of O--ring and back--up ring
1. Spool valve. 14. Ring.
2. Spool valve seat. 15. Cylinder safety valve.
3. Plug. 16. Response control valve.
4. Spool return spring. 17. Arm lowering speed control valve.
5. Valve plunger. 18. Ball.
6. Plunger spring. 19. Response control valve adjusting pin.
7. Plug. 20. Delivery connection.
8. Piston seat. 21. Check valve spring.
9. Piston. 22. Check valve.
10. Spring cup. 23. Check valve seat.
11. Draft sensitivity adjustment valve spring. 30. .Retaining ring.
12. Draft sensitivity adjustment valve. 31. .Roll pin.
13. Plug. 32. .Back--up ring.
33. .O--ring.
NOTE -- Install O--ring 33 and back--up ring 32 as shown in detail (a) using protection device 293858 and by
heating ring 32 in oil at 50 °C.
Take care to install ring 32 with flat surface facing upwards and concave surface facing O--ring 33. Take
necessary precautions not to damage them.
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 9
Static oil
Oil in suction
Tractor brake circuit oil (brakes off)
Pressurised oil
Exhaust oil flow
5
1
9
8
7
26428
6
3
HYDRAULIC LIFT CIRCUIT
1. Delivery line to control valve (3). 6. Lift control valve.
2. Trailer brake control valve. 7. Suction line.
3. Auxiliary control valves. 8. Oil filter.
4. Auxiliary control valve lines. 9. Hydraulic pump.
5. Trailer brake control valve line.
??.??.???.?? -- ?? -- ????
10 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
22 T
T1
9 1
T3
V
T2
5 6
P 8
Pressurised oil
Static oil
TRE0702A
F. Filter. 5. Plunger.
P. Hydraulic pump. 6. Plunger spring.
T. Lift arm piston. 8. Piston seat.
V. Reliefvalve. 9. Piston.
1. Valve spool. 22. Check valve.
When the operator uses the position control lever lo- Oil flow to piston (9) is cut off and plunger (5) is forced
cated on his right to raise the arms, the movement to the left by spring (6), thus closing the exhaust port.
shown by the arrows is transmitted by internal link- Pressure oil opens check valve (22) and operates
age to the control valve block pin (1). piston (T) to raise the arms.
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 11
18 17 22
15
12
1
V 5
9
P 6
Pressurised oil
NEUTRAL PHASE
F. Filter. 9. Piston.
P. Hydraulic pump. 12. Draft sensitivity valve.
V. Relief valve. 15. Cylinder safety valve.
1. Valve spool. 17. Arm lowering speed control valve.
5. Plunger. 18. Ball.
6. Plunger spring. 22. Check valve.
With spool (1) in the neutral position, oil is delivered plunger (5) to the right. This opens the exhaust port
through the response adjusting valve (12) to piston and directs oil flow to the tank in the rear transmission
(9), which overcomes spring reaction (6) and moves housing rather than to the cylinder.
??.??.???.?? -- ?? -- ????
12 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
17 T
F1
4 1
12
V 9 5
P
Pressurised oil
Static oil
TRE0704A
When the operator lowers the position control lever Through spool port (F1) and draft sensitivity valve
on his right, the return spring (4) pulls spool (1) to the (12) oil flows to piston (9), which holds plunger (5) in
right. Cylinder oil is exhausted under piston pressure the position shown, thus allowing pump delivery to be
(T) through lowering speed adjustment valve (17) exhausted past plunger (5).
and the port uncovered by spool.
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 13
The lift does not raise. 1. Oil filter clogged. Replace filter.
2. Air has got into the pump suc- Check that the couplings are airtight
tion line. and the seals are effective.
The lift raises too slowly. 1. Oil filter clogged. Replace filter.
The lift operates too quickly. 1. Foreign matter between the Take off the valve, remove the foreign
ball and its seat on the dis- matter and inspect the oil filter.
charge control valve.
3. Discharge control valve piston Take off the valve and free the piston.
jammed.
The lift operates too slowly. 1. Discharge ports on the dis- Take off the valve, unblock the holes
charge control valve blocked. and inspect the oil filter.
2. Discharge control valve piston Take off the valve and free the piston.
jammed.
(continued overleaf)
??.??.???.?? -- ?? -- ????
14 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
The lift is unable to keep the load 1. Defective seal on check valve. Take off, check, clean and if neces-
raised (with the engine running, sary replace the parts concerned.
the load moves up and down
rhythmically; with the engine 2. Oil leaking past the seals on Replace seals.
turned off, the load lowers). the control valve block pin
seat.
3. Control valve block pin seal Take off and clean the seal and re-
defective. place the control valve block pin and
its seat if defective.
The pressure relief valve cuts in 1. Lift arm travel set incorrectly. Set correctly.
when the lift arms reach their com-
pletely raised position.
Lift has poor lifting capacity. 1. Pressure relief valve set incor- Replace the valve.
rectly.
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 15
DANGER
Lift and handle all heavy parts using suitable lifting
equipment with sufficient hoisting capacity.
Check that the assemblies or parts are held firmly
and supported by suitable slings and hooks. Make
sure nobody is standing near to the load.
TRE0035A
1
2. Remove the top link (1).
1
TRE0112A
2
3. Undo the bolts (1) and use a chain and hoist to
remove the pick--up hitch hook (2) from the PTO 2
box.
1
TRE0113A
3
??.??.???.?? -- ?? -- ????
16 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
1
2
TRE0114A
4
5. Remove auxiliary control valve pipes (2) from
their support (1).
TRE0140A
5
6. Undo the two bolts (1) that secure the seven--
pole socket (2) and remove the socket.
1
2
TRE0122A
6
7. Undo the bolts (1) and remove the support (2).
1
2
TRE0115A
7
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 17
TRE0138A
8
9. Unscrew the bolts (1) that secure the hydraulic
lift assembly to the transmission casing.
1
25556
9
10. Fit tool 292607 (1) on the lift and tighten the four
bolts (2).
1 2
25558
10
11. Fit tool 291259 (1) onto tool 292607 (2). Attach
the hoist to tool 291259, raise the hydraulic lift by
1 2
a few centimetres and pull it backwards, tilting it
so that it clears the breather pipe (3) without
damaging it.
25559
11
??.??.???.?? -- ?? -- ????
18 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
WARNING
Always use appropriate tools to align fixing holes.
NEVER USE YOUR FINGERS OR HANDS.
Fit the lift control pipe. Diagram showing application of sealing com-
pound when fitting the hydraulic lift assembly to
transmission casing.
Fit the trailer brake control pipe (if fitted) and the
oil filler pipe. The types of sealing compounds to be applied are
specified on page 1, section 00.
Connect the Lift--o--Matic control rod.
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 19
1
DANGER
Handle all parts with the utmost care.
Do not place your hands or fingers between one part
and another. Wear the prescribed safety clothing,
including glasses, gloves and protective footwear.
13
1. Position the hydraulic lift on a stand (1) fig. 13 ,
that will allow the assembly to be rotated. 2 1
2. Unscrew the securing bolts (1) and remove the
control valve block (2) fig. 14.
TRE3209A
14
3. Unscrew the two cylinder securing bolts posi-
tioned outside the cylinder body. Turn the lift
assembly and unscrew the lateral bolt (3).
1 2
4. Undo the bolts (1) that secures the internal
linkage (2) to the lift cylinder.
25626
15
5. Remove the cylinder (1) complete with piston.
1
25627
16
??.??.???.?? -- ?? -- ????
20 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
TRE3260A
17
7. Take off the snap ring and remove the internal
position control lever (1).
1
TRE3261A
18
8. Unscrew the nuts (1) and remove the spring and
fixing bracket (2).Take off position and draft
2
control levers.
1
TRE3262A
19
9. Slacken the eccentric pin (2) retaining bolt (1),
withdraw the eccentric pin and remove the
internal linkage. 1
10. Unscrew the bolt (3), remove the washer (4), 2
withdraw the lift arm (5) and remove the thrust
washer. Repeat on the other lift arm. 3
4
5
25631
20
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 21
3
25632
21
12. Use compressed air to remove the piston (2)
from its cylinder (1). 2
1
26297
22
13. Use striker tool 293838 (1) to replace the
bearings in the internal draft control lever (2). 2
1
14. Use striker tool 293839 to replace the control
valve block control lever bearings.
15. Fit the hydraulic lift as follows.
WARNING
Always use appropriate tools to align fixing holes.
NEVER USE YOUR FINGERS OR HANDS.
26298
23
16. Insert the piston (1) into its cylinder (3), using
tool 293843 (2) for the TD60 and TD70 models
1 2
or tool 291483 (2) for the TD80, TD90 and TD95
models.
25634
24
??.??.???.?? -- ?? -- ????
22 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
17. Fit the lift arm shaft (2) and the internal arm (1)
inside the lift box, matching up the reference
marks, as shown. Tighten the securing bolt.
26299
25
18. To avoid damaging the internal seal lips, use a
flexible brass sheet (1) of size 200 x 90 mm and 1
thickness 0.05 -- 0.1 mm. Roll the sheet up and
insert the seal inside. Position the unit on the
spline and push the seal manually into its seat.
Then remove the sheet.
2
26300
26
19. Use striker tool 293842 (1) to complete the fitting
of the seals into the their seats on the lift arm
1
shaft.
26326
27
20. Fit the lift arms (1) on the shaft, matching up the
reference marks, as shown. Secure them by
tightening the bolts.
25633
28
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 23
??.??.???.?? -- ?? -- ????
24 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
30
3. Use tool 293870 (1) figure 31, to slacken the lock
nut (4) figure 32. Loosen the end stop adjusting
1
screw (5) until it is no longer in contact with the
control valve block control lever (3).
TRE0706A
31
1 2 3 4
5
F1
L1
TRE3262A
32
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 25
4. Fit tool 293846 (4) fig 33, to the lift body. The tool
has a plunger operating in a tube, the outer end 1 2 3
of which has two reference surfaces (1) and (5).
5. Using two spanners (2) and (3), unscrew the
lock nut (1) fig. 32 and tighten or loosen the
adjustable push rod (2) fig. 32, so that the end of
the plunger (5) fig 33, is flush with the outer 6
register surface (6) of the tool.
NOTE -- This corresponds to a distance (L1 fig. 32)
of 82.0 -- 82.1 mm between the end of the lever (3) 5
fig. 32 and the front surface of the lift body when a 4
force (F 1 fig. 32) of 4 -- 4.5 da N (kg) is applied to
25639
the end of the lever.
33
lever (3) and the front surface of the lift body when
34
a force (F 1) of 4 -- 4.5 da N (kg) is applied to the end
of the lever.
TRE3263A 2
35
??.??.???.?? -- ?? -- ????
26 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
36
NOTE -- This corresponds to a distance (L1) of
85--85.5 mm between the end of the lever (3) and the 1 2 3 4
front surface of the lift body.
5
12. Tighten the lock nut (4) to a torque of 15 Nm (1.5 F1
kgm).
L1
TRE3262A
37
Adjusting draft control
Proceed as follows: 1 2
13. Remove the end section of the draft control rod
(3) and mount it on the rod (5) of tool 293845 (1).
Fasten it using lock nut (4). 5 L3
14. Place the tool 293845 (1) complete with its rod
(5) and the end section of the draft control rod (3) 4
on a surface plate. Using a micrometer depth
gauge (2), measure the distance (L3) between 3
the upper surface of the rod and the micrometer
gauge bearing surface on the tool (be sure to 25645
tighten rod (3) onto rod (5) so that the surface of
rod (5) is a few mm lower than the micrometer 38
bearing surface on the tool).
15. With tool 293846 (2) fig. 36 mounted on the lift 1
body and disconnected from the compressed air
system, move the position control lever (1) fig. 39
and the draft control lever (2) fully back against
the spacer.
2
TRE3263A
39
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 27
17. Fit tool 293845 (1) to the lift body and fasten it
to the two holes in the box as shown in figure 40.
1
25642
40
18. Turn the screw (2) fig. 40 on the internal draft
control lever (3) fig. 40 until the end of the plunger
(1) fig. 41 is flush with the inner reference surface 2
(3) of tool 293846 (2). 1
3
TRE0708A
41
19. Turn the eccentric pin (1) slightly to withdraw the
end of the plunger of tool 293846 as far as
possible.
21. Finally turn the eccentric pin (1) fig. 42 until the
end of the plunger is flush with the outer register
surface (2) of the tool 293846.
TRE0709A
42
22. Insert rod of tool 293845 (1) into the internal draft
control lever seat (2).
1 L2
23. With the end of the plunger of tool 293846 flush
with the outer reference surface (2) fig. 42, set
the adjustable linkage (3) fig. 43 and use a 2
micrometer depth gauge to measure the dis-
tance (L2) between the upper surface of the rod 3
and the micrometer gauge bearing surface on
the tool 293845 (1).
26348
43
??.??.???.?? -- ?? -- ????
28 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
1
25. Fit the threaded dowel (3) and tighten the screw
(1) without bending over the safety washer (2). 3 2
26. Remove the tools 293846 and 293845 and fit the
hydraulic control valve block on the lift body.
26350
45
Proceed to mount the lift assembly onto the tractor
as follows.
1
WARNING -- First position tool 293845 (1) on a sur-
face plate and use a micrometer depth gauge (2) to
2
measure the distance (L5) between the surface plate
and the point where the micrometer gauge rests on
the tool.
Make a note of the measured distance (L5). L5
26352
46
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 29
NOTE -- The distance (L6) the top end of rod (2) pro- 3
trudes with respect to the transmission casing (with
flex bar removed) is given by:
L6 = L5 -- L8 26353
where:
47
L5 and L8 = distance measured with tool 293845
fitted on the surface plate (L5) fig. 46 or on the trans-
mission casing (L8) fig. 48.
30. Fit the flex bar and measure the new distance 1
(L9) between the top end of the rod (3) and the
micrometer gauge resting surface on the tool.
2
NOTE -- The distance (L7) fig. 47, that the top end of L8/L9
the rod (2) fig. 47, protrudes with respect to the trans-
mission casing (with flex bar fitted) is given by:
L7 = L5 -- L9 3
where:
L5 and L9 = distance measured with tool 293845
mounted on surface plate (L5) fig. 46 or on the trans- 26354
mission casing (L9).
48
TRE3402A
50
6. Adjust Lift--O--MaticTM control lever support
position on lift lever support through screws (1) 2
so that, when pushbutton (2) is pressed, lift arms
start to move when pushbutton is still short of its
full stroke by a distance (L) Fig.52 of 7 to 10 mm
(0.2756 -- 0.3937).
1
TRE3401A
51
TRE3268A
52
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 31
TRE0139A
53
??.??.???.?? -- ?? -- ????
32 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
25720
55
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 33
WARNING
Handle all parts with the utmost care.
Do not place your hands or fingers between one part
and another. Wear the prescribed safety clothing, in-
cluding glasses, gloves and protective footwear.
TRE03506A
56
2. Before disassembly, thoroughly clean the
surfaces of the control valve block. Lock the
control valve block in a vice.
25707
57
??.??.???.?? -- ?? -- ????
34 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
25709
58
5. Remove the check valve union (1), spring (2)
and ball (3).
1 2 3
25711
59
6. Take off the control valve block pin (1) and
remove the seat (3) and the spring (2). 1 2 3
25713
60
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 35
25714
61
9. Fit the control valve block pin (2) complete with
seat (3) on the tool 293982 (1).
1 2 3
25715
62
10. Fit the control valve block pin spring (1) and the
cap (2) of tool 293982. Tighten the cap as far as
it will go and check that the control valve block
1 2
pin slides in its seat.
25716
63
11. Fit tool 293982 (2) on the hand pump 290284
(3), supplied with HYDROSYSTEM 68 oil.
Connect a dial gauge (1) and secure it with its
1
screw.
2
25717
64
??.??.???.?? -- ?? -- ????
36 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
25718
65
15. Operate the hand pump until the oil in the system
is at an initial pressure of 245 bar -- 250 kg/cm2.
Using the pressure gauge, check that it takes
more than six seconds for the pressure to fall
from 196 bar -- 200 kg/cm2 to 98 bar -- 100
kg/cm2. If it takes less than this, replace the
control valve block pin. Bear in mind that this part
is supplied together with its seat.
25719
66
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 37
WARNING
Always use appropriate tools to align fixing holes.
NEVER USE YOUR FINGERS OR HANDS.
Refer to the illustrations on page 8 for the orien-
tation of the various components:
Apply the torque settings listed on page 5.
Fit the complete control valve block pin.
Fit the check valve.
Fit the cylinder safety valve.
Fit the control valve.
Fit the complete pressure control valve.
Fit the cover on the control valve block.
25720
67
??.??.???.?? -- ?? -- ????
38 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
24622
68
Removal -- refitting with pump removed 4. Mark parts 3, 4, 5 and 6 to enable them to be
(Op. 35 0101 10) remounted in the same position if they are in
good condition.
Proceed as follows: 5. Remove the supports (4 and 6) and the gears (5)
from the rear cover (8) and the pump body (3).
1. Remove the cover fastening nuts (20), then the 6. Remove the seals (2) and the anti--extrusion
bolts (15) and the safety washers. rings.
Once the parts are removed, proceed as follows:
2. Remove the nut (14) that fastens the sleeve to the 7. Check that the gear contact surfaces are flat and
pump driving shaft and the safety washer. perpendicular to their supports. Insert a thin layer
of carbon black. Small rough spots can be
3. Remove the front cover (8), the snap ring (12) removed using extremely fine and well lubricated
and the seals (9 and 11). abrasive paper.
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1 39
??.??.???.?? -- ?? -- ????
40 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
NOTES
??.??.???.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2 1
CONTENTS
MAIN DATA
TOOLS
WARNING: The operations described in this section List of specific tools required for the various
must only be carried out using the ESSENTIAL tools operations described in this section.
marked below with an (X).
For greater safety and to obtain the best results while 292870 Universal pressure testing kit.
saving both time and effort, we recommend that
these essential tools are used in conjunction with the
specific tools listed below, and with certain tools
which are to be made following the constructional
drawings in this manual.
???.??.??.?? -- ?? -- ????
2 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2
TRE0711A
TRE0750A
Section view
2. Spool.
23. Internal plunger. NOTE: Some parts releated with automatic detent
24. Spring. release are not shown in this view. Automatic detent
25. Cover. release working principle of valve shown in Fig. 2 is
26. Detent balls. same as the valve shown at Fig. 9 & Fig. 10.
27. Spool return spring.
28. Spring cup.
32. Float mode selection groove.
???.??.??.?? -- ?? -- ????
4 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2
OPERATING STAGES OF AUXILIARY CONTROL VALVE FOR OPERATION A DOUBLE-- ACTING CYL-
INDER AUTOMATIC DETENT RELEASE AND FLOAT POSITION
TRE0750B
LIFTING
When the spool (2) moves to left, the detent balls (26) exhaust line (T) by way of line (A), intercepting the
engage the groove (33), where they are held in place supply of oil to the hydraulic lift control valve. Automatic
by the support (28) and spring (24). The movement of detent release working principle is explained at Page.
the spool (2) connects: the pressure line (P) with the 6.
line (B), and also the upper cylinder chamber with the
TRE0750C
LOWERING
When the spool (2) moves to right, the detent balls line (B), while the upper chamber is connected with
engage in the groove (34) where they are held in the pressure line (P) by way of line (A). On
position by the support (28) and the spring (24). In completion of the lowering operation, the detent will
this condition the oil contained in the lower chamber be automatically released as explained at Page 6.
of the cylinder can flow to the exhaust (T) by way of
???.??.??.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2 5
TRE0712A
5
2. LOWERING -- To lower the implement, push the
control lever (located right hand side of the operator)
forward. The control valve spool (2) will move to the
position indicated in fig. 6, thus allowing the oil in the
lower cylinder chamber to flow to the exhaust (T)
through line (A), while the upper chamber is
connected to the pressure line (P) through line (B) .
Pressurised oil
Static oil
???.??.??.?? -- ?? -- ????
6 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2
TRE0716A
LIFTING
On pulling back the control lever, the spool (2) moves through port (V), it overcomes the resistance of the
and the detent balls (26) engage the groove, where spring of the needle valve (23). Inside chamber (D), the
they are held in place by the support (28) and spring oil pressure increases and, acting on the detent ball
(24). The movement of the spool (2) connects: the support (28), it overcomes the resistance of the spring,
pressure line (P) with the line (B), and also the upper thus moving the support (28). In this condition the two
cylinder chamber with the exhaust line (T) by way of detent balls (26) drop onto the support, releasing the
line (A), intercepting the supply of oil to the hydraulic lift spool (2) which, under the action of spring (6) returns
control valve. to neutral position. Consequently the entire flow from
On completion of the lifting movement, the oil pressure the pump is conveyed to the lift control valve through
increases to 170--175 bar (173--178 kg/cm2). Acting lines (P).
TRE0717A
10
LOWERING
To lower the implement, push the control lever by way of line (B), while the upper chamber is
forward. The control valve spool (2) moves and the connected with the pressure line (P) by way of line
detent balls engage in the central groove where they (A). On completion of the lowering operation, the
are held in position by the support (28) and the spring detent will be automatically released in the manner
(24). In this condition the oil contained in the lower described previously.
chamber of the cylinder can flow to the exhaust (T)
???.??.??.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2 7
3
6
7
8
1
2 7
4
TRE1100A
11
???.??.??.?? -- ?? -- ????
8 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2
Convertible single/double--acting auxiliary control valve with float control and detent release.
WARNING
Handle all parts with care.
Do not insert fingers or hands between one part and
another.
Wear suitable safety clothing, i.e., safety goggles,
gloves and shoes.
WARNING
Always use suitable tools to align holes. NEVER USE
YOUR FINGERS OR HANDS.
6
3
5
7
9
8
7
8
1
2
TRE1101A 4
12
1. Pressure relief valve.
2. Check valve
3. Kick--out (detent) and float control assembly
4. Control lever support
5. Single double acting converting valve
6. Oil return valve
7. Spool O--ring kit
8. Kick--out control assembly.
???.??.??.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2 9
WARNING
During the overhaul and disassembly--assembly of 1
the units, put special protective devices between the
bits of the vice, for preventing any damage to the
valve components.
TRE1102A
14
2. Remove both covers (1) Fig.15
TRE1103A
15
3. Remove both spacers (1) Fig.16
1
TRE1104A
16
4. Remove the circlip (1) and take the cover (2)
Fig.17 of the valve (Float & detent release) 2
1
TRE1105A
17
???.??.??.?? -- ?? -- ????
10 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2
TRE1106A
18
6. Complete spool assembly (Float & detent re-
lease) is shown at Fig.19.
TRE1107A
19
7. Remove circlip (1) and take off the washer (2)
Fig. 20. Disassamble the unit to all its compo-
nents.
2
TRE1108A
20
8. Disassambled unit (Float & detent release) is
shown at Fig.21.
TRE1109A
21
???.??.??.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2 11
TRE1110A
22
10. Take off the cover (1) Fig. 23.
1
TRE1111A
23
11. Remove the spool assembly (Detent release) (1)
Fig.24. 1
TRE1112A
24
12. Remove the nut (1) Fig.25 fixing the assembly.
1
TRE1113A
25
???.??.??.?? -- ?? -- ????
12 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2
TRE1114A
26
14. Remove the nut fixing the detent body (1) Fig.27
TRE1115A
27
15. Complete spool assembly (Detent Release) is
shown at Fig.28.
TRE1116A
28
16. Remove oil return valve (1) Fig.29.
TRE1117A
29
???.??.??.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2 13
TRE1118A
30
18. Remove relief valve (1) Fig.31.
TRE1119A
31
19. Withdraw relief valve (1) Fig.32.
TRE1120A
32
20. Slacken, single--double acting converting valve
(1) Fig.33.
TRE1121A
33
???.??.??.?? -- ?? -- ????
14 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2
TRE1122A
34
22. Take off the ball of, single--double acting convert-
ing valve (1) Fig.35.
1
TRE1123A
35
23. Slacken the allen screws (1) fixing the cover the
cover (2) Fig.36.
TRE1124A
36
24. Withdraw the cover (1) and the spacer (2) Fig.37.
25. Check the condition of all seals before reas- 1
sembly.
2
TRE1125A
37
???.??.??.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2 15
N 2 2 T
0 0
M 1 1
A
D
T
A B A B
TRE0719A
38
Control valve spool binding test (fig. 38). tion) the flow goes through the valve from inlet to
Install the auxiliary control valve assembly and the test outlet (tank line) (P) to (T). Now regulate the
apparatus as indicated in the diagrams (fig. 38 ) and re- maximum pressure of the VS (main relief valve)
ferring to the following instructions: valve inside bank A (in the schematic). This
pressure is the maximum pressure that can be
— The test is carried out with mineral oil in obtained with the type of valve and spring used.
accordance with DIN 32 norm. Flow rate is the Now move each single spool in each section.
nominal for the valve (for VDM07 it is 50 l/min). With the ports closed, the pressure will rise until
Connect line P (pump line) to the inlet port of the the relief valve opens. In this situation check if
valve and close the working ports A and B of spools move to the neutral (central) position
each section (see schematic) with plugs. without sticking, under the action of springs and
Start the test, increasing the flow coming from flow forces only. The relief valve D, in line before
the pump until nominal flow plus 25% is reached the directional valve, has to substitute the VS in
(in the case of VDM07 it is 75 l/min). With the A in case of problems or in case of directional
control lever in the neutral position (mid--posi- valve without VS.
???.??.??.?? -- ?? -- ????
16 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2
2 2 T
N
0 0
M 1 1
D A
C C
B B
C C
TRE0720A
39
Valve leakage test seconds). From this stroke, calculate the volume of
oil per minute through that section of the cylinder.
After the binding test (with hot oil and valve), This check has to be carried out for each section
measure the leakage rate for each section. It is (each spool).
important to do this with the system hot. Connect After this check, with the pump disconnected, move
working ports A and B of each section to the cylinders the spool to its working position: now test the check
(one for each section). Alongside each cylinder lay a valve (VU:Check Valve) of the distributor. This valve
ruler to measure the stroke. closes the connection from P to T (N), also the
Supply oil to the cylinder, moving the spool to the connection P with A or P when B is open (spool in
working position (oil flowing from A or B) until it working position). If the check valve is working
reaches the end of its stroke and the main relief valve correctly, the normal flow rate will be seen (the same
opens. Now that the oil column is pressurised from value observed with spool in the neutral position). If
the working section to the cylinder allow the lever to it is see that one or more sections operates more
return to the neutral position (called 0). The spool than in a previous check, it means that check valve
closes A and B ports. Now check the position of the is not working properly (does not close completely).
cylinder observing the ruler beside it. As the cylinder
moves, check the stroke in a fixed time (say 60
???.??.??.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2 17
After servicing the detent regulating valve or if the will fluctuate and the handle return to the neutral
control levers and spool are returning to neutral pre- position. Note the gauge reading immediately
maturely, the detent regulating valve should be prior to the needle fluctuation. The reading
should be within the specified value (1741--1886
tested as follows: lbf/in2) 120 bar+10 bar --0 bar.
-- Install inlet hose of flowmeter (1) into lift coupler . . . . . Remove the circlip (33) and the cover (25),
of valve to be tested. (Fig.1. Page.2) of the valve .
40
-- With lever of remote control valve to be tested in
the cylinder extend position slowly close the
flowmeter load valve while observing the
flowmeter pressure gauge.
???.??.??.?? -- ?? -- ????
18 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 2
NOTES
???.??.??.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 3 1
CONTENTS
TRE0721A
Static oil
Oil in suction
Tractor brake circuit oil (brakes off)
Pressurised oil
Exhaust oil flow
5
1
9
8
7
26428
6
2
TRE0722A
3
Trailer brakes off
Pressurised oil N. To auxiliary control valves.
P1. From hydraulic pump to lift circuit.
Oil in suction, delivery or return
R. To lift return line.
Static oil
As the pressure of the oil in the trailer brake work port Start of braking
(B) increases, it acts on the active surface (13) of
the spool (2), opposing the effect of control fork (F) B. To trailer brake
on relief valve (4) N. To auxiliary control valves.
P1. From hydraulic pump to lift circuit.
R. To return line in the lift.
???.??.???.?? -- ?? -- ????
4 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 3
13 R
When the trailer brake circuit oil pressure is equal to 2
spring (8) pressure, piston (2) stabilises as shown in fig
5 and establishes communication between oil from
pump and lift drain through connection (P1), diaphragm
TRE0724A
(11), restriction (9), port (10) and connection (R).
5
Braking
B. To trailer brake
P1. From hydraulic pump to lift circuit.
R. To return line in the lift.
Pressurised oil
Oil in suction, delivery or return
Further pressure on the tractor brake pedals (Pf) Static oil
causes a leftward movement of relief valve (4) and
piston (2), with a consequent increase in trailer brake
circuit oil pressure as the sequence described in
paragraph b START OF BRAKING at page 3.is re-
peated.
???.??.??.?? -- ?? -- ????
SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 3 5
TRE0725A
6
Trailer brake remote control valve linkage adjustment
C. Wrench flats on link (6) G = 0,3--0,5mm. Clearance between fork (7) and piston (10) M Pressure gauge
with 0 to 250 kg/cm2 scale of kit 293300 V . Trailer brake control valve 1-- Connection 293799 of kit 293300
2-- Connection 291323 of kit 293300 3-- Delivery line to trailer brake 4-- Cup 5-- Lock nut 6--
Link 7-- Fork 8-- Brake pedals 10-- Trailer brake control valve piston
???.??.???.?? -- ?? -- ????
6 SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 3
???.??.??.?? -- ?? -- ????
SECTION 41 -- STEERING -- CHAPTER 1 1
SECTION 41 -- STEERING
Chapter 1
CONTENTS
Section Description Page
PRINCIPAL DATA
HYDROSTATIC STEERING
Control valve
Make . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DANFOSS OR ORSTA
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rotary valve controlled directly
from the steering column; the
steering continues to function
even if the pump is
non--functional
Outfit code:
-- DANFOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OSPC 100
-- ORSTA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LAG--B 100--LVP16--2
???
2 SECTION 41 -- STEERING -- CHAPTER 1
Pump
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . gear type with oil suction from
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . transmission casing
behind timing gear cover
Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C 25
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FIAT
Operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . driven by timing gears
Direction of rotation (as seen from drive side) . . . . . . . . . . . . . . . . . . . . . clockwise
Engine speed to pump speed ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0,931:1
Maximum speed of rotation (with engine at maximum power) . rev/min 2328
Corresponding rated output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l/min 26.4
Power Cylinder
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Double acting, located behind
front axle
Make . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WEBER or SIMA or ERBER
Cylinder bore diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 mm (1.89 in)
Piston rod diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 mm (0.866 in)
Maximum piston stroke
WEBER or ERBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 ( 8.464 in)
SIMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 mm (8.425 in)
Maximum piston stroke
WEBER or ERBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mm (7.874 in)
SIMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 mm (7.638 in )
???
SECTION 41 -- STEERING -- CHAPTER 1 3
TORQUE SETTINGS
Torque setting
PART Thread
Nm kgm
Bolt fixing hydrostatic steering to tractor . . . . . . . . . . . . . . . . . . . . . . . . . 3/8”--16 UNC 44 4,5
Bolt fixing cover to hydrostatic steering housing (13, fig. 2) . . . . . . . . . M8x1 34 3,5
M 8 x 1* 29 3
Nut for bolt fixing cover to pump housing (20, fig. 1) . . . . . . . . . . . . . . . M 10 x 1,25 39 4
Nut for securing thrust sleeve to pump drive shaft (14, fig. 1)) . . . . . . 7/16 in
--20UNF--2B 28 2,8
* ORSTA
???
4 SECTION 41 -- STEERING -- CHAPTER 1
1
Hydrostatic steering -- Oil pump components
???
SECTION 41 -- STEERING -- CHAPTER 1 5
24725
1. Dust seal
2. Reflux valve balls 12. Rotor control shaft -- sleeve trim pin
3. Reflux valve pins 13. Cover fixing screws
4. Control valve body, rotary valve and rotary 14. Check valve seat screw
valve seat sleeve 15. Washers
5. Check valve ball 16. Cover
6. Threaded plug of check valve 17. O--rings
7. O--ring seal 18. Rotor and fixed ring for rotor
8. Support ring for O--ring (7) 19. Thrust washer
9. Thrust bearing components 20. O--ring
10. Retaining ring for springs (11) 21. Rotor control shaft
11. Springs for returning sleeve to neutral position 22. Pressure relief valve complete with spring
???
6 SECTION 41 -- STEERING -- CHAPTER 1
26 M S
27
D1
TRE0431A
3
General hydraulic diagram
H Control cylinders 26 Oil in intake line
D1 Hydrostatic steering control valve 27 Oil in delivery line from pump
E Filter
T Oil tank M Oil
P Pump S Oil at lubrication pressure
???
SECTION 41 -- STEERING -- CHAPTER 1 7
a
1
13
12
5
11
10
6
TRE0432A 9 7
8
4
25162
5
Diagram showing operation of the hydrostatic steering
a 2WD models Oil in delivery line from pump
A Steering to the right
B Steering to the left Oil in delivery line to hydraulic cylinder
(continued)
???
10 SECTION 41 -- STEERING -- CHAPTER 1
(continuation)
Problem Possible causes Corrective action
The wheels do not maintain the 1. Hydraulic cylinder piston seal Renew the seal.
desired alignment and continual worn.
correction with the steering wheel 2. Reflux valve (2) damaged or Eliminate the foreign bodies and
is necessary. held open by foreign bodies. clean the filter or renew the control
valve.
3. Mechanical wear of control
valve. Renew the control valve.
Neutral phase of hydrostatic 1. Leaf springs (11) for returning Renew the pack of leaf springs.
steering unobtainable. During sleeve (4) to neutral position
manual control, operation is broken or fatigued.
normal. When stopping manual 2. Sleeve and rotary valve (4) Eliminate the foreign bodies and
control, the steering wheel moves blocked in delivery position by clean the filter.
on its own or remains stationary, foreign bodies.
but steering continues slowly in
3. Crushing of sleeve (4) on Check the setting of the pressure
the direction first turned
rotary valve due to excessive relief valve (22).
(motoring), so the steering wheel
pressure.
must be continually corrected.
Front wheel vibration (shimmy). 1. Air pockets in the hydraulic Bleed the air and eliminate the causes
cylinder. of possible infiltration.
2. Wear of mechanical joints of Renew the worn parts.
steering tie rods.
3. Reflux valve (2) damaged or Remove the foreign bodies and clean
held open by foreign bodies. the filter or renew the control valve.
Difficulty in steering in general, or 1. Insufficient pressure. Check the hydraulic pump and the
in one direction. setting of the pressure relief valve
(22).
2. Excessive leakage inside the Renew the control valve.
control valve.
???
SECTION 41 -- STEERING -- CHAPTER 1 11
TRE0033A
TRE0434A
8
5. Remove the steering wheel (1) retaining nut and
remove the steering wheel and hand throtltle
lever.
25758
???
12 SECTION 41 -- STEERING -- CHAPTER 1
1 1
TRE2146A
10
7. Disconnect the electrical leads (1) from the rear 2
of the instrument panel. Unscrew the tachometer
cable (2). Remove the instrument panel.
TRE2146A
1
TRE0851B
11
8. Unscrew the bolts(1) securing the bonnet to the
support frame on right hand side.
TRE2136A
12
TRE2137A
13
???
SECTION 41 -- STEERING -- CHAPTER 1 13
TRE3057A
14
1
2
3
TRE3056A
15
TRE0028A
16
???
14 SECTION 41 -- STEERING -- CHAPTER 1
24701
17
???
SECTION 41 -- STEERING -- CHAPTER 1 15
24702
18
3. Remove the rotor fixed ring, the rotor and the
inner spacer.
24703
19
5. Extract the rotor drive shaft
24704
20
6. Extract the thrust washer.
24705
21
???
16 SECTION 41 -- STEERING -- CHAPTER 1
24706
22
8. Extract the O--ring seal from the control valve
body.
24707
23
9. Position the control valve body and the rotor
drive shaft so that the sleeve--control shaft trim
pin is in a horizontal position.
10. Push the rotary valve inwards, so that the valve,
the valve seat sleeve and the thrust bearing can
be extracted from the control valve body.
24709
24
11. Extract the thrust bearing from the rotary valve,
complete with the two external rings. Remove
the spring retaining ring from the valve seat
sleeve.
24710
25
???
SECTION 41 -- STEERING -- CHAPTER 1 17
24711
26
24712
27
13. Extract the rotary valve from the valve seat sleeve.
24713
28
14. Remove the neutral position springs, extracting
them from their seats.
24714
29
???
18 SECTION 41 -- STEERING -- CHAPTER 1
15. Remove the dust seal and the O--ring seal from
their seats in the control valve body.
20428
30
16. Using a 6 mm Allen wrench, remove the
threaded plugs from the two cylinder safety
valves and extract the seals.
20429
31
17. Using a 6 mm Allen wrench, remove the setting
adjuster screws from the cylinder safety valves.
See also fig. 33.
18. Turn the control valve body over and extract the
balls, the springs and the spring guides from the
two cylinder safety valves.
20432
32
Cylinder safety valves components (order of disas-
sembly--assembly).
1 2 3 4 5
1. Cylinder safety valve ball.
2. Pressure spring.
4. Seal.
5. Plug.
25790
33
???
SECTION 41 -- STEERING -- CHAPTER 1 19
20434
34
20436
35
2. Pressure spring.
4. Seal.
5. Plug.
27099
36
???
20 SECTION 41 -- STEERING -- CHAPTER 1
24726
37
27. Use tool 293389 to insert the flat and curved
springs (12) fig. 2.
Diagram for fitting springs (12) fig. 2 neutral position
for OSPC 80 ON--150N 1058 hydrostatic steering ).
24728
38
28. After inserting the springs in the seat, align and
centre (as shown in the drawing).
24729
39
???
SECTION 41 -- STEERING -- CHAPTER 1 21
24730
40
24731
41
31. Fit the thrust bearing, following the order
indicated in fig. 43.
24732
42
1. Bearing external ring.
1
2. Thrust bearing.
2
3. Bearing internal ring with bevel facing contact
surface of part (5). 3
4. Rotary valve. 4
5. Rotary valve seat sleeve. 5
24733
43
???
22 SECTION 41 -- STEERING -- CHAPTER 1
1
24734
44
33. Lubricate the support ring (1) and O--ring seal (2)
with hydraulic oil and fit them on the head (3) of
the tool 293388, as shown in the drawing.
2
1
45
24736
46
???
SECTION 41 -- STEERING -- CHAPTER 1 23
24737
47
36. Extract the components of tool 293388 ( external
bushing and drift).
48
37. Insert the parts that were previously fitted in
operations 26 -- 31 on the control valve body.
Hold the sleeve--to--rotor drive shaft trim pin in a
horizontal position, to prevent it from slipping out
and jamming in the slots inside the control valve
body.
24739
49
38. Press the rotary valve so as to bring the thrust
bearing into contact with the control valve body.
This operation simultaneously expels the head
(1) of tool 293338, inserting the rings (1) and (2)
fig 45 into the seat of the control valve body (see
operation 33).
25795
50
???
24 SECTION 41 -- STEERING -- CHAPTER 1
24741
51
40. Screw the threaded plug into the non--return
valve seat until the upper surface is below the
coupling surface of the control valve body.
24742
52
41. Lubricate the O--ring seal and insert into the seat
on the control valve body.
24746
53
42. Fit the thrust washer, so that the holes coincide
with the holes in the control valve body.
24747
54
???
SECTION 41 -- STEERING -- CHAPTER 1 25
24748
55
44. Fit the rotor drive shaft into the control valve
body. Insert tool 293390 for retaining and
centring the rotor drive shaft, between the rotor
drive shaft and the thrust washer. Rotate the
shaft so as to facilitate coupling between the seat
(2) fig. 55 and the trim pin installed in the sleeve.
24749
56
24750
57
???
26 SECTION 41 -- STEERING -- CHAPTER 1
24751
58
47. Fit the cover, aligning the retaining holes with
those on the rotor fixed ring.
24753
59
48. Remove retaining tool 293390 and fit the special
screw and washer in the non--return valve seat,
shown in the drawing.
24754
60
49. Fit the other six cover retaining bolts with the
washers and tighten in diagonal sequence to the
torque setting value shown in the table on page
3.
24755
61
???
SECTION 41 -- STEERING -- CHAPTER 1 27
50. Turn over the control valve body and insert the
pressure relief valve piston in the seat, as
indicated in the drawing. See fig. 36 for
component assembly order.
24756
62
51. Insert the pressure relief valve spring.
24757
63
52. Using an 8 mm Allen wrench, insert the pressure
relief valve setting screw.
24758
64
53. Tighten the plug (2), with the associated seal,
using an 8 mm Allen wrench. Tighten to the
1
prescribed torque value 40 -- 60 Nm (4.1 -- 6.1
kgm), after having carried out the setting on the
workbench or on the tractor.
54. Insert the balls (1) into the two cylinder safety
2
valve seats, indicated by the arrows. See fig. 66
component assembly order.
25789
65
???
28 SECTION 41 -- STEERING -- CHAPTER 1
25790
66
55. Insert the springs (2, fig. 69) in the cylinder
safety valve seats.
56. Using a 6 mm Allen wrench, tighten the two
cylinder safety valve setting adjuster bolts (3,
fig. 69).
20475
67
57. Tighten the two plugs (5, fig. 69) and the
relative seals (4) using a 6 mm Allen wrench.
Once setting is completed, tighten to the
prescribed torque value of 30 Nm (3 kgm).
20429
68
58. When the unit has been assembled, insert the
dust seal in the seat in the control valve body.
24764
69
???
SECTION 41 -- STEERING -- CHAPTER 1 29
2
1
24912
???
30 SECTION 41 -- STEERING -- CHAPTER 1
4
24911
69
1. Splined control shaft -- 2. Plug G 1/2” -- 3. To
throttle -- 4. Outlet -- 5. Three--way coupling G 1/2” --
6. From delivery line -- 7. Outlet coupling G 1/2”
position. 70
In this condition, the pressure relief valve (22, fig. 2)
should open and the pressure gauge should indicate 1. Pressure gauge (supplied in kit 292870) -- 2.
the value given on page 1. Union 293874 (supplied in kit 292870) to be fitted
5. If the pressure gauge reading deviates signifi- in place of original union -- 3. Union 291318
cantly from the prescribed value, adjust the valve (supplied in kit 292870) -- 4. Hydraulic cylinder oil
opening pressure by way of the adjuster screw. feed pipe -- 5. Hydraulic cylinder.
???
SECTION 41 -- STEERING -- CHAPTER 1 31
Proceed as follows:
1. Remove the cover fastening nuts (20), then the
bolts (15) and the safety washers.
2. Remove the nut (14) that fastens the sleeve to the
pump driving shaft and the safety washer.
3. Remove the front cover (8), the snap ring (12)
and the seals ( 9 and 11 ).
4. Mark parts 3, 4, 5 and 6 to enable them to be re-
mounted in the same position if they are in good
condition.
???
32 SECTION 41 -- STEERING -- CHAPTER 1
???
SECTION 41 -- STEERING -- CHAPTER 1 33
WARNING
Handle all parts with great care. Do not put your
hands or fingers between one part and another.
Wear the recommended safety clothing such as
goggles, gloves and safety boots.
24858
74
4. Using a suitable puller (1), separate the cylinder
rod ball end from the steering arm.
24859
75
5. Remove the pin securing the steering cylinder
(1) to the axle and remove the cylinder.
6. To refit the steering cylinder, follow the removal
procedure in reverse order.
24860
76
???
34 SECTION 41 -- STEERING -- CHAPTER 1
WARNING
Handle all parts with great care. Do not put your
hands or fingers between one part and another.
Wear the recommended safety clothing such as
goggles, gloves and safety boots.
24861
78
4. Remove the retaining screw and extract the pin
(1) securing the steering cylinder to the axle.
Remove the steering cylinder. 1
24862
79
5. Remove the two actuator cylinders complete
with supply pipes.
24864
80
???
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 1
CONTENTS
Section Description Page
44 000 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Tightening Torques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
44 101 Overhaul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Front Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
44 101 Axle Wheel Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
44 101 Stub Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Toe-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
???????????- 05--2002
2 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
SPECIFICATIONS
Diameter of stub axle pin (7, page 7) at bushing . . . . . . . . . . . . . . mm (ins) 37.961 -- 38.000
(1.494 -- 1.496)
Bore of installed bushings (6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm (ins) 38.050 -- 38.140
(1.498 -- 1.501) (*)
Clearance between stub axle pin and relative bushings . . . . . . . . mm (ins) 0.050 -- 0.179
(.001 -- .007)
Axle articulation
??????????? - 05--2002
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 3
(cont.)
23928
???????????- 05--2002
4 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
26155
TIGHTENING TORQUES
C6 -- 186 -- 206 Nm
(137 -- 152 ft-lbs)
C5 -- 186 -- 206 Nm
(137 -- 152 ft-lbs)
C3 -- (*)
C4 -- 186 -- 257,7 Nm
(137 -- 190 ft-lbs)
26157
Front axle
C1 Axle articulation pin bolt C5 Nut for stub axle pin control lever
C2 Nut securing disc to wheel hub C6 Nut securing cylinder to fulcrum pin
C3 Bearing adjuster nut
C4 Axle end nut
???????????- 05--2002
6 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
Torque setting
PART Thread
Nm ft-lbs
Front axle
Bolt securing axle to engine (5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M 18 x 1,5 353 260
Nut securing LH and RH levers on the stub axles (4) . . . . . . . . . . . . . . M 16 x 1,5 294 217
Nut securing ball end for transverse steering tie rod . . . . . . . . . . . . . . . M 14 x 1,5 118 87
SPECIAL TOOLS
TROUBLESHOOTING
Abnormal wear of tires. 1. Incorrect tire pressure. Inflate the tires to the correct pres-
sure, referring to the pressures recom-
mended in the Use and Maintenance
handbook, and more especially, to the
pressures recommended by the
manufacturer of the tires fitted.
2. Incorrect toe--in of front Correct the toe--in.
wheels.
Poor stability of tractor. 1. Incorrect tire pressure. Inflate the tires correctly as detailed
above.
??????????? - 05--2002
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 7
OVERHAUL
FRONT AXLE
Removal
DANGER
Lift and handle all heavy parts with lifting equipment
of suitable capacity. Make certain that the units or
parts are supported by appropriate slings and
hooks. Ensure that there are no persons in the vi-
cinity of the load to be lifted.
To remove the complete axle from the tractor,
proceed as follows:
1. Disconnect the negative cable from the battery
and isolate it; chock the rear wheels.
24765
4
3. Place a stand (1) beneath the engine sump,
inserting a block of wood between the engine
sump and stand.
1
24766
5
4. Remove the front wheel bolts (1).
24767
6
???????????- 05--2002
8 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
1 2
24768
24769
8
7. Secure the axle by means of a sling (1).
24770
9
8. Take out the axle articulation pin (1) using slide
hammer 292927, equipped with adaptor 290793
and extension.
24771
10
??????????? - 05--2002
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 9
24772
11
Installation
1. To install the complete axle, follow the disassem-
bly procedure in reverse order. Install the axle ar-
ticulation pin (1) using a bronze punch.
2. Install the bolt connecting the axle articulation
pin.
24769
12
3. Reconnect the hoses (1) of the power steering
cylinder (2).
1 2
24768
13
AXLE WHEEL HUB
Removal
WARNING
Handle all parts with great care. Do not put your
hands or fingers between one part and another.
Wear the recommended safety clothing such as
goggles, gloves and safety boots.
???????????- 05--2002
10 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
24765
14
1
24766
15
4. Remove the front wheel bolts.
24767
16
5. Remove the wheel hub bearing cover (1).
1
24775
17
??????????? - 05--2002
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 11
TRE4001A
18
7. Remove the split pin (1) securing the wheel hub
bearing adjuster nut.
TRE4002A
19
8. Using a socket wrench, unscrew the wheel hub
bearing adjuster nut.
24777
20
9. Remove the wheel hub bearing adjuster nut (1).
1
TRE4003A
21
???????????- 05--2002
12 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
TRE4004A
22
11. Remove the wheel hub (2) and take out the
bearings (1 and 3).
1 2 3
24778
23
12. Remove the bearing (1).
1
TRE4005A
24
13. Remove black (Twin lip) wheel bearing seal (1).
1
TRE4006A
25
??????????? - 05--2002
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 13
TRE4007A
26
15. Replace worn bearings and seals, using suitable
extractors and punches.
24780
27
???????????- 05--2002
14 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
24782B
28
17. Withdraw the control lever (1) from the stub axle
pin (2).
24783B
29
18. Lower the hydraulic jack and remove the stub
axle (1).
1
24784
30
19. Put the stub axle on a suitable vice and install
white back up ring (1).
1
TRE4008A
31
??????????? - 05--2002
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 15
TRE4008A
32
21. Install both black (Twin lip) wheel bearing seal
and white back up ring together with a suitable
installer and a hammer.
TRE4008A
33
22. Install bearing with a suitable installer and a
hammer.
TRE4008A
34
23. The wear sleeve (1) for the seal must be installed
in the hub with a high strength bearing fit adhe-
sive compound (loctite) to ensure the secure 1
retention in the hub.
35
???????????- 05--2002
16 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
24778
36
26. Install a new nut and, using a torque wrench,
tighten the nut to a torque of 196 Nm (20 kgm),
turning the wheel hub (1) simultaneously in order
to settle the bearings. 1
27. Loosen the nut slightly and tighten it again to a
torque of 24 -- 29 Nm (2.5 -- 3 kgm) while continu-
ing to turn the wheel hub.
Note -- the nut must be changed each time the wheel
hub is fitted.
37
29. Install the split pin (1) securing the wheel hub
bearing adjuster nut and bend it over the nut to
prevent turning the nut.
24776
38
30. Install the grease nipple as shown in figure.
TRE4001A
39
??????????? - 05--2002
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 17
1
24775
40
STUB AXLE
Removal
WARNING
Handle all parts with great care. Do not put your
hands or fingers between one part and another.
Wear the recommended safety clothing such as
goggles, gloves and safety boots.
24765
41
3. Place a stand (1) beneath the engine sump,
inserting a block of wood between the engine
sump and stand.
1
24766
42
???????????- 05--2002
18 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
24767
43
24782
44
6. Withdraw the control lever (1) from the stub axle
pin (2).
24783
45
7. Lower the hydraulic jack and remove the stub
axle (1).
1
24784
46
??????????? - 05--2002
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 19
24785
47
24786
48
10. Clamp the end of the axle in a vice and using a
slide hammer, take out the stub axle pin articula-
tion bushing (1).
24787
49
Installation
1. To install the stub axle, follow the disassembly
procedure in reverse order, using a suitable
hammer to install the new bushings on the axle
ends.
24788
50
???????????- 05--2002
20 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
24786
51
3. At the base of the stub axle install the cap (9, fig. 1),
then the levelling rings (1), inserting them on the
stop grub screws (8 and 14, as shown in figure 1).
24789
52
24783
53
??????????? - 05--2002
SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1 21
ADJUSTMENTS
TOE--IN
A
Check the alignment of the front wheels, bearing in
mind that for driving in a straight line, the wheels must
be at an angle of 2° to the vertical. This corresponds
to a difference of approximately 15 mm (.59 ins) for 16
in. wheels, between the top edge of the rim (A) and A+X
bottom edge (A + X).
When driving in a straight line, the wheels must be
parallel to the longitudinal axis of the tractor or have B2
a maximum of 5 mm (.196 ins) toe--in at the front,
measured between the wheel--rims.
???????????- 05--2002
22 SECTION 44 -- FRONT AXLE AND WHEELS -- CHAPTER 1
??????????? - 05--2002
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 1 1
CONTENTS
1 1
4 3 2
TRE2146A
2
10
1
3 4 5 6 7 8 9
11 12 13
TRE0621A
Condition Indicator
When the fuel level falls less than 1/4 tank, the
needle moves into the red area.
TRE2146D
TRE2146B
4
Engine Coolant Temperature Gauge
-- Green area = normal temperature.
TRE2146C
5
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 2 1
Chapter 2 -- Components
CONTENTS
TRE2051A
INSTRUMENT CONSOLE CONTROLS
1. Hazard warning light switch
Push switch to operate hazard warning lights.The 1
lever operates external lights, horn and the 2
direction indicators.
2. Hand throttle lever:
-- Pushed fully forward; max. engine speed
-- Pulled fully backward; min. engine speed. 3 4
3. Direction indicator lamp control switch.
Explained at page 2--9 Operator’s Manual 6
4. Lights switch.
Explained at page 2--9 Operator’s Manual 5
5. Starter switch.
1
Explained at page 2--11 Operator’s Manual
6. Thermostarter button.
This is used to start the engine in particularly cold
weather.
For further details, see page 2--20 Opera-
The multi--function stalk controls the lights, horn,
turn indicators and headlight flasher and is also 2
used to switch from dipped to main beam front
headlights.
Direction indicators 1
B. BATTERY
The tractors are fitted with maintenance--free
batteries. Keep the top part clean and dry. Check
that the level of electrolyte reaches the top mark
and never falls below the lower mark.
C. ALTERNATOR
This provides a square wave signal and re-
charges the battery. It also provides power re-
quired by electric devices.
F. FUEL SEDIMENTER
Activated when water goes into the fuel filter.
Locations
26608
6
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 2 5
26608
7
6 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 2
26608
8
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 3 1
CONTENTS
SPECIFICATIONS
TIGHTENING TORQUES
Nm Ft-lbs.
The starting system installed depends on the type of ion engage the flywheel ring gear. The moment the
gearbox fitted on the tractor. All systems consist of pinion touches the ring gear, the plunger closes a se-
an ignition key switch, heavy--duty wiring, a starter ries of contacts and powers all four field windings di-
motor with solenoid, a start--up relay and a clutch rectly from the battery, thus giving full power to the
pedal switch. These are the basic circuit components starter motor.
used on versions with mechanical gearbox. More so-
phisticated systems include other components, At this stage, one end of the pull--in coil is connected
which ensure the engine can be started only under to the positive battery pole through the starter switch,
the proper conditions. while the other end in connected to the positive pole
through the solenoid valve contacts. The pull--in coil
There are four types of gearbox: with range reduction is thus bypassed, without absorbing power, and the
gear (synchro command), with range reduction gear hold--in coil alone keeps the plunger in position.
and inverter (shuttle command). The starting circuit
is illustrated in figure 1. The starter motor includes a series of contacts and
a two--part solenoid plunger which completely closes
There are two available types of starter motors: 2.5 the contacts even if the pinion teeth are not perfectly
kW or 3.5 kW rating. They both have four poles, four in line with the ring gear. When this happens, a clutch
brushes with integrated solenoid and positive mesh spring compresses the pinion, forcing it to connect
engagement control. completely as soon as the starter motor starts
turning.
The solenoid consists of two coils connected in paral-
lel. The low resistance pull--in coil is earthed When the key ignition switch is released, power is
(grounded) via the engine, while the high resistance taken from both the solenoid and the motor. The so-
hold--in coil is earthed (grounded) via the solenoid lenoid return spring, acting on the flexible joint mech-
body. anism, frees the driving pinion from the gear and
opens the solenoid valve contacts again.
When the ignition switch is closed, with the clutch
pedal depressed and gear in neutral (except in the A roller type clutch is incorporated to the driving pin-
case of mechanical gearboxes), the coils are ener- ion group. This prevents the pinion from overspeed-
gised and the plunger is magnetically drawn inside ing if it stays engaged with the flywheel ring gear after
the solenoid. This movement, transmitted by means the engine has been started.
of an flexible joint mechanism, makes the driving pin-
4 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 3
17 19
2,5 N/R
1,5 P/Y
18
6
2,5W/R
11
10
50
-- 2,5 N/U 15A 2,0 N/U
+ 30 5 2,0 Y/W 2,0 P/Y
10 N 40A 15A
12
D+ B+ 13
3 N/P 3,0 B
0.5 N/Y
6N
29
2,5 W/Y 2,5 W/R
6,0 N
30 2
6,0 Y/W
15/54 2,5 N/U
50 2,5 W/Y 2,5 W/Y 5 5 2,5 W/Y
28
16 1
1
START--UP CIRCUIT DIAGRAM
1 -- Instrument panel 11 -- Starter motor 19 -- Engine shut--off solenoid
2 -- Starter switch 12 -- Alternator 28 -- Main harness-- Chassis
5 -- Main fuse 13 -- Over Voltage circuit breaker harness connection con-
6 -- Fuse box 17 -- Thermostarter nector 12 way
10 -- Battery 18 -- Thermostarter switch 29 -- Starter inhibitor switch
26628 26629
TRE0069A
OVERHAUL
4
6 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 3
5. Disconnect the wire from the injection pump
shut--off solenoid.
6. Run the engine and note voltmeter and amme-
ter readings. Voltage must be constantly about
12V and absorption in the range of 250--300 A.
• If absorption corresponds to the readings
above, then the starter motor (4) fig. 4, is
working correctly. If voltage drops during
the test, follow “Resistance in starting
system circuit” procedure (see relative
paragraph).
• If absorption is higher than the readings
above, check the circuit as follows. If the
starting system circuits are in good
condition, then the starter motor is
malfunctioning and must be removed for
further examination.
• If absorption is lower than the readings
above, the starter motor is malfunctioning
and must be removed for further
examination.
26632
3
6
Battery Ground Cable Check 1
2
1. Connect the positive voltmeter point (1) to the
engine block (2). V
2. Connect the negative voltmeter point to the
negative battery terminal clamp (3).
3. Run the engine and check the readings on the
voltmeter. If voltage is higher than 0.2 V., check
and tighten the earth (ground) cable connec-
tions. Check the voltage again and if it is still
higher, then install a new earth (ground) cable.
3
26633
7
Op. 55 201 50
2 3
STARTER MOTOR
Removal
1. Disconnect negative battery cable. 6
2. Unscrew the nut and bolt (1) and remove the
protection cover (2) from starter motor (3).
3. Unscrew the nut and remove power clamp (5) 1
and emergency switch clamp (4). 4
4. Remove the starter motor securing bolts (6)
and remove the starter motor. 26634
5
8
Installation
To install the starter motor, reverse the order of
removal.
8 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 3
26635
9
Starter Motor Components
1. Solenoid 7. Field windings and casing
2. Solenoid bolts 8. Brush holder
3. Bolt and stud group
9. Brush plate
4. Control side support
5. Lever 10. Armature
6. Reducer 11. Clutch
Op. 55 201 54
Disassembly
Refer to figure 3. 3. Remove the three screws from the front casing
and remove the solenoid. Note that the plunger
1. Place the starter motor in a vice with protected will remain connected to the control lever.
jaws.
4. Remove solenoid plunger from the control lever
2. Disconnect the biggest braided wire which runs by holding and lifting it at the front in order to un-
from the field winding casing to the solenoid. clip it from the lever.
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 3 9
5. Remove the two nuts from the rear casing and Assembly
the two screws which fasten the rear cover and
1. To assemble the starter motor, reverse the re-
brush plate to the casing. Remove clamp C and
moval procedure.
armature shaft end play spacers, leaving the
brush gear on the commutator. Remove the thin
Before reconnecting, test the armature shaft end
metal washer on the commutator side of the ar-
play and test the starter motor without load.
mature.
6. At this stage of the procedure, check the brushes STARTER MOTOR TESTS AND
and commutator. Check that the brushes are not
INSPECTIONS
sticking and, if necessary, clean the brushes and
their respective channels with a rag and solvent. Armature Shaft End-Play
Check the brushes are not worn. If they are worn
1. Place the starter motor in a vice with protected
and minimum length is less than that shown in
jaws and connect a dial gauge to the flange on
the technical information table, it will be neces-
the control side of the casing. Position the dial
sary to change the starter motor.
gauge pointer on the end of the armature shaft.
NOTE: The brushes are not serviced separately.
2. Push the armature forward and reset the gauge
They are welded to their support and will not be
to zero. Push the armature back as far as it will
changed for the whole operating life of the starter
go and note the gauge reading.
motor.
3. Readings must fall within the limits specified in
7. Remove the motor casing from the armature and the technical information table. If the value is
the control side bracket. higher, check that armature and brush plate are
not worn. Change the worn components, as nec-
8. Remove the control lever knuckle pin from the essary, and check end play again.
control side of the casing.
9. Remove the retaining ring which holds the con-
trol group and the inner plate from the armature
shaft, by first removing the pressure collar per-
pendicularly from the retaining ring support by
means of an appropriately sized tube. Then lever
the retaining ring from the groove.
10. Remove armature and control group.
10 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 3
Starter Motor Test Without Load
(Refer to Figure 10) 6 7
wire (7). 10
4. Connect the positive voltmeter point (3) to the
positive battery terminal clamp and the nega-
tive voltmeter point to the negative battery ter-
minal clamp. Connect the ammeter positive
point (1) to the positive battery clamp (4) and
the negative point to the battery or to the starter
motor terminal clamp.
5. Place a manual tachometer (5) on the end of
the armature shaft. Check maximum power ab-
sorption. This value is specific for each starter
motor and must be included in the range of val-
ues in the TECHNICAL INFORMATION table.
Regulate carbon battery voltage (2) and arma-
ture speed according to the information in the
technical information table.
6. If the starter motor does not work according to
the technical information specification, check if
there are earthed (grounded) field windings, if
the armature is scuffed or scraped or if the shaft
is misshapen or otherwise damaged.
Armature
(Refer to Figure 11)
1. The commutator surface must be clean and 1
not burnt. If burning needs to be removed, use
fine sandpaper and not abrasive fabric (emery
cloth). Finally, clean the commutator with a rag
and solvent.
2. If the commutator needs refacing, check it is
not smaller than the minimum value specified
in the TECHNICAL INFORMATION table. Af-
ter refacing, the commutator must be polished
with sandpaper and cleaned with a rag and
solvent.
26637
NOTE: Do not cut the armature metal when mak-
ing insulation slots. 11
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 3 11
3. Armature insulation can be checked by con-
necting an ohmmeter (1) between commutator
segments and armature shaft. This reading
should show infinity, in other words there
should be no continuity.
4. To test there are no short circuits, use an ap-
propriate testing device. The only alternative is
to try changing the armature.
5. If the armature circumference has obviously
been in contact with pole pieces, the pole bear-
ings are probably worn. First check the pole
pieces are fixed and that the armature spins
well in a lathe. If necessary, change the arma-
ture bearing.
Field Windings
1. To test field winding insulation, connect an
ohmmeter to each of the coil brushes in turn
and to a clean and unpainted area of the casing.
There should be no readings, that is, there
should be no continuity.
2. To test coil continuity, connect an ohmmeter to
each of the coil brushes in turn and to the main
power clamp (biggest braided wire). The read-
ing should be 1 Ω.
3. If there is a failure in the field windings, then it
will be necessary to change the whole box and 1
26638
field winding system.
12
Bearing Bushings
1. Check if the bushing on the brush plate and in
the box on the pinion side are worn. Assemble
the armature shaft and note play. Change the
bushing if there is too much play. Check the
field poles to see if there are any signs of scrap-
ing against the casing. This can also be caused
by a worn bushing.
Driving Pinion
1. Check the roller clutch operation. The pinion
must spin clockwise only. If the pinion is either
seized or spins in both directions, or if the pin-
ion teeth are damaged, assemble a new con-
trol group.
2. If there is clear evidence of damage to the
pinion teeth, check the flywheel ring gear, as
described in section 10, Engines.
12 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 3
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4 1
CONTENTS
SPECIFICATIONS
ALTERNATOR
CHARACTERISTICS MODELS
TD60 TD70 TD80 TD90 TD95
Polarity Neg Neg Neg Neg Neg
Nominal voltage (V) 14 14 14 14 14
Max rotation speed (rpm) 15000 15000 15000 15000 15000
Maximum output (A) 65 65 65 65 85
Regulator controlled 13.6 -- 14.4 13.6 -- 14.4 13.6 -- 14.4 13.6 -- 14.4
voltage (V)
Rotor field winding 2.9 2.9 2.9 2.9
resistance (Ω)
Stator field winding 0.2 0.2 0.2 0.2
resistance (Ω)
New brush length (mm) 20 20 20 20
Minimum brush 5 5 5 5
length (mm)
Brush spring force (N) 1.3 -- 2.7 1.3 -- 2.7 1.3 -- 2.7 1.3 -- 2.7
Maximum power at 540W 540W 540W 540W 540W
2500 erpm
TIGHTENING TORQUES
Nm Ft.-Lb.
Alternator fastening bolts 6 5
Pulley fastening nut 70 52
Rectifier fastening screws 4.0 3
Brush box and regulator screws 2.7 2
Terminal nuts 2.7 2
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4 3
26639
1
Bosch Alternator
1. Battery Connection (B+ Terminal)
2. Terminal Protection Sheath
3. Alternator Charge Indicator Connection (D+ Terminal)
4 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4
7
3
5
4
26640
3
2
4
3
1 1
26641 26642
3 4
Fan Belt on Models Less Air-Conditioning Fan Belt on Models With Air-Conditioning
TROUBLESHOOTING
See figure 8.
• the regulator,
• rotor field winding continuity,
• rotor brushes, springs and contact rings.
NOTE: The previously described component tests
can be carried out with the alternator installed in the
tractor. In order to carry out the other alternator
tests, it will be necessary to remove the alternator
from the tractor. Refer to the section “FUNC-
TIONAL TESTS” in this chapter.
12 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4
OVERHAUL
ALTERNATOR
IMPORTANT: Before disconnecting the alternator
wires, check that the ignition key is in the OFF
position.
Removal
1. Disconnect the negative battery cable.
2. Disconnect B+ (1) and D+ (2) wires from the
alternator.
26648
3. Loosen and remove the nut and bolt (3) secur-
ing the alternator to the belt tensioner (4). 10
26649
11
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4 13
1 2 3 4 5 6 7 8
10 9
26650
Alternator Components 12
1. Pulley retaining nut 6. Stator
2. Pulley 7. Rear support plate
3. Cooling fan 8. Rectifier bridge
4. Front support plate 9. Protection guard
5. Rotor 10. Electronic voltage regulator with built--in brushes
Disassembly
1. Firmly fix the alternator horizontally to an ap-
propriate holder with internal surfaces pro-
tected with soft material.
2. Remove the guard (1) after unscrewing the
nuts which fasten it to the alternator (Fig. 13)
3. Before dismantling the alternator completely,
carry out the following tests:
26651
13
14 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4
If the test lamp does not light up, then the rotor cir-
cuit is faulty. Check brushes, contact rings and rotor
field winding continuity.
15
26654
16
26655
17
16 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4
Checking the diodes
26656
18
Unweld stator winding terminals (2) from the recti-
fier bridge (Fig. 19).
26657
19
Excitation diodes test
26658
20
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4 17
26659
21
Negative power diodes test
26660
22
In the three tests described above, the instrument
should show resistance at each terminal (A--B--C).
Reversing the instrument point connection, there
should be no resistance (Fig. 22). If there is resis-
tance in both cases, this means short--circuited
diodes. Otherwise, with a R=0 value (interrupted
diode), change the whole rectifier bridge.
18 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4
Check on rotor winding resistance measured
between pins connected to brushes
26661
23
Op. 55 301 12
Rotor
26662
24
2. Disconnect the excitation diode terminal wire
connector (2) from the pin connected to the
positive brush. Unscrew and remove the
screws (3) securing the electronic voltage regu-
lator (4), complete with brushes, to the rear al-
ternator support. Unscrew nuts (5) and remove
the screws fastening the alternator main exter-
nal parts (Fig. 25).
26663
25
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4 19
a. Brushes
b. Pins
26664
26
Separate the parts (as illustrated) bearing in mind
that it is necessary to apply a considerable degree
of pressure on the rotor shaft to free the front sup-
port plate (6) and the rotor (7) (Fig. 27).
26665
27
Unscrew the screws (9) which fasten the rectifier
bridge (10) to the rear support plate (8) (Fig. 28).
26666
28
20 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4
26667
29
Separate the stator (12) and the terminals (11) from
the rear support plate (8) (Fig. 30).
26668
30
Inductor coil insulation test
26669
31
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 4 21
26670
32
Check the ball bearing moves freely, without sticking
or noise. Check the collectors have not been dam-
aged by the brushes. If this is the case, change the
whole rotor.
Assembly
To assemble, reverse the order of the operations
described.
Repair 4
1. Check the rotor and stator poles are not worn.
If this is the case, it means the ball bearings are
worn, the casings are not in line or the rotor 2
shaft is misshapen.
NOTE: Alternator ball bearings cannot be serviced
separately. When necessary, therefore, both must
be changed.
26672
34
Installation
1. Install the alternator by reversing the removal
procedure.
Chapter 5 -- Battery
CONTENTS
SPECIFICATIONS
TROUBLESHOOTING
3. Excessive overload (bad charging system, high It is worth noting that if a battery is weak during en-
voltage fast charging, high operating tempera- gine start--up, it is best to let the battery rest for two
tures). minutes. This rest time increases as the temperature
decreases.
4. Battery electrolyte freezing.
A fully charged battery freezes at --65°C. A 50% When two batteries are installed, do not use an old
charged battery freezes between --17°C and battery with a new one. One battery will always stop
--27°C. A completely flat battery freezes between before the other one. If the battery has lasted as fore-
-- 3°C and --11°C. Excessively fast charging and casted, charge both batteries. If one has stopped be-
boiling caused by gas formation cause the sepa- fore the forecasted time due to a defect, then change
ration of active material from the grids. Separa- only the defective battery.
tion destroys the battery chemical function.
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 5 3
The 800cca battery used on TD models is a sealed Each element of the battery consists of positive and
maintenance-free type. The battery is installed negative plates, positioned alternatively, one next to
above the front axle support (Fig. 1). the other. Each positive plate is separated from the
adjacent negative plate by means of a porous insu-
NOTE: “Maintenance--free” means that the battery lating spacer. If one of the positive plates touches a
electrolyte, in normal conditions of use, does not negative plate in the element, the element will short--
leak. It could leak if the battery is loaded over 14.4 V. circuit and be irreversibly damaged. The positive
This, in fact, causes the water to boil due to gas plates are welded to a collecting bar and form a posi-
formed as the battery charges up completely. It can tive terminal. The negative plates are welded to a
be caused by a faulty charging system, by quick similar collecting bar and form a negative terminal.
charging or topping up.
Each positive plate consists of a lead grid with lead
The four main functions of a battery are: peroxide pasted to the grid holes. The negative
plates consist of a lead grid with lead sponge pasted
• to supply a source of electricity for starting, igni- to the grid holes.
tion and instrument lighting and functioning.
The plates are covered by an electrolyte which con-
• to control voltage in the electrical system. sists of diluted sulphuric acid solution.
• to supply electricity when the power required is The battery casing is made of polypropylene.
higher than that produced by the alternator.
OVERHAUL
BATTERY
Op. 55 301 40
Removal
1. Lift the engine hood.
2. Disconnect ground cable from tractor structure
and position it safely, away from the structure it-
self.
3. Loosen the bolts on both terminal clamps and
disconnect the positive and negative battery
cables. Ensure they do not touch the battery
itself.
4. Lift the battery from the tractor by the two han-
dles at each end of the battery.
24569
Installation
1
To install the battery, reverse the removal procedure,
with the following precautions:
If the battery has been loaded and kept still, the bat-
tery electrolyte will be thicker at the base of the ele-
ments. The battery must be shaken periodically to
mix the electrolyte. This will improve charging am-
perage and allow more precise densimeter readings
during tests.
8 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 5
Test charging: This test is only for those batteries 1.150 or less 60 minutes
which have not passed the performance test above.
from 1.151 to 1.175 45 minutes
1. Connect the positive battery charger tester con-
ductors (high amperage discharge tester) to the 30 minutes
from 1.176 to 1.200
positive battery terminal and the negative con-
ductors to the negative battery terminal. from 1,200 to 1.225 15 minutes
2. Connect the positive battery charger conductor (slow charge only)
to the positive battery terminal and the negative
conductor to the negative battery terminal.
NOTE: When there are problems with a battery,
3. Turn the battery charger timer to more than a 3 check fan belt tension and the complete charging
minute charge and then back to a 3 minute system.
charge.
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 6 1
CONTENTS
Speaker
Ignition Switch
Diode
Connection
Battery
Solenoid Valve
Fuse
Motor Thermostart
Switch Relay
Variable Resistance
Pressure Switch
Electrical Supply Socket
Indicator Switch
Control Switch
11 10
BRAKE FLASHER
RELAY
4 3 2 1
15 A 7.5 A 15 A 10 A
8 7 6 5
10 A 10 A 15 A 7.5 A
9
10 A
13
10 – Battery 34 –
11 – Starter 35 –
12 – Alternator 36 –
50045263
20045256
20045257
20045258
20045259
20045253
20045254
INDIVIDUAL CIRCUITS
50045255
Start-Up Circuit
2 Starter switch
18 Thermostart switch
5 -- Fuse box
5a -- Fuse #13, 15A 27 -- Fuelshut-off solenoid
5b -- Fuse #5, 7.5A
28 -- Thermostart devise
8 -- Starter relay
31 -- Starter inhibitor unit
11 -- Battery
35 -- Maxi Fuse, 40A
12 -- Starter Motor
50 -- Clutch pedal switch
13 -- Alternator
53 -- PTO switch
14 -- Over Voltage protection devise
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 6 17
18 SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 6
2 -- Key switch
Ign. Switch continuity Chart
3 – Multi--function light switch
1 -- Parking lights +12V Pos. 58/57 57 30 15/54 50
4 – High beam +12V
5 – Keyed +12V supply PARK
7 – Low beam +12V
OFF
5 – Fuse box
a -- fuse # 1, 15A RUN
b – fuse # 2, 10A
c – fuse # 8, 20A START
d – fuse # 16, 40A
e – fuse # 3, 20A
11 – Battery
32 – Headlamps
57 – Cornering lights
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 6 19
50045260
1 -- Instrument panel
3 – Left turn indicator
12 – Right turn indicator
2 -- Key switch
5 – Fuse box
a -- fuse # 16, 40A
b – fuse # 7, 15A
c – fuse # 11, 20A
d – fuse # 6, 20A
e – fuse # 9, 15A
f – fuse # 3, 20A
11 – Battery
58 – Cab flashers
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 6 21
50045264
50045261
PARK
OFF
RUN
5 – Fuse box START
a -- fuse # 9, 15A
b – fuse # 6, 20A
11 – Battery
53 – PTO switch
SECTION 55 -- ELECTRICAL SYSTEM -- CHAPTER 6 25
50045262
TRE0628A
50045265
1--Instrument panel
1,0 P/W
0,5 P/W
17 5-- 1st trailer 18--Thermostarter switch
85 30
19 6-- Earth 19--Engine shut--off solenoid
8 87A
2,5 N/R
7-- Fuel gauge 20--Water temp. gauge sending unit
86 87
1,5 P/Y
1,0 R
0,5 U
1,0 B
10-- Engine water temp. gauge
18 21--Oil pressure indicator sending unit
11-- Fuel filter
1,0 G
22--Main harness-- head lamp harness connection connector 6 way
1,0 G/O
12--Right signal
23--Right headlamp connection connectors, 3 ways
13-- Air filter
18-- Power
26--Left headlamp
19-- Parking brake
11
27--Horn
2,5W/R
10 2-- Starter switch
50
--
3-- Beam--Park--Horn--Switch 28--Main harness--Chassis harness connection connector 12 way
+ 30 5 6
1-- Park 29--Starter inhibitor switch
10 N 40A 2,0 N 2,0 P
15A
2-- High beam
30--Chassis harness-- Right wing harness connection connector 4 way
2,5 N/U 2,0 N/U
15A 3-- Power (Park and headlamp)
31--Chassis harness--Left wing harness connection connector 4 way
6,0 N
6,0 N
2,0 Y/W 2.0 P/B 4-- Low beam
7,5A
2,0 Y/W 2.0 P/W 5-- Power (horn, high beam) 32--Beacon lamp switch
15A
6-- Horn
2,0 Y/W 2.0 P/Y 33--Beacon lamp
7,5A
4-- Hazard warning switch 34--Handbrake send unit
2,5 U/W 2,5 U/W
15A
5-- Main fuse
35--Stop light switch
2,0 U/R 2,0 U/R
10A 6-- Fuse box
36--Trailer socket
2,0 R 2,0 R
10A 7-- Signal button
0,56 R/W 37--Right rear signal, park, stop lamp
2,0 R/W 1-- Righ signal
10A 1,0 R/B
2-- Left signal 38-- Right front signal, park
11-- Starter
6N
43--Plate lamp
0.5 N/Y
12-- Alternator
1,5 LG/N
4 49A
0,5 B
31
1,5 G/W
0,5 R R
1,5 O
1,5 LG/N
49 C 49A 1,5 G/R
L
0,5 R
9
C3 C2 31 2,0 P
30
1B
49 15
0,5 LG/Y
0,5 LG/R
20 30
21
0,75 G/W
1,5 B 1,5 B 1,0 B
1 1
0,75 R 37
0.5 G/U
0.5 W/N
0,75 G/P 0,75 G/P 0,75 G/P
2 2
0,75 G/W 0,75 G/W 0,75 G/W
3 3
0,75 B
1,0 R 1,0 R 38
4 4 0,75 R
6,0 N
2 0,75 G/N
30 0,75 B
6,0 Y/W
2,0 N/U
39
2,0 R 15/54
57
31
29
2,0 U
2,0 U 58/57 2,5 W/Y 0,75 G/R
50
1,0 B 1,0 B 0,75 B
2,5 W/Y 2,5 W/R 1 1
0,75 R/B 40
0,75 G/P 0,75 G/P 0,75 G/P
2 2
0,75 G/R 0,75 G/R 0,75 G/R
3 3
0,75 B
0,75 R/B 0,75 R/B 0,75 R/B 41
4 4
2,0 R 1 1 1,0 R
7
1,0 R/B 2 2 1,0 R/B
1 1,0 G/W 1,5 G/R 3 3 0,75 G/R
1,0 G/R 1,5 G/W 0,75 G/W
2 4 4
1,5 LG/N 2,5 W/Y 5 5 2,5 W/Y
3
2,0 B 6 6 2,0 B
1,0 G 7 28 7 0,75 G
1,0 G/O 0,75 G/O 42
8 8
2,5 W/R 9 9 2,5 W/R
1,5 P 1,5 P 0,5 R/B 0,5 R/B
10 10 1 1
2,0 U
1 11 11 0,5 B 0,5 B 43
2,5 U/W 2 2
2 12 12
2,5 S 3 3 3 3
2,0 U/R 14
4
1,0 P/B
5 4 4
1,0 P/N 6
0.5 N/Y
0.5 R/K
0.5 G
0.5 W/N
0.5 B/S
0.5 G/W
0.5 U
20 19 18 17 16 15 14 13 12 11
1 7 6 5 4 2 1
10 9 8 3
15
0.5 G/B
0.5 G/U
0.5 LG/Y
0.5 LG/R
0.5 G/R
0.5 R/W
0.5 U/W
0.5 B
0,5 B
1,5 P
32
0.5 B
1,5 B
0,5 B
0,75 G/O
0,75 G
0,75 G/R
0,75 G/W
0,75 G/P
1,5 B
0,75 R/B
0,75 R
0,75 G/P
2,0 B 2,0 B
6.0 B 1 2 3 4 5 6
2,0 B
2,0 B
0.5 B
33 34
0,75 B
2.0 B
6.0 B
1.0 B 35 36
1.0 B
0.5 B
2,0 U/R
1,0 P/N
2,0 U/W
2,0 B
4 3 2 1
CABLE COLORS
22 FUSES
4 3 2 1
NH CODES COLOR
B BLACK
10A
2,0 B
Hazard warning,signal
2,0 U/R
1,0 P/N
2,0 U/W
G GREEN
15A Termostarter
K PINK
23
7,5A Fuel send. meter,headlamp, horn
1,0 U/R LG LIGHT GREEN
1 1
1,0 U/W 15A Stop lamp LN TAN
25 2 2
1,0 B
3 3 7,5A N
Solenoid BROWN
U BLUE
1,0 B W WHITE
SYMBOLS
30
31 49A
R
57 15/54 L
58 50
30 A --
58/57 50
49 15 + 30 D+ B+
Starter switch Hazard warning unit Fuse Relay Battery Starter Alternator Circuit breaker Oil pres. sending unit
Air filter Water temp. send. unit Horn Signal lamp,headlamp Lamp Fuel gauge send. unit Engine shut--off solenoid
+ --
Thermostarter Hand brake send. unit Starter inhibitor switch Plug Switch Speaker
SECTION 90 -- CAB -- CHAPTER 1 1
CONTENTS
????????????- 06--2002
2 SECTION 90 -- CAB -- CHAPTER 1
OVERHAUL
1
1. Disconnect the negative cable from the battery.
TRE0247A
TRE1320A
TRE3885B
???????????? - 06--2002
SECTION 90 -- CAB -- CHAPTER 1 3
1 1
TRE2131A
1
TRE3073A
5
6. Remove the 4WD split pin(1) securing the pin (2) 2
and take off the pin (2).
TRE3013A
6
7. Remove clutch pedal spring (1).
TRE3918A
????????????- 06--2002
4 SECTION 90 -- CAB -- CHAPTER 1
TRE3094A
TRE3918A
9
10. Remove the bolt (1) securing the footboard to the
roll bar mounting bracket.
1
TRE3012A
10
11. Unscrew the bolts(1) securing the footboard to
gearbox on left hand side. Remove the bolts (2)
fastening the ladder to the footboard. 1
2
TRE3877A
11
???????????? - 06--2002
SECTION 90 -- CAB -- CHAPTER 1 5
12. Remove the split pin (1) and the pin (2) of throttle
lever on right hand side.
1
TRE3016A
12
TRE3904A
13
14. Unscrew the Allen screw (1) and bolt (2) securing
the handbrake lever fastening bracket at right
hand side to remove the lever.
2
TRE3148A
14
15. Remove the screws (1) and take the remote
valve lever support completely.
TRE3007A
15
????????????- 06--2002
6 SECTION 90 -- CAB -- CHAPTER 1
16. Remove the bolts (1) and take off the seat (2)
completely. 2
1
1
TRE3064A
16
TRE3877A
17
18. Unscrew the bolts (1) securing the footboard to
the gearbox on right hand side.
1
TRE3904A
18
19. Remove the bolt (1) securing the footboard to the
roll bar mounting bracket.
TRE3913A
19
???????????? - 06--2002
SECTION 90 -- CAB -- CHAPTER 1 7
TRE3875A
2
20
TRE3913A
21
22. Unscrew the bolts(1) securing the bonnet to the
support frame on right hand side.
TRE2136A
22
23. Unscrew the bolts(1) securing the bonnet to the
support frame on left hand side.
TRE2137A
23
????????????- 06--2002
8 SECTION 90 -- CAB -- CHAPTER 1
TRE3057A
24
1
2
3
TRE3056A
25
26. Unscrew the bolts (1) securing the bonnet and
remove the lover (2) and upper (3) fixing bolts of
gas strut. Take off the bonnet.
3
1
1
TRE3127A
26
27. Remove the retaining bolts (1) on the control
panel and detach the electrical connector. Re-
move the rev counter and the control panel (2)
1 1
1 1
TRE2146A
2
27
???????????? - 06--2002
SECTION 90 -- CAB -- CHAPTER 1 9
5
TRE3131A
28
????????????- 06--2002
10 SECTION 90 -- CAB -- CHAPTER 1
Assembly
1. Install the rear hood, and plastic cover. Install the
steering wheel.
???????????? - 06--2002
