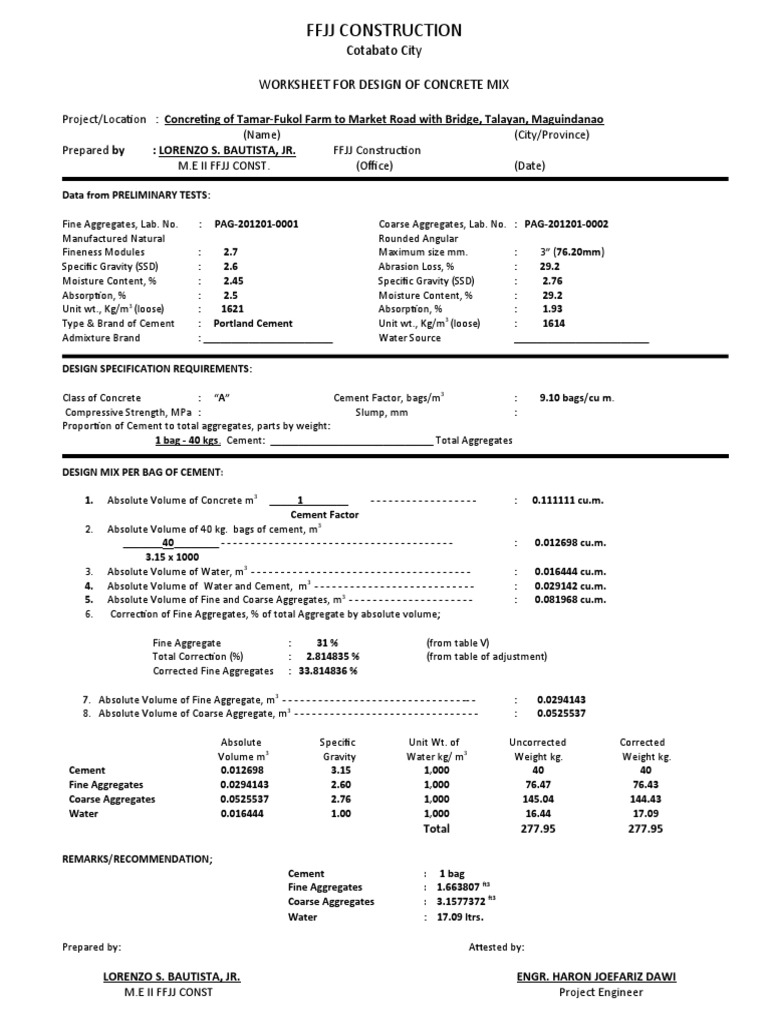

FFJJ CONSTRUCTION
Cotabato City
WORKSHEET FOR DESIGN OF CONCRETE MIX
Project/Location : Concreting of Tamar-Fukol Farm to Market Road with Bridge, Talayan, Maguindanao
(Name) (City/Province)
Prepared by : LORENZO S. BAUTISTA, JR. FFJJ Construction
M.E II FFJJ CONST. (Office) (Date)
Data from PRELIMINARY TESTS:
Fine Aggregates, Lab. No. : PAG-201201-0001 Coarse Aggregates, Lab. No. : PAG-201201-0002
Manufactured Natural Rounded Angular
Fineness Modules : 2.7 Maximum size mm. : 3” (76.20mm)
Specific Gravity (SSD) : 2.6 Abrasion Loss, % : 29.2
Moisture Content, % : 2.45 Specific Gravity (SSD) : 2.76
Absorption, % : 2.5 Moisture Content, % : 29.2
Unit wt., Kg/m3 (loose) : 1621 Absorption, % : 1.93
Type & Brand of Cement : Portland Cement Unit wt., Kg/m3 (loose) : 1614
Admixture Brand : _______________________ Water Source ________________________
DESIGN SPECIFICATION REQUIREMENTS:
Class of Concrete : “A” Cement Factor, bags/m3 : 9.10 bags/cu m.
Compressive Strength, MPa : Slump, mm :
Proportion of Cement to total aggregates, parts by weight:
1 bag - 40 kgs. Cement: _____________________________ Total Aggregates
DESIGN MIX PER BAG OF CEMENT:
1. Absolute Volume of Concrete m3 _____1________ ------------------ : 0.111111 cu.m.
Cement Factor
2. Absolute Volume of 40 kg. bags of cement, m3
_______40________ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - : 0.012698 cu.m.
3.15 x 1000
3. Absolute Volume of Water, m3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - : 0.016444 cu.m.
4. Absolute Volume of Water and Cement, m3 - - - - - - - - - - - - - - - - - - - - - - - - - - - : 0.029142 cu.m.
5. Absolute Volume of Fine and Coarse Aggregates, m3 - - - - - - - - - - - - - - - - - - - - - : 0.081968 cu.m.
6. Correction of Fine Aggregates, % of total Aggregate by absolute volume;
Fine Aggregate : 31 % (from table V)
Total Correction (%) : 2.814835 % (from table of adjustment)
Corrected Fine Aggregates : 33.814836 %
7. Absolute Volume of Fine Aggregate, m3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - : 0.0294143
8. Absolute Volume of Coarse Aggregate, m3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - : 0.0525537
Absolute Specific Unit Wt. of Uncorrected Corrected
Volume m3 Gravity Water kg/ m3 Weight kg. Weight kg.
Cement 0.012698 3.15 1,000 40 40
Fine Aggregates 0.0294143 2.60 1,000 76.47 76.43
Coarse Aggregates 0.0525537 2.76 1,000 145.04 144.43
Water 0.016444 1.00 1,000 16.44 17.09
Total 277.95 277.95
REMARKS/RECOMMENDATION;
Cement : 1 bag
Fine Aggregates : 1.663807 ft3
Coarse Aggregates : 3.1577372 ft3
Water : 17.09 ltrs.
Prepared by: Attested by:
LORENZO S. BAUTISTA, JR. ENGR. HARON JOEFARIZ DAWI
M.E II FFJJ CONST Project Engineer
DQMB CONSTRUCTION & SUPPLY
Pikit, Cotabato
WORKSHEET FOR DESIGN OF CONCRETE MIX
Project/Location : Concreting of Carmen-Maridagao Provincial Road, Carmen, Cotabato
(Name) (City/Province)
Prepared by : Kate Drinie Sionillo, PE DQMB Construction & Supply
(Name & Designation) (Office) (Date)
Data from PRELIMINARY TESTS:
Fine Aggregates, Lab. No. DVO-200915-0080 Coarse Aggregates, Lab. No. : DVO-200915-0079
Manufactured Natural Rounded Angular
Fineness Modules : 4.24 Maximum size mm. : 3” (76.20mm)
Specific Gravity (SSD) : 2.65 Abrasion Loss, % : 19.60
Moisture Content, % : 3.00 Specific Gravity (SSD) : 2.67
Absorption, % : 2.42 Moisture Content, % : 0.59
Unit wt., Kg/m3 (loose) : 1557 Absorption, % : 1.33
Type & Brand of Cement : Portland Cement Unit wt., Kg/m3 (loose) : 1543
Admixture Brand : _______________________Water Source ________________________
DESIGN SPECIFICATION REQUIREMENTS:
Class of Concrete : “A” Cement Factor, bags/m3 : 9.10 bags/cu m.
Compressive Strength, MPa : Slump, mm :
Proportion of Cement to total aggregates, parts by weight:
1 bag - 40 kgs. Cement: _____________________________ Total Aggregates
DESIGN MIX PER BAG OF CEMENT:
1. Absolute Volume of Concrete m3 _____1________ ------------------ : 0.111111 cu.m.
Cement Factor
2. Absolute Volume of 40 kg. bags of cement, m3
_______40________ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - : 0.012698 cu.m.
3.15 x 1000
3. Absolute Volume of Water, m3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - : 0.016444 cu.m.
4. Absolute Volume of Water and Cement, m3 - - - - - - - - - - - - - - - - - - - - - - - - - - - : 0.029142 cu.m.
5. Absolute Volume of Fine and Coarse Aggregates, m3 - - - - - - - - - - - - - - - - - - - - - : 0.081968 cu.m.
6. Correction of Fine Aggregates, % of total Aggregate by absolute volume;
Fine Aggregate : 31 % (from table V)
Total Correction (%) : 2.814835 % (from table of adjustment)
Corrected Fine Aggregates : 33.814836 %
7. Absolute Volume of Fine Aggregate, m3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - : 0.0277173
8. Absolute Volume of Coarse Aggregate, m3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - : 0.0542507
Absolute Specific Unit Wt. of Uncorrected Weight Corrected
Volume m3 Gravity Water kg/ m3 kg. Weight kg.
Cement 0.012698 3.15 1,000 40 40
Fine Aggregates 0.0277173 2.65 1,000 73.45 73.32
Coarse Aggregates 0.0542507 2.67 1,000 144.84 143.88
Water 0.016444 1.00 1,000 16.44 17.53
Total 274.73 274.73
REMARKS/RECOMMENDATION;
Cement : 1 bag
Fine Aggregates : 1.6617127 ft3
Coarse Aggregates : 3.29046 ft3
Water : 17.53 ltrs.
Prepared by: Noted by: Attested by:
KATE DRINIE SIONILLO GENILYN P. ACMAD EUSEBIO V. MACASAET
P.E. – DQMB Engineer II Chief - Quality Control Division
