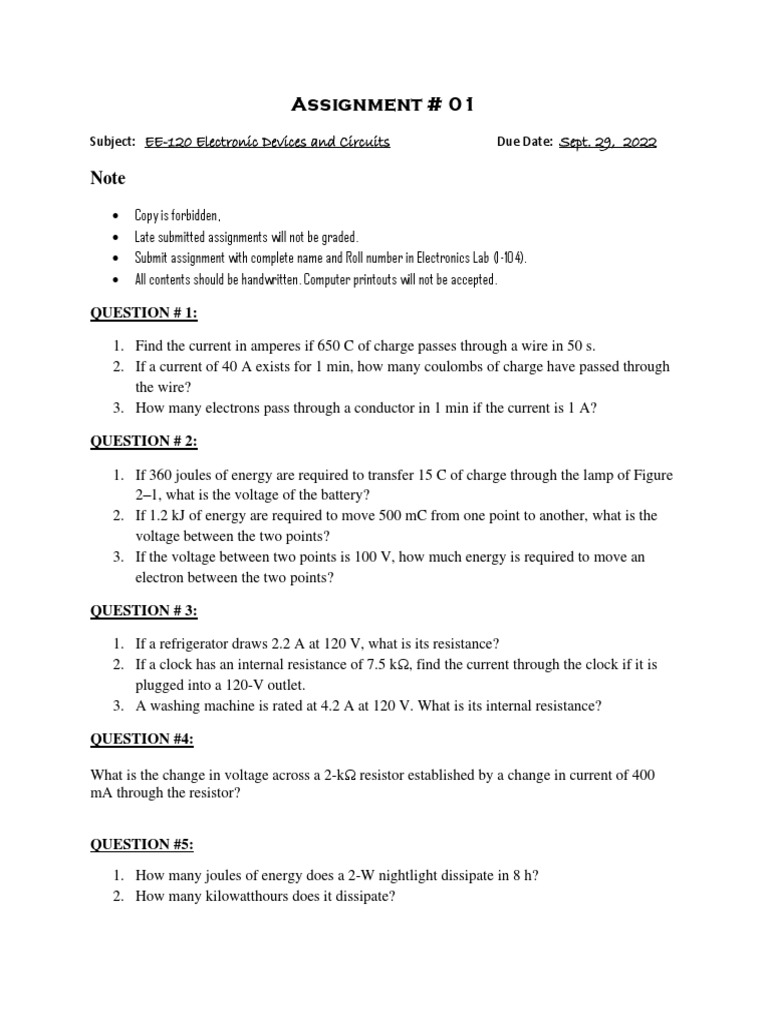

Assignment # 01

Subject: EE-120 Electronic Devices and Circuits Due Date: Sept. 29, 2022

Note
• Copy is forbidden,
• Late submitted assignments will not be graded.
• Submit assignment with complete name and Roll number in Electronics Lab (I-104).
• All contents should be handwritten. Computer printouts will not be accepted.

QUESTION # 1:

1. Find the current in amperes if 650 C of charge passes through a wire in 50 s.

2. If a current of 40 A exists for 1 min, how many coulombs of charge have passed through
the wire?
3. How many electrons pass through a conductor in 1 min if the current is 1 A?

QUESTION # 2:

1. If 360 joules of energy are required to transfer 15 C of charge through the lamp of Figure
2–1, what is the voltage of the battery?
2. If 1.2 kJ of energy are required to move 500 mC from one point to another, what is the
voltage between the two points?
3. If the voltage between two points is 100 V, how much energy is required to move an
electron between the two points?

QUESTION # 3:

1. If a refrigerator draws 2.2 A at 120 V, what is its resistance?

2. If a clock has an internal resistance of 7.5 kΩ, find the current through the clock if it is
plugged into a 120-V outlet.
3. A washing machine is rated at 4.2 A at 120 V. What is its internal resistance?

QUESTION #4:

What is the change in voltage across a 2-kΩ resistor established by a change in current of 400
mA through the resistor?

QUESTION #5:

1. How many joules of energy does a 2-W nightlight dissipate in 8 h?

2. How many kilowatthours does it dissipate?
QUESTION # 6:

QUESTION # 7:

Determine the unknown voltages in the networks of Figure 5–59.

QUESTION # 8:
QUESTION # 9:

QUESTION # 10:

Repeat Problem 16 for the circuit of Figure 5–71.
