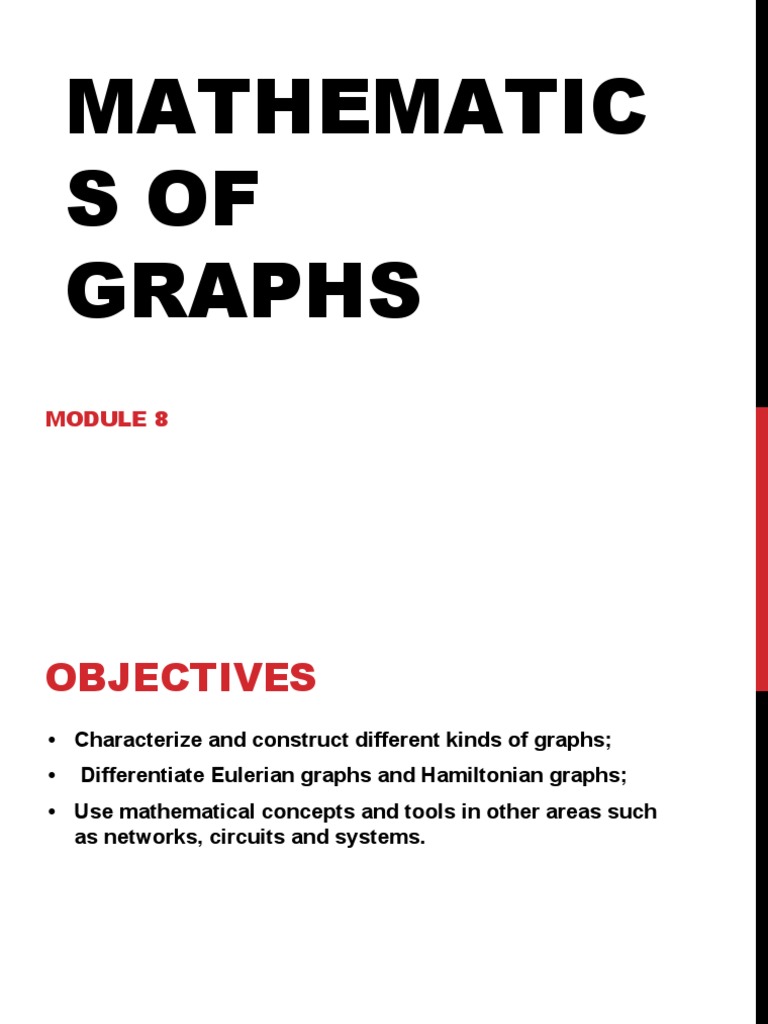

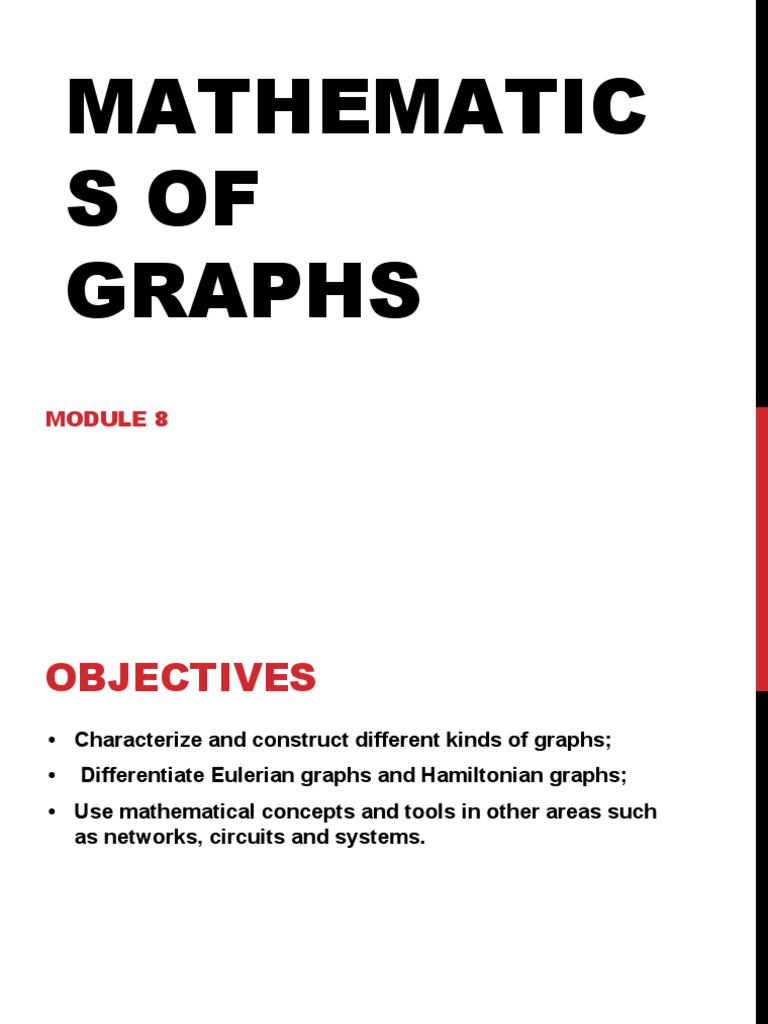

MATHEMATIC

S OF
GRAPHS
MODULE 8
OBJECTIVES
• Characterize and construct different kinds of graphs;
• Differentiate Eulerian graphs and Hamiltonian graphs;
• Use mathematical concepts and tools in other areas such
as networks, circuits and systems.
TOPICS
1. Basic Concepts of Graph Theory
2. Eulerian Graphs
3. Hamiltonian Graphs
 Basic
Concepts of
Graph Theory
• GRAPH – collection of vertices (also
called points or nodes) and edges (or
lines).
• The set V(G) is called vertex set of G
• The set E(G) is called the edge set of G
Example:
G = ( V(G) , E(G) )
where V(G) = { a, b, c , d , e }
E(G) = { ab, cd, be, ae }

G:
• The number of vertices in a graph G is
called its ORDER (p)
• The number of edges on a graph G is called
its SIZE (q)

G:
Order of G = p = 5
Size of G = q = 6
• The ends of an edge are said to be
INCIDENT with the edge, and vice versa
• Two vertices which are incident with a
common edge are ADJACENT as are two
edges which are incident with a common
vertex

G: • V1 is incident with
edge v1v4
• V3 and v2 are
adjacent
• An edge with identical ends is called a
LOOP
• An edge with distinct ends is called a LINK
TRIVIAL GRAPH
a graph with just one vertex
G: ● a
all other graphs are called NONTRIVIAL

SIMPLE GRAPH
• a graph with no G:
loops and no two
of its links join
the same pair of
vertices
COMPLETE GRAPH is a simple graph in
which each pair of distinct vertices is joined
by an edge. It is donated by Kn.
EMPTY GRAPH is a graph with no edges.

G1:

G2: ● ●
● ●
VERTEX DEGREES

The degree of a vertex V is the number of

edges of G incident with v, each loop
counting as two edges

a b
• d(a) = 3
c • d(f) = 5
d
• d(c) = 4
g e
f
2-regular graph
PATHS AND
CONNECTION
WALK – a walk in a graph G is an
alternating sequence
W: v0, e1, v1, e2, v2, …, vn-1, en, vn (n≥0) of
vertices and edges, beginning and ending
with vertices
• The length of a walk is the of edges it
encounters
• A walk of length 0 is called a trivial walk
example :

WALK: v1-1-v2-3-v3-3-v2-5-v5
Special Kinds of Walks
•TRAIL
• a walk in which no edge is repeated
•PATH
• A trail in which no vertex is repeated
example :

TRAIL: v1-1-v2-5-v5-10-V6-9-V5
example :

PATH: v1-1-v2-5-v5-10-V6
Two vertices u and v of G are said to be
connected if there is a (u,v)- path in G.

Connected graph Disconnected graph

CYCLES

A cycles is a walk in which n≥3, v0 = vn and

the n vertices are distinct.
* v0, v1, … , vn
A cycle of length n is referred to as an
n-cycle
A nontrivial closed trail is called a circuit
 EULER
GRAPHS
7 BRIDGES OF KONNIGSBERG
 EULER TOURS
• A trail that traverses every edge of G is
called EULER TRAIL of G
• A tour of G is a closed walk that
traverses each edge of G at least once
• An EULER TOUR is a tour which
traverses each edge exactly once
• A graph is EULERIAN if it contains an
Euler tour
Theorem

• A nonempty connected graph is

eulerian if and only if it has no
vertices of odd degree.
COROLLARY

• A connected graph has as

Euler trail if and only if it has at
most two vertices of odd
degree
HAMILTONIAN
GRAPHS
4.2 HAMILTON CYCLES
• A path that contains every vertex of G is
called a Hamilton path of G

• A Hamilton cycle of G is a cycle that

contains every vertex of G

• A graph is Hamiltonian if it contains a

hamilton cycle.
