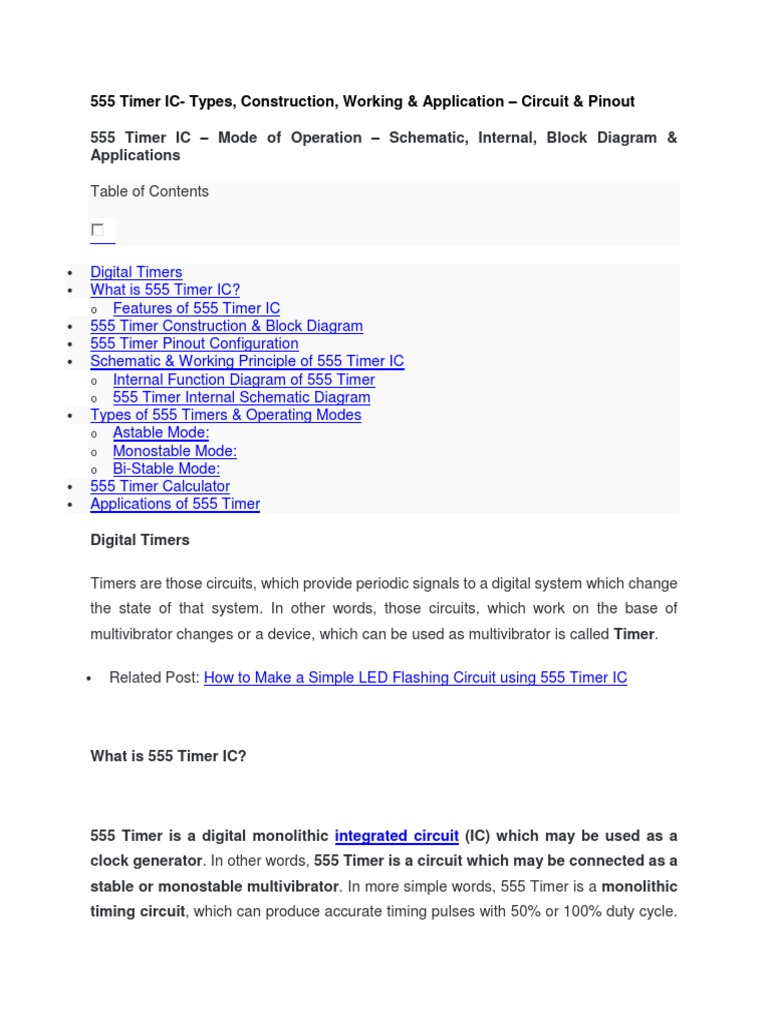

555 Timer IC- Types, Construction, Working & Application – Circuit & Pinout

555 Timer IC – Mode of Operation – Schematic, Internal, Block Diagram &

Applications

Table of Contents

 Digital Timers
 What is 555 Timer IC?
o Features of 555 Timer IC
 555 Timer Construction & Block Diagram
 555 Timer Pinout Configuration
 Schematic & Working Principle of 555 Timer IC
o Internal Function Diagram of 555 Timer
o 555 Timer Internal Schematic Diagram
 Types of 555 Timers & Operating Modes
o Astable Mode:
o Monostable Mode:
o Bi-Stable Mode:
 555 Timer Calculator
 Applications of 555 Timer

Digital Timers

Timers are those circuits, which provide periodic signals to a digital system which change
the state of that system. In other words, those circuits, which work on the base of
multivibrator changes or a device, which can be used as multivibrator is called Timer.

 Related Post: How to Make a Simple LED Flashing Circuit using 555 Timer IC

What is 555 Timer IC?

555 Timer is a digital monolithic integrated circuit (IC) which may be used as a
clock generator. In other words, 555 Timer is a circuit which may be connected as a
stable or monostable multivibrator. In more simple words, 555 Timer is a monolithic
timing circuit, which can produce accurate timing pulses with 50% or 100% duty cycle.
It was developed in the year 1970 by Signetic Corporation and designed by Hans
Camenzind in 1971.

555 Timer is a versatile and most usable device in the electronics circuits and designs
which work for both stable and monostable states. It may provide time delay from
microseconds up to many hours.

555 timer is a very cheap IC which works for wide range of potential difference (typically,
from 4.5 to 15V DC) and the different provided input voltages do not affect the timer
output.

555 Timer is a linear device and it can be directly connected to the CMOS or TTL
(Transistor – Transistor Logic) digital circuits due to its compatibility but, interfacing is
must to use 555 timer with other digital circuits.

Being an integral part of electronics project, 555 Timer IC is very often used in simple to
complex electronics projects. The standard 555 timer IC is made of 2 diodes, 25
transistors, 15 resistors installed in an 8 pin dual in-line package.

Good to know:

This timer is called 555 Timer due to the fact that it contains three 5 Kilo-
Ohm resistors in series to form the voltage divider pattern.

Related Post:

 Binary Encoder – Construction, Types & Applications

 Binary Decoder – Construction, Types & Applications

Features of 555 Timer IC

 There are two types of 555 timer based on its nomenclature – NE 555 Timer and SE
555 Timer. While NE 555 timer can be used in the temperature range from 0 to 70°C,
the SE 555 Timer can be used in the temperature range from -55°C to 125°C and has
a temperature stability of 0.005% per 0C..
 it can be operated of different power supplies ranging from 5 Volts to 18 Volts.
 It can be used either as a pulse generator or an oscillator by operating it in different
modes.
 The name 555 comes from the fact that it contains three 5 Kilo-Ohm resistors in
series to form the voltage divider pattern.
 It can drive both Transistor-Transistor Logic (TTL) due to its high output current and
CMOS logic circuits.
 It has high output current and adjustable duty cycle.
 555 timer can be operated in both astable and monostable modes.
 The output of 555 timer can source or absorb current up to 200mA sinking or sourcing
current to the load.
 It contains 24 transistors, 2 diodes and 17 resistors.
 555 timer is available as an 8-Pin Dual in Line Package (DIP), 8-Pin Metal Can or 14-
Pin Dual in Line Package (DIP).

Related Articles:

 Digital Asynchronous Counter (Ripple Counter) – Types, Working & Application

 Digital Synchronous Counter – Types, Working & Applications

555 Timer Construction & Block Diagram

There are lots of manufacturers who manufacture 555 timer which included the number
555 e.g. NE555, CA555, SE555, MC14 555 etc. typically, two 555 timers sandwiched
inside a single chip which is called 556. Nowadays, chips are available with four 555
timers in it. These devices are available in circular IC with eight (8), DIP (Dual inline
Package) with 8 pins or DIP with 14 pins.

Below is the pin diagram of DIP (Dual inline Package) 555 timer with 8 pins.
Fig 1: 555 Timer IC Construction & Pinouts

A simple 555 timer circuit is shown above in fig 3 which shows the internal construction
of 555 timer. According to fig 1 & 3, the timer contains on two comparators, an RS flip
flop, an Output stitch (output buffer) and a Discharge Transistor Q1.

In addition, there are three 5kΩ resistors are connected in series with 5kΩ resistor which
first end is connected with VCC (Pin 8 = Supply voltage) and the other end is connected
with ground (GND = Pin 1).

In above fig 1 and (as well as below fig 2 & 3), As given in the block diagram, heart of the
IC lies in the two comparator circuits. While inverting terminal of the upper comparator is
connected to a point with DC potential of 2/3 VCC (where VCC can be +5V to +18V), the
non-inverting terminal is connected to the threshold pin.

The inverting terminal of the lower comparator is connected to the external trigger input
pin whereas the non-inverting terminal is connected to the point with DC potential of 1/3
VCC. The three 5 Kilo-Ohm resistors are connected in series to form voltage divider circuit.
Output from both the comparators is given to the R-S Flip Flop whose state depends on
the output from the two comparators.

Output from the R-S Flip-Flop is connected to the two transistors – Q1 and Q2. Q1 is the
discharge transistor and provides discharge path to the external capacitor, when
saturated. Q2 is the reset transistor, where a pulse applied will reset the whole timing
circuit. The output from the flip-flop is amplified by the power amplifier block.

Related Articles:

 MUX – Digital Multiplexer | Types, Construction & Applications

 DEMUX – Demultiplexer | Types, Construction & Applications


555 Timer Pinout Configuration

555 Timer IC Pinout

PIN Number Name Purpose

1 GND Ground reference(0V)

2 TRIG To give external trigger voltage

3 OUT 1.7V below +VCC or to GND

4 RESET To reset timing interval

Provides control access to internal voltage

5 CTRL
divider

6 THR Threshold voltage

7 DIS In phase with output

8 VCC Positive voltage supply

Here is the simple explanation of the 8 pins of 555 Timer IC (Fig 1 & 2).

Let’s understand this IC with its pin configuration and circuit diagram.
 Fig 2 – 5

55 Timer IC Pin Diagram

1. Ground (GND)

It’s the common ground point of the circuit. The ground terminal of external circuit as well
as power supply (VCC) ground terminal is connected to the GND (Ground) terminal of 555
timer.

This pin is either grounded or connected to the negative rail. Connection using a resistor
is not recommended to avoid heating up of the IC because of the stray voltage
accumulated inside it.

2. Trigger

When Trigger terminal gets one –third (1/3) of the supply voltage i.e. VCC/3 equal
amplitude’s negative trigger pulse, then the circuit output changes form Low to High.

This pin is the input trigger pin to the IC and activates the timing cycle. A low signal at this
pin triggers the Timer. Required current at this pin is 0.5 uA for a period of 0.1 uS. To
avoid false triggering due to noise, the pin requires a pull up connection. Voltage at this
pin is 1.67 Volts for a supply voltage of 5 Volts and 5 Volts for a supply voltage of 15
Volts.

3. Output
This terminal is used for getting output and connected with load. At any instant, its value
is low or high. i.e. This is the output pin of the Timer. Output of the Timer depends on the
duration of timing cycle of the input pulse. The output can either sink or source current,
at maximum 200mA.For LOW output, it sinks current, voltage being slightly greater than
zero and for HIGH output, it sources current, voltage being less than VCC.

4. Reset

Without taking into account the previous state of output, by providing a trigger pulse to
this terminal resets the device. I.e. Its output becomes low.

The reset pin is either not connected or connected to the positive rail. A logic LOW signal
at this pin resets the Timer regardless of its input. The required reset voltage is 0.7 Volts,
at current of 0.1mA

5. Control Voltage

There are two third positive voltages of the total Supply voltages (VCC) at control voltage
terminal. Thus, it becomes a part of the comparator circuit. Generally, a capacitor is
connected between ground and voltage control terminals.

This is also a generally non-connected pin or connected to ground through a 0.01uF

capacitor. For some applications, this pin is required to control the threshold voltage at
the upper comparator and is connected to an external DC signal, to change the duty cycle.

6. Threshold Voltage

Threshold voltage and control voltage is the two inputs of comparator circuit. The circuit
compares the available voltage at threshold voltage terminal to the available reference
voltage at control terminal.

If the available voltage at threshold terminal (Pin 6) is greater than the control voltage i.e.
two-third of VCC, then the output would be low, otherwise, it would be high.
This pin provides threshold voltage to the upper comparator. When voltage at this pin is
greater than 2/3 VCC, the duty cycle is changed. It is connected to non-inverting terminal
of the upper comparator. Required current is 0.1 mA, with pulse duration of 0.1 uS.

7. Discharge

When output is low, then Discharge terminal provides a low resistance discharge path to
the externally connected capacitor. However, it acts an open circuit, when output is high.

This pin provides a discharge path for the timing capacitor through the NPN transistor. A
discharge current less than 50 mA is required to avoid damage. It can also be used as
open collector output.

8. +VCC (Supply Voltage Terminal)

Supply voltage is provided at this terminal for timer operation. This pin is connected to
positive rail of the Power supply and is also known as VCC. The supply voltage can vary
from +5 Volts to +18 Volts.

Related Posts:
 Half & Full Adder & Subtractor
 Ripple Carry And Carry Look Ahead Adder

Schematic & Working Principle of 555 Timer IC

In the 555 Timer block or functional diagram, comparators are those devices which output
is high, when their positive input voltage is greater than their negative input voltage and
vise versa.

Internal Function Diagram of 555 Timer

Internal Function Diagram of 555 Timer

The voltage divider in the circuit (which contains on three series connected 5kΩ
resistors), which provides the trigger level of one-third of VCC (VCC/3) and two-third
(2/3) of threshold voltage. To understand this point, suppose the input value is 15V. In
this case, the value of trigger level would be 5V as (VCC/3 = 15V/3 = 5V). And the value
of threshold level would be 10V as (VCC x 2/3 = 15V x (2/3)) = 10V.
When needed, the trigger level and threshold can be adjusted by using the Control
Voltage terminal (Pin 5) i.e. by changing the control voltage at Pin 5, we may change the
trigger level and threshold voltage according to the required specification. However, in
this case, the value of trigger and threshold would be remain equal to 1/3 VCC and 2/3
VCC respectively.

Coming to the working part of 555 Timer IC, this circuit generally operates in three
different modes namely A-stable, Mono-stable and Bi-stable modes. For a better
understanding of 555 Timer IC and its different states, check the below circuit diagram.

You may also read: Counter and Types of Electronic Counters

555 Timer Internal Schematic Diagram

Fig 3: Fig: 555 Timer Internal Schematic Diagram

When the normal high trigger input value instantaneously reduce then the 1/3 VCC, Then
the output of Comparator B becomes High from Low, as a result, RS latch or RS Flip flop
goes to “set”. When flip flop goes to set, then Output (at Point 3) becomes high.
Simultaneously, the discharge transistor Q1 gets off and The output remains high until the
value of normally low threshold input does not increase then the 2/3 VCC.

As soon as the threshold input increase than the 2/3VCC, then the output of comparator A
becomes Low, as a result, RS flip flop get reset (because the output of comparator is
directly connected to the RS flip flop’s input R as shown in the fig). When flip flop gets
reset, output becomes low and discharge transistor Q1 goes to on.
The flip flop can be reset by applying external input reset without threshold circuit. Note
that, the trigger and threshold inputs (Pin 2 and Pin 6) are controlled by externally
components and the 555 timer can be used as stable , monostable or bi-
stable operation by controlling the trigger and threshold inputs with the help of those
external components.

 You may also read: Digital Logic AND Gate

Types of 555 Timers & Operating Modes

There are three basic types of 555 Timer with respect to mode of function and operation.

1. 555 Timer as Astable Multivibrator

2. 555 Timer as Monostable Multivibrator
3. 555 Timer as Bi-Stable Mode

555 Timer can be operated in three modes – Monostable Mode, Bi-Stable

Mode and Astable Mode.

Astable Mode:

In this mode, there will be no stable level at the output and the output will keep swinging
between high and low. i.e.- It doesn’t have any stable state and keeps switching between
high and low without application of any external trigger.

Working of 555 timer in A-stable mode:

The trigger and threshold pin are connected together so, there is no need of external
trigger pulse. The comparator will output 1 while charging the trigger because the input
voltage at trigger pin is still lower than 1/3 of supplied voltage. This time, the output of
timer is high. Once the voltage across reaches 1/3 of the supplied voltage, the trigger
comparator will output 0,keeping the situation unchanged as both R and S input of flip
flop are 0.Once the voltage across the capacitor reaches 3/7 of applied voltage, the
threshold comparator will output 1 to R input of the flip-flop. Now, the capacitor will start
discharging through resistor R2 and discharging transistor. The output of 555 Timer is low
at this point. Once the voltage across capacitor drops to 1/3 of the supplied voltage, the

trigger comparator will output 1.

You can easily calculate the output of this configuration using the below mentioned
formula. The high time depend on resistors R1, R2 and capacitor. On the other hand, low
time depends only on resistor R2 and capacitor.

High Time:

TH = 0.693 x (R1 x R2) XC1

Low Time:

TL = 0.693 x (R2) X (C1)

Period for one cycle:

T = TH +TL x (R1+ 2R2) C1

Frequency:

f =1.44 / (R1 + R2) C1) HZ

It is also known as self-triggering mode, the Timer is used in this mode as clock pulse
generator or oscillator. The Timer switches between two quasi stable states and without
any external trigger input.
Given below is 555 Timer circuit in Astable mode.

Fig 5: 555 Timer Astable Mode

(Ref Fig 2 as well) As the Timer is switched ON, i.e. the output is HIGH, the transistor
Q2 will be in cut off region on receiving a LOW input signal. The capacitor charges through
both the resistors R1 and R2 toward VCC. The capacitor charging time being

τ1 = 0.693 (R1 + R2)*C.

This capacitor voltage is the threshold voltage to the upper comparator.

As the voltage exceeds 2/3 VCC, the upper comparator output resets the Flip-Flop, which
turns the Timer output to OFF state (provided reset pin is in LOW state) The
transistor τ will in saturation region, i.e. will be turned ON, providing a discharge path for
the capacitor through resistor R2, the discharge time being – 0.693 R2*C.

As the capacitor voltage falls below -1/3VCC, the second comparator output sets the Flip-
Flop, which makes the Timer output LOW and the whole process starts again. Thus the
Timer output oscillates between HIGH and LOW state, generating oscillations.

You may also read:

 Digital Logic OR Gate
 NOR and NAND Implementation

Monostable Mode:

This configuration consists of one stable and unstable state. If the stable output is set at
high then the output of timer is high.

Working Of 555 Timer In Mono-Stable Mode-

The trigger input is held high by connecting it to VCC through resistor. Threshold pin is low
making the threshold comparator out 0. IN result, voltage coming from source is going to
ground through the transistor. Press the pushbutton on trigger to change the 555 timer
output to high. At the same time, capacitor C1 will start charging through resistor R1. The
555 timer will remain in this position until the voltage across capacitor reaches 2/3 of the
supplied voltage. Comparator will output 1 to R input of the flip flop bringing the circuit
into initial state. The amount of time the timer output will remain high; depend entirely on
value of both the capacitor C1 and resistor R1.

To calculate the time, use the below formula:

T = 1.1 * C1 * R1
It is also known as single shot mode or pulse generating mode. In this state, the 555
Timer is normally in a stable state until triggered, after which it jumps to the quasi stable
state.

Given below is 555 Timer circuit in a monostable mode.

Fig 4: 555 Timer in Monostable

Mode

(Ref Fig 2 as well). Initially the Timer output is LOW and the transistor Q2 is in saturation
mode, i.e. Fully ON. As a negative trigger pulse, more negative than -1/3 VCC, is applied
to the second comparator, the Flip Flop sets to HIGH, turning the Timer output to HIGH
state and the Transistor τ is turned OFF.

The output remains HIGH for time Tout i.e τ = 1.1 RC, i.e. the time taken for Capacitor
C to charge (Also known as Time Constant RC). As Capacitor voltage exceeds 2/3
VCC, output from the upper comparator resets the Flip-Flop to zero and the discharge
transistor Q2 gets again saturated, providing a discharge path to the capacitor. As the
capacitor voltage comes back to zero volts, the circuit comes back to its normal state.

 Two-Level Logic Implementation

Bi-Stable Mode:
In this configuration, both the output states are stable. At each interrupt, the output
changes from low to high and vice-versa If we have a high output, it will go low once it
receives an interrupt and stays low until the next interrupts changes the status.

Working of 555 Timer in Bi-stable mode:

The Trigger and the Reset pins of the 555 Timer IC are connected to VCC through the two
resistors. To keep the input state low while holding them pushed, connect the two

pushbuttons between these pins and ground.

After pressing the trigger button, the trigger input state will become low. Consequently the
comparator will output High and that will make flip-flip Q-bar output go Low. The final state
of the timer state will be high .The output will remain high even when the trigger
pushbutton is not pushed because in that case the R and S input of flip-flop will be 0 which
means that the flip-flop won’t change the initial state. To make the output low, we need to
reset the pushbutton which eventually Resets the entire 555 Timer IC.

This is also known as Flip-Flop mode and the Timer remains in two stable states in this
mode. It does not require any external timing circuit as the time delay between two states
depends upon the timing of application of external pulses.

 Related Project: PCB Design of LED Flasher Circuit using 555 Timer. Step by Step

Given below is 555 Timer circuit in Bi-Stable mode.

Fig 6: 555 Timer Bistable Mode

Two switches are connected as such that while Switch S1 is connected to reset pin with
VCC, switch S2 is connected to trigger pin with ground. A negative going pulse, at the
trigger input, at voltage more negative than -1/3VCC, triggers the lower comparator output
to set the Flip-Flop and thus the Timer output to be HIGH. As the threshold pin is
grounded, a positive going pulse at the reset pin triggers the

Since the Timer remains in one stable state until an external pulse is applied and then
changes to another stable state, this mode is termed as Bi-stable mode. An important
application is the Schmitt Trigger circuit.

555 Timer Calculator

The calculator can see under the title “555 Timer Calculator with formula & Equations“

Applications of 555 Timer

555 timer is most important integrated circuit (chip) used widely in digital electronics.
Some common uses and application of 555 timer IC are as follow:

 PWM (Pulse Width Modulation) & PPM (Pulse Position Modulation)

 Duty Cycle Oscillator
 Lamp Dimmer
 To provide Accurate time delays
 As a flip-flop element
 Digital logic probes
 Analog frequency meters
 Quad Timer applications
 Pulse, Waveform, and square wave generation
 Stepped tone & tone burst generator & linear ramp generation

 Tachometers & temperature measurement

 It can be used as monostable multivibrator and astable multivibrator
 DC to DC Converters
 DC Voltage Regulators
 Voltage to Frequency Converter
 Frequency Divider
 Schmitt trigger
 Cable tester
 Pulse detector
 Wiper speed control
 Timer Switch
 Time delay generation, precision timing and sequential timing
 The 555 Timer IC are widely used in most of interesting electronic circuits and project
like Traffic Light Circuit using 555 Timer, LED Flashing circuits, police siren, LED dice,
Music Box, Metal detector, Joystick and game paddles, & low cost line receiver, Clap
switch activated circuit and lots of other projects and circuits designs.
This is the basic tutorial about 555 Timer IC. Any other information regarding 555 Timer
is welcome in the comments section. We hope that you have got a better understanding
of 555 Timer IC and its working in different configurations.
