22/10/2020 303E CR Mini Hydraulic Excavator HHM00001-UP (MACHINE) POWERED BY C1.

3 Engine(SEBP7174 - 35) - Por número de pieza

Pantalla anterior Bienvenido: cr461dec1

Producto: MINI HYD EXCAVATOR

Modelo: 303E CR MINI HYD EXCAVATOR HHM01163
Configuración: 303E CR Mini Hydraulic Excavator HHM00001-UP (MACHINE)
POWERED BY C1.3 Engine

REFER TO ALL ILLUSTRATIONS OF

C THIS GROUP FOR AUXILIARY VIEWS

12 13

A A

34 - 33 12
13
SECTION A-A
26

35
16 27 27

32

20
28
33 - 34 18

24 - 25 19
24 - 25
20

B B
22

VIEW D-D 21
SECTION B-B

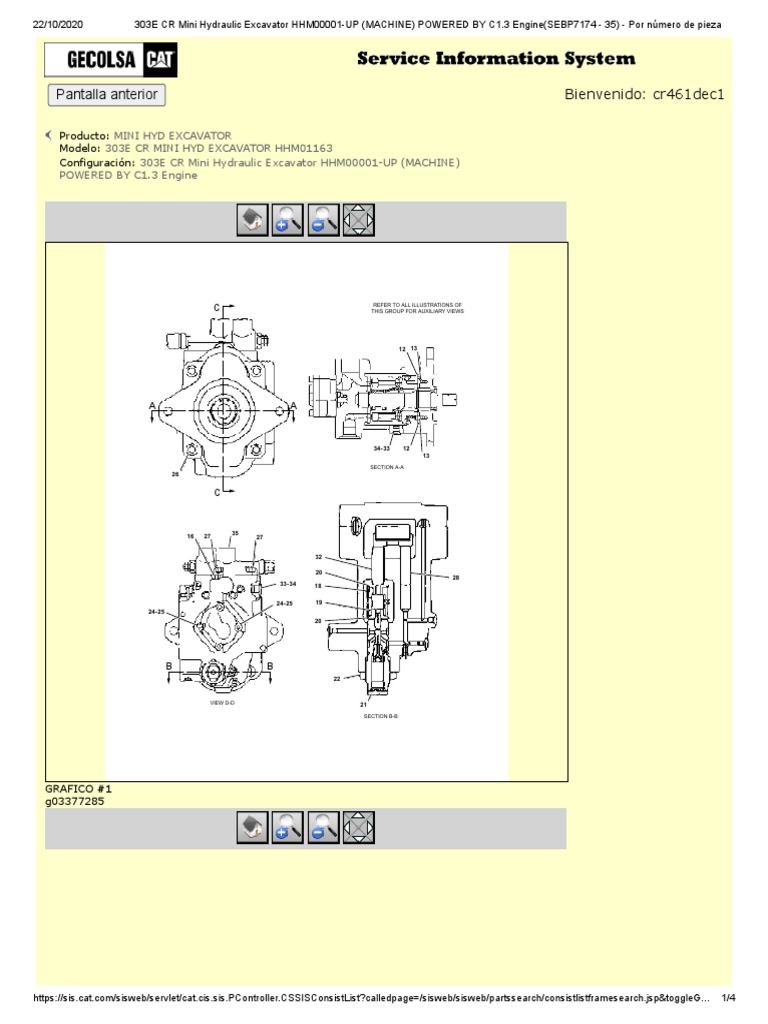

GRAFICO #1
g03377285

https://sis.cat.com/sisweb/servlet/cat.cis.sis.PController.CSSISConsistList?calledpage=/sisweb/sisweb/partssearch/consistlistframesearch.jsp&toggleG… 1/4
22/10/2020 303E CR Mini Hydraulic Excavator HHM00001-UP (MACHINE) POWERED BY C1.3 Engine(SEBP7174 - 35) - Por número de pieza

REFER TO ALL ILLUSTRATIONS OF

THIS GROUP FOR AUXILIARY VIEWS

D
31 15 33 - 34 5

17

3
29
4

23 2

30
11

1 8
D 7 10 14 9
SECTION C-C

GRAFICO #2
g03377714

303E CR Mini Hydraulic Excavator, Powered By C1.3 Engine

Número de medio - SEBP7174-35 | Fecha de publicación - 01/10/2020 |
Fecha de actualización - 06/10/2020
i05314849
416-7576 PUMP GP-MAIN HYDRAULIC
PART OF 425-1997 PUMP & MTG GP-MAIN HYDRAULIC
ALSO AN ATTACHMENT

GRUPO ENTERO
Ref. Cant. NPR Nota No. de pieza Nombre de la pieza
GRUPO DE BOMBA
HIDRÁULICA PRINCIPAL
Grp NPR 416-7576
(PUMP GP-MAIN
HYDRAULIC)

PIEZAS INDIVIDUALES
No.
Cant.
Ref. Cant. NPR Nota de No. de pieza Nombre de la pieza
req.
GR
1 NPR 2 280-4441 1 COJINETE (BEARING)
2 NPR 2 191-3925 1 COJINETE (BEARING)
https://sis.cat.com/sisweb/servlet/cat.cis.sis.PController.CSSISConsistList?calledpage=/sisweb/sisweb/partssearch/consistlistframesearch.jsp&toggleG… 2/4
22/10/2020 303E CR Mini Hydraulic Excavator HHM00001-UP (MACHINE) POWERED BY C1.3 Engine(SEBP7174 - 35) - Por número de pieza

3 NPR L 2 279-4684 1 SELLO (SEAL)

ANILLO DE RETENCIÓN
4 NPR 2 6V-7723 1
(RING-RETAINING)
5 NPR 2 435-0782 1 PARADA (STOP)
6 NPR 2 280-4443 1 EJE (SHAFT)
7 NPR 2 191-3918 1 ARANDELA (WASHER)
8 NPR 2 191-3920 1 ARANDELA (WASHER)
9 NPR L 2 280-4444 1 EMPAQUETADURA (GASKET)
10 NPR 2 279-4687 3 PASADOR (PIN)
SELLO ANULAR (SEAL-O-
11 NPR 2 095-1517 1
RING)
12 NPR 1 390-9455 2 BUJE (BUSHING)
13 NPR 1 139-7355 2 TORNILLO (SCREW)
14 NPR 2 280-4446 1 PLACA (PLATE)
15 NPR 2 281-3000 1 PASADOR (PIN)
SELLO ANULAR (SEAL-O-
16 NPR JLNP 1 095-1575 6
RING)
17 NPR 2 279-4691 1 ORIFICIO (ORIFICE)
18 NPR 1 435-0783 1 RESORTE (SPRING)
19 NPR 1 435-0784 1 RESORTE (SPRING)
20 NPR 1 280-4450 2 ASIENTO (SEAT)
CONJUNTO DE VÁLVULA DE
21 NPR P 1 279-4697 1 BOMBA (VALVE AS-PUMP)
(HYDRAULIC)
SELLO ANULAR (SEAL-O-
NPR 1 095-1582 1
RING)
SELLO ANULAR (SEAL-O-
NPR 1 095-1587 1
RING)
NPR 1 099-7197 1 TAPÓN (PLUG)
22 NPR 1 279-4698 1 TUERCA (NUT)
GRUPO DE BOMBA DE
23 NPR Y 2 279-4699 1 ENGRANAJES (PUMP GP-
GEAR) (PILOT)
24 NPR 1 303-4492 1 PERNO (BOLT)
ARANDELA DURA (WASHER-
25 NPR 1 8T-4224 2
HARD) (8.8X16X2-MM THK)
PERNO DE CABEZA HUECA
26 NPR M 1 6V-8200 4 (BOLT-SOCKET HEAD)
(M12X1.75X35-MM)
PERNO (BOLT) (M6X1X16-
27 NPR M 1 6V-5683 4
MM)
28 NPR 1 279-4693 1 PASADOR (PIN)
SELLO ANULAR (SEAL-O-
29 NPR J 2 279-4705 1
RING)
SELLO ANULAR (SEAL-O-
30 NPR J 2 279-4701 1
RING)
SELLO ANULAR (SEAL-O-
31 NPR J 2 279-4703 1
RING)
32 NPR 1 280-4451 1 PASADOR (PIN)
33 NPR 1,2 279-4706 3 TAPÓN (PLUG)
SELLO ANULAR (SEAL-O-
34 NPR JN 1,2 3J-1907 3
RING)
35 NPR N 1 435-0785 1 CONJUNTO DE VÁLVULA DE
https://sis.cat.com/sisweb/servlet/cat.cis.sis.PController.CSSISConsistList?calledpage=/sisweb/sisweb/partssearch/consistlistframesearch.jsp&toggleG… 3/4
22/10/2020 303E CR Mini Hydraulic Excavator HHM00001-UP (MACHINE) POWERED BY C1.3 Engine(SEBP7174 - 35) - Por número de pieza

BOMBA (VALVE AS-PUMP)

(MAIN HYDRAULIC)
SELLO ANULAR (SEAL-O-
NPR 1 095-1584 1
RING)
NPR 1 279-4704 1 ORIFICIO (ORIFICE)

AVAILABLE REPAIR KIT(S):

JUEGO DE SELLO (KIT-
NPR J 279-4707 1 SEAL) (MAIN HYDRAULIC
PUMP)
JUEGO DE TAMBOR (KIT-
NPR 280-4459 1
BARREL)
JUEGO DE SELLO (KIT-
NPR L 280-4457 1 SEAL) (MAIN HYDRAULIC
PUMP)
JUEGO DE PLATO OSCILANTE
NPR 435-0786 1
(KIT-SWASHPLATE)

Abreviaturas:

J - KIT MARKED J SERVICES PART(S) MARKED J

L - KIT MARKED L SERVICES PART(S) MARKED L
M - METRIC PART
N - KIT MARKED N PARTS SERVICES MARKED N
P - KIT MARKED P PARTS SERVICES MARKED P
Y - SEPARATE ILLUSTRATION

SMCS Codes
5070
