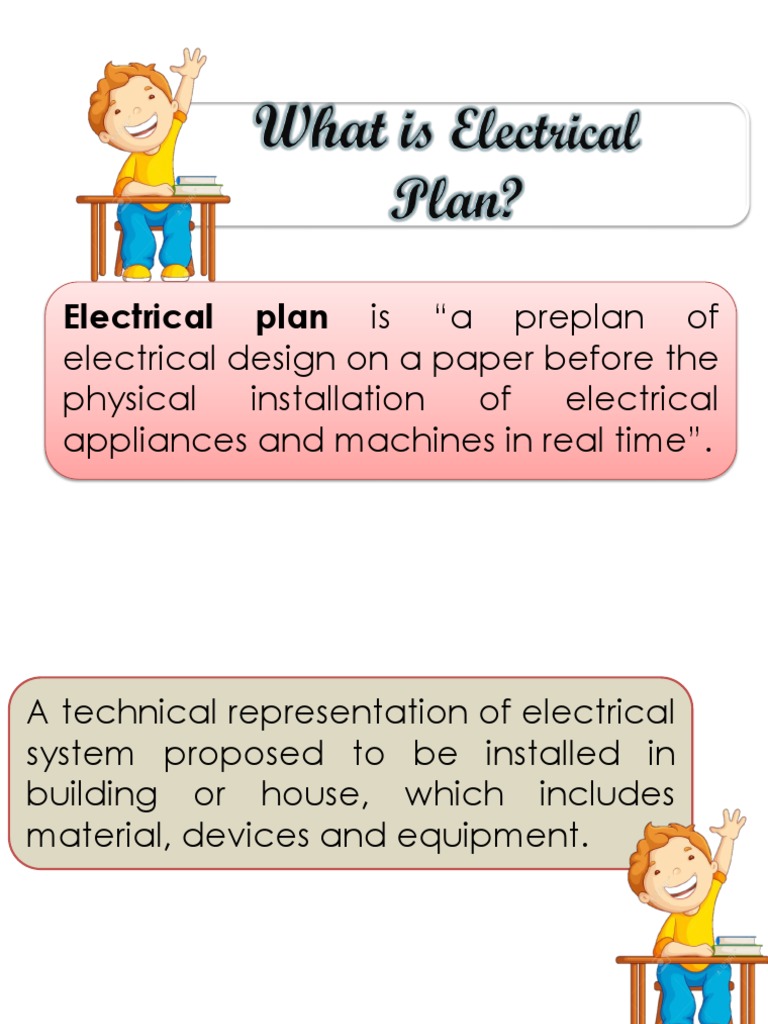

Electrical plan is “a preplan of

electrical design on a paper before the


physical installation of electrical
appliances and machines in real time”.
A technical representation of electrical
system proposed to be installed in
building or house, which includes
material, devices and equipment.
 FLOOR PLAN
A floor plan is a type of drawing that shows
you the layout of a home or property from
above.

Floor plans typically illustrate the location of


walls, windows, doors, and stairs, as well as
fixed installations such as bathroom fixtures,
kitchen cabinetry, and appliances.
The following details can be seen in
the floor plan:

1. Location, type and rating of lighting fixture


2. Location, type of power outlet and their
rating
3. Outlet that belongs to that branch
4. Location, type of control system used.
DINING AREA
KITCHEN
OPEN AREA

9M

LIVING ROOM
BED ROOM

10 M
LIGHTING LAYOUT
POWER LAYOUT
 The Legend shows the meaning of each
symbol used in the electrical plan. The
following are sample symbol commonly
used in the plan.

Symbols commonly
used in the Electrical
plan
 Load Schedule
The following details can be seen in the schedule of
load:
• Number of branch circuit of electrical wiring system
• Number of light outlet, power outlet and switches per
branch
• Total wattage rating and of the load per circuit
branch
• Total current load per circuit and size of wire used
• Computation of the total wattage and current of
each circuit branch.
Circuit Load Quanti Power Total Total Voltage Circuit Breaker Size of Conduit size
No. Description ty pcs. (watts) power Current Wire
(Ampere)
POLE AMP.

1 Light outlet 7 100 700 3.04 230 2.P 15 AT 2.0 MM2 20MM dia pvc
THHN WIRE Conduit

2 Convenience 4 180 720 3.13 230 2.P 20 AT 3.5 MM2 20MM dia pvc
THHN WIRE Conduit
Outlet

3 Special 1 3000 3000 13.04 230 2.P 30 AT 5.5 MM2 20MM dia pvc
THHN WIRE Conduit
Purpose outlet
(SPO)
4 Special 1 3000 3000 13.04 230 2.P 30 AT 5.5 MM2 20MM dia pvc
THHN WIRE Conduit
Purpose outlet
(SPO)
5 1 230 2.P 30 AT 5.5 MM2 20MM dia pvc
Spare THHN WIRE Conduit

6 1 230 2.P 30 AT 5.5 MM2 20MM dia pvc


Spare THHN WIRE Conduit

TOTAL 1 7420 25.8 230

MAIN 230 2.P 60 AT 3.5 MM2 25MM dia pvc


THHN WIRE Conduit
LOAD SCHEDULE
SIZE OF

CRT Description No. of Qtty WAT VOL AM


NO. TS TS P.
L.O C. CONDUCTO OCPD CONDUIT
O R

1 GEN. LIGHTING 11 1100 230 4.8 2.0 mm 2 15 A 20mm

2 GEN. LIGHTING 7 700 230 3.0 2.0 mm 2 15 A 20mm

2 CONV. OUTLET 7 1260 230 5.5 3.5 mm2 20 A 20mm

3 A.C.U 1 746 230 3.2 5.5 mm 2 30 A 25mm

4 A.C.U 1 746 230 3.2 5.5 mm2 30 A 25mm

5 A.C.U 1 746 230 5.5 mm2 30 A 25mm

6 Spare 1 230 5.5 mm2 30 A 25mm

TOTAL 11 7 1 3106 230 13. 8.0mm2 60 A 25mm


5

Use: 8mm^2 THW Copper Wire for service drop; 2-pple Single Throw, 250 V, 60 A for main switch.
The Riser Diagram is a schematic presentation of
the entire electrical circuit from the service
entrance up to the smallest circuit branch.

• Character and type of service, single phase 2 wire/ 3


wire
• Size of service entrance conductor and the conduit
used
• Type and size of wire for each branch
• Size of protective device for main circuit breaker and
each branch
Title Block
The title block or the name plate indicates the
following details:
• Name and location of the proposed
installation.
• Name and address of the owner.
• Name and signature and dry seal of master
electrician or electrical engineer.
• Printed name of the owner
• Initial of the draft man and the data when
drawing was done.
Specification
• Specification includes the following:
• Classification of service
• Type of wiring method to be used
• Number of branch circuit and their corresponding sizes
• Supplies materials to be used by the contractor
SPECIFICATION
1. ALL WORK MUST BE DONE IN ACCORDANCE WITH THE LATEST
EDITION OF THE PHILIPPINE ELECTRICAL CODE, THE RULES AND
REGULATIONS OF THE LOCAL BUILDING AUTHORITIES AND
LOCAL ELECTRIC COMPANY .
2. ALL WORK MUST BE DONE IN THE RIGHT SUPERVISION OD
COMPETENT ELECTRICAIAN. AND DULY LICENSED ELECTRICAL
EGINEER OR MASTER LECTRICIAN.
3. ALL LIGHTING, SWITCH, CONVEMIENCE OUTLETS, MAIN
DISTRIBUTION PANEL BOARD SHALL NOT BE LESS DONE 1:30M
):30M ABOVE FINISH FLOOR PLAN.
4. ALL ELECTRICAL POWERLINES SHALL BE AS FOLLOW:
• LIGHTINGS 2-3.50 mm TW WIRE
Convenience outlet 2-3.50 mm2 TW WIRE
Electrical range. 2, 5.50 mm2 TW WIRE
Main feeder 2. 8.00 mm2 TW WIRE
5. All power lines shall be concealed in conduit in walls
Location map
Location map shows the following
details:
• Bordering areas showing the well
know streets
• Location of the utility company
pole which supplies electric
energy
GUIDELINES IN MAKING ELECTRICAL LAYOUT

1. The code requires sufficient circuitry to supply residential


load of 30 watts per square meter.

2. The requirement 30 watts per square meter is up to 80 square


meters for 20 amp circuit (2400 watts) or 60 square meters for 15
amp circuit (1800watts).

3. The code requires a minimum of 20 amperes for appliance


branch to feed all small appliances outlet in the kitchen, dining
and living room.

4. The general purpose branch shall be rated 20 amperes. Wire


no. 12 AWG is the minimum size of conductor required for all the
convenience outlets.
5. The circuit load of 15 ampere circuit shall be used for light
circuit.
6. Plug outlet or convenience receptacles shall be counted in
computing the load if it’s not in the load of general lighting
circuit.
For 15 amp circuit: 9/1.5= 6 outlets
For 20 amp circuit 12/1.5= 8 outlets

7. Convenience outlet should be planned properly. It should not


be placed in one circuit so that the failure of one will not deprive
the supply of power.

8. All kitchen outlets should be fed from any of the circuits except
lighting circuit.
9. Certain outlet in the room should be designed as
appliances outlet.

• All kitchen receptacles


• Dining room receptacles
• One in the living room

10. The code requires that at least one 20 amp


circuit is supplied to the laundry outlets.
11. Provide a separate circuit for air conditioning
units.
PRE-FINAL | ACTIVITY 2

Create your own Electrical plan for your Dream House


Complete parts of Electrical Plan must be present.
