Grove is a modular electronic platform for quick prototyping. Every module has one function,
such as touch sensing, creating audio e ect and so on. Just plug the modules you need to the
base Arduino shield, then you are ready to test your idea buds.
This Grove - Starter Kit for Arduino is a perfect starter kit for Arduino begginers. It includes a
Base Shield which have many Grove connectors on board, twelve Grove modules that covers
most functions needed by a beginner and a very helpful user manual that can help get started
quickly.
You can buy if directly from Seeed Studio from here: https://www.seeedstudio.com/Grove-
Starter-Kit-for...
(https://www.seeedstudio.com/Grove-Starter-Kit-for-Arduino-p-1855.html)
Tutorial updates can also be found here: https://www.ardumotive.com/tutorials.html

(https://www.ardumotive.com/tutorials.html)
Video Presentation
advertisement
/
9 Arduino Tutorials for Grove Starter IoT Gateway
KIT From Seeed Studio by Ardumotive_com (/member/Ardumotive_com/) Follow
ModBus MQTT Gateway, IEC62056-21 MQTT Gateway, DLMS/

COSEM MQTT Gateway
advertisement
Step 1: What Is in the Box?
advertisement
com/FUI/ODC1/JYMTKLXS/FUIODC1JYMTKLXS LARGE jpg?
/
advertisement
com/F2N/8CVV/JYMTKLWA/F2N8CVVJYMTKLWA LARGE jpg?
In the box you will nd:
Grove Arduino Shield

/
Grove LCDTutorials
9 Arduino I2C with for RGB
GroveBacklight
Starter KIT From Seeed Studio by Ardumotive_com (/member/Ardumotive_com/) Follow
Grove Smart Relay

Grove Buzzer
Grove Sound Sensor

Grove Touch Sensor
Grove Rotary Angle Sensor
Grove Temperature Sensor
Grove LED
Grove Light Sensor
Grove Button
One blue LED
One green LED
One red LED
A mini servo motor
Some Grove cables
A 9V to Barrel Jack Adapter
A typical manual
In this guide you will also nd and a tutorial for the BME280 Barometer sensor, you can buy is
separately from here: https://www.seeedstudio.com/Grove-Temp-Humi-Barom...
(https://www.seeedstudio.com/Grove-Temp-Humi-Barometer-Sensor-BME280.html) advertisement
You will also need an Arduino board, we will use the popular Arduino UNO.
Let's get started!
/

9 Arduino Tutorials for Grove V
Add Starter
Tip KIT Ask
FromQuestion| Comment
Seeed Studio by Download
Ardumotive_com (/member/Ardumotive_com/) Follow
Step 2: 1st Tutorial: LED Socket Kit
advertisement
/
com/FRN/5ASJ/JYMTKO2W/FRN5ASJJYMTKO2W LARGE jpg? (https://cdn instructables com/FIY/HE8N/JYMTKNPT/FIYHE8NJYMTKNPT
auto=webp&frame=1&fit=bounds) LARGE jpg?
Grove - LED is designed for the beginners of Arduino/Seeeduino to monitor controls from
digital ports. It can be mounted to the surface of your box or desk easily and used as pilot
lamp for power or signal. Its brightness can be adjust by potentiometer.
Tutorial updates can be found here: https://www.ardumotive.com/led-socket-kit-en.html

(https://www.ardumotive.com/led-socket-kit-en.html)
Features
Grove compatible interface

3.3V/5V Compatible advertisement
Adjustable LED orientation

Adjustable LED brightness
About code:
/
Keep in mind
9 Arduino that setup(
Tutorials ) routine
for Grove runs
Starter KIT only
From once
Seeed after
Studio by power on / re-program
Ardumotive_com or press the
(/member/Ardumotive_com/) Follow
reset button. In the program below, the rst thing you do is to initialize pin 2 as an output pin
with pinMode( ) function in setup( ) routine.
The loop( ) routine runs over and over again, forever. In the main loop, you turn on or o LED
with digitalWrite( ) function and "pause" the program for three seconds with delay( ) function.
(1 sec is 1000 ms)
About LEDs:
Common leds have two pins. The positive end of a led (larger pin) is called anode, and the
negative end is called cathode.The Arduino uno board have a built-in LED on pin 13, but in
this tutorial we are going to be adding our own on digital pin 2.
grove-_led.zip
Download (https://cdn.instructables.com/ORIG/F2N/JGZ6/JYMTKNTC/F2NJGZ6JYMTKNTC.zip)
(https://cdn.instructables.com/ORIG/F2N/JGZ6/JYMTKNTC/F2NJGZ6JYMTKNTC.zip)
 Add Tip V Ask Question | Comment Download
Step 3: 2nd Tutorial: Buzzer
advertisement
/
(https://cdn instructables com/F4V/00DB/JYMTF8SH/F4V00DBJYMTF8SH

auto=webp&frame=1&fit=bounds) LARGE jpg? (https://cdn instructables com/F76/18Y6/JYMTF9T7/F7618Y6JYMTF9T7
The Grove- Buzzer module has a piezo buzzer as the main component. The piezo can be
connected to digital outputs, and will emit a tone when the output is HIGH. Alternatively, it advertisement
can be connected to an analog pulse-width modulation output to generate various tones and
e ects.
Features
/
Easy to use
9 Arduino piezoelectric
Tutorials for Grove buzzer
Starter KIT From Seeed Studio by Ardumotive_com (/member/Ardumotive_com/) Follow
Uses Standard 4-pin Grove Cables to connect to other Grove modules such as - Grove Power
Modules and Grove - Base Shield
Tutorial updates can be found here: https://www.ardumotive.com/buzzer-en.html

(https://www.ardumotive.com/buzzer-en.html)
About the code:
The code is similar with the LED code. Now, try to use the tone() function:
tone(6, 1000); // Send 1KHz sound signal... and to stop the tone noTone(6);
How it works? It's simple, tone(6, 1000) sends a 1KHz sound signal to pin 6, delay(1000) pause
the program for one second and noTone(buzzer) stops the signal sound. The loop() routine
will make this run again and again making a short beeping sound.
About the buzzer:
A buzzer or beeper is an audio signalling device, which may be mechanical, electro-

mechanical, or piezoelectric (piezo for short). Typical uses of buzzers and beepers include
alarm devices, timers, and con rmation of user input such as a mouse click or keystroke.
Buzzers have pollarity, one pin is connected to signal and another (the smaller) to gnd.
grove-_buzzer.zip
Download (https://cdn.instructables.com/ORIG/FQX/4Z0C/JYMTFA23/FQX4Z0CJYMTFA23.zip)
(https://cdn.instructables.com/ORIG/FQX/4Z0C/JYMTFA23/FQX4Z0CJYMTFA23.zip) advertisement
Step 4: 3rd Tutorial: Button With Buzzer /

Seeed Studio Grove Arduino Kit
(https://www.seeedstudio.com/Grove-Starter-Kit-for-Arduino-p-1855.html)
Teacher Notes
Teachers! Did you use this instructable in your classroom? advertisement
Add a Teacher Note to share how you incorporated it into your lesson.
Add Teacher Note
/
advertisement
com/FAE/IBQE/JYMTFDGR/FAEIBQEJYMTFDGR LARGE jpg?
/
(https://cdn instructables com/F59/8ZCK/JYMTFBA6/F598ZCKJYMTFBA6

Grove - Button is a momentary push button. It contains one independent "momentary on/o "
button. “Momentary” means that the button rebounds on its own after it is released. The
button outputs a HIGH signal when pressed, and LOW when released. The Sig marked on silk
layer stands for signal while NC stands for not used at all. There are two versions of this button
available as showed in the pictures. The only di erence is the direction of the Grove socket.
Features
Easy to use momentary ON/OFF button

Uses Standard 4-pin Grove Cables
Tutorial updates can be found here: https://www.ardumotive.com/button-with-buzzer-en....

(https://www.ardumotive.com/button-with-buzzer-en.html)
For this project we will also connect to the Grove Shield a buzzer. advertisement
About the code:
/
We will use the
9 Arduino digitalRead()
Tutorials function
for Grove Starter to read
KIT From the
Seeed state
Studio by of the button(/member/Ardumotive_com/)
Ardumotive_com that is connected in Follow
digital port 2. With if statment we compare the state of the buzzon that can be HIGH when is
pressed and LOW in normal position Try it!
grove-button.zip
Download (https://cdn.instructables.com/ORIG/FVP/H8RO/JYMTFD4C/FVPH8ROJYMTFD4C.zip)
(https://cdn.instructables.com/ORIG/FVP/H8RO/JYMTFD4C/FVPH8ROJYMTFD4C.zip)
Step 5: 4th Tutorial: Rotary Angle Sensor
advertisement
(https://cdn instructables com/FKF/MXJQ/JYMTFDRW/FKFMXJQJYMTFDRW

/
advertisement
/
(https://cdn instructables com/FOZ/JSVB/JYMTFEQL/FOZJSVBJYMTFEQL

The rotary angle sensor produces analog output between 0 and Vcc (5V DC with Seeeduino)
on its D1 connector. The D2 connector is not used. The angular range is 300 degrees with a
linear change in value. The resistance value is 10k ohms, perfect for Arduino use. This may also
be known as a “potentiometer ”. There is another product, Grove - Rotary Angle Sensor(P).
What does “P” mean? “P” is for “panel mount” in this product.It is the sister version of Grove -
Rotary Angle Sensor. They are identical except the Grove connecter is moved to the back so
that you can easily use it as a neat and wire-free human interface device.
Tutorial updates can be found here: https://www.ardumotive.com/rotary-angle-sensor-en...

(https://www.ardumotive.com/rotary-angle-sensor-en.html)
For this tutorial we will need:
Arduino UNO
Grove Base Shield
Rotary Angle Sensor
LED (Connect Grove-LED to D3 port of Grove-Base Shield)
advertisement
grove-_rotary_angle_s…
Download (https://cdn.instructables.com/ORIG/FL5/2BPC/JYMTFF5E/FL52BPCJYMTFF5E.zip)
(https://cdn.instructables.com/ORIG/FL5/2BPC/JYMTFF5E/FL52BPCJYMTFF5E.zip)
/
Step 6: 5th Tutorial: LCD RGB Backlight With Temp Sensor

com/FP5/XXCW/JYMTFJOB/FP5XXCWJYMTFJOB LARGE jpg?
advertisement
/
(https://cdn instructables com/FN3/AD8M/JYMTFGUD/FN3AD8MJYMTFGUD

This Grove enables you to set the color to whatever you like via the simple and concise Grove
interface. It takes I2C as communication method with your microcontroller. So number of pins
required for data exchange and backlight control shrinks from ~10 to 2, relieving IOs for other
challenging tasks. Besides, Grove - LCD RGB Backlight supports user-de ned characters. Want
to get a love heart or some other foreign characters? Just take advantage of this feature and
design it! This product is a replacement of Grove - Serial LCD. If you are looking for primitive
16x2 LCD modules, we have green yellow backlight version and blue backlight version on sale
also.
Features
RGB Backlight
I2C communication
Built-in English fonts
16x2 LCD
advertisement
Tutorial updates can be found here: https://www.ardumotive.com/lcd-rgb-backlight-with...

(https://www.ardumotive.com/lcd-rgb-backlight-with-temp-sensoren.html)
/
Grove - Temperature
9 Arduino Tutorials forSensor uses aKITthermistor
Grove Starter From Seeedto measure
Studio ambient temperature.
by Ardumotive_com The
resistance of thermistor changes based on ambient temperature. This resistance value alters
the output of a voltage divider which is measured by an analog input pin and converted to a
temperature value. The operating range is -40 to 125°C , with an accuracy of 1.5°C .
For this tutorial we will need:
Arduino UNO
Grove Base Shield
LCD RGB Backlight
Temperature Sensor (Connect Grove-Temp sensor to A0 port of Grove-Base Shield)
grove-_lcd_rgb_backli…
Download (https://cdn.instructables.com/ORIG/FDP/EIYN/JYMTFJC5/FDPEIYNJYMTFJC5.zip)
(https://cdn.instructables.com/ORIG/FDP/EIYN/JYMTFJC5/FDPEIYNJYMTFJC5.zip)
Step 7: 6th Tutorial: Touch Sensor With LED
advertisement
/
com/FF9/5BPH/JYMTFKD1/FF95BPHJYMTFKD1 LARGE jpg? (https://cdn instructables com/F64/9I9Q/JYMTFLSC/F649I9QJYMTFLSC
Grove - Touch Sensor enables you to replace press with touch. It can detect the change in
capacitance when a nger is near by. That means no matter your nger directly touches the advertisement
pad or just stays close to the pad, Grove - Touch Sensor would outputs HIGH also.
Tutorial updates can be found here: https://www.ardumotive.com/touch-sensor-with-lede...

(https://www.ardumotive.com/touch-sensor-with-leden.html)
/
grove-_touch_sensor_…
Download (https://cdn.instructables.com/ORIG/FOM/CXH6/JYMTFLVC/FOMCXH6JYMTFLVC.zip)
(https://cdn.instructables.com/ORIG/FOM/CXH6/JYMTFLVC/FOMCXH6JYMTFLVC.zip)
w
 V |
Download Favorite I Made It
Add Tip Ask Question Comment Download
Step 8: 7th Turorial: Sound Sensor
(https://cdn instructables com/FRC/OU1A/JYMTFQCP/FRCOU1AJYMTFQCP

advertisement
/
advertisement
/
(https://cdn instructables com/FDK/0WNU/JYMTFN6I/FDK0WNUJYMTFN6I
Grove - Sound Sensor can detect the sound intensity of the environment. The main
component of the module is a simple microphone, which is based on the LM386 ampli er and
an electret microphone. This module's output is analog and can be easily sampled and tested
by a Seeeduino.
Features
Easy to use
Provides analog output signal
Easily integrates with Logic modules on the input side of Grove circuits
Tutorial updates can be found here: https://www.ardumotive.com/sound-sensor-en.html

(https://www.ardumotive.com/sound-sensor-en.html)
grove-_sound_sensor.…
Download (https://cdn.instructables.com/ORIG/FG2/BEN1/JYMTFPWJ/FG2BEN1JYMTFPWJ.zip)
(https://cdn.instructables.com/ORIG/FG2/BEN1/JYMTFPWJ/FG2BEN1JYMTFPWJ.zip)
Step 9: 8th Tutorial: Barometer Sensor (BME 280)

advertisement
/
2 More Images
com/FOV/TBD0/JYMTFUAX/FOVTBD0JYMTFUAX LARGE jpg?
Grove - Temp&Humi&Barometer Sensor (BME280) is a breakout board for Bosch BMP280 high- advertisement
precision, low-power combined humidity, pressure, and temperature sensor. This module can
be used to measure temperature, atmospheric pressure and humidity accurately and fast. As
the atmospheric pressure changes with altitude, it can also measure approximate altitude of a
/
place. It can Tutorials
9 Arduino be connected
for Groveto a microcontroller
Starter with I2C
KIT From Seeed Studio (integrated with
by Ardumotive_com Grove socket) or
through SPI bus. We have also provided highly abstracted library to make this more product
easier to use.
Tutorial updates can be found here: https://www.ardumotive.com/barometer-sensor-bme-2...

(https://www.ardumotive.com/barometer-sensor-bme-280en.html)
grove-_barometer.zip
Download (https://cdn.instructables.com/ORIG/FKG/G5DX/JYMTFTGD/FKGG5DXJYMTFTGD.zip)
(https://cdn.instructables.com/ORIG/FKG/G5DX/JYMTFTGD/FKGG5DXJYMTFTGD.zip)
Step 10: 9th Tutorial: Light Sensor
advertisement
com/F8O/30KW/JYMTFWQM/F8O30KWJYMTFWQM LARGE jpg?
/
(https://cdn instructables com/FI7/PK60/JYMTFV2P/FI7PK60JYMTFV2P

The Grove - Light sensor integrates a photo-resistor(light dependent resistor) to detect the advertisement
intensity of light. The resistance of photo-resistor decreases when the intensity of light
increases. A dual OpAmp chip LM358 on board produces voltage corresponding to intensity
of light(i.e. based on resistance value). The output signal is analog value, the brighter the light
is, the larger the value.
/
This9module can befor
Arduino Tutorials used to Starter
Grove build KIT
a light
Fromcontrolled
Seeed Studioswitch i.e. switch(/member/Ardumotive_com/)
by Ardumotive_com o lights during day time Follow
and switch on lights during night time.

Tutorial updates can be found here: https://www.ardumotive.com/light-sensor-en.html

(https://www.ardumotive.com/light-sensor-en.html)
grove-_light_sensor.zip
Download (https://cdn.instructables.com/ORIG/FA1/BSV1/JYMTFWK3/FA1BSV1JYMTFWK3.zip)
(https://cdn.instructables.com/ORIG/FA1/BSV1/JYMTFWK3/FA1BSV1JYMTFWK3.zip)
Step 11: Well Done!

You have successfully completed an Arduino Grove tutorial.
I hope you liked this, let me know in the comments.
advertisement
/
Participated in the
Sensors Contest (/contest/sensors2019/)
View Contest
Be the First to Share

Did you make this project? Share it with us!
I Made It!
advertisement
Recommendations
/
(/id/DIY-PCB-Shaker/)
DIY PCB Shaker (Low-Cost) (/id/DIY-PCB-

Shaker/) by ASCAS (/member/ASCAS/) in
Tools (/circuits/tools/projects/)
 812 973
(/contest/backyard2020/) (/contest/arduino2020/)

advertisement
Add Tip
V Ask Question
/
|
9 Arduino Tutorials for Grove Starter KIT From SeeedPost Comment
Studio by Ardumotive_com (/member/Ardumotive_com/) Follow
We have a be nice policy.

Please be positive and constructive.
Add Images Post
Categories About Us Resources
 Circuits  Living Who We Are Sitemap (/sitemap/)

(/circuits/) (/living/) (/about/) Help (/id/how-to-
 Workshop  Outside Why Publish? write-a-great-
(/workshop/) (/outside/) (/create/) instructable/)
 Craft  Teachers Jobs (/jobs/) Contact (/contact/)
(/craft/) (/teachers/)
 Cooking
(/cooking/)
Find Us
(https://www.instagram.com/instructables/) (https://www.pinterest.com/instructables) (https://www.facebook.com/instructables) (https://www.twitter.com/instructables)
© 2020 Autodesk, Inc.
Terms of Service Privacy Statement Privacy Legal Notices & Trademarks

advertisement
(http://usa.autodesk.com/adsk/servlet/item? (http://usa.autodesk.com/adsk/servlet/item? settings (http://usa.autodesk.com/legal-notices-
siteID=123112&id=21959721) siteID=123112&id=21292079) | trademarks/)
| |
(http://www.autodesk.com)
/
Veri ed PCB CAD Libraries

Get free symbols, footprints, and
3D models for your CAD tool.
Download now!
advertisement
advertisement
advertisement

9 Arduino Tutorials For Grove Starter KIT 11 Steps - Instructables

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

9 Arduino Tutorials For Grove Starter KIT 11 Steps - Instructables

Uploaded by

Copyright:

Available Formats

 (/) 9 Circuits

Teachers (/teachers/) (/account/register/)

Download Favorite w I Made It

instructables (/circuits/) Projects (/circuits/projects/) Contests (/contest/) Let's Make...

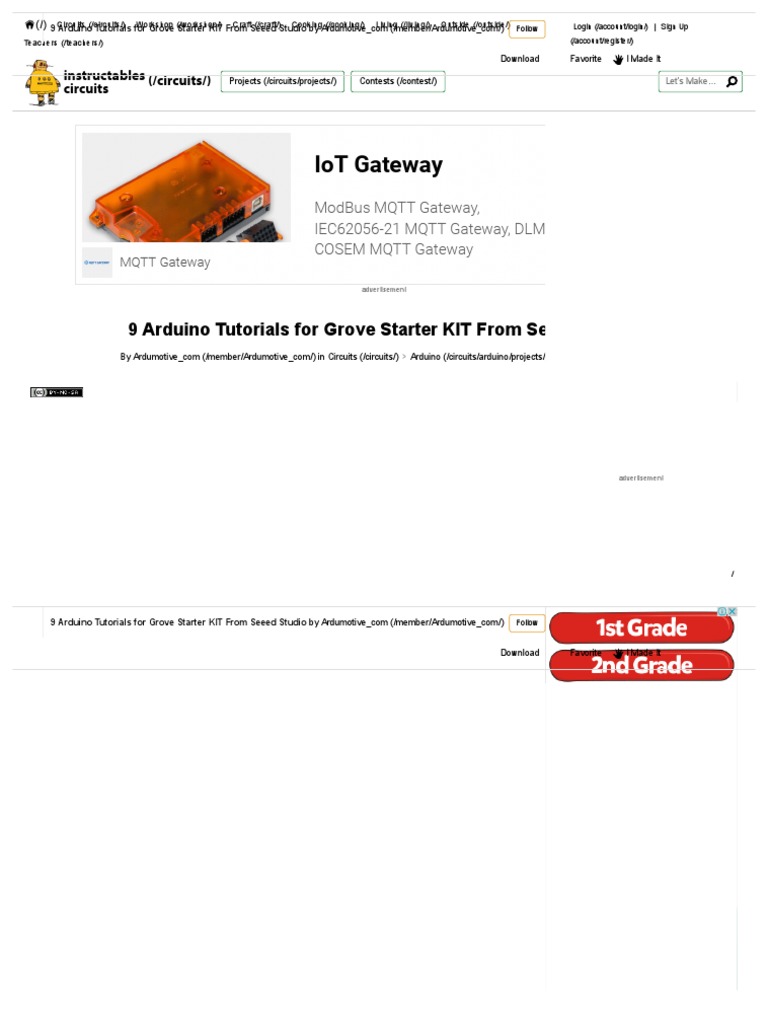

9 Arduino Tutorials for Grove Starter KIT From Seeed Studio

Download Favorite w I Made It

Tutorial updates can also be found here: https://www.ardumotive.com/tutorials.html

ModBus MQTT Gateway, IEC62056-21 MQTT Gateway, DLMS/

Step 1: What Is in the Box?

Download Favorite w I Made It

In the box you will nd:

Grove Arduino Shield

Grove Smart Relay

Grove Sound Sensor

Let's get started!

Download Favorite w I Made It

Step 2: 1st Tutorial: LED Socket Kit

Download Favorite w I Made It

Tutorial updates can be found here: https://www.ardumotive.com/led-socket-kit-en.html

Grove compatible interface

Adjustable LED orientation

 Add Tip V Ask Question | Comment Download

Step 3: 2nd Tutorial: Buzzer

Download Favorite w I Made It

(https://cdn instructables com/F4V/00DB/JYMTF8SH/F4V00DBJYMTF8SH

Tutorial updates can be found here: https://www.ardumotive.com/buzzer-en.html

About the code:

About the buzzer:

A buzzer or beeper is an audio signalling device, which may be mechanical, electro-

 Add Tip V Ask Question | Comment Download

Step 4: 3rd Tutorial: Button With Buzzer /

 Add Tip V Ask Question | Comment Download

Teachers! Did you use this instructable in your classroom? advertisement

Add Teacher Note

Download Favorite w I Made It

Download Favorite w I Made It

(https://cdn instructables com/F59/8ZCK/JYMTFBA6/F598ZCKJYMTFBA6

Easy to use momentary ON/OFF button

Tutorial updates can be found here: https://www.ardumotive.com/button-with-buzzer-en....

About the code:

 Add Tip V Ask Question | Comment Download

Step 5: 4th Tutorial: Rotary Angle Sensor

(https://cdn instructables com/FKF/MXJQ/JYMTFDRW/FKFMXJQJYMTFDRW

Download Favorite w I Made It

Download Favorite w I Made It

(https://cdn instructables com/FOZ/JSVB/JYMTFEQL/FOZJSVBJYMTFEQL

Tutorial updates can be found here: https://www.ardumotive.com/rotary-angle-sensor-en...

For this tutorial we will need:

 Add Tip V Ask Question | Comment Download

Step 6: 5th Tutorial: LCD RGB Backlight With Temp Sensor

Download Favorite w I Made It

(https://cdn instructables com/FN3/AD8M/JYMTFGUD/FN3AD8MJYMTFGUD

Tutorial updates can be found here: https://www.ardumotive.com/lcd-rgb-backlight-with...

For this tutorial we will need:

 Add Tip V Ask Question | Comment Download

Step 7: 6th Tutorial: Touch Sensor With LED

Download Favorite w I Made It

Tutorial updates can be found here: https://www.ardumotive.com/touch-sensor-with-lede...

Step 8: 7th Turorial: Sound Sensor

(https://cdn instructables com/FRC/OU1A/JYMTFQCP/FRCOU1AJYMTFQCP

Download Favorite w I Made It

Tutorial updates can be found here: https://www.ardumotive.com/sound-sensor-en.html

 Add Tip V Ask Question | Comment Download
