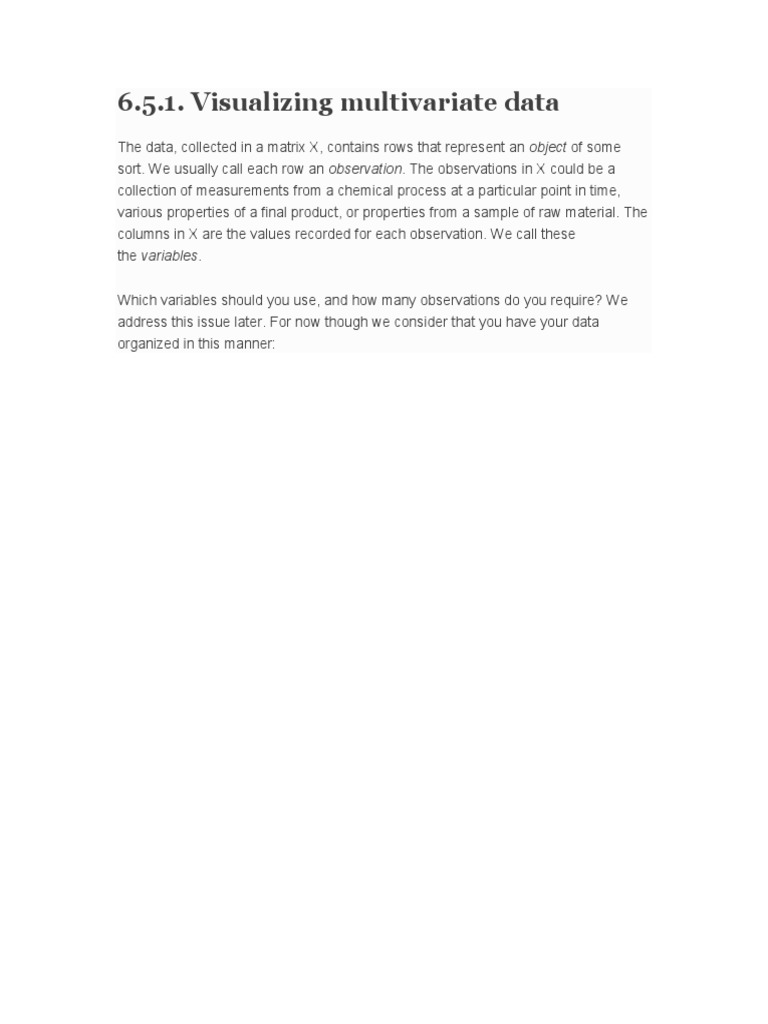

6.5.1.

Visualizing multivariate data

The data, collected in a matrix X, contains rows that represent an object of some
sort. We usually call each row an observation. The observations in X could be a
collection of measurements from a chemical process at a particular point in time,
various properties of a final product, or properties from a sample of raw material. The
columns in X are the values recorded for each observation. We call these
the variables.

Which variables should you use, and how many observations do you require? We
address this issue later. For now though we consider that you have your data
organized in this manner:
Consider the case of 2 variables, K=2 (left) and K=3 variables (right) for the room
thermometers example from earlier:

Each point in the plot represents one object, also called an observation. There are
about 150 observations in each plot here. We sometimes call these plots data
swarms, but they are really just ordinary scatterplots that we saw in the visualization
section. Notice how the variables are correlated with each other, there is a definite
trend. If we want to explain this trend, we could draw a line through the cloud swarm
that best explains the data. This line now represents our best summary and estimate
of what the data points are describing. If we wanted to describe that relationship to
our colleagues we could just give them the equation of the best-fit line.

Another effective way to visualize small multivariate data sets is to use a scatterplot
matrix. Below is an example for K=5 measurements on N=50 observations.
Scatterplot matrices require K(K−1)/2 plots and can be enhanced with univariate
histograms (on the diagonal plots), and linear regressions and loess smoothers on
the off-diagonals to indicate the level of correlation between any two variables.
