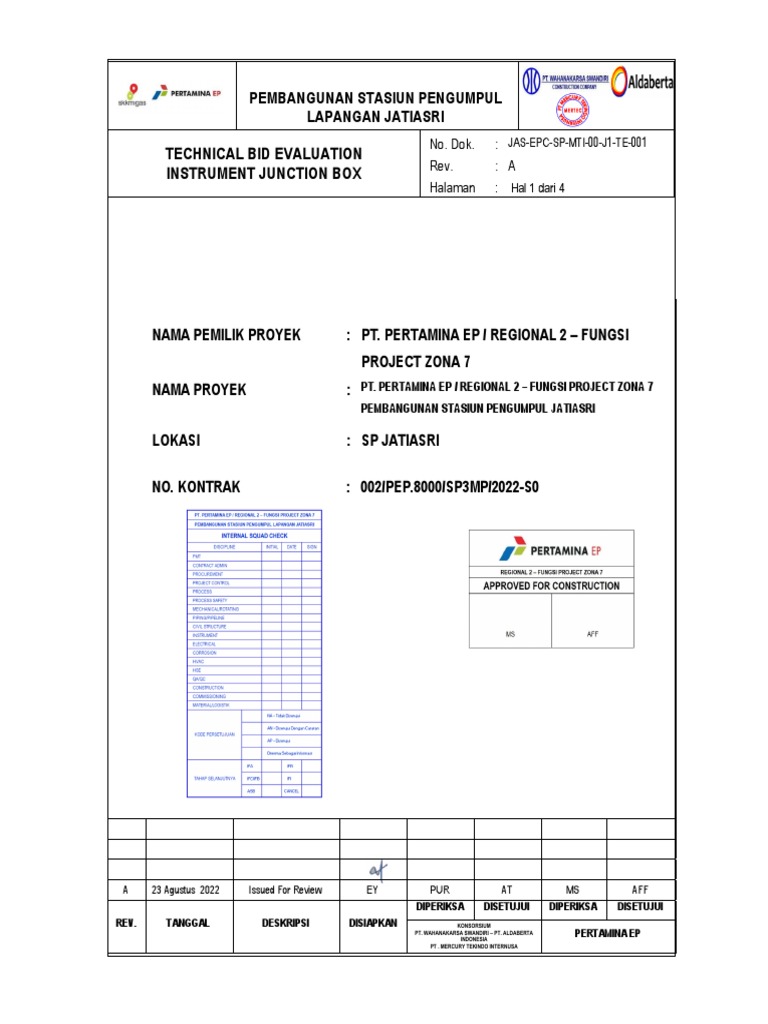

PEMBANGUNAN STASIUN PENGUMPUL
LAPANGAN JATIASRI
No. Dok. : JAS-EPC-SP-MTI-00-J1-TE-001
TECHNICAL BID EVALUATION
Rev. : A
INSTRUMENT JUNCTION BOX
Halaman : Hal 1 dari 4
NAMA PEMILIK PROYEK : PT. PERTAMINA EP / REGIONAL 2 – FUNGSI
PROJECT ZONA 7
NAMA PROYEK : PT. PERTAMINA EP / REGIONAL 2 – FUNGSI PROJECT ZONA 7
PEMBANGUNAN STASIUN PENGUMPUL JATIASRI
LOKASI : SP JATIASRI
NO. KONTRAK : 002/PEP.8000/SP3MP/2022-S0
A 23 Agustus 2022 Issued For Review EY PUR AT MS AFF
DIPERIKSA DISETUJUI DIPERIKSA DISETUJUI
REV. TANGGAL DESKRIPSI DISIAPKAN KONSORSIUM
PT. WAHANAKARSA SWANDIRI – PT. ALDABERTA
INDONESIA
PERTAMINA EP
PT . MERCURY TEKINDO INTERNUSA
TBE INSTRUMENT JUNCTION BOX JAS-EPC-SP-MTI-00-J1-TE-001
PT. PERTAMINA EP / REGIONAL 2 – FUNGSI PROJECT ZONA 7 Rev.A
PEMBANGUNAN STASIUN PENGUMPUL JATIASRI Hal 2 dari 4
TABEL REVISI
REV. BAB HALAMAN DESKRIPSI KOMENTAR REVISI/TANGGAPAN
A ALL ALL Issued for Review
TBE INSTRUMENT JUNCTION BOX JAS-EPC-SP-MTI-00-J1-TE-001
PT. PERTAMINA EP / REGIONAL 2 – FUNGSI PROJECT ZONA 7 Rev.A
PEMBANGUNAN STASIUN PENGUMPUL JATIASRI Hal 3 dari 4
DAFTAR ISI
1. COVER ................................................................................................................................................ 1
2. TABEL REVISI .................................................................................................................................... 2
3. DAFTAR ISI ......................................................................................................................................... 3
4. TBE INSTRUMENT JUNCTION BOX ................................................................................................. 4
TBE Instrument Junction Box REV A
ITEM TOTAL
DESCRIPTION UNIT
NO. REQ'D
VENDOR
BASED ON DOCUMENT
18‐22A‐546‐OO‐00‐IN‐00‐BM‐001
Instrument Material Take Off_Rev B
F JUNCTION BOX (Non IS)
Stainless Steel 316 SS, Single Door with Hinge, rated to NEMA 4X or Stainless Steel 316 SS, Single Door with Hinge, rated to NEMA 4X IP66/67,
Equivalent as Minimum, Ex e Certified for Class 1 Div 2 Ex e Certified for Zone 1
Group D and Temperature Class T3 Area. Junction Box to be Provided With
T6….T4
:
a. Removable Terminal Block Non Hygroscopic, Anti Tracking, Non‐ a. Removable Terminal Block Non Hygroscopic, Anti Tracking, Non‐
Flamable Material and Rail Mounted, Flamable Material and Rail Mounted,
Suitable for Wire/Conductor Up to 2.5 sqmm Suitable for Wire/Conductor Up to 2.5 sqmm
b. Terminal Block No. (Traffolyte‐Grey Color) b. Terminal Block No. (Traffolyte‐Grey Color)
c. End Brackets and End Section c. End Brackets and End Section
d. Mounting Plate and Mounting rail d. Mounting Plate and Mounting rail
e. Gland Plate (Bottom Cable Entry) e. Gland Plate (Bottom Cable Entry)
f. M20 Breather / Drain (Bottom Side) f. M20 Breather / Drain (Bottom Side)
g. External Earthing Terminal (M10 Earth Stud outside of box) g. External Earthing Terminal (M10 Earth Stud outside of box)
h. Instrument Earthing Bar (for Digital Junction Box) h. Instrument Earthing Bar (for Digital Junction Box)
i. Rubber Plug for All Holes (After Drilled for Cable Entries as i. NO Plug for All Holes (After Drilled for Cable Entries as Manufactured
Manufactured Standard) Standard)
j. Brass, Ex e Certified Hex Plug for Spare Cable Entry Completed With Red j. Brass, Ex e Certified Hex Plug for Spare Cable Entry Completed With Red
Fibre Washer Fibre Washer
k. Junction Box Number (engraved laminated Formica Traffolyte with Black k. Junction Box Number (engraved laminated Formica Traffolyte with Black
Letter on White Background) ‐ As Tables Letter on White Background) ‐ As Tables
l. Neoprene Gasket l. Neoprene Gasket
m. Detail as Listed Bellow :
F.1 JUNCTION BOX for PCS ANALOG
F.1.1 2‐13‐IJBA‐001, 2‐13‐IJBA‐002 & 2‐13‐IJBA‐004 3 0 2‐13‐IJBA‐001, 2‐13‐IJBA‐002 & 2‐13‐IJBA‐004
Terminal Block : TB = 74 nos Terminal Block : TB = 74 nos
Cable Entry : M20 = 24 nos (including 8 spare Hex Plug Ex e Cable Entry : M20 = 24 nos (including 8 spare Hex Plug Ex e
Certified Completed With Red Fibre Washer) Certified Completed With Red Fibre Washer)
M32 = 2 nos M32 = 2 nos
F.1.2 2‐13‐IJBA‐003 1 Ea 2‐13‐IJBA‐003
Terminal Block : TB = 37 nos Terminal Block : TB = 37 nos
Cable Entry : M20 = 12 nos (including 3 spare Hex Plug Ex e Cable Entry : M20 = 12 nos (including 3 spare Hex Plug Ex e
Certified Completed With Red Fibre Washer) Certified Completed With Red Fibre Washer)
M32 = 1 nos M32 = 1 nos
F.2 JUNCTION BOX for PCS DIGITAL JUNCTION BOX for PCS DIGITAL
F.2.1 2‐13‐IJBD‐001 1 Ea 2‐13‐IJBD‐001
Terminal Block : TB = 49 nos Terminal Block : TB = 49 nos
Cable Entry : M20 = 16 nos (including 7 spare Hex Plug Ex e Cable Entry : M20 = 16 nos (including 7 spare Hex Plug Ex e
Certified Completed With Red Fibre Washer) Certified Completed With Red Fibre Washer)
M40 = 1 nos M40 = 1 nos
Earthing Bar : 1 x 18 Terminals Earthing Bar : 1 x 18 Terminals
F.2.2 2‐13‐IJBD‐002 1 Ea 2‐13‐IJBD‐002
Terminal Block : TB = 25 nos Terminal Block : TB = 25 nos
Cable Entry : M20 = 10 nos (including 4 spare Hex Plug Ex e Cable Entry : M20 = 10 nos (including 4 spare Hex Plug Ex e
Certified Completed With Red Fibre Washer) Certified Completed With Red Fibre Washer)
M32 = 1 nos M32 = 1 nos
Earthing Bar : 1 x 12 Terminals Earthing Bar : 1 x 12 Terminals
F.3 JUNCTION BOX for SIS ANALOG JUNCTION BOX for SIS ANALOG
F.3.1 2‐13‐EJBA‐001 1 Ea 2‐13‐EJBA‐001
Terminal Block : TB = 42 nos Terminal Block : TB = 42 nos
Cable Entry : M20 = 15 nos (including 3 spare Hex Plug Ex e Cable Entry : M20 = 15 nos (including 3 spare Hex Plug Ex e
Certified Completed With Red Fibre Washer) Certified Completed With Red Fibre Washer)
M32 = 1 nos M32 = 1 nos
F.4 JUNCTION BOX for SIS DIGITAL JUNCTION BOX for SIS DIGITAL
F.4.1 2‐13‐EJBD‐001 1 Ea 2‐13‐EJBD‐001
Terminal Block : TB = 50 nos Terminal Block : TB = 50 nos
Cable Entry : M20 = 24 nos (including 13 spare Hex Plug Ex e Cable Entry : M20 = 24 nos (including 13 spare Hex Plug Ex e
Certified Completed With Red Fibre Washer) Certified Completed With Red Fibre Washer)
M32 = 2 nos M32 = 2 nos
Earthing Bar : 1 x 24 Terminals Earthing Bar : 1 x 24 Terminals
F.5 JUNCTION BOX for FIRE & GAS ANALOG JUNCTION BOX for FIRE & GAS ANALOG
F.5.1 2‐13‐FJBA‐001 & 2‐13‐FJBA‐002 2 Ea 2‐13‐FJBA‐001 & 2‐13‐FJBA‐002
Terminal Block : TB = 64 nos Terminal Block : TB = 64 nos
Cable Entry : M20 = 17 nos (including 4 spare Hex Plug Ex e Cable Entry : M20 = 17 nos (including 4 spare Hex Plug Ex e
Certified Completed With Red Fibre Washer) Certified Completed With Red Fibre Washer)
M50 = 1 nos M50 = 1 nos
F.5.2 2‐13‐FJBD‐001 1 Ea 2‐13‐FJBD‐001
Terminal Block : TB = 20 nos Terminal Block : TB = 20 nos
Cable Entry : M20 = 12 nos (including 6 spare Hex Plug Ex e Cable Entry : M20 = 12 nos (including 6 spare Hex Plug Ex e
Certified Completed With Red Fibre Washer) Certified Completed With Red Fibre Washer)
M40 = 2 nos M40 = 2 nos
Earthing Bar : 1 x 18 Terminals Earthing Bar : 1 x 18 Terminals
