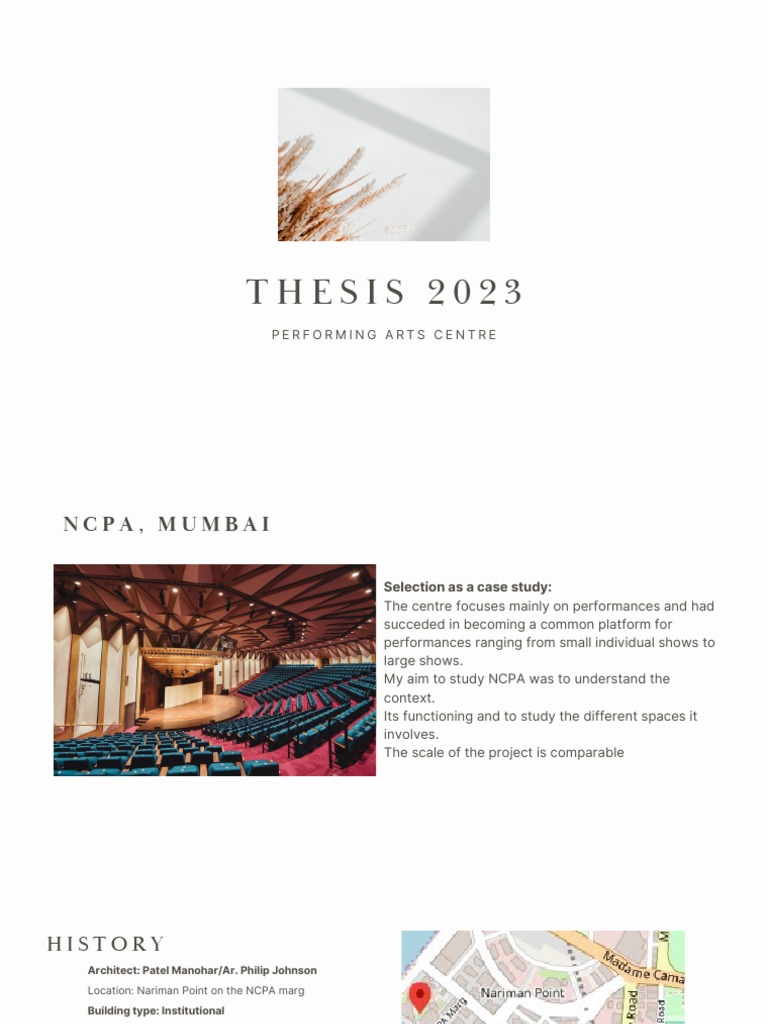

THESIS 2023

PERFORMING ARTS CENTRE

NCPA, MUMBAI

Selection as a case study:

The centre focuses mainly on performances and had
succeded in becoming a common platform for
performances ranging from small individual shows to
large shows.
My aim to study NCPA was to understand the
context.
Its functioning and to study the different spaces it
involves.
The scale of the project is comparable
HISTORY
Architect: Patel Manohar/Ar. Philip Johnson
Location: Nariman Point on the NCPA marg
Building type: Institutional
Founded by Dr. Jamshed J. Bhaba
Established in 1959
Site Area: 8 Acres
Capacity:1109
Introduction: Auditorium
NCPA is a cultural building, it lifts the Indian culture Jamshed Bhabha Theatre
in the society through events. Tata theatre
NCPA private sector undertaken by TATA. Experimental theatre
Designed by Ar. Philip Johnson Dance theatre Godrej
The building has 5 theatres , Administration area[ Little Theatre
Music library, small gallery, guest houses and
apartment for the directors.
SITE AND
NEIGHBOURHOOD

The site can be accessed through 6 gates, the side is

divided into 6 major blocks
Apart from these, within the site there are parking
spaces, ac plants, staff quarters and electric substation.
The site is located in a commercial area
NCPA is surrounded by malls, hotels, offices etc.,
NCPA is 1KM away from church gate station.

LOBBY AND RECEPTION

Reception desk is located at the building entrance
Right side of the reception is in the administration area
JAMSHED BHABHA THEATRE
Seating Capacity: 1109 seats
Stage
Entry: from east and west foyer- 2Numbers
Floor: Hardwood timber flooring on MS framing
Size: 23. 7 m [w] x 14.6 m [d] [ Behind house curtain]
Top of stage from 1m auditorium level
Control room
Location rear of the auditorium behind glass window ;
partially openable divided into 4 compartments through
common passage.
Compartment- 160 sqm / 228 sqm / 310 sqm[ Light control
cubicle]/ 445 sqm
Power supply :18 kW, 30 Amps per phase
Dressing rooms [backstage]
Ground floor solo room - 3 [9 sqm each]
First floor solo room - 4 [9 sqm each]
Second floor group room- 2 [ 18.5 sqm each] - 7 person
capacity
Third floor group room- 1 [46.5 sqm]- 18 person capacity
JAMSHED BHABHA THEATRE
Rehearsal rooms [Front of the house]
West room 1 - 124 sqm - 2.88m [second floor west wing]
[90 sqm adjoining open terrace]
West room 2 - 115 sqm- 2.9 m height [ Third floor west wing]
[50sqm adjoining open terrace]
East room 1- 113.5sqm - 2.9 m height [ Second floor east wing]
[ 55 sqm adjoining open terrace]
VIEW OF THE AUDITORIUM
East room 2- 99 sqm - 2.9 m height [third floor east wing]
[ 32 sqm adjoining open terrace]

Miscellaneous spaces
Foyers at two levels
Ground floor -930 sqm -2.5 m height- elevator 1[ west foyer]-
service counter 2 [ one front of foyer and one in west foyer]
INTERIOR OF THE REHERSAL ROOM First floor- 465 sqm- 2.5 m height - service counter 1[ East
foyer]
Museum - 165 sqm - 5.45m height

Orchestra Pit
Forestage orchestra elevator 19 m[w] x 4m [d]: Travel - 2.9 m(
below stage)
Capacity 60 musicians
ENTRY TO JBT FOYER AND FOOD COUNTER
TATA THEATRE

Seating Capacity: 1010 seats

Capacity reduced in the following cases:
Use of in- house
Sound mixer/ monitor reduced by 7 seats
8- channel audio mixing console
basic sound system for speech and music reinforcement

Stage
Floor hardwood timber flooring on concrete
size 9 m [ d] x 17.5 m [w] at its maximum width
height 3m at upstage : 6 m at downstage rotatable stage
Operation electronically controlled
Rotation 180 degree
Rotation time 80 sec

Dressing rooms
Ground floor solo room - 4 [11.6 sqm each]
Mezzanine group room - 2 [23 sqm each]
EXPERIMENTAL THEATRE
Seating Capacity: 285 seats
Plastic bucket- chairs [blue] on modular wooden tiers
Stage:
9.7m [w] x 7.3 m [d] x 0.7 m [h] maximum
variable configurations , modular wooden platforms

Floor
Concrete floor 19.20 m[l]x 19m [w]
Floor to grid height -catwalk -9 m [h]

Control rooms and lighting

Behind glass observation window at first level
Electronic light dimmer 1
Lighting console- Phoenix cantor- 48 channels

Dressing room
Ground floor 2 [7 sqm]
First floor 1 [20 sqm]

Miscellaneous spaces
Foyer non A/c
size 425 sqm - height 3m
DANCE THEATRE GODREJ
Seating Capacity
185 seats
Stage
Floor timber flooring on MS slotted angle frame
0.65 from auditorium level
Wing to wing 9m [w] x 5.6m [d] x 2.34m [h]
Wing spaces
Stage- right 3.55 m[w] x 6.7m [l] x 2.34m [h]
Stage - left 2.2m[w] x 6.7m [l] x 2.34 m[h]
Cross over space 14.9 m[l] x 1.1m[w] x 2.34m [h]
Proscenium opening 9.55 m[w] x2.4m [h]
House curtain maroon velour, motorized travel

Dressing room
Ground floor-13.8 sqm and 17 sqm
Common lobby- 19.6 sqm

Miscellaneous spaces
Foyer area- 158 sqm
Sunken garden -232 sqm

VIEW OF THE AUDITORIUM

LITTLE THEATRE
Seating capacity
114 seats
Cushioned chairs [off-white] on carpet
Stage
Floor timber flooring on concrete slab
0.8m[h] from auditorium level
size with side wings and 6.66m [w] x 5.47m[d] x concertina flat
3.96m[h]
Downstage 3.08m[h] upstage

Wing space
Stage right 1.1m [w] x 6m[l] x 3.08m [h]
Stage left 1.0m [w] x 6m[l] x 3.08m [h]
Cross over space 8.7m[l] x 0.6m[l] x 3.08m [h]
Proscenium opening 5.85m[w] x 3.96m [h]
House curtain Maroon velour; motorized travel
Dressing rooms
Ground floor 1 :8.5 sqm
First floor 1: 15.8 sqm
Miscellaneous spaces
Foyer airconditioned
Size 13.3m[l] x 5.6m[w] x 6m[h]
Area 74.5 sqm
