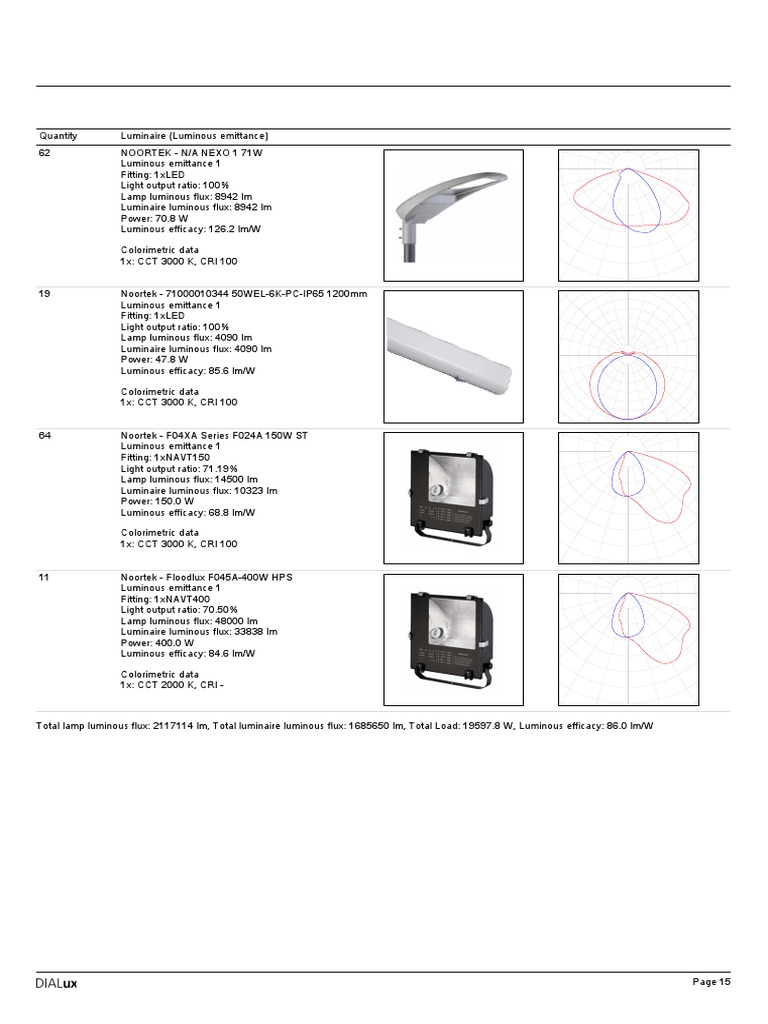

Quantity Luminaire (Luminous emittance)

62 NOORTEK - N/A NEXO 1 71W

Luminous emittance 1
Fitting: 1xLED
Light output ratio: 100%
Lamp luminous flux: 8942 lm
Luminaire luminous flux: 8942 lm
Power: 70.8 W
Luminous efficacy: 126.2 lm/W

Colorimetric data
1x: CCT 3000 K, CRI 100

19 Noortek - 71000010344 50WEL-6K-PC-IP65 1200mm

Luminous emittance 1
Fitting: 1xLED
Light output ratio: 100%
Lamp luminous flux: 4090 lm
Luminaire luminous flux: 4090 lm
Power: 47.8 W
Luminous efficacy: 85.6 lm/W

Colorimetric data
1x: CCT 3000 K, CRI 100

64 Noortek - F04XA Series F024A 150W ST

Luminous emittance 1
Fitting: 1xNAVT150
Light output ratio: 71.19%
Lamp luminous flux: 14500 lm
Luminaire luminous flux: 10323 lm
Power: 150.0 W
Luminous efficacy: 68.8 lm/W

Colorimetric data
1x: CCT 3000 K, CRI 100

11 Noortek - Floodlux F045A-400W HPS

Luminous emittance 1
Fitting: 1xNAVT400
Light output ratio: 70.50%
Lamp luminous flux: 48000 lm
Luminaire luminous flux: 33838 lm
Power: 400.0 W
Luminous efficacy: 84.6 lm/W

Colorimetric data
1x: CCT 2000 K, CRI -

Total lamp luminous flux: 2117114 lm, Total luminaire luminous flux: 1685650 lm, Total Load: 19597.8 W, Luminous efficacy: 86.0 lm/W

Page 15
Pump Station - Surge vessels tanks plat view-I

NOTES:

1. The surge vessels tanks plant platform is mainly illuminated via (4) galvanized steel, 16 meters floodlighting poles with circular supporting bracket on
the top.

2. The floodlighting poles will be electrically supplied from the air compressor building Lighting-Power sub-distribution panel board (81DH01).

3. For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

4. For the distributed roadways lighting poles, reference is given to the station roadways lighting layout No. 81-QP10-S-415.

Page 16
NOTE:

For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

Page 17
Pump Station - Surge vessels tanks plat view-III

NOTE:

For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

Page 18
Pump Station - Surge vessels tanks plat view-IV

NOTE:

For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

RTCC - WATER & INFRA-STRUCTURE PROJECTS DEPARTMENT Page 19

Pump Station - Air compressors & chlorination buildings view-I

NOTES:

1. Floodlighting luminaires are installed to illuminate the operational & maintenance process platforms of each building, such as the air compressors
machines cooling tower platforms, the chlorination system scrubber unit and the chlorination building A/C system ACCUs platform.

2. According to the average illuminance demand & classification, some personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

3. For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

Page 20
Pump Station - Air compressors & chlorination buildings view-II

NOTES:

1. Floodlighting luminaires are installed to illuminate the operational & maintenance process platforms of each building, such as the air compressors
machines cooling tower platforms, the chlorination system scrubber unit and the chlorination building A/C system ACCUs platform.

2. According to the average illuminance demand & classification, some personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

3. For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

Page 21
Pump Station - Air compressors & chlorination buildings view-III

NOTES:

1. Floodlighting luminaires are installed to illuminate the operational & maintenance process platforms of each building, such as the air compressors
machines cooling tower platforms, the chlorination system scrubber unit and the chlorination building A/C system ACCUs platform.

2. According to the average illuminance demand & classification, some personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

3. For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

Page 22
Pump Station - Air compressors & chlorination buildings view-IV

NOTES:

1. Floodlighting luminaires are installed to illuminate the operational & maintenance process platforms of each building, such as the air compressors
machines cooling tower platforms, the chlorination system scrubber unit and the chlorination building A/C system ACCUs platform.

2. According to the average illuminance demand & classification, some personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

3. For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

Page 23
Pump Station - Air compressors & chlorination buildings view-V

NOTES:

1. Floodlighting luminaires are installed to illuminate the operational & maintenance process platforms of each building, such as the air compressors
machines cooling tower platforms, the chlorination system scrubber unit and the chlorination building A/C system ACCUs platform.

2. According to the average illuminance demand & classification, some personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

3. For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

Page 24
Pump Station - Air compressors & chlorination buildings view-VI

NOTES:

1. Floodlighting luminaires are installed to illuminate the operational & maintenance process platforms of each building, such as the air compressors
machines cooling tower platforms, the chlorination system scrubber unit and the chlorination building A/C system ACCUs platform.

2. According to the average illuminance demand & classification, some personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

3. For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

Page 25
Pump Station - Air compressors & chlorination buildings view-VII

NOTES:

1. Floodlighting luminaires are installed to illuminate the operational & maintenance process platforms of each building, such as the air compressors
machines cooling tower platforms, the chlorination system scrubber unit and the chlorination building A/C system ACCUs platform.

2. According to the average illuminance demand & classification, some personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

3. For preliminary layout of the floodlighting poles and the respective luminaires wattage installed over each pole in compliance with this lighting design,
reference is given to the Annex part.

Page 26
Pump Station - Main pump house general front yard & laydown platforms gates view-I

NOTES:

1. The general front yard and the laydown areas gateways are illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the main pump house Normal Lighting-Power sub-distribution panel board (81DE01).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 27
Pump Station - Main pump house general front yard & laydown platforms gates view-II

NOTES:

1. The general front yard and the laydown areas gateways are illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the main pump house Normal Lighting-Power sub-distribution panel board (81DE01).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 28
Pump Station - Main pump house station piping top of berm view-I

NOTES:

1. From safety and security point of views, the station piping top of berm was illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the main pump house Normal Lighting-Power sub-distribution panel board (81DE01).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 29
Pump Station - Main pump house station piping top of berm view-II

NOTES:

1. From safety and security point of views, the station piping top of berm was illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the main pump house Normal Lighting-Power sub-distribution panel board (81DE01).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 30
Pump Station - Main pump house station piping top of berm view-III

NOTES:

1. From safety and security point of views, the station piping top of berm was illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the main pump house Normal Lighting-Power sub-distribution panel board (81DE01).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 31
Pump Station - Electrical building eastern entrances view

NOTES:

1. According to the average illuminance demand & classification, some personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

2. All wall mounted luminaires shall be electrically supplied from the building Normal Lighting-Power sub-distribution panel board (81DC01).

3. For preliminary layout of the outdoor lighting system, refer to Annex part.

Page 32
Pump Station - Electrical building front view-II

NOTES:

1. The view shows the car-shaded parking lot, the open-roof parking area, the electrical building A/C system ACCU(s) platform, the electrical building
motors starters doorway and the auxiliary transformers bays.

2. For preliminary layout of the wall mounted floodlighting and the respective LED luminaires installed over each doorway in compliance with this lighting
design, reference is given to the Annex part.

3. For the distributed roadways lighting poles, reference is given to the station roadways lighting layout No. 81-QP10-S-415.

Page 33
Pump Station - Electrical building western entrances view

NOTES:

1. According to the average illuminance demand & classification, some personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

2. All wall mounted luminaires shall be electrically supplied from the building Normal Lighting-Power sub-distribution panel board (81DC01).

3. For preliminary layout of the outdoor lighting system, refer to Annex part.

Page 34
Pump Station - Electrical building back side view-I

Pump Station - Electrical building back side view-II

Page 35
Pump Station - Switchgear building entrances view

NOTES:

1. According to the average illuminance demand & classification, the personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

2. All wall mounted outdoor lighting fixtures shall be supplied from the building Normal Lighting-Power sub-distribution panel (81DI02).

3. For preliminary layout of the wall mounted LED luminaires in compliance with this lighting design, reference is given to the Annex part.

Page 36
Pump Station - Switchgear building A/C ACCU(s) platform view

Page 37
Pump Station - HV power transformers structure main front gateways view-I

NOTES:

1. Such high bay structures gateways are illuminated via floodlighting luminaires installed at the top of the gateways.

2. All wall mounted outdoor floodlighting luminaires shall be supplied from the switchgear building Normal Lighting-Power sub-distribution panel
(81DI02).

3. For preliminary layout of the wall mounted floodlighting luminaires in compliance with this lighting design, reference is given to the Annex part.

Page 38
Pump Station - HV power transformers structure main front gateways view-II

NOTES:

1. Such high bay structures gateways are illuminated via floodlighting luminaires installed at the top of the gateways.

2. All wall mounted outdoor floodlighting luminaires shall be supplied from the switchgear building Normal Lighting-Power sub-distribution panel
(81DI02).

3. For preliminary layout of the wall mounted floodlighting luminaires in compliance with this lighting design, reference is given to the Annex part.

Page 39
Pump Station - HV power transformers structure back side personnel entry gateways view

NOTES:

1. For the HV power transformers bays lighting design justification via the interior floodlighting & LED linear industrial luminaires, reference shall be
given to report No. 81-QC20-J-413_0.

2. All interior installed luminaires (floodlighting & LED) shall be supplied from the switchgear building Normal Lighting-Power sub-distribution panel
(81DI02).

Page 40
Pump Station - Cooling water system building main gateway & northern personnel exit doorway view

NOTES:

1. According to the average illuminance demand & classification, the personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

2. All wall mounted outdoor lighting fixtures shall be supplied from the building Normal Lighting-Power sub-distribution panel (81DI03).

3. For preliminary layout of the wall mounted floodlighting & LED luminaires in compliance with this lighting design, reference is given to the Annex part.

Page 41
Pump Station - Cooling water system building main gateway & southern personnel exit doorway view

NOTES:

1. According to the average illuminance demand & classification, the personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

2. All wall mounted outdoor lighting fixtures shall be supplied from the building Normal Lighting-Power sub-distribution panel (81DI03).

3. For preliminary layout of the wall mounted floodlighting & LED luminaires in compliance with this lighting design, reference is given to the Annex part.

Page 42
Pump Station - Emergency generator building eastern doorways view

NOTES:

1. All wall mounted outdoor lighting fixtures shall be supplied from the building Normal Lighting-Power sub-distribution panel (81DG01).

2. For preliminary layout of the wall mounted floodlighting luminaires in compliance with this lighting design, reference is given to the Annex part.

Page 43
Pump Station - Emergency generator building eastern doorways view

NOTES:

1. All wall mounted outdoor lighting fixtures shall be supplied from the building Normal Lighting-Power sub-distribution panel (81DG01).

2. For preliminary layout of the wall mounted floodlighting luminaires in compliance with this lighting design, reference is given to the Annex part.

Page 44
Pump Station - Booster pump house general front yard & laydown platforms gates view-I

NOTES:

1. The general front yard and the laydown areas gateways are illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the booster pump house Normal Lighting-Power sub-distribution panel board (81DE02).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 45
Pump Station - Main pump house general front yard & laydown platforms gates view-II

NOTES:

1. The general front yard and the laydown areas gateways are illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the booster pump house Normal Lighting-Power sub-distribution panel board (81DE02).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 46
Pump Station - Main pump house general front yard & laydown platforms gates view-III

NOTES:

1. The general front yard and the laydown areas gateways are illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the booster pump house Normal Lighting-Power sub-distribution panel board (81DE02).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 47
Pump Station - Booster pump house station piping top of berm view-I

NOTES:

1. From safety and security point of views, the station piping top of berm was illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the booster pump house Normal Lighting-Power sub-distribution panel board (81DE02).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 48
Pump Station - Booster pump house station piping top of berm view-II

NOTES:

1. From safety and security point of views, the station piping top of berm was illuminated via wall mounted floodlighting luminaires.

2. The floodlighting luminaires will be electrically supplied from the booster pump house Normal Lighting-Power sub-distribution panel board (81DE02).

3. For a preliminary layout for the outdoor lighting system, reference is given to the Annex part.

Page 49
Pump Station - Water quality monitoring building view-I

NOTES:

1. According to the average illuminance demand & classification, the personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

2. All wall mounted outdoor lighting fixtures shall be supplied from the building Normal Lighting-Power sub-distribution panel (81DI04).

3. For preliminary layout of the wall mounted LED luminaires in compliance with this lighting design, reference is given to the Annex part.

Page 50
Pump Station - Water quality monitoring building view-II

NOTES:

1. According to the average illuminance demand & classification, the personnel doorways (entrances) have been lit via dedicated LED industrial
luminaire.

2. All wall mounted outdoor lighting fixtures shall be supplied from the building Normal Lighting-Power sub-distribution panel (81DI04).

3. For preliminary layout of the wall mounted LED luminaires in compliance with this lighting design, reference is given to the Annex part.

Page 51
Pump Station - Overall view-I

Pump Station - Overall view-II

Page 52
Pump Station - Overall view-III

Pump Station - Overall view-IV

RTCC - WATER & INFRA-STRUCTURE PROJECTS DEPARTMENT Page 53

Pump Station - Overall view-V

Page 54
Pump Station - Overall view-V

Page 55
