제1장 Introduction

AI VIETNAM
All-in-One Course

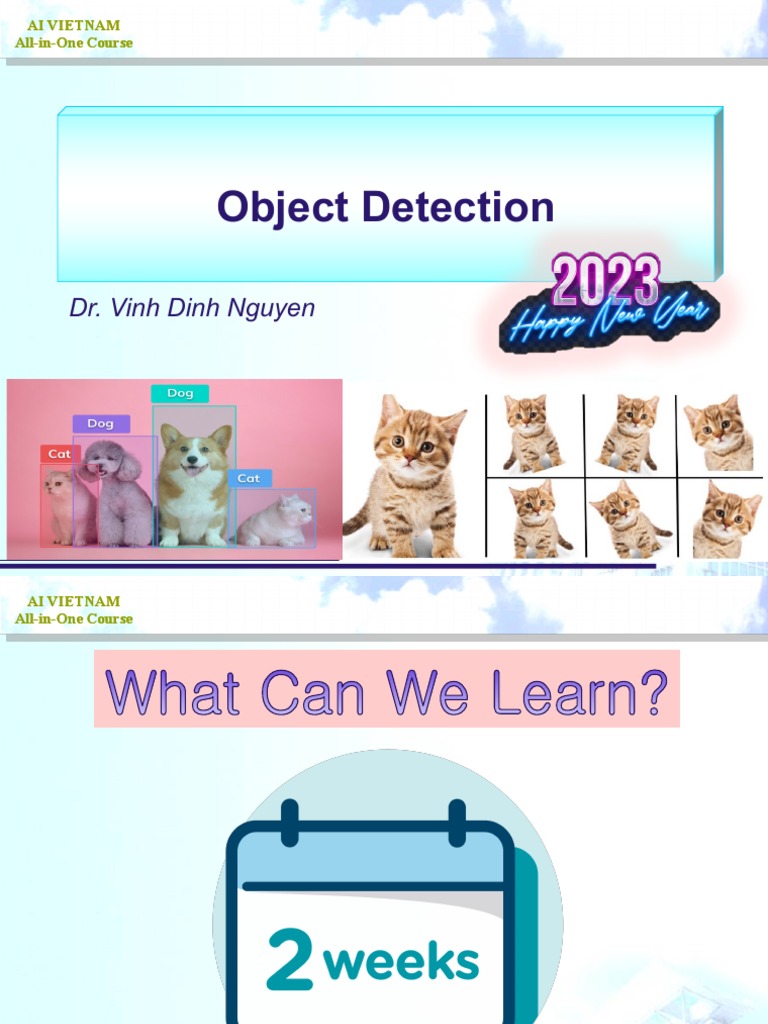

Object Detection

Dr. Vinh Dinh Nguyen

 제1장 Introduction
AI VIETNAM
All-in-One Course

2
 제1장 Introduction
AI VIETNAM
All-in-One Course

Shaoxi Li et al. “Survey on Deep Learning-Based Marine Object Detection”, 2021

3
 제1장 Introduction
AI VIETNAM
All-in-One Course

4
 제1장 Introduction
AI VIETNAM
All-in-One Course

5
 제1장 Introduction
AI VIETNAM
Tentative Calendar for Research Course (Feb, 2023)
All-in-One Course

How to write and publish research paper in reputed

international conference and journals

6
 제1장 Introduction
AI VIETNAM
All-in-One Course

7
 제1장 Introduction
AI VIETNAM
All-in-One Course

8
 What is this?
제1장 Introduction
AI VIETNAM
All-in-One Course

9
 Application
제1장 Introduction
AI VIETNAM
All-in-One Course

10
 제1장 Introduction
AI VIETNAM
All-in-One Course

Car and Pedestrian Detection

1. V. D. Nguyen et. al: “ Real-time Vehicle Detection Using an Effective Region Proposal-based Depth and 3-channel Pattern“, IEEE Tran
sactions on Intelligent Transportation System (ITS), 2019 (ISI Q1).
2. V. D. Nguyen et al. ,“ Learning Framework for Robust Obstacle Detection, Recognition, and Tracking“, IEEE Transactions on Intelligent
Transportation System (ITS), 2017, (ISI Q1).
 제1장 Introduction
AI VIETNAM
All-in-One Course

V. D. Nguyen et al., “Real-time Vehicle

Detection Using an Effective Region
Proposal-based Depth and 3-channel
Pattern”, IEEE Transactions on Intelligent
Transportation System (ITS), 2019

12
 제1장 Introduction
AI VIETNAM
All-in-One Course

V. D. Nguyen et al., “Learning Framework for Robust Obstacle

Detection, Recognition, and Tracking“, IEEE Transactions on Intelligent
Transportation System (ITS), 2017

13
 제1장 Introduction
AI VIETNAM
All-in-One Course

Our Experimental Results

14
 제1장 Introduction
AI VIETNAM
All-in-One Course

Hyundai Driving Contest, South Korea 2017

1st rank in Software Algorithms Contest

Pedestrian, Car, Lane, Traffic Light and Traffic Sign Detection

15
 제1장 Introduction
AI VIETNAM
All-in-One Course

DISPARITY ESTIMATION

Left imag Right image Proposed Existing

e
1. V. D. Nguyen et al.: " Feature Engineering and Deep. Learning for Stereo Matching Under Adverse Driving Conditions," in IEEE. Transactions o
n Intelligent Transportation Systems, 2021 (ISI Q1).
2. V. D. Nguyen et. al,“ Robust Stereo Matching with Learning Strategy“, IEEE Transactions on Intelligent Transportation System (ITS), Vol. 18,
No. 2, pp. 248-258, 2017 (ISI Q1).
 제1장 Introduction
AI VIETNAM
All-in-One Course

V. D. Nguyen et al., “Feature Engineering and Deep. Learning for

Stereo Matching Under Adverse Driving Conditions”, IEEE Transaction
on Intelligent Transportation System, 2021.
 제1장 Introduction
AI VIETNAM
All-in-One Course

V. D. Nguyen et al. ,“Robust Stereo Matching with Learning

Strategy“, IEEE Transactions on Intelligent Transportation System
(ITS), 2017
 제1장 Introduction
AI VIETNAM
All-in-One Course

TRAFFIC VIOLATION DETECTION

1. V. D. Nguyen et. al: “Robust Traffic Light Detection and Classification Under Day and Night Conditions”, International Conference on C
ontrol, Automation and Systems, IEEE Explore, 2020
2. V. D. Nguyet et. al: “Robust and Real- Time Obstacle Region Detection Based on Depth Feature for Vehicle Detection”, Advances in Int
elligent Systems and Computing, Springer, 2020.
 제1장 Introduction
AI VIETNAM
All-in-One Course

SOCIAL DISTANCING ALARM

1. V. D. Nguyen et al.: “Robust Face Mask Detection Using Local Binary Pattern and Deep Learning. Lecture Notes on Data Engineering a
nd. Communications Technologies, Springer, 2022.
 제1장 Introduction
AI VIETNAM
All-in-One Course

OBSTACLE DETECTION UNDER HOSTILE DR

IVING CONDITIONS

1. V. D. Nguyen et. al.: “Triangular Pattern-based Sigmoid Algorithm for A Robust Raspberry Pi-based Autonomous Driving System under
Various Driving Conditions”, IEEE. Transactions on Intelligent Transportation Systems, Under Minor Revision, 2023
2. V. D. Nguyen et. al: A Deep Learning Framework for Robust and Real-Time Taillight Detection Under Various Road Conditions, in IEEE.
Transactions on Intelligent Transportation Systems, 2022 (ISI Q1).
3. V. D. Nguyen et.al,: "Local Tetra Pattern and Its Benefits to Improve the Performance of Car and Pedestrian. Detection Under Hostile Co
nditions," International Conference on Control, Automation and Systems, IEEE Explore, 2021.
 제1장 Introduction
AI VIETNAM
All-in-One Course
 제1장 Introduction
AI VIETNAM
All-in-One Course

Blueberry Leaves Diseases Classification

(Joint Research with Department of Plant Physiology-Biochemistry, College of A
griculture, Can Tho University)

1. V. D. Nguyen et. al., “Robust Plant Leaves Diseases Classification Using EfficientNet and Residual Block”, World Conference on Inform
ation Systems for Business Management, Scopus Q3. 2022
 제1장 Introduction
AI VIETNAM
All-in-One Course

SKIN DISEASE DETECTION

EIU Student’s Project (under development)

1. V. D. Nguyen et. al., “Mobile Application for Robust Skin Cancer Detection-based Deep Learning Model”, Eastern International University Sci
entific Research Conference (EIUSRC 2022), accepted.
 제1장 Introduction
AI VIETNAM
All-in-One Course

SKIN DISEASE DETECTION

EIU Student’s Project (under development)

1. V. D. Nguyen et. al., “Mobile Application for Robust Skin Cancer Detection-based Deep Learning Model”, Eastern International University Scie
ntific Research Conference (EIUSRC 2022), accepted.
2. V. D. Nguyet et. al. “Efficient Deep Learning Model for Skin Disease Detection and Classification”, preparing to submit to IEEE Transactions o
n Medical Imaging (ISI Q1).
 제1장 Introduction
AI VIETNAM
All-in-One Course

The objective of object detection is to develop

computational models and techniques that provide one
of the most basic pieces of information needed by
computer vision applications:
What objects are where?

26
 제1장 Introduction
AI VIETNAM
All-in-One Course

27
 제1장 Introduction
AI VIETNAM
All-in-One Course

28
 제1장 Introduction
AI VIETNAM
All-in-One Course

29
 제1장 Introduction
AI VIETNAM
All-in-One Course

30
 제1장 Introduction
AI VIETNAM
All-in-One Course Traditional Object Detection

31
 What kind of patches?
제1장 Introduction
AI VIETNAM
All-in-One Course

32
 Planes
제1장 Introduction
AI VIETNAM
All-in-One Course

33
 Edges
제1장 Introduction
AI VIETNAM
All-in-One Course

34
 Corners
제1장 Introduction
AI VIETNAM
All-in-One Course

35
 제1장 Introduction
AI VIETNAM
All-in-One Course

Corner Detection

36
 제1장 Introduction
AI VIETNAM
All-in-One Course

37
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

Viola Jones Detectors

This algorithm was developed by two people named Paul Viola and
Michael Jones (in 2001).

Achieve real-time detection of human faces for the first time without
any constraints (e.g., skin color segmentation).

The VJ detector follows a most straight forward way of detection,

i.e., sliding windows: to go through all possible locations and scales
in an image to see if any window contains a human face.

The VJ detector has dramatically improved its detection speed by

incorporating three important techniques: “integral image”, “feature
selection”, and “detection cascades.

38
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

Viola Jones Detectors

39
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

Viola Jones Detectors

40
 제1장 Introduction
AI VIETNAM
All-in-One Course

Integral Image

41
 RANDOM FOREST
제1장 Introduction
AI VIETNAM
All-in-One Course

TREE ARE INDEPENDTLY CREATED

42
 AdaBoost: FOREST OF STUMP
제1장 Introduction
AI VIETNAM
All-in-One Course

Stump are not equally weighted in the final decision.

Stump that create more error will have less
contribution in the final decision

43
 AdaBoost: FOREST OF STUMP
제1장 Introduction
AI VIETNAM
All-in-One Course

1 2

Imfluence

44
 AI VIETNAM
THREE MAIN DIFFERENTS BETWEEN 제1장 Introduction

All-in-One Course RANDOM FOREST AND ADABOOST

45
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

Viola Jones Detectors

46
 제1장 Introduction
AI VIETNAM
All-in-One Course Traditional Object Detection
Viola Jones Detectors

47
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient

An image gradient is a directional change in the intensity or color in an im

age. The gradient of the image is one of the fundamental building blocks in im
age processing. For example, the Canny edge detector uses image gradient
for edge detection.

48
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient

An image gradient is a directional change in the intensity or color in an im

age. The gradient of the image is one of the fundamental building blocks in im
age processing. For example, the Canny edge detector uses image gradient
for edge detection.

49
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient

An image gradient is a directional change in the intensity or color in an im

age. The gradient of the image is one of the fundamental building blocks in im
age processing. For example, the Canny edge detector uses image gradient
for edge detection.

50
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient

An image gradient is a directional change in the intensity or color in an im

age. The gradient of the image is one of the fundamental building blocks in im
age processing. For example, the Canny edge detector uses image gradient
for edge detection.

51
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient

An image gradient is a directional change in the intensity or color in an im

age. The gradient of the image is one of the fundamental building blocks in im
age processing. For example, the Canny edge detector uses image gradient
for edge detection.

Sobel Kernel
Code: https://colab.research.google.com/drive/1EtxlG4XR
52 grs0F7N8ivHQ6JZvVRboQx-8?usp=sharing
 제1장 Introduction
AI VIETNAM
All-in-One Course

53
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient:
Step 1 : Preprocessing

In the case of the HOG feature descriptor,

the input image is of size 64 x 128 x 3 = 24576 and
54 the output feature vector is of length 3780
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient:
Step 2 : Calculate the Gradient Images

55
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient:
Step 3 : Calculate Histogram of Gradients in 8×8 cells

56
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient: Step 3

57
 제1장 Introduction
AI VIETNAM
All-in-One Course

58
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

Histogram of Oriented Gradient:
Step 4 : 16×16 Block Normalization

105x36x1 = 3780x1

59
 제1장 Introduction
AI VIETNAM
All-in-One Course

60
 Traditional Object Detection
제1장 Introduction
AI VIETNAM
All-in-One Course

HOG + Linear SVM

The first key ingredient from HOG + Linear SVM is to use image
pyramids.

61
 HOG + Linear SVM
제1장 Introduction
AI VIETNAM
All-in-One Course

The second key ingredient we need is sliding windows:

62
 HOG + Linear SVM
제1장 Introduction
AI VIETNAM
All-in-One Course

Combined with image pyramids, sliding windows allow us to localize objects at different
locations and multiple scales of the input image

63
 HOG + Linear SVM
제1장 Introduction
AI VIETNAM
All-in-One Course

The final key ingredient we need is non-maxima suppression.

64
 Measuring object detection accuracy with
AI VIETNAM
제1장 Introduction

Intersection over Union (IoU)

All-in-One Course

65
 제1장 Introduction
AI VIETNAM
All-in-One Course

66
 제1장 Introduction
AI VIETNAM
All-in-One Course

67
 제1장 Introduction
AI VIETNAM
All-in-One Course

68
 제1장 Introduction
AI VIETNAM
All-in-One Course

69
 제1장 Introduction
AI VIETNAM
All-in-One Course

70
 Limitations of NMS
제1장 Introduction
AI VIETNAM
All-in-One Course

71
 Soft NMS
제1장 Introduction
AI VIETNAM
All-in-One Course

The idea is very simple — “instead of completely removing the proposals with high IOU
and high confidence, reduce the confidences of the proposals proportional to IOU value”

72
 제1장 Introduction
AI VIETNAM
All-in-One Course

73
 제1장 Introduction
AI VIETNAM
All-in-One Course

74
 제1장 Introduction
AI VIETNAM
All-in-One Course

Most traditional object detection algorithms like Viola–

Jones, and Histogram of Oriented Gradients (HOG)are
relied on extracting handcrafted features like edges,
corners, gradients from the image and classical machine
learning algorithms.

For example, The Viola–Jones, a first object detector, was

only designed to detect frontal faces of humans and did not
do well on sideways and up/down faces.

75
 제1장 Introduction
AI VIETNAM
All-in-One Course

The traditional computer vision approaches were in the

game until 2010.

From 2012, a new era of convolutional neural networks

started when AlexNet (an image classification network)
won the ImageNet Visual Recognition challenge.

76
 제1장 Introduction
AI VIETNAM
All-in-One Course

Then, in 2012 came a new era. A revolution that changed

the game for computer vision entirely when AlexNet, a
Deep Convolutional Neural Network (CNN) architecture,
was born out of the need to improve the results of the
ImageNet challenge achieved considerable accuracy on
the 2012 ImageNet LSVRC-2012 challenge with an
accuracy of 84.7% as compared to the second-best with an
accuracy of 73.8%.

77
 제1장 Introduction
AI VIETNAM
All-in-One Course

ImageNet Dataset

78
 CNN for Image Classification
제1장 Introduction
AI VIETNAM
All-in-One Course

https://poloclub.github.io/cnn-explainer/
79
 제1장 Introduction
AI VIETNAM
All-in-One Course

LetNet AlexNet
1998 2012

80
 제1장 Introduction
AI VIETNAM
All-in-One Course

81
 제1장 Introduction
AI VIETNAM
All-in-One Course

AlexNet 2012

82
 제1장 Introduction
AI VIETNAM
All-in-One Course

ZFNet in 2013

83
 제1장 Introduction
AI VIETNAM
All-in-One Course

VGG in 2014

84
 제1장 Introduction
AI VIETNAM
All-in-One Course

GoogleNet in 2014

85
 제1장 Introduction
AI VIETNAM
All-in-One Course

ResNet in 2015

86
 제1장 Introduction
AI VIETNAM
All-in-One Course

SqueezeNet

87
 제1장 Introduction
AI VIETNAM
All-in-One Course

88
 ALEXNET IMPLEMENTATION
제1장 Introduction
AI VIETNAM
All-in-One Course

https://colab.research.google.com/drive/1EtxlG4XRgrs0F7N8ivHQ6JZvVRbo
89 Qx-8?usp=sharing
 제1장 Introduction
AI VIETNAM
All-in-One Course

90
 Assignment
제1장 Introduction
AI VIETNAM
All-in-One Course

Implement Object Detection by using Tradditional

approach

ResNet50

Code: https://colab.research.google.com/drive/1EtxlG4XRgrs0F7N8ivHQ6JZvVR
boQx-8?usp=sharing
 Assignment
제1장 Introduction
AI VIETNAM
All-in-One Course

Implement Object Detection by using tradditional

approach

ResNet50

Code: https://colab.research.google.com/drive/1EtxlG4XRgrs0F7N8ivHQ6JZvVR
boQx-8?usp=sharing
 제1장 Introduction
AI VIETNAM
All-in-One Course

93
 제1장 Introduction
AI VIETNAM
All-in-One Course

Hence, Girschick et al. (2014) showed how we could use

convolutional features for object detection, introducing R-
CNN (applying CNN on region proposals). Since then,
object detection has started to evolve at an unprecedented
speed.

In deep learning era, object detection can be grouped into

two genres: “two-stage detection” and “one-stage
detection”, where the former frames the detection as a
“coarse- to-fine” process while the later frames it as to
“complete in one step”.

94
 The single-stage and two-stage detector
제1장 Introduction
AI VIETNAM
All-in-One Course

95
 제1장 Introduction
AI VIETNAM
All-in-One Course

96
 Image classification vs. object detection
제1장 Introduction
AI VIETNAM
All-in-One Course

97
 제1장 Introduction
AI VIETNAM
All-in-One Course

98
 Classification Pipleline
제1장 Introduction
AI VIETNAM
All-in-One Course

99
 Classification
제1장 Introduction
AI VIETNAM
All-in-One Course

100
 Softmax Classification
제1장 Introduction
AI VIETNAM
All-in-One Course

101
 Ideas for Localization using ConvNets
제1장 Introduction
AI VIETNAM
All-in-One Course

x1,y1 w

h
x0,y0
X2,y2
102
 BOUNDING BOX REGRESSION TRAINING
제1장 Introduction
AI VIETNAM
All-in-One Course

103
 제1장 Introduction
AI VIETNAM
All-in-One Course

104
 제1장 Introduction
AI VIETNAM
All-in-One Course

105
 제1장 Introduction
AI VIETNAM
All-in-One Course

106
 제1장 Introduction
AI VIETNAM
All-in-One Course

Ideas for Detection

Confidence scores

Localization CNN
BBox

Neither do I know the number of objects

nor the location of those objects
 제1장 Introduction
AI VIETNAM
All-in-One Course

Ideas for Detection – Sliding Window

Confidence scores

Localization CNN
BBox
 제1장 Introduction
AI VIETNAM
All-in-One Course

Ideas for Detection – Sliding Window + Image Pyramid

Smaller objects Sliding Window – Location Larger objects

Image Pyramid - Scale
 제1장 Introduction
AI VIETNAM
All-in-One Course

Ideas for Detection using ConvNets

Crop + Resize with Sliding Window + Image Pyramid
Sliding Window – Location
Image Pyramid - Scale
Get Class scores
Using Softmax

AlexNet/VGG

Conv and Pool Layers Get Bounding boxes

Feature Maps Using L2 loss
As Feature Extractors
(x1, y1, x2, y2)

Image Credit - http://host.robots.ox.ac.uk/pascal/VOC/voc2012/examples/index.html For example, to process an image of 800x800, if the

sliding window size is 224, we will end up with
331,776‬ crops.
 제1장 Introduction
AI VIETNAM
All-in-One Course

Problem: ConvNets input size constraints

 Solution
제1장 Introduction
AI VIETNAM
All-in-One Course

Implement the Fully Connected layer operation as a

convolution operation

112
 제1장 Introduction
AI VIETNAM
All-in-One Course

Problem: ConvNets input size constraints – FC as Conv

Pooled
Image Weights/Filter Feature Maps Pool FV FC Layers
Feature Maps
0 0 0 0 0 0 0 0
0 0
0 0
0 0 H
0 0 V
0 0
0 0
0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0
0 0
0 0
0 0
H
0 0
0 0
0 0
V
0 0
0 0
0 0 0 0 0 0 0 0 0 0

1. Does this make sense?

2. If so, what does this mean?
 제1장 Introduction
AI VIETNAM
All-in-One Course

Receptive Field

2x2 Pool 2x2 Pool

Stride = 2 Stride = 2

2x2 1x1
4x4

2x2 Pool 2x2 Pool

Stride = 2 Stride = 2

2x2
4x4
8x8

Every value in the output encodes information from some 4x4 patch of the image.
 제1장 Introduction
AI VIETNAM
All-in-One Course

ConvNets input size constraints

Pooled FC Layers
Image Weights/Filter Feature Maps
Feature Maps
0 0 0 0 0 0 0 0
0 0
0 0 H
0 0
0 0 V
0 0
0 0
0 0 0 0 0 0 0 0

Same Localization CNN

0 0 0 0 0 0 0 0 0 0
0 0
0
0
0
0
H
0 0
0 0
0 0 V
0 0
0 0
0 0 0 0 0 0 0 0 0 0 Spatial output
1. Does this make sense? -> yes
2. If so, what does this mean? -> Represents the computations on different portions of the image.
 제1장 Introduction
AI VIETNAM
All-in-One Course

Spatial Output as Sliding Window

CNN
 제1장 Introduction
AI VIETNAM
All-in-One Course

ConvNets and Sliding Window Efficiency

Confidence scores

Localization CNN
BBox

Localization CNN

V
 제1장 Introduction
AI VIETNAM
All-in-One Course

ConvNets and Sliding Window Efficiency

0 0 255 255 0 0 255 255
0 0 255 255 0 0 255 255 -765 -765 765 765 -765 -765
0 0 255 255 0 0 255 255 -765 -765 765 765 -765 -765
1 0 -1
0 0 255 255 0 0 255 255 -765 -765 765 765 -765 -765
1 0 -1
0 0 255 255 0 0 255 255 -765 -765 765 765 -765 -765
1 0 -1
0 0 255 255 0 0 255 255 -765 -765 765 765 -765 -765
0 0 255 255 0 0 255 255 3x3 -765 -765 765 765 -765 -765
0 0 255 255 0 0 255 255
6x6
8x8
0 0 255 255 0 0 255 255 0 0
0 0 255 255 0 0 255 255 0 0 -765 -765 765 765 -765 -765 765 765
0 0 255 255 0 0 255 255 0 0 -765 -765 765 765 -765 -765 765 765
0 0 255 255 0 0 255 255 0 0 -765 -765 765 765 -765 -765 765 765
1 0 -1
0 0 255 255 0 0 255 255 0 0 -765 -765 765 765 -765 -765 765 765
1 0 -1
0 0 255 255 0 0 255 255 0 0 -765 -765 765 765 -765 -765 765 765
1 0 -1
0 0 255 255 0 0 255 255 0 0 -765 -765 765 765 -765 -765 765 765
0 0 255 255 0 0 255 255 0 0 3x3 -765 -765 765 765 -765 -765 765 765
0 0 255 255 0 0 255 255 0 0 -765 -765 765 765 -765 -765 765 765
0 0 255 255 0 0 255 255 0 0
10x10 8x8

255 255 0 0 255 255 0 0

255 255 0 0 255 255 0 0
255 255 0 0 255 255 0 0 1 0 -1 765 765 -765 -765 765 765
255 255 0 0 255 255 0 0 1 0 -1 765 765 -765 -765 765 765
255 255 0 0 255 255 0 0 1 0 -1 765 765 -765 -765 765 765
255 255 0 0 255 255 0 0 765 765 -765 -765 765 765
255 255 0 0 255 255 0 0
3x3 765 765 -765 -765 765 765
255 255 0 0 255 255 0 0 765 765 -765 -765 765 765

8x8 6x6
 제1장 Introduction
AI VIETNAM
All-in-One Course

Spatial Output for Image Pyramids

H V
H V
 제1장 Introduction
AI VIETNAM
All-in-One Course

Spatial Output for Image Pyramids

H V
H V
 제1장 Introduction
AI VIETNAM
All-in-One Course

With Spatial Outputs, we can detect different objects at

different locations of the image. Below figure shows a
2x3 Spatial Output for a sample image.

121
 OverFeat:
AI VIETNAM Integrated Recognition, Localization and Detection제1장 Introduction
using
All-in-One Course
Convolutional Networks

Overfeat
Sliding Window Crop FC as Conv (No input size constraint) + Spatial Output + Image Pyramid

Resolution = 36 How to modify localization framework to convert FC as Conv?

461x569 425x497 389x461 317x389 281x317

2x3
3x5
5x7
6x7

7x10

245x245
Smaller objects Larger objects
If you want to detect even smaller objects, use even bigger image pyramids. Trade-off, increase in computation
 Intuition behind OverFeat Network
제1장 Introduction
AI VIETNAM
All-in-One Course

1. Use the same localization network, without using the

Sliding Window crops at different locations.
2. No input size constraint, be able to use the Image
pyramids.
3. Use Image Pyramids, we will get the Spatial Output,
which will give us detections at different locations of
the image.
4. The entire network is using Convolution operations, it
is way more efficient than taking crops.

This Network won the ImageNet 2013 localization task (ILSVRC2013) and obtained very
competitive results for the detection and classifications tasks.

123
 Resolution
제1장 Introduction
AI VIETNAM
All-in-One Course

124
 Resolution
제1장 Introduction
AI VIETNAM
All-in-One Course

Resolution = 36 How to modify localization framework to convert FC as Conv?

461x569 425x497 389x461 317x389 281x317

2x3
3x5
5x7
6x7

7x10

245x245

125
 제1장 Introduction
AI VIETNAM
All-in-One Course

Overfeat - Classification

OverFeat: Integrated Recognition, Localization and Detection using Convolutional Networks – Sermanet et al
Images Credit – Overfeat paper & https://towardsdatascience.com/object-localization-in-overfeat-5bb2f7328b62
 Let’s look at the FC layers in detail
제1장 Introduction
AI VIETNAM
All-in-One Course
 제1장 Introduction
AI VIETNAM
All-in-One Course

But, how would you change the design to get a

depth of 4096 at 2nd and 3rd FC layers?
128
 제1장 Introduction
AI VIETNAM
All-in-One Course

N layer Conv – M Feature Maps

 제1장 Introduction
AI VIETNAM
All-in-One Course

Overfeat
Fully Connected layer implemented as a convolution layer

Conv Output Feature Map Outputs Filters Final output

+ Feature Map For C Classes
Pool Layers From Conv+Pool

x256 256*4096 4096* xC

4096*
x4096 4096 x4096
C

1x1 1x1 1x1 1x1

5x5 1x1
245x245
First 5 Layers of Feature Map
AlexNet (Modified) 5x5

OverFeat: Integrated Recognition, Localization and Detection using Convolutional Networks – Sermanet et al
Images Credit – Overfeat paper & https://towardsdatascience.com/object-localization-in-overfeat-5bb2f7328b62
 Overfeat Detection Network
제1장 Introduction
AI VIETNAM
All-in-One Course

131
 제1장 Introduction
AI VIETNAM
All-in-One Course

Problem of Multiple Detections

281x317
 제1장 Introduction
AI VIETNAM
All-in-One Course

Non Max Suppression

Spatial Output

Softmax instead of SVM

Human detection as an example
 제1장 Introduction
AI VIETNAM
All-in-One Course

Results
1x1xC
2x3xC
3x5xC
Won the ImageNet Loc 5x7xC
alization challenge in 2 6x7xC
013 7x10xC

3x3xC
6x9xC
9x15xC
15x21xC
18x21xC
21x30xC

3 3 9
6 9 54
9 15 135
15 21 315
18 21 378
21 30 630
1521
x21 = 31941
 제1장 Introduction
AI VIETNAM
All-in-One Course

Model Size
 제1장 Introduction
AI VIETNAM
All-in-One Course

Model Sizes AlexNet

11*11*3*96 13*13*256*4096
=34,848 =177,209,344
=~30KB =~177MB
Total Weight FC Outpu
Input Conv Filter Output s Approx FC input t Total Weights Approx
3 11 11 96 34848 34KB 43264 4096 177209344 177MB
96 5 5 256 614400 600KB 4096 4096 16777216 16MB
256 3 3 384 884736 900KB 4096 1000 4096000 4MB
384 3 3 384 1327104 1.3MB 198082560 ~=198MB
384 3 3 256 884736 900KB
13 Conv Layers
3745824 3.7MB
 제1장 Introduction
AI VIETNAM
All-in-One Course

Model Sizes - VGGNet

Input Conv Filter Output Total Weights Approx FC Outpu

3 3 3 64 1728 1.7KB FC input t Total Weights Approx
64 3 3 64 36864 36KB 25088 4096 102760448 102MB
64 3 3 128 73728 73KB 4096 4096 16777216 16MB
128 3 3 128 147456 150KB 4096 1000 4096000 4MB
128 3 3 256 294912 300KB 123633664 123MB
256 3 3 256 589824 600KB • You can increase the depth of your CNN with
256 3 3 256 589824 600KB out significantly increasing model size.
256 3 3 512 1179648 1.2MB • But even for a 3 layer FC Network, you need s
512 3 3 512 2359296 2.4MB ignificant memory for weights.
512 3 3 512 2359296 2.4MB • How can we do Classifications/Bbox regressio
512 3 3 512 2359296 2.4MB n without significantly increasing model size?
512 3 3 512 2359296 2.4MB
512 3 3 512 2359296 2.4MB 13 Conv Layers
14710464 14MB
 제1장 Introduction
AI VIETNAM
All-in-One Course

138
 제1장 Introduction
AI VIETNAM
All-in-One Course

139
 제1장 Introduction
AI VIETNAM
All-in-One Course

140
 LIMITATIONS of CNN
제1장 Introduction
AI VIETNAM
All-in-One Course

141
 LIMITATIONS
제1장 Introduction
AI VIETNAM
All-in-One Course

Considering candidates on Object Regions only?

142
 REGION PROPOSAL METHODS
제1장 Introduction
AI VIETNAM
All-in-One Course

Xiangteng He, Yuxin Peng, Junjie Zhao, “Fine-grained Discriminative Localization via Saliency-g
uided Faster R-CNN”, 2023
143
 REGION PROPOSAL METHODS
제1장 Introduction
AI VIETNAM
All-in-One Course

Xiangteng He, Yuxin Peng, Junjie Zhao, “Fine-grained Discriminative Localization via Saliency-g
uided Faster R-CNN”, 2023
144
 REGION PROPOSAL METHODS
제1장 Introduction
AI VIETNAM
All-in-One Course

145
 REGION PROPOSAL METHODS
제1장 Introduction
AI VIETNAM
All-in-One Course

Egde Density

146
 REGION PROPOSAL METHODS
제1장 Introduction
AI VIETNAM
All-in-One Course

Segmentation techniques

147
 Region Proposal Method Comparisons
제1장 Introduction
AI VIETNAM
All-in-One Course

Jan Hosang, Rodrigo Benenson, Bernt Schiele, “How good are detection
proposals, really?”, 2014
148
 EDGE BOXES
제1장 Introduction
AI VIETNAM
All-in-One Course

Zitnick, C.L., Dollár, P. (2014). Edge Boxes: Locating Object Proposals from Edges. In: Fle
et, D., Pajdla, T., Schiele, B., Tuytelaars, T. (eds) Computer Vision – ECCV 2014. ECCV 20
14. Lecture Notes in Computer Science, vol 8693. Springer, Cham. https://doi.org/10.1
007/978-3-319-10602-1_26
149
 제1장 Introduction
AI VIETNAM
All-in-One Course

150
 제1장 Introduction
AI VIETNAM
All-in-One Course

153
 R-CNN
제1장 Introduction
AI VIETNAM
All-in-One Course

The R-CNN was described in the 2014 paper by Ross

Girshick, et al. from UC Berkeley titled “Rich feature
hierarchies for accurate object detection and semantic
segmentation.”

154
 Region Proposals
제1장 Introduction
AI VIETNAM
All-in-One Course

Selective Search

155
 CNN Model
제1장 Introduction
AI VIETNAM
All-in-One Course

156
 제1장 Introduction
AI VIETNAM
All-in-One Course

RCNN - Region proposals with CNNs

Localization CNN
fc6 fc7
4096 4096

Get Class scores

Using Softmax
C class scores
x256
Selective Search

AlexNet/VGG
Regions

6x6

6x6x256= Get Bounding boxes,

9216 per class
227x227 (x1, y1, x2, y2)

Rich feature hierarchies for accurate object detection and semantic segmentation - Ross Girshick, Jeff Donahue, Trevor Darrell, Jitendra Malik
 제1장 Introduction
AI VIETNAM
All-in-One Course

RCNN - Region proposals with CNNs

Localization CNN
fc6 fc7
4096 4096

Get
GetClass
Classscores
scores
Using SVM
Using Softmax
Linear
C classSVM per class
scores
x256
Selective Search

2000 AlexNet/VGG
Cropped &
Warped
regions
6x6

6x6x256= Get Bounding boxes,

9216 per class
227x227 (x1, y1, x2, y2)

Rich feature hierarchies for accurate object detection and semantic segmentation - Ross Girshick Jeff Donahue Trevor Darrell Jitendra Mali
k
 제1장 Introduction
AI VIETNAM
All-in-One Course

RCNN
Classical CV CNN 3 Stage Training
Stage 1 Stage 2
Fine Tune using Log L
oss (Training Only)

fc6 fc7
Get Class scores
Using SVM

AlexNet/VGG
Linear SVM per class
SS/EB

Get Bounding boxe

2000 Pre Trained s, per class
Region On ImageNet (x1, y1, x2, y2)
Proposals Finetune
On Region Proposals VOC 0 W/O F W FT
7 T
pool5 44.2 47.3
Alex Net
fc6 46.2 53.1
• Before finetune: 44%
fc7 44.7 54.2
• After finetune: 54%
• Adding bounding box regressioni: 58%
• VGG: 66%
 제1장 Introduction
AI VIETNAM
All-in-One Course

RCNN
Classical CV CNN
Stage 1 Stage 2 Fine Tune using Log L
oss (Training Only)
fc6 fc7
Get Class scores
Using SVM

AlexNet/VGG
Linear SVM per class
SS/EB
Get Bounding boxe
s, per class
(x1, y1, x2, y2)
2000 Pre Trained
Region On ImageNet &
Proposals Finetuned • Why don’t we need the sliding window & imag
On Region Proposals e pyramid?
• Didn’t we end up with too many inputs to the local
ization network?
 제1장 Introduction
AI VIETNAM
All-in-One Course

161
 제1장 Introduction
AI VIETNAM
All-in-One Course

162
 제1장 Introduction
AI VIETNAM
All-in-One Course

Results
 제1장 Introduction
AI VIETNAM
All-in-One Course

165
 Assignment
제1장 Introduction
AI VIETNAM
All-in-One Course

https://pyimagesearch.com/2020/07/13/r-cnn-object-detection-with-keras-te
nsorflow-and-deep-learning/
166
 제1장 Introduction
AI VIETNAM
All-in-One Course

167
 제1장 Introduction
AI VIETNAM
All-in-One Course

168
 제1장 Introduction
AI VIETNAM
All-in-One Course

169
 Fast R-CNN
제1장 Introduction
AI VIETNAM
All-in-One Course

170
 Fast R-CNN
제1장 Introduction
AI VIETNAM
All-in-One Course

Fast R-CNN is proposed as a single model instead of a

pipeline to learn and output regions and classifications
directly.

https://arxiv.org/abs/1504.08083
171
 제1장 Introduction
AI VIETNAM
All-in-One Course

172
 제1장 Introduction
AI VIETNAM
All-in-One Course

173
 제1장 Introduction
AI VIETNAM
All-in-One Course

Histograms of Images

72

48

0 150 255
0 255
 제1장 Introduction
AI VIETNAM
All-in-One Course

Histograms of Images
 제1장 Introduction
AI VIETNAM
All-in-One Course

Histograms of Images
 제1장 Introduction
AI VIETNAM
All-in-One Course

Histograms of Images - Bins

0 25 150 175 255 225

Codebook

0-49 0 48
48 50-99 1 0
100-149 2 0
150-199 3 48
200-255 4 48
0-49 50-99 100-149 150-199 200-255
 제1장 Introduction
AI VIETNAM
All-in-One Course

Histogram Examples

Credits – See Description

 제1장 Introduction
AI VIETNAM
All-in-One Course

Histogram Examples
 제1장 Introduction
AI VIETNAM
All-in-One Course

Bag of Visual Words

Generate HOG/SIFT Feature Descriptors

0
1
2
3
4
5
codebook
 제1장 Introduction
AI VIETNAM
All-in-One Course

Bag of Visual Words – K Means Clustering

Generate HOG/SIFT Feature Descriptors

0
1
2
3
4
5
codebook

K Means Clustering
 제1장 Introduction
AI VIETNAM
All-in-One Course

Bag of Visual Words

Generate HOG/SIFT Feature Descriptors

0
1
2
3
4
5
codebook
 제1장 Introduction
AI VIETNAM
All-in-One Course

BOW – Codebook generation for different textures

Image Credit - https://littlecheesecake.wordpress.com/2013/04/24/research-bag-of-features-for-visual-recognition/

 제1장 Introduction
AI VIETNAM
All-in-One Course

BOW – Example – Codebook generation for Faces

Slide Credit - http://www.robots.ox.ac.uk/~az/icvss08_az_bow.pdf

 제1장 Introduction
AI VIETNAM
All-in-One Course

BOW - Examples

Slide Credit - http://www.robots.ox.ac.uk/~az/icvss08_az_bow.pdf

 제1장 Introduction
AI VIETNAM
All-in-One Course

Spatial Pyramid Matching

Beyond Bags of Features: Spatial Pyramid Matching for Recognizing Natural Scene Categories - Svetlana Lazebnik, Cordelia Schmid, Jean Ponce

Image Credit - https://homepages.inf.ed.ac.uk/rbf/HIPR2/translte.htm

 제1장 Introduction
AI VIETNAM
All-in-One Course

Spatial Pyramid Matching

3x1 = 3

8x12
Feature Maps
3x4 = 12 12x8 12x12
Feature Maps Feature Maps

3x16 = 48

8x8 3x21
Feature Maps
 제1장 Introduction
AI VIETNAM
All-in-One Course

Classification & Localization

4096 4096

C
Get Class scores
Using Softmax
x256
-Last Pool
Alex/VGG

S
P
P
Feature Maps
4xC
Get Bounding boxes
Using L2 loss
(x1, y1, x2, y2)
Replace last pooling layer by SPP

OverFeat: Integrated Recognition, Localization and Detection using Convolutional Networks – Sermanet et al
Images Credit – Overfeat paper & https://towardsdatascience.com/object-localization-in-overfeat-5bb2f7328b62
 제1장 Introduction
AI VIETNAM
All-in-One Course

192
 제1장 Introduction
AI VIETNAM
All-in-One Course

Spatial Pyramid Pooling

1x1

• Identifying features
• K-means clustering
4x1 • Codebooks
• Histograms
Just Max-Pool

16x1

8x8
Feature Maps 21x1
 제1장 Introduction
AI VIETNAM
All-in-One Course

SPP for Feature Maps outputs

x256

1x256

4x256

16x256

21x256
 제1장 Introduction
AI VIETNAM
All-in-One Course

Any Size and Aspect Ratio

1x1

8x12
Feature Maps

4x1 12x8 12x12

Feature Maps Feature Maps

16x1

8x8
21x1
Feature Maps
 제1장 Introduction
AI VIETNAM
All-in-One Course

Spatial Pyramid Pooling

Spatial Pyramid Pooling in Deep Convolutional Networks for Visual Recognition - Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun
 제1장 Introduction
AI VIETNAM
All-in-One Course

SPPNet = SPP + Overfeat for Classification

1x1x4096 1x1x4096
ILSVRC 2014: ranked #3 in image classific
ation 1x1xC
Get Class scores
Using Softmax
x256
-Last Pool
Alex/VGG

S
P
P
Feature Maps
245x245 1x1x4xC
Get Bounding boxes
Using L2 loss
(x1, y1, x2, y2)
Replace last pooling layer by SPP

OverFeat: Integrated Recognition, Localization and Detection using Convolutional Networks – Sermanet et al
Images Credit – Overfeat paper & https://towardsdatascience.com/object-localization-in-overfeat-5bb2f7328b62
 제1장 Introduction
AI VIETNAM
All-in-One Course

RCNN – 2 Stage Network

Fine Tune using Log L

oss (Training Only)

Get Class scores

AlexNet/VGG Using SVM.
Linear SVM per class
SS/EB

Get Bounding boxe

s, per class
2000 Pre Trained Using L2 loss
Region Proposals On ImageNet (x1, y1, x2, y2)
+ Finetuned
On Region Proposals
 제1장 Introduction
AI VIETNAM
All-in-One Course

SPP – 2 Stage Network

Region Proposals
1. How do you translate ROI pro
posals onto the Feature Maps

SS/EB Fine Tune using Log L

oss (Training Only)

Get Class scores

Using SVM
Linear SVM per class
-Last Pool
Alex/VGG
S
SS/EB
P
P
Get Bounding boxe
s, per class
Pre Trained Using L2 loss
On ImageNet (x1, y1, x2, y2)

Region Of Interest Proposals – ROI Proposal 3. How to train the BBox regressor

2. How do you pool the ROI proposals from the Feature Map
 제1장 Introduction
AI VIETNAM
All-in-One Course

Subsampling Ratio
1. How do you translate ROI proposals onto the Feature Maps

3x3 Pool 3x3 Pool 2x2 Pool

Stride = 3 Stride = 3 Stride = 2

2x2 1x1
6x6

18x18

3x3 Pool 3x3 Pool 2x2 Pool

Stride = 3 Stride = 1 Stride = 2

3x3
6x6 5x5

18x18
 제1장 Introduction
AI VIETNAM
All-in-One Course

ROI Projection
1/16
(340, 450) (21, 28)
0,0 688x920
x
SS/EB Region Proposal or ROI

320x128
43x58

1/16 Classifier
S
y P
20x8 P
BBox Reg

x, y

1. How do you translate ROI proposals onto the Feature Maps

 제1장 Introduction
AI VIETNAM
All-in-One Course

AlexNet Subsampling Ratio

2. How do you pool the ROI proposa

ls from the Feature Map

13x13
Feature Maps
 제1장 Introduction
AI VIETNAM
All-in-One Course

SPP on Region Proposals

688

43x58 - Feature Map

 제1장 Introduction
AI VIETNAM
All-in-One Course

SPP for Feature Maps outputs

x256

1x256

4x256

16x256

21x256
 제1장 Introduction
AI VIETNAM
All-in-One Course

Any Size and Aspect Ratio, Overlapping ROIs

 제1장 Introduction
AI VIETNAM
All-in-One Course

SPP on Region Proposals

In Practice - {6x6, 3x3, 2x2, 1x1}

2. How do you pool the ROI proposals from the Feature Map

Spatial Pyramid Pooling in Deep Convolutional Networks for Visual Recognition - Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun
 제1장 Introduction
AI VIETNAM
All-in-One Course

Feature Maps Sizes

224x224

480
576
688 30x40
36x48
864 43x58

1200 54x72

75x100
 제1장 Introduction
AI VIETNAM
All-in-One Course

BBox Regression Training

x
0,0

Higher Layers/
ConvNets

y BBox Reg

dx, dy, dw, dh

3. How to train the BBox regressor

 제1장 Introduction
AI VIETNAM
All-in-One Course

BBox Regression Training

0,0 x
Higher Layers/
ConvNets

BBox Reg
ROI Centre/W/H Ground Truth
x, y, w, h dx, dy, dw, dh xg, yg, wg, hg

y (x + dx – xg )2 = 0

3. How to train the BBox regressor

 제1장 Introduction
AI VIETNAM
All-in-One Course

SPP – 2 Stage Network - Inference

Region Proposals
2000 Computations
Old: 0.7s; New: 0.9s
SS/EB Fine Tune using Log L
Just 1 computation oss (Training Only)
Old: 9s; New: 0.3s
Get Class scores
Using SVM
Linear SVM per class
-Last Pool
Alex/VGG
S
P
P
Get Bounding boxe
s, per class
Pre Trained Using L2 loss
On ImageNet (x1, y1, x2, y2)

ILSVRC 2014: ranked #2 in object detec

tion
 제1장 Introduction
AI VIETNAM
All-in-One Course

RCNN -> SPPNet -> Fast RCNN

Complex
Basic Shapes
Shapes FC +
Soft 3 Stage to 1 Stage

Region Proposals
max
Fine Tune using Log Lo
SS/EB ss (Training Only)
+ Softmax for Classifica
conv3 tion
FT ROI S
P Get Class scores
P Using SVM
1L Linear SVM per class
-Last Pool
Alex/VGG

ROI
P Get Bounding boxes,
O per class
Single Scale, no Image Pyramid Using L2 Loss
Pre Trained O
L Smooth L1 loss
On ImageNet
(x, y, h, w)
if |a-b|<1, (a-b)2/2
else, |a-b| - 1/2
 제1장 Introduction
AI VIETNAM
All-in-One Course

Role of Region Proposals

CNN

Region Proposal Dense Sampling

RCNN Overfeat
SPPNet
Fast RCNN

They conclude – “Of course, there may exist yet undiscovered techniques that allow dense boxes to perform as well as spa
rse proposals”.
 제1장 Introduction
AI VIETNAM
All-in-One Course

Good Looking Fast RCNN ☺

SS/EB
Fine Tune using Log Lo
R ss + Softmax for Classif
O ication
I
Pretrained
-Last Pool
Alex/VGG P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
 Faster R-CNN
제1장 Introduction
AI VIETNAM
All-in-One Course

217
 Faster R-CNN
제1장 Introduction
AI VIETNAM
All-in-One Course

218
 제1장 Introduction
AI VIETNAM
All-in-One Course

Role of Region Proposals

CNN

Region Proposal Dense Sampling

RCNN Overfeat
SPPNet
Fast RCNN

They conclude – “Of course, there may exist yet undiscovered techniques that allow dense boxes to perform as well as spa
rse proposals”.
 제1장 Introduction
AI VIETNAM
All-in-One Course

Criteria for replacing SS

< 2000 Region Proposals
As fast as SS or better
As Accurate as SS or better
Should be able to propose Overlapping ROIs with different Aspect Ratios and Scale

SS/EB
Fine Tune using Log Lo
R ss + Softmax for Classif
O ication
I
Pretrained
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
 제1장 Introduction
AI VIETNAM
All-in-One Course

Criteria for replacing SS

< 2000 Region Proposals
As fast as SS or better
As Accurate as SS or better

Should be able to propose:

• Overlapping ROIs
• Aspect Ratios
• Scales
 제1장 Introduction
AI VIETNAM
All-in-One Course

Fast RCNN + Sliding Window + Image Pyramid

Dense Sampling
Fine Tune using Log Lo
R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, w, h)
 제1장 Introduction
AI VIETNAM
All-in-One Course

Fast RCNN + Feature Pyramid

Dense Sampling
With Feature Pyramid
Fine Tune using Log Lo
R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
• At least 40x60x9 =~ 20,000 proposals -> time consuming. Using Smooth L1 loss
• Backpropagating through those many proposals is difficult/time consuming (x, y, w, h)
 제1장 Introduction
AI VIETNAM
All-in-One Course

Fast RCNN + Neural Network?

OverFeat
Simple CNN[-Classifier-NMS]
BBox Regressor
Fine Tune using Log Lo
R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
 제1장 Introduction
AI VIETNAM
All-in-One Course

Fast RCNN + RPN

RPN
< 2000 Region Proposals
As fast as SS or better

Pretrained
-Last Pool
Alex/VGG
As Accurate as SS or better

Fine Tune using Log Lo

R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)

https://www.youtube.com/watch?v=po59qI5LJGU&list=PL1GQaVhO4f_jLxOokW
7CS5kY_J1t1T17S&index=79
 제1장 Introduction
AI VIETNAM
All-in-One Course

Ideas for Localization using ConvNets

10
Case #1 – Only one object per image Human
Car
Dog

Cat
0,0 800, 0
Bicycle
AlexNet/VGG etc
Get Class Scores
Using Softmax

0, 600 Human
Car
X1, y1 w Dog
Get Bounding boxes
h
Using L2 loss
X2, y2 (x1, y1, x2, y2) Cat
X0, y0
Bicycle
etc
Image Credit - http://host.robots.ox.ac.uk/pascal/VOC/voc2012/examples/index.html
 제1장 Introduction
AI VIETNAM
All-in-One Course

0,0 BBox
x Regression - Relative

Higher Layers/
ConvNets

y BBox Reg

dx, dy, dh, dw

Reference Box x, y, h, w

ROI reference Bbox deltas Predicted Expected

x y h w dx dy dh dw x y h w x y h w
160 240 150 150 18 -22 -30 -125 178 218 120 25 180 220 120 30
 제1장 Introduction
AI VIETNAM
All-in-One Course

Sliding Window as Reference Box

x
0,0

Higher Layers/
ConvNets

y BBox Reg

dx, dy, dw, dh

Reference Box x, y, w, h
 제1장 Introduction
AI VIETNAM
All-in-One Course

Sliding Window as Reference Box

x
0,0

Higher Layers/
ConvNets

y BBox Reg

dx, dy, dw, dh

Reference Box x, y, w, h
 제1장 Introduction
AI VIETNAM
All-in-One Course

Sliding Window as Reference Box

x
0,0

BBox Reg
y BBox Reg
BBox Reg

Reference Box x, y, w, h
 제1장 Introduction
AI VIETNAM
All-in-One Course

Reference Boxes of fixed sizes

x
0,0

BBox Reg 1:1

y BBox Reg 1:2
BBox Reg 2:1

Reference Box x, y, w, h
 제1장 Introduction
AI VIETNAM
All-in-One Course

Square ROI to Rectangular Proposal

0,0 x
Higher Layers/
ConvNets

BBox Reg 2:1

ROI Centre/W/H Ground Truth
x, y, w, h dx, dy, dw, dh x, y, w, h

Tall Box Centre/W/H

y
x, y, w, h

ROI reference Bbox deltas Predicted Expected

x y h w dx dy dh dw x y h w x y h w
160 240 130 65 18 -22 -10 -32 178 218 120 33 180 220 120 30

Note: This is not the exact formula used in the Faster RCNN paper. I just used this for simpler explanation. Please see the paper for details.
 제1장 Introduction
AI VIETNAM
All-in-One Course

Square ROI to Rectangular Proposal

0,0 x
Higher Layers/
ConvNets

BBox Reg 1:1

ROI Centre/W/H Ground Truth
x, y, w, h dx, dy, dw, dh x, y, w, h

Square Box Centre/W/H

y
x, y, w, h
 제1장 Introduction
AI VIETNAM
All-in-One Course

Square ROI to Rectangular Proposal

0,0 x
Higher Layers/
ConvNets

BBox Reg 1:2

ROI Centre/W/H Ground Truth
x, y, w, h dx, dy, dw, dh x, y, w, h

Wide Box Centre/W/H

y
x, y, w, h
 제1장 Introduction
AI VIETNAM
All-in-One Course

Multiple BBox Reg using Reference Boxes

60x40
This is different from Feature Pyramid
BBox Reg 1:1
These boxes are called Anchor Boxes
BBox Reg 1:2
BBox Reg 2:1

BBox Reg
BBox Reg
BBox Reg

BBox Reg
BBox Reg
BBox Reg
 제1장 Introduction
AI VIETNAM
All-in-One Course

Bigger Objects?
0,0 x
Higher Layers/
ConvNets

BBox Reg
SW Centre/W/H Ground Truth
x, y, w, h dx, dy, dw, dh x, y, w, h

Tall Box Centre/W/H

y
x, y, w, h
 제1장 Introduction
AI VIETNAM
All-in-One Course

Bigger Objects?
x
0,0

BBox Reg 1:1

y BBox Reg 1:2
BBox Reg 2:1

Reference Box x, y, w, h

Note: This is not the exact formula used in the Faster RCNN paper. I just used this for simpler explanation. Please see the paper for details.
 제1장 Introduction
AI VIETNAM
All-in-One Course

Multiple BBox Reg using Anchor Boxes

60x40 1:1, 1:2. 2:1

BBox Reg
BBox Reg 128sq
BBox Reg

BBox Reg
BBox Reg 256sq
BBox Reg

BBox Reg
BBox Reg 512sq
BBox Reg
 제1장 Introduction
AI VIETNAM
All-in-One Course

Fast RCNN + RPN

RPN
< 2000 Region Proposals
As fast as SS or better

Pretrained
-Last Pool
Alex/VGG
As Accurate as SS or better
x9

Fine Tune using Log Lo

R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
 제1장 Introduction
AI VIETNAM
All-in-One Course

How to reduce number of proposals?

0,0 x
Higher Layers/
ConvNets

BBox Reg Classifier

dx, dy, dw, dh

FG BG

y
 제1장 Introduction
AI VIETNAM
All-in-One Course

Faster RCNN – Training Anchor Boxes - Labelling

x
0,0

BBox Reg 1:1

y BBox Reg 1:2
BBox Reg 2:1
 제1장 Introduction
AI VIETNAM
All-in-One Course

Fast RCNN + RPN

RPN x9
< 2000 Region Proposals
FG/BG As fast as SS or better

Pretrained
-Last Pool
Alex/VGG
As Accurate as SS or better

Fine Tune using Log Lo

R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
 제1장 Introduction
AI VIETNAM
All-in-One Course

Faster RCNN – Training Anchor Boxes - Labelling

BBox Reg 1:1

BBox Reg 1:2
BBox Reg 2:1
 제1장 Introduction
AI VIETNAM
All-in-One Course

Fast RCNN + RPN = Faster RCNN

Different Image Sizes? x9 RPN
< 2000 Region Proposals
1x1
FG/BG As fast as SS or better ?
3x3
Pretrained
-Last Pool
Alex/VGG Dense Sampling As Accurate as SS or better ?

1x1

Fine Tune using Log Lo

R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Sparse Sampling
Using Smooth L1 loss
(x, y, h, w)
Unchanged – Fast RCNN
 제1장 Introduction
AI VIETNAM
All-in-One Course

Faster & Accurate than SS?

Time in ms
mAP
------
66.9
69.9
 제1장 Introduction
AI VIETNAM
All-in-One Course

Faster RCNN - Training

x9 RPN 1. Train RPN using ConvNet1

Unshared
Pretrained 1x1
-Last Pool
Alex/VGG

FG/BG 2. Train Fast-RCNN using ConvNet2

& RPN Proposals
3x3
3. Fine-Tune RPN using ConvNet2

Shared
4. Fine-Tune Fast-RCNN using Conv
1x1 Net2 & new RPN Proposals
Joint Training done later.

Fine Tune using Log Lo

R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
Fast RCNN
 제1장 Introduction
AI VIETNAM
All-in-One Course

Fast RCNN + Neural Network?

OverFeat [-Classifier-NMS]
Fine Tune using Log Lo
R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
 제1장 Introduction
AI VIETNAM
All-in-One Course

RPN ~= Overfeat + Anchor Boxes – Class agnostic

x9 RPN
1x1
FG/BG
3x3

1x1

Fine Tune using Log Lo

R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
Fast RCNN
 제1장 Introduction
AI VIETNAM
All-in-One Course

Quirks about Anchor Boxes

Effective Receptive Field of VGGNet is 228x228

228 400
0, x 800
x9 RPN 0
1x1
FG/BG
228
3x3 300

1x1

y
600

See: http://zike.io/posts/calculate-receptive-field-for-vgg-16/
 제1장 Introduction
AI VIETNAM
All-in-One Course

Multiple BBox Reg using Anchor Boxes

60x40 1:1, 1:2. 2:1
BBox Reg
BBox Reg 128sq
BBox Reg

BBox Reg
BBox Reg 256sq
BBox Reg

BBox Reg
BBox Reg 512sq
BBox Reg
 제1장 Introduction
AI VIETNAM
All-in-One Course

Faster RCNN Network – Micro Code Walkthrough in TF

x9 RPN
https://github.com/endernewton/tf-faster-rcnn
1x1
FG/BG
3x3

1x1

Fine Tune using Log Lo

R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
Fast RCNN
 제1장 Introduction
AI VIETNAM
All-in-One Course

Faster RCNN
x9 RPN
1x1
FG/BG
3x3

1x1

Fine Tune using Log Lo

R ss + Softmax for Classif
O ication
Pretrained

I
-Last Pool
Alex/VGG

P
O
O Get Bounding boxes,
L per class
Using Smooth L1 loss
(x, y, h, w)
Fast RCNN
 제1장 Introduction
AI VIETNAM
All-in-One Course

253
 Faster RCNN Implementation
제1장 Introduction
AI VIETNAM
All-in-One Course

https://www.analyticsvidhya.com/blog/2018/11/impleme
ntation-faster-r-cnn-python-object-detection/

254
 제1장 Introduction
AI VIETNAM
All-in-One Course

Chain Of Influences
Convolution Colour Detection Edge Detection Superpixels Histograms Corner Detection Gradient

AlexNet, VGG, ResNet SIFT HOG

Selective Search BOW DPM

Spatial Pyramid Matching

MultiBox OverFeat RCNN

Spatial Pyramid Pooling

Fast-RCNN

Faster-RCNN
 제1장 Introduction
AI VIETNAM
All-in-One Course

Understanding Region of Interest (RoI Pooling)

258
 제1장 Introduction
AI VIETNAM
All-in-One Course

259
 제1장 Introduction
AI VIETNAM
All-in-One Course

Sample RoIs

260
 제1장 Introduction
AI VIETNAM
All-in-One Course

How to get RoIs from the feature map?

261
 제1장 Introduction
AI VIETNAM
All-in-One Course

•width: 200/32 = 6.25

•height: 145/32 = ~4.53
•x: 296/32 = 9.25
•y: 192/32 = 6

262
 제1장 Introduction
AI VIETNAM
All-in-One Course

Quantization of coordinates on the feature map

263
 제1장 Introduction
AI VIETNAM
All-in-One Course

264
 제1장 Introduction
AI VIETNAM
All-in-One Course

265
 제1장 Introduction
AI VIETNAM
All-in-One Course

266
 제1장 Introduction
AI VIETNAM
All-in-One Course

267
 제1장 Introduction
AI VIETNAM
All-in-One Course

268
 제1장 Introduction
AI VIETNAM
All-in-One Course

269
 제1장 Introduction
AI VIETNAM
All-in-One Course

270
 제1장 Introduction
AI VIETNAM
All-in-One Course

271
 제1장 Introduction
AI VIETNAM
All-in-One Course

272
 Mask R-CNN
제1장 Introduction
AI VIETNAM
All-in-One Course

273
 제1장 Introduction
AI VIETNAM
All-in-One Course

274
 제1장 Introduction
AI VIETNAM
All-in-One Course

275
 제1장 Introduction
AI VIETNAM
All-in-One Course

276
 제1장 Introduction
AI VIETNAM
All-in-One Course

277
 제1장 Introduction
AI VIETNAM
All-in-One Course

278
 제1장 Introduction
AI VIETNAM
All-in-One Course

279
 제1장 Introduction
AI VIETNAM
All-in-One Course

280
 제1장 Introduction
AI VIETNAM
All-in-One Course

281
 제1장 Introduction
AI VIETNAM
All-in-One Course

282
 제1장 Introduction
AI VIETNAM
All-in-One Course

283
 Mask RCNN
제1장 Introduction
AI VIETNAM
All-in-One Course

284
 제1장 Introduction
AI VIETNAM
All-in-One Course

Why is there a need for a large amount of data?

285
 제1장 Introduction
AI VIETNAM
All-in-One Course

Why is there a need for a large amount of data?

286
 제1장 Introduction
AI VIETNAM
All-in-One Course

What is Data Augmentation?

287
 Data Augmentation
제1장 Introduction
AI VIETNAM
All-in-One Course

Resize and rescale

288
 Data Augmentation
제1장 Introduction
AI VIETNAM
All-in-One Course

Random rotate and flip

289
 Data Augmentation
제1장 Introduction
AI VIETNAM
All-in-One Course

Flip Grayscale

Adjusting the saturation Adjusting the brightness

290
 Data Augmentation
제1장 Introduction
AI VIETNAM
All-in-One Course

Central Crop 90-degree rotation

Applying random brightness

291
