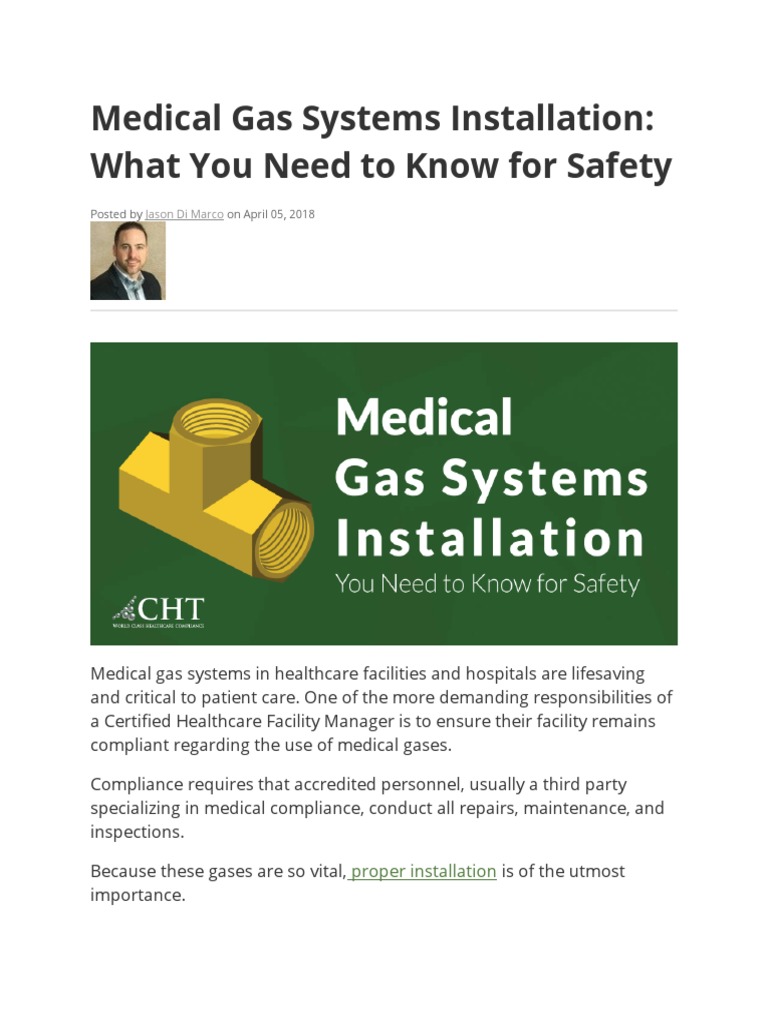

Medical Gas Systems Installation:
What You Need to Know for Safety
Posted by Jason Di Marco on April 05, 2018
Medical gas systems in healthcare facilities and hospitals are lifesaving
and critical to patient care. One of the more demanding responsibilities of
a Certified Healthcare Facility Manager is to ensure their facility remains
compliant regarding the use of medical gases.
Compliance requires that accredited personnel, usually a third party
specializing in medical compliance, conduct all repairs, maintenance, and
inspections.
Because these gases are so vital, proper installation is of the utmost
importance.
In dealing with these critical gases, specific questions and materials are
used for the safety of your patients and healthcare facility before
installation.
(This article only covers some requirements of NFPA 99 and should not replace the
official NFPA 99 Healthcare Facilities Code.)
Are You Struggling with Medical Gas
Compliance?
CHT offers medical gas services to help you reach your compliance goals.
To help you navigate through these challenges, start with a free 30-minute
discovery call.
Get a Quote
Questions Before Every Medical Gas Systems
Installation
7-point checklist before your next medical gas installation
1. Do you have the blueprints for the new and the existing
system? Engineering blueprints play a crucial role in ensuring
patient safety and proper design. What edition of NFPA is your
design following? Does this meet the requirements of your state?
2. Have you put together a risk assessment meeting prior to
medical gas shutdown that ensures all department heads
are aware of the project and its potential effects on the
facility's patients? Do you have an emergency plan in the event
that all medical gases are affected during the project?
3. Do you have at least two times the estimated amount of gas
needed to back-feed your system? Who is responsible for the
medical gas back feed?
4. How "temporary" is your temporary supply? Has your back
feed been verified, and are all NFPA 99 requirements being
met? Will your master alarms still function during your medical
gas shutdown?
5. Are certified ASSE 6010 installers and ASME IX brazers
performing the work? Ask to see their NITC identification to
ensure they hold up-to-date certifications for the project. Make
sure your contractor will pass inspection.
6. Is the verifying company working for you or the
contractor? It is the facility's decision who hires the verifier;
choose a verifier whose interests are not with the contractor but
with your facility.
7. Will your project be properly documented when
complete? Have you updated your life safety drawings? Will you
have the technical specifications and manuals for the new
components in your system?
Acceptable Plumbing Materials for Medical Gas
Installation
Piping - In accordance with ASTM B819, piping for the distribution of
medical gas is a seamless copper tube, identified as Types K or L. "The
tube shall be installed in conformance with the requirements of the
National Fire Protection Association (NFPA) Standard 99".
The Size - 1/2 inch or larger is used for installations. In addition, the piping
will be marked with the appropriate blue or green specifying it is used for
medical gas. (Ref. NFPA 99 5.1.10.10.1.2)
Medical gas piping must be clearly identified using nonremovable stickers
color-coded according to the gas. Colors are standardized according to the
code provisions in your area and should be spaced along the pipe, no
more than 20 ft. apart, and at every valve, at each access door, and at
each service connection.
For buried pipe, a continuous tape or marker shall be placed immediately
above the pipe to identify the pipeline by specific name.
Valves - must be NFPA 99 compliant. Check valves are used to prevent the
movement of gas (or water in plumbing) from going in the opposite
directions as intended. It prevents ‘backflow,’ the flow of gas (or vacuum)
from going the wrong way. Source valves must be at the immediate
connection of each source to the distribution.
Fittings - must meet applicable standards for your specific region.
"All piping, valves, fittings and other components for use in all non-
flammable medical gas systems must be thoroughly cleaned by the
manufacturer to remove oil, grease and other readily oxidizable materials
as if they were being prepared for oxygen service."
Proper Installation Requires a Safe Manifold Room
Indoor storage or manifold areas for medical gases need proper
ventilation.
While vacuum, WAGD, Medical air, and Instrument air are generated
locally in most hospitals, lower-volume gases may come through a piped
system from cylinders connected to a manifold. Hospitals commonly have
nitrogen, nitrous oxide, and carbon dioxide produced through a manifold.
The infographic below shows most of the requirements for a manifold
room as described by NFPA 99-2012.
If you are renovating your healthcare facility or under new construction,
knowing the requirements before installation will be a "life-saver" for you
and your patients. If you are thinking of remodeling, CHT can provide a
checklist of the most common problems we have discovered and the tests
each vendor needs to follow.
Of course, each construction site is unique, and there is no way to
anticipate every installation conflict. Still, by pre-planning on the prints
and dealing with certified vendors that follow all the guidelines, your
verification can become a mere formality.
Reference NFPA 99 5.1.3.3.2 (1-9) for design and construction details for
locations of central supply systems and storage of positive pressure
gases.
Features of Medical Gas Installation
Proper installation needs to be flawless and work efficiently. There are 4
components of medical gas systems that work together to deliver or
remove medical gases in a healthcare facility.
Pipe Fitting - Pipe Fitting is an essential aspect of medical gas. As
stated above, materials must adhere to proper piping for
distribution.
Storage - Production, storage, and delivery is a complex process.
Storage, as discussed within manifold rooms, is a key safety factor.
Cylinders are color-coded and labeled for the identification of their
contents. When dealing with "bulk" storage (i.e., bulk liquid oxygen),
NFPA requires hospitals to maintain a backup gas supply.
Delivery - After installation, ensure that gas flow and pressure are
consistent and unimpeded.
Waste - The purpose of the WAGD system should always be to
ensure that gas is making its way safely outside, without getting
trapped in any part of the anesthetic gas system, maximizing the
safety of the physicians and patients as well as securing the OR.
Medical gas use requires proper installation, consistent maintenance,
testing/monitoring, safety practices, and inspection.
Medical Gas Installer Requirements
Medical gas installers must be proficient and experienced in the
installation of medical gas and vacuum systems covered by the ASSE
Series 6000 Standard. "Installers include anyone who works on or installs
piping or components, including brazers."
Installers of medical gas and vacuum systems shall not use their
certification to oversee installation by noncertified personnel. NFPA 99,
2012, 5.1.10.11.10.3
The American Society of Sanitary Engineering (ASSE) developed the Series
6000 Standard for medical gas systems personnel. "It provides
municipalities and employers with a nationally recognized standard,
ensuring that personnel working on the installation or maintenance of
critically important medical gas systems possess the knowledge and
experience required to handle it safely and properly. Installers include
anyone who works on, or with, piping or any related components,
including brazers."
All installers must meet the requirements of ASSE 6010, the Professional
Qualification Standard for Medical Gas System Installers, and the ASME IX
brazing qualification.
There are also approximately six installer-performed testing
requirements used as part of verification.
1. Initial piping blow down to clear piping
2. Pressure test to ensure there are no leaks
3. Cross-connection test for proper pressurization
4. Pipe purge test for proof of debris
5. Standing pressure test to verify proper connections and that
devices are sealed internally
6. Standing vacuum test to identify vacuum hold time (the system
should hold vacuum for 24 hours)
Conclusion
Faulty medical gas installation can result in a hazardous situation.
Whether you are renovating an older facility or new construction,
healthcare facilities must have the knowledge and experience to handle
medical gas safely and properly.
