PEUGEOT 207 1.

4, -LPG (TU3A (KFV)) 2006 - 2009 March 30, 2023

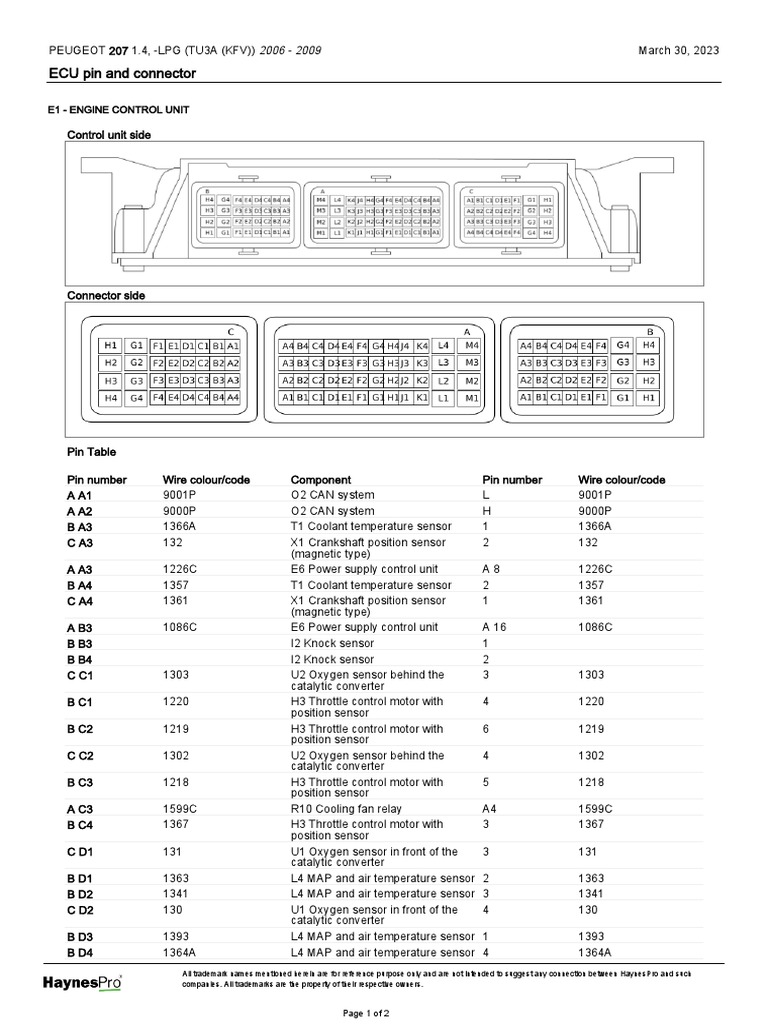

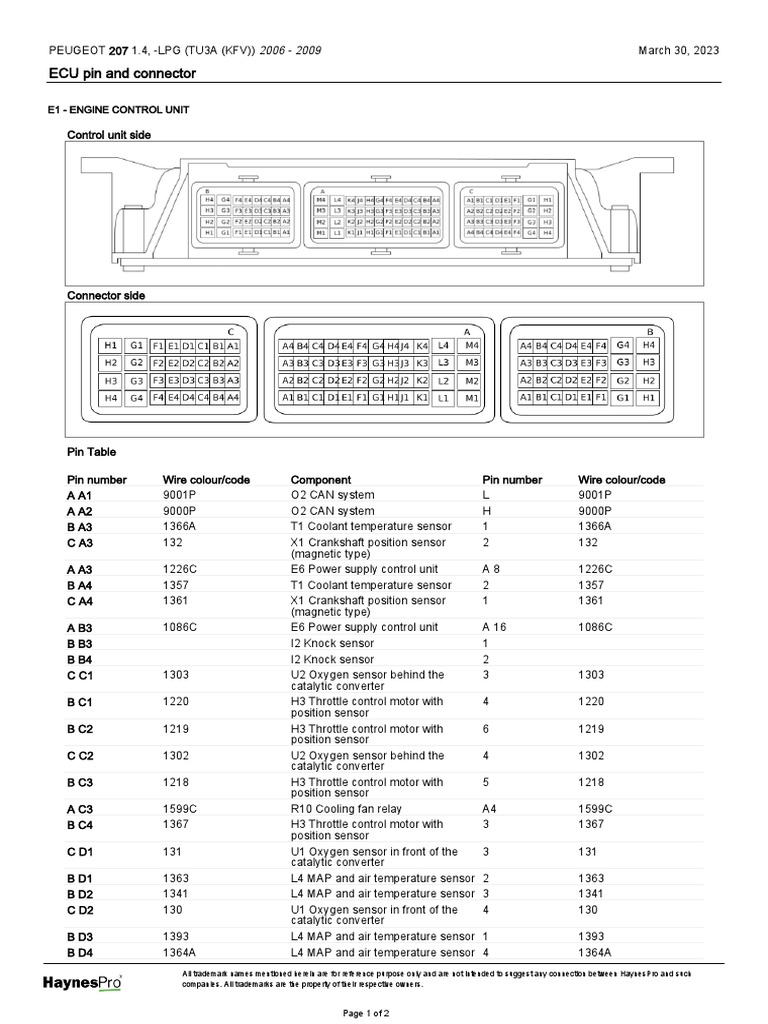

ECU pin and connector

E1 - ENGINE CONTROL UNIT

Control unit side

Connector side

Pin Table

Pin number Wire colour/code Component Pin number Wire colour/code

A A1 9001P O2 CAN system L 9001P
A A2 9000P O2 CAN system H 9000P
B A3 1366A T1 Coolant temperature sensor 1 1366A
C A3 132 X1 Crankshaft position sensor 2 132
(magnetic type)
A A3 1226C E6 Power supply control unit A8 1226C
B A4 1357 T1 Coolant temperature sensor 2 1357
C A4 1361 X1 Crankshaft position sensor 1 1361
(magnetic type)
A B3 1086C E6 Power supply control unit A 16 1086C
B B3 I2 Knock sensor 1
B B4 I2 Knock sensor 2
C C1 1303 U2 Oxygen sensor behind the 3 1303
catalytic converter
B C1 1220 H3 Throttle control motor with 4 1220
position sensor
B C2 1219 H3 Throttle control motor with 6 1219
position sensor
C C2 1302 U2 Oxygen sensor behind the 4 1302
catalytic converter
B C3 1218 H3 Throttle control motor with 5 1218
position sensor
A C3 1599C R10 Cooling fan relay A4 1599C
B C4 1367 H3 Throttle control motor with 3 1367
position sensor
C D1 131 U1 Oxygen sensor in front of the 3 131
catalytic converter
B D1 1363 L4 MAP and air temperature sensor 2 1363
B D2 1341 L4 MAP and air temperature sensor 3 1341
C D2 130 U1 Oxygen sensor in front of the 4 130
catalytic converter
B D3 1393 L4 MAP and air temperature sensor 1 1393
B D4 1364A L4 MAP and air temperature sensor 4 1364A
All trademark names mentioned herein are for reference purpose only and are not intended to suggest any connection between HaynesPro and such
companies. All trademarks are the property of their respective owners.

Page 1 of 2
PEUGEOT 207 1.4, -LPG (TU3A (KFV)) 2006 - 2009 March 30, 2023

ECU pin and connector

Pin number Wire colour/code Component Pin number Wire colour/code

A D4 1540C R10 Cooling fan relay A1 1540C
A E2 731C G1 Accelerator pedal position 3 731C
sensor
B E3 1135 I1 Ignition coil 3 1135
C E4 1570 O15 Thermostat body heating 1 1570
element
A E4 1550C R10 Cooling fan relay A2 1550C
C F1 1321 A1 Injector 1 1 1321
A F1 1379C G1 Accelerator pedal position 2 1379C
sensor
C F2 1322 A1 Injector 2 1 1322
A F2 1377C G1 Accelerator pedal position 1 1377C
sensor
A F3 1075C E6 Power supply control unit A 20 1075C
C F3 1323 A1 Injector 3 1 1323
A F4 1229C E6 Power supply control unit A9 1229C
C F4 1324 A1 Injector 4 1 1324
B F4 1332 V1 Canister purge solenoid 2 1332
A G1 1380C G1 Accelerator pedal position 6 1380C
sensor
B G1 1372 H3 Throttle control motor with 2 1372
position sensor
A G2 1378C G1 Accelerator pedal position 5 1378C
sensor
B G2 1371 H3 Throttle control motor with 1 1371
position sensor
C G3 124 U2 Oxygen sensor behind the 2 124
catalytic converter
C G4 122 U1 Oxygen sensor in front of the 2 122
catalytic converter
A H1 8094C L10 Refrigerant pressure sensor 3 8094C
A H2 8093C L10 Refrigerant pressure sensor 2 8093C
C H3 1157 I1 Ignition coil 1 1157
A H3 8092C L10 Refrigerant pressure sensor 1 8092C
A H4 6739C X3 Vehicle speed sensor 3 6739
C H4 1158 I1 Ignition coil 2 1158
A J1 1466C G1 Accelerator pedal position 4 1466C
sensor
A K3 7842C E39 System interface control unit A 10 7842C
A L1 M132F E1 Engine control unit A M1 M132G
A L1 M132F E1 Engine control unit A L2 M132H
A L1 M132F E6 Power supply control unit A 19 MPSFA
A L2 M132H E1 Engine control unit A M1 M132G
A L2 M132H E1 Engine control unit A L1 M132F
A L2 M132H E6 Power supply control unit A 19 MPSFA
A L4 1203C E6 Power supply control unit A5 1203C
A M1 M132G E1 Engine control unit A L1 M132F
A M1 M132G E1 Engine control unit A L2 M132H
A M1 M132G E6 Power supply control unit A 19 MPSFA
A M2 1042C E6 Power supply control unit A3 1042C
A M3 1320C E6 Power supply control unit A4 1320C
A M4 1150C E6 Power supply control unit A2 1150C
