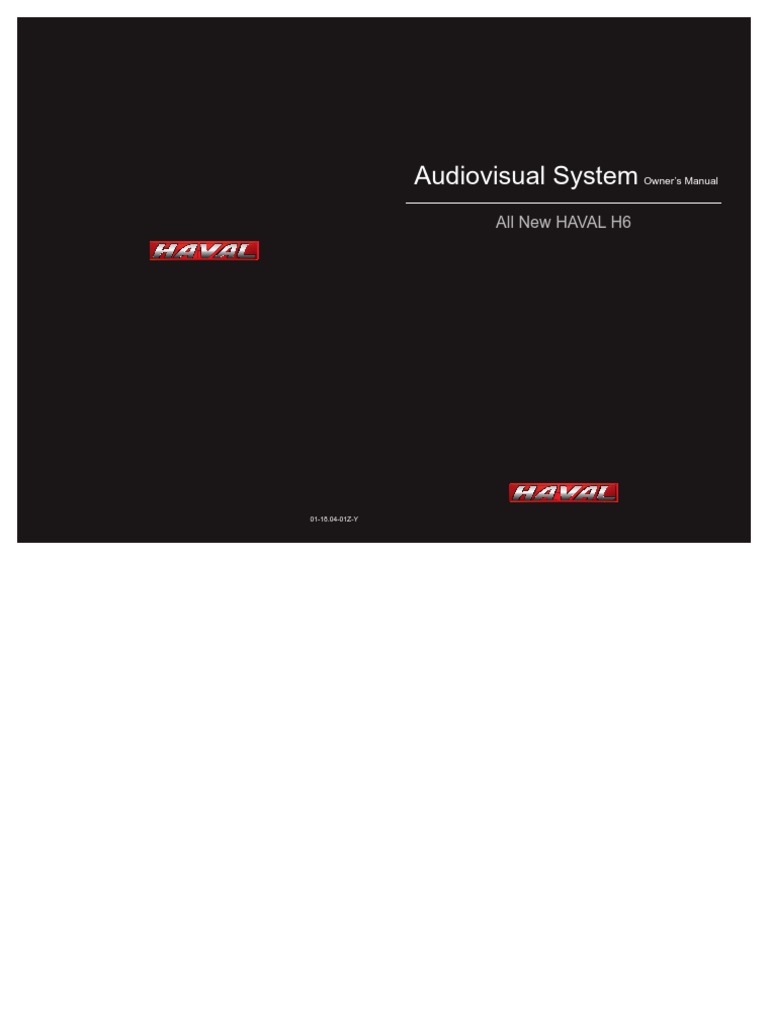

Audiovisual System Owner’s Manual

All New HAVAL H6

01-18.04-01Z-Y
Thank you for choosing a HAVAL vehicle.

Familiarizing yourself with your vehicle will make driving

happier and more convenience. Therefore, we suggest:
Before using your vehicle, please read this manual care-
fully. You will find in it important information concerning the
operation of the vehicle, which will allow you to make full
use of its technological advantages. Additionally, you will
find very useful information concerning the vehicle's safety
features, traffic safety, and preserving the highest value for
your vehicle.

Sincerely wish you a safe and happy journey!

10/04/2018

1
 Tips We do not make any guarantees, or ac-

Vehicle equipment cept any responsibilities or obligations, for

non-genuine spare parts and accessories,
Please note that this manual contains all
or for the replacement or installation of
the standard equipment, country-specific
such parts and accessories. Additionally,
equipment and special equipment for this
any damage or performance problems
model series. Thus, some equipment or
caused by using non-genuine spare parts
features described in this manual may not
and accessories do not fall within the qual-
be installed onto your vehicle or are only
ity guarantee.
available in some markets. For the further
configuration information, please refer to About symbols
relevant sales information or consult with
Warning
your distributor selling the vehicle to you.
This indicates a warning.
On a right-seat driving vehicle, the actual
locations of some operating elements may Ignoring these warnings may result in seri-

differ from those shown in the illustration.
Manual timeliness
All of the data in this manual are the most
up-to-date available at the time of its print-
ing. Nevertheless, as the company contin-
ues to improve its products, the informa-
tion in this manual will be updated accord-
ingly without prior notice.
Depending on the vehicle specifications,
the vehicle equipment shown in the dia-
gram may differ from your vehicle.
Accessories, Spare Parts, and
Modification
Currently, we may have access to other
spare parts and accessories suited to the
vehicle in addition to genuine parts. If the
parts must be replaced, we suggest using
genuine parts to replace, but other parts
that meet the quality standards may be
used as well.
ous injury or death. Such warnings indi-
cate what you must or must not do in order
to reduce the risk of serious injury or death
to yourself and others.
Caution
This indicates a caution.
If you ignore these cautions, the vehicle or
its equipment may be damaged as a re-
sult. Such cautions indicate what you must
or must not do in order to avoid or reduce
the risk of damage to the vehicle or its
equipment.
Notice
This indicates a reminder.
This reminder contains ancillary informa-
tion that may be helpful to you.
Herein, a circle with a slash through
it indicates "no," "do not do this," or

2
"do not allow such conditions to occur."
(▷ Page X )
This symbol indicates that more details
can be seen on this page.
Precautions
Safety
〉 Ensure that your use of any of the sys-
tem's features does not distract you and
thereby interfere with safe driving. Your
most important responsibility while driv-
ing is for the safety of the drive. You
must obey all traffic regulations.
〉 During driving, the driver is not allowed
to operate the system and must keep
the system volume at an appropriate lev-
el, so as not to affect driving safety due
to lack of concentration.
〉 This system may only be used in areas
permitted by law. Some national or local
regulations may prohibit use of the dis-
play within the driver's field of view.
〉 Do not disassemble or modify the sys-
tem.
〉 When a failure occurs, stop using the
system and contact Great Wall Motors
service provider. Do not try to repair the
system by yourself.
About the use
〉 Turn the ignition switch to ACC or ON
mode when using this system.
〉 For safety reasons, some functions may
not be activated when the vehicle starts
to move.
〉 Do not press the buttons or knobs on the
panel firmly.
〉 Do not press the screen forcefully or
scratch it with sharp objects.
〉 When cleaning the screen, do not use
abrasive wipers or detergent containing
organic solvent.
〉 Do not strike the screen when image jit-
ter occurs in process of operation.
About the radio
When driving the car, you may not find any
radio stations, or you may hear noises or
receive different radio signals with same
frequency, depending on the environment
such as road conditions, weather, etc.
About USB storage devices
Since there are various types of USB stor-
age devices, this system may not be com-
patible with all USB storage devices.
About Bluetooth
〉 Since there are a great number of smart-
phone brands with different functions,
this system may not be compatible with
the smartphones other than IOP certified
ones.
〉 In Bluetooth connection, if the phone
cannot find the name of the Bluetooth
device of this system, turn off the Blue-
tooth on the phone, then turn it on and
try it again.
〉 If Bluetooth cannot be connected, cancel
the paired device on the phone, and re-
connect it.
3
 〉 If the Bluetooth does not function, dis-
connect the Bluetooth and then recon-
nect it.

4
Table of contents
MP5 player
Steering wheel button............................... 8
External device ......................................... 9
Using input port to connect ................... 9
Media specifications ............................. 9
File format ............................................. 9
Panel introduction................................... 10
Power switch....................................... 10
Control panel ...................................... 10
Main menu interface ............................... 11
Radio ...................................................... 12
Multimedia play ...................................... 13
Media switch ....................................... 13
Music playback ................................... 13
Video playback.................................... 14
Photo playback ................................... 15
Bluetooth ................................................ 16
Bluetooth pairing ................................. 16
Device management ........................... 16
Bluetooth call ...................................... 16
Bluetooth audio ................................... 18
Vehicle .................................................... 19
System settings ...................................... 21
 MP5 player
Please note that this manual contains all of standard equipment, country-based
equipment and special equipment for this model series. Therefore, some of the
equipment or features described in this manual may not be installed in your vehicle
or only available in some markets. For detailed configuration, please refer to rele-
vant sales information or consult your car dealer.
 Steering wheel button

A C

SVC

617D6A45D63A

Ⓐ Search button Ⓒ Bluetooth button

Ⓑ Adjusting knob
Search button
〉 In the radio mode, press the button to search available stations automatically.
〉 In the multimedia playback mode, press the button to switch the tracks.

Adjusting knob
〉 Turn the knob up/down to adjust the volume.
〉 Press the adjusting knob to switch between the radio and the external audio source, or
switch between AM/FM if there are no other audio sources.
〉 Long press the adjusting knob to turn on/off the AV system.

Bluetooth button
〉 When there is no incoming call, press the button to switch to the Bluetooth interface.
〉 When there is an incoming call, press the button to answer the call, or long press the
button to reject the call.
〉 During the call, press the button to end the call.

8
 External device
Using input port to connect Media Specification

The input ports are located in the storage 〉 USB devices with a partition
box below the front armrest. USB format of FAT16/FAT32.
〉 iPod audio devices.
A B SD SD cards with a partition format
card of FAT16/FAT32.
A2DP Bluetooth audio devices
Blue- with Bluetooth version 2.1 +
tooth EDR and AVRCP version 1.0 to
C
1.3.
D6353BB6CEAA

Ⓐ AUX port Auxiliary audio devices with a

Ⓑ USB port AUX 3.5 mm stereo jack of audio out-
put.
Ⓒ SD card slot
Inserting/removing the SD card File format
〉 Insert the SD card into the SD card slot This system supports the following file for-
with the missing angle end facing the mats:
right front (horizontal slot) until it clicks
File Format
into the slot.
Audio MP3, WMA, WAV, APE, FLAC
〉 Press the SD card inward to eject and
MPEG4, AVI, H.264, 3GP,
remove it. Video
WMV

Notice BMP, JPEG, JPG, JPE, TIF,

〉 Ensure a firm connection between the PNG, GIF, JPX

external device and the Input port.

Notice
〉 Do not plug/unplug the device at will dur-
File playback may not be correct due to
ing playback, so as to avoid problems
file characteristics, file formats, applica-
such as the system cannot identify the
tions for recording, playback environment,
device.
storage devices or other factors.

Media specifications
This system supports the following media
specifications:

9
 Panel introduction
Power switch Multi-function button
〉 Rotate or push the button to switch the
area where the cursor is located.
〉 Press the button to execute the function
currently selected with the cursor.

Settings button
Press the button to switch to the system
settings interface.
B18AF7CA2F7F

〉 Press the switch to turn on the AV sys- Bluetooth button

tem. Press the button to switch to the Bluetooth
〉 Press the switch to turn off the system call interface.
when it is in use.
Radio button
〉 Press the switch to mute the system
Press the button to switch to radio play-
when it is in use.
back mode. If the radio playback mode is
〉 Adjust the volume by turning the switch
in use, switch the band.
when the system is in use.
Multimedia button
Control panel Press the button to switch to multimedia
playback mode. If the multimedia playback
D mode is in use, switch the media source.
A E Back button
B F 〉 Press the button to return to the previ-
G ous interface.
C
〉 Long press the button to return directly
8B3812B503C4 to the main menu interface.
Ⓐ Multi-function button
Menu button
Ⓑ Settings button
Press the button to switch to the main
Ⓒ Bluetooth button
menu interface.
Ⓓ Radio button
Ⓔ Multimedia button
Ⓕ Back button
Ⓖ Menu button

10
 Main menu interface

A9EFB5F8D97B

Notice
Function configuration of the main menu
interface and content displayed on the sta-
tus information bar may vary depending on
the vehicle configuration or external device
connection, which are subject to the actual
vehicle.

Status bar
The status bar is located at the top right of
the display and displays the following in-
formation:
〉 : system time.
System time is displayed according to
the time format and the form of time.
〉 : air conditioning temper-
ature and air volume.
〉 : outside temperature.
〉 : status of Bluetooth switch and con-
nection.
This indicator lights up when a Bluetooth
device is connected.
〉 : signal strength of Bluetooth call.
〉 : battery of Bluetooth call.
〉 : mute.
〉 : missed call(s).

11
 Radio
On the main menu interface, touch 【Ra- Manual search
dio】 button to call out the radio interface. Touch or button for manual search in
the current band.

A B C Auto search
Touch the or button to search stations
automatically in the current band.

Sound
Touch the button to call out sound set-
EE278A5295C0

Ⓐ Preset radio stations button tings interface.

Ⓑ Preset radio station indicator Radio list

Ⓒ Radio band button Touch the button in the radio interface to
Preset radio stations call out the radio list interface; you can se-
Page turning of preset radio stations lect a radio in the list for playback.

Touch the or button on both sides of

the radio list for page turning.
Saving preset radio stations
Long touch preset radio stations button to
save the current station to this preset radio
stations button.
FCEE072607EB
Preset radio stations playback
In the radio list interface, touch button
Touch the preset radio stations button to
to update the radio list manually.
select the station for playback.
Preset radio station indicator
〉 : indicates that the current station is a
preset radio station.
〉 : indicates that the current station is
not a preset radio station.

Radio band
Touch the radio band button to switch the
current band between FM and AM.

12
 Multimedia play
Media switch Ⓐ Loop button

After an external device is connected, it Ⓑ Shuffle button

will automatically switch to multimedia Play/pause
playback interface. 〉 Touch the button to play.
When an external device is connected, 〉 Touch the button to pause playback.
touch 【Media】 button on the main menu
Switching tracks
interface to switch to multimedia playback
〉 Touch button to switch to the previous
interface.
track.
Touch the 【SRC】 button to pop up the
〉 Touch button to switch to the next
media list.
track.

Fast forward/backward
〉 Long touch button for fast backward.
〉 Long touch button for fast forward

37ED2216340D
Touch the corresponding media icon to
play. If there is no operation within a few
seconds, the media list will be closed auto-
matically.
Notice
The media list displayed changes slightly
due to different devices connected with the
Progress jump
You can touch any point on the progress
bar to jump directly to the target progress
of playback.
Loop
Touch the loop button to switch between
repeat all, list loop and single loop modes.
Shuffle
Touch the shuffle button to switch between

system. shuffle and sequence playback modes.

Sound
Music playback Touch button to switch to sound settings
interface.

A B File list
Touch button to switch to file list inter-
face.

CC706CBBD83F

13
 fast backward speed.
〉 Touch the button for fast forward.
Touch the button repeatedly to switch
fast forward speed.

Progress jump
You can touch any point on the progress
41860996012B
bar to jump directly to the target progress
In this list, you can select a file to play and
of playback.
find a song by category.
Full screen mode
Touch [Video] or [Photo] button to switch to
video playback or photo playback.
〉 If there is no operation within a few sec-
onds, it will automatically switch to full
Touch button to return to music play-
screen playback mode.
back interface.
〉 Touch the non-button area of the display
Video playback to switch between function mode and full
screen mode.

Sound
Touch button to switch to sound settings
interface.

File list
Touch button to switch to file list inter-
78DA9E3A27BB

Play/pause face.

〉 Touch the button to play.

〉 Touch the button to pause playback.

Video switch
〉 Touch the button to switch to the pre-
vious video.
〉 Touch the button to switch to the next 7521A4718377

video. In this list, you can select a file to play.

Fast forward/backward Touch [Music] or [Photo] button to switch

to music playback or photo playback.
〉 Touch the button for fast backward.
Touch the button repeatedly to switch

14
Playback restriction screen mode.
If the function of 【Video Restriction】 is File list
enabled, the display screen will be cov-
Touch button to switch to file list inter-
ered by relevant prompt information when
face.
the speed exceeds the set value.

Photo playback

88FA495771E9

In this list, you can select a file to play.

D98FC02671F8
Touch [Music] or [Video] button to switch to
Play/pause music playback or video playback.

〉 Touch the button to play. Playback restriction

〉 Touch the button to pause playback. If the function of 【Video Restriction】 is

Photo switch enabled, the display screen will be cov-

ered by relevant prompt information when
〉 Touch the button to switch to the pre-
the speed exceeds the set value.
vious photo.
〉 Touch the button to switch to the next
photo.

Image rotation
〉 Touch the button and turn it 90 ° coun-
terclockwise.
〉 Touch the button and turn it 90 °
clockwise.

Full screen mode

〉 If there is no operation within a few sec-
onds, it will automatically switch to full
screen playback mode.
〉 Touch the non-button area of the display
to switch between function mode and full

15
 Bluetooth
Bluetooth pairing Notice
In the main menu interface, touch 【Blue- If you cannot establish a connection with
tooth】 button to switch to the Bluetooth the paired device, try to pair it again.
interface. 〉 Touch the 【Delete】 button to delete
the paired device.

Bluetooth call
Making a Bluetooth call
Calling from Dial Pad

117C5C1B12ED

〉 Method 1: Touch 【Start Bluetooth Pair-

ing】 button to pop up prompt interface,
and follow the prompts to perform Blue-
tooth pairing.
〉 Method 2: Touch 【Search】 button,
23852C38661F
and then touch and select the appeared After entering the number, touch 【Call】
Bluetooth device of the smartphone to button to make a call.
start Bluetooth pairing.
Calling from Contacts
Device management

9D487D5CA6C5

6C88B32A7325
〉 Touch the 【Off】 button to disconnect
the connected device.
〉 In the paired device list, touch the paired
device name to establish a connection
with that device.
Ⓐ Initials
〉 Touch the contact entry to pop up the
contact details interface; touch phone
number on the interface to make a call.
〉 Touch the initials button for a quick
search of the contact.
〉 Touch button to update the contacts
manually.

16
Calling from Call History

52A69F689B29

000A8FFC3541
Call modes
〉 Touch the entry of call history to make a Touch 【Private Call】 or 【Speaker】
call. button to switch between private call and
〉 Touch 【All】, 【Missed】, 【Dialed】 hands-free modes.
and 【Rcvd】 buttons to find the contact 〉 Hands-free mode: calling through the
by category. onboard speaker or microphone.
〉 Touch button to update the call histo- 〉 Privacy mode: calling from a smart-
ry manually. phone.

Answering/rejecting Bluetooth Inputting characters

call Touch 【Dial Pad】 button to call out or
When there is an incoming Bluetooth call, hide the dial pad, which can be used for
the incoming Bluetooth call interface will inputting characters.
pop up.
Hanging up
Touch 【End】 button to end the current
call.

Making a call
In the Bluetooth call interface, touch
【Contacts】 button to switch to the Blue-
tooth contacts interface.
61EB3CDF42A1

〉 Touch 【Accept】 button to answer the

call.
A
〉 Touch 【Reject】 button to reject the
call.

Bluetooth call connected

After establishing a call, switch to the
3414223BA279
Bluetooth call interface.

17
 Ⓐ The current call Touch button to return to the Bluetooth
You can make a new call from the menu interface. Other operating methods are as
such as 【Dial Pad】, 【Contacts】 or same as that of multimedia music play-
【Call History】, etc. back.

Touch the current call button to return to

the current Bluetooth call interface.
Multiple calls
In the Bluetooth call interface, touch
【Hold】 button to switch the Bluetooth
calls to the hold mode.
When a new incoming/outgoing call is con-
nected during the current call, this button
indicates 【Swap】, touch 【Swap】 but-
ton to switch between the two calls.
Notice
〉 Available functions of Bluetooth audio
playback may vary due to different Blue-
tooth audio protocol versions supported
by Bluetooth devices.
〉 Please use the player pre-installed in the
smartphone for playback of Bluetooth
music. If you use a downloaded player,
an anomaly may occur.

Notice
Even if you switch the ignition switch to
LOCK mode during the Bluetooth call, the
system will support you to continue the call
until the call ends. However, please control
the duration of the call so as to avoid low
battery, affecting next start of the vehicle.

Bluetooth audio
In the Bluetooth interface, touch 【Audio】
button to switch to the Bluetooth audio
playback interface.

A519CAD38D8E

18
 Vehicle
In the main menu interface, touch 【Vehi-
cle】 button to switch to the vehicle set-
tings interface.

572007323365

〉 【Rearview Mirror Folding】: you can

choose auto or manual for rearview mir-

3D41A9D1B40E
ror folding when locking the vehicle.
Lighting 〉 【Seat Memory】: you can choose to
In the vehicle settings interface, touch enable or disable the seat memory func-
【Lighting】 button to switch to the lighting tion.
settings interface. Seat
In the vehicle settings interface, touch
【Seat】 button to switch to the seat set-
tings interface.

4499D760EF9D

〉 【Welcome Lights Timing】: sets OFF

time of welcome lights timing.
〉 【Leaving Lights Timing】: sets OFF
39CB90D998D3
time of leaving lights timing. You can select a heating level for the driv-
〉 【Power-Saving Timing】: sets ON time er’s seat or the passenger’s seat.
of interior lights when ignition switch is in
Drive
LOCK mode in order to save battery
In the vehicle settings interface, touch
power.
【Drive】 button to switch to the drive set-
Comfort
tings interface.
In the vehicle settings interface, touch
【Comfort】 button to switch to the com-
fort settings interface.

19
 9E0F5A9BA04B

You can choose to enable or disable intelli-

gent start-stop function.

Status
In the vehicle settings interface, touch
【Status】 button to switch to the status
interface. You can check some information
of vehicle status.

Air conditioning
In the vehicle settings interface, touch
【Air Con】 button to switch to the air con-
ditioning settings interface.
For detailed setting information of air con-
ditioning, please refer to "Operation Man-
ual" provided with the vehicle.

20

In the main menu interface, touch 【Set-
tings】 button to switch to the system set-
tings interface.
D4EC00629D24
Time settings
In the system settings interface, touch
【Time】 button to switch to the time set-
tings interface.
D57689133BF2
〉 You can set 【12H/24H】 and 【Date
Format】.
〉 You can manually adjust the time and
date. After completing the adjustment,
touch 【OK】 button to confirm it.
Display settings
In the system settings interface, touch
【Display】 button to switch to the display
settings interface.
System settings
8EE4EA0FBD06
〉 【Brightness】: You can choose differ-
ent brightness levels according to driving
safety and personal habits.
〉 【Video Restriction】: You can choose
to switch on or off; when switching it on,
you can select an appropriate speed lim-
it; when the speed exceeds the set val-
ue, the video or photo screen will be
covered by the prompt information.
Notice
Please select relevant settings for 【Video
Restriction】 according to local regula-
tions.
〉 【Day/Night】: You can choose auto
mode, day mode or night mode.
Language
In the system settings interface, touch
【Language】 button to switch to the lan-
guage interface and select the system lan-
guage.
Phone
In the system settings interface, touch
【Phone】 button to switch to the phone
settings interface.
21
 OFF; when switching it ON, you can en-
hance the bass, covering sound quality
deterioration. (Models without a sub-
woofer)
〉 【Surround/Stereo】: you can choose
surround or stereo. (Models with a sub-
woofer)
2AB7519E1283

You can set Bluetooth and the call volume
of Bluetooth call.
Sound
In the system settings interface, touch
【Sound】 button to switch to the sound
settings interface.
Models without a subwoofer
〉 【Auto Vol. Control】: you can choose
ON or OFF; when switching it ON, the
system will automatically adjust the vol-
ume according to the speed of the vehi-
cle.
〉 【Touch Screen Beep】: you can
choose ON or OFF; when switching it
ON, you may hear a button sound by the
touching the button on the display.

Defaults
In the system settings interface, touch
【Defaults】 button to switch to the de-
faults interface.

21FEF4ACB0FA
Models with a subwoofer

D8FD26D2530E

Set All to Defaults

7D2AC15B957D
〉 【EQ】: for adjusting strength of treble,
mid and bass.
〉 【Balance/Fader】: for setting the posi-
tion of sound playback point.
〉 【Loudness】: you can choose ON or
Touch 【Set All to Defaults】 button to ini-
tialize the current settings.
Affected settings include but are not limi-
ted to:
〉 Set values in each setting interface.
〉 Preset FM/AM radio stations.

22
〉 Information of Bluetooth devices.
Importing of settings
Touch 【Import Settings from USB】 but-
ton to import the settings from the connec-
ted USB device into the system.
Exporting of settings
Touch 【Export Settings to USB】 button
to export the settings from the system into
the connected USB device.

Notice
〉 If no USB device is connected, 【Import
Settings from USB】 and 【Export Set-
tings to USB】 are grayed out and disa-
bled at this time.
〉 If there is no configuration data in the
connected USB device, 【Import Set-
tings from USB】 is grayed out and disa-
bled at this time.

23
