Connection to RS485 Bus

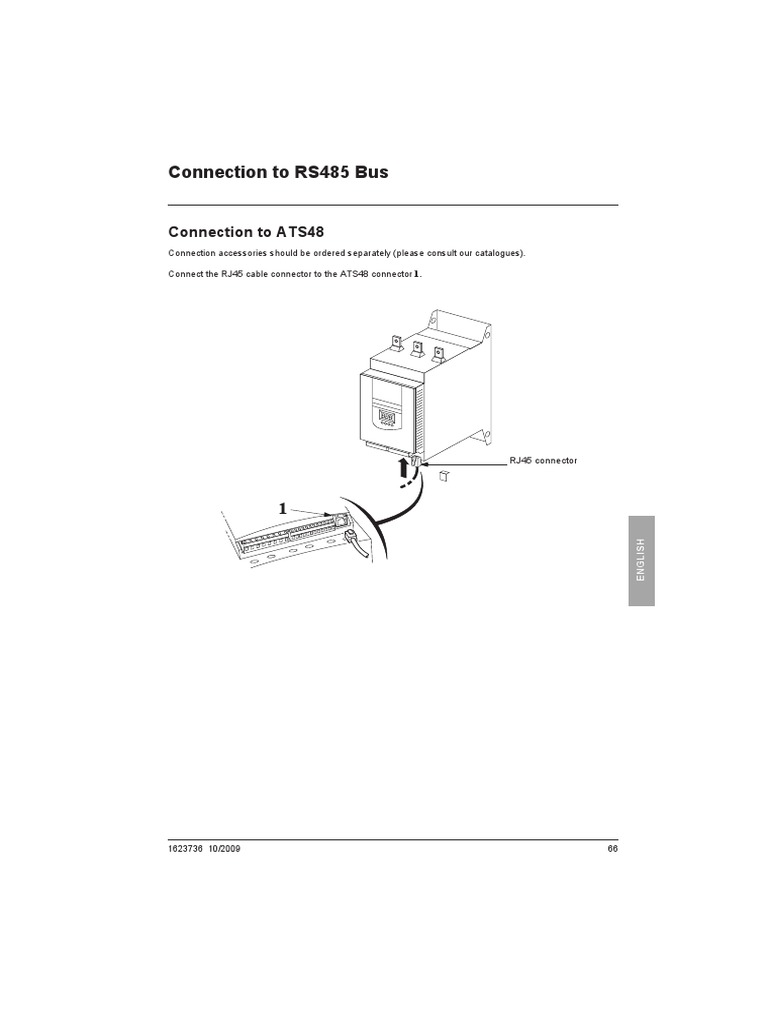

Connection to ATS48
Connection accessories should be ordered separately (please consult our catalogues).

Connect the RJ45 cable connector to the ATS48 connector 1.

RJ45 connector

ENGLISH

1623736 10/2009 66
 Connection to RS485 Bus

Example of connection
Various accessories are available from the Schneider Automation catalogue to aid connection of equipment.
Connection to TSXSCA62 and TSXSCA50 boxes is one example of the different Modbus connection options
(please consult our catalogues).

- Shielded double twisted pair cable: TSXCSA100 (100 m)

TSXCSA200 (200 m)
TSXCSA500 (500 m)

- TSXSCA62 2-channel subscriber This passive box enables connection to 2 screw terminals and
socket: 2 female 15-pin SUB-D connectors. It includes the line termination,
required when the socket is located at an end of the line.

- TSXCAS0 junction box: This passive box enables connection to 3 screw terminals. It
includes line termination.

- Drop cable: VW3A8306, length 3 m, fitted with 2 connectors (RJ45 and male
15-pin SubD).
VW3A8306D30, length 3 m, fitted with one RJ45 connector, the
other end stripped.

TSXSCA62 TSXSCA50

TSXCSA¥00
ENGLISH

VW3A8306

PC
VW3A8306D30

Altistart 48 Altistart 48 Altistart 48

67 1623736 10/2009
Connection to RS485 Bus

Wiring recommendations
• Use a shielded cable with 2 pairs of twisted conductors
• Connect the reference potentials (0V) to one another
• Maximum length of line: 1000 metres
• Maximum length of tap-off: 20 metres
• Cable routing: Keep the bus away from the power cables (at least 30 cm) with any crossovers at right-angles
if necessary, and connect the cable shielding to the ground of each device.
• Fit a line terminator at both ends of the line.
120 ¾
D(A) Line termination recommended at both ends of the line
1 nF
D(B)

• Each ATS48 integrates two 4.7 kohm pulldown resistors which improve bus immunity.
If the master is also fitted with 4.7 kohm pulldown resistors, up to 27 starters can be connected.
If the pulldown resistors on the master are 470 ohm, up to 18 starters can be connected.

Pinouts

• ATS48 socket • VW3A8306 cable for TSXSCA62

RJ45 RJ45 Male 15-pin SUB-D

ENGLISH
D (B) 4 D (B) 4 14

D (A) 5 D (A) 5 7

10 V 7

0V 8 0V 8 15

1623736 10/2009 68
