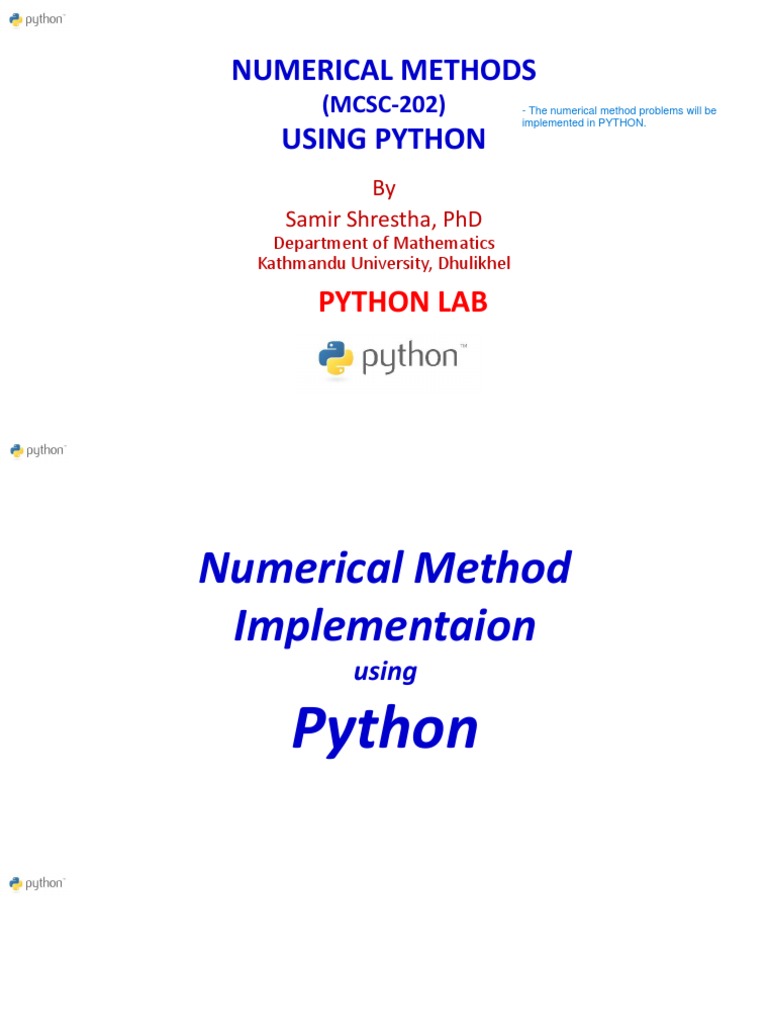

NUMERICAL METHODS

(MCSC-202) - The numerical method problems will be


implemented in PYTHON.

USING PYTHON
By
Samir Shrestha, PhD
Department of Mathematics
Kathmandu University, Dhulikhel

PYTHON LAB
Numerical Method
Implementaion
using

Python
Root Finding
Bisection Method
2
Question: Implement Bisection method to approximate a root of the equation 2𝑥 cos 2𝑥 − 𝑥 + 1 =0
correct to three decimal places that lies on the interval [-3, -2].
Algorithm
Step 1: Choose initial values for a and b and stopping criterion ,𝑒𝑝𝑠 > 0.
Step 2: Compute 𝑓𝑎 = 𝑓(𝑎) and 𝑓𝑏 = 𝑓(𝑏)
Step 3: If 𝑓𝑎 𝑓𝑏 > 0, 𝑎 and 𝑏 does not contain any root. Go to Step 1
Otherwise
𝑎+𝑏
Step 4: Compute 𝑥0 = and compute 𝑓0 = 𝑓(𝑥0)
2

Step 5: If 𝑓𝑎 𝑓0 < 0 (root lies between 𝑎 and 𝑥0)


Set 𝑏 = 𝑥0
Set 𝑓𝑏 = 𝑓0
else (root lies between x0 and b)
Set 𝑎 = 𝑥0
Set 𝑓𝑎 = 𝑓0
Step 6: If 𝑏 − 𝑎 < 𝑒𝑝𝑠, then 𝑥0 is the approximated root of the equation. STOP
else go to Step 4
False Position Method
Question: Implement False Position method to approximate a root of the equation 𝑥 − 2−𝑥 =
0 correct to three decimal places that lies on the interval [0, 1].
Algorithm
Step 1: Choose initial values for a and b and stopping criterion , eps>0
Step 2: Compute 𝑓(𝑎) and 𝑓(𝑏)
Step 3: If 𝑓(𝑎)𝑓(𝑏) > 0, 𝑎 and 𝑏 does not contain any root. Go to Step 1.
Otherwise
𝑎𝑓 𝑏 −𝑏𝑓 𝑎
Step 4: Compute and compute 𝑥𝑛 =
𝑓(𝑏)−𝑓(𝑎)
Step 5:
If 𝑓 𝑥𝑛 = 0, the root is found and is 𝑥𝑛
else If 𝑓(𝑎)𝑓(𝑥𝑛 ) < 0 (root lies between 𝑎 and 𝑥𝑛 )
Set 𝑏 = 𝑥𝑛
else (root lies between𝑥𝑛 and b)
Set 𝑎 = 𝑥𝑛
Step 6: If 𝑥𝑛 − 𝑥𝑛−1 ≤ 𝜖, then 𝑥𝑛 is the approximated root of the equation. STOP.
Otherwise
go to Step 4 to compute the next approximation 𝑥𝑛+1
Fixed Point Iteration Method
Question: Implement Fixed Point Iteration method to approximate a root of the equation
cos 𝑥 = 3𝑥 − 1 correct to three decimal places starting with initial guess 𝑥0 = 2.
Algorithm
Step 1: Rearrange the given equation 𝑓(𝑥) = 0 in the fixed point equation 𝑥 =
𝜙(𝑥) such that 𝜙′(𝑥) < 1 for all 𝑥 ∈ 𝐼.

Step 2: Choose an initial guess 𝑥0 and stopping criterion , 𝑒𝑝𝑠 > 0.

Step 3: Compute 𝑥𝑖 = 𝜙(𝑥𝑖−1 ) , 𝑖 = 1,2,3 …

Step 4: Stop if 𝑥𝑖 − 𝑥𝑖−1 < 𝑒𝑝𝑠 otherwise go to step 3


Newton-Raphson Method
Question: Implement Newton-Raphson method to approximate a root of the equation 𝑥 4 −
3𝑥 2 − 3 = 0 correct to three decimal places starting with initial guess 𝑥0 = 1.
Algorithm
Step 1: Choose an initial guess 𝑥 = 𝑥0 such that 𝑓 ′ 𝑥0 ≠ 0 and stopping
criterion 𝑒𝑝𝑠 > 0.
Step 2: Compute and 𝑓(𝑥0 ) and 𝑓 ′ (𝑥0 )
Step 3: Compute the improve estimate 𝑥1 by using
𝑓 𝑥0
𝑥1 = 𝑥0 − ′
𝑓 𝑥0
Step 4: Check for the accuracy of the latest estimate:
If 𝑥1 − 𝑥0 < 𝑒𝑝𝑠 STOP. Root = 𝑥1 .
else
𝑥0 = 𝑥1 and repeat Step 2 , Step 3 and Step 4.
Secant Method
Question: Implement Secant method to approximate a root of the equation 𝑥 3 + 𝑥 2 + 𝑥 +
7 = 0 correct to three decimal places starting with initial guesses 𝑥0 = 1, 𝑥1 = −2.
Algorithm
Step 1: Choose two initial guesses 𝑥0, 𝑥1, and stopping criterion 𝑒𝑝𝑠 > 0.
Step 2: Compute 𝑓(𝑥0) and 𝑓(𝑥1).
Step 3: Compute new approximation using the formula
𝑥0 𝑓 𝑥1 − 𝑥1 𝑓 𝑥0
𝑥2 =
𝑓 𝑥1 − 𝑓 𝑥0
Step 4: Check for the accuracy of the latest estimate:
If 𝑥2 − 𝑥1 < 𝑒𝑝𝑠 STOP. Root = 𝑥2 .
else set 𝑥0 = 𝑥1 , 𝑥1 = 𝑥2 , and repeat Step 2 , Step 3 and Step 4.
System of Equations: Newton-Raphson Method
Question: Implement Newton-Raphson method to approximate solution of non-linear
equations 𝑥 2 = 3𝑥𝑦 − 7; 𝑦 = 2(𝑥 + 1) correct to 10−4 with initial approximation as 𝑥0 =
2, 𝑦0 = 2
System of Equations: Fixed Point Iteration Method
Question: Implement Fixed Point Iteration Method method to approximate solution of non-
linear equations 𝑥 = −0.1𝑥 3 + 0.1𝑦 + 0.5; 𝑦 = 0.1𝑥 + 0.1𝑦 3 + 0.1 correct to 10−4 with
initial approximation as 𝑥0 = 1, 𝑦0 = 1
Algorithm
Step 1: Define the iteration function 𝐹(𝑥, 𝑦) and 𝐺(𝑥, 𝑦) such that
𝜕𝐹 𝜕𝐹 𝜕𝐺 𝜕𝐺
, + < 1 and + <1
𝜕𝑥 𝜕𝑦 𝜕𝑥 𝜕𝑦

Step 2: Choose starting point (𝑥0, 𝑦0) and stopping criterion 𝑒𝑝𝑠 > 0.
Step 3: Compute, x1 = 𝐹(𝑥0 , 𝑦0 ) and y1 = 𝐺(𝑥0 , 𝑦0 )
Step 4: If 𝑥1 − 𝑥0 < 𝑒𝑝𝑠 and 𝑦1 − 𝑦0 < 𝑒𝑝𝑠 STOP. (Solution achieved)
Otherwise
Update 𝑥0 = 𝑥1 and 𝑦0 = 𝑦1 and go to Step 3 and Step 4 and
continue the process until stopping criterion meet.
Interpolation
Forward Difference Table
Forward Difference Table
Question: Construct the forward difference table of following data using User Defined function and display the
output. 𝑥 15 20 25 30 35 40
𝑦 0.2588190 0.3420201 0.4226183 0.5 0.5735764 0.6427876

Algorithm
Step 1: Store the x-data into a list name x and y-data into a list name y
Step 2: Initialize a 2d-array D of size 𝑛 × (𝑛 + 1) as a zero matrix. Insert the 0th and 1st columns
of D by x and y.
Step 3: Fill the 2nd , 3rd and so on columns of D by finite differences of 1st order, 2nd order and so
on orders as follows:
for j = 2 to n+1
for i = 0 to n-j+1
D[i,j] = D[i+1,j-1]-D[i,j-1]
Step 4: Call the forward difference table function and print the table
Backward Difference Table
Backward Difference Table
Question: Construct the backward difference table of follwing data data using User Defined function and display
the output.

𝑥 15 20 25 30 35 40
𝑦 0.2588190 0.3420201 0.4226183 0.5 0.5735764 0.6427876
Algorithm

Step 1: Store the x-data into a list name x and y-data into a list name y
Step 3: Initialize a 2d-array D of size 𝑛 × (𝑛 + 1) as a zero matrix. Insert the 0th and 1st columns
of D by x and y.
Step 4: Fill the 2nd , 3rd and so on columns of D by finite differences of 1st order, 2nd order and so
on orders as follows:
for j = 2 to n+1
for i = 0 to n-j+1
D[i+j-1,j] = D[i+1+j-2,j-1]-D[i+1+j-2,j-1]
Step 4: Call the backward difference table function and print the table
Newton’s Interpolation Formula
Question: Write a program to estimate the value of the function 𝑓(0.1) and 𝑓(0.9) applying Newton’s forward and
backward interpolation polynomials using following table:
x 0.0 0.2 0.4 0.6 0.8 1.0
y 0.61 0.73 1.21 3.01 3.44 5.80

Algorithm
Step 1: Call forward difference and backward difference function with data x, y as input
and output as FD or BD
Step 2: Implement Newton’s Forward Interpolation to estimate the value of 𝑓(0.1)
𝛥𝑦0 𝛥2 𝑦0 𝛥3 𝑦0 𝛥𝑛 𝑦0
𝑦𝑛 𝑥 = 𝑦0 + 𝑝 + 𝑝 𝑝−1 + 𝑝 𝑝−1 𝑝−2 + ⋯+ 𝑝 𝑝 − 1 (𝑝 −
1! 2! 3! 𝑛!
Newton’s Forward Interpolation Formula
Question: Write a program to estimate the value of the function 𝑓(0.1) applying Newton’s forward interpolation
polynomials using following table:
x 0.0 0.2 0.4 0.6 0.8 1.0
y 0.61 0.73 1.21 3.01 3.44 5.80
Algorithm
Step 1: Call forward difference function data as an input and output as FD
Step 2: Implementing Newton’s Forward Interpolation to estimate the value of 𝑓 0.1 :
p = (0.21-x[0])/h
yp = 0
p_fact = 1
for i = 1 to n+1
yp = yp + p_fact* FD[0,i]
p_fact = p_fact*(p-(i-1))/factorial(i)
Print the interpolated value yp
Newton’s Backward Interpolation Formula
Question: Write a program to estimate the value of the function 𝑓(0.9) applying Newton’s backward interpolation
polynomials using following table:
x 0.0 0.2 0.4 0.6 0.8 1.0
y 0.61 0.73 1.21 3.01 3.44 5.80
Algorithm
Step 1: Call forward difference function data as an input and output as BD
Step 2: Implementing Newton’s Backward Interpolation to estimate the value of 𝑓 0.9 :
p = (0.29-x[-1])/h
yp = 0
p_fact = 1
for i = 1 to n+1
yp = yp + p_fact* BD[-1,i]
p_fact = p_fact*(p+(i-1))/factorial(i)
Print the interpolated value yp
Lagrange Interpolation
From following data points estimate the value of 𝑦 at 𝑥 = 2.5 using Lagrange Interpolation
formula. 𝑥 0 1 2 3 4
𝑦 0 1.7183 6.3891 19.0855 53.5982

The Lagrange Interpolating Polynomial of degree n that passes through the set of (n+1) points
𝑥𝑖 , 𝑦𝑖 , 𝑖 = 0,1,2, … , 𝑛 is given by
𝐿𝑛 𝑥 = 𝑛𝑖=0 𝑙𝑖 (𝑥)𝑦𝑖 ---------------(4)
where
𝑥 − 𝑥0 𝑥 − 𝑥1 ⋯ 𝑥 − 𝑥𝑖−1 𝑥 − 𝑥𝑖+1 ⋯ 𝑥 − 𝑥𝑛
𝑙𝑖 𝑥 =
𝑥𝑖 − 𝑥0 𝑥𝑖 − 𝑥1 ⋯ 𝑥𝑖 − 𝑥𝑖−1 𝑥𝑖 − 𝑥𝑖+1 ⋯ 𝑥𝑖 − 𝑥𝑛
Lagrange Interpolation
From following data points estimate the value of 𝑦 at 𝑥 = 2.5 using Lagrange Interpolation
formula. 𝑥 0 1 2 3 4
𝑦 0 1.7183 6.3891 19.0855 53.5982
Algorithm
Step 1: Read the 𝑥𝑖 and 𝑦𝑖 data in array/list with variable names x and y of n number of elements. Read the 𝑥𝑝 =
2.5 where interpolation to be done.
Step 2:
𝑥𝑝 = 2.5
Initialize 𝑦𝑝 = 0
for i = 1 to n
Set p = 1
for j = 1 to n
If 𝑖 ≠ 𝑗
Calculate 𝑝 = 𝑝 ∗ (𝑥𝑝 − 𝑥𝑗)/(𝑥𝑖 − 𝑥𝑗 )
Calculate 𝑦𝑝 = 𝑦𝑝 + 𝑝 ∗ 𝑦𝑖
Print the interpolated value 𝑦𝑝
Divided Difference Table
Divided Difference Table
From following data construct divided difference table using User Defined function and display
the output.
𝑥 -1 0 3 6 7
𝑦 3 -6 39 822 1611

Algorithm
Step 1: Read the 𝑥𝑖 and 𝑦𝑖 data in array/list with variable names x and y of n number of
elements.
Step 2: Initialize zero matrix D of size 𝑛 × (𝑛 + 1). Insert x and y in 1st and 2nd columns of
D by x and y
Step 3:
for j = 2 to n+1
for i =0 to n-j+1
D[i,j] = (D[i+1,j-1]-D[i,j-1])/(x[i+1+(j-2)]-x[i])
Step 4: Call the divided difference table function and print the table
Newton’s Divided Difference Interpolation
From following data points estimate the value of 𝑦 at 𝑥 = 2 using Newton’s General Interpolation
formula. 𝑥 -1 0 3 6 7
𝑦 3 -6 39 822 1611

Newton’s General Interpolation Formula

𝑦 = 𝑦0 + 𝑥 − 𝑥0 𝑥0 , 𝑥1 + 𝑥 − 𝑥0 𝑥 − 𝑥1 𝑥0 , 𝑥1 , 𝑥2 +
𝑥 − 𝑥0 𝑥 − 𝑥1 𝑥 − 𝑥2 𝑥0 , 𝑥1 , 𝑥2 , 𝑥3 + ⋯
+ 𝑥 − 𝑥0 𝑥 − 𝑥1 … 𝑥 − 𝑥𝑛−1 𝑥0 , 𝑥1 , … , 𝑥𝑛
Newton’s Divided Difference Interpolation
From following data points estimate the value of 𝑦 at 𝑥 = 2 using Newton’s Divided Difference
Interpolation formula. 𝑥 -1 0 3 6 7
𝑦 3 -6 39 822 1611

Algorithm
Step 1: Call divided difference table function with data as an input and output as DD
Step 2: Implementing Newton’s Divided Interpolation to estimate the value of 𝑦 at 𝑥 = 2:
xp = 2
yp = 0
fact = 1
for i = 1 to n+1
yp = yp + fact* DD[0,i]
fact = fact*(xp-x[i-1])
Print the interpolated value yp
Numerical Differentation
Differentiation using Newton’s Forward Interpolation Formula
𝑑𝑦
Problem 1: Compute the first and second derivatives at the point 𝑥0 = 0 and 𝑥𝑛 = 6 using the following
𝑑𝑥
tabulated data using Newton’s interpolation formulas:
𝑥 0 1 2 3 4 5 6
𝑦 2 3 10 29 66 127 218

Differentiation Formulas
Differentiation using Newton’s Forward Interpolation Formula
𝑑𝑦
Problem 1: Compute the first and second derivatives at the point 𝑥0 = 0 using the following tabulated data
𝑑𝑥
using Newton’s forward interpolation formula:
𝑥 0 1 2 3 4 5 6
𝑦 2 3 10 29 66 127 218
Algorithm
Step 1: Call forward and backward difference table function with data as an input and output as
FD and BD respectively.
Step 2: Implementing Newton’s Forward and Backward Interpolation for derivative to
𝑑𝑦
estimate the value of
𝑑𝑥
Dy0 = 0
Dyn = 0
for i = 2 to n+1
Dy0 = Dy0 + (-1)**i*1/h*FD[0,i]*1/(i-1)
Dyn = Dyn + 1/h*BD[-1,i]*1/(i-1)
Print the interpolated value Dy0 and Dyn
Numerical Integration
TRAPEZOIDAL RULE
1 −𝑥 2
Problem: Evaluate the definite integral −1
𝑒 𝑑𝑥 correct to three decimal places by using
Trapezoidal Rule by taking n = 20 equal divisions of the interval [-1, 1]. Increase the value of n =
30, 40, 50, 100 and observes the value of integration.

Formula:
TRAPEZOIDAL RULE
1 −𝑥 2
Problem: Evaluate the definite integral −1
𝑒 𝑑𝑥 correct to three decimal places by using
Trapezoidal Rule by taking n = 20 equal divisions of the interval [-1, 1]. Increase the value of n =
30, 40, 50, 100 and observes the value of integration.
Algorithm
Step 1: Store the n = 20 division of the interval [-1, 1] into the array named as x and
−𝒙 𝟐
compute the corresponding function value of 𝒆 and store into the array named as y
Step 2:
n = length(x)
I = y[0] + y[n]
for i = 1 to n-1
I = I + 2*y[i]
I = h/2*I
Print the value of I
SIMPSON’S RULE
1 −𝑥 2
Problem: Evaluate the definite integral −1
𝑒 𝑑𝑥 correct to three decimal places by using Simpson’s
Rule by taking 20 equal divisions of the interval [-1, 1]. Increase the value of n = 30, 40, 50, 100 and
observes the value of integration.

Formula:
SIMPSON’S RULE
Algorithm
Step 1: Store the n = 20 division of the interval [-1, 1] into the array named as x and
−𝒙 𝟐
compute the corresponding function value of 𝒆 and store into the array named as y
Step 2:
n = length(x)
I = y[0] + y[n]
for i = 1 to n-1
if i is odd
I = I + 4*y[i]
else
I = I + 2*y[i]
I = h/3*I
Print the value of I
DOUBLE INTEGRATION: TRAPEZOIDAL and SIMPSON’S RULE

1 −(𝑥 2 +𝑦 2 )
Problem: Evaluate the definite integral −1
𝑒 𝑑𝑥𝑑𝑦
correct to three decimal places by using
Trapezoidal Rule by taking m = n = 20 equal divisions of the interval [-1, 1]. Increase the value of
m = n = 30, 40, 50, 100 and observes the value of integration.

1 2 2
Problem: Evaluate the definite integral −1 𝑒 −(𝑥 +𝑦 ) 𝑑𝑥𝑑𝑦 correct to three decimal places by using
Simpson’s Rule by taking m = n = 20 equal divisions of the interval [-1, 1]. Increase the value of
m = n = 30, 40, 50, 100 and observes the value of integration.
System of Linear Equations
JACOBI ITERATION METHOD
Problem: Solve the following system of linear equations using Jacobi Iteration Method:
10𝑥1 − 2𝑥2 − 𝑥3 − 𝑥4 = 3
−2𝑥1 + 10𝑥2 − 𝑥3 − 𝑥4 = 15
−𝑥1 − 2𝑥2 + 10𝑥3 − 2𝑥4 = 27
−𝑥1 − 𝑥2 − 2𝑥3 + 10𝑥4 = −9
Starting with initial guess 𝑥1 = 𝑥2 = 𝑥3 = 𝑥4 = 0
Method: We rewrite the equations into following form:
1
𝑥1 = (3 + 2𝑥2 + 𝑥3 + 𝑥4 )
10
1
𝑥2 = (15 +2𝑥1 +𝑥3 + 𝑥4 )
10
1
𝑥3 = (27 +𝑥1 +2𝑥2 + 2𝑥4 )
10
1
𝑥4 = (−9 +𝑥1 +𝑥2 + 2𝑥3 )
10
Starting with initial values 𝑥1 = 0, 𝑥2 = 0, 𝑥30 = 0, 𝑥40 = 0, we approximate the next value
0 0

𝑥11 , 𝑥21 , 𝑥31 , 𝑥41 .


Iteration stops whenever 𝑥11 −𝑥10 < 𝜖, 𝑥21 −𝑥20 < 𝜖, 𝑥31 −𝑥30 < 𝜖, 𝑥41 −𝑥40 < 𝜖
JACOBI ITERATION METHOD
Algorithm
Variables: Old values x1, x2, x3, x4 and new values X1, X2, X3, X4
Step 1: initialization
x1 = 0, x2 = 0, x3 = 0, x4 = 0
Step 2: LOOP
while ( 𝑿𝟏 − 𝒙𝟏 < 𝝐 𝒂𝒏𝒅 𝑿𝟐 − 𝒙𝟐 < 𝝐 𝒂𝒏𝒅 𝑿𝟑 − 𝒙𝟑 < 𝝐 𝒂𝒏𝒅 𝑿𝟒 − 𝒙𝟒 < 𝝐)
1
𝑋1 = 3 + 2𝑥2 + 𝑥3 + 𝑥4
10
1
𝑋2 = 15 + 2𝑥1 + 𝑥3 + 𝑥4
10
1
𝑋3 = 27 + 𝑥1 + 2𝑥2 + 2𝑥4
10
1
X4 = (−9 + 𝑥1 + 𝑥2 + 2𝑥3)
10

x1 = X1, x2 = X2, x3 = X3, X4 = x4


Print the value of X1, X2, X3, X4
GAUSS-SEIDEL ITERATION METHOD
Problem: Solve the following system of linear equations using Gauss-Seidel Iteration Method:
10𝑥1 − 2𝑥2 − 𝑥3 − 𝑥4 = 3
−2𝑥1 + 10𝑥2 − 𝑥3 − 𝑥4 = 15
−𝑥1 − 2𝑥2 + 10𝑥3 − 2𝑥4 = 27
−𝑥1 − 𝑥2 − 2𝑥3 + 10𝑥4 = −9
Starting with initial guess 𝑥1 = 𝑥2 = 𝑥3 = 𝑥4 = 0
Method: We rewrite the equations into following form:
1
𝑥1 = (3 + 2𝑥2 + 𝑥3 + 𝑥4 )
10
1
𝑥2 = (15 +2𝑥1 +𝑥3 + 𝑥4 )
10
1
𝑥3 = (27 +𝑥1 +2𝑥2 + 2𝑥4 )
10
1
𝑥4 = (−9 +𝑥1 +𝑥2 + 2𝑥3 )
10
Starting with initial values 𝑥1 = 0, 𝑥2 = 0, 𝑥30 = 0, 𝑥40 = 0, we approximate the next value
0 0

𝑥11 , 𝑥21 , 𝑥31 , 𝑥41 and use currently calculated values.


Iteration stops whenever 𝑥11 −𝑥10 < 𝜖, 𝑥21 −𝑥20 < 𝜖, 𝑥31 −𝑥30 < 𝜖, 𝑥41 −𝑥40 < 𝜖
GAUSS-SEIDEL ITERATION METHOD
Algorithm
Variables: Old values x1, x2, x3, x4 and new values X1, X2, X3, X4
Step 1: initialization
x1 = 0, x2 = 0, x3 = 0, x4 = 0
Step 2: LOOP
while ( 𝑿𝟏 − 𝒙𝟏 < 𝝐 𝒂𝒏𝒅 𝑿𝟐 − 𝒙𝟐 < 𝝐 𝒂𝒏𝒅 𝑿𝟑 − 𝒙𝟑 < 𝝐 𝒂𝒏𝒅 𝑿𝟒 − 𝒙𝟒 < 𝝐)
1
𝑋1 = 3 + 2𝑥2 + 𝑥3 + 𝑥4
10
1
𝑋2 = 15 + 2𝑋1 + 𝑥3 + 𝑥4
10
1
𝑋3 = 27 + 𝑋1 + 2𝑋2 + 2𝑥4
10
1
X4 = (−9 + 𝑋1 + 𝑋2 + 2𝑋3)
10

x1 = X1, x2 = X2, x3 = X3, X4 = x4


Print the value of X1, X2, X3, X4
Numerical Differential Equations
EULER’S METHOD
EULER’S METHOD
Example: Solve ODE (IVP)
𝑑𝑦 1
= 3 − 2𝑥 − 𝑦, 𝑦
0 = 1,
𝑑𝑥 2
by implementing Euler’s method to find the approximate solution on the interval 0 ≤ 𝑥 ≤ 2. Plot the
𝑥

solution and Compare the results with the exact solution y 𝑥 = 14 − 4𝑥 − 13𝑒 2 by taking the steps
sizes ℎ = 0.5, 0.1, 0.01

Formula: 𝑦𝑖+1 = 𝑦𝑖 + 𝑘1 ,
where,
𝑘1 = ℎ𝑓 𝑥𝑖 , 𝑦𝑖 , 𝑖 = 0,1,2, ⋯ , 𝑛 − 1
Algorithm: Euler’s Method
1
Step 1: Construct the user defined function for f x, y = 3 − 2𝑥 − 𝑦 and initialize the arrays x
2
and y of size (n+1). Assign the initial condition x[0] = 0, y[0] = 1
Step 2:
for i = 0 to n-1
𝑘1 = ℎ𝑓(𝑥 𝑖 , 𝑦[𝑖])
y[i+1]= 𝑦[𝑖] + 𝑘1
x[i+1]= 𝑥[𝑖] + ℎ
End
Step3: Plot the points y versus x
𝑥
−2
Step 4: Plot the exact solution y 𝑥 = 14 − 4𝑥 − 13𝑒 and compare the approximated and
exact solutions taking the steps sizes ℎ = 0.5, 0.1, 0.01
MODIFIED EULER’S METHOD
or
HEUN’S METHOD
or
RUNGE-KUTTA 2ND ORDER METHOD
RUNGE-KUTTA 2ND ORDER METHOD
Example: Solve ODE (IVP)
𝑑𝑦 1
= 3 − 2𝑥 − 𝑦, 𝑦
0 = 1,
𝑑𝑥 2
by implementing Runge-Kutta 2nd order method to find the approximate solution on the interval 0 ≤
𝑥

𝑥 ≤ 2. Plot the solution and Compare the results with the exact solution y 𝑥 = 14 − 4𝑥 − 13𝑒 2 by
taking the steps sizes ℎ = 0.5, 0.1, 0.01

Formula: 1
𝑦𝑖+1 = 𝑦𝑖 + 𝑘1 + 𝑘2 ,
2
where,
𝑘1 = ℎ𝑓 𝑥𝑖 , 𝑦𝑖 ,
𝑘2 = ℎ𝑓 𝑥𝑖 + ℎ, 𝑦𝑖 + 𝑘1 , 𝑖 = 0,1, ⋯ , 𝑛 − 1
Algorithm: Runge-kutta 2nd Order Method
1
Step 1: Construct the user defined function for f x, y = 3 − 2𝑥 − 𝑦 and initialize the arrays x
2
and y of size (n+1). Assign the initial condition x[0] = 0, y[0] = 1
Step 2:
for i = 0 to n-1
𝑘1 = ℎ𝑓(𝑥 𝑖 , 𝑦[𝑖])
𝑘2 = ℎ𝑓(𝑥 𝑖 + ℎ, 𝑦 𝑖 + 𝑘1)

1
y[i+1]= 𝑦 𝑖 + (𝑘1 + 𝑘2)
2
x[i+1]= 𝑥[𝑖] + ℎ
End
Step3: Plot the points y versus x
𝑥

Step 4: Plot the exact solution y 𝑥 = 14 − 4𝑥 − 13𝑒 and compare the approximated and
2

exact solutions taking the steps sizes ℎ = 0.5, 0.1, 0.01


RUNGE-KUTTA-4TH ORDER SCHEME
RUNGE-KUTTA 4TH ORDER METHOD
Example: Solve ODE (IVP)
𝑑𝑦 1
= 3 − 2𝑥 − 𝑦, 𝑦
0 = 1,
𝑑𝑥 2
by implementing Runge-Kutta 4th order method to find the approximate solution on the interval 0 ≤
𝑥

𝑥 ≤ 2. Plot the solution and Compare the results with the exact solution y 𝑥 = 14 − 4𝑥 − 13𝑒 2 by
taking the steps sizes ℎ = 0.5, 0.1, 0.01

Formula: 1
𝑦𝑖+1 = 𝑦𝑖 + 𝑘1 + 2𝑘2 + 2𝑘3 + 𝑘4 ,
6
where,
𝑘1 = ℎ𝑓 𝑥𝑖 , 𝑦𝑖
ℎ 𝑘1
𝑘2 = ℎ𝑓 𝑥𝑖 + , 𝑦𝑖 +
2 2
ℎ 𝑘2
𝑘3 = ℎ𝑓 𝑥𝑖 + ,𝑦 +
2 𝑖 2
𝑘4 = ℎ𝑓 𝑥𝑖 + ℎ, 𝑦𝑖 + 𝑘3 , 𝑖 = 0,1, ⋯ , 𝑛 − 1
Algorithm: Runge-kutta 2nd Order Method
1
Step 1: Construct the user defined function for f x, y = 3 − 2𝑥 − 𝑦 and initialize the arrays x
2
and y of size (n+1). Assign the initial condition x[0] = 0, y[0] = 1
Step 2:
for i = 0 to n-1
k1= ℎ𝑓 𝑥 𝑖 , 𝑦 𝑖
ℎ 𝑘1
𝑘2 = ℎ𝑓 𝑥 𝑖 + ,𝑦𝑖 +
2 2
𝑘3 = ℎ𝑓(𝑥 𝑖 + ℎ/2, 𝑦 𝑖 + 𝑘2/2)
k4= ℎ𝑓(𝑥 𝑖 + ℎ, 𝑦 𝑖 + 𝑘3)
1
y[i+1]= 𝑦 𝑖 + (𝑘1 + 2𝑘2 + 2𝑘3 + 𝑘4)
6
x[i+1]= 𝑥[𝑖] + ℎ
End
Step3: Plot the points y versus x
𝑥
−2
Step 4: Plot the exact solution y 𝑥 = 14 − 4𝑥 − 13𝑒 and compare the approximated and
exact solutions taking the steps sizes ℎ = 0.5, 0.1, 0.01
FINITE DIFFERENCE METHOD (FDM)
Second Order Differential Equation
(Boundary Value Problem)
Finite Difference Method (FDM) for ODE (BVP):
Let us consider the second order ordinary differential equation:
𝑦 ′′ 𝑥 + 𝑝 𝑥 𝑦 ′ 𝑥 + 𝑞 𝑥 𝑦 = 𝑟(𝑥)---------- (1)
with boundary conditions 𝑦 𝑥0 = 𝑦0 and 𝑦 𝑥𝑛 = 𝑦𝑛 .
We divide the interval [𝑥0 , 𝑥𝑛 ] into n-number of equal sub-intervals by
set of points 𝑥0 , 𝑥1 , ⋯ , 𝑥𝑛 such that 𝑥0 < 𝑥1 < ⋯ < 𝑥𝑛 with equal
step size ℎ, that means, 𝑥𝑖 = 𝑥0 + 𝑖ℎ, 𝑖 = 0,1, ⋯ , 𝑛.
Which reduces Eq. (1) in the following system of linear equations:𝐴𝑌 = 𝑑
𝑏1 𝑐1 0 0 ⋯ 0 𝑦1 𝑑1 − 𝑎1 𝑦0
𝑎2 𝑏2 𝑐2 0 ⋯ 0 𝑦2 𝑑2
0 𝑎3 𝑏3 𝑐3 ⋯ 0 𝑦3 = 𝑑3
⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮
0 0 0 0 𝑎𝑛−1 𝑏𝑛−1 𝑦𝑛−1 𝑑𝑛−1 − 𝑐𝑛−1 𝑦𝑛
where
ℎ ℎ
𝑎𝑖 = 1 − 𝑝𝑖 , 𝑏𝑖 = −2 + 𝑞𝑖 ℎ , 𝑐𝑖 = 1 + 𝑝𝑖 , 𝑑𝑖 = ℎ2 𝑟𝑖
2
2 2
FINITE DIFFERENCE METHOD (FDM)
Example: Implement the boundary value problem
𝑦 ′′ + 𝑦 = −1
with boundary conditions 𝑦 0 = 0, 𝑦 1 = 0 by using finite difference method (FDM) taking
the step size ℎ = 0.1. Plot the result and compare with the exact solution 𝑦 =
1−cos 1
cos 𝑥 + sin 𝑥 − 1
sin 1
Formula: Solve the following system of linear equations which is in matrix form:

𝑏1 𝑐1 0 0 ⋯ 0 𝑦1 𝑑1 − 𝑎1 𝑦0
𝑎2 𝑏2 𝑐2 0 ⋯ 0 𝑦2 𝑑2
0 𝑎3 𝑏3 𝑐3 ⋯ 0 𝑦3 = 𝑑3
⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮ ⋮
0 0 0 0 𝑎𝑛−1 𝑏𝑛−1 𝑦𝑛−1 𝑑𝑛−1 − 𝑐𝑛−1 𝑦𝑛
where
ℎ ℎ
𝑎𝑖 = 1 − 𝑝𝑖 , 𝑏𝑖 = −2 + 𝑞𝑖 ℎ , 𝑐𝑖 = 1 + 𝑝𝑖 , 𝑑𝑖 = ℎ2 𝑟𝑖
2
2 2
Algorithm: Finite Difference Method (FDM)
Step 1: Construct the user defined functions for p x = 0, 𝑞 𝑥 = 0, 𝑟 𝑥 = 1. Divide the interval [0,1] into n-
subintervals of size h = 0.1. Store the these point in the array name x of length (n+1). Initialize the array name y with
y[0] = 0 and y[n] = 1
𝑏1 𝑐1 0 0 ⋯ 0
𝑎2 𝑏2 𝑐2 0 ⋯ 0
Step 2: Construct the tri-diagonal matrix A = 0 𝑎3 𝑏3 𝑐3 ⋯ 0 and column matrix B =
⋮ ⋮ ⋮ ⋮ ⋮ ⋮
0 0 0 0 𝑎𝑛−1 𝑏𝑛−1
𝑑1 − 𝑎1 𝑦0
𝑑2
𝑑3

𝑑𝑛−1 − 𝑐𝑛−1 𝑦𝑛
ℎ ℎ
with 𝑎𝑖 = 1 − 𝑝𝑖 , 𝑏𝑖 = −2 + 𝑞𝑖 ℎ2 , 𝑐𝑖 = 1 + 𝑝𝑖 , 𝑑𝑖 = ℎ2 𝑟𝑖
2 2

Step3: Compute 𝐴−1 𝐵 and store the value in 𝑌 and insert Y into the array y from 1 t0 (n-1) indices: y[1:-1]=Y
Step 4: Plot the points y versus x
1−cos 1
Step 4: Plot the exact solution𝑦 = cos 𝑥 + sin 𝑥 − 1
sin 1
and compare the approximated and exact solutions taking the steps sizes ℎ = 0.05 0.001
CURVE FITTING
Formula: Problem: Fit the straight line 𝑦 = 𝑎0 + 𝑎1 𝑥 from the set of data points 𝑥𝑖 , 𝑦𝑖 , 𝑖 =
1,2, ⋯ , 𝑚
Solution: Solve two normal equations to find the parameters 𝑎0 , 𝑎1 :
𝑚 𝑚

𝑚𝑎0 + 𝑎𝑖 𝑥𝑖 = 𝑦𝑖 −−−−− −(1)


𝑖=1 𝑖=1
𝑚 𝑚 𝑚

𝑎0 𝑥𝑖 + 𝑎𝑖 𝑥𝑖2 = 𝑥𝑖 𝑦𝑖 −−−− −(2)


𝑖=1 𝑖=1 𝑖=1
Which gives
𝑚 𝑚 𝑚
𝑚 𝑖=1 𝑥𝑖 𝑦𝑖 − 𝑖=1 𝑥𝑖 𝑖=1 𝑦𝑖
𝑎1 = 2
𝑚 2 𝑚
𝑚 𝑖=1 𝑥𝑖 − 𝑥
𝑖=1 𝑖
𝑎0 = 𝑦 − 𝑎1 𝑥
Formula: Problem: Fit the straight line 𝑦 = 𝑎𝑒 𝑏𝑥 from the set of data points 𝑥𝑖 , 𝑦𝑖 , 𝑖 = 1,2, ⋯ , 𝑚
Solution: Transform the given model curve into linear form 𝑌 = 𝑎𝑜 + 𝑏0 𝑋, where 𝑎0 =
ln 𝑎 , 𝑏0 = 𝑏, 𝑋 = 𝑥, 𝑌 = ln 𝑦 . Solve two normal equations to find the parameters 𝑎0 , 𝑎1 :
𝑚 𝑚

𝑚𝑎0 + 𝑎𝑖 𝑋𝑖 = 𝑌𝑖 −−−−− −(1)


𝑖=1 𝑖=1
𝑚 𝑚 𝑚

𝑎0 𝑋𝑖 + 𝑎𝑖 𝑋𝑖2 = 𝑋𝑖 𝑌𝑖 −−−− −(2)


𝑖=1 𝑖=1 𝑖=1
Which gives
𝑚 𝑚 𝑚
𝑚 𝑖=1 𝑋𝑖 𝑌𝑖 − 𝑖=1 𝑋𝑖 𝑖=1 𝑌𝑖
𝑎1 = 2
𝑚 2 𝑚
𝑚 𝑖=1 𝑋𝑖 − 𝑋
𝑖=1 𝑖
𝑎0 = 𝑌 − 𝑎1 𝑋
Then, compute the values 𝑎 = 𝑒 𝑎0 , 𝑏 = 𝑏0 and get the fitted model curve 𝑦 = 𝑎𝑒 𝑏𝑥
End of Lecture-6
Next
MCSC-202 LAB EXAMS
56

You might also like
