Quantity Survey Notes Index and Types

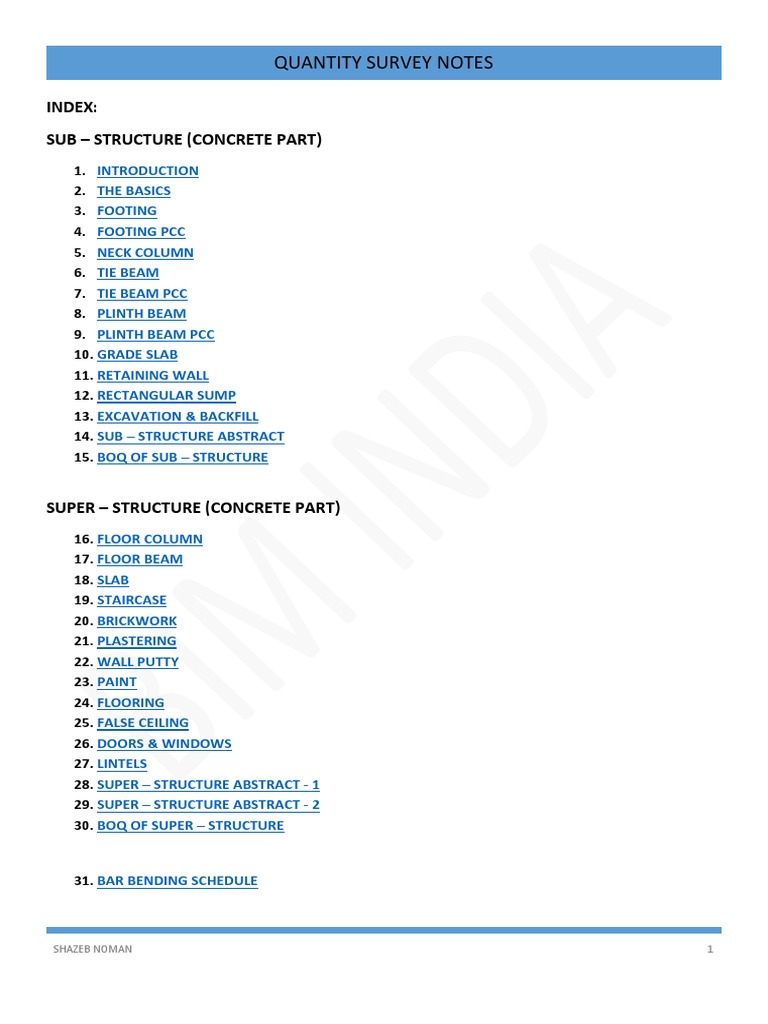

QUANTITY SURVEY NOTES
INDEX:
SUB – STRUCTURE (CONCRETE PART)
1. INTRODUCTION
2. THE BASICS
3. FOOTING
4. FOOTING PCC
5. NECK COLUMN
6. TIE BEAM
7. TIE BEAM PCC
8. PLINTH BEAM
9. PLINTH BEAM PCC
10. GRADE SLAB
11. RETAINING WALL
12. RECTANGULAR SUMP
13. EXCAVATION & BACKFILL
14. SUB – STRUCTURE ABSTRACT
15. BOQ OF SUB – STRUCTURE
SUPER – STRUCTURE (CONCRETE PART)

16. FLOOR COLUMN
17. FLOOR BEAM
18. SLAB
19. STAIRCASE
20. BRICKWORK
21. PLASTERING
22. WALL PUTTY
23. PAINT
24. FLOORING
25. FALSE CEILING
26. DOORS & WINDOWS
27. LINTELS
28. SUPER – STRUCTURE ABSTRACT - 1
29. SUPER – STRUCTURE ABSTRACT - 2
30. BOQ OF SUPER – STRUCTURE
31. BAR BENDING SCHEDULE
SHAZEB NOMAN 1
SUB – STRUCTURE (REINFORCEMENT PART)

32. FOOTING
33. NECK COLUMN
34. TIE BEAM
35. PLINTH BEAM
36. GRADE SLAB
37. RETAINING WALL
38. RECTANGULAR SUMP
39. SUB – STRUCTURE ABSTRACT
40. BOQ OF SUB – STRUCTURE
SUPER – STRUCTURE (REINFORCEMENT PART)

41. FLOOR COLUMN
42. FLOOR BEAM
43. SLAB
44. STAIRCASE
45. SUPER – STRUCTURE REINFORCEMENT ABSTRACT
46. BOQ OF SUPER – STRUCTURE REINFORCEMENT
47. COMPLETE BILL OF QUANTITY OF SAMPLE PROJECT
SHAZEB NOMAN 2
1. QUANTITY SURVEY: IT IS A PROCESS IN WHICH, QUANTITIES OF ALL THE CONSTRUCTION

MATERIALS ARE ESTIMATED AND COST OF THE PROJECT IS DERIVED.
100 BAGS OF CEMENT
GRADE 43 CEMENT AMBUJA BRAND
450 RS MARKET VALUE
COSTING
SHAZEB NOMAN 3
2.BASIC EXECUTION PROCESS:
SHAZEB NOMAN 4
SHAZEB NOMAN 5
TYPES OF FOOTINGS :
1. PLAIN FOOTING:
2. STEP FOOTING :
3. ISOLATED/STRIP/TAPERED FOOTING :
SHAZEB NOMAN 6
4. PLAIN COMBINED FOOTING:
5. ISOLATED COMBINED FOOTING :
6.STRAP FOOTING OR NEIGHBOR FOOTING OR SHOE FOOTING:
SHAZEB NOMAN 7
7. RAFT FOOTING :
8. PILE FOOTING :
SHAZEB NOMAN 8
TYPES OF COLUMNS:
1. SQUARE COLUMN OR RECTANGULAR COLUMN
2. CIRCULAR COLUMN
3. “L” TYPE COLUMN
4. “T” TYPE COLUMN
5.”V” TYPE COLUMN
6. HEXAGON TYPE COLUMN
7. ARCH TYPE COLUMN
8.”Y” TYPE COLUMN:
9. “Y” TYPE COLUMN WITH ARCH
TYPES OF FLOORS :
1. BASEMENT FLOOR: the floor which is constructed below ground level for store rooms or mechanical room or
parking is called as basement floor.
2. PODIUM FLOOR: the floor which is constructed either below ground level or above ground level, especially for car
parking is called as podium floor.
3. GROUND FLOOR: the floor which is constructed on ground level is called as ground floor.
4. MEZZANINE FLOOR: the floor which is constructed between ground and first floor is called as mezzanine floor. this
type of floor is constructed for services of building, shops & offices, to provide facilities for the occupants who are
living in high-rise buildings. For proper ventilation the ceiling height of floor is increase 1metre more than the normal
ceiling height.
5. FIRST FLOOR: the floor which is constructed above ground floor or above mezzanine floor is called as first floor.
6. TYPICAL FLOOR: typical floor is nothing but repeated floor. The plan which is design for ground floor and want to
have the same plan for other floors, then these floors are called as typical floor-1 or typical floor-2, etc.
7. HELIPAD: the floor which is constructed above roof floor and which is used for landing of helicopter or taking off of
helicopter is called as helipad.
SHAZEB NOMAN 9
TYPES OF BEAMS:
1. TIE BEAM
2. STRAP BEAM
3. PLINTH BEAM
4. DROP BEAM ORO INVERTED BEAM
5. CONCEALED BEAM
6. CANTILEVER BEAM
TYPES OF SLABS:
1. CONVENTIONAL SLAB
(I)ONE-WAY SLAB
(II)TWO WAYS SLAB
SHAZEB NOMAN 10
2. HARDY OR HORDY SLAB
3. WAFFLE SLAB
4. DOME SLAB
SHAZEB NOMAN 11
5. PITCH ROOF
6. PROJECTED SLAB OR PORTICO SLAB
7. PRE-STRESSED SLAB
SHAZEB NOMAN 12
8. CABLE SUSPENSION SLAB
9. SLAB WITH ARCHES
10. GRADE SLAB
SHAZEB NOMAN 13
11. HOLLOW-CORE RIBBED SLAB
12. SUNKEN-SLAB OR DEPRESSED SLAB
SHAZEB NOMAN 14
TYPES OF WALLS :
1. BRICK MASONRY WALL
2. COURSE RUBBLE STONE MASONRY WALL OR C.R.S WALL
3. RANDOM RUBBLE STONE MASONRY WALL OR R.R.S WALL.
SHAZEB NOMAN 15
4. RETAINING WALL
5. SHEAR WALL
6. CURTAIN WALL
SHAZEB NOMAN 16
7. PRE-CAST WALL
8. PARAPET WALL
9. COMPOUND OR BOUNDARY WALL
SHAZEB NOMAN 17
10. DROP WALL
11. PARTITION WALL
12. LOAD BEARING WALL
SHAZEB NOMAN 18
TYPES OF STAIR CASES : stairs can be broadly classified into three types
1. STRAIGHT STAIRS
2. TURNING STAIRS
3. CONTINUOUS STAIRS
1. STRAIGHT STAIRS: generally for small houses, available width is very retractable. So, this type of straight stairs are
used in such conditions which runs straight between two floors. This stair may consists of either one single flight or
more than one flight with a landing.
STRAIGHT STAIRS
2. TURNING STAIRS: turning stairs are sub classified as:
A) QUARTER TURN STAIRS

B) HALF TURN STAIRS ( DOG LEGGED STAIRS)
C) THREE – QUARTER TURN STAIRS
D) BIFURCATED STAIRS
A) QUARTER TURN STAIRS: a quarter turn stair is the one which changes its direction either to the right or to the left
but where the turn being affected either by introducing a quarter space landing or by providing winders. In these
type of stairs the flight of stair turns 90 degrees art landing as it rises to connect two different levels. So it is also
called as l-stair.
QUARTER TURN STAIRS
SHAZEB NOMAN 19
B) HALF TURN STAIRS:
In case of half turn stairs its direction reversed, or changed for 180o. Such stairs are quite common.
GEOMETRICAL HALF TURN STAIRS
C) THREE QUARTER TURN STAIRS:
The direction of stairs changed three times with its upper flight crossing the bottom one in the case of three quarter
turn stairs. These stairs are may either be newel or open newel type. This type stairs are generally used when the
vertical distance between two floors is more and as well as length of the stair room is limited.
THREE QUARTER TURN STAIRS
D) BIFURCATED STAIRS:
Bifurcated stairs are commonly used in public building at their entrance hall. This has a wider flight at the bottom,
which bifurcates into two narrower flights, one turning to the left and other to the right, at landing. it may be either
of newel type with a newel post or of geometrical type with continuous stringer and hand rails.
BIFURCATED STAIRS
SHAZEB NOMAN 20
3. CONTINUOUS STAIRS:
This type of stairs neither have any landing nor any intermediate newel post. They are geometric in shape. These are
may be of following types.
CIRCULAR STAIRS
SPIRAL STAIRS
HELICAL STAIRS
CIRCULAR STAIRS OR SPIRAL STAIRS: are usually made either of r.c.c or metal, and is placed at a location
where there are space limitations. Sometimes these are also used as emergency stairs, and are provided at
the back side of a building. These are not comfortable because of all the steps are winders and provides
discomfort.
SPIRAL STAIRS: a helical stair looks very fine but its structural design and construction is very complicated. It
is made of r.c.c in which a large portion of steel is required to resist bending, shear and torsion.
HELICAL STAIRS: looks very fine but its structural design and construction is very complicated. It is made of
r.c.c in which a large portion of steel is required to resist bending, shear and torsion.
CONTINOUS STAIRS
SHAZEB NOMAN 21
UNIT CONVERSION:
UNIT CONVERSIONS
1 METER = 1000 MM
1 METER = 100 CM
1 CM = 10 MM
1 METER = 1.0936 YD
1 METER = 3.28 FT
1 METER = 39.37 INCH”
1 FEET = 12 INCH”
1 INCH” = 2.542 CM
1 INCH” = 25.42 MM
1 YARD = 36 INCH”
1 YARD = 3 FEET
1YD 2
= 9 SQF
1 ACRE = 4840 YD2
1 HECTARE = 2.47 ACRE
SHAZEB NOMAN 22
EXAMPLE PROBLEMS:
1. 10m =? fts
1m = 3.28 ft
So 10 * 3.28 = 32.8 ft
2. 10m2 =? fts2
1m = 3.28 ft
So 10 * 3.282 = 107.639 ft2
3. 10m3 =? fts3
1m = 3.28 ft
So 10 * 3.283 = 353.146 ft3
4. 10ft =? m
1m = 3.28 ft
So 10 / 3.28 = 3.048 m
5. 10ft2 =? m2
1m = 3.28 ft
So 10 / 3.282 = 0.929 m2
6. 10m3 =? fts3
1m = 3.28 ft
So 10 / 3.283 = 0.283 m3
SHAZEB NOMAN 23
FORMULAS :
SHAZEB NOMAN 24
3. FOOTING CALCULATIONS: FOOTING - 1
LENGTH= 1.2m
WIDTH= 1.4m
DEPTH= 0.45m
1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH m3

= 1.2 * 1.4 * 0.45 m3
= 0.756 m3
FOUR SIDE AREA = (LENGTH * DEPTH) + (WIDTH * DEPTH) + (LENGTH * DEPTH) + (WIDTH * DEPTH) m2
= (LENGTH * DEPTH) * 2 + (WIDTH * DEPTH) * 2 m2
= (LENGTH + WIDTH) * 2 * DEPTH m2
2. SHUTTERING AREA = (LENGTH +WIDTH) * 2 * DEPTH m2

= ( PERIPHERAL AREA OF FOOTING) m2
= (1.2 +1.4) * 2 * 0.45 m2
= 2.34 m2
3. BITUMEN PAINT AREA ={ (LENGTH +WIDTH) * 2 * DEPTH + ( LENGTH * WIDTH ) M2

= (PERIPHERAL AREA OF FOOTING) +(TOP AREA OF FOOTING) m2
= {(2.34) + (1.2 * 1.4) m2
= 4.02 m2
SHAZEB NOMAN 25
1.1.FOOTING CALCULATIONS: FOOTING - 2
LENGTH= 1.2m
WIDTH= 1.5m
DEPTH= 0.45m

= 1.2 * 1.5 * 0.45 m3
= 0.81 m3

= ( PERIPHERAL AREA OF FOOTING) m2
= (1.2 +1.5) * 2 * 0.45 m2
= 2.43 m2
3 BITUMEN PAINT AREA ={ (LENGTH +WIDTH) * 2 * DEPTH + ( LENGTH * WIDTH ) m2

= (PERIPHERAL AREA OF FOOTING) +(TOP AREA OF FOOTING ) m2
= {(2.43) + (1.2 * 1.5) m2
= 4.23 m2
SHAZEB NOMAN 26
4. FOOTING PCC CALCULATIONS: FOOTING - 1
NOTE:
LENGTH = FOOTING LENGTH + 0.1.+ 0.1m
WIDTH = FOOTING WIDTH + 0.1.+ 0.1m
DEPTH = 0.1
LENGTH= 1.2 + 0.1 + 0.1 = 1.4m

WIDTH= 1.4 + 0.1+ 0.1 = 1.6m
DEPTH= 0.1m
1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH M3

= 1.4 * 1.6 * 0.1 m3
= 0.224 m3

= ( PERIPHERAL AREA OF FOOTING) m2S
= (1.4 +1.6) * 2 * 0.1 m2
= 0.6 m2
SHAZEB NOMAN 27
3. BITUMEN PAINT AREA ={ (LENGTH +WIDTH) * 2 * DEPTH + ( LENGTH * WIDTH ) m2

= (PERIPHERAL AREA OF FOOTING PCC) +(TOP AREA OF FOOTING PCC) m2
= {(0.6) + (1.4 * 1.6) m2
= 2.84 m2
4. POLYTHENE SHEET = LENGTH * WIDTH m2

= 1.4 * 1.6 m2
= 2.24 m2
5. TERMITE CONTROL= LENGTH * WIDTH m2

= 1.4 * 1.6 m2
= 2.24 m2
SHAZEB NOMAN 28
5. NECK COLUMN CALCULATIONS:
LENGTH= 0.3 M,
WIDTH= 0.3 M
DEPTH= 1.65 M

= 0.3 * 0.3 * 1.65 m3
= 0.149 m3

= (PERIPHERAL AREA OF NECK COLUMN) m2
= (0.3 +0.3) * 2 * 1.65 m2
= 1.98 m2
3. BITUMEN PAINT AREA = (LENGTH +WIDTH) * 2 * DEPTH m2

= (PERIPHERAL AREA OF NECK COLUMN) m2
= 1.98 m2
SHAZEB NOMAN 29
6. TIE BEAM CALCULATIONS:
SHAZEB NOMAN 30
LENGTH= 3.45m
WIDTH= 0.3m
DEPTH= 0.3m

= 3.45 * 0.3 * 0.3 m3
= 0.31 m3
2. SHUTTERING AREA = (LENGTH * DEPTH) * 2 m2

= (3.45 * 0.3) * 2 m2
= 2.07 m2
3. BITUMEN PAINT AREA = (LENGTH * DEPTH) * 2 + (LENGTH * WIDTH) m2

= (3.45 * 0.3) * 2 + (3.45 * 0.3) m2
= 3.11 m2
SHAZEB NOMAN 31
7. TIE BEAM PCC CALCULATIONS:
SHAZEB NOMAN 32
NOTE:
LENGTH = TIE BEAM LENGTH - 0.1 - 0.1
WIDTH = TIE BEAM WIDTH + 0.1 + 0.1
DEPTH = 0.1
LENGTH= 3.45-0.1-0.1=3.25 M,
WIDTH= 0.3+0.1+0.1=0.5 M
DEPTH= 0.1 M

= 3.25 * 0.5 * 0.1 m3
= 0.16 m3

= (3.25 * 0.1) * 2 m2
= 0.65 m2

= (3.25 * 0.1) * 2 + (3.25 * 0.5) m2
= 2.28 m2
4. POLYTHENE SHEET AREA = (LENGTH * WIDTH) m2

= (3.25 * 0.45) m2
= 1.63 m2
5. TERMITE CONTROL AREA = (LENGTH * WIDTH) m2

= (3.25 * 0.5) m2
= 1.63 m2
SHAZEB NOMAN 33
8. PLINTH BEAM CALCULATIONS:
LENGTH= 4.35 M,
WIDTH= 0.3 M
DEPTH= 0.3 M

= 4.35 * 0.3 * 0.3m3
= 0.39 m3

= (4.35 * 0.3) * 2 m2
= 2.61 m2

= (4.35 * 0.3) * 2 + (4.35 * 0.3) m2
= 3.92 m2
SHAZEB NOMAN 34
9. PLINTH BEAM PCC CALCULATIONS:
SHAZEB NOMAN 35
NOTE:
LENGTH = PLINTH BEAM LENGTH
WIDTH = PLINTH BEAM WIDTH + 0.1 + 0.1
DEPTH = 0.1
LENGTH= 4.35 M,
WIDTH= 0.3+0.1+0.1=0.5 M
DEPTH= 0.1 M

= 4.35 * 0.5 * 0.1 m3
= 0.22 m3

= (4.35 * 0.1) * 2 m2
= 0.87 m2

= (4.35 * 0.1) * 2 + (4.35 * 0.5) m2
= 3.05 m2

= (4.35 * 0.5) m2
= 2.18 m2
= (4.35 * 0.5) m2
= 2.18 m2
SHAZEB NOMAN 36
10. GRADE SLAB CALCULATIONS:
LENGTH= 4.45 M,
WIDTH= 3.4 M
DEPTH= 0.1 M

= 4.45 * 3.4 * 0.1 m3
= 1.51 m3

= (4.45 * 3.4) m2
= 15.13 m2

= (4.45 * 3.4) m2
= 15.13 m2
SHAZEB NOMAN 37
11. RETAINING WALL CALCULATIONS:
SHAZEB NOMAN 38
PART-1
LENGTH= 4.35 M,
WIDTH= 1.25M
WALL THICKNESS= 0.2 M

= 4.35 * 1.25 * 0.2 m3
= 1.09 m3
2. SHUTTERING AREA = (LENGTH * WIDTH) * 2 m2

= (4.35 * 1.25) * 2 m2
= 10.88 m2
3. BITUMEN PAINT AREA = (LENGTH * WIDTH) m2

= (4.35 * 1.25) m2
= 5.44 m2
PART-2
LENGTH= 3.45 M,
WIDTH= 0.15M
WALL THICKNESS= 0.2 M

= 3.45 * 0.15 * 0.2 m3
= 0.1 m3
2. SHUTTERING AREA = (LENGTH * WIDTH) * 2 m2

= (3.45 * 0.15) * 2 m2
= 1.04 m2
3. BITUMEN PAINT AREA = (LENGTH * WIDTH) m2

= (3.45 * 0.15) m2
= 0.52 m2
SHAZEB NOMAN 39
12. RECTANGULAR SUMP CALCULATIONS:
SHAZEB NOMAN 40
1. TOP SLAB:
LENGTH= 4 M,
WIDTH= 3 M
DEPTH= 0.2 M

= 4 * 3 * 0.2 m3
= 2.4 m3
2. SHUTTERING AREA ={ ((LENGTH + WIDTH)*2*DEPTH) + (LENGTH * WIDTH) +

((LENGTH + WIDTH)*2*DEPTH) }m2
= {((4 + 3) * 2 * 0.2) + (3.6 * 2.6) + ((0.5 + 0.5) * 2 * 0.2)} m2
= 12.56 m2
3. BITUMEN PAINT AREA = ((LENGTH + WIDTH) * 2 * DEPTH) m2

= ((4 + 3) * 2 * 0.2) m2
= 2.8 m2
SHAZEB NOMAN 41
2. DEDUCTION OF MANHOLE:
LENGTH = 0.5
WIDTH = 0.5
DEPTH = 0.2

= 0.5 * 0.5 * 0.2 m3
= - 0.05 m3
2. SHUTTERING AREA = (LENGTH * WIDTH) m2

= (0.5 * 0.5) m2
= - 0.25 m2
SHAZEB NOMAN 42
3. WALLS:
HORIZONTAL SHEAR WALL:
LENGTH= 4 M,
WIDTH= 2 M
DEPTH OR WALL THICKNESS= 0.2 M
NO.S = 2
1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH * NO.S m3

= 4 * 2 * 0.2 * 2 m3
= 3.2 m3
2. SHUTTERING AREA = ((LENGTH * WIDTH)*2) * 2 m2

= ((4 * 2) * 2) * 2 m2
= 32 m2
3. BITUMEN PAINT AREA = (LENGTH * WIDTH) * NO.S m2

= (4 * 2) * 2 m2
= 16 m2
VERTICAL SHEAR WALL:

LENGTH= 2.6 M,
WIDTH= 2 M
DEPTH OR WALL THICKNESS= 0.2 M
NO.S = 2
1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH * NO.S m3

= 2.6 * 2 * 0.2 * 2 m3
= 2.08 m3
2. SHUTTERING AREA = ((LENGTH * WIDTH)*2) * 2 m2

= ((2.6 * 2) * 2) * 2 m2
= 20.8 m2
3. BITUMEN PAINT AREA = (LENGTH * WIDTH) * NO.S m2

= (2.6 * 2) * 2 m2
= 10.4 m2
SHAZEB NOMAN 43
4. BOTTOM SLAB:
LENGTH= 4 M,
WIDTH= 3 M
DEPTH= 0.2 M

= 4 * 3 * 0.2 m3
= 2.4 m3
2. SHUTTERING AREA = ((LENGTH + WIDTH)*2*DEPTH) m2

= ((4 + 3) * 2 * 0.2) m2
= 2.8 m2
3. BITUMEN PAINT AREA = ((LENGTH + WIDTH) * 2 * DEPTH) m2

= ((4 + 3) * 2 * 0.2) m2
= 2.8 m2
5. PCC BED:
LENGTH= 4+0.1+0.1=4.2 M,
WIDTH= 3+0.1+0.1=3.2 M,
DEPTH= 0.1 M.

= 4.2 * 3.2 * 0.1 m3
= 1.34 m3
2. SHUTTERING AREA = ((LENGTH + WIDTH)*2*DEPTH) m2

= ((4.2 + 3.2) * 2 * 0.1) m2
= 1.48 m2
3. BITUMEN PAINT AREA = {((LENGTH + WIDTH) * 2 * DEPTH) + (LENGTH * WIDTH) –

(LENGTH * WIDTH)} m2
= {((4.2 + 3.2) * 2 * 0.1) + (4.2 * 3.2) – (4 * 3)}m2
= 2.92 m2
SHAZEB NOMAN 44

= (4.2 * 3.2) m2
= 13.44 m2

= (4.2 * 3.2) m2
= 13.44 m2
SHAZEB NOMAN 45
13. EXCAVATION & BACKFILL CALCULATIONS:
SHAZEB NOMAN 46
SHAZEB NOMAN 47
VOLUME OF EXCAVATION = LENGTH * WIDTH * DEPTH m3

1. FOOTING-1 PIT:
LENGTH=FOOTING PCC LENGTH = 1.4 M,

WIDTH=FOOTING PCC WIDTH = 1.6 M
DEPTH= NECK COLUMN HEIGHT + FOOTING DEPTH + FOOTING PCC DEPTH M = 1.65 + 0.45 + 0.1 M = 2.2 M
1. VOLUME OF EXCAVATION = LENGTH * WIDTH * DEPTH m3

= 1.4 * 1.6 * 2.2 m3
= 4.92 m3
2. TIE BEAM PIT:
LENGTH = TIE BEAM PCC LENGTH = 3.25 M,

WIDTH = TIE BEAM PCC WIDTH = 0.5 M
DEPTH = NECK COLUMN HEIGHT + FOOTING DEPTH + FOOTING PCC DEPTH M = 1.65 + 0.45 + 0.1 M = 2.2 M

= 3.25 * 0.5 * 2.2 m3
= 3.57 m3
SHAZEB NOMAN 48
3. RECTANGULAR SUMP PIT:
LENGTH = RECTANGULAR SUMP PCC LENGTH = 4.2 M,

WIDTH = RECTANGULAR SUMP PCC WIDTH = 3.2 M
DEPTH = TOP SLAB THICKNESS + SHEAR WALL HEIGHT + BOTTOM SLAB THICKNESS + PCC BED THICKNESS M
= 0.2 + 2 + 0.2 + 0.1 M = 2.5 M

= 4.2 * 3.2 * 2.5 m3
= 33.6 m3
VOLUME OF BACKFILL = VOLUME OF EXCAVTION – VOLUME OF CONCRETE

VOLUME OF CONCRETE:
FOOTING = 14.04
FOOTING PCC = 4.14
NECK COLUMN = 2.67
TIE BEAM = 5.42
TIE BEAM PCC = 2.81
RETAINING WALL = 12.19
RECTANGULAR SUMP = 28.8
NOTE:
RECTANGULAR SUMP = VOLUME OF EXCAVATION – VOLUME OCCUPIED
VOLUME OCCUPIED:
LENGTH = 4M
WIDTH = 3M
DEPTH = TOP SLAB THICKNESS + SHEAR WALL HEIGHT + BOTTOM SLAB THICKNESS M = 0.2 + 2 + 0.2 M = 2.4 M
VOLUME OCCUPIED = 4 * 3 * 2.4 M3 = 28.8 M3

RECTANGULAR SUMP = VOLUME OF EXCAVATION – VOLUME OCCUPIED
RECTANGULAR SUMP = 33.6 – 28.8 M3 = 4.8 M3
SHAZEB NOMAN 49
14. SUB – STRUCTURE ABSTRACT CALCULATIONS:
 STANDARD WEIGHTS N DENSITIES :
1. WEIGHT OF CEMENT IN KGS/M 3= 1440 KGS.

2. WEIGHT OF EACH CEMENT BAG= 50 KGS.
3. NO. OF CEMENT BAGS /M 3 = 1440/50 = 28.80 OR APPROXIMATELY EQUAL TO 29 BAGS.
4. WEIGHT OF SAND /M 3 = 1600KGS TO 1750 KGS i.e., DRY OR MOISTURIZING.
5. WEIGHT OF AGGREGATE /M 3 = 2400 KGS.
6. WEIGHT OF WATER / M 3 = 1000 KGS.
7. WEIGHT OF WATER /LITRE. = 1 KG.
8. DENSITY OF CONCRETE /M 3 = 2400 KGS.
9. DENSITY OF STEEL /M 3= 7850 KGS.
10. DENSITY OF BRICK = 1.92 GRMS/CM 3 (NORMAL CLAY) OR 2.42 GRMS/CM 3 (FINE CLAY).
11. WEIGHT OF CONCRETE /M 3 = 2500 KGS TO 2800 KGS (R.C.C).
12. M15 = 1:2:4.
WHERE M15 = GRADE OF CONCRETE
M= MIX‐DESIGN
15 = COMPRESSIVE STRENGTH OF CONCRETE
1= 1 BAG OF CEMENT
2 = 2 BAGS OF SAND
4 = 4 BAGS OF AGGREGATE
13. CEMENT: MORTAR = 1:3.
1 = CEMENT,
3 = 3 BAGS OF SAND.
SHAZEB NOMAN 50
 RATIOS ‘’ MIX DESIGNS “GRADES
GRADE OF CONCRETES N RATIOS: Cement, Sand & Aggregate required for different Grades of Concrete /m3
CONCRETE GRADES N RATIOS

GRADE OF RATIO OF
SL.NO. CONCRETE CONCRETE
1 M7.5 1:4:8
2 M10 1:3:6
3 M15 1:2:4
4 M20 1:1.5:3
5 M25 1:1:2
6 M30 1:0.75:1.5
7 M35 1:0.5:1
8 M40 1:0.25:0.5
BRICKWORK CEMENT:MORTAR PROPORTIONS

SL.NO. PROPORTION OR RATIO
1 1:3
2 1:4
3 1:5
4 1:6
5 1:7
6 1:8
PLASTERING CEMENT:MORTAR PROPORTIONS

SL.NO. PROPORTION OR RATIO
1 1:3
2 1:4
3 1:5
4 1:6
5 1:7
6 1:8
SHAZEB NOMAN 51

TOTAL QUANTITY OF CONCRETE FOR PCC = 13 m3
GRADE OF CONCRETE USED FOR PCC = M 7.5
RATION = 1: 4: 8,
ACCORDING TO STANDARDS: FOR 1m3 OF CONCRETE

1. SAND FOR 1 m3 OF CONCRETE = 0.46 m3
THEN FOR 13 m3 = 13 * 0.46 m3
= 5.98 m3
2. AGGREGATE OF SIZE 40mm FOR 1m3 = 0.92 m3

THEN FOR 13 m3 = 13 * 0.92 m3
= 11.96 m3
3. CEMENT FOR 1 m3 OF CONCRETE = (1440*0.92)/8 = 165.6 kgs

THEN FOR 13 m3 = 13 * 165.6 kgs
= 2152.8 kgs
1 BAG OF CEMENT = 50kgs
NO. OF CEMENT BAGS REQUIRED = 2152.8 / 50
= 43.05
APPROXIMATELY = 43 BAGS
SHAZEB NOMAN 52

TOTOAL QUANTITY OF CONCRETE FOR RCC = 63 m3
GRADE OF CONCRETE USED FOR RCC = M 15
RATION = 1: 2: 4,

THEN FOR 63 m3 = 63 * 0.46 m3
= 28.98 m3

THEN FOR 63 m3 = 63 * 0.92 m3
= 57.96 m3

THEN FOR 63 m3 = 63 * 331.2 kgs
= 20865.6 kgs
= 417.31
TOTAL CEMENT BAGS REQUIRED = 43 + 418 = 461 Bags
TOTAL QUANTITY OF SAND = 5.98 + 28.98 m3 = 34.96 m3

LET SAY IF WE ARE ORDERING THROUGH TRUCK,
NO. OF TRUCKS REQUIRED =?
VOLUME OF SAND IN 1 TRUCK = LENGTH * WIDTH * DEPTH m3
= 18’ * 9’ * 3’
= 486 CFT
486 CFT =? m3
= 486 / 3.283
VOLUME OF SAND IN 1 TRUCK = 13.77 m3
NO. OF SAND TRUCK REQUIRED = VOLUME OF SAND REQUIRED / VOLUME OF SAND IN 1 TRUCK
= 34.96 / 13.77
= 2.54
APPROXIMATELY 3 TRUCKS
SHAZEB NOMAN 53
TOTAL QUANTITY OF AGGREGATE OF 40mm = 11.96 m3

LET SAY IF WE ARE ORDERING THROUGH TIPPERS,
NO. OF TIPPERS REQUIRED =?
VOLUME OF AGGREGATE IN 1 TIPPER = 8.5 m3
NO. OF AGGREGATE TIPPER REQUIRED = VOLUME OF AGGREGATE REQUIRED / VOLUME
OF AGGREGATE IN 1 TIPPER
= 11.96 / 8.5 m3
= 1.41
APPROXIMATELY 2 TIPPER

= 57.96 / 8.5 m3
= 6.82
SHAZEB NOMAN 54
HOW TO CALCULATE CEMENT, SAND, AGGREGATE FROM CONCRETE?
FOR EXAMPLE WE WILL TAKE M20 = 1:1.5:3

CONCRETE WHICH WE USE DURING CONCRETING IS WET CONCRETE,
IT WILL INITIAL SETTING TIME (30 MIN)
FINAL SETTING TIME (10 HOURS)
SHRINKAGE OR SAFETY FACTOR =1.54 TO 1.57.
MEANS VOLUME OF DRY CONCRETE = 1.54 TO 1.57 TIMES OF WET CONCRETE
NOW THE CALCULATION PART: FOR 1 M3 OF CONCRETE
RATIO SUM = 1+1.5+3 =5.5,
SHRINKAGE OR SAFETY FACTOR =1.57 (IF U WANT U CAN TAKE 1.54 ALSO)
NOW VOLUME OF DRY CONCRETE = 1 *1.57 M3 = 1.57 M3
 VOLUME OF CEMENT REQUIRED = (CEMENT VALUE IN RATIO / SUM OF RATIO) * 1.57
VOLUME OF CEMENT = (1/5.5)*1.57
VOLUME OF CEMENT = 0.285 M3
IN KGS, = 0.285 * 1440 KGS (WHERE 1440 KGS/ M3 IS WEIGHT OF CEMENT PER M3)
=411 KGS.
NOW IN BAGS, =411 / 50 BAGS (WEIGHT OF CEMENT BAG IS 50 KGS)
CEMENT=8.22 BAGS.
NOW VOLUME OF CEMENT IN CUBIC FEET (CFT) = 8.22 * 1.224 CFT
VOLUME OF 1 BAG OF CEMENT = 50 /1440 =0.034722 M3
WHERE 50 IS WEIGHT PER CEMENT BAG,
AND 1440 IS WEIGHT OF CEMENT PER M3
SO VOLUME OF CEMENT BAG IN CFT = 0.034722 *35.287 CFT (BCOZ 1 M3 = 35.287 CFT.)
1 M3 = 35.287 CFT, 0.034722 M3 =? CFT
= 0.034722 *35.287 CFT
SO VOLUME OF CEMENT BAG IN CFT = 1.224 CFT
 COMING BACK TO
 VOLUME OF CEMENT IN CUBIC FEET (CFT) = 8.22 * 1.224 CFT
VOLUME OF CEMENT IN CUBIC FEET (CFT) = 10.06 CFT
 VOLUME OF SAND REQUIRED = (SAND VALUE IN RATIO / SUM OF RATIO) * 1.57

VOLUME OF SAND REQUIRED = (1.5/5.5)*1.57
VOLUME OF SAND REQUIRED = 0.428 M3
NOW WEIGHT OF SAND PER M3 = 1600 TO 1750 KGS DRY TO MOIST (OR 1400 KGS OR 1450)
FOR 1 M3 = 1600KGS,
THEN FOR 0.428 M3 = 0.428 * 1600
= 684.8 KGS OR =0.684 TONNES
NOW IN VOLUME OF SAND IN CUBIC FEET = 0.428 * 35.287 (BCOZ 1 M3 = 35.287 CFT.)
1 M3 = 35.287 CFT, 0.428 M3 =? CFT
= 0.428 * 35.287
 VOLUME OF SAND IN CUBIC FEET = 15.10 CFT
SHAZEB NOMAN 55
AGGREGATE = BROKEN STONE OR COARSE AGGREGATE
 VOLUME OF AGGREGATE REQUIRED = (AGGREGATE VALUE IN RATIO / SUM OF RATIO) * 1.57

VOLUME OF AGGREGATE REQUIRED = (3/5.5)*1.57
VOLUME OF AGGREGATE REQUIRED = 0.856 M3
NOW WEIGHT OF AGGREGATE PER M3 = 2240 TO 2400 KGS

FOR 1 M3 = 2400KGS,
THEN FOR 0.856 M3 = 0.856 * 2400
= 2054.4 KGS OR = 2.054 TONNES
NOW IN VOLUME OF AGGREGATE IN CUBIC FEET = 0.856 * 35.287 (BCOZ 1 M3 = 35.287 CFT.)
1 M3 = 35.287 CFT, 0.856 M3 = ? CFT
= 0.856 * 35.287
 VOLUME OF AGGREGATE IN CUBIC FEET = 30.205 CFT
VOLUME OF CEMENT = 0.285 M3 = 411 KGS = 8.22 BAGS = 10.06 CFT

VOLUME OF SAND REQUIRED = 0.428 M3 = 684.8 KGS = 15.10 CFT
VOLUME OF AGGREGATE REQUIRED = 0.856 M3 = 2054.4 KGS = 30.205 CFT
SHAZEB NOMAN 56
15. SUB – STRUCTURE BOQ CALCULATIONS:

BILL OF QUANTITIES SUB STRUCTURE
TOTAL
S.NO DESCRIPTON UNIT RATE/UNIT TOTAL QUANTITY AMOUNT REMARK
1 CEMENT BAGS 280 461 129080
2 SAND TRUCK 10000 3 30000
3 AGGREGATE OF SIZE 20 MM TIPPER 5000 7 35000
4 AGGREGATE OF SIZE 40 MM TIPPER 4500 2 9000
5 SHUTTERING AREA M2 194 393 76242
6 BITUMEN PAINT LITRE 150 95 14250
7 POLYTHENE SHEET M3 22 235 5170
8 TERMITE CONTROLE M3 12 235 2820
3
9 EXCAVATION M 350 187 65450
10 BACK FILL M3 177 117 20709
387721
ADD 5%WASTAGE 19386

ADD 5%
CONTENGENCIES 19386
TOTAL 426493
SHAZEB NOMAN 57
SUPER – STRUCTURE (CONCRETE PART)
16. FLOOR COLUMN CALCULATIONS:
LENGTH= 0.3m
WIDTH= 0.3m
HEIGHT= 1.8m
1. VOLUME OF CONCRETE = LENGTH * WIDTH * HEIGHT m3

= 0.3 * 0.3 * 1.8 m3
= 0.162 m3
2. SHUTTERING AREA = (LENGTH +WIDTH) * 2 * HEIGHT m2

= (0.3 + 0.3) * 2 * 1.8 m2
= 2.16 m2
SHAZEB NOMAN 58
LENGTH= 0.3m
WIDTH= 0.3m
HEIGHT= 3.15m

= 0.3 * 0.3 * 3.15 m3
= 0.28 m3

= (0.3 + 0.3) * 2 * 3.15 m2
= 3.78 m2
SHAZEB NOMAN 59
17. FLOOR BEAM CALCULATIONS:
NOTE:
FOR EXTERNAL BEAM
SHUTTERING AREA = (L * D) + (L * W) + (L * (D – SLAB THICKNESS)) m2
FOR INTERNAL BEAM
SHUTTERING AREA = (L * (D – SLAB THICKNESS)) + (L * W) + (L * (D – SLAB THICKNESS)) m2
1. EXTERNAL FLOOR BEAM ON AXIS 2 B/W B – D:

LENGTH= 3.4m
WIDTH= 0.3m
DEPTH= 0.3m

= 3.4 * 0.3 * 0.3 m3
= 0.306 m3
2. SHUTTERING AREA = (LENGTH * DEPTH) + (LENGTH * WIDTH) + (LENGTH * (DEPTH –

SLAB THICKNESS)) m2
= (3.4 * 0.3) + (3.4 * 0.3) + (3.4 * (0.3 – 0.15)) m2
= 2.55 m2
SHAZEB NOMAN 60
2. INTERNAL FLOOR BEAM ON AXIS 4 B/W B – D:

LENGTH= 3.4m
WIDTH= 0.3m
DEPTH= 0.3m

= 3.4 * 0.3 * 0.3 m3
= 0.306 m3
2. SHUTTERING AREA = (LENGTH * (DEPTH – SLAB THICKNESS)) + (LENGTH * WIDTH) +

(LENGTH * (DEPTH – SLAB THICKNESS)) m2
= (3.4 * (0.3 – 0.15)) + (3.4 * 0.3) + (3.4 * (0.3 – 0.15)) m2
= 2.04 m2
SHAZEB NOMAN 61
18. SLAB CALCULATIONS:
LENGTH= 4.45m
WIDTH= 3.4m
SLAB THICKNESS OR DEPTH= 0.15m

= 4.45 * 3.4 * 0.15 m3
= 2.269 m3
2. SHUTTERING AREA = (LENGTH * WIDTH) m2

= (4.45 * 3.4) m2
= 15.13 m2
SHAZEB NOMAN 62
19. STAIRCASE CALCULATIONS:
SHAZEB NOMAN 63
SHAZEB NOMAN 64
1. WAIST SLAB – 1:
LENGTH= 4.082m
WIDTH= 1m
DEPTH= 0.15m

= 4.082 * 1 * 0.15 m3
= 0.61 m3
2. SHUTTERING AREA = (TWO SIDE AREA) + (FRONT AREA) + (BOTTOM AREA) m2

= (LENGTH *DEPTH * 2) + (WIDTH * DEPTH) + (LENGTH * WIDTH) m2
= (4.082 * 0.15 * 2) + (1 * 0.15) + (4.082 * 1) m2
= 5.46 m2
2. WAIST SLAB – 2:
LENGTH= 2.33m
WIDTH= 1m
DEPTH= 0.15m

= 2.33 * 1 * 0.15 m3
= 0.35 m3
2. SHUTTERING AREA = (TWO SIDE AREA) + (BOTTOM AREA) m2

= (LENGTH *DEPTH * 2) + (LENGTH * WIDTH) m2
= (2.33 * 0.15 * 2) + (2.33 * 1) m2
= 3.03 m2
3. STEPS:
LENGTH OF STEP (L) = 1.0m
WIDTH OF STEP (TREAD) = 0.3m
DEPH OR HEIGHT OF RISER (H) = 0.158m
NO. OF STEPS = 20
1. VOLUME OF CONCRETE = AREA * LENGTH m3

= (½ * WIDTH * HEIGHT)* LENGTH * NO.S m3
= (0.5 * 0.3 * 0.158) * 1.0 * 20 m3
= 0.47 m3
SHAZEB NOMAN 65
2. SHUTTERING AREA = (FRONT AREA) +(RIGHT SIDE AREA)+(LEFT SIDE AREA)*NO.S m2

= (LENGTH * HEIGHT) + ((½ * WIDTH * HEIGHT) + ((½ * WIDTH * HEIGHT) * NO.S m2
= (1.0 * 0.158) + (0.5 * 0.3 * 0.158) + (0.5 * 0.3 * 0.158) * 20 m2
= 4.11 m2
4. LANDING:
LENGTH= 1m
WIDTH= 1.4m
DEPTH= 0.15m

= 1 * 1.4* 0.15 m3
= 0.21 m3
2. SHUTTERING AREA = (FRONT AREA) + (TWO SIDE AREA) + (BOTTOM AREA) m2

= (LENGTH *DEPTH) + (WIDTH * DEPTH * 2) + (LENGTH * WIDTH) m2
= (1 * 0.15) + (1.4 * 0.15 * 2) + (1 * 1.4) m2
= 1.97 m2
4. HANDRAIL: COST WILL BE ADDED TO BOQ
SHAZEB NOMAN 66
20. BRICKWORK:
BRICK SIZE: 0.2m x 0.1m x 0.1m
DOOR SIZE: 1m X 2.1m
DOOR LINTEL SIZE: 1.2m X 0.1m
WALL THICKNESS: 0.2m
BRICKWORK CALCULATION:
BRICKWORK AREA:
1. WALL: length = 4.45m, depth = 2.85m.
Area = 4.45 x 2.85 = 12.68m2
BRICKWORK AREA = 12.68m2

DEDUCTIONS:
1. DOOR: length=1m, depth=2.1m.
Area=1 x 2.1 = 2.1m2
2. DOOR LINTEL: length=1.2m, depth=0.1m.
Area=1.2 x 0.1 = 0.12m2
TOTAL DEDUCTION AREA = 2.1 + 0.12 = 2.22m2
SHAZEB NOMAN 67
BRICKWORK:
1. VOLUME OF BRICKWORK FOR 20CM WALL = AREA OF 20CM WALL * WALL THICKNESS
= 165.94 * 0.2 m3
= 33.188 m3
2. VOLUME OF BRICKWORK FOR 10CM WALL = AREA OF 10CM WALL * WALL THICKNESS
= 37.2 * 0.1 m3
= 3.72 m3
 VOLUME OF BRICK WORK = 33.188 + 3.72 m3 = 36.908 m3
 VOLUME OF SINGLE BRICK = LENGTH X WIDTH X DEPTH

= 0.2 X 0.1 X 0.1
=0.002m3
 NUMBER OF BRICKS = VOLUME OF BRICKWORK / VOLUME OF SINGLE BRICK

= 36.908 / 0.002
= 18454 BRICKS
 CEMENT:MORTAR REQUIRED FOR BRICKWORK: RATIO = 1 : 3
VOLUME OF BRICKWORK = 36.908 m3
FOR 1m3 OF CEMENT: MORTAR, SAND=0.2m3
SAND = 36.908 X 0.2 = 7.381m3
FOR 1m3 OF CEMENT: MORTAR, CEMENT = (0.2 X 1440)/LAST DIGIT OF RATIO IN KGS
= (0.2 X 1440)/3
= 96 KGS
THEN FOR 37.868 m3 =?
= 36.908 X 96
= 3543.168 KGS
NUMBER OF CEMENT BAGS = 3543.168 / 50
= 70.86 BAGS
APPROX = 71 BAGS
SHAZEB NOMAN 68
21. PLASTERING:
SHAZEB NOMAN 69
DOOR SIZE: 1m X 2.1m
WINDOW SIZE: 1.2m X 1.5m
PLASTERING THICKNESS: 0.02m
PLASTERING CALCULATION:
 PLASTERING AREA: INTERNAL AREA
INTERNAL DIMENSIONS BEDROOM – 1: LENGTH = 4.6m, BREADTH = 3.6m, DEPTH = 3m.
INTERNAL AREA OF BEDROOM - 1 = (LENGTH + BREADTH) X 2 X DEPTH m2
= (4.6 + 3.6) x 2 x3 m2
= 49.2 m2
 INTERNAL DEDUCTIONS:
DOOR - 1: LENGTH = 1m, DEPTH = 2.1m
Door area = 1 x 2.1 =2.1m2
DOOR - 2: LENGTH = 0.9m, DEPTH = 2.1m
Door area = 0.9 x 2.1 =1.89m2
WINDOW: LENGTH = 1.2m, DEPTH = 1.5m
Window area = 1.2 x 1.5 = 1.8m2
Total internal area = internal area – door & window area
= 49.2 – 2.1 – 1.89 – 1.8 – 1.8 m2
= 41.61m2
 EXTERNAL AREA:
EXTERNAL DIMENSIONS: LENGTH = 12.2m, BREADTH = 4m, DEPTH = 3.15m.
EXTERNAL AREA = (LENGTH + BREADTH) X 2 X DEPTH m2
= (12.2 + 4) x 2 x3.15
= 102.06m2
 EXTERNAL DEDUCTIONS:
DOOR: LENGTH = 1m, DEPTH = 2.1m.
Door area = 1 x 2.1=2.1m2
WINDOW: LENGTH = 1.2m, DEPTH = 1.5m.
Window area = 1.2 x 1.5 = 1.8m2
SHAZEB NOMAN 70
VENTILATER: LENGTH = 0.9m, DEPTH = 0.4m.
VENTILATER area = 0.9 x 0.4 = 0.36m2
Total External area = External area – door & window area
= 102.06 – 2.1 – 2.1 – 1.8 – 1.8 – 1.8 – 1.8 – 0.36 – 0.36
= 89.94 m2
 TOTAL PLASTERING AREA: INTERNAL + EXTERNAL PLASTERING AREA

= 241.323 m2 + 210.663 m2
= 451.986 m2
TOTAL THICKNESS OF PLASTER = 20 MM
1. 1ST COAT (ROUGH CAOT) OF PLASTER WITH C : M RATIO 1:6

THICKNESS OF PLASTER FOR 1ST COAT =12MM OR 0.012M
VOLUME OF PLASTER = TOTAL AREA OF PLASTER*THICKNESS OF PLASTER
VOLUME OF 12 MM = 451.986 *0.012
= 5.423 M3
ACCORDING TO STANDARDS
FOR 1 M3 OF C:M WITH RATIO 1:6
SAND = 1.25 m3
CEMENT = 300 Kgs
A. SAND FOR 5.423 m3 =?
SAND = 5.423 * 1.25
SAND = 6.779 m3
B. CEMENT FOR 5.46 m3 =?

CEMENT = 5.46 * 300
= 1626.9 KGS
CEMENT= 1638 KGS

NO. OF BAGS = 1638/50
= 32.538
APPROX = 33 BAGS
SHAZEB NOMAN 71
2. 2ND COAT (FINE CAOT) OF PLASTER WITH C : M RATIO 1:3

THICKNESS OF PLASTER FOR FINE COAT =8MM OR 0.008M
VOLUME OF PLASTER = TOTAL AREA OF PLASTER*THICKNESS OF PLASTER
VOLUME OF 8 MM = 451.986 *0.008
= 3.615 m3
ACCORDING TO STANDARDS
FOR 1 M3 OF C:M WITH RATIO 1:3
SAND = 1.25 m3
CEMENT = 600 Kgs
A. SAND FOR 3.615 m3=?
SAND = 3.615 * 1.25
SAND = 4.519 m3
B. CEMENT FOR 3.64 m3 =?

CEMENT = 3.615 *600
CEMENT = 2169.532 Kgs
NO. OF BAGS = 2184.22/50
= 43.39
APPROX = 44 BAGS
TOTAL SAND = 6.779 + 4.519

= 11.29 m3
TOTAL CEMENT IN BAGS =33 + 44

= 77 BAGS
SHAZEB NOMAN 72
22. WALL PUTTY CALCULATIONS:

THICKNESS OF WALL PUTTY LAYER ON WALL = 3mm OR 0.003m
AREA OF WALL PUTTY = LENGTH * DEPTH m2
WHERE LENGTH = LENGTH OF WALL,
DEPTH = HEIGHT OF WALL
BEDROOM – 1 = (LENGTH + BREADTH) X 2 X DEPTH m2
= (4.6 + 3.6) x 2 x 3 m2
= 49.2 m2
BEDROOM – 2 = (LENGTH + BREADTH) X 2 X DEPTH m2
= (4.7 + 3.6) x 2 x 3 m2
= 49.8 m2
TOTAL WALL PUTTY AREA = 49.2 + 49.8 = 99 m2
DEDUCTIONS:
DOOR-1: LENGTH = 1m, DEPTH = 2.1m
Door area = 1 x 2.1 =2.1m2
DOOR-2: LENGTH = 0.9m, DEPTH = 2.1m
Door area = 0.9 x 2.1 =1.89m2
Window area = 1.2 x 1.5 = 1.8m2
= 99 – 2.1 – 1.89 – 1.8 – 1.8 – 2.1 – 1.89 – 1.8 – 1.8 m2
= 83.82m2
VOLUME OF WALL PUTTY = TOTAL AREA * THICKNESS OF LAYER
= 83.82 * 0.003 m3 = 0.251 m3
 WEIGHT OF WALLPUTTY / m3 = 849 Kgs

1 m3 = 849 Kgs
0.251 m3 =?
0.251 * 849 = 213.489 Kgs
AVAILABLE WALL PUTTY BAGS = 5Kgs, 10Kgs, 20Kgs, AND 40Kgs
NO. OF WALL PUTTY BAGS = 213.489 / 40
= 5.33 = 6 Bags
SHAZEB NOMAN 73
23. PAINT CALCULATIONS:

 PAINT AREA: INTERNAL AREA
INTERNAL DIMENSIONS BEDROOM – 1: LENGTH = 4.6m, BREADTH = 3.6m, DEPTH = 3m.
INTERNAL AREA OF BEDROOM - 1 = (LENGTH + BREADTH) X 2 X DEPTH m2
= (4.6 + 3.6) x 2 x3 m2
= 49.2 m2
 INTERNAL DEDUCTIONS:
DOOR - 1: LENGTH = 1m, DEPTH = 2.1m
Door area = 1 x 2.1 =2.1m2
DOOR - 2: LENGTH = 0.9m, DEPTH = 2.1m
Door area = 0.9 x 2.1 =1.89m2
Window area = 1.2 x 1.5 = 1.8m2
= 49.2 – 2.1 – 1.89 – 1.8 – 1.8 m2
= 41.61m2
 EXTERNAL AREA:
EXTERNAL DIMENSIONS: LENGTH = 12.2m, BREADTH = 4m, DEPTH = 3.15m.
EXTERNAL AREA = (LENGTH + BREADTH) X 2 X DEPTH m2
= (12.2 + 4) x 2 x3.15
= 102.06m2
 EXTERNAL DEDUCTIONS:
DOOR: LENGTH = 1m, DEPTH = 2.1m.
Door area = 1 x 2.1=2.1m2
WINDOW: LENGTH = 1.2m, DEPTH = 1.5m.
Window area = 1.2 x 1.5 = 1.8m2
VENTILATER: LENGTH = 0.9m, DEPTH = 0.4m.
VENTILATER area = 0.9 x 0.4 = 0.36m2
SHAZEB NOMAN 74
Total External area = External area – door & window area
= 102.06 – 2.1 – 2.1 – 1.8 – 1.8 – 1.8 – 1.8 – 0.36 – 0.36
= 89.94m2
ACCORDING TO STANDARDS:
1 Litre OF PAINT WILL COVER 4.2 m2 AREA
1. INTERNAL PAINT:
4.2m2 = 1 Litre
124.44 m2 =?
124.44 / 4.2 = 29.62 = 30 Litres
2. EXTERNAL PAINT:
4.2m2 = 1 Litre
327.546 m2 =?
327.546 / 4.2 = 77.98 = 78 Litres
SHAZEB NOMAN 75
24. FLOORING CALCULATIONS:
1. MARBLE FLOORING:
BEDROOM – 1
BEDROOM – 2
2. WALL SKIRTING:
BEDROOM – 1
BEDROOM – 2
3. VERTIFIED TILES:
TOILET – 1
TOILET – 2
4. CERAMIC TILES ON TOILET WALLS:

TOILET – 1
TOILET – 2
5. INTER-LOCK TILES:
PARKING AREA
SHAZEB NOMAN 76
1. MARBLE FLOORING AREA CALCULATION:

BEDROOM -1
LENGTH = 4.6m,
WIDTH = 3.6m.
BEDROOM -1 FLOORING AREA = LENGTH * WIDTH m2
= 4.6 * 3.6 m2
= 16.56 m2
BEDROOM -2
LENGTH = 4.7m,
WIDTH = 3.6m.
BEDROOM -2 FLOORING AREA = LENGTH * WIDTH m2
= 4.7 * 3.6 m2
= 16.92 m2
2. WALL SKIRTING AREA CALCULATION:
BEDROOM -1
LENGTH = 4.6m,
WIDTH = 3.6m.
WALL SKIRTING HEIGHT = 0.15m.
BEDROOM -1 WALL SKIRTING AREA = (LENGTH + WIDTH) * 2 * HEIGHT m2
= (4.6 + 3.6) * 2 * 0.15 m2
= 2.46 m2
BEDROOM -2
LENGTH = 4.7m,
WIDTH = 3.6m.
WALL SKIRTING HEIGHT = 0.15m.
BEDROOM -2 WALL SKIRTING AREA = (LENGTH + WIDTH) * 2 * HEIGHT m2
= (4.7 + 3.6) * 2 * 0.15 m2
= 2.49 m2
SHAZEB NOMAN 77
2. VERTIFIED TILES AREA CALCULATION:

TOILET - 1
LENGTH = 2.1m,
WIDTH = 1.7m.
TOILET -1 TILE AREA = LENGTH * WIDTH m2
= 2.1 * 1.7 m2
= 3.57 m2
TOILET - 2
LENGTH = 2.1m,
WIDTH = 1.7m.
TOILET -2 TILE AREA = LENGTH * WIDTH m2
= 2.1 * 1.7 m2
= 3.57 m2
3. CERAMIC TILES AREA CALCULATION:
TOILET - 1
LENGTH = 2.1m,
WIDTH = 1.7m,
DEPTH = 3m.
TOILET -1 WALL TILE AREA = (LENGTH + WIDTH) * 2 * DEPTH m2
= (2.1 + 1.7) * 2 * 3 m2
= 22.8 m2
TOILET - 2
LENGTH = 2.1m,
WIDTH = 1.7m,
DEPTH = 3m.
TOILET -2 WALL TILE AREA = (LENGTH + WIDTH) * 2 * DEPTH m2
= (2.1 + 1.7) * 2 * 3 m2
= 22.8 m2
SHAZEB NOMAN 78
4. INTERLOCK TILES AREA CALCULATION: PARKING AREA

PARKING AREA IS DIVIDED INTO 4 PARTS
AREA – 1:
LENGTH = 15.2m,
WIDTH = 3.2m.
AREA - 1 = LENGTH * WIDTH m2
= 15.2 * 3.2 m2
= 48.64 m2
AREA – 2:
LENGTH = 15.2m,
WIDTH = 1.3m.
AREA – 2= LENGTH * WIDTH m2
= 15.2 * 1.3 m2
= 19.76 m2
AREA – 3:
LENGTH = 1.5m,
WIDTH = 4m.
= 1.5 * 4 m2
= 6 m2
AREA – 4:
LENGTH = 1.5m,
WIDTH = 4m.
= 1.5 * 4 m2
= 6 m2
TOTAL PARKING AREA = 48.64 + 19.76 + 6 + 6 = 80.4m2
DEDUCTIONS:
SHAZEB NOMAN 79
WALL SKIRTING AREA:
BEDROOM – 1 = 2 DOORS TO BE DEDUCTED
DOOR -1:
LENGTH = 1m
DEPTH = 0.15m
AREA = LENGTH * DEPTH m2

= 1 * 0.15m2
= 0.15m2
DOOR -2:
LENGTH = 0.9m
DEPTH = 0.15m

= 0.9 * 0.15m2
= 0.135m2
BEDROOM – 2 = 2 DOORS TO BE DEDUCTED
SHAZEB NOMAN 80
DOOR -1:
LENGTH = 1m
DEPTH = 0.15m

= 1 * 0.15m2
= 0.15m2
DOOR -2:
LENGTH = 0.9m
DEPTH = 0.15m

= 0.9 * 0.15m2
= 0.135m2
WALL TILES IN TOILETS:

TOILET -1 = 1 DOOR & 1 VENTILATOR
DOOR:
LENGTH = 0.9m
HEIGHT = 2.1m
AREA = LENGTH * HEIGHT m2

= 0.9 * 2.1 m2
= 1.89 m2
VENTILATOR:
LENGTH = 0.9m
HEIGHT = 0.4m
AREA = LENGTH * HEIGHT m2

= 0.9 * 0.4 m2
= 0.36 m2
NO. OF MARBLES OR TILES = TOTAL AREA / SINGLE MARBLE OR TILE AREA
SHAZEB NOMAN 81
CALCULATIONS FOR THE QUANTITIES OF CEMENT MORTAR FOR FLOORING

TOTAL AREA OF FLOORING
1. MARBLE = 33.48m2
2. VERTIFIED TILE = 7.14m2
3. INTERLOCK TILES = 80.4m2
TOTAL = 121.02m2
CEMENT MORTAR REQUIRED FOR FLOORING WITH C : M RATIO 1:8

THICKNESS OF CEMENT MORTAR LAYER = 2’’ OR 0.05m
VOLUME OF CEMENT MORTAR FOR FLOORING = TOTAL AREA OF FLOORING * THICKNESS OF C : M
=121.02 * 0.05m3
=6.051m3
ACCORDING TO STANDARDS: FOR 1m3 OF CEMENT MORTAR
1. SAND FOR 1 m3 OF C:M = 1.25 m3
THEN FOR 6.051 m3 = 6.051 * 1.25 m3
= 7.563 m3
2. CEMENT FOR 1 m3 OF C:M = 225 kgs

THEN FOR 6.051 m3 = 6.051 * 225 kgs
= 1361.475 kgs
= 27.22
CALCULATIONS FOR CEMENT BAGS REQUIRED FOR SKIRTING AND WALL TILES
THICKNESS OF CEMENT LAYER FOR SKIRTING AND WALL TILES = 10mm OR 0.01m
AREA OF MARBLE SKIRTING = 4.95m2

AREA OF WALL TILES = 41.1m2
TOTAL AREA = 4.95 + 41.1 = 46.05m2
VOLUME OF CEMENT = TOTAL AREA * THICKNESS OF CEMENT LAYER
= 46.05 * 0.01
= 0.46m3
FOR 1m3 CEMENT = 1440 Kgs

FOR 0.46m3 = 0.46 * 1440 = 662.4 Kgs
NO. OF CEMENT BAGS = 662.4 / 50 = 13.24 = 14 Bags
SHAZEB NOMAN 82
25. FALSE CELING CALCULATIONS:
FALSE CEILING AREA:
BEDROOM – 1:
LENGTH = 4.6m
WIDTH = 3.6m
AREA = LENGTH * WIDTH m2

= 4.6 * 3.6 m2
= 16.56m2
SHAZEB NOMAN 83
26. DOOR & WINDOWS CALCULATIONS:
DOOR PANEL DOOR FRAME
WINDOW FRAME & PANEL AL-DROP
DOOR EYE DOOR HANDLE
SHAZEB NOMAN 84
DOOR LOCK RUBBER STOPPER
DOOR STOPPER HINGES
TOWER BOLT WINDOW GRILL METAL GATE
SHAZEB NOMAN 85
27. CALCULATION OF QUANTITIES OF LINTELS:
DOOR -1:
LENGTH = 1m,
WALL THICKNESS = 0.2m
LENGTH= DOOR LENGTH + 0.1 + 0.1 = 1 + 0.1 + 0.1 = 1.2m

WIDTH= WALL THICKNESS = 0.2m
HEIGHT= 0.1m

= 1.2 * 0.2 * 0.1 m3
= 0.024m3

= (1.2 + 0.2) * 2 * 0.1 m2
= 0.28m2
SHAZEB NOMAN 86
28. SUPER – STRUCTURE ABSTRACT 1 CALCULATIONS:


TOTOAL QUANTITY OF CONCRETE FOR RCC = 14.55 m3
GRADE OF CONCRETE USED FOR RCC = M 15
RATIO = 1: 2: 4,

THEN FOR 14.55 m3 = 14.55 * 0.46 m3
= 6.693 m3

THEN FOR 14.55 m3 = 14.55 * 0.92 m3
= 13.386 m3

THEN FOR 14.55 m3 = 14.55 * 331.2 kgs
= 4818.96 kgs
= 96.37
TOTAL CEMENT BAGS REQUIRED = 97 Bags
SHAZEB NOMAN 87
TOTAL QUANTITY OF SAND = 6.693 m3

= 18’ * 9’ * 3’
= 486 CFT
486 CFT =? m3
= 486 / 3.283
= / 13.77
= 2.54

= 57.96 / 8.5 m3
= 6.82
SHAZEB NOMAN 88
29. SUPER – STRUCTURE ABSTRACT 2 CALCULATIONS:

TOTAL QUANTITY OF SAND = 32.927 m3
= 18’ * 9’ * 3’
= 486 CFT
486 CFT =? m3
= 486 / 3.283
= 32.927 / 13.77
= 2.39

= 13.386 / 8.5 m3
= 1.57
NO. OF CEMENT BAGS = 289 BAGS
SHUTTERING AREA = 131.84 m2
NO. OF BRICKS = 18934
NO. OF WALL PUTTY BAGS = 6 (PER BAG 40Kg)
FALSE CEILING AREA = 33.48 m2
INTERNAL PAINT = 30 Litre
SHAZEB NOMAN 89
EXTERNAL PAINT = 78 Litre
NO. OF MARBLE = 339
NO. OF VERTIFIED TILES = 179

PER BOX = 10
NO. OF BOXES = 179/10 = 18
NO. OF INTER LOCK TILES = 2010
NO OF CERAMIC TILES = 1028

PER BOX = 10
NO. OF BOXES = 1028/10 = 103
WINDOW GRILL AND GATE AREA = 11.874
SHAZEB NOMAN 90
30. SUPER – STRUCTURE BOQ CALCULATIONS: PLZ CHECK EXCEL
SHAZEB NOMAN 91
31. BAR BENDING SCHEDULE BASICS:

1. DIAMETERS:
6mm
8mm
10mm
12mm
16mm
20mm
25mm
28mm
32mm
36mm
40mm
2. STANDARD LENGTH OF BAR = 12m.
3. WEIGHT PER METER = D2/162 kg/m. D=DIAMETER

FOR EXAMPLE SAY 8mm BAR.
WEIGHT PER METER = 82/162 = 0.39 kg/m.
4. WEIGHT PER BAR = (D2/162)*12 KGS/BAR.

FOR EXAMPLE SAY 8mm BAR.
WEIGHT PER BA = (82/162)*12 = 4.74 KGS/BAR
5. HOOK :
9d
LENGTH OF HOOK =9d, d = diameter.
LENGTH OF BAR = L + 9d +9d m
SHAZEB NOMAN 92
6. BEND:
LENGTH OF BEND =10d – 16d, d = diameter.
LENGTH OF BAR = L + 12d +12d m. (BEND = 12d).
SHAZEB NOMAN 93
7. OVERLAPPING:
JOGGLE LAP
REINFORCEMENT
OVERLAP
SHAZEB NOMAN 94
MECHANICAL COUPLER OR COUPLER
 FOR COMPRESSION MEMBERS (COLUMNS) OVERLAPPING SHOULD BE TAKEN AS 40D

 FOR TENSILE MEMBERS (BEAMS) OVERLAPPING SHOULD BE TAKEN AS 50D
 BUT FOR BOTH WE CAN TAKE 50D.
 NECK COLUMN TO FOOTING OVERLAPPING = 16D
 COLUMN TO COLUMN = 50d,
 GENERAL OVERLAPPING WHEN 12m BAR FINISHES = 50d. D=DIAMETER
SHAZEB NOMAN 95
CHAIR IN REINFORCEMENT
8. CRANK BAR:
CRANK = 0.42d,
LENGTH OF THE CRANK BAR = L + 0.42d + 0.42d,
D= SLAB OR BEAM THICKNESS – TOP N BOTTOM COVER.
LENGTH OF EXTRA BAR = L/4.
9. COVER: SPACE BETWEEN REINFORCEMENT AND SHUTTERING. COVERING

BLOCKS ARE USED FOR PROVIDING COVER.
FOOTING = 50mm
COLUMN = 25mm - 50mm
BEAM = 25mm - 50mm
SLAB = 25mm
SHAZEB NOMAN 96
CLEAR COVER COVERING BLOCKS
COVERING BLOCKS IN BEAM
COVERING BLOCKS IN SLAB
SHAZEB NOMAN 97
10. SPACING: DISTANCE BETWEEN TWO REINFORCEMENT BARS.
11. NUMBER OF BARS = (OPPOSITE LENGTH /SPACING) + 1.
12. NUMBER OF STIRRUPS = (ACTUAL LENGTH OF COLUMN OR BEAM /SPACING) + 1.
STEPS IN REINFORCEMENT CALCULATION:

1. LENGTH OF BAR =
2. NUMBER OF BAR = (OPPOSITE LENGTH / SPACING) + 1
3. TOTAL LENGTH OF BARS = LENGTH OF BAR * NUMBER OF BARS M
4. DIAMETER OF BAR = 12 MM (GIVEN IN DRAWING)
5. WEIGHT PER METER OF BAR = D2/162 GS/M
6. TOTAL WEIGHT OF BARS = TOTAL LENGTH * WEIGHT PER METER KGS
SHAZEB NOMAN 98
32. FOOTING REINFORCEMENT CALCULATIONS: FOOTING - 1
SHAZEB NOMAN 99
FOOTING REINFORCEMENT CALCULATIONS: BEND = 12D, D=DIAMETER.

X - BARS:
1. LENGTH OF X - BAR = L - 0.1 – 0.1 + 12D + 12D M
LENGTH OF X - BAR = 1.2 – 0. 1 – 0.1 + 12(0.012) + 12(0.012) M
LENGTH OF X - BAR = 1.288 M
2. NUMBER OF X - BAR = (OPPOSITE LENGTH / SPACING) + 1

NUMBER OF X - BAR = {(1.4 – 0.1 – 0.1)/0.1} + 1
NUMBER OF X - BAR = {1.2/0.1} + 1
NUMBER OF X - BAR = 13 BARS
3. TOTAL LENGTH OF X - BARS = LENGTH OF BAR * NUMBER OF BARS M

TOTAL LENGTH OF X - BARS = 1.288 *13 M
TOTAL LENGTH OF X - BARS = 16.744 M
4. DIAMETER OF X - BAR = 12 MM (GIVEN IN DRAWING)
5. WEIGHT PER METER OF X - BAR = D2/162 KGS/M

WEIGHT PER METER OF X - BAR = 12*12/162 KGS/M
WEIGHT PER METER OF X - BAR = 0.889 KGS/M
6. TOTAL WEIGHT OF X - BARS = TOTAL LENGTH * WEIGHT PER METER KGS

TOTAL WEIGHT OF X - BARS = 16.744 * 0.889 KGS
TOTAL WEIGHT OF X - BARS = 14.884 KGS
SHAZEB NOMAN 100

Y - BARS:
1. LENGTH OF Y - BAR = L - 0.1 – 0.1 +12D + 12D M
LENGTH OF Y - BAR = 1.4 – 0. 1 – 0.1 + 12(0.016) + 12(0.016) M
LENGTH OF Y - BAR = 1.584 M
2. NUMBER OF Y - BAR = (OPPOSITE LENGTH / SPACING) + 1

NUMBER OF Y - BAR = {(1.2 – 0.1 – 0.1)/0.1} + 1
NUMBER OF Y - BAR = {1/0.1} + 1
NUMBER OF Y - BAR = 11 BARS
3. TOTAL LENGTH OF Y - BARS = LENGTH OF BAR * NUMBER OF BARS M

TOTAL LENGTH OF Y - BARS = 1.584 *11 M
TOTAL LENGTH OF Y - BARS = 17.424 M
4. DIAMETER OF Y - BAR = 16 MM (GIVEN IN DRAWING).
5. WEIGHT PER METER OF Y - BAR = D2/162 KGS/M

WEIGHT PER METER OF Y - BAR = 16*16/162 KGS/M
WEIGHT PER METER OF Y - BAR = 1.58 KGS/M
6. TOTAL WEIGHT OF Y - BARS = TOTAL LENGTH * WEIGHT PER METER KGS

TOTAL WEIGHT OF Y - BARS = 17.424 * 1.58 KGS
TOTAL WEIGHT OF Y - BARS = 27.534 KGS
SHAZEB NOMAN 101

FOOTING – 2:
SHAZEB NOMAN 102

FOOTING REINFORCEMENT CALCULATIONS: BEND = 12D, D=DIAMETER.

X - BARS:
1. LENGTH OF X - BAR = L - 0.1 – 0.1 + 12D + 12D M
LENGTH OF X - BAR = 1.2 – 0. 1 – 0.1 + 12(0.012) + 12(0.012) M
LENGTH OF X - BAR = 1.288 M
2. NUMBER OF X - BAR = (OPPOSITE LENGTH / SPACING) + 1

NUMBER OF X - BAR = {(1.5 – 0.1 – 0.1)/0.1} + 1
NUMBER OF X - BAR = {1.3/0.1} + 1
NUMBER OF X - BAR = 14 BARS
3. TOTAL LENGTH OF X - BARS = LENGTH OF BAR * NUMBER OF BARS M

TOTAL LENGTH OF X - BARS = 1.288 *14 M
TOTAL LENGTH OF X - BARS = 18.032 M
4. DIAMETER OF X - BAR = 12 MM (GIVEN IN DRAWING)
5. WEIGHT PER METER OF X - BAR = D2/162 KGS/M

WEIGHT PER METER OF X - BAR = 12*12/162 KGS/M
WEIGHT PER METER OF X - BAR = 0.889 KGS/M
6. TOTAL WEIGHT OF X - BARS = TOTAL LENGTH * WEIGHT PER METER KGS

TOTAL WEIGHT OF X - BARS = 18.032 * 0.889 KGS
TOTAL WEIGHT OF X - BARS = 16.028 KGS
SHAZEB NOMAN 103

Y - BARS:
1. LENGTH OF Y - BAR = L - 0.1 – 0.1 +12D + 12D M
LENGTH OF Y - BAR = 1.5 – 0. 1 – 0.1 + 12(0.016) + 12(0.016) M
LENGTH OF Y - BAR = 1.684 M
2. NUMBER OF Y - BAR = (OPPOSITE LENGTH / SPACING) + 1

NUMBER OF Y - BAR = {(1.2 – 0.1 – 0.1)/0.1} + 1
NUMBER OF Y - BAR = {1/0.1} + 1
NUMBER OF Y - BAR = 11 BARS
3. TOTAL LENGTH OF Y - BARS = LENGTH OF BAR * NUMBER OF BARS M

TOTAL LENGTH OF Y - BARS = 1.684 *11 M
TOTAL LENGTH OF Y - BARS = 18.524 M
4. DIAMETER OF Y - BAR = 16 MM (GIVEN IN DRAWING).
5. WEIGHT PER METER OF Y - BAR = D2/162 KGS/M

WEIGHT PER METER OF Y - BAR = 16*16/162 KGS/M
WEIGHT PER METER OF Y - BAR = 1.58 KGS/M
6. TOTAL WEIGHT OF Y - BARS = TOTAL LENGTH * WEIGHT PER METER KGS

TOTAL WEIGHT OF Y - BARS = 18.524 * 1.58 KGS
TOTAL WEIGHT OF Y - BARS = 29.272 KGS
SHAZEB NOMAN 104

FOOTING REINFORCEMENT ABSTRACT:

DIA OF BAR = 12mm,
WEIGHT OF STEEL BAR IN Kg/m = D2/162 Kg/m
WEIGHT OF STEEL BAR IN Kg/m = (122)/162 Kg/m = 0.889 Kg/m
LENGTH OF EACH BAR = 12.0 m
WEIGHT OF STEEL IN Kgs/Bar = 12.0 X 0.889 = 10.667 Kgs/Bar
STEEL WEIGHT REQUIRED FOR 12mm = 277.063 Kgs
NO. OF Bars OF 12.0m LENGTH EACH REQUIRED = TOTAL WEIGHT OF STEEL REQUIRED /
WEIGHT OF EACH STEEL BAR OF 12.0m LENGTH
NO. OF BARS REQUIRED = 277.063 / 10.667
= 25.97 BARS APPROXIMATELY EQUAL TO 26 BARS
ACTUAL WEIGHT OF STEEL REQUIRED AFTER INCREASING BARS FROM 25.97 TO 26 NO.S
ACTUAL WEIGHT = 26 X 10.667
= 277.333 Kgs
DIA OF BAR = 16mm,

= 512 Kgs
SHAZEB NOMAN 105

33. NECK COLUMN REINFORCEMENT CALCULATION:
SHAZEB NOMAN 106

COVER = 30 MM
STIRRUP BAR SPACING = 100mm = 0.1m
STIRRUP BAR LENGTH = 0.3 – 0.03 – 0.03 = 0.24m
STIRRUP BAR WIDTH = 0.3 – 0.03 – 0.03 = 0.24m
SHAZEB NOMAN 107

NECK COLUMN REINFORCEMENT CALCULATIONS:

GENERAL OVERLAP = 50D,
NECK COLUMN TO FOOTING OVERLAP = 16D.
MAIN BARS:
1. LENGTH OF MAIN BAR = L + 0.4 + 16D + 50D M
LENGTH OF MAIN BAR = 1.65 + 0.4 + 16(0.012) + 50(0.012) M
LENGTH OF MAIN BAR = 2.842 M
2. NUMBER OF MAIN BARS = 4 (GIVEN)
3. TOTAL LENGTH OF MAIN BARS = LENGTH OF BAR * NUMBER OF BARS M

TOTAL LENGTH OF MAIN BARS = 2.842 *4 M
TOTAL LENGTH OF MAIN BARS = 11.368 M
4. DIAMETER OF MAIN BAR = 12 MM (GIVEN IN DRAWING)
5. WEIGHT PER METER OF MAIN BAR = D2/162 KGS/M

WEIGHT PER METER OF MAIN BAR = 12*12/162 KGS/M
WEIGHT PER METER OF MAIN BAR = 0.889 KGS/M
6. TOTAL WEIGHT OF MAIN BARS = TOTAL LENGTH * WEIGHT PER METER KGS
TOTAL WEIGHT OF MAIN BARS = 11.368 * 0.889 KGS
TOTAL WEIGHT OF MAIN BARS = 10.105 KGS
SHAZEB NOMAN 108

STIRRUP BARS:
1. LENGTH OF STIRRUP BAR = (L + B) * 2 + 9D + 9D M
LENGTH OF STIRRUP BAR = (0.24 + 0.24) * 2 + 9 * 0.008 + 9 * 0.008 M
LENGTH OF STIRRUP BAR = 1.104 M
2. NUMBER OF STIRRUPS BAR = (HEIGHT OF NECK COLUMN / SPACING) + 1

NUMBER OF STIRRUPS BAR = (1.65 + 0.4 / 0.1) + 1
NUMBER OF STIRRUPS BAR = {1.95/0.1} + 1
NUMBER OF STIRRUPS BAR = 21 BARS
3. TOTAL LENGTH OF STIRRUP BARS = LENGTH OF BAR * NUMBER OF BARS M

TOTAL LENGTH OF STIRRUP BARS = 1.104 *21 M
TOTAL LENGTH OF STIRRUP BARS = 23.184 M
4. DIAMETER OF STIRRUP BAR = 8 MM (GIVEN IN DRAWING).
5. WEIGHT PER METER OF STIRRUP BAR = D2/162 KGS/M

WEIGHT PER METER OF STIRRUP BAR = 8*8/162 KGS/M
WEIGHT PER METER OF STIRRUP BAR = 0.395 KGS/M
6. TOTAL WEIGHT OF STIRRUP BARS = TOTAL LENGTH * WEIGHT PER METER KGS
TOTAL WEIGHT OF STIRRUP BARS = 23.184 * 0.395 KGS
TOTAL WEIGHT OF STIRRUP BARS = 9.159 KGS
SHAZEB NOMAN 109

NECK COLUMN REINFORCEMENT ABSTRACT:

DIA OF BAR = 12mm,
= 192.00 Kgs
DIA OF BAR = 8mm,

= 165.926 Kgs
SHAZEB NOMAN 110

34. TIE BEAM REINFORCEMENT CALCULATIONS : ON AXIS A BETWEEN 1 - 3
SHAZEB NOMAN 111

TIE BEAM REINFORCEMENT CALCULATIONS: ON AXIS A BETWEEN 1 - 3

MAIN BARS:
1. LENGTH OF TOP BAR = 4.7 M
LENGTH OF BOTTOM BAR = 4.7 M
2. NUMBER OF TOP BARS = 2

NUMBER OF BOTTOM BARS = 2

TOTAL LENGTH OF TOP BARS = 4.7 * 2 M = 9.4 M
TOTAL LENGTH OF BOTTOM BARS = 4.7 * 2 M = 9.4 M
4. DIAMETER OF TOP BAR = 10 MM (GIVEN IN DRAWING)

DIAMETER OF BOTTOM BAR = 10 MM (GIVEN IN DRAWING)
5. WEIGHT PER METER OF BAR = D2/162 KGS/M

WEIGHT PER METER OF TOP BAR = 10*10/162 KGS/M = 0.617 KGS/M
WEIGHT PER METER OF BOTTOM BAR = 10*10/162 KGS/M = 0.617 KGS/M

TOTAL WEIGHT OF TOP BARS = 9.4 * 0.617 KGS = 5.802 KGS
TOTAL WEIGHT OF BOTTOM BARS = 9.4 * 0.617 KGS = 5.802 KGS
SHAZEB NOMAN 112

TIE BEAM STIRRUP BARS:

2. NUMBER OF STIRRUPS BAR = (ACTUAL LENGTH TIE BEAM / SPACING) + 1

NUMBER OF STIRRUPS BAR = (3.45/ 0.1) + 1
NUMBER OF STIRRUPS BAR = 35.5 = 36 BARS


SHAZEB NOMAN 113


MAIN BARS:





SHAZEB NOMAN 114





SHAZEB NOMAN 115


MAIN BARS:





SHAZEB NOMAN 116





SHAZEB NOMAN 117

TIE BEAM REINFORCEMENT CALCULATIONS: ON AXIS B BETWEEN 2 - 4

MAIN BARS:





SHAZEB NOMAN 118





SHAZEB NOMAN 119


MAIN BARS:
LENGTH OF BOTTOM BAR = 2.3





SHAZEB NOMAN 120





SHAZEB NOMAN 121


MAIN BARS:





SHAZEB NOMAN 122





SHAZEB NOMAN 123

TIE BEAM REINFORCEMENT CALCULATIONS: ON AXIS D BETWEEN 2 - 4

MAIN BARS:





SHAZEB NOMAN 124





SHAZEB NOMAN 125


MAIN BARS:





SHAZEB NOMAN 126





SHAZEB NOMAN 127


MAIN BARS:





SHAZEB NOMAN 128





SHAZEB NOMAN 129

TIE BEAM REINFORCEMENT CALCULATIONS: ON AXIS E BETWEEN 1 - 3

MAIN BARS:





SHAZEB NOMAN 130





SHAZEB NOMAN 131


MAIN BARS:





SHAZEB NOMAN 132





SHAZEB NOMAN 133


MAIN BARS:





SHAZEB NOMAN 134





SHAZEB NOMAN 135

TIE BEAM REINFORCEMENT CALCULATIONS: ON AXIS 1 BETWEEN A - C

LENGTH OF MAIN BARS = 3.4m
MAIN BARS:





SHAZEB NOMAN 136

TIE BEAM STIRRUP BARS: ACTUAL LENGTH OF TIE BEAM = 1.95m




SHAZEB NOMAN 137

TIE BEAM REINFORCEMENT CALCULATIONS: ON AXIS 1 BETWEEN C - E

MAIN BARS:





SHAZEB NOMAN 138





SHAZEB NOMAN 139

TIE BEAM REINFORCEMENT CALCULATIONS: ON AXIS 2 BETWEEN B - D

MAIN BARS:





SHAZEB NOMAN 140





SHAZEB NOMAN 141


MAIN BARS:





SHAZEB NOMAN 142





SHAZEB NOMAN 143


MAIN BARS:





SHAZEB NOMAN 144





SHAZEB NOMAN 145


MAIN BARS:





SHAZEB NOMAN 146





SHAZEB NOMAN 147

TIE BEAM REINFORCEMENT CALCULATIONS: ON AXIS 8 BETWEEN A - C

MAIN BARS:





SHAZEB NOMAN 148





SHAZEB NOMAN 149

TIE BEAM REINFORCEMENT CALCULATIONS: ON AXIS 8 BETWEEN C - E

MAIN BARS:





SHAZEB NOMAN 150





SHAZEB NOMAN 151

TIE BEAM REINFORCEMENT ABSTRACT:

DIA OF BAR = 10mm,
ACTUAL WEIGHT OF STEEL REQUIRED AFTER DECREASING BARS FROM 29.03 TO 29 NO.S
= 214.815 Kgs
DIA OF BAR = 8mm,

= 274.963 Kgs
SHAZEB NOMAN 152

35. PLINTH BEAM REINFORCEMENT CALCULATIONS : ON AXIS A BETWEEN 1 - 3
SHAZEB NOMAN 153

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS A BETWEEN 1 - 3

MAIN BARS:





SHAZEB NOMAN 154

PLINTH BEAM STIRRUP BARS: ACTUAL LENGTH OF PLINTH BEAM = 4.35m

2. NUMBER OF STIRRUPS BAR = (ACTUAL LENGTH PLINTH BEAM / SPACING) + 1



SHAZEB NOMAN 155


MAIN BARS: LENGTH OF MAIN BARS = 6.35





SHAZEB NOMAN 156





SHAZEB NOMAN 157







SHAZEB NOMAN 158

PLINTH BEAM STIRRUP BARS: ACTAUL LENGTH OF PLINTH BEAM = 4.0m


NUMBER OF STIRRUPS BAR = (4/ 0.1) + 1


SHAZEB NOMAN 159

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS B BETWEEN 2 - 4

MAIN BARS: LENGTH OF MAIN BARS = 4.75m





SHAZEB NOMAN 160





SHAZEB NOMAN 161







SHAZEB NOMAN 162





SHAZEB NOMAN 163


MAIN BARS: LENGTH OF MAIN BAR = 4.85m





SHAZEB NOMAN 164





SHAZEB NOMAN 165

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS D BETWEEN 2 - 4






SHAZEB NOMAN 166





SHAZEB NOMAN 167







SHAZEB NOMAN 168





SHAZEB NOMAN 169







SHAZEB NOMAN 170





SHAZEB NOMAN 171

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS E BETWEEN 1 - 3

MAIN BARS:





SHAZEB NOMAN 172





SHAZEB NOMAN 173







SHAZEB NOMAN 174





SHAZEB NOMAN 175







SHAZEB NOMAN 176

PLINTH BEAM STIRRUP BARS: ACTAUL LENGTH OF PLINTH BEAM = 4.0m


NUMBER OF STIRRUPS BAR = (4/ 0.1) + 1


SHAZEB NOMAN 177

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS 1 BETWEEN A - C







SHAZEB NOMAN 178





SHAZEB NOMAN 179

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS 1 BETWEEN C - E

MAIN BARS:





SHAZEB NOMAN 180





SHAZEB NOMAN 181

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS 2 BETWEEN B - D







SHAZEB NOMAN 182





SHAZEB NOMAN 183








SHAZEB NOMAN 184





SHAZEB NOMAN 185








SHAZEB NOMAN 186





SHAZEB NOMAN 187

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS 5 BETWEEN D - E







SHAZEB NOMAN 188





SHAZEB NOMAN 189








SHAZEB NOMAN 190





SHAZEB NOMAN 191

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS 8 BETWEEN A - C







SHAZEB NOMAN 192





SHAZEB NOMAN 193

PLINTH BEAM REINFORCEMENT CALCULATIONS: ON AXIS 8 BETWEEN C - E

MAIN BARS:





SHAZEB NOMAN 194





SHAZEB NOMAN 195

PLINTH BEAM REINFORCEMENT ABSTRACT:

DIA OF BAR = 10mm,
= 222.222 Kgs
DIA OF BAR = 8mm,

= 374.519 Kgs
SHAZEB NOMAN 196

36. GRADE SLAB CALCULATIONS: GRADE SLAB - 1
COVER = 50 MM
SHAZEB NOMAN 197

GRADE SLAB REINFORCEMENT CALCULATIONS: GRADE SLAB - 1

X BAR:
1. LENGTH OF X- BAR = L – 0.05 - 0.05 M
LENGTH OF X- BAR = 4.45 – 0.05 – 0.05 M
LENGTH OF X- BAR = 4.35 M
2. NUMBER OF X- BAR = (OPP LENGTH / SPACING) + 1

= (3.4 – 0.05 – 0.05 / 0.1) +1
=34 BARS
3. TOTAL LENGTH OF X- BAR = LENGTH OF BAR * NUMBER OF BARS M

TOTAL LENGTH OF X- BAR = 4.35 * 34 M
TOTAL LENGTH OF X- BAR = 147.9 M
4. DIAMETER OF X- BAR = 8 MM (GIVEN IN DRAWING)
5. WEIGHT PER METER OF X- BAR = D2/162 KGS/M

WEIGHT PER METER OF X- BAR = 8*8/162 KGS/M
WEIGHT PER METER OF X- BAR = 0.395 KGS/M
6. TOTAL WEIGHT OF X- BAR = TOTAL LENGTH * WEIGHT PER METER KGS

TOTAL WEIGHT OF X- BAR = 147.9 * 0.395 KGS
TOTAL WEIGHT OF X- BAR = 58.43 KGS
SHAZEB NOMAN 198

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.05 - 0.05 M
LENGTH OF Y-BAR = 3.4 - 0.05 – 0.05 M
LENGTH OF Y-BAR = 3.3 M
2. NUMBER OF Y-BAR = (OPP LENGTH / SPACING) + 1

= (4.45 – 0.05 – 0.05 / 0.1) +1
= 44.5 = 45 BARS
3. TOTAL LENGTH OF Y-BAR = LENGTH OF BAR * NUMBER OF BARS M

TOTAL LENGTH OF Y-BAR = 3.3 * 45 M
TOTAL LENGTH OF Y-BAR = 148.5 M
4. DIAMETER OF Y-BAR = 8 MM (GIVEN IN DRAWING)
5. WEIGHT PER METER OF Y-BAR = D2/162 KGS/M

WEIGHT PER METER OF Y-BAR = 8 * 8 /162 KGS/M
WEIGHT PER METER OF Y-BAR = 0.395 KGS/M
6. TOTAL WEIGHT OF Y-BAR = TOTAL LENGTH * WEIGHT PER METER KGS

TOTAL WEIGHT OF Y-BAR = 148.5 * 0.395 KGS
TOTAL WEIGHT OF Y-BAR = 58.667 KGS
SHAZEB NOMAN 199

GRADE SLAB CALCULATIONS: GRADE SLAB - 2
COVER = 50 MM
SHAZEB NOMAN 200


X BAR:
1. LENGTH OF X- BAR = L – 0.05 - 0.05 M
LENGTH OF X- BAR = 2.0 – 0.05 – 0.05 M

= (3.4– 0.05 – 0.05 / 0.1) +1
=34 BARS



SHAZEB NOMAN 201

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.05 - 0.05 M
LENGTH OF Y-BAR = 3.4 - 0.05 – 0.05 M

= (2.0 – 0.05 – 0.05 / 0.1) +1
= 20 BARS

TOTAL LENGTH OF Y-BAR = 66 M


TOTAL WEIGHT OF Y-BAR = 66 * 0.395 KGS
SHAZEB NOMAN 202

GRADE SLAB CALCULATIONS: GRADE SLAB - 3
COVER = 50 MM
SHAZEB NOMAN 203


X BAR:
1. LENGTH OF X- BAR = L – 0.05 - 0.05 M
LENGTH OF X- BAR = 4.55 – 0.05 – 0.05 M

= (3.4 – 0.05 – 0.05 / 0.1) +1
=34 BARS



SHAZEB NOMAN 204

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.05 - 0.05 M
LENGTH OF Y-BAR = 3.4 - 0.05 – 0.05 M

= (4.55 – 0.05 – 0.05 / 0.1) +1
= 46 BARS



SHAZEB NOMAN 205

GRADE SLAB - 4
COVER = 50 MM
SHAZEB NOMAN 206


X BAR:
1. LENGTH OF X- BAR = L – 0.05 - 0.05 M
LENGTH OF X- BAR = 7.84 – 0.05 – 0.05 M

= (3.0 – 0.05 – 0.05 / 0.1) +1
= 30 BARS



SHAZEB NOMAN 207

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.05 - 0.05 M
LENGTH OF Y-BAR = 3.0 - 0.05 – 0.05 M

= (7.84 – 0.05 – 0.05 / 0.1) +1
= 78 BARS



SHAZEB NOMAN 208

GRADE SLAB - 5
COVER = 50 MM
SHAZEB NOMAN 209


X BAR:
1. LENGTH OF X- BAR = L – 0.05 - 0.05 M
LENGTH OF X- BAR = 6.86 – 0.05 – 0.05 M

= (3.0 – 0.05 – 0.05 / 0.1) +1
=30 BARS



SHAZEB NOMAN 210

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.05 - 0.05 M
LENGTH OF Y-BAR = 3.0 - 0.05 – 0.05 M

= (6.86 – 0.05 – 0.05 / 0.1) +1
= 69 BARS



SHAZEB NOMAN 211

GRADE SLAB - 6
COVER = 50 MM
SHAZEB NOMAN 212


X BAR: NOTE: ADD 50D FOR OVERLAPPING BCOZ LENGTH IS MORE THAN 12m
1. LENGTH OF X- BAR = L – 0.05 - 0.05 + 50D M
LENGTH OF X- BAR = 15 – 0.05 – 0.05 + 50 * 0.008 M

= (1.2 – 0.05 – 0.05 / 0.1) +1
=12 BARS



SHAZEB NOMAN 213

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.05 - 0.05 M
LENGTH OF Y-BAR = 1.2 - 0.05 – 0.05 M

= (15 – 0.05 – 0.05 / 0.1) +1
= 151 BARS



SHAZEB NOMAN 214

GRADE SLAB - 7
COVER = 50 MM
SHAZEB NOMAN 215


X BAR:
1. LENGTH OF X- BAR = L – 0.05 - 0.05 M
LENGTH OF X- BAR = 1.4– 0.05 – 0.05 M

= (4 – 0.05 – 0.05 / 0.1) +1
=40 BARS

TOTAL LENGTH OF X- BAR = 52 M


TOTAL WEIGHT OF X- BAR = 52 * 0.395 KGS
SHAZEB NOMAN 216

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.05 - 0.05 M
LENGTH OF Y-BAR = 4.0 - 0.05 – 0.05 M

= (1.4 – 0.05 – 0.05 / 0.1) +1
= 14 BARS



SHAZEB NOMAN 217

GRADE SLAB - 8
COVER = 50 MM
SHAZEB NOMAN 218


X BAR:
1. LENGTH OF X- BAR = L – 0.05 - 0.05 M
LENGTH OF X- BAR = 1.4– 0.05 – 0.05 M

= (4 – 0.05 – 0.05 / 0.1) +1
=40 BARS



SHAZEB NOMAN 219

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.05 - 0.05 M
LENGTH OF Y-BAR = 4.0 - 0.05 – 0.05 M

= (1.4 – 0.05 – 0.05 / 0.1) +1
= 14 BARS



SHAZEB NOMAN 220

GRADE SLAB REINFORCEMENT ABSTRACT:
DIA OF BAR = 8mm,

= 853.333 Kgs
SHAZEB NOMAN 221

37. RETAINING WALL CALCULATIONS: ON AXIS A BETWEEN 1 - 8
SHAZEB NOMAN 222

SHAZEB NOMAN 223

RETAINING WALL REINFORCEMENT CALCULATIONS: ON AXIS A BETWEEN 1 - 8

X BAR:
1. LENGTH OF X- BAR = L M

= (1.33 – 0.05 – 0.05 / 0.1) +1
= 13.3 = 13 BARS



SHAZEB NOMAN 224

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.05 + 0.26 + 50D + 10D M
LENGTH OF Y-BAR = 1.33 – 0.05 + 0.26 + 50 * 0.01 + 10 * 0.01 M

= (L1 + L2 + L3 / 0.1) +1
= (4.35 + 6.05 + 4 / 0.1) +1
= (14.4 / 0.1) +1
= 145 BARS



SHAZEB NOMAN 225

ON AXIS 1 BETWEEN A - E
SHAZEB NOMAN 226

SHAZEB NOMAN 227

RETAINING WALL REINFORCEMENT CALCULATIONS: ON AXIS 1 BETWEEN A - E

X BAR:

= (1.33 – 0.05 – 0.05 / 0.1) +1
= 13.3 = 13 BARS



SHAZEB NOMAN 228

Y-BAR BARS:
LENGTH OF Y-BAR = 1.33 – 0.05 + 0.26 + 50 * 0.01 + 10 * 0.01 M

= (L1 + L2 / 0.1) +1
= (3.05 + 4.85 / 0.1) +1
= (7.9 / 0.1) +1
= 80 BARS



SHAZEB NOMAN 229

ON AXIS E BETWEEN 1 - 8
SHAZEB NOMAN 230

SHAZEB NOMAN 231

RETAINING WALL REINFORCEMENT CALCULATIONS: ON AXIS E BETWEEN 1 - 8

X BAR:

= (1.33 – 0.05 – 0.05 / 0.1) +1
= 13.3 = 13 BARS



SHAZEB NOMAN 232

Y-BAR BARS:
LENGTH OF Y-BAR = 1.33 – 0.05 + 0.26 + 50 * 0.01 + 10 * 0.01 M

= (L1 + L2 + L3 / 0.1) +1
= (4.35 + 6.05 + 4 / 0.1) +1
= (14.4 / 0.1) +1
= 145 BARS



SHAZEB NOMAN 233

ON AXIS 8 BETWEEN A - E
SHAZEB NOMAN 234

SHAZEB NOMAN 235

RETAINING WALL REINFORCEMENT CALCULATIONS: ON AXIS 8 BETWEEN A - E

X BAR:

= (1.33 – 0.05 – 0.05 / 0.1) +1
= 13.3 = 13 BARS



SHAZEB NOMAN 236

Y-BAR BARS:
LENGTH OF Y-BAR = 1.33 – 0.05 + 0.26 + 50 * 0.01 + 10 * 0.01 M

= (L1 + L2 / 0.1) +1
= (3.05 + 4.85 / 0.1) +1
= (7.9 / 0.1) +1
= 80 BARS



SHAZEB NOMAN 237

RETAINING WALL REINFORCEMENT ABSTRACT:

DIA OF BAR = 10mm,
= 977.778 Kgs
SHAZEB NOMAN 238

38. RECTANGULAR SUMP CALCULATIONS: BOTTOM SLAB
SHAZEB NOMAN 239

BOTTOM SLAB REINFORCEMENT CALCULATIONS:

X BAR:
1. LENGTH OF X- BAR = L – 0.1 - 0.1 M
LENGTH OF X- BAR = 4 – 0.1 – 0.1 M

= (3 – 0.1 – 0.1 / 0.1) +1
= 29 BARS



SHAZEB NOMAN 240

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.1 - 0.1 M
LENGTH OF Y-BAR = 3.0 - 0.1 – 0.1 M

= (4 – 0.1 – 0.1 / 0.1) +1
= 39 BARS



SHAZEB NOMAN 241

TOP SLAB:
SHAZEB NOMAN 242

TOP SLAB REINFORCEMENT CALCULATIONS:

X BAR:
1. LENGTH OF X- BAR = L – 0.1 - 0.1 M
LENGTH OF X- BAR = 4– 0.1 – 0.1 M

= (3 – 0.1 – 0.1 / 0.1) +1
= 29 BARS



SHAZEB NOMAN 243

Y-BAR BARS:
1. LENGTH OF Y-BAR = L – 0.1 - 0.1 M
LENGTH OF Y-BAR = 3.0 - 0.1 – 0.1 M

= (4 – 0.1 – 0.1 / 0.1) +1
= 39 BARS



SHAZEB NOMAN 244

DEDUCTION OF COVER REINFORCEMENT FROM TOP SLAB:
SHAZEB NOMAN 245

DEDUCTION OF COVER REINFORCEMENT FROM TOP SLAB CALCULATIONS:

X BAR:
2. NUMBER OF X- BAR = 4 BARS



TOTAL WEIGHT OF X- BAR = - 1.234 KGS
SHAZEB NOMAN 246

Y-BAR BARS:
1. LENGTH OF Y-BAR = L M
2. NUMBER OF Y-BAR = 4 BARS



TOTAL WEIGHT OF Y-BAR = - 1.234 KGS
SHAZEB NOMAN 247

HORIZONTAL WALL REINFORCEMENT CLACULATION:
SHAZEB NOMAN 248

SHAZEB NOMAN 249

SHAZEB NOMAN 250

HORIZONTAL WALL REINFORCEMENT CLACULATION: NO.S = 2

X BAR:
1. LENGTH OF X- BAR = L – 0.1 - 0.1 + 50D + 50D M
LENGTH OF X- BAR = 4 – 0.1 – 0.1 + 50 * 0.01 + 50 * 0.01 M

= (2 / 0.1) +1
= 21 BARS


6. TOTAL WEIGHT OF X- BAR = TOTAL LENGTH * WEIGHT PER METER * NO.S KGS
TOTAL WEIGHT OF X- BAR = 100.8 * 0.617 * 2 KGS
SHAZEB NOMAN 251

Y-BAR BARS:
1. LENGTH OF Y-BAR = L + 0.1 + 0.1 + 16D + 16D M
LENGTH OF Y-BAR = 2.0 + 0.1 + 0.1 + 16 * 0.01 + 16 * 0.01 M

= (4 – 0.1 – 0.1 / 0.1) +1
= 39 BARS


6. TOTAL WEIGHT OF Y-BAR = TOTAL LENGTH * WEIGHT PER METER * NO.S KGS
TOTAL WEIGHT OF Y-BAR = 154.4 * 0.617 * 2 KGS
SHAZEB NOMAN 252

VERTICAL WALL REINFORCEMENT CLACULATION: NO.S = 2

X BAR:

= (2 / 0.1) +1
= 21 BARS


6. TOTAL WEIGHT OF X- BAR = TOTAL LENGTH * WEIGHT PER METER * NO.S KGS
SHAZEB NOMAN 253

Y-BAR BARS:
1. LENGTH OF Y-BAR = L + 0.1 + 0.1 + 16D + 16D M
LENGTH OF Y-BAR = 2.0 + 0.1 + 0.1 + 16 * 0.01 + 16 * 0.01 M

= (3 – 0.1 – 0.1 / 0.1) +1
= 29 BARS


6. TOTAL WEIGHT OF Y-BAR = TOTAL LENGTH * WEIGHT PER METER * NO.S KGS
TOTAL WEIGHT OF Y-BAR = 114.8 * 0.617 * 2 KGS
SHAZEB NOMAN 254

RECTANGULAR SUMP REINFORCEMENT ABSTRACT:

DIA OF BAR = 10mm,
= 800.00 Kgs
SHAZEB NOMAN 255

39. SUB STRUCTURE REINFORCEMENT ABSTRACT: PLZ CHECK EXCEL FILE
SHAZEB NOMAN 256

40. BOQ OF SUB STRUCTURE REINFORCEMENT: PLZ CHECK EXCEL FILE
SHAZEB NOMAN 257

SUPER STRUCTURE REINFORCEMENT CALCULATION 41. FLOOR COLUMN AT BOUNDARY:
SHAZEB NOMAN 258

MAIN BARS:
1. LENGTH OF MAIN BAR = L – 0.05 M
LENGTH OF MAIN BAR = 1.8 – 0.05 M

TOTAL LENGTH OF MAIN BARS = 1.75 * 4 M
TOTAL LENGTH OF MAIN BARS = 7 M

WEIGHT PER METER OF MAINBAR = 0.889 KGS/M
TOTAL WEIGHT OF MAIN BARS = 7 * 0.889 KGS
TOTAL WEIGHT OF MAIN BARS = 19 KGS
SHAZEB NOMAN 259

FLOOR COLUMN STIRRUP BARS:

2. NUMBER OF STIRRUPS BAR = (ACTUAL LENGTH FLOOR COLUMN / SPACING) + 1

NUMBER OF STIRRUPS BAR = (1.8 - 0.05/ 0.1) + 1


SHAZEB NOMAN 260

FLOOR COLUMN AT ROOMS:
SHAZEB NOMAN 261

MAIN BARS:
1. LENGTH OF MAIN BAR = L – 0.05 M
LENGTH OF MAIN BAR = 3.15 – 0.05 M

TOTAL LENGTH OF MAIN BARS = 3.1 * 4 M
TOTAL LENGTH OF MAIN BARS = 12.4 M

WEIGHT PER METER OF MAINBAR = 0.889 KGS/M
TOTAL WEIGHT OF MAIN BARS = 12.4 * 0.889 KGS
TOTAL WEIGHT OF MAIN BARS = 11.022 KGS
SHAZEB NOMAN 262

FLOOR COLUMN STIRRUP BARS:

2. NUMBER OF STIRRUPS BAR = (ACTUAL LENGTH FLOOR COLUMN / SPACING) + 1

NUMBER OF STIRRUPS BAR = (3.15 - 0.05/ 0.1) + 1


SHAZEB NOMAN 263

FLOOR COLUMN REINFORCEMENT ABSTRACT:

DIA OF BAR = 12mm,
= 149.333 Kgs
DIA OF BAR = 8mm,

= 194.37 Kgs
SHAZEB NOMAN 264

SHAZEB NOMAN 265

42. FLOOR BEAM CALCULATIONS : ON AXIS B BETWEEN 2 - 4
SHAZEB NOMAN 266

FLOOR BEAM REINFORCEMENT CALCULATIONS: ON AXIS B BETWEEN 2 - 4






SHAZEB NOMAN 267

FLOOR BEAM STIRRUP BARS: ACTUAL LENGTH OF FLOOR BEAM = 4.45m

2. NUMBER OF STIRRUPS BAR = (ACTUAL LENGTH FLOOR BEAM / SPACING) + 1



SHAZEB NOMAN 268







SHAZEB NOMAN 269





SHAZEB NOMAN 270







SHAZEB NOMAN 271





SHAZEB NOMAN 272

FLOOR BEAM REINFORCEMENT CALCULATIONS: ON AXIS D BETWEEN 2 - 4






SHAZEB NOMAN 273





SHAZEB NOMAN 274







SHAZEB NOMAN 275





SHAZEB NOMAN 276







SHAZEB NOMAN 277





SHAZEB NOMAN 278

FLOOR BEAM REINFORCEMENT CALCULATIONS: ON AXIS 2 BETWEEN B - D







SHAZEB NOMAN 279





SHAZEB NOMAN 280








SHAZEB NOMAN 281





SHAZEB NOMAN 282








SHAZEB NOMAN 283





SHAZEB NOMAN 284








SHAZEB NOMAN 285





SHAZEB NOMAN 286

FLOOR BEAM REINFORCEMENT ABSTRACT:

DIA OF BAR = 10mm,
= 96.296 Kgs
DIA OF BAR = 8mm,

= 161.185 Kgs
SHAZEB NOMAN 287

43. SLAB REINFORCEMENT CALCULATIONS:
SHAZEB NOMAN 288

COVER = 25 MM, SLAB THICKNESS = 0.15 M, EXTRA BAR DIA = 8mm,
SHAZEB NOMAN 289

SLAB REINFORCEMENT CALCULATIONS:

X BAR:
1. LENGTH OF X- BAR = L + 0.15 + 0.15 – 0.025 - 0.025 + 0.42D * 6 M
LENGTH OF X- BAR = 11.9 + 0.15 + 0.15 – 0.025 – 0.025 + 0.42 (0.15-0.025-0.025) * 6 M

= (4 – 0.1 – 0.1 / 0.1) +1
= 39 BARS


WEIGHT PER METER OF X- BAR = 12*12 /162 KGS/M

SHAZEB NOMAN 290

EXTRA BAR:
1. LENGTH OF EXTRA- BAR = L/4= (11.9 + 0.15 + 0.15 – 0.025 - 0.025)/4 M
= 12.15 /4 M = 3.038 M
2. NUMBER OF EXTRA- BAR = NO. OF X-BAR * 2 = 39 * 2 = 78 BARS
3. TOTAL LENGTH OF EXTRA BAR = LENGTH OF BAR * NUMBER OF BARS M

= 3.038 * 78 M = 236.9 M
4. DIAMETER OF EXTRA- BAR = 8 MM (GIVEN IN DRAWING)
5. WEIGHT PER METER OF EXTRA- BAR = D2/162 KGS/M

WEIGHT PER METER OF EXTRA- BAR = 8*8/162 KGS/M
WEIGHT PER METER OF EXTRA- BAR = 0.395 KGS/M
6. TOTAL WEIGHT OF EXTRA- BAR = TOTAL LENGTH * WEIGHT PER METER KGS
TOTAL WEIGHT OF EXTRA- BAR = 236.9 * 0.395 KGS
TOTAL WEIGHT OF EXTRA- BAR = 93.6 KGS
SHAZEB NOMAN 291

Y-BAR BARS:
1. LENGTH OF Y-BAR = L + 0.15 + 0.15 – 0.025 - 0.025 M
LENGTH OF Y-BAR = 3.7 + 0.15 + 0.15 – 0.025 – 0.025 M

= (12.2 – 0.1 – 0.1 / 0.1) +1
= 121 BARS



SHAZEB NOMAN 292

SLAB REINFORCEMENT ABSTRACT:

DIA OF BAR = 12mm,
= 864.00 Kgs
DIA OF BAR = 8mm,

= 94.815 Kgs
SHAZEB NOMAN 293

44. STAIRCASE REINFORCEMENT CALCULATIONS:
COVER = 50 MM, SLAB THICKNESS = 0.15 M
SHAZEB NOMAN 294

WAIST SLAB - 1 REINFORCEMENT CALCULATIONS:
SHAZEB NOMAN 295


X BAR:
1. LENGTH OF X- BAR = L + 1 + 0.01 + 9D M
LENGTH OF X- BAR = 4.082 + 1 + 0.01 + 9 * 0.01 M

= (1 – 0.05 – 0.05 / 0.1) +1
= 10 BARS



SHAZEB NOMAN 296

Y-BAR BARS:
1. LENGTH OF Y-BAR = L + 50D + 50D M
LENGTH OF Y-BAR = 1 + 50 * 0.01 + 50 * 0.01 M
LENGTH OF Y-BAR = 2 M

= (4.082 – 0.05 – 0.05 / 0.1) +1
= 40.82 = 40 BARS

TOTAL LENGTH OF Y-BAR = 2 * 40 M


SHAZEB NOMAN 297

SHAZEB NOMAN 298


X BAR:
1. LENGTH OF X- BAR = L + 1 - 0.05 M
LENGTH OF X- BAR = 2.33 + 1 - 0.05 M

= (1 – 0.05 – 0.05 / 0.1) +1
= 10 BARS



SHAZEB NOMAN 299

Y-BAR BARS:
1. LENGTH OF Y-BAR = L + 50D + 50D M
LENGTH OF Y-BAR = 1 + 50 * 0.01 + 50 * 0.01 M
LENGTH OF Y-BAR = 2 M

= (2.33 – 0.05 – 0.05 / 0.1) +1
= 23.3 = 23 BARS

TOTAL LENGTH OF Y-BAR = 2 * 23 M


SHAZEB NOMAN 300

L SHAPE BAR IN STEPS REINFORCEMENT CALCULATIONS:
SHAZEB NOMAN 301

L SHAPE BAR IN STEPS REINFORCEMENT CALCULATIONS:
1. TOTAL LENGTH OF X- BAR = (0.2 + 0.4 + 9D + 9D) * 2 + 1 M

TOTAL LENGTH OF X- BAR = (0.2 + 0.4 + 9 * 0.008 + 9 * 0.008) * 2 + 1 M

4. TOTAL WEIGHT OF X- BAR = TOTAL LENGTH * WEIGHT PER METER * NO. OF STEPS KGS
SHAZEB NOMAN 302

STAIRCASE REINFORCEMENT ABSTRACT:

DIA OF BAR = 10mm,
= 59.259 Kgs
DIA OF BAR = 8mm,

= 18.963 Kgs
SHAZEB NOMAN 303

45. SUPER – STRUCTURE REINFORCEMENT ABSTRACT: IN EXCEL
46. SUPER – STRUCTURE REINFORCEMENT BILL OF QUANTITY: IN EXCEL.
47.BILL OF QUANTITY OF SAMPLE QUANTITY SURVEY PROJECT: IN EXCEL
SHAZEB NOMAN 304

Quantity Survey Notes Index and Types

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Quantity Survey Notes Index and Types

Uploaded by

Copyright:

Available Formats

QUANTITY SURVEY NOTES

SUPER – STRUCTURE (CONCRETE PART)

31. BAR BENDING SCHEDULE

SUB – STRUCTURE (REINFORCEMENT PART)

SUPER – STRUCTURE (REINFORCEMENT PART)

1. QUANTITY SURVEY: IT IS A PROCESS IN WHICH, QUANTITIES OF ALL THE CONSTRUCTION

100 BAGS OF CEMENT

GRADE 43 CEMENT AMBUJA BRAND

450 RS MARKET VALUE

2.BASIC EXECUTION PROCESS:

4. PLAIN COMBINED FOOTING:

5. ISOLATED COMBINED FOOTING :

6.STRAP FOOTING OR NEIGHBOR FOOTING OR SHOE FOOTING:

2. HARDY OR HORDY SLAB

6. PROJECTED SLAB OR PORTICO SLAB

8. CABLE SUSPENSION SLAB

9. SLAB WITH ARCHES

10. GRADE SLAB

11. HOLLOW-CORE RIBBED SLAB

12. SUNKEN-SLAB OR DEPRESSED SLAB

2. COURSE RUBBLE STONE MASONRY WALL OR C.R.S WALL

3. RANDOM RUBBLE STONE MASONRY WALL OR R.R.S WALL.

9. COMPOUND OR BOUNDARY WALL

10. DROP WALL

11. PARTITION WALL

12. LOAD BEARING WALL

2. TURNING STAIRS: turning stairs are sub classified as:

A) QUARTER TURN STAIRS

QUARTER TURN STAIRS

B) HALF TURN STAIRS:

GEOMETRICAL HALF TURN STAIRS

C) THREE QUARTER TURN STAIRS:

THREE QUARTER TURN STAIRS

3. FOOTING CALCULATIONS: FOOTING - 1

1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH m3

2. SHUTTERING AREA = (LENGTH +WIDTH) * 2 * DEPTH m2

3. BITUMEN PAINT AREA ={ (LENGTH +WIDTH) * 2 * DEPTH + ( LENGTH * WIDTH ) M2

1.1.FOOTING CALCULATIONS: FOOTING - 2

1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH m3

2. SHUTTERING AREA = (LENGTH +WIDTH) * 2 * DEPTH m2

3 BITUMEN PAINT AREA ={ (LENGTH +WIDTH) * 2 * DEPTH + ( LENGTH * WIDTH ) m2

4. FOOTING PCC CALCULATIONS: FOOTING - 1

LENGTH= 1.2 + 0.1 + 0.1 = 1.4m

1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH M3

2. SHUTTERING AREA = (LENGTH +WIDTH) * 2 * DEPTH m2

3. BITUMEN PAINT AREA ={ (LENGTH +WIDTH) * 2 * DEPTH + ( LENGTH * WIDTH ) m2

4. POLYTHENE SHEET = LENGTH * WIDTH m2

5. TERMITE CONTROL= LENGTH * WIDTH m2

5. NECK COLUMN CALCULATIONS:

1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH m3

2. SHUTTERING AREA = (LENGTH +WIDTH) * 2 * DEPTH m2

3. BITUMEN PAINT AREA = (LENGTH +WIDTH) * 2 * DEPTH m2

6. TIE BEAM CALCULATIONS:

1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH m3

2. SHUTTERING AREA = (LENGTH * DEPTH) * 2 m2

3. BITUMEN PAINT AREA = (LENGTH * DEPTH) * 2 + (LENGTH * WIDTH) m2

7. TIE BEAM PCC CALCULATIONS:

LENGTH = TIE BEAM LENGTH - 0.1 - 0.1

WIDTH = TIE BEAM WIDTH + 0.1 + 0.1

1. VOLUME OF CONCRETE = LENGTH * WIDTH * DEPTH m3

2. SHUTTERING AREA = (LENGTH * DEPTH) * 2 m2

3. BITUMEN PAINT AREA = (LENGTH * DEPTH) * 2 + (LENGTH * WIDTH) m2

4. POLYTHENE SHEET AREA = (LENGTH * WIDTH) m2

2. SHUTTERING AREA ={ ((LENGTH + WIDTH)2DEPTH) + (LENGTH * WIDTH) +

2. SHUTTERING AREA = ((LENGTH * WIDTH)2) 2 m2

2. SHUTTERING AREA = ((LENGTH * WIDTH)2) 2 m2

2. SHUTTERING AREA = ((LENGTH + WIDTH)2DEPTH) m2

2. SHUTTERING AREA = ((LENGTH + WIDTH)2DEPTH) m2
