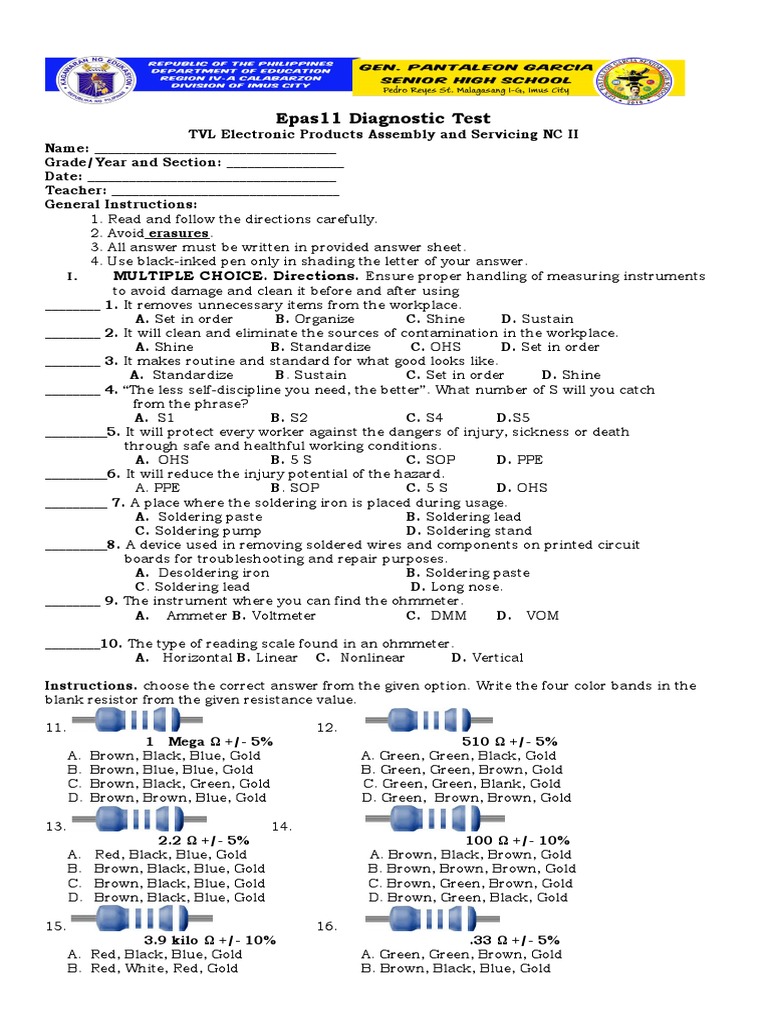

Epas11 Diagnostic Test

TVL Electronic Products Assembly and Servicing NC II

Name: ___________________________________
Grade/Year and Section: _________________
Date: ____________________________________
Teacher: _________________________________
General Instructions:
1. Read and follow the directions carefully.
2. Avoid erasures.
3. All answer must be written in provided answer sheet.
4. Use black-inked pen only in shading the letter of your answer.
I. MULTIPLE CHOICE. Directions. Ensure proper handling of measuring instruments
to avoid damage and clean it before and after using
________ 1. It removes unnecessary items from the workplace.
A. Set in order B. Organize C. Shine D. Sustain
________ 2. It will clean and eliminate the sources of contamination in the workplace.
A. Shine B. Standardize C. OHS D. Set in order
________ 3. It makes routine and standard for what good looks like.
A. Standardize B. Sustain C. Set in order D. Shine
________ 4. “The less self-discipline you need, the better”. What number of S will you catch
from the phrase?
A. S1 B. S2 C. S4 D.S5
_________5. It will protect every worker against the dangers of injury, sickness or death
through safe and healthful working conditions.
A. OHS B. 5 S C. SOP D. PPE
_________6. It will reduce the injury potential of the hazard.
A. PPE B. SOP C. 5 S D. OHS
_________ 7. A place where the soldering iron is placed during usage.
A. Soldering paste B. Soldering lead
C. Soldering pump D. Soldering stand
_________8. A device used in removing soldered wires and components on printed circuit
boards for troubleshooting and repair purposes.
A. Desoldering iron B. Soldering paste
C. Soldering lead D. Long nose.
________ 9. The instrument where you can find the ohmmeter.
A. Ammeter B. Voltmeter C. DMM D. VOM

________10. The type of reading scale found in an ohmmeter.

A. Horizontal B. Linear C. Nonlinear D. Vertical

Instructions. choose the correct answer from the given option. Write the four color bands in the
blank resistor from the given resistance value.

11. 12.
1 Mega Ω +/- 5% 510 Ω +/- 5%
A. Brown, Black, Blue, Gold A. Green, Green, Black, Gold
B. Brown, Blue, Blue, Gold B. Green, Green, Brown, Gold
C. Brown, Black, Green, Gold C. Green, Green, Blank, Gold
D. Brown, Brown, Blue, Gold D. Green, Brown, Brown, Gold

13. 14.
2.2 Ω +/- 5% 100 Ω +/- 10%
A. Red, Black, Blue, Gold A. Brown, Black, Brown, Gold
B. Brown, Black, Blue, Gold B. Brown, Brown, Brown, Gold
C. Brown, Black, Blue, Gold C. Brown, Green, Brown, Gold
D. Brown, Black, Blue, Gold D. Brown, Green, Black, Gold

15. 16.
3.9 kilo Ω +/- 10% .33 Ω +/- 5%
A. Red, Black, Blue, Gold A. Green, Green, Brown, Gold
B. Red, White, Red, Gold B. Brown, Black, Blue, Gold
 C. Brown, Black, Blue, Gold C. Orange, Orange, Orange, Gold
D. Brown, Black, Red, Gold D. Orange, Orange, Silver, Gold

17. 18.
.47 Ω +/- 10% 56 Ω +/- 5%
A. Yellow, Violet, Gold, Gold A. Green, Blue, Red, Gold
B. Yellow, Violet, Black, Gold B. Green, Blue, Yellow, Gold
C. Yellow, Violet, Blue, Gold C. Green, Blue, Brown, Gold
D. Yellow, Violet, Silver, Gold D. Green, Blue, Black, Gold

19. 20.
1 Ω +/- 5% 2,200 Ω +/- 5%
A. Brown, Black, Blue, Gold A. Red, Red, Brown, Gold
B. Brown, Black, Gold, Gold B. Red, Red, Orange, Gold
C. Brown, Black, Silver, Gold C. Red, Red, Red, Gold
D. Brown, Black, Black Gold D. Red, Red, Yellow, Gold
21. Which equipment does NOT belong to the group?
A.) Screw driver C.) Diagonal cutter
B.) Long nose plier’s D.) Side cutting
22 What is the reason why threads become stripped?
A.) screws are over tighten C.) Screws are molded
B.) screws are heated D.) Screws are painted
23. What equipment is/are used for safety?
A. VOM B.) PPE C.) OHS D.) All of those mentioned

24. Which is NOT part of the group?

A.) Soldering iron C.) Soldering tool stand
B.) De soldering tool D.) Wire stripper
25 Which hand tool is used solely for cutting metals?
A.) Utility knife B.) Saw C.) Magnifying glass D.) Paint brush

26. What is the proper way of holding a soldering iron?

A. Forehand B. Both hands C. Pen hold D. A and B
27. What is the first procedure in using the soldering iron?
A. Clean the tip of the soldering iron.
B. Allow the soldering iron to warm 2 to 3 minutes.
C. Apply a little amount of lead unto the tip of the soldering iron.
D. Used the soldering pump.
28. What is the ideal way of knowing the temperature of soldering iron before use?
A. By touching its tip.
B. By applying solder to its tip.
C. By placing the heater near to our face.
D. By dipping its tip to the soldering paste
29. Rod is for welding and lead is for_________.
A. Joining B. Pasting C. Soldering D. Removing

30. The best way to unjoin the two electronic components is?
A. Used soldering iron C. Used soldering stand
B. Used soldering pump D. Used soldering iron and soldering pump
31. Which component resists the flow of current in an electrical circuit?
A) Capacitor B) Inductor C) Resistor D) Transistor
32. It is the minimal voltage of a single Li-Ion Battery.
A) 3.7 VDC B) 3.7 VAC C) 3.7 V D) 3.75 VDC

33. It is the minimal voltage of a triple A to Size D battery.

A) 1.5 VDC B) 1.5 VAC C) 1.22 VDC D) 9 VDC

34. The battery tested excess its minimal rating voltage, the condition of the battery being tested
is___________.
A) Over charged B) Full charged C) Bad battery D) Drain
35. In measuring voltage we must have to check first the_______.
A) Voltage rating B) Battery type C) Size D) Brand
36. Instrument used measuring high current.
A) Voltmeter B) Ammeter C) Ohmmeter D) Milli-ammeter
37. Instrument used in measuring electromotive force.
A) Voltmeter B) Ammeter C) Ohmmeter D) Milli-ammeter
 38. Rotate if the ohmmeter pointer not exactly pointing at zero.
A) ohm adjust B) Zero corrector C) Test prod D) range selector

39. It will bring the pointer to zero resistance.

A) ohm adjust B) Zero corrector C) Test prod D) range selector

40. Instrument used in measuring three electrical quantities.

A) Voltmeter B) Ammeter C) Ohmmeter D) V.O.M
41What is the minimum resistance of a 100 ohm resistor with 10% tolerance?
A) 90 ohms B) 190 ohms C) 190 ohms D) 210 ohms

42. What is the maximum value of a 220 ohm resistor with a + 10% tolerance?
A) 230ohms B) 242 ohms C) 224 ohms D) 236 ohms

43. The number per line of 1000 VDC.

A) 20VAC B) 20VDC C) 5 VDC D) .2 VDC

44. If the pointer rest exactly at line 22 for 250 VDC what will be the reading?
A) 220 VDC B) 110 VAC C.) 110 VDC D) 220 VAC

45. In testing phone battery and there is no pointer deflection, it indicates that the battery is…
A) Shorted B) Open C) Low bat D) Drain
46. In PCB etching process what is the first procedure?
A. Design the foil pattern base from the schematic diagram
B. Drill the PCB base from the given diagram
C. Soak the PCB to the ferric chloride
D. Remove the masking tape
47. What is the ideal combination tool for a long nose?
A. Electrical plier B. Screw drive C. Diagonal cutter D. Stranded wire
48. It is the ideal reason for a proper wire splicing.
A. To avoid loose connection C. To avoid over heating the circuit
B. To prevent circuit overloading D. To prevent fire
49. A Rip saw is use to cut wood.
A. Across the grain C. A and B
B. Along the grain D. Across the green
50. To maintain electronic hand tools free from rush we should practice the following.
A. Wash the tool with clean water after use
B. Apply a little amount of cleaning oil in the metal parts after use
C. Clean the metal parts of the tools using alcohol
D. Return the tools to its tool box
51. Post drill is ideal for drilling electronic printed circuit board.
A. Because it is less vibration
B. Because it is more accurate than any hand drill
C. Because the smaller drill bit will last longer
D. A, B, and C
52. Soldering consumer electronic products without mask is not allowed.
A. Because we might inhale the smoke coming from the lead
B. Because we might inhale the dust particle
C. A and B
D. None of the above
INSTRUCTION: Write your answer indicating the voltage reading of the
voltmeter below base from the given range.

53. 54.
Range used: 50v AC= ________ Range used: 250v AC= _______

55. 56.
Range used: 50v AC=_________ Range used: 250v AC= __________
57. 58
Range used: 1000v AC= ____________ Range used: 2.5v AC= _____________

59. Electronic device used to store electric charge.

A. Diode B.) Capacitor C. transistor D. Integrated Circuit

60. Used as electronic switch in the circuit.

A. Diode B.)Capacitor C. transistor D. Integrated Circuit

-END OF TEST-
