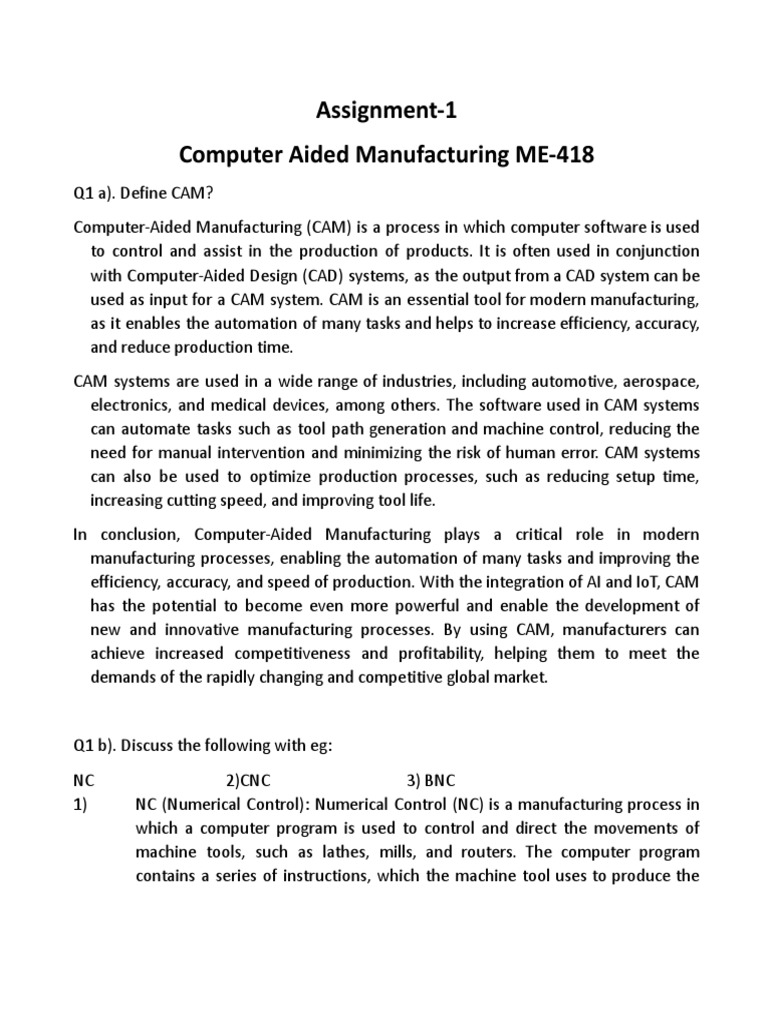

Assignment-1

Computer Aided Manufacturing ME-418

Q1 a). Define CAM?
Computer-Aided Manufacturing (CAM) is a process in which computer software is used
to control and assist in the production of products. It is often used in conjunction
with Computer-Aided Design (CAD) systems, as the output from a CAD system can be
used as input for a CAM system. CAM is an essential tool for modern manufacturing,
as it enables the automation of many tasks and helps to increase efficiency, accuracy,
and reduce production time.
CAM systems are used in a wide range of industries, including automotive, aerospace,
electronics, and medical devices, among others. The software used in CAM systems
can automate tasks such as tool path generation and machine control, reducing the
need for manual intervention and minimizing the risk of human error. CAM systems
can also be used to optimize production processes, such as reducing setup time,
increasing cutting speed, and improving tool life.
In conclusion, Computer-Aided Manufacturing plays a critical role in modern
manufacturing processes, enabling the automation of many tasks and improving the
efficiency, accuracy, and speed of production. With the integration of AI and IoT, CAM
has the potential to become even more powerful and enable the development of
new and innovative manufacturing processes. By using CAM, manufacturers can
achieve increased competitiveness and profitability, helping them to meet the
demands of the rapidly changing and competitive global market.

Q1 b). Discuss the following with eg:

NC 2)CNC 3) BNC
1) NC (Numerical Control): Numerical Control (NC) is a manufacturing process in
which a computer program is used to control and direct the movements of
machine tools, such as lathes, mills, and routers. The computer program
contains a series of instructions, which the machine tool uses to produce the
 desired part or component. An example of NC in action is a milling machine
that uses an NC program to cut a complex shape from a block of material.
2) CNC (Computer Numerical Control): Computer Numerical Control (CNC) is an
advanced form of NC, in which the machine tool is controlled and directed by a
computer, typically using G-code, a standardized programming language. CNC
machines can perform a wide range of tasks, such as drilling, milling, and
turning, and are capable of producing highly accurate parts and components.
An example of CNC in action is a CNC Lathe that uses a computer program to
produce precise and complex shapes from a cylindrical work piece.
3) BNC (Back Numerical Control): Back Numerical Control (BNC) is a type of CNC
machine that operates in reverse, by allowing the operator to manually control
the machine's movements and record them as a program. This program can
then be played back and repeated, reducing the need for manual intervention
and increasing the efficiency of the production process. An example of BNC in
action is a CNC milling machine that uses a BNC program to repeat a series of
machining operations on a large number of identical parts.
Q1 c)What Advantages and limitations of CAM?
Advantages of Computer-Aided Manufacturing (CAM):
1. Increased Efficiency: CAM systems can automate many tasks, such as tool path
generation and machine control, reducing the need for manual intervention
and increasing the speed and efficiency of production.
2. Improved Accuracy: CAM systems can produce highly accurate parts and
components, as the computer-controlled process eliminates the risk of human
error.
3. Reduced Manufacturing Time: CAM systems can optimize production
processes, reducing setup time and increasing cutting speed, which leads to
reduced overall manufacturing time.
4. Increased Flexibility: CAM systems can be programmed to produce a wide
range of products, making it possible to quickly adapt to changes in demand
and market conditions.
5. Improved Quality: CAM systems can be used to inspect and grade products
during the manufacturing process, ensuring high-quality standards are
maintained.
Limitations of Computer-Aided Manufacturing (CAM):
1. High Initial Cost: Implementing a CAM system can be expensive, requiring a
significant investment in software, hardware, and training.
2. Complexity: CAM systems can be complex and difficult to use, requiring a high
level of technical skill and expertise.
3. Limited Compatibility: CAM software may not be compatible with all types of
machine tools, limiting its use in some manufacturing processes.
4. Dependence on Technology: CAM systems rely on technology, making them
vulnerable to failures or disruptions, which can lead to downtime and reduced
productivity.
5. Lack of Customization: CAM software may not be able to accommodate all the
specific needs and requirements of a manufacturer, limiting its usefulness and
versatility.
Q2. Discuss the factors which production controller should consider to adapt the CNC
technology for the first time in the industry with example?
When a production controller is considering adapting CNC (Computer Numerical
Control) technology for the first time in an industry, there are several important
factors to consider:
1. Equipment Costs: The cost of CNC equipment, including the machines
themselves and any necessary software, is a major consideration. The
production controller should research the costs of different CNC options and
determine the best fit for their industry, taking into account the cost of training
and maintenance as well.
2. Compatibility with Existing Equipment: It's important to consider whether the
CNC equipment will be compatible with the existing machines and tools in the
industry. This can impact the overall efficiency and effectiveness of the
production process.
3. Employee Training: CNC technology requires a certain level of technical skill
and expertise to operate effectively. The production controller should consider
the cost and time required for employee training, as well as the availability of
qualified technicians to provide maintenance and support.
4. Production Volume: The volume of production is another important
consideration, as CNC equipment is most cost-effective when used in
high-volume production scenarios.
5. Flexibility: The production controller should consider the flexibility of the CNC
equipment, in terms of its ability to accommodate different types of products
and changing production demands.
Example: A production controller in the automotive industry is considering the adoption
of CNC technology for the first time. They must consider the cost of CNC equipment,
the compatibility with existing equipment, employee training, the volume of
production, and the flexibility of the technology. They research different CNC options
and determine that a CNC Lathe would be the best fit for their industry, as it is
compatible with their existing machines, requires minimal employee training, and is
capable of producing high volumes of precision parts at a reasonable cost.
Programming refers to the process of creating software programs and algorithms to
control the behavior of machines and systems. In Computer-Aided Manufacturing
(CAM), programming is used to create instructions for CNC machines, allowing them
to produce parts and components with high precision and accuracy.
There are several types of programming in CAM:
1. G-code Programming: This is the most common type of programming used in
CNC machines. G-code is a series of instructions that define the movement of
the cutting tool and the workpiece, allowing the machine to produce parts
with high precision.
2. Parametric Programming: This type of programming uses parameters to define
the size, shape, and material properties of a part, rather than specific
toolpaths. This allows for greater flexibility in design and production, making it
possible to produce a wide range of parts with a single program.
3. Direct Numerical Control (DNC) Programming: This type of programming allows
multiple CNC machines to be controlled from a single computer, streamlining
the production process and reducing the risk of human error.
4. Robotic Programming: This type of programming is used to control the
movement and behavior of robots in a manufacturing environment. This can
include tasks such as material handling, welding, and assembly.
5. Machine Learning Programming: This type of programming uses algorithms
and artificial intelligence to control the behavior of machines. This allows the
machines to learn from their experiences and make predictions, increasing
their efficiency and effectiveness over time.
Q3 b). What are G-codes and m-code with 20 example each?
G-codes are a series of numerical codes used in CNC machining to control the
movement of the cutting tool and workpiece. They are commonly used to program
CNC machines to produce parts with high precision and accuracy. Here are 20
examples of common G-codes:
1. G00 (Rapid Motion)
2. G01 (Linear Interpolation)
3. G02 (Circular Interpolation - Clockwise)
4. G03 (Circular Interpolation - Counterclockwise)
5. G04 (Dwell)
6. G17 (XY Plane Selection)
7. G18 (ZX Plane Selection)
8. G19 (YZ Plane Selection)
9. G20 (Unit Selection - Inches)
10. G21 (Unit Selection - Millimeters)
11. G28 (Return to Home)
12. G30 (Return to Secondary Home)
13. G31 (Skip Function)
14. G32 (Single Point Threading)
15. G33 (Constant Pitch Threading)
16. G40 (Tool Radius Compensation Off)
17. G41 (Tool Radius Compensation Left)
18. G42 (Tool Radius Compensation Right)
19. G53 (Machine Coordinate System)
20. G54 (Work Coordinate System 1)
M-codes, or miscellaneous codes, are codes used in CNC machining to control various
non-movement functions of the machine. Here are 20 examples of common
M-codes:
1. M00 (Program Stop)
2. M01 (Optional Program Stop)
3. M02 (Program End)
4. M03 (Spindle On - Clockwise)
5. M04 (Spindle On - Counterclockwise)
6. M05 (Spindle Stop)
7. M06 (Tool Change)
8. M08 (Coolant On)
9. M09 (Coolant Off)
10. M10 (Pallet Clamp On)
11. M11 (Pallet Clamp Off)
12. M12 (Ejector On)
13. M13 (Ejector Off)
14. M14 (Counterclockwise Spindle Rotation)
15. M15 (Clockwise Spindle Rotation)
16. M17 (Enable Motor)
17. M18 (Disable Motor)
18. M19 (Spindle Orientation)
19. M20 (Tool Length Offset Probe)
20. M21 (Set Tool Length Offset)
What is APT? Describe its various elements with examples
APT (Automatically Programmed Tool) is a high-level programming language that was
developed specifically for computer-aided manufacturing (CAM) systems. It provides
a user-friendly interface for creating CNC machine programs, allowing for faster and
more efficient part programming.
APT has several elements that are used to create CNC programs, including:
1. Geometry Definition: This element defines the shape and size of the part that
is to be machined, including lines, arcs, circles, and other basic shapes.
2. Motion Definition: This element defines the movement of the cutting tool in
relation to the workpiece, including linear and circular interpolation, and other
advanced motion commands.
3. Tool Definition: This element defines the characteristics of the cutting tool,
including tool shape, size, and material.
4. Cutting Parameters: This element defines the cutting conditions, such as speed,
feed rate, and depth of cut.
5. Workpiece Definition: This element defines the material and size of the
workpiece, and includes information on the starting point and orientation of
the workpiece in the machine.
6. Tool Path Generation: This element generates the final tool path based on the
geometry definition, motion definition, tool definition, cutting parameters, and
workpiece definition.
7. Post-Processing: This element converts the APT program into the
machine-readable code (such as G-code or M-code) that is used by the CNC
machine to produce the final part.
An example of using APT to create a CNC program for machining a simple rectangular
block could involve defining the geometry of the block, selecting the cutting tool and
its parameters, defining the workpiece and its starting orientation, and generating
the tool path for machining the part. The final APT program would then be
post-processed into machine-readable code for the CNC machine to execute.
Discuss the elimination and reduction of role of operator in machines due to CAM?
The implementation of Computer-Aided Manufacturing (CAM) in industries has led to
the reduction and elimination of the role of operators in some machines. This is
because CAM systems provide the ability to automate many tasks that were
previously performed by operators, resulting in increased efficiency and reduced
human intervention.
Some of the ways that CAM systems have reduced or eliminated the role of operators
include:
1. Part Programming: CAM systems allow for the creation of CNC machine
programs using a user-friendly interface, eliminating the need for operators to
manually write out code for each part.
2. Machine Operation: With the use of CAM, CNC machines can be programmed
to run without operator intervention, reducing the need for an operator to
constantly monitor the machine.
3. Tool Management: CAM systems provide the ability to manage tool libraries,
automatically selecting and changing tools as needed, reducing the need for an
operator to manually perform this task.
4. Quality Control: CAM systems provide advanced features such as simulation
and collision detection, allowing for the detection of potential issues before
the machining process begins. This reduces the need for an operator to
physically inspect each part after it has been machined.
Overall, the use of CAM has led to a reduction in the number of operators required to
run a manufacturing process, resulting in increased efficiency and reduced labor
 costs. However, it is important to note that the role of operators has not been
completely eliminated in all industries, as there are still tasks that require human
intervention and expertise, such as machine maintenance and troubleshooting.
Design in relation to manufacturing refers to the process of creating the blueprint or
plan for a product, taking into account its intended use, functional requirements, and
aesthetic considerations. The design process typically includes the following steps:
1. Conceptualization: This is the initial stage where ideas and concepts are
generated and evaluated for feasibility.
2. Sketching and Modeling: Once the concept is finalized, a more detailed design
is created using sketches and 3D modeling software.
3. Prototyping: A physical prototype of the product is created to test the design
and refine it further, if necessary.
4. Testing: The prototype is subjected to various tests, such as functional and
durability testing, to ensure that it meets the desired specifications.
5. Final Design: Based on the results of the testing, the final design is created,
taking into account any necessary modifications.
The output of the design process is a comprehensive plan that includes technical
drawings, specifications, and a bill of materials, which serves as the basis for
manufacturing the product. The design process is crucial for the success of a
manufacturing project, as it determines the efficiency, quality, and cost of the final
product.
Computer-Aided Design (CAD) is a software tool used to create 2D and 3D digital
models of physical objects. The main purpose of CAD is to facilitate the design
process, allowing designers and engineers to quickly create, modify, and analyze
designs.
CAD has numerous applications in manufacturing, including:
1. Product Design: CAD is widely used in the creation of new product designs, as
it allows for quick and easy changes to be made to the design, reducing the
time and cost associated with physical prototyping.
2. Tool Design: CAD is used in the design of tooling, such as molds, dies, and jigs,
which are required for the manufacturing of parts.
3. Machining Process Planning: CAD is used to plan the machining process for the
production of parts, taking into account the available equipment, material
properties, and manufacturing constraints.
4. Quality Control: CAD is used to simulate the machining process, allowing for
the detection of potential issues before the machining process begins. This
helps to improve the overall quality of the final product.
5. Reverse Engineering: CAD is used to create a digital model of an existing
physical product, which can then be used to improve the design or create a
new product based on the same design.
Q7 What are steps in CAD? Discuss typical and harware used in CAD?
The steps in CAD (Computer-Aided Design) typically include the following:
1. Conceptualization: This is the initial stage where ideas and concepts are
generated and evaluated for feasibility.
2. Sketching and Modeling: Once the concept is finalized, a more detailed design
is created using sketches and 3D modeling software.
3. Prototyping: A physical prototype of the product is created to test the design
and refine it further, if necessary.
4. Testing: The prototype is subjected to various tests, such as functional and
durability testing, to ensure that it meets the desired specifications.
5. Final Design: Based on the results of the testing, the final design is created,
taking into account any necessary modifications.
In terms of hardware, the following are commonly used in CAD:
1. Computer: A powerful computer with a fast processor and ample memory is
required for running CAD software.
2. Graphics Card: A high-end graphics card is required to display and manipulate
3D models effectively.
3. Monitor: A large, high-resolution monitor is required to display the designs and
models.
4. Input Devices: A mouse and keyboard are commonly used as input devices, but
many CAD users prefer to use a specialized input device, such as a graphics
tablet or 3D mouse.
5. Plotter or Printer: A plotter or printer is used to produce hard copies of the
designs and models.
In addition to hardware, a number of specialized CAD software packages are available,
each with its own features and capabilities. The selection of CAD software will
depend on the specific needs of the user, such as the type of products being designed
and the complexity of the designs. Overall, the use of CAD requires a significant
investment in both hardware and software, but it can greatly improve the efficiency
and accuracy of the design process, ultimately resulting in higher-quality products.
Elaborate process of planning? Define CAPP, its type, application and
advantages?Process planning is the process of defining the manufacturing steps
required to produce a product, taking into account the available resources, materials,
and equipment. The goal of process planning is to determine the most efficient and
cost-effective way to manufacture a product, while ensuring that the final product
meets the desired specifications.
Computer-Aided Process Planning (CAPP) is a type of software that automates the
process planning process. CAPP systems use information about the product design,
materials, and available resources to generate a detailed plan for the manufacturing
process.
There are two types of CAPP systems: rule-based and knowledge-based.
1. Rule-based CAPP systems use a set of predefined rules to determine the
manufacturing process, based on the product design and materials.
2. Knowledge-based CAPP systems use an expert system to generate the
manufacturing process, based on a database of manufacturing knowledge and
experience.
CAPP has a number of applications in the manufacturing industry, including:
1. Improved Efficiency: CAPP can help to improve the efficiency of the
manufacturing process by automating the process planning process and
reducing the time required for manual planning.
2. Improved Quality: CAPP can help to ensure that the manufacturing process is
optimized for quality, reducing the risk of defects and improving the overall
quality of the final product.
3. Cost Reduction: CAPP can help to reduce the cost of the manufacturing process
by optimizing the use of resources, reducing the risk of defects, and improving
the overall efficiency of the process.
The advantages of CAPP include:
1. Increased Speed: CAPP systems can generate process plans much faster than
manual planning, reducing the time required for planning and improving the
overall efficiency of the manufacturing process.
2. Improved Accuracy: CAPP systems can help to ensure that the manufacturing
process is optimized for quality and efficiency, reducing the risk of defects and
improving the overall accuracy of the process.
3. Reduced Costs: CAPP systems can help to reduce the cost of the manufacturing
process by optimizing the use of resources and reducing the time required for
manual planning.
Overall, CAPP can play a crucial role in the manufacturing process, helping to improve
efficiency, quality, and cost-effectiveness. The use of CAPP systems can help
manufacturers to stay competitive in an increasingly demanding market, by reducing
costs and improving the overall quality of their products.
CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) are two
closely related technologies used in the manufacturing process. CAD is used for the
design and modeling of products, while CAM is used for the programming and control
of manufacturing processes.
Computer-Aided Process Planning (CAPP) is a software that integrates CAD and CAM to
provide a comprehensive solution for the entire manufacturing process. CAPP uses
the product design information generated by CAD to generate a detailed
 manufacturing process plan. This plan can then be used to program and control the
manufacturing process using CAM.
The integration of CAD and CAM through CAPP provides several benefits, including:
1. Improved efficiency: CAPP automates the process of generating a
manufacturing process plan, reducing the time and effort required for manual
planning.
2. Improved accuracy: CAPP can use the detailed product design information
generated by CAD to optimize the manufacturing process for quality and
efficiency, reducing the risk of defects.
3. Improved consistency: CAPP can ensure that the manufacturing process is
consistent, regardless of the product design or the manufacturing resources
available.
4. Improved cost-effectiveness: CAPP can optimize the use of resources and
reduce the time required for manual planning, reducing the cost of the
manufacturing process.
Q. Discuss group technology and its advantagesGroup Technology (GT) is a
manufacturing philosophy that focuses on the systematic classification and
organization of parts, components, and products. The goal of GT is to increase
efficiency and reduce costs in the manufacturing process by grouping similar parts
together and using a standardized manufacturing process for each group.
Advantages of Group Technology:
1. Improved Efficiency: By grouping similar parts together, GT can reduce the time
and effort required to set up manufacturing equipment and changeover
between different parts. This results in improved efficiency and reduced cycle
time.
2. Reduced Costs: GT can reduce the costs associated with inventory
management and tooling by standardizing the manufacturing process for each
group of parts. This can also result in reduced lead times and lower inventory
costs.
3. Improved Quality: GT can improve the quality of the manufacturing process by
standardizing the manufacturing process for each group of parts. This can help
to reduce the risk of defects and improve consistency in the production
process.
4. Better Utilization of Resources: GT can optimize the use of resources by
reducing the number of different manufacturing processes and reducing the
time required for set up and changeover. This can result in better utilization of
equipment and improved efficiency.
5. Improved Flexibility: GT can improve the flexibility of the manufacturing
process by allowing manufacturers to easily switch between different groups of
parts as demand changes. This can help manufacturers to respond quickly to
changes in customer demand and market conditions.
In conclusion, Group Technology is a powerful manufacturing philosophy that can help
manufacturers to improve efficiency, reduce costs, improve quality, better utilize
resources, and increase flexibility. By grouping similar parts together and using a
standardized manufacturing process, GT can help manufacturers to achieve these
goals and remain competitive in today's fast-paced global market.
What is FMC and FMS?
Flexible Manufacturing System (FMS) is a type of manufacturing system that is designed
to produce a variety of products with different configurations and specifications. It is
characterized by its flexibility and adaptability to changing production requirements
and customer demand.
FMS typically consists of several computer-controlled machine tools, material handling
equipment, and other components that work together to produce a wide range of
products. The system is designed to be flexible, so that different machines and
components can be used for different products and production requirements.
FMS is typically controlled by a central computer system that manages the production
process, including scheduling, monitoring, and control of the various components of
the system. The system is also designed to be highly automated, so that manual
intervention is minimized, and the production process is streamlined and efficient.
Flexible Manufacturing Cell (FMC) is a type of manufacturing system that is similar to
FMS but is smaller in scale and is typically used for the production of a specific
product or family of products. An FMC typically consists of a group of machine tools
and material handling equipment that are designed to work together to produce a
specific product.
Like FMS, FMC is designed to be flexible and adaptable to changing production
requirements and customer demand. It is typically controlled by a central computer
system that manages the production process and ensures that the various
components of the system work together efficiently.
In conclusion, FMS and FMC are both types of flexible manufacturing systems that are
designed to be adaptable and flexible in response to changing production
requirements and customer demand. They are characterized by their computer
control, automation, and high levels of efficiency and are used by manufacturers to
produce a variety of products with different configurations and specifications.
The elements of a Flexible Manufacturing System (FMS) typically include:
1. Machine tools: The machine tools are the primary components of the FMS and
are responsible for producing the final product. They can include a variety of
different types of machines, such as lathes, milling machines, and drilling
machines.
2. Material handling equipment: This includes the conveyors, robots, and other
components that are used to move raw materials and finished products
throughout the FMS.
3. Computer control system: The computer control system is the central
component of the FMS and is responsible for managing the production
process. It includes a computer-based control system that manages the
scheduling, monitoring, and control of the various components of the FMS.
4. Tool storage and handling systems: These include the storage racks and other
systems that are used to store and handle the tools used in the production
process.
5. Workpiece storage and handling systems: These include the storage racks and
other systems that are used to store and handle the raw materials and finished
products in the FMS.
6. Quality control systems: These include the sensors and other components that
are used to monitor the quality of the products being produced in the FMS.
7. Maintenance and repair systems: These include the maintenance and repair
systems that are used to keep the FMS running smoothly and to ensure that
the machine tools and other components are functioning correctly.
In conclusion, the elements of a Flexible Manufacturing System (FMS) are designed to
work together to produce a variety of products with different configurations and
specifications. The FMS is designed to be flexible and adaptable to changing
production requirements and customer demand, and is typically controlled by a
central computer system that manages the production process and ensures that the
various components of the system work together efficiently.
Q. What are advantages and limitations of FMS?
Advantages of Flexible Manufacturing Systems (FMS):
1. Increased efficiency: FMS allows for the efficient and flexible production of a
wide range of products with different configurations and specifications. It
reduces downtime, increases machine utilization, and reduces the need for
operator intervention.
2. Improved quality: The quality control systems in FMS provide real-time
monitoring of the production process and can detect and correct any issues
before they result in defective products.
3. Increased production flexibility: FMS allows for rapid changes to production
processes to respond to changes in customer demand or market conditions.
4. Increased cost savings: The increased efficiency of FMS leads to reduced
production costs and increased profits.
5. Better utilization of resources: FMS maximizes the use of resources, including
machine tools, raw materials, and labor, leading to increased productivity and
profitability.
Limitations of Flexible Manufacturing Systems (FMS):
1. High initial cost: Implementing an FMS can be expensive, with the cost of
machine tools, material handling equipment, and computer control systems
adding up quickly.
2. Complexity: FMS can be complex and difficult to manage, requiring a skilled
workforce and specialized knowledge to maintain and operate effectively.
3. Dependence on technology: FMS relies heavily on technology, and problems
with the computer control system or other components can result in significant
downtime and decreased productivity.
4. Limited product range: FMS is designed for the production of a specific type of
product, and may not be suitable for companies that produce a wide range of
products.
5. Maintenance costs: The high-tech components of FMS can be expensive to
repair and maintain, leading to additional costs over time.
In conclusion, Flexible Manufacturing Systems (FMS) offer many advantages, including
increased efficiency, improved quality, increased production flexibility, and cost
savings. However, these systems also have limitations, including high initial costs,
complexity, dependence on technology, limited product range, and maintenance
costs. Companies should carefully evaluate the potential benefits and limitations of
FMS before investing in this technology.
A typical layout of a Flexible Manufacturing System (FMS) includes several key
components:
1. Machine Tools: The machine tools are the heart of the FMS and are responsible
for the actual production of the parts. They can include a variety of CNC
machines, such as lathes, mills, grinders, and other specialized machines.
2. Material Handling System: The material handling system is responsible for
moving raw materials, partially finished parts, and finished products from one
machine to another. This can include conveyors, robots, or other automated
systems.
3. Computer Control System: The computer control system manages and
coordinates the activities of the machine tools and material handling system. It
receives production orders from the central computer and schedules the
production process accordingly.
4. Central Computer: The central computer is the central control point for the
entire FMS. It receives production orders from an external source, such as a
customer or a computer-aided design (CAD) system, and passes the production
orders to the computer control system.
5. Storage Areas: Storage areas are used to store raw materials, partially finished
parts, and finished products. These areas can include racks, bins, or other
storage systems.
6. Maintenance and Repair Areas: Maintenance and repair areas are used to
repair and maintain the machine tools and other components of the FMS.
In conclusion, a typical layout of a Flexible Manufacturing System (FMS) includes
machine tools, a material handling system, a computer control system, a central
computer, storage areas, and maintenance and repair areas. These components work
together to efficiently produce a wide range of products with different configurations
and specifications.
Q. How AI and IOT can be useful in CAM?AI (Artificial Intelligence) and IoT (Internet of
Things) can play a significant role in optimizing and improving the efficiency of
Computer-Aided Manufacturing (CAM) processes.
1. Predictive Maintenance: AI algorithms can analyze production data in
real-time, enabling predictive maintenance of manufacturing equipment,
reducing downtime and increasing productivity.
2. Quality Control: AI-powered image recognition and analysis can be used to
automatically inspect and grade products during the manufacturing process,
ensuring high-quality standards.
3. Process Optimization: IoT devices and sensors can gather real-time data from
manufacturing processes and machines, which can be analyzed by AI
algorithms to optimize production processes and identify areas for
improvement.
4. Inventory Management: AI algorithms can help to manage inventory levels and
predict demand, reducing waste and optimizing production.
By integrating AI and IoT into CAM, manufacturers can increase the speed, efficiency,
and accuracy of their production processes, leading to improved competitiveness and
profitability.
 Assignment-1
Computer Aided Manufacturing ME-418

Q. How AI and IOT can be useful in CAM?

AI and IoT can be extremely useful in CAM (Computer-Aided Manufacturing) in
several ways, including:
1. Predictive maintenance: By using sensors and IoT devices to collect data
from machines, AI can analyze this data and predict when maintenance is
required. This helps reduce downtime, increase machine efficiency, and
prevent costly breakdowns.
2. Quality control: AI can analyze data from cameras and sensors to detect
defects or anomalies in the manufacturing process. This helps identify
problems early and improve product quality.
3. Supply chain optimization: AI can optimize the supply chain by analyzing
data on inventory, logistics, and customer demand. This helps improve
efficiency, reduce costs, and improve customer satisfaction.
4. Process optimization: AI can analyze data on manufacturing processes to
identify areas where efficiency can be improved. This helps reduce waste,
increase output, and improve overall efficiency.
Overall, AI and IoT can help improve manufacturing efficiency, reduce costs, and
improve product quality, making them valuable tools in CAM.

Q. How ML can be useful in CAM security?

1. Anomaly Detection: Machine learning algorithms can analyze large amounts
of data from sensors and other sources to identify patterns of normal
behavior in a CAM system. Any deviations from this behavior can then be
 flagged as anomalies and investigated by security personnel to determine if
they represent a security threat.
2. User Authentication: Behavioral biometrics is a technique that uses
machine learning algorithms to analyze the unique behavioral patterns of
individual users, such as typing speed, mouse movements, and navigation
behavior. These patterns can then be used to create a unique user profile
that is difficult to fake or imitate. When a user attempts to log in, the
machine learning system compares the user's behavior with their profile to
determine if the user is who they claim to be.
3. Intrusion Detection: Machine learning algorithms can be trained to detect
unusual patterns of activity on the network, which may indicate an
attempted intrusion or other security threat. By detecting potential security
threats in real-time, intrusion detection systems can help prevent security
breaches and minimize damage caused by malicious actors.
Overall, the use of machine learning in CAM security can help to identify and
respond to security threats in real-time, reducing the risk of data breaches and
other security incidents.

Q parameters to adopt CAM technology first Time in a industry

1. Define the goals: Before implementing CAM technology, it is important to
identify the goals and objectives of using the technology. Determine the
specific problems the technology will solve and how it will improve the
efficiency and effectiveness of the manufacturing process.
2. Analyze the current process: Analyze the current manufacturing process to
determine how CAM technology will fit into the workflow. Evaluate the
current equipment and infrastructure to ensure that it can support the
implementation of CAM technology.
3. Develop a plan: Develop a comprehensive implementation plan that
outlines the steps needed to successfully integrate the technology into the
manufacturing process. Identify any potential challenges and develop
contingency plans to address them.
4. Evaluate the budget: Implementing CAM technology can be expensive.
Evaluate the budget to determine the cost of the technology, including
equipment, software, and personnel. Develop a budget that includes all the
necessary expenses.
5. Determine the training required: Determine the training that will be
required for employees to effectively use the technology. Identify the skills
and knowledge needed to operate the technology and develop a training
plan to ensure that all employees are trained.
6. Assess the security risks: CAM technology can be vulnerable to cyber
threats. Assess the security risks associated with implementing CAM
technology and develop a plan to mitigate those risks.
7. Measure success: Establish metrics to measure the success of the
implementation, such as reduced production costs, increased productivity,
and improved quality. Continuously monitor and evaluate the success of the
technology to identify areas for improvement.
