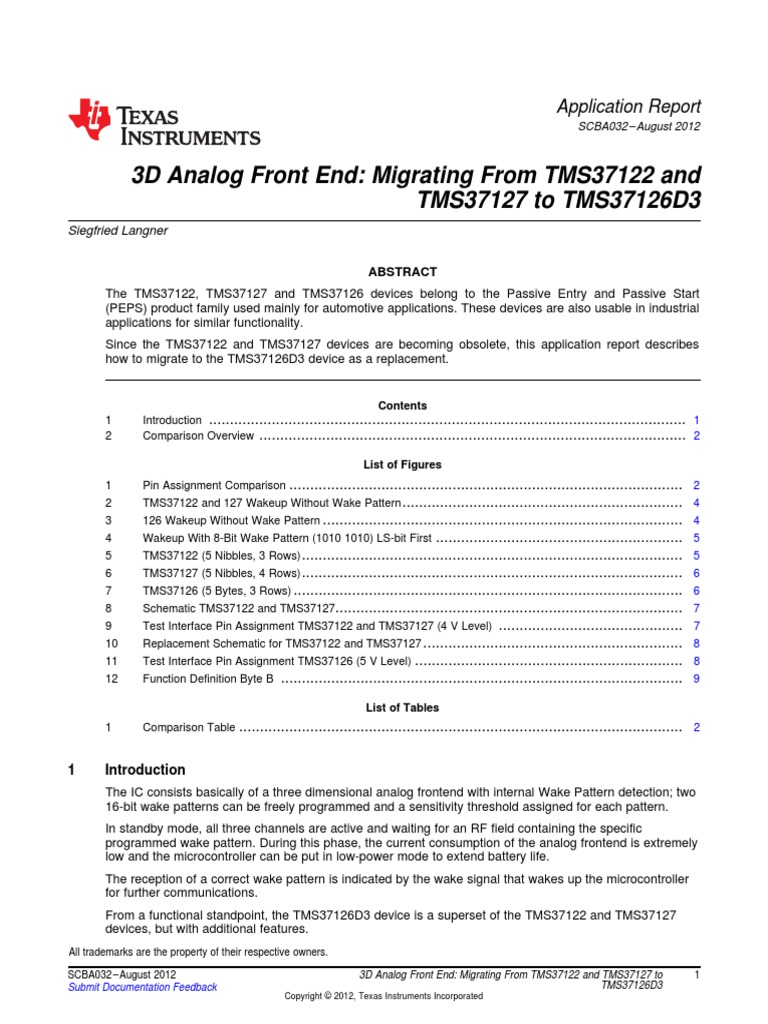

3D Analog Front End: Migrating From TMS37122 and TMS37127 To TMS37126D3

Application Report
SCBA032 – August 2012
3D Analog Front End: Migrating From TMS37122 and

TMS37127 to TMS37126D3
Siegfried Langner .............................................................................................................................
ABSTRACT
The TMS37122, TMS37127 and TMS37126 devices belong to the Passive Entry and Passive Start
(PEPS) product family used mainly for automotive applications. These devices are also usable in industrial
applications for similar functionality.
Since the TMS37122 and TMS37127 devices are becoming obsolete, this application report describes
how to migrate to the TMS37126D3 device as a replacement.
Contents
1 Introduction .................................................................................................................. 1
2 Comparison Overview ...................................................................................................... 2
List of Figures
1 Pin Assignment Comparison .............................................................................................. 2
2 TMS37122 and 127 Wakeup Without Wake Pattern ................................................................... 4
3 126 Wakeup Without Wake Pattern ...................................................................................... 4
4 Wakeup With 8-Bit Wake Pattern (1010 1010) LS-bit First ........................................................... 5
5 TMS37122 (5 Nibbles, 3 Rows) ........................................................................................... 5
6 TMS37127 (5 Nibbles, 4 Rows) ........................................................................................... 6
7 TMS37126 (5 Bytes, 3 Rows) ............................................................................................. 6
8 Schematic TMS37122 and TMS37127................................................................................... 7
9 Test Interface Pin Assignment TMS37122 and TMS37127 (4 V Level) ............................................ 7
10 Replacement Schematic for TMS37122 and TMS37127 .............................................................. 8
11 Test Interface Pin Assignment TMS37126 (5 V Level) ................................................................ 8
12 Function Definition Byte B ................................................................................................ 9
List of Tables
1 Comparison Table .......................................................................................................... 2
1 Introduction
The IC consists basically of a three dimensional analog frontend with internal Wake Pattern detection; two
16-bit wake patterns can be freely programmed and a sensitivity threshold assigned for each pattern.
In standby mode, all three channels are active and waiting for an RF field containing the specific
programmed wake pattern. During this phase, the current consumption of the analog frontend is extremely
low and the microcontroller can be put in low-power mode to extend battery life.
The reception of a correct wake pattern is indicated by the wake signal that wakes up the microcontroller
for further communications.
From a functional standpoint, the TMS37126D3 device is a superset of the TMS37122 and TMS37127
devices, but with additional features.
All trademarks are the property of their respective owners.
SCBA032 – August 2012 3D Analog Front End: Migrating From TMS37122 and TMS37127 to 1
Submit Documentation Feedback TMS37126D3
Copyright © 2012, Texas Instruments Incorporated
Comparison Overview www.ti.com
2 Comparison Overview
Table 1. Comparison Table

Parameter and Function Unit TMS37122 TMS37127 TMS37126D3 Compatibility
Embedded passive TRP
by Micro by Micro yes
functionality
Number of RF inputs
No. 3 3 3 √
(antennas)
Antenna inductance (PEPS) [mH] 2.66 to 10 2.66 to 10 2.66 to 10 √
Antenna inductance ( TRP) [mH] 2.66 2.66 4.6 and 7.2 no
Sensitivity [mVpp] 5 5 3.7 √√
Wake pattern No. A and B A and B A and B √
Wake pattern length [bit] 16 4, 8, 16 4, 8, 16 no
Adjustable sensitivity steps No. 16 16 32 √√
Watch dog selectable - yes yes √
Standby current [μA] 5 5 3.8 √√
RSSI (current sink) no no yes no
Programmer RI-ACC-PBOX-20 RI-ACC-PBOX-20 PTB2 no
Internal
Test interface EEPROM
[V] 16 16 Charge no
programming voltage
Pump
TSSOP 16 TSSOP 16 TSSOP 30
Package no
pitch0.65mm pitch0.65mm pitch0.5mm
SPI no no yes -
2.1 Pin Assignment

The gray pins are additional signals that are available on the TMS37126 device.
TSSOP 30 TSSOP 16
1 TDAT TCLK 30 1 GND VCL

2 TEN RF1 29 2 VCCO RF1
3 RF2 VCL 28 3 RF3 RF2
4 nc nc 27 4 TDAT TCLK
5 NPOR AMMOD 26 5 TEN MOD
6 RF3 GND 25 6 VBAT TX
7 VCC_CU RSSI 24 7 EOBA WDEEN
8 WDEEN WAKE 23 8 CLKA/M WAKE
9 VBAT BUSY 22
10 VBATI EOBA 21 TMS37122/127
11 nc CLKA/M 20
12 nc nc 19
13 nc SPI_SIMO 18
14 MOD SPI_SOMI 17
15 TX SPI_CLK 16
TMS37126
Figure 1. Pin Assignment Comparison
2 3D Analog Front End: Migrating From TMS37122 and TMS37127 to SCBA032 – August 2012
TMS37126D3 Submit Documentation Feedback
www.ti.com Comparison Overview
2.2 SPI Interface Signals

The TMS37126x devices have an SPI interface for accessing EEPROM memory as well as for using
different functionalities like hardware (HW) encryption or the block check character (BCC) generator.
If the SPI interface is not used, the clock input should be connected to GND in order to avoid spurious
clock pulses (for example, electrostatic discharge).
2.3 Programmer Box

The TMS122 and TMS37127 programmer box cannot be used for TMS37126x. Since the TMS37126 is
equipped with an internal charge pump to program the EEPROM cells, the test interface needs 5 V signal
levels. Probe test box (PTB or PTB2) is used for programming.
2.4 Watchdog
The TMS37127 and TMS37126x both have an integrated watchdog that can be enabled by the
configuration registers. The watchdog is not available in the TMS37122 device.
In case the device operates without Wake Pattern detection, the watchdog resets the device if no clock is
received by the RF inputs.
2.5 Wake Pattern

The TMS37126x can be configured for a 4-, 8-, or 16-bit Wake Pattern.
2.6 Wakeup Without Wake Pattern Detection

The front end can be configured to operate with or without Wake Pattern detection.
2.6.1 TMS37122 and TMS37127

If a continuous carrier is present for about 2 ms to 5 ms, the device will wake up and set the Wake output
to high (see Figure 2).
A The EOBA signal (blue trace) is the demodulated LF signal.

Figure 2. TMS37122 and 127 Wakeup Without Wake Pattern
2.6.2 TMS37126
In the TMS37126 device, the wake output is only set high if the continuous LF carrier is switched off and
on again (see Figure 3).
Figure 3. 126 Wakeup Without Wake Pattern
2.7 Wakeup With Wake Pattern Detection

If the Wake pattern detection is enabled, the behavior of the TMS37126 device is identical to the
TMS37122 and TMS37127 devices (see Figure 4).
Figure 4. Wakeup With 8-Bit Wake Pattern (1010 1010) LS-bit First
2.8 Configuration Memory

Since the TMS37122 and TMS37127 devices have different configurable features, the configuration
memory contains an additional row. One row consists of five Nibbles. The TMS37126 device has 5 bytes
per row.
2.8.1 TMS37122 (5 Nibbles, 3 Rows)

Figure 5 shows the memory configuration of the TMS37122 device.
NIBBLE
4 3 2 1 0
Bit 3 Bit 0 Bit 3 Bit 0 Bit 3 Bit 0 Bit 3 Bit 0 Bit 3 Bit 0
NO NO NO NO
CLKA WIDE3 WIDE2 WAKE PPM THRESHOLD VWAKE B/ 2/3 VWAKE B/ 1 VWAKE A/ 1
0
0 0 0 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
C_TELEGR PASSIVE ENTRY WAKE PATTERN
1 ROW
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
C_WAIT PASSIVE START WAKE PATTERN
2
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Bit 3 Bit 0 Bit 15 Bit 0
Figure 5. TMS37122 (5 Nibbles, 3 Rows)
2.8.2 TMS37127 (5 Nibbles, 4 Rows)

Figure 6 shows the memory configuration of the TMS37127 device. The TMS37127 has one more row for
configuration than the additional features.
NIBBLE
4 3 2 1 0
Bit 3 Bit 0 Bit 3 Bit 0 Bit 3 Bit 0 Bit 3 Bit 0 Bit 3 Bit 0
NO NO NO NO
CLKA WIDE3 WIDE2 WAKE
PPM THRESHOLD VWAKE B/ 2/3 VWAKE B/ 1 VWAKE A/ 1 0
C_TELEGR PASSIVE ENTRY WAKE PATTERN 1 ROW
C_WAIT PASSIVE START WAKE PATTERN 2
VWAKE WDG
SINGLE ON
BIT_NO. VWAKE B/ 3 VWAKE B/ 2 VWAKE A/ 3 VWAKE A/ 2 3
Bit 3 Bit 0 Bit 15 Bit 0
Figure 6. TMS37127 (5 Nibbles, 4 Rows)
2.8.3 TMS37126 (5 Bytes, 3 Rows)

Figure 7 shows the memory configuration of the TMS37126 device. The configuration is byte wise
organized in comparison to the TMS37122 and TMS37127. Note that the TMS37122 and TMS37127
programmers cannot be used for the TMS37126 device (also see Section 2.3).
BYTE 4 BYTE 3 BYTE 2 BYTE 1 BYTE 0
AFE FUNCTION AFE FUNCTION

ROW 0 INTERNAL USE AFE CNTR DEF
DEFINITION B DEFINITION A
ROW 1 VWAKE A1 VWAKE A2 VWAKE A3 PE WAKE PATTERN PE WAKE PATTERN
ROW 2 VWAKE B1 VWAKE B2 VWAKE B3 PS WAKE PATTERN PS WAKE PATTERN
Figure 7. TMS37126 (5 Bytes, 3 Rows)
2.9 Principle Schematic TMS37122 and TMS37127

Figure 8 shows the principle schematic for the wake-up receiver. For details, see the device-specific
reference manual: Spec# 11-07-21-002.
VCC
L3 L2 L1
C2 C3 C4
IC2
1 16
GND VCL
2 VCC0 RF1 15
3 14
RF3 RF2
4 TDAT TCLK 13
TDAT TCLK
5 12
TEN TEN MOD
6 11
VBAT TX
7 10
EOBA EOBA WDEEN WDEEN
8 CLKA/M WAKE 9
WAKE
CBAT
TMS3712x CL
GND GND GND GND
Figure 8. Schematic TMS37122 and TMS37127
2.9.1 Programmer Box Signal Connections (TMS37122 and TMS37127)

For configuration and resonance tuning (tuning capacitor programming) of the TMS37122 and TMS37127,
the tool RI-ACC-PBOX-20 is used. The programmer supports all necessary signals with a 4 V level and
provides the 16 V EEPROM programming voltage at the TEN input.
Test Interface
CON1
VCL 1 2 TDAT
TCLK 3 4 TEN
WDEEN 5 6 VBAT
SPARE1 7 8 GND
(2x4pin)
Figure 9. Test Interface Pin Assignment TMS37122 and TMS37127 (4 V Level)
For programming the EEPROM cells at the end of the telegram, the TEN signal is switched to 16 V during
programming time.
2.10 Principle Replacement Schematic

Figure 10 shows the principle schematic for the wake-up receiver. For details, see the device-specific
reference manual: Spec# 11-09-21-046
3V
L2 L3 L1
C2 C3 C1
TMS37126
TDAT 1 30
TDAT TCLK TCLK
2 TEN RF1 29
TEN
3 28
RF2 VCL
4 NPOR 27
AM_MOD
5 26
RF3 GND
6 25
VCC_CU RSSI
7 24
WDEEN WDEEN WAKE WAKE
8 VBAT BUSY 23
9 22
VBati VBATI EOBA EOBA
10 21
NC1 CLKA/M
11 20
CL2 NC2 NC6
12 NC3 19
NC5
13 18
NC4 SPI_SIMO
14 17
MOD SPI_SOMI
15 TX 16
SPI_CLK
CBAT
RAID
CL
GND GND GND GND GND
Figure 10. Replacement Schematic for TMS37122 and TMS37127
2.10.1 Programmer Board Signal Connections (TMS37126)

For configuration and resonance tuning (tuning capacitor programming) of the TMS37126, the tool RI-
ACC-PTB2-00 is used. The programmer supports all necessary signals with a 5 V level. The EEPROM
programming voltage is provided internal to the IC.
Test Interface
CON1
VCL 1 2 TDAT
TCLK 3 4 TEN
WDEEN 5 6 VBAT
SPARE1 7 8 GND
(2x4pin)
Figure 11. Test Interface Pin Assignment TMS37126 (5 V Level)
2.10.2 Function Definition Byte B

Figure 12 shows the content of the Function Definition Byte B located in the Memory Block 2 Byte 1.
BIT 7 BIT 6 BIT 5 BIT 4 Bit 3 BIT 2 BIT 1 BIT 0
NOT USED VAR. tWRX ON NO_BACKUP NO_IMMOB BWM THRESHOLD
DEFAULT = 0 DEFAULT = 0 DEFAULT = 0 DEFAULT = 0 DEFAULT = 0111
NOT AVAILABLE IN TMS37122
Figure 12. Function Definition Byte B
2.11 3D Antenna
Connect the 3D antenna in such a way as to have the lowest mutual coupling between the three channels.
To accomplish that, contact the antenna supplier or test it by interchanging the winding sense. An
indication for high coupling is when the resonance of the already tuned channel is changed after tuning
one of the other channels.
2.12 ESD
For a higher ESD immunity additional ESD protection diodes must be added.
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46C and to discontinue any product or service per JESD48B. Buyers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All
semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time
of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components which meet ISO/TS16949 requirements, mainly for automotive use. Components which
have not been so designated are neither designed nor intended for automotive use; and TI will not be responsible for any failure of such
components to meet such requirements.
Products Applications
Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive
Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications
Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers
DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps
DSP dsp.ti.com Energy and Lighting www.ti.com/energy
Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial
Interface interface.ti.com Medical www.ti.com/medical
Logic logic.ti.com Security www.ti.com/security
Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense
Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video
RFID www.ti-rfid.com
OMAP Mobile Processors www.ti.com/omap TI E2E Community e2e.ti.com
Wireless Connectivity www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

3D Analog Front End: Migrating From TMS37122 and TMS37127 To TMS37126D3

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

3D Analog Front End: Migrating From TMS37122 and TMS37127 To TMS37126D3

Uploaded by

Copyright:

Available Formats

Application Report

SCBA032 – August 2012

3D Analog Front End: Migrating From TMS37122 and

Table 1. Comparison Table

2.1 Pin Assignment

1 TDAT TCLK 30 1 GND VCL

Figure 1. Pin Assignment Comparison

2.2 SPI Interface Signals

2.3 Programmer Box

2.5 Wake Pattern

2.6 Wakeup Without Wake Pattern Detection

2.6.1 TMS37122 and TMS37127

A The EOBA signal (blue trace) is the demodulated LF signal.

Figure 3. 126 Wakeup Without Wake Pattern

2.7 Wakeup With Wake Pattern Detection

2.8 Configuration Memory

2.8.1 TMS37122 (5 Nibbles, 3 Rows)

Bit 3 Bit 0 Bit 15 Bit 0

Figure 5. TMS37122 (5 Nibbles, 3 Rows)

2.8.2 TMS37127 (5 Nibbles, 4 Rows)

C_TELEGR PASSIVE ENTRY WAKE PATTERN 1 ROW

C_WAIT PASSIVE START WAKE PATTERN 2

Bit 3 Bit 0 Bit 15 Bit 0

Figure 6. TMS37127 (5 Nibbles, 4 Rows)

2.8.3 TMS37126 (5 Bytes, 3 Rows)

AFE FUNCTION AFE FUNCTION

ROW 1 VWAKE A1 VWAKE A2 VWAKE A3 PE WAKE PATTERN PE WAKE PATTERN

ROW 2 VWAKE B1 VWAKE B2 VWAKE B3 PS WAKE PATTERN PS WAKE PATTERN

Figure 7. TMS37126 (5 Bytes, 3 Rows)

2.9 Principle Schematic TMS37122 and TMS37127

GND GND GND GND

Figure 8. Schematic TMS37122 and TMS37127

2.9.1 Programmer Box Signal Connections (TMS37122 and TMS37127)

Figure 9. Test Interface Pin Assignment TMS37122 and TMS37127 (4 V Level)

2.10 Principle Replacement Schematic

GND GND GND GND GND

Figure 10. Replacement Schematic for TMS37122 and TMS37127

2.10.1 Programmer Board Signal Connections (TMS37126)

Figure 11. Test Interface Pin Assignment TMS37126 (5 V Level)

2.10.2 Function Definition Byte B

DEFAULT = 0 DEFAULT = 0 DEFAULT = 0 DEFAULT = 0 DEFAULT = 0111

NOT AVAILABLE IN TMS37122

Figure 12. Function Definition Byte B

You might also like
