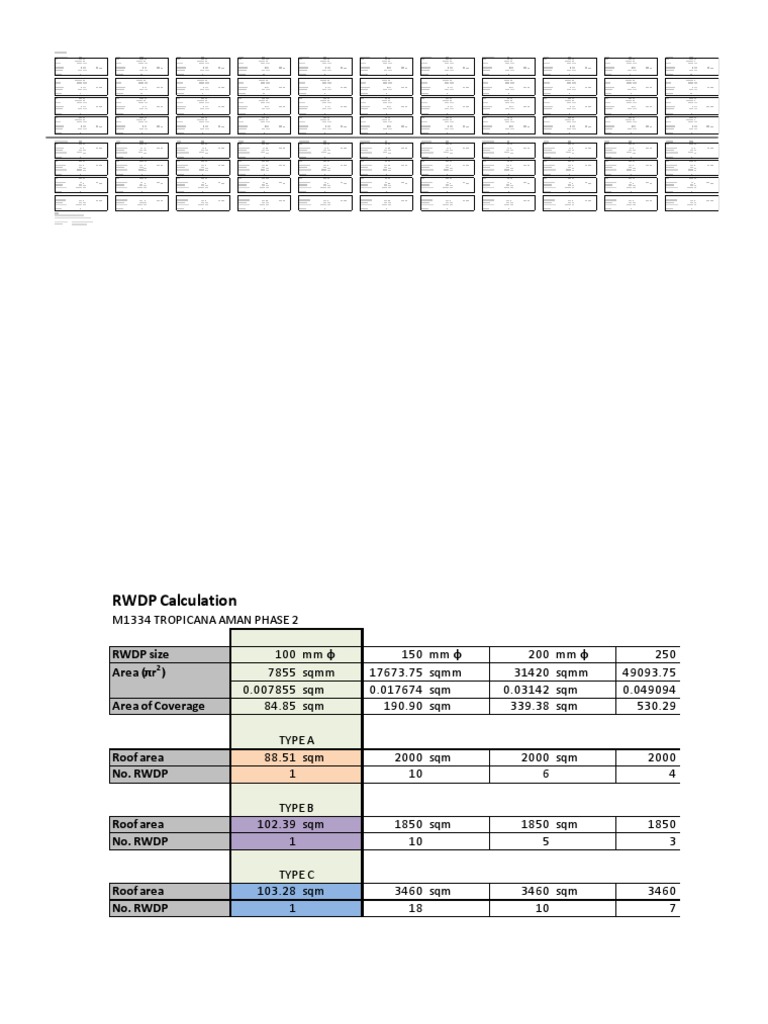

RWDP Calculation

M1334 TROPICANA AMAN PHASE 2

RWDP size 100 mm ф 150 mm ф 200 mm ф 250

Area (πr2 ) 7855 sqmm 17673.75 sqmm 31420 sqmm 49093.75
0.007855 sqm 0.017674 sqm 0.03142 sqm 0.049094
Area of Coverage 84.85 sqm 190.90 sqm 339.38 sqm 530.29

TYPE A
Roof area 88.51 sqm 2000 sqm 2000 sqm 2000
No. RWDP 1 10 6 4

TYPE B
Roof area 102.39 sqm 1850 sqm 1850 sqm 1850
No. RWDP 1 10 5 3

TYPE C
Roof area 103.28 sqm 3460 sqm 3460 sqm 3460
No. RWDP 1 18 10 7
mm ф
sqmm
sqm
sqm

sqm

sqm

sqm
RWDP size 100 mm ф 150 mm ф 200 mm ф 250 mm ф
Area (πr2 ) 7855 sqmm 17673.75 sqmm 31420 sqmm 49093.75 sqmm
0.007855 sqm 0.017674 sqm 0.03142 sqm 0.049094 sqm
Area of Coverage 84.85 sqm 190.90 sqm 339.38 sqm 530.29 sqm

Roof area 19200 sqm 19200 sqm 19200 sqm 19200 sqm
No. RWDP 226 101 57 36

SERVICED APARTMENT

RWDP requirement
Every 75 sqft of roof required 1 sqinch of RWDP
Every 6.967 sqm of roof required 0.000645sqm of RWDP

200mm diameter
area of a RWDP = πr2
= 3.142 x 100 x 100
= 31428.5 sqmm
= 0.031 sqm

each 200mm ф RWDP can cover area of 0.031 / 0.000645 x 6.967

= 334.8 sqm

If a roof has an area of 1112 sqm

it require 19200sqm / 334.8sqm = 4 (3.32)RWDP

RWDP size 100 mm ф 150 mm ф 200 mm ф 250 mm ф

Area (πr2 ) 7855 sqmm 17673.75 sqmm 31420 sqmm 49093.75 sqmm
0.007855 sqm 0.017674 sqm 0.03142 sqm 0.049094 sqm
Area of Coverage 84.85 sqm 190.90 sqm 339.38 sqm 530.29 sqm

Roof area 1050 sqm 1050 sqm 1050 sqm 1050 sqm
No. RWDP 12 6 3 2

Roof area 4050 sqm 4050 sqm 4050 sqm 4050 sqm
No. RWDP 48 21 12 8

Just rule of thumb, each 1 sqm horizontal roof area needs 90 sqmm RWDP, based on rainfall intensity (350mm/hr)
and the nos of RWDP depends on dia. of the pipes.
Min pipe size recommended is 150mm dia.

summary of RWDP required.

Shopping mall = 101 nos (150 mm dia. RWDP)

Service apartment podium level = 21 nos (150 mm dia RWDP)
Serviced apartment toer block = 6 nos per block (150 mm dia. RWDP)
