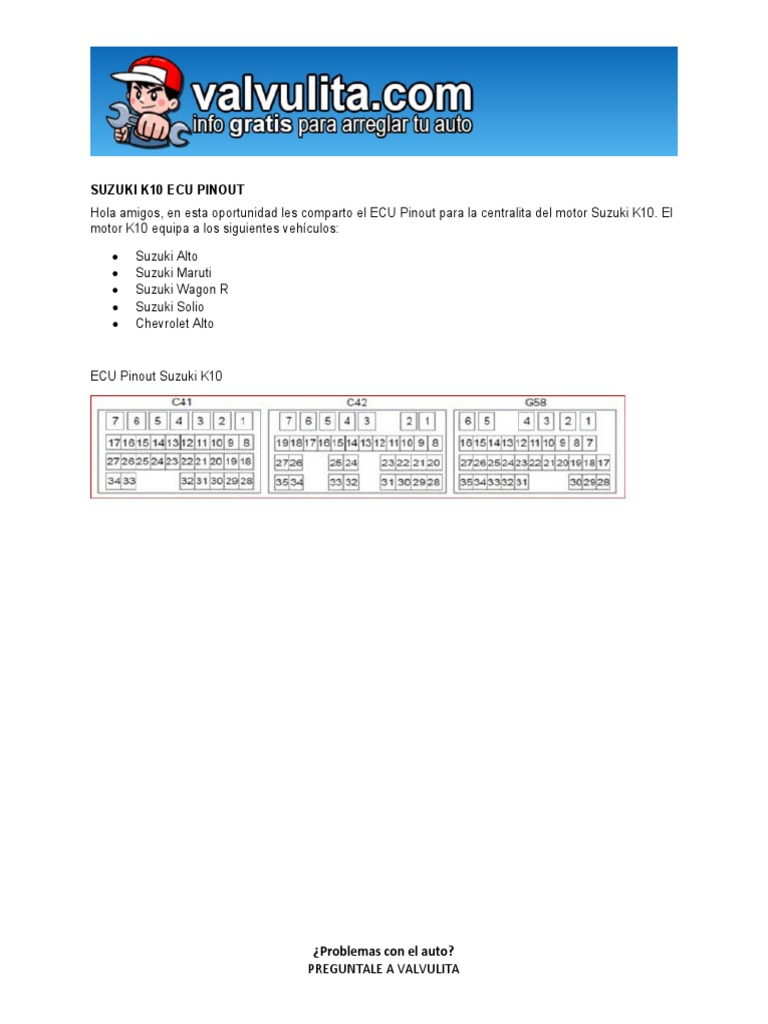

SUZUKI K10 ECU PINOUT

Hola amigos, en esta oportunidad les comparto el ECU Pinout para la centralita del motor Suzuki K10. El
motor K10 equipa a los siguientes vehículos:

 Suzuki Alto
 Suzuki Maruti
 Suzuki Wagon R
 Suzuki Solio
 Chevrolet Alto

ECU Pinout Suzuki K10

¿Problemas con el auto?
PREGUNTALE A VALVULITA


Conector C41

PIN CIRCUIT VOLT

C41-1
C41-2
C41-3 Fuel injector No.3 control circuit
C41-4 Fuel injector No.2 control circuit
C41-5 Fuel injector No.1 control circuit
C41-6 ECM ground circuit -12 V
C41-7 ECM ground circuit -12 V
C41-8 ISC valve control circuit 12 V
C41-9
C41-10 Main relay drive circuit 12 V
C41-11 A/C compressor relay drive circuit
C41-12 Radiator cooling fan relay drive circuit 12 V
C41-13 Fuel pump relay drive circuit 12 V
C41-14 EVAP canister purge valve control circuit 5 V
C41-15 Generator control signal circuit
C41-16
C41-17
C41-18
C41-19
C41-20
C41-21
C41-22
C41-23
C41-24
C41-25
C41-26
C41-27
C41-28
C41-29 Ignition coil No.1 assembly control circuit 5 V
C41-30 Ignition coil No.2 assembly control circuit 5 V
C41-31 Ignition coil No.3 assembly control circuit 5 V

¿Problemas con el auto?
PREGUNTALE A VALVULITA


C41-32
C41-33
C41-34

¿Problemas con el auto?
PREGUNTALE A VALVULITA


Connector C42

PIN CIRCUIT VOLT

C42-1 Main power supply circuit +12 V

C42-2 Main power supply circuit +12 V
C42-3 BLANK
C42-4 ECM ground circuit -12 V
C42-5 A/C refrigerant pressure sensor power 5 V
supply circuit
C42-6 TP sensor power supply circuit 5 V
C42-7 HO2S heater control circuit 12 V
C42-8 Knock sensor signal circuit 5 V
C42-9 Knock sensor ground circuit 12 V
C42-10 Knock sensor shield ground circuit 5 V
C42-11 A/C refrigerant pressure sensor signal circuit 5 V
C42-12 MAP sensor signal circuit 5 V
C42-13 ECT sensor signal circuit 5 V
C42-14 IAT sensor signal circuit 5 V
C42-15 TP sensor signal circuit 5 V
C42-16 HO2S signal circuit 5V
C42-17
C42-18
C42-19 HO2S shield ground circuit 12 V
C42-20 MAP sensor power supply circuit 5 V
C42-21
C42-22
C42-23
C42-24
C42-25 Generator field coil monitor signal circuit
C42-26
C42-27
C42-28
C42-29
C42-30 HO2S ground circuit 12 V
C42-31 Sensor ground circuit 12 V
C42-32 Vehicle speed sensor circuit INPUT

¿Problemas con el auto?
PREGUNTALE A VALVULITA


C42-33 Ignition switch signal circuit +12 V

C42-34 CMP sensor signal circuit 5 V
C42-35 CKP sensor signal circuit 5 V

¿Problemas con el auto?
PREGUNTALE A VALVULITA


Connector G5 8

PIN CIRCUIT VOLT

G58-1 Brake light switch signal circuit 5 V

G58-2
G58-3 A/C switch input signal circuit
G58-4
G58-5 Starting motor control relay signal circuit 12 V
G58-6 Buck-up power supply circuit +12 V
G58-7 A/C evaporator outlet air temp. sensor 5 V
G58-8
G58-9
G58-10
G58-11
G58-12 Vehicle speed signal circuit for P/S control module
G58-13
G58-14 Engine revolution signal circuit for P/S 12 V control module
G58-15
G58-16
G58-17
G58-18
G58-19
G58-20
G58-21
G58-22
G58-23
G58-24
G58-25
G58-26
G58-27
G58-28
G58-29 Serial communication line (for immobilizer coil antenna)
G58-30 Clock signal circuit (for immobilizer coil antenna)
G58-31
G58-32

¿Problemas con el auto?
PREGUNTALE A VALVULITA


G58-33 A/C evaporator outlet air temp. sensor 12 V ground circuit

G58-34 CAN (high) communication circuit to 12 V combination meter
G58-35 CAN (low) communication circuit to 12 V combination meter
