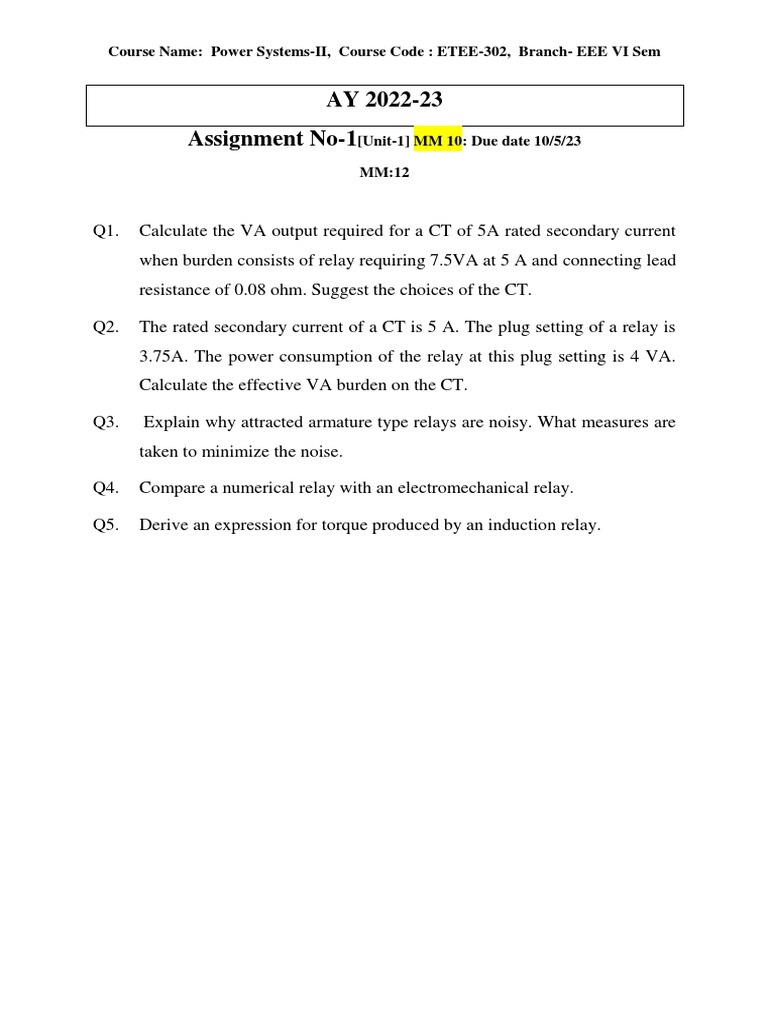

Course Name: Power Systems-II, Course Code : ETEE-302, Branch- EEE VI Sem

AY 2022-23
Assignment No-1[Unit-1] MM 10: Due date 10/5/23
MM:12

Q1. Calculate the VA output required for a CT of 5A rated secondary current

when burden consists of relay requiring 7.5VA at 5 A and connecting lead
resistance of 0.08 ohm. Suggest the choices of the CT.

Q2. The rated secondary current of a CT is 5 A. The plug setting of a relay is

3.75A. The power consumption of the relay at this plug setting is 4 VA.
Calculate the effective VA burden on the CT.

Q3. Explain why attracted armature type relays are noisy. What measures are
taken to minimize the noise.

Q4. Compare a numerical relay with an electromechanical relay.

Q5. Derive an expression for torque produced by an induction relay.

 Course Name: Power Systems-II, Course Code : ETEE-302, Branch- EEE VI Sem

[Unit-2] Due date 20/5/23 MM 10

Course Name: Power Systems-II, Course Code : ETEE-302, Branch- EEE VI Sem

Q1. The current rating of an overcurrent relay is 5A. The relay has a plug setting of 150% and
the time multiplier setting (TMS) of 0.4. The CT ratio is 400/5. Determine the operating
time of the relay for a fault current of 6000A. At TMS =1, operation time at various PSM
are given in table as-

PSM 2 4 5 8 10 20

operating time in sec 10 5 4 3 2.8 2.4

Q2. A 20 MVA transformer, which may be called upon to operate at 25% overload, feeds
11kV busbars through a circuit breaker; other circuit breakers supply outgoing feeders. The
transformer circuit breaker is equipped with 1000/5A CT and the feeders circuit breakers with
500/5A CTs and all sets of CTs feed induction type over current relays. The relays on the
feeder circuit breakers have a 125% plug setting and a 0.4 time setting. If a three phase fault
current of 7500A flows from the transformer to one side of the feeders, find the operating
time of the feeder relay, the minimum plug setting of the transformer relay, and its time
setting assuming a discriminative time margin of 0.5 second. The time- current characteristic
of the relay is –

PSM 2 4 5 8 10 20

Operating time in sec 10 5 4 3 2.8 2.4

Q3. Explain current setting and time setting.

The current rating of an over current relay is 5A. PSM=2, TMS=0.3, CT ratio =400/5, Fault
current=4000A. Determine the operating time of the realy. At TMS=1, operating time at
various PSM are:

PSM 2 4 5 8 10 20

Operating time in sec. 10 5 4 3 2.8 2.4

Q4. An overcurrent relay of current rating 5A and setting 150% is connected to the
secondary of CT of ratio 400/5. Calculate the current in lines for which the relay picks up.

Q5. An earth fault starting relay has a setting of 30%, and a current rating of 5A. It is
connected to a CT of ratio 500/5. Calculate pickup current in primary for which the earth fault
relay operates.
 Course Name: Power Systems-II, Course Code : ETEE-302, Branch- EEE VI Sem

Assignment No-2 Due date 2/6/23

Course Name : Power Systems 2 , Course Code : ETEE-304, Branch- EEE VI Sem
MM 10
UNIT-3 (CO3)

Q1. The neutral point of a 3-Φ, 20 MVA, 11kV alternator is earthed through a resistance
of 5Ω. The relay is set to operate when there is out of balance current of 1.5A. The
CT’s have a ratio of 1000/5. Calculate the % of winding protected against earthed
fault. [5]

Q2. With the help of a neat diagram, explain the protection scheme for internal faults in a
3-Φ, ∆-Y connected power transformer. [5]

UNIT-4 (CO4) MM 10

Q(3) In what way is distance protection superior to overcurrent protection for the protection of
transmission lines?
Q4. What is carrier current protection? What are its merits and demerits?
Q5 Discuss the selection of circuit breakers for different ranges of a system voltage.
Q6 Define restriking voltage, recovery voltage and RRRV.
Q7 With a neat sketch describe the working principle of an oil circuit breaker (OCB).
