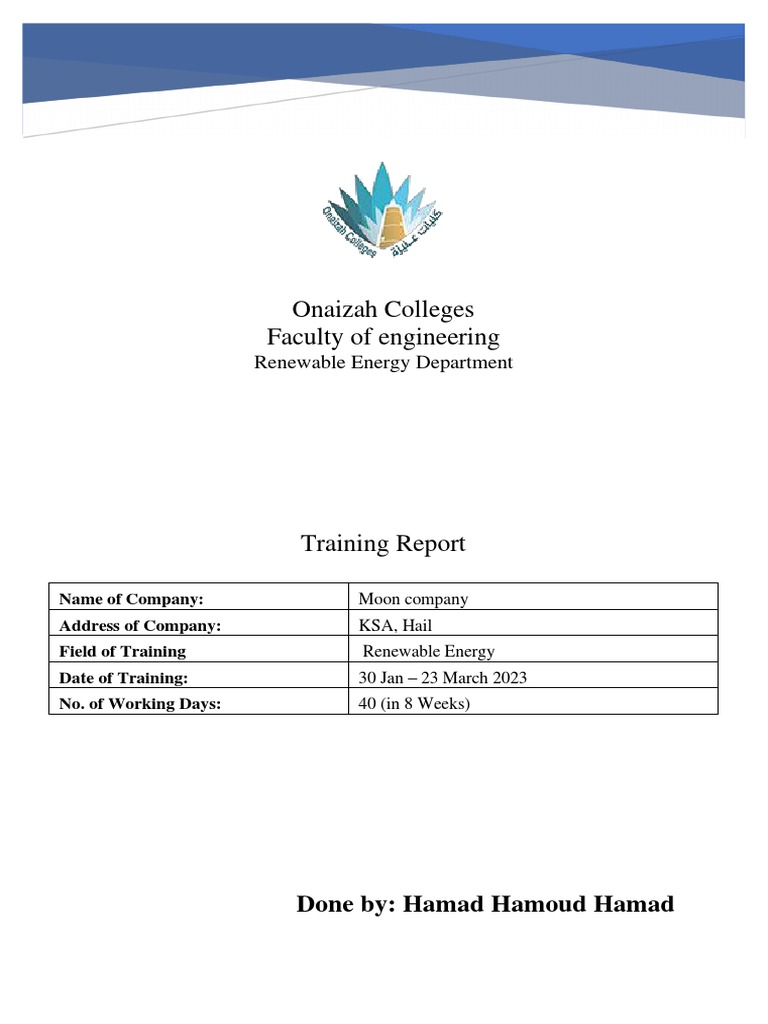

Faculty of engineering
Renewable Energy Department
Training Report
Name of Company:
Address of Company:
TRAINING REPORT
Moon company
KSA, Hail
Field of Training Renewable Energy
Date of Training: 30 Jan – 23 March 2023
No. of Working Days: 40 (in 8 Weeks)
Table of figures
Figure 1:circuit breakers .................................................................................................................................................. 5
Figure 2: Electrical safety equipment’s ............................................................................................................................ 6
Figure 3: Hazard warning................................................................................................................................................. 7
Figure4: Warning ............................................................................................................................................................. 7
Figure5: High voltage warning ......................................................................................................................................... 8
Figure 6: conduit wiring ................................................................................................................................................... 9
Figure 7: Surface wiring ................................................................................................................................................... 9
Figure 8: Concealed wiring ............................................................................................................................................ 10
Figure 9: Armored wiring............................................................................................................................................... 10
Figure 10: Step down transformer ................................................................................................................................ 12
Figure 11:: Step up transformer .................................................................................................................................... 13
Figure 12: Isolation transformer .................................................................................................................................... 14
Figure 13: Auto transformer .......................................................................................................................................... 15
Figure 14: Power transformer ....................................................................................................................................... 16
Figure 15: Measurement transformer .......................................................................................................................... 17
Figure 16: Distribution transformer .............................................................................................................................. 18
Figure 17:Solar system components ............................................................................................................................. 19
Figure 18:Solar panel installation .................................................................................................................................. 21
Figure 19:Solar panel maintenance ............................................................................................................................... 23
1
Acknowledgement
I would like to express my gratitude to moon company for providing an opportunity to pursue
the field engineering training. Throughout this training, it is my pleasured to introduce my
respect and appreciation to the guidance from the supervisor.
I hope this experience will give me a push at the future to know how the work will be, and
how the environment of work out of the studying at the university.
Cooperative training is a set of skills and experiences that are offered to the student within an
institutional framework or within one of the fields of practice, with the aim of helping the
student to acquire various knowledge, field experiences, and technical skills, in addition to
modifying his personal characteristics and behaviors, so that this contributes significantly to
his achievement. Student professional growth, by linking theoretical knowledge with practical
application and providing students with the opportunity to discover their capabilities, desires
and the needs of the labor market in the Kingdom.
2
- Enhance students' individual learning skills.
- Provides an opportunity to interact and collaborate with trainers with experience in the
field.
- Gives students a high level of positive feeling and satisfaction towards the profession .
- Helps the student understand the needs and characteristics of the environment in which
he is supposed to work.
Field training is an effective means to help the student acquire new capabilities and skills that
he did not possess, and these skills enable the student to expand his concepts, modify his
directions, and consolidate his ability to innovate, create, and renew. He links the (theoretical)
aspect of the acquired knowledge with the practical (produced work) aspect .
1. Enriching the experiences of university students, both male and female, by linking academic
studies in the classroom with realistic practical situations in the work environment.
2. Giving male and female students the opportunity to discover their professional interests in
their academic field.
3. Emphasizing the effectiveness of field training in preparing graduate students for their
practical future.
4. Providing the trainees with the opportunity to acquire new skills; This is done by
accustoming them to innovative thinking in solving problems and making practical decisions
with confidence.
Moon company is a Saudi company, founded in 1977 in Hail and it is wholly owned by Ibrahim
Muhammad Al-Rakhis and his sons' company and its investments depend on functioning the
human capitals and leading cadres to exploit the available resources as well to contract a
number of strategic projects that achieve sustainable growth and diversification in production
and accomplish the company's aspirations to be a leading group in constructions and industries
and services and real estate and other sectors and economic groupings
3
1. The first stage (from 30/1/2023 to 12/2/2023)
Methods of issuing the necessary permits to start electrical field work
In Saudi Arabia, the process for obtaining permits to conduct electrical field work may vary
depending on the specific region and local authorities responsible for granting licenses and
permits. However, in general, the following are some methods for obtaining the necessary
permits to start electrical field work in Saudi Arabia:
1. Obtaining a Contractor's License: To conduct electrical field work in Saudi Arabia, the
contractor or company must be licensed by the Saudi Arabian General Investment
Authority (SAGIA) and the Saudi Arabian Ministry of Commerce and Investment.
The licensing process involves submitting an application and meeting certain
requirements, such as having a registered office in Saudi Arabia, having a certain level
of capital, and having qualified personnel.
2. Obtaining a Work Permit: Foreign workers who are not Saudi nationals must obtain a
work permit, or Iqama, to work in Saudi Arabia. The permit is issued by the Saudi
Arabian Ministry of Labor and Social Development and is valid for a specific period of
time. The application process involves submitting a job offer, obtaining a medical
certificate, and passing a security check.
3. Obtaining a Contractor Classification: To bid on government contracts in Saudi Arabia,
contractors must obtain a classification from the Saudi Arabian General Contractors
Authority (GCA). The classification is based on the contractor's financial capacity,
technical ability, and experience.
4. Obtaining an Electrical Permit: To perform electrical field work in Saudi Arabia, an
electrical permit must be obtained from the Saudi Arabian Ministry of Energy, Industry
and Mineral Resources. The permit is issued after the electrical system has been
inspected and found to be in compliance with local regulations and standards.
It is important to note that the specific procedures and requirements for obtaining permits to
start electrical field work may vary depending on the region and local authorities in Saudi
Arabia. Therefore, it is recommended to check with the relevant authorities and seek legal
advice to ensure compliance with all local regulations and requirements.
4
2. The second stage (from 13/2/2023 to 26/2/2023)
Security and safety to practice field work in the field of electricity
Today, any office or workplace setting operates on electricity. Electrical equipment, from
computers to machinery can all be potentially hazardous and can cause shock and burn injuries
if improperly used or maintained. Though most general personnel don’t need specialized
electrical safety training, if you work around electricity, but are not qualified to directly handle
electrical components, it’s important to follow electrical safety-related work practices to keep
yourself and others safe. Here are electrical safety tips for the workplace help us avoid
electrical hazards:
5
Figure 2: Electrical safety equipment’s
6
Figure 3: Hazard warning
Figure4: Warning
7
materials may be used or the electrical equipment is designed for use under these types of
conditions.
Electricity is a common, but dangerous, workplace hazard. Only those who are qualified to
work with electrical components should do so. Otherwise, it is always in your best interest to
keep away from live electrical currents.
8
3. The third stage (from 27/2/2023 to 12/3/2023)
Methods of Electrical Wiring and Security Measures
Electrical wiring is an important part of any building or structure, as it provides the necessary
power for lights, appliances, and other electrical devices. Proper wiring methods and security
measures must be followed to ensure safety and prevent electrical hazards. In this article, we
will discuss some common methods of electrical wiring and important security measures that
should be taken.
2. Surface Wiring: This involves running electrical wires on the surface of walls,
ceilings, or floors, and covering them with conduit or raceways for protection.
9
3. Concealed Wiring: This involves running electrical wires behind walls, ceilings, or
floors, and covering them with plaster or other materials to conceal them.
4. Armored Wiring: This involves the use of armored cables that are enclosed in a metal
sheath to provide protection against physical damage, moisture, and other
environmental factors.
Security Measures:
1. Grounding: Grounding is an important safety measure that helps protect against
electrical shocks and fires. It involves connecting electrical devices and appliances to
the ground to provide a path for excess electrical current to flow in the event of a fault.
2. Circuit Breakers and Fuses: Circuit breakers and fuses are important safety devices
that protect against overloading and short circuits. They automatically shut off the
10
electrical circuit if too much current flows through it, preventing damage to the wiring
and appliances, and reducing the risk of electrical fires.
3. GFCI Outlets: Ground Fault Circuit Interrupter (GFCI) outlets are designed to protect
against electrical shocks by detecting imbalances in the electrical current and shutting
off the circuit if necessary.
4. Electrical Inspections: Regular electrical inspections by a qualified electrician can help
identify potential hazards and prevent electrical accidents. Inspections should be
performed in accordance with local regulations and standards.
5. Proper Wiring Methods: Proper wiring methods, such as using the correct size and
type of wire, properly securing wires, and following manufacturer instructions, can
help prevent electrical hazards and ensure safe and reliable operation of electrical
systems.
In conclusion, proper electrical wiring methods and security measures are essential to ensure
the safe and reliable operation of electrical systems. It is important to follow local
regulations and standards, and to seek the advice of a qualified electrician when installing or
modifying electrical systems. Regular inspections and maintenance can help identify
potential hazards and prevent electrical accidents.
Transformer Types
11
Transformer Types based on Voltage Level
A Transformer can have multiple types of construction. Transformer does not have any
electrical connection from one side to another; still, the two electrically independent coils can
conduct the electricity by electromagnetic flux. A transformer can have multiple coils or
windings on the primary side as well as on the secondary side. In several cases, multiple
primary sides, where two coils are connected in series, often called as a center tapped. This
center tapped condition can also be seen on the secondary side.
Transformers can be constructed in a way that it can convert the voltage level of the primary
side to the secondary side. Depending on the voltage level, the transformer has three
categories. Step Down, Step Up and Isolation Transformer. For the Isolation transformer, the
voltage level is the same for both sides.
1. Step-Down Transformer
Step down Transformer is used in both Electronics and Electrical domain. A step-down
transformer converts the primary voltage level to a lower voltage across the secondary
output. This is achieved by the ratio of primary and secondary windings. For step-down
transformers the number of windings is higher across the primary side than the secondary
side. Therefore, the overall winding ratio of primary and secondary always remains more
than 1.
In electronics, many applications run on 5V, 6V, 9V, 12V, 24V or in some cases 48V. To
convert the single-phase power outlet voltage 230V AC to the desired low voltage level, Step
Down transformers are required. In instrumentation as well as in many electrical types of
12
equipment, Step-Down transformer is the primary requirement for the Power section. They
are also used in power adapters and cell phone charger circuits.
In electrical, step down transformers are used in electrical distribution system which works
on very high voltage to ensure low loss and cost-effective solution for long distance power
delivery requirements. To convert the high voltage to a low voltage supply line, Step down
transformer is used.
2. Step-Up Transformer
In electronics, step up transformers often used in stabilizers, inverters etc where low voltage
is converted to a much higher voltage.
A step-up transformer is also used in Electrical power distribution. High voltage is required
for power distribution related application. Step up transformer is used in the grid to step up
the voltage level before the distribution.
13
3. Isolation Transformer
Isolation transformer does not convert any voltage levels. The Primary voltage and the
secondary voltage of an isolation transformer always remain the same. This is because
the primary and the secondary winding ratio is always equal to the 1. That means the number
of turns in primary and secondary winding is same in isolation transformer.
The isolation transformer is used to isolate the primary and secondary. As discussed
previously, the transformer does not have any electrical connections between primary and
secondary, it is also used as an isolation barrier where the conduction happens only with the
magnetic flux. It is used for safety purpose and to cancel noise transfer from primary to
secondary or vice-versa.
The transformer can be classified using winding orders. One of the popular types is Auto
Winding Transformers.
Till now, the primary and secondary winding is fixed but in case of an auto-winding
transformer, the primary and the secondary coil can be connected in series and the center
tapped node is movable. Depending on the center tapped position, the secondary voltage can
be varied.
14
Figure 13: Auto transformer
The auto is not the short form of Automatic; rather it is to notify the self or single coil. This
coil forms a ratio which consists of two parts, primary and secondary. The position of the
center tap node determines the primary and secondary ratio thus varying the output voltage.
The most common use is the VARIAC, an instrument to produce variable AC from a steady
AC input. It is also used in Power transmission and distribution related applications where
the high voltage lines are needed to be changed frequently.
There are several types of transformers also available which works in a specific domain.
Both electronics and electrical sectors, several dedicated transformers are used as a step-
down or step-up transformer based on the application of application. So, the transformers can
be classified as below based on usage:
1. Power Domain
• Power Transformer
• Measurement Transformer
• Distribution Transformer
2. Electronics Domain
• Pulse Transformer
• Audio Output Transformer
15
1. Transformers used in Power domain
In Electrical, the Power domain deals with the power generation, measurement, and
distribution. However, it is a very large field where transformers are an essential part to
accommodate safe power conversion and successful power delivery to the substation and to
the end users.
The transformers which are used in the power domain can be both outdoor and indoor but
mostly outdoor.
Power Transformers are larger in size and used to transfer the energy to the substation or the
public electricity supply. This transformer acts as a bridge between the power generator and
the primary distribution grid. Depending on the Power rating and specification, Power
transformers can further be classified into three categories: Small power transformer,
Medium Power transformers, and the Large power transformers. The rating can be more than
30KVA to the 500-700KVA or in some cases that can be equal to or more than 7000KVA
for small rated power transformer. The medium rated power transformer can be up to 50-100
MVA whereas large rated power transformers are capable to handle more than 100MVA.
16
Due to very high power generation, the construction of a power transformer is also
critical. The construction includes solid insulating peripherals and well balanced cooling
system. The most common power transformers are filled with oils.
The main principle of the power transformer is to convert the Low voltage high current to a
high voltage low current. This is required to minimize the power loss in the power
distribution system.
Another important parameter for the Power transformer is the phase availability. Typically
Power transformers works in three phase system, but in some cases, Single phase small
power transformers are also used. Three Phase Power transformers are the most costly and
efficient than the single phase power transformers.
This is used in the last phase of the power distribution system. Distribution transformers are
step down transformer, which converts High grid voltage to the end customer required
voltage, 110V or 230V. It can also be single phase or three phases.
Distribution transformers can be further categorized into based on the type of insulation it
uses. It can be a dry type or can be liquid-immersed. It is made using laminated steel plates
mostly constructed in C shape as a core material.
Distribution transformer also has a different type of classification based on the location it is
used. The transformer can be mounted on a utility pole, if so, it is called a pole mounted
distribution transformers. It can be placed inside of an underground chamber, mounted on a
concrete pad (pad mounted distribution transformer) or inside an enclosed steel box.
Solar systems are made up of solar panels (modules), a mounting system, and a solar inverter
with computerized controller. Solar panels produce DC electricity from sunlight. Then the
inverter converts the generated electricity into AC, so that it can be used in the household.
The computerized controller manages the solar system and ensures optimal performance. If
you want battery backup system or an off-the-grid solar system, a battery is required.
Solar installation is becoming the future trend as other resources are gradually depleted.
Along with that, geothermal energy brings us many fantastic benefits such as cost savings
and environmental protection. To own this energy source, you will need to work with
professionals or contractors for sun installation. Even if you’re not directly involved in the
installation, understanding the process and the issues involved will help you make better
decisions. This article will help you know in detail how to install and maintain a sun power
system.
19
The basic process of solar installation and solar system maintenance
A precise and logical plan is essential for a successful insolation installation project. This
plan will help you understand the steps you need to perform as well as the cost of each.
Especially the components required for the solar system installation, installation, and
maintenance procedures. Let’s look at these in more detail in the sections below.
1. Solar installation: Key components and tools for installing a solar power system
The most common and economical location to install an insolation system is on the roof of a
building. Experts will assess the roof and installation orientation, the specifications for sun
installation to capture the most sunlight. However, if it is not feasible to install on the roof,
the solar panels will be installed on the ground as long as there are no sun obstructions.
Before proceeding with the installation, it is necessary to identify and prepare the system’s
essential components. Photovoltaic panel components are very bulky, and great care should
be taken to avoid damage, especially when transporting materials to the roof.
The main ingredients include:
▪ Photovoltaic panels
▪ Rack system
▪ Roof sealant
▪ Power inverter
▪ Battery
▪ Charge controller
▪ Energy meter
▪ Heatsink (if needed)
▪ Wiring components for connecting system lines
In addition, to serve the installation work will need tools such as drills, screwdrivers, metal
cutting saws, electrical wiring tools.
20
Figure 18:Solar panel installation
2. Solar Installation Process: Basic steps in the process of installing a solar power system
There are many issues to consider when making a renewable energy installation plan.
However, you’ll want to start by hiring a reputable solar service like VIVABLAST. They
will provide all the information you need to come up with an efficient solar system
installation plan and get it right.
The following steps are the basic process for roof top solar system installation:
• Check for Compatibility
The installation expert team will have the first review of the roof and assess whether it is
qualified to install the solar panel system. Ensure the location gets the maximum sun,
considerable enough, and sturdy sufficient to install the panels. It will be necessary to
remove or prune tree branches and upgrade the electrical panel system in many cases.
• Select size for the system
Depending on the need to use electricity and the purpose, each solar panel system will be
different. You will need to decide on the desired size for the contractor to develop the most
specific and appropriate plan.
• Sign up for construction slips
Before making alternative energy installation plans, you need to obtain a building permit
from the locality. After having the approval results, the contractor can immediately
implement the plan. Usually, large contractors have quality components and materials
available for installation, so you won’t need to waste time searching for supplies.
21
• Set up the rack system
The installation technician will measure and mark the location to position the base system of
the panels on the roof or the ground. Then fix the rack system to the surface in a direction
that receives a lot of sunlight.
• Install solar panels
Install the solar panels to the brackets using the clamps provided to secure them in place.
Then wire each panel to adjacent panels and install the wiring.
• Install the heatsink
The heatsink is a device that aims to reduce the heat generated by the panels and increase the
system’s efficiency. In many cases, they are integrated with the panels, and if not, an external
heatsink will be required.
• Install solar inverter
The next step in the sun installation process is to connect the solar inverter to the system. The
contractor will choose the most convenient location to install the inverter, ensuring that they
operate efficiently and safely.
• Check the electricity and connect the system to the electric circuit
Before connecting the solar panel wiring to the home, a technician will recheck all the
wiring. After meeting the requirements, the inverter will be connected directly to the
electrical panel and to the building’s electrical network for electricity use and exploitation.
The final step is to power on, and test run. So the solar system installation is complete.
3. Solar Panel Maintenance: Work required after completing the solar installation
Solar panels require minimal maintenance because the solar battery system has no moving
parts. There are not many fees after you have invested in a high-quality geothermal
installation.
22
Figure 19:Solar panel maintenance
However, you should periodically check the components and the entire system several times
per year for dirt and foreign objects. Keeping the panels clean and free of obstructions will
ensure peak performance. Moreover, reputable contractors will provide maintenance and
inspection services for your solar system. They will also offer general maintenance and usage
requirements to keep the system in good working order for the long term.
Renewable energy systems are a cost-effective way to save money while also providing a
reliable, clean energy supply. On the other hand, the solar energy system is a time-
consuming and challenging task. As a result, most solar installations are completed by a
professional solar contractor. A contractor will also be able to assist you in obtaining any
incentives to which you are entitled.
23
