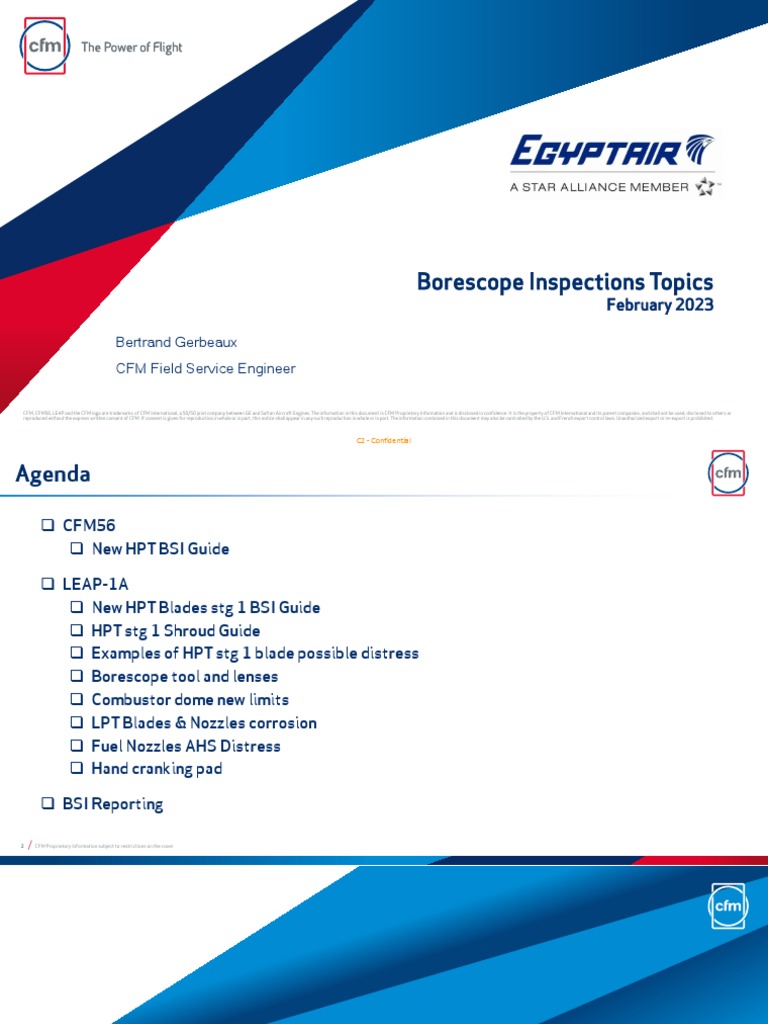

Borescope Inspections Topics

February 2023

Bertrand Gerbeaux
CFM Field Service Engineer

CFM, CFM56, LEAP and the CFM logo are trademarks of CFM International, a 50/50 joint company between GE and Safran Aircraft Engines. The information in this document is CFM Proprietary Information and is disclosed in confidence. It is the property of CFM International and its parent companies, and shall not be used, disclosed to others or
reproduced without the express written consent of CFM. If consent is given for reproduction in whole or in part, this notice shall appear in any such reproduction in whole or in part. The information contained in this document may also be controlled by the U.S. and French export control laws. Unauthorized export or re-export is prohibited.
 C2 - Confidential

Agenda

 CFM56
 New HPT BSI Guide

 LEAP-1A
 New HPT Blades stg 1 BSI Guide
 HPT stg 1 Shroud Guide
 Examples of HPT stg 1 blade possible distress
 Borescope tool and lenses
 Combustor dome new limits
 LPT Blades & Nozzles corrosion
 Fuel Nozzles AHS Distress
 Hand cranking pad

 BSI Reporting

2 / CFM Proprietary Information subject to restrictions on the cover

 CFM56 New HPT BSI Guide

3 / CFM Proprietary Information subject to restrictions on the cover

 C2 - Confidential

CFM56 New HPT BSI Guide

 New revision of the HPT BSI guide on Mycfmportal

available
 Memo: CFM guides available on HPC, HPT,
Combustor, and LPT

 Egyptair is recommended to use these guides to

better understand the AMM criteria meaning when
there is a doubt

AMM remains the reference for damage assessment

4 / CFM Proprietary Information subject to restrictions on the cover
 LEAP-1A Topics

5 / CFM Proprietary Information subject to restrictions on the cover

 C2 - Confidential

New BSI Guides

 HPT stg 1 blades BSI guide issued dealing with various

findings on this area
 Examples of possible distress are given

 HPT stg 1 Shrouds BSI guide issued dealing with

various findings on this area

Egyptair borescope inspectors may look at these guides before and

6 / during their inspections
CFM Proprietary Information subject to restrictions on the cover
 C2 - Confidential

Borescope Equipment

 As per CFM training on SB 72-0461 in Sept 2022, CFM

studied various lenses to perform the inspection and
determined best choices lenses to perform this inspection

 Choice of lens is important to detect possible findings

 These tests were done with the Mentor Visual IQ

borescope equipment, used by CFM Training Center and
Safran On Wing Services team.

Egyptair is recommended to perform their inspections with

7 / CFM Proprietary Information subject to restrictions on the cover appropriate inspection means
 C2 - Confidential

Inspection Tips – SB 72-0461

Examples on MSR engines
 Avoid wide angle view to inspect the blades
 For Leading Edge side (front looking AFT) inspection, perform :
 The concave side inspection in three different steps: Upper,
Mid, Lower spans
 Another views are needed to inspect the leading edge.
 For Trailing Edge side inspection (AFT looking front), perform at
least the inspection in two views (lower / upper) to detect possible
findings

Appropriate view angles are key to detect possible findings

8 / CFM Proprietary Information subject to restrictions on the cover
 C2 - Confidential

Combustor deflector upcoming AMM limits update

Before
 Improvement of AMM limits are worked on by CFM
 New limits will be published in AMM rev. May 2023

 New thinner C-seal will be available 1Q2023 and limit

the distress After

AMM advanced copy can be provided by Airbus if necessary

9 / CFM Proprietary Information subject to restrictions on the cover
 C2 - Confidential

LPT Blades & Nozzles corrosion

10 / CFM Proprietary Information subject to restrictions on the cover

 C2 - Confidential

Fuel Nozzles AHS Distress

 New design introduction: SB 73-0057 issued

11 / CFM Proprietary Information subject to restrictions on the cover

 C2 - Confidential

Hand Cranking Pad

 During a BSI when the hand cranking

pad is removed, it is required to
inspect the gear shaft tangs to
ensure their proper alignment (AMM
requirement)
 Contact CFM in case of findings

BSI inspectors may share this memo with mechanics assisting BSI
12 / CFM Proprietary Information subject to restrictions on the cover
 Borescope Reporting

13 / CFM Proprietary Information subject to restrictions on the cover

 C2 - Confidential

Borescope Reporting

 Reports, pictures and media provided by Egyptair teams are

well appreciated by CFM 👌
 For MPD BSI, the media organized in folders are suitable for
reading

 Communication: is it possible for the BSI inspectors to inform

Egyptair engineering team when the report and media are
available?

 Ensure to mention in the report all findings, even findings which

are within limits

Reporting is key to report to CFM the observations of BSI inspectors

14 / CFM Proprietary Information subject to restrictions on the cover
 Thank you

15 / CFM Proprietary Information subject to restrictions on the cover
