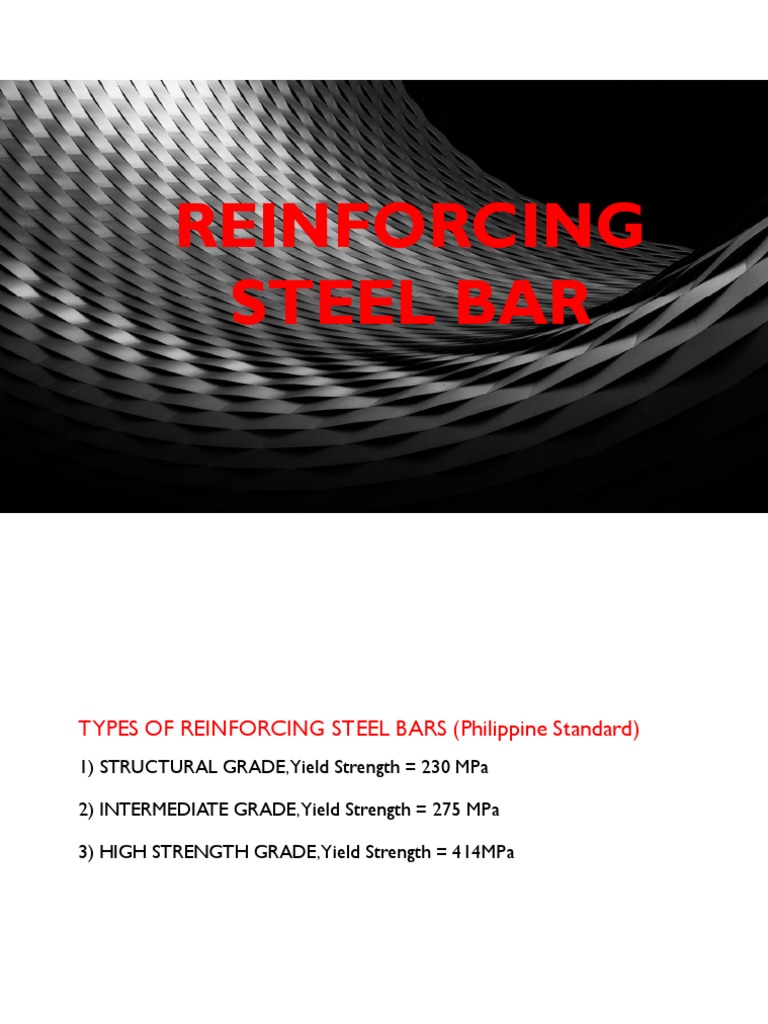

REINFORCING

STEEL BAR
TYPES OF REINFORCING STEEL BARS (Philippine Standard)
1) STRUCTURAL GRADE,Yield Strength = 230 MPa

2) INTERMEDIATE GRADE,Yield Strength = 275 MPa

3) HIGH STRENGTH GRADE,Yield Strength = 414MPa


Commercially Available Diameter of RSB
10mm, 12mm, 16mm, 20mm, 25mm, 28mm, 32mm, 36mm
Special order : 40mm and above

Commercially Available Length of RSB

6m, 7.50m, 9m, 10.50m and 12m


PROBLEM:
The 5m x 5m combined square footing is shown below. It is
reinforced with 16 – 20mm diameter main bars in each direction, use
concrete cover = 75mm. Determine the required cutting length of the RSB.
Make tables of bar cutting list, excess bar list and bar order list.
Given:
5000mm x 5000mm footing
16pcs x 2 = 32pcs – 20mm diameter RSB; Db = 20mm
Concrete cover = 75mm

Required:
Cutting length, LT
For RSB diameter between 10 to 25mm,
Bend Diameter, D = 6Db

Bend Diameter, D =6 * 20 = 120mm


For 180 degrees standard bend,
l1 = 4Db

l1 = 4 * 20 = 80mm
l2 = π(D+Db) / 2

l2 = π(120+20) / 2
l2 = 219.91mm
l3 = (Length of footing)/2 – concrete cover – bar diameter – (bend diameter)/2
l3 = 5000/2 - 75mm - 20mm – 120/2

l3 = 2345mm
Cutting length, LT = 2 (l1+ l2+ l3)
LT = 2 (80 + 219.91 + 2345)

LT = 5289.82mm say 5.29m


Wt per meter = Unit weight of steel * area of cross-section

Wt per meter = 7850 kg/m3 * π(0.020m)2 / 4

Wt per meter = 2.47 kg/m


F-1 5.29M 20 MM 32 PCS 2.47 418.12 6M 2
F-1 0.71M 32 PCS 1.75 KG 56.12 KG
20MM DIA. RSB, 6M 32 PCS 14.82 KG 474.24 KG
BEAM
TOP BAR
BOTTOM BAR
COLUMN
STIRRUPS
&
LATERAL TIES
Given:
500mm x 500mm column
Concrete cover = 40mm
Lateral ties diameter = 10mm

Required :
Length of lateral tie
Solution:
Since square column,
A=B
A = 500 - concrete cover *2 – dia of lateral ties *2

A = 500 – 40*2 -10*2


A = 400mm

L = 2 (A + B) + 20 (dia of lateral ties)


L = 2 (400 + 400) + 20 (10)
L = 1800mm
