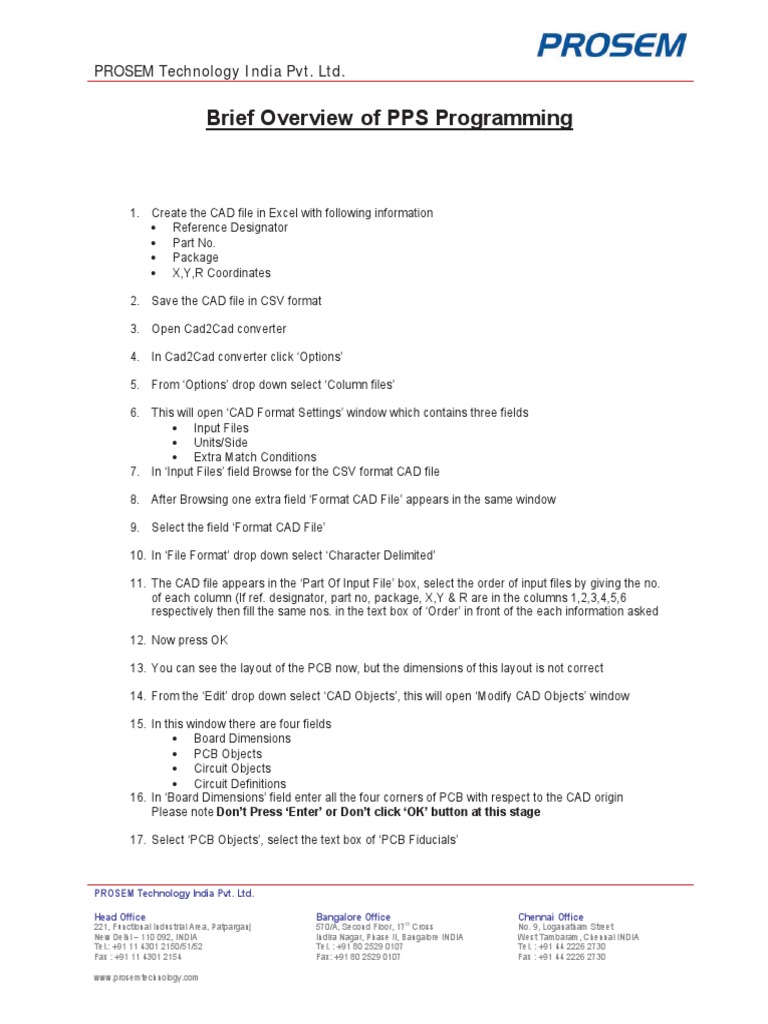

Brief Overview of PPS Programming

1. Create the CAD file in Excel with following information

x Reference Designator
x Part No.
x Package
x X,Y,R Coordinates

2. Save the CAD file in CSV format

3. Open Cad2Cad converter

4. In Cad2Cad converter click ‘Options’

5. From ‘Options’ drop down select ‘Column files’

6. This will open ‘CAD Format Settings’ window which contains three fields
x Input Files
x Units/Side
x Extra Match Conditions
7. In ‘Input Files’ field Browse for the CSV format CAD file

8. After Browsing one extra field ‘Format CAD File’ appears in the same window

9. Select the field ‘Format CAD File’

10. In ‘File Format’ drop down select ‘Character Delimited’

11. The CAD file appears in the ‘Part Of Input File’ box, select the order of input files by giving the no.
of each column (If ref. designator, part no, package, X,Y & R are in the columns 1,2,3,4,5,6
respectively then fill the same nos. in the text box of ‘Order’ in front of the each information asked

12. Now press OK

13. You can see the layout of the PCB now, but the dimensions of this layout is not correct

14. From the ‘Edit’ drop down select ‘CAD Objects’, this will open ‘Modify CAD Objects’ window

15. In this window there are four fields

x Board Dimensions
x PCB Objects
x Circuit Objects
x Circuit Definitions
16. In ‘Board Dimensions’ field enter all the four corners of PCB with respect to the CAD origin
Please note Don’t Press ‘Enter’ or Don’t click ‘OK’ button at this stage

17. Select ‘PCB Objects’, select the text box of ‘PCB Fiducials’

PROSEM Technology India Pvt. Ltd.

Head Office Bangalore Office Chennai Office

221, Functional Industrial Area, Patparganj 570/A, Second Floor, 17th Cross No. 9, Loganatham Street
New Delhi – 110 092, INDIA Indira Nagar, Phase II, Bangalore INDIA West Tambaram, Chennai INDIA
Tel.: +91 11 4301 2150/51/52 Tel. : +91 80 2529 0107 Tel. : +91 44 2226 2730
Fax : +91 11 4301 2154 Fax: +91 80 2529 0107 Fax : +91 44 2226 2730

www.prosemtechnology.com
18. Enter the X and Y coordinates of 1st Panel Fiducial with respect to CAD origin and click on ‘+’
button now enter the X and Y coordinates of 2nd Panel Fiducial with respect to CAD origin and click
‘+’ button and so on (Please add maximum fiducials available with you)
Please note Don’t Press ‘Enter’ or Don’t click ‘OK’ button at this stage

19. If you have BAD marks, enter the coordinates in text box of ‘PCB Badmarks’ with respect to CAD
origin in the same manner as in ‘PCB Fiducials’
Please note Don’t Press ‘Enter’ or Don’t click ‘OK’ button at this stage

20. Use ‘Circuit Objects’ field if you have Circuit Fiducials or Circuit Badmarks in the same manner as
explained above
Please note Don’t Press ‘Enter’ or Don’t click ‘OK’ button at this stage

21. Use ‘Circuit Definitions’ field to enter the 1st block repeat value (X,Y and R) in the text box X, Y, and
R respectively and click ‘+’ button
nd
Now enter the 2 block repeat value and click ‘+’ button and so on now press Enter or click OK
button

22. Save the file in two formats ‘*.Gencad’ and ‘**.Cad2Cad’ by selecting the drop down of ‘Save as
type’ and close the Cad2Cad application

23. Saving the file in Gencad format will create two files *.Cad and *.Pnl which later on will be used as
the input file for PPS Pro

24. Open ‘PPS Pro’ application

25. from the ‘File’ drop down select ‘Preferences’ this will open ‘PPS Pro Preferences’ window which
contains six fields
x General
x Part Data: Select ‘PSI File’ radio button and browse for your PSI file
x Factory Data: Browse for your ALE file
x CBDoc
x Scripting
x Optimizer: Select ‘Run Time Balancer’ radio button

Click “OK”

26. From the ‘File’ dropdown select ‘New Project’

27. First in the ‘Location:’ box browse the location where this project should be saved

28. In the ‘Name:’ text box enter the name of the Project and click ‘Next’

29. In the ‘what features would you like to include?’ check box field select all except ‘Import bill of
materials’ & ‘Set machine origins’

30. Select the line which is created in ALE file in ‘Select the project’s line:’ dropdown and select the
unit of CAD file in ‘Select the project’s units:’ dropdown and click ‘Next’ and then click ‘Finish’
31. The Window now contains seven fields:
x Select Files: In this field click ‘Copy Files…’ and browse for the Gencad file (*.CAD and
*.PNL) created by using Cad2Cad converter and click ‘Open’ and then click ‘Next>’

x Import Data: You can see the two files just copied, click on ‘*.PNL file’ and click ‘Import…’
now in ‘Import Gencad’ window click ‘Import’ and click ‘Close’ then click ‘Next>’
x Select Products: Click on check box ‘View’ this will open ‘CIMBridge Graphical Editor’
window which is called as ‘MDF’ file

In the ‘set’ dropdown of this window select ‘Board Thickness…’ and enter the thickness of
your PCB in the Blue Pane and press ‘Enter’

Now from the ‘File’ dropdown select ‘Save’ and close the window now change the value in
the ‘Side’ dropdown from ‘Both’ to ‘Top’ and click ‘Next>’

x Verify Data: In the ‘Show’ dropdown select ‘Packages’ and click ‘Verify’ the status of all
should be a blue tick mark instead of “?”

If the status of the packages are “?” then select that package and click ‘Modify…’

Now select the ‘Alias’ radio button and alias your package with the closest package and
click ‘OK’, now you can see a yellow rhombus instead of “?”

Click on ‘Save’ button and repeat the procedure for all the packages with “?” when done
click ‘Next>’

In the ‘Show’ dropdown select ‘Parts’ and click ‘Verify’ the status of all should be a blue tick
mark instead of “?”

If the status of any of the parts is “?” then click ‘Add All’ and then press ‘Save’

x Panalize Products: Click ‘Next>’

x Optimize Line: Click ‘Next>’

x Program Machine: You can see your product name with all the machines in the line

Right Click on any of the machine in line and then click ‘Settings’

Click ‘Modify’ in ‘Optimize’ dropdown select ‘From MDF’

In ‘Display units:’ dropdown select ‘Millimeters’

Click ‘Settings’ enter the value ‘1500’ in ‘Max. Run Time:’ text box

Enter the value ‘1’ in Desired Cycle Time:’ text box

Click on the radio button ‘Good’ and press ‘OK’ again click ‘OK’

Select the check box ‘Enabled for programming’ click ‘Make Default’ and press ‘Close’

Now click ‘Program All’ and click ‘Optimize Cell’ and wait for the optimizer to start.
