4 Mechanical Exploded Views and Replacement Components

4.1 Opera-MH

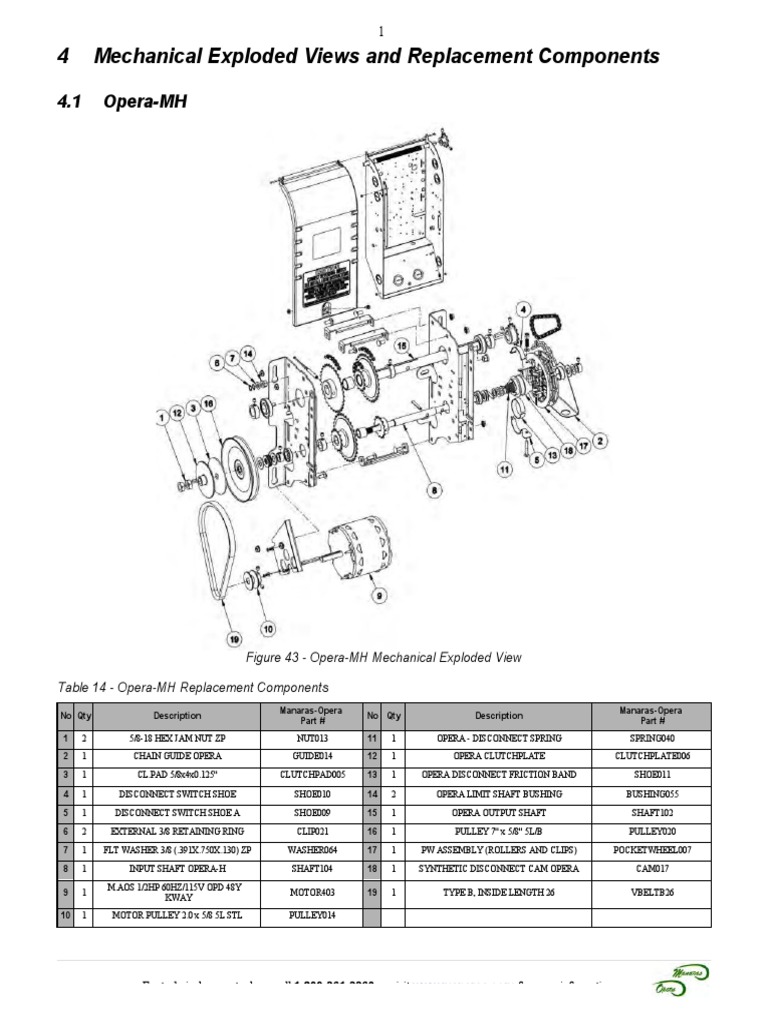

Figure 43 - Opera-MH Mechanical Exploded View

Table 14 - Opera-MH Replacement Components

Manaras-Opera Manaras-Opera
No Qty Description No Qty Description
Part # Part #
1 2 5/8-18 HEX JAM NUT ZP NUT013 11 1 OPERA - DISCONNECT SPRING SPRING040
2 1 CHAIN GUIDE OPERA GUIDE014 12 1 OPERA CLUTCHPLATE CLUTCHPLATE006

3 1 CL.PAD 5/8x4x0.125" CLUTCHPAD005 13 1 OPERA DISCONNECT FRICTION BAND SHOE011

4 1 DISCONNECT SWITCH SHOE SHOE010 14 2 OPERA LIMIT SHAFT BUSHING BUSHING055

5 1 DISCONNECT SWITCH SHOE A SHOE009 15 1 OPERA OUTPUT SHAFT SHAFT102

6 2 EXTERNAL 3/8 RETAINING RING CLIP021 16 1 PULLEY 7" x 5/8" 5L/B PULLEY020

7 1 FLT WASHER 3/8 (.391X.750X.130) ZP WASHER064 17 1 PW ASSEMBLY (ROLLERS AND CLIPS) POCKETWHEEL007

8 1 INPUT SHAFT OPERA-H SHAFT104 18 1 SYNTHETIC DISCONNECT CAM OPERA CAM017

M.AOS 1/2HP 60HZ/115V OPD 48Y

9 1 MOTOR403 19 1 TYPE B, INSIDE LENGTH 26 VBELTB26
KWAY

10 1 MOTOR PULLEY 2.0 x 5/8 5L STL PULLEY014

For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information
 2
4.2 Opera-MJ

Figure 44 - Opera-MJ Mechanical Exploded View

Table 15 - Opera-MJ Replacement Components

Manaras-Opera Manaras-Opera
No Qty Description No Qty Description
Part # Part #
M.AOS 1/2HP 60HZ/115V OPD 48Y
1 2 5/8-18 HEX JAM NUT ZP NUT013 9 1 MOTOR403
KWAY
2 1 CL.PAD 5/8x4x0.125" CLUTCHPAD005 10 1 MOTOR PULLEY 2.0 x 5/8 5L STL PULLEY014

3 1 COMP. SPRING 1"ID 2"L SPRING041 11 1 OPERA CLUTCHPLATE CLUTCHPLATE006

4 1 COUPLING 3/4 2 PINS 1/4 COUPLING014 12 2 OPERA LIMIT SHAFT BUSHING BUSHING055

5 1 DISCONNECT FORK RH FORK001 13 1 OPERA OUTPUT SHAFT SHAFT102

6 2 EXTERNAL 3/8 RETAINING RING CLIP021 14 1 PULLEY 7" x 5/8" 5L/B PULLEY020

7 1 FLT WASHER 3/8 (.391X.750X.130) ZP WASHER064 15 1 STD SINGLE CUT-OFF SWITCH LIMIT020

8 1 INPUT SHAFT OPJ SHAFT107 16 1 TYPE B, INSIDE LENGTH 26 VBELTB26
