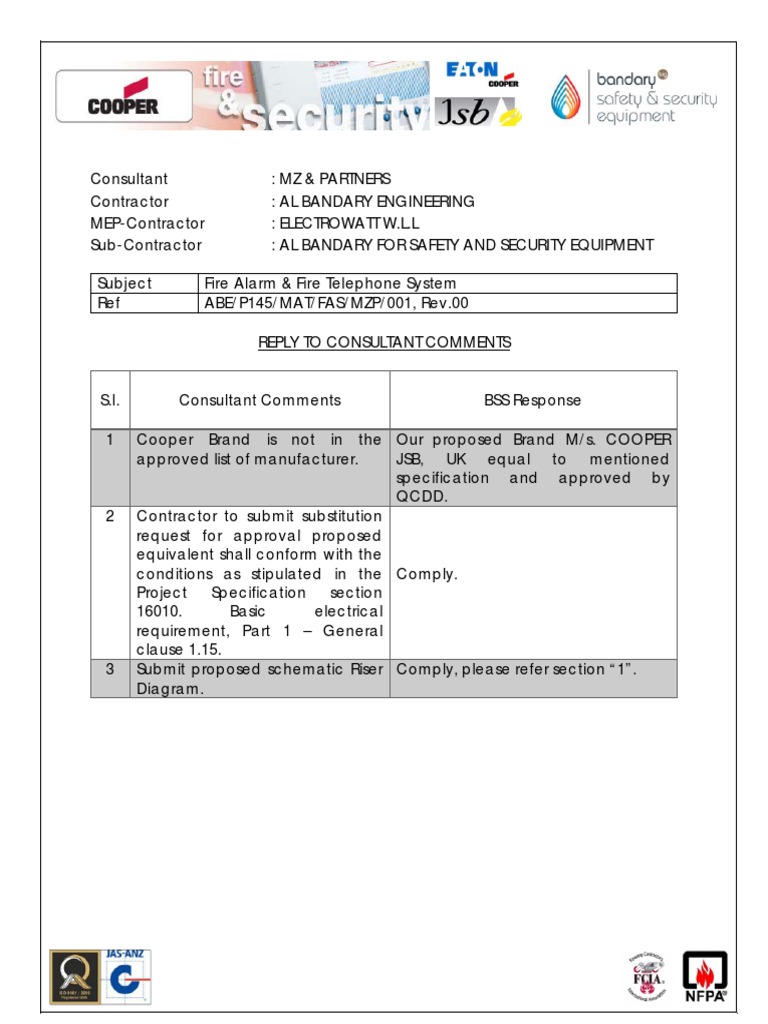

Consultant : MZ & PARTNERS

Contractor : AL BANDARY ENGINEERING
MEP-Contractor : ELECTROWATT W.L.L
Sub-Contractor : AL BANDARY FOR SAFETY AND SECURITY EQUIPMENT

Subject Fire Alarm & Fire Telephone System

Ref ABE/P145/MAT/FAS/MZP/001, Rev.00

REPLY TO CONSULTANT COMMENTS

S.l. Consultant Comments BSS Response

1 Cooper Brand is not in the Our proposed Brand M/s. COOPER

approved list of manufacturer. JSB, UK equal to mentioned
specification and approved by
QCDD.
2 Contractor to submit substitution
request for approval proposed
equivalent shall conform with the
conditions as stipulated in the Comply.
Project Specification section
16010. Basic electrical
requirement, Part 1 – General
clause 1.15.
3 Submit proposed schematic Riser Comply, please refer section “1”.
Diagram.







INDEX
1 Project Specification
2 Compliance Statement
3 Schedule of Material
4 Technical Catalogue/QCDD Approval/ UL/FM Approval Certificates/
LPCB Certificates
4 4.1 Fire Alarm Control Panel
5 4.2 Graphic Pack Software, CPU Dell, Monitor, Printer
6 4.3 Smoke Detector
7 4.4 Heat Detector
8 4.5 Duct Detector
9 4.6 Manual Call Point
10 4.7 Manual Call Point – Weather Proof
11 4.8 Control Module
12 4.9 Monitor Module
13 4.10 Sounder w/ Flasher
13 4.11 Sounder w/ Flasher – Weather Proof
14 4.12 Master & Distribution Panel, Fire Phone Station
15 Sample Battery Calculation
16 BSS Company Profile
17 ISO Certificate
18 Trade License
19 QCDD Certificate
20 Previous Approval
21 List of Projects


Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

FIRE ALARM

SECTION 16741

PART 1 - GENERAL

1.1 RELATED DOCUMENTS

A. Drawings and general provisions of the Contract, including Conditions of Contract and
Division 1 Specification Sections, apply to this Section.

1.2 SUMMARY

A. This Section includes fire alarm systems with manual stations, detectors, signal
equipment, controls, and devices.

B. Related Sections include the following:

1. Division 16 Section "Basic Electrical Materials and Methods".
2. Division 16 Section "Grounding and Bonding".
3. Division 16 Section "LV Conductors and Cables" for fire alarm system power wiring.
4. Division 16 Section "Raceways and Boxes" for fire alarm system wiring method and
enclosure requirements.

1.3 DEFINITIONS

A. FACP: Main fire alarm control panel.

B. FARP: Fire Alarm Repeater Panel.

C. LED: Light-emitting diode.

D. GUI: Graphic User Interface

E. Alarm Verification Feature: A feature of automatic fire detection and alarm systems to
reduce unwanted alarms wherein smoke detectors report alarm conditions for a
minimum period of time, or confirm alarm conditions within a given time period after
being reset, in order to be accepted as a valid alarm initiation signal.

F. A “/ “used throughout the text between two consecutive words is equivalent to and shall
be used interchangeably with “and “.

G. Alarm: A warning of fire danger.

H. Signal: A status indication communicated by electrical or other means.

1. Alarm Signal: A signal indicating an emergency that requires immediate action,
such as a signal indicative of fire.
2. Evacuation Signal: A distinctive signal intended to be recognized by the occupants
as requiring evacuation of the building.
3. Fire Alarm Signal: A signal initiated by a fire alarm-initiating device such as a
manual fire alarm box, automatic fire detector, waterflow switch, or other device in
which activation is indicative of the presence of a fire.
4. Supervisory Signal: A signal indicating the need for action in connection with the
supervision of the fire suppression systems or equipment, or the maintenance
features of related systems.

FIRE ALARM December 2014 16741-1

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

5. Trouble Signal: A signal initiated by the fire alarm system or device indicative of a
fault in a monitored circuit or component.

1.4 SYSTEM DESCRIPTION

A. General: Non-coded, zoned system with manual and automatic alarm initiation; and
hard-wired for signal transmission, using separate individual circuits for each zone of
alarm initiation and notification appliances. Connect to nearest analogue addressable
loop or to directly to MFS, as shown on the drawings.

B. General: Non-coded, addressable-analog system with manual and automatic alarm

initiation; automatic sensitivity control of certain smoke detectors; and multiplexed
signal transmission dedicated to fire alarm service only.

C. Scope of Work: Provide the following:

1. FACP, manual stations, automatic fire detectors, interface with other systems,
wiring, wire-ways and all accessories to form a complete system.
2. Remote annunciator(s).
3. Graphic annunciator(s).
4. Fire-fighters telephone sub-system.
5. Interface with Public Address System.
6. Voice evacuation sub-system.
7. Connection to BMS system, including interface elements such as software protocol,
relays, transducers, etc., BMS schedules, and shown on the Drawings.
8. Interface with HVAC, elevators, etc.

1.5 SUBMITTALS

A. Product data submittal shall include the following as minimum:

1. Schedule of equipment proposed, with catalog reference number.
2. Name and address of the manufacturer and country of origin of the product.
3. Compliance statement to specification, with necessary supporting documents.
4. Complete catalog pages of proposed equipment.
5. Detectors characteristic curves of coverage area against ceiling height and air
movement speed.
6. Name and address of the authorized local representative/dealer.
7. Basic system architecture indicating tie-in points with existing services.
8. Battery: Sizing calculations.

B. Shop Drawings: Include dimensioned plans and elevation views of components. Show
access and workspace requirements. Include at least the following:
1. Detailed floor layouts showing all peripherals with label reference and exact routing
of cabling, wireways and detection and evacuation zoning.
2. Detailed system schematic diagram. Differentiate between manufacturer-installed
and field-installed wiring. Include diagrams for equipment and for system with all
terminals and interconnections identified.
3. Detailed equipment layout in rooms and closets including elevations and typical
installation details.
4. Show details of graphic station.
5. Device Address List: Coordinate with final system programming and labeling.
6. System Operation Description: Detailed description for this Project, including
method of operation and supervision of each type of circuit and sequence of
operations for manually and automatically initiated system inputs and outputs.
Manufacturer's standard descriptions for generic systems are not acceptable.
7. Cause and Effect Matrix: Show in a matrix format, the effect of every initiating
device on the MFAC, notification devices, system peripherals, and auxiliary
systems interfaced with it.

FIRE ALARM December 2014 16741-2

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

C. Coordination Drawings:
1. Plans, sections, and elevations drawn to scale and coordinating installation of
smoke detectors in ducts and access to them. Show the following near each duct
smoke detector installation:
a. Size and location of supply and return ducts, including lining.
b. Size and location of piping.
c. Size and arrangement of structural elements.
d. Size and location of duct smoke detector, including air-sampling elements.
2. Location of detectors and notification devices in ceilings and reflected ceilings.
3. Coordination drawings with other systems listed under 1.4C.8.

D. Qualification Data: For firms and persons specified in "Quality Assurance" Article to
demonstrate their capabilities and experience. Include lists of completed projects with
project names and addresses, names and addresses of the Engineer and Employer,
and other information specified or required by Engineer.

E. Operating Instructions: For mounting at the FACP.

F. Product Certificates: Signed by manufacturers of system components certifying that

products furnished comply with requirements.

G. Installer Certificates: Signed by manufacturer certifying that installers comply with

requirements.

H. Field Test Reports: Indicate and interpret test results for compliance with performance
requirements.

I. Operation and Maintenance Data: For fire alarm systems to include in operation and
maintenance manuals specified in Division 1. Include the following:
1. As-Built layouts and schematics.
2. System operation.
3. Maintenance schedule.
4. System software documentation
5. Power supply schedule.
6. Integration and interfaces with other systems documentations.

J. Submissions to Authorities Having Jurisdiction: In addition to distribution requirements

for Submittals specified in Division 1 Section "Submittal Procedures," make an identical
submission to authorities having jurisdiction. Include copies of annotated Contract
Drawings as needed to depict component locations to facilitate review. Resubmit if
required to make clarifications or revisions to obtain approval. On receipt of comments
from Authorities having jurisdiction, submit them to the Engineer for review.

K. Sound Levels: Measure and submit audible sound levels. Verify that 15 decibels (dB)
above ambient noise levels or 5 dB above the maximum sound level that occurs at the
location for 60 seconds or more, but not greater than 120 dB, are achieved.

L. Test Results and Certificate of Completion: Comply with specified Standard.

M. Record (As-Built) Drawings: At Project close-out, submit Record (As-Built) Drawings of

all system components and peripherals in accordance with the requirements of the
Specification, Division 1.

FIRE ALARM December 2014 16741-3

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

1.6 QUALITY ASSURANCE

A. Installer Qualifications: An experienced installer who is an authorized and certified

representative of the fire alarm system manufacturer for both installation and
maintenance of units required for this Project.
1. Experience: Minimum 5 years.
2. Demonstrate that installer has satisfactorily completed at least 2 system
installations similar in design and extent to that indicated for this Project, and with a
record of successful in-service performance.

B. Manufacturer Qualifications: A firm experienced in manufacturing systems similar to

those indicated for this Project and with a record of successful in-service performance.

C. Source Limitations: Obtain fire alarm system components through 1 source from a
single manufacturer.

D. Compliance with Local Requirements: Comply with applicable building code, local
ordinances and regulations, and requirements of authorities having jurisdiction.

E. Codes and Standards: Comply with the following:

1. NFPA 70, "National Electrical Code".
2. NFPA 72, "National Fire Alarm Code".
3. NFPA 101, "Code for Safety to Life from Fire in Buildings and Structures".

F. All components of the fire alarm system including system hardware and software shall
be UL listed and FM approved for life safety applications.

G. Quality of Service: Contractor shall ensure sufficient spare parts availability for
emergency replacement of any faulty component any time from project implementation
till the end of the defects liability period.

H. The contractor shall appoint an approved Specialist to carry out the design and
installation of whole system, Specialist’s prequalification shall be submitted for
Engineer’s review and approval.

1.7 EXTRA MATERIALS

A. Furnish extra materials described below that match product installed and that are
packaged with protective covering for storage and identified with labels describing
contents.
1. Lamps for Remote Indicating Lamp Units: Quantity equal to 2 percent of amount
installed, but not less than 1 unit.
2. Lamps for Strobe Units: Quantity equal to 2 percent of amount installed, but not
less than 1 unit.
3. Smoke Detectors and heat detectors: Quantity equal to 2 percent of amount of
each type installed, but not less than 1 unit of each type.
4. Detector Bases: Quantity equal to 1 percent of amount of each type installed, but
not less than 1 unit of each type.
5. Manual stations: Quantity equal to 2 percent of amount of each type installed, but
not less than 1 unit of each type.
6. Loudspeakers: Quantity equal to 2 percent of amount of each type installed, but not
less than 1 unit of each type.
7. Printer Ribbons: 6 spares.
8. Printer paper: 10 packets.
9. Keys and Tools: 1 extra set for access to locked and tamper-proofed components.

FIRE ALARM December 2014 16741-4

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

1.8 COORDINATION

A. The Contractor shall be responsible for any coordination with users for interface with
the existing systems.

B. The Contractor shall be responsible for coordination with various systems under this
Contract and the Contractors involved in the Airport site.

C. Fire alarm zoning shall be coordinated with Public Address system, HVAC, smoke
management, and fire fighting systems.

1.9 AVAILABILITY OF SPARE PARTS AND FORWARD COMPATIBILITY.

A. The Contractor has to obtain and submit a written undertaking from the manufacturer
that the spare parts of the system to be installed shall be made available upon request
for at least 10 years from the date of substantial completion.

1.10 PROJECT CONDITIONS

A. Environmental Conditions: System shall be capable of withstanding the project

environmental conditions specified under Division 16 Section 16050 without mechanical
or electrical damage or degradation of operating capability.

1.11 MANUFACTURER’S

A. Refer to Section 16999 Lists of Approved and Recommended Manufacturers.

PART 2 - PRODUCTS

2.1 FUNCTIONAL DESCRIPTION OF SYSTEM

A. Control of System: By FACP.

B. System Supervision: Automatically detect and report open circuit, short circuit, and
ground fault of wiring for initiating device, signaling line, and notification-appliance
circuits. System shall detect ground fault by panel, loop circuit, and group of devices.

C. Priority of Signals: Automatic alarm response functions resulting from an alarm signal
from 1 zone or device are not altered by subsequent alarm, supervisory, or trouble
signals. An alarm signal has the highest priority. Supervisory and trouble signals have
second- and third-level priority. Higher-priority signals take precedence over signals of
lower priority, even when the lower-priority condition occurs first. Annunciate and
display all alarm, supervisory, and trouble signals regardless of priority or order
received.

D. Noninterference: A signal on one zone shall not prevent the receipt of signals from
other zones.

E. System Reset: All zones are manually re-settable from the FACP after initiating
devices are restored to normal.

F. System shall continually monitor any changes in the sensitivity of individual smoke or
heat sensors due to environmental effects.

G. Third Party integrator shall provide all necessary hardware, software, and auxiliaries to
ensure the following functions are fulfilled:
1. One main Graphic User Interface (GUI) located in the Main Fire Station shall
control and monitor all fire alarm system points of the existing system and the new

FIRE ALARM December 2014 16741-5

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

system specified herein. It shall have full control and monitoring of the combined
systems (existing + new) through 2-way communication. It shall be possible to
connect multiple GUI in the network if desired by the Client to have backup.
2. The entire fire alarm system including integration arrangement detailed in (1) above
shall be UL listed for life safety and fire alarm applications.
3. System software and hardware integration with the existing “Alarmon” system
operating in the MFS, as required to have a fully operational combined systems
(existing +new) and have the same functionality and operability of the existing
system.

H. Modify existing hardware and software of existing GUI and fire alarm system to cater for
the new fire alarm points provided within the current scope.

I. System Alarm Capability during Circuit Fault Conditions: System wiring and circuit
arrangement prevent alarm capability reduction when a single ground occurs in an
initiating device circuit, signal line circuit, or notification-appliance circuit.
1. Initiating Device Circuits (IDC) System Wiring: Class B, Style C.
2. Signaling Line Circuits (SLC) System Wiring: Class B, Style 4.
3. Notification Appliance Circuits (NAC): Class B, Style Y.

J. System Alarm Capability during Circuit Fault Conditions: System wiring and circuit
arrangement prevent alarm capability reduction when an open circuit, ground or wire-to-
wire short occurs, or an open circuit and a ground occur at the same time in an initiating
device circuit, signal line circuit, or notification-appliance circuit.

1. Initiating Device Circuits (IDC) System Wiring: Class A, Style D or E.

2. Signaling Line Circuits (SLC) System Wiring: Class A, Style 7.
3. Notification Appliance Circuits (NAC): Class A, Style Z.

K. Loss of primary power at the FACP initiates a trouble signal at the FACP and the
annunciator. The FACP indicates when the fire alarm system is operating on the
secondary power supply.

L. Basic Alarm Performance Requirements: Unless otherwise indicated, automatic alarm

operation of a smoke or flame or heat detector initiates the following:
1. Activation of Positive Alarm Sequencel at FACP.
a. Local alarm in the control panel for the period of a programmable time T1.
b. During this delay time (T1), a local (staff) alarm (stage 1) only is to be given. If
the alarm is not acknowledged before timer T1 runs out, this is to result in
notification-appliance operation (stage 2) as detailed in subparagraph 2.1L.2
below.
c. If the alarm is acknowledged while T1 is still running, T1 is to be reset and a
programmable timer T2 is to be started. T2 is to delay the notification-appliance
operation (stage 2) further, and so provide time for human investigation of the
alarm cause.
d. If no reset action takes place before T2 runs out, notification-appliance operation
(stage 2) is to be given.
2. Notification-appliance operation (stage 2).
a. Evacuation signal in zone of incident and adjacent zones; alert signal in
remaining parts of building.
b. Evacuation signal throughout the building.
c. Activation of visual strobes.
3. Identification at the FAPC and the remote annunciator(s) of the zone originating the
alarm.
4. Identification at the FAPC and the remote annunciator(s) of the location and the
type of device originating the alarm.

FIRE ALARM December 2014 16741-6

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

5. Unlocking of electric door locks (such as doors controlled by SACS) in designated

egress paths.
6. Release of fire and smoke doors held open by magnetic door holders.
7. Recall of elevators.
8. CCTV camera(s) shall start recording the event.
9. Shutdown LPG system serving area under alarm.
10. Shutdown selected BHS equipment as pre-scheduled, and as per the Cause &
Effect matrix.
11. Shut off public address and music equipment.
12. Shut off public address (PA) and music equipment and use PA system to broadcast
the fire alarm evacuation/alert signals.
13. Shut off public address (PA) and music equipment and broadcast fire alarm
evacuation/alert signals through voice/alarm communication system.
14. Shutdown of fans and other air-handling equipment serving zone when alarm was
initiated.
15. Closing of smoke dampers in air ducts of system serving zone where alarm was
initiated.
16. Recording of the event in the system memory.
17. Initiate operation of smoke management system.
18. Operation of smoke curtains.
19. Recording of the event by the system printer.
20. recall/shunt elevator as Per QCD & NFPA702,70 standard's

M. All operations shall be according to the approved cause & effect matrix.

N. Alarm Silencing, System Reset and Indication: Controlled by switches in the FACP and
the remote annunciator(s).
1. Silencing-switch operation halts alarm operation of notification appliances and
activate an "alarm silence" light. Display of identity of the alarm zone or device is
retained.
2. Subsequent alarm signals, from other devices or zones, shall reactivate notification
appliances, until silencing switch is operated again.
3. When alarm-initiating do not return to normal and system reset switch is operated,
notification appliances operate again until alarm silence switch is reset.
4. When fire alarm system is reset, all auxiliary systems shall be released from fire
mode.

O. Operation of water-flow alarm switch and manual station initiates the following:
1. Notification-appliance operation as in paragraph 2.1L.2 to 2.1L.19.
2. Flashing of the remote indicating light for the device that has operated.

P. Operating a heat detector in the elevator shaft shuts down elevator power by operating
a shunt trip in a circuit breaker feeding the elevator.

Q. Water-flow alarm for connection to sprinkler in an elevator shaft and elevator machine
room shuts down elevators associated with the location without time delay.
1. A field-mounted relay actuated by the FACP closes the shunt trip circuit and
operates building notification appliances and annunciator.

R. Smoke detection for zones or detectors with alarm verification initiates the following:
1. Audible and visible indication of an "alarm verification" signal at the FACP.
2. Activation of "alarm verification" sequence at the FACP and the detector.
3. Recording of the event by the system printer.
4. Recording of the event in the system memory.
5. Alarm as per the sequence detailed under paragraph 2.1 L if the alarm is verified.
6. Cancellation of the FACP indication and system reset if the alarm is not verified.

S. Sprinkler valve-tamper switch operation initiates the following:

FIRE ALARM December 2014 16741-7

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

1. A supervisory, audible, and visible "valve-tamper" signal indication at the FACP and
the annunciator.
2. Flashing of the device location-indicating light for the device that has operated.
3. Recording of the event by the system printer.
4. Recording of the event in the system memory.

T. Fire-pump power failure, including a dead-phase or phase-reversal condition, initiates

the following:
1. A supervisory, audible, and visible "fire-pump power failure" signal indication at the
FACP and the annunciator.
2. Recording of the event by the system printer.
3. Recording of the event in the system memory.

U. Fire-pump operation should be reported on the Fire Alarm Panel.

V. Operation of the kitchen fire suppression system or the clean agent fire suppression
system (FM200/Argonite) shall report the following on the fire alarm system:
1. First stage alarm
2. Second stage alarm
3. ECP (Extinguishing Control Panel) fault
4. Low cylinder pressure
5. Gas release signal.

W. Low-air-pressure switch operation on a dry-pipe or preaction sprinkler system initiates

the following:
1. A supervisory, audible, and visible "sprinkler low-air-pressure" signal indication at
the FACP and the annunciator.
2. Flashing of the device location indicating light for the device that has operated.
3. Recording of the event by the system printer.
4. Recording of the event in the system memory.

X. Remote Detector Sensitivity Adjustment: Manipulation of controls at the FACP causes

the selection of specific addressable smoke detectors for adjustment, display of their
current status and sensitivity settings, and control of changes in those settings. Same
controls can be used to program repetitive, scheduled, automated changes in sensitivity
of specific detectors. Sensitivity adjustments and sensitivity-adjustment schedule
changes are recorded in system memory and are printed out by the system printer.

Y. Removal of an alarm-initiating device or a notification appliance initiates the following:

1. A "trouble" signal indication at the FACP and the annunciator for the device or zone
involved.
2. Recording of the event by the system printer.
3. Recording of the event in the system memory.

Z. Printout of Events: On receipt of the signal, print alarm, supervisory, and trouble
events. Identify zone, device, and function. Include type of signal (alarm, supervisory,
or trouble), and date and time of occurrence. Differentiate alarm signals from all other
printed indications. Also print system-reset event, including the same information for
device, location, date, and time. Commands initiate the printout of a list of existing
alarm, supervisory, and trouble conditions in the system and a historical log of events.

AA. MFAC Alphanumeric Display: Plain-English-language descriptions of alarm,

supervisory, and trouble events; and addresses and locations of alarm-initiating or
supervisory devices originating the report. Display monitoring actions, system and
component status, system commands, programming information, and data from the
system's historical memory.

FIRE ALARM December 2014 16741-8

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

BB. System shall be able to report a map of all initiating devices connected to the system
for confirmation of As-Built drawings, and it shall show physical wiring of T-type by
device type and number. Other proposed alternatives shall be considered.

CC. Expansion Capability: Increase number of devices in the future by 25 percent above
those indicated without adding any internal or external components or cable
conductors.

DD. System software shall be using standard and open protocols. Carry out Software
integration with other specified systems including Fire Alarm itself through a standard
protocol such as Lonworks and Bacnet. Coordinate with the other specified and existing
systems to ensure common protocol communication.

EE. BMS Monitoring:

1. Alarm corresponding to building or zone
2. Trouble corresponding to FACP / Annunciators
3. Any fire alarm action as listed in 2.1L that is part of smoke management and
mechanical controls shall be communicated and displayed on the BMS.

2.2 MANUAL STATIONS

A. Description: Fabricated of metal or plastic, and finished in red with molded, raised-
letter operating instructions of contrasting color.
1. Double-action mechanism requires 2 actions to initiate an alarm, non break-glass,
and lift-cover and pull lever type.
2. Station Reset: Key or wrench operated; double-pole, double-throw; switch rated for
the voltage and current at which it operates.
3. Indoors Protective Shield: Factory-fabricated clear plastic enclosure, hinged at the
top to permit lifting for access to initiate an alarm. Lifting the cover actuates an
integral battery-powered audible horn intended to discourage false alarm operation.
4. Weatherproof Protective Shield: Factory-fabricated clear plastic enclosure, hinged
at the top to permit lifting for access to initiate an alarm.
5. Manual station shall be addressable type to communicate manual-station status
(normal, alarm, or trouble) to the FACP.
6. Manual station shall have integral LED.
7. Manual station shall have integral test switch.

2.3 SMOKE DETECTORS

A. General: Include the following features:

1. Operating Voltage: 24 V dc, nominal.
2. Self-Restoring: Detectors do not require resetting or readjustment after actuation to
restore them to normal operation.
3. Plug-in Arrangement: Detector and associated electronic components are mounted
in a module that connects in a tamper-resistant manner to a fixed base with a twist-
locking plug connection. Terminals in the fixed base accept building wiring.
4. Integral Visual-Indicating Light: LED type. Indicates detector has operated. LED
brightness shall be high enough such that it could be clearly distinguished with
naked eye at 6 meters distance with ambient lighting conditions.
5. Sensitivity: Can be tested and adjusted in-place after installation.
6. Mounting: Surface or semi-recessed ceiling mounted type, located as shown on
Drawings, with head removable from fixed twist-lock base. Removal of detector
head is to interrupt supervisory circuit and cause trouble signal at control panel.
Normal flat surface coverage is to be over 100 m² at mounting height of 6 m.
7. Integral Addressable Module: Arranged to communicate detector status (normal,
alarm, or trouble) to the FACP.
8. Circuitry for 2-way communication with the FACP: Each time the detector is polled,
it is to communicate its type (ionization, optical, etc.) and an analog/digitally-

FIRE ALARM December 2014 16741-9

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

encoded value corresponding to its sensitivity and status with microcomputer

processing in the control unit. Detector shall be addressed either using dip
switches or through soft-addressing mechanism.
9. Remote Controllability: Unless otherwise indicated, detectors are analog-
addressable type, individually monitored at the FACP for calibration, sensitivity, and
alarm condition, and individually adjustable for sensitivity from the FACP.

B. Photoelectric Smoke Detectors: Include the following features:

1. Sensor: LED or infrared light source with matching silicon-cell receiver.
2. Detector Sensitivity: as per UL 268.
3. Integral Thermal Detector: Fixed-temperature type with 57 deg. C (135 deg. F)
setting.

C. Beam-Type Smoke Detector: Each detector consists of a separate transmitter and

receiver with the following features:
1. Adjustable Sensitivity: More than a 6-level range, minimum.
2. Linear Range of Coverage: 100 m minimum.
3. Tamper Switch: Initiates trouble signal at the MFAC when either transmitter or
receiver is disturbed.
4. Separate Color-Coded LEDs: Indicate normal, alarm, and trouble status. Any
detector trouble, including power loss, is reported to the MFAC as a composite
"trouble" signal.

D. Duct Smoke Detector: Ionization type.

1. Sampling Tube: Design and dimensions as recommended by the manufacturer for

the specific duct size, air velocity, and installation conditions where applied.
2. Relay Fan Shutdown: Rated to interrupt fan motor-control circuit.

2.4 OTHER DETECTORS (APPLY AS SHOWN ON DRAWINGS)

A. Heat Detector, Combination Type: Actuated by either a fixed temperature of 57 deg. C

(135 deg. F) or rate of rise of temperature that exceeds 8.3 deg. C (47 deg. F) per
minute, unless otherwise indicated.
1. Mounting: Adapter plate for outlet box mounting.
2. Mounting: Plug-in base, interchangeable with smoke detector bases.
3. Mounting: Surface or semi-recessed ceiling mounted type, located as shown on
Drawings, with head removable from fixed twist-lock base. Removal of detector
head is to interrupt supervisory circuit and cause trouble signal at control panel.
Normal flat surface coverage is to be over 50 m².
4. Integral Addressable Module: Arranged to communicate detector status (normal,
alarm, or trouble) to the FACP.
5. Circuitry for 2-way communication with the FACP: Each time the detector is polled,
it is to communicate its type and an analog/digitally-encoded value corresponding
to its sensitivity and status with microcomputer processing in the control unit.
Detector shall be addressed either using dip switches or through soft-addressing
mechanism.

B. Heat Detector, Fixed-Temperature Type: Actuated by temperature that exceeds a fixed

temperature of 57 deg. C.
1. Mounting: Adapter plate for outlet box mounting.
2. Mounting: Plug-in base, interchangeable with smoke detector bases.
3. Mounting: Surface or semi-recessed ceiling mounted type, located as shown on
Drawings, with head removable from fixed twist-lock base. Removal of detector
head is to interrupt supervisory circuit and cause trouble signal at control panel.
Normal flat surface coverage is to be over 50 m².
4. Integral Addressable Module: Arranged to communicate detector status (normal,
alarm, or trouble) to the FACP.

FIRE ALARM December 2014 16741-10

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

5. Circuitry for 2-way communication with the FACP: Each time the detector is polled,
it is to communicate its type and an analog/digitally-encoded value corresponding
to its sensitivity and status with microcomputer processing in the control unit.
Detector shall be addressed either using dip switches or through soft-addressing
mechanism.

C. Continuous Linear Heat-Detector System: Of the analog type, consisting of detector

cable and control unit.
1. Detector Cable: Shall be flexible in installation and recoverable after operation. It
shall have high sensitivity to small temperature variations and shall monitor the
precise point of risk. The analog sensor shall consist of a 4-core cable. Two of the
four color-coded conductors shall be insulated with a negative temperature
coefficient material. The other two conductors shall have normal PVC insulation.
The cores shall be twisted together and protected by an outer sheath of high
temperature, flame-retardant PVC insulation. The analogue sensor senses
temperature variations by continuously monitoring the resistance such that a
change in temperature produces a relative change in resistance between the two
loops within the sensor cable.
2. Control Panel: Microprocessor controlled that can automatically detect the length
and the ambient temperature of the attached sensor cable. The control unit shall
continuously monitor the sensor cable and shall have the following minimum
features:
a. Several programmable levels
b. Short and open circuit monitoring of sensor cable
c. History and event log storage that can be downloaded using a PC.
d. Relay outputs for alarms and faults
e. Detecting hot spots.
f. Providing advanced notification of temperature increase.
3. Signals to the FACP: Any type of local system trouble is reported to the MFAC as a
composite "trouble" signal.
4. Provide Addressable Monitoring modules for monitoring the Linear Heat Detection
system Zone and provide two-way communication with MFAC. One module shall
be used for each zone to report Alarm info to MFAC.

D. Flame Detector: triple band infra red type microprocessor based with detection range
of 60 m and minimum field of view of 90° in the horizontal and vertical directions. The
detector should operate at 100% relative humidity and shall have processing power to
avoid false alarms.
1. Mounting: Adapter plate for outlet box mounting.
2. Mounting: Plug-in base, interchangeable with smoke detector bases.
3. Mounting: Surface or semi-recessed ceiling mounted type, located as shown on
Drawings, with head removable from fixed twist-lock base. Removal of detector
head is to interrupt supervisory circuit and cause trouble signal at control panel.
4. Provide Addressable Monitoring modules for monitoring the Flame Detectors and
provide two-way communication with FACP. One module shall be used for each
Detector to report Alarm and trouble info to FACP.

2.5 NOTIFICATION APPLIANCES

A. Description: Equip for mounting as indicated and have screw terminals for system
connections.

B. Combination Devices: Factory-integrated audible and visible devices in a single-

mounting assembly. Combination Audible/Visible (A/V) Notification Appliances shall be
listed to UL 1971 and UL 464. The strobe light shall consist of a xenon flash tube and
associated lens/reflector system with different minimum flash intensities of 15cd, 75cd
and 110cd. Provide a label inside the strobe lens to indicate the listed candela rating of
the specific strobe. The horn shall have a minimum sound pressure level of 85 dBA @

FIRE ALARM December 2014 16741-11

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

24VDC. The audible/visible enclosure shall mount directly to standard single gang,
double gang or 4” square electrical box, without the use of special adapters or trim
rings.

C. Bells: Electric-vibrating, 24 V dc, under-dome type; with provision for housing the
operating mechanism behind the bell. When operating, bells provide a sound-pressure
level of 94 dBA, measured 3 m from the bell. They shall be 150mm diameter size
indoors and 250 mm size outdoors, unless otherwise indicated. Bells are weatherproof
where indicated.

D. Low Level Output Chimes Type C1: Vibrating type, 75 dBA minimum rated output.

E. High Level Output Chimes Type C2: Vibrating type, 81 dBA minimum rated output.

F. Horns/sounders: 24 V dc with voltage variations between 18 V and 32 V and provision

for housing the operating mechanism behind a grille.
1. Horn/sounder Type H1: For indoor and outdoor applications, electric vibrating type,
with die-cast zinc frames, aircraft aluminum alloy diaphragms, heavy duty tungsten
contacts, stress-relieved stainless-steel armature springs and Teflon-impregnated
plastic molded strikers and breakers. Double projectors fitted to basic horn are to
be die-cast aluminum finished red. Minimum sound level of 96 dB(A) at 1 m.

G. Visible Alarm Devices: Xenon strobe lights with clear or nominal white polycarbonate
lens. Mount lens on an aluminum faceplate. The word "FIRE" is engraved in minimum
25 mm high letters on the lens.
1. Rated Light Output: 75 candela.
2. Rated Light Output: 110 candela.
3. Strobe Leads: Factory connected to screw terminals.

H. Voice/Tone Speakers:
1. Type: Fire rated dedicated for fire service.
2. Type 1 - High-Range Units: Rated 2 to 15 W for noisy environments.
3. Type 2 - Low-Range Units: Rated 1 to 2 W for quiet locations.
4. Mounting: Flush, semi-recessed, surface, or surface-mounted; bi-directional as
dictated by location.
5. Matching Transformers: Tap range matched to the acoustical environment of the
speaker location.

2.6 FIREFIGHTERS' TELEPHONES/ON-FIRE COMMUNICATION SYSTEM

A. Introduction
On-Fire Communication System (OFC) shall be supplied, installed, tested and
commissioned as specified and shown on drawings. It shall be a direct wire two-way
voice communication system designed to provide secure audio links between a central
operator position and strategically placed OFC telephone stations.

The OFC System shall comprise of an exchange / operator control panel with a two
core conductor radial circuit from the system exchange termination field to each
telephone station.

The OFC system shall operate on a parallel processing philosophy thereby ensuring
that the central equipment is totally non-blocking, i.e., simultaneous access attempt by
all out stations is latched and displayed at the operator position.

An integral monitoring sub system shall ensure OFC System availability and critical
path surveillance that shall confirm security of each individual telephone circuit, battery,
battery charger and A.C. mains supply.

FIRE ALARM December 2014 16741-12

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

The exchange/ operator control panel shall comprise of handset, station selectors and
system status L.E.D. displays. Continued operation in event of A.C. main disconnection
shall be ensured in compliance to BS5839.

OFC telephone stations shall be specially designed to achieve:

a) High visibility.
b) Instrument survival in hostile environments.
c) Effective full duplex voice communications.

B. System Description
The system shall be totally non-blocking, i.e., exchange/ operator control panel shall
display status of all telephone stations at all times. Simultaneous call in from all
telephone stations shall result in simultaneous display by an L.E.D. matrix sited on the
exchange/ operator control panel and shall be latched into memory. In the case of
multiple telephone handsets per channel, the channel call in shall be displayed by an
L.E.D. matrix sited on the exchange/ operator control panel and shall be latched in to
memory. Response time shall be better than 0.25 seconds.

The exchange /operator control panel shall be modular in design based upon plug in/out
assemblies. All PCB interconnections shall be made via plug in / out five channel line
interface cards which shall be assigned according to the telephone handset station
quantity requirements. A Central Control Card shall be always fitted which shall provide
the following facilities:
a) Generation of assurance, ringing and engage tones.
b) Generation of telephone handset stations ringing voltage.
c) Battery charger and battery circuit supervision.
d) A.C. mains monitoring and conversion to a low tension A.C. supply.

C. Exchange/Operator Control Panel

1. An exchange / operator panel shall comprise of a telephone handset and a

momentary
push button corresponding to each telephone station on the system. A pair of L.E.D. s
corresponding to each telephone station shall display “outside call in” and “outside
circuit trouble”.
L.E.D. colors shall comply with BS 5839 and shall denote as follows:
a) Red - station selectors- fire situation – outstation call in /selected.
b) Amber – system trouble and control status.
c) Green - System availability/healthy status.
L.E.D.s fitted indicate: “System Healthy”
“System Trouble”
“A.C. Supply Healthy”
“D.C. Charger Healthy”
2. The exchange /operator control panel shall be fitted with momentary push
buttons to facilitate:
a) Initiation of audible alert to a selected telephone handset station.
b) Test of L.E.D.s and call in sounder.
c) Acknowledgement of fault sounder.
d) Reset.
3. The exchange /operator control panel shall be fitted with momentary push
buttons to facilitate: (Cont’d)
The exchange/ operator control panel shall bear instructions for the use clearly visible on
the fascia of the unit. The panel color shall be red BS480004E53 or RAL 3020 with white
silk screen legends.

FIRE ALARM December 2014 16741-13

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

The voice channel shall be full duplex.

The system incorporate at least the following communication features:
 Exchange/Operator Control Panel to Telephone Station
 Telephone Station to Exchange/Operator Control Panel
 Multiple Party Communication

The above operations shall be achieved as standard features. It shall be possible to

establish communication with up to four stations at the same time. In this instances that
audio levels at all handsets shall not be reduced by not more than 3dB with connection
of each subsequent handset.
4. Battery unit: The OFC shall be energized during primary A.C. mains
disconnection by a local sealed lead acid battery supply. The capacity of the
battery (AH) shall be sized according to the number of channels on the
exchange, a range of battery sizes shall be fitted to suit the requirement:
 Up to 10 channels minimum 5A/H – 24V D.C.
 Up to 20 channels minimum 10A/H – 24V D.C.
 Up to 40 channels minimum 20A/H – 24V D.C.
Batteries shall be housed in a free standing wall/ surface/cubicle mount enclosure and
should be cabled directly to the exchange control card(s).

C. Technical Specification

Supply 110-240V A.C. 50/60 Hz.

Consumption Maximum 200VA.

Tolerance ± 10% Input Voltage.

± 5% Frequency.

Transmission Inband Audio Frequency 400Hz – 3KHz.

Audio Level Typically – 9dBM.

Signalling Principle Loop Disconnect.

Switching Principle Key and Lamp.

Fault Report Volt Free Change Over Contact.

Secondary Supply See Section 5.

D. Mechanical Specification

Enclosure 19 Inch Console/Rack/Wall Mount.

Size 6 Units High.

483mm Width.

Weight 30Kg.

Material Extruded Aluminium.

FIRE ALARM December 2014 16741-14

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

Finish Epoxy Paint Red to RAL3020 (Semi-Gloss).

Legends Silk Screen White Ink.

Heat Emission 10 Watts.

Hazardous Substances None.

Termination Klippon GSE5.

E. CENTRAL EQUIPMENT

The central equipment shall be configured on plug in/out modular build basis to facilitate
rapid service. The OFC shall carry integral automatic monitoring package which shall
provide fault alarm in event of field cable corruption and power supply trouble. In addition
to the in-built surveillance package, routine testing should be effected at weekly intervals.
This should compromise of a check of all operational parameters.

F. OUTSTATION

Each telephone outstation shall be checked at weekly intervals in conjunction with the
central equipment routine operation.

At three monthly intervals the battery pile shall be checked by disconnecting the primary
A.C. mains supply input and monitoring battery terminal voltage. This shall be maintained
at 24V C.C. ± 1V. The A.C. supply shall then be re-applied (and the fault reporting sub-
system reset – disconnection of A.C. mains trips the fault report) and the battery terminal
voltage re-checked. This should now have risen to 26.5 V D.C. indicating battery charger
float voltage.

2.7 REMOTE INDICATING LAMP (IF USED)

A. Description: LED indicating light near each smoke detector that may not be readily
visible, and each sprinkler water-flow switch and valve-tamper switch. Light is
connected to flash when the associated device is in an alarm or trouble mode. Lamp
is flush mounted in a single gang wall plate. A red, laminated, phenolic-resin
identification plate at the indicating light identifies, in engraved white letters, device
initiating the signal and room where the smoke detector or valve is located. For water-
flow switches, the identification plate also designates protected spaces downstream
from the water-flow switch.

2.8 MAGNETIC DOOR HOLDERS (IF USED)

A. Description: Units are equipped for wall or floor mounting as indicated and are
complete with matching doorplate.
1. Electromagnet: Requires no more than 3 W to develop 111 N holding force.
2. Wall-Mounted Units: Flush mounted, unless otherwise indicated.
3. Rating: 24 V ac or dc.
4. Rating: 220 V ac.

B. Material and Finish: Match door hardware.

2.9 FIRE ALARM CONTROL PANEL (FACP)

A. Cabinet: Lockable steel enclosure. Arrange interior components so operations

required for testing or for normal maintenance of the system are performed from the
front of the enclosure. If more than one unit is required to form a complete control
panel, fabricate with matching modular unit enclosure to accommodate components

FIRE ALARM December 2014 16741-15

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

and to allow ample gutter space for field wiring and interconnecting panels. FACP shall
be of modular design and shall not have single point of failure.
1. Identify each enclosure with an engraved, red, laminated, phenolic-resin
nameplate with lettering not less than 25 mm high. Identify individual
components and modules within cabinets with permanent labels.
2. Mounting: Flush.
3. Mounting: Surface.

B. Alarm and Supervisory Systems: Separate and independent in the FACP /MFS.
Alarm-initiating zone boards consist of plug-in cards. Construction requiring removal
of field wiring for module replacement is unacceptable.

C. Control Modules: Include types and capacities required to perform all functions of fire
alarm systems.

D. Indications: Local, visible, and audible signals announce alarm, supervisory, and
trouble conditions. Each type of audible alarm has a different sound.

E. Indicating Lights and System Controls: Individual LED devices identify zones
transmitting signals. Zone lights distinguish between alarm and trouble signals, and
indicate the type of device originating the signal. Manual switches and push-to-test
buttons do not require a key to operate. Controls include the following:
1. Alarm acknowledge switch.
2. Alarm silence switch.
3. System reset switch.
4. LED test switch.
5. Evacuation switch.

F. Resetting Controls: Prevent the resetting of alarm, supervisory, or trouble signals

while the alarm or trouble condition still exists.

G. Alphanumeric Display and System Controls: Arranged for interface between human
operator at the FACP /Main Fire Station and addressable system components,
including annunciation and supervision. Display alarm, supervisory, and component
status messages and the programming and control menu.
1. Display: Liquid-crystal type, 80 characters minimum, of which 40 characters are
available to the user for device location identification.
2. Keypad: Arranged to permit entry and execution of programming, display, and
control commands.

H. Alphanumeric Display and System Controls: Arranged for interface between human
operator at the FACP /Main Fire Station and addressable system components,
including annunciation, supervision, and control.
1. Display: A minimum of 80 characters, of which 40 characters are available to the
user for device location identification; alarm, supervisory, and component status
messages; and indicate control commands to be entered into the system for
control of smoke detector sensitivity and other parameters.
2. Keypad: Arranged to permit entry and execution of programming, display, and
control commands.

I. Voice Alarm: An emergency communication system includes central voice alarm

system components complete with microphones, preamplifiers, amplifiers, and tone
generators. This shall include speaker zone indication, digital voice units and
microphone. Construction is to be modular and capable of being field programmed.
Features include the following:
1. 2 alarm channels permit simultaneous transmission of different announcements
to different zones or floors automatically or by using the central control

FIRE ALARM December 2014 16741-16

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

microphone. All announcements are made over dedicated, supervised

communication lines.
2. Status annunciator indicates the status of various voice alarm speaker zones and
the status of firefighters' 2-way telephone communication zones.
3. Provide automatic, digitally recorded voice messages and tones, which may be
field-programmed through the microphone.
4. Provide network Audio Capability to select any speaker zone of Voice Alarm
Panels in the network from FACP or through the GUI.
5. Provide sufficient capacity amplifier for each speaker zone to achieve true multi-
channel capability in the system.
6. Where Voice evacuation is through PA system, FACP shall be provided with
Multi-Channel Audio Controller and with pre-recorded messages and tones to
provide voice evacuation messages to PA system. It shall be possible to select
PA system zone or group of zones from the FACP.

J. Firefighters' Telephone Control Module: Controls firefighters' 2-way telephone

communication system. Arrange system to use dedicated, 2-way, supervised voice
communication links between the FACP /MFS and remote firefighters' telephone
stations throughout the building. Supervised telephone lines shall be connected to talk
circuits by controls in this module. Controls provide the ability to disconnect phones
from talk circuits if too many phones are in use simultaneously. The module includes
the following:
1. Audible Pulse and Tone Generator, and High-Intensity Lamp: When a remote
telephone is activated, it causes the audible signal to sound and the high-intensity
lamp to flash.
2. Selector panel controls simultaneous operation of telephones in selected zones
and permits up to 6 phones to be operated simultaneously. Ground faults and
open or shorted telephone lines are indicated on the panel front by individual
LEDs. Zone-selector switches with associated LED indicators permit the
firefighter to activate selected telephone zones. LED indicators display elevator
recall status.

K. Instructions: Printed or typewritten instruction card mounted behind a plastic or glass

cover in a stainless steel or aluminum frame. Include interpretation and describe
appropriate response for displays and signals. Briefly describe the functional
operation of the system under normal, alarm, and trouble conditions.

L. Interface with the BMS: Provide standard software protocol and required hardware to
communicate and interface all information to the BMS system. All controls in case of
fire are to remain with the fire alarm system in accordance with NFPA 72 and 101.
The software compatibility with the specified BMS shall be effected with all
manufacturers complying with BMS specification.

2.10 REMOTE ANNUNCIATOR

A. Description: Duplicate annunciator functions of the FACP for alarm, supervisory, and
trouble indications. Also duplicate manual switching functions of the MFAC, including
acknowledging, silencing, reset, and test.
1. Mounting: Flush cabinet.
2. Mounting: Surface cabinet.

B. Display Type and Functional Performance: Individual LED for each type of alarm and
supervisory device, and LEDs to indicate "normal power" and "trouble."
1. An alarm or supervisory signal causes the illumination of a zone light and device
light.
2. System trouble causes the illumination of all lights above and also the trouble
light.
3. Additional LEDs indicate normal and emergency power modes for the system.

FIRE ALARM December 2014 16741-17

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

4. A test switch to test LEDs mounted on the panel. Switch does not require key
operation.
5. Graphics: Integrate LED displays with graphic display panel to form a graphic
annunciator (mimic panel).
6. Serial interface.

C. Display Type and Functional Performance: Alphanumeric display same as the FACP.
Controls with associated LEDs permit acknowledging, silencing, resetting, and testing
functions for alarm, supervisory, and trouble signals identical to those in the FACP.

D. Graphic Display Panel for Remote Annunciator: Wall-mounted engraved panel

indicating the building floor plan with a "You Are Here" designation. Engrave zone,
area, and floor designations on the face of the panel.
1. Materials: Satin-finished stainless-steel or brushed aluminum.
2. Floor Plan and Zone Boundary Lines: Engraved in the surface and filled with
colored paint. Floor plan lines are black and 6 mm wide; zone boundaries are red
and 3 mm wide.
3. Engraved Legends: 6 mm high minimum, in letters filled with red paint.
4. Mounting: Integral with lamp-type annunciator. Locate zone lamps in the floor
plan zones they represent.
5. Mounting: Adjacent to remote annunciator.

2.11 GRAPHIC STATION FOR GRAPHIC USER INTERFACE (GUI).

A. The Graphic User Interface (GUI) is to utilize user-friendly software running on an

industry standard operating system (such as Microsoft Windows or NT). Each GUI is
to be capable of graphically annunciating and controlling all network activity. It shall
also communicate with the existing GUI station at the Main Fire Station.

B. Graphic Station: Provide a state of the art and branded personal computer with 20
inch color monitor, keyboard, mouse, CD drive, printer, and all necessary
interface/network cards and auxiliaries. The Graphics Station Computer shall be UL
listed along with software for life safety/fire alarm application. It shall include the peer-
to-peer network cards to be connected in the Fire Alarm network. The Contractor shall
supply the latest specification at time of installation with the following as minimum: 2.4
GHz, 20” screen, CD recorder, 512 MB RAM, 606 B hard disk.

C. Graphic Station: The central control unit is to be equipped with dual microprocessor in
"hot -standby" mode in such a way that failure of either one, the other one will
automatically take over all functions of the central control unit. The failure of any CPU
is to be associated with an audible alert signal and distinctive visual signal
"PROCESSOR FAILURE" presented at the system main console terminal. Central
processor architecture is to have the following serial input-output interfaces:
1. Front interfaces for either point-to-point or loop communication network.
2. Eight osynchronous end interfaces for control and supervision of system consoles
logging printer and color graphic display station.
3. At least 1 additional end interface to drive a digital output device.
4. At least 1 additional end interface to drive a function keyboard device for
dedicated partial system operation.

D. Software Configuration: The manufacturer shall be responsible for the provision of all
system software packages, which make up the complete operational system. At least
the following standard software modules are to be incorporated:
1. Operating program.
2. System database (process image).
3. Network monitoring and control.
4. Display priority control.
5. Command priority control.

FIRE ALARM December 2014 16741-18

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

6. Output message generator.

7. Peripheral drivers.
8. Text/graphic editors.
9. Help facility.
10. Service assistance.
11. Diagnosis.
12. Auxiliary programs.

E. Software license: the software shall be open for any number of graphic stations and for
integration with other systems within Dubai International Airport (DIA).

F. Password Protection: Access to system operating functions is to be protected by a

password. For each operator intervention, the identification number of the initiating
password number is to be recorded in the system history file for subsequent reports.

G. Alarms: The system console is to automatically display and log alarm and change-of-
status messages received from FACP /Main Fire Station or FARP. The system
console is to provide optimal conditions for successful intervention by means of rapid
and simple processing and displaying all necessary data in plain text and graphics.
The alarm message information is to contain the following information:
1. Time and date.
2. Type and origin.
3. Description of affected alarm location.
4. Counter-action to be taken.

H. Programming: The GUI is to use dialog box technology to address, interrogate,

control, and/or modify intelligent points on each fire alarm node. This is to include, and
not be limited to:
1. Activating outputs.
2. Enabling or disabling points.
3. Adding or removing intelligent points.
4. Viewing intelligent detector sensitivity levels and modifying point information
(custom messages, detector type, verification, day/night selection, etc.).

I. Operating Mode: The extended system operating procedure is to be based on a user

adaptive, screen-oriented dialog in the manner of menus. No knowledge of technical
codes shall be necessary for system operation. All messages and instructions
needed for system operation are to be indicated in plain text and/or graphics. A
keyboard is to be used for data entry communication.

J. History File: The GUI is to be capable of storing network events in a history file.
Events are to be stored on hard disk and be capable of back-up storage on a floppy
disk or tape. The history buffer is to have 3 modes of display. The first mode is to
allow the operator to view events in a chronological order. A filter is to be available
for displaying chronological events by year, month, date, time, alarms only, troubles
only, both alarms and troubles, security breaches, supervisory alarms, and points
disabled. The second is to allow the operator to view events in a number of easy-to-
read graph styles, such as, bar graph, point graph, line graph, or spline graph, or
similar. Graphing is to include the ability to select alarms, troubles or alarms and
troubles, then the ability to display on a by year, month, or day basis. The third mode
is to allow the operator to display stored (hard or floppy disk) events in a variety of
useful formats. Selections are to be available for displaying events by year, month,
date, time, and alarms only, troubles only, and alarms and troubles, security
breaches, supervisory alarms, and points disabled. The ability to print GUI history
files is also to be available. Software shall have the capability to store Alarm events
and Trouble events separately in two separate history logs. It shall be possible to use
search criteria to find particular event from the history log. History log size shall be
depend on the storage capacity of the hard disk and shall not be limited by the
number of events.

FIRE ALARM December 2014 16741-19

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

K. Graphical Information: The GUI is to include the ability to display system information
in a graphical (floor plan and elevations) form. A pull-down menu is to be included
allowing selection of graphical views of the facility, or subset thereof. Each view,
created in a CAD environment, is to include icons created for intelligent devices.
These devices are to change in color when an event occurs. The device is to
annunciate in RED when in alarm, BLUE for security activation, and YELLOW for
trouble or to confirm acknowledgement. Each device in the graphic display is to
support a text memo file where pertinent information about the location of the device
may be stored. By selecting a device in the graphic presentation, the operator of the
GUI is to have the ability to log onto the corresponding node and interrogate the
associated intelligent point. Graphics are to be stored in a resident RAM memory and
backed-up by a floppy disk memory with the possibility to compose, modify or edit the
graphic schematics, text, symbols, and zone allocations on-site without jeopardizing
the fire alarm system operation. Provide license and tools to software to revise / add
equipment, floors, or areas. Selection and activation of a certain graphic display is to
be either automatic (event driven) or by manual request via the terminal. Graphics
presentation shall have a minimum of 4 hierarchical levels:
1. Area overview.
2. Building overview.
3. Floor overview.
4. Room overview.

L. Annunciation: The GUI is to include an easy-to-read system interface window, which

displays alarms and troubles in an 80-character text message format. Alarms are to
display in RED, troubles in YELLOW and security alarms in BLUE. The system
interface window is to also include reset, silence, and acknowledge keys for local
panels and for the complete network.

M. Help: The GUI is to include help screens, available to aid the user without leaving the
selected application screen.

N. Passwords: The GUI is to have a flexible way of assigning operator passwords.

There is to be an unlimited number of possible operators, each with specific levels of
control. Each operator is to have his/her own password. Operator password and
control selection is to be available to a high level "administrator" who is to have
complete control over levels of control. If no action has taken place on the GUI after
30 minutes, the current operator is to be logged out and require a new log-in.

O. Printer Port: The GUI shall include an industry-standard EIA-232 port for a printer.

2.12 EMERGENCY POWER SUPPLY

A. General: Components include lead acid batteries, charger, and an automatic transfer
switch.
1. Battery Nominal Life Expectancy: 20 years, minimum.
2. Magnetic door holders are not served by emergency power. Magnetic door
holders are released when normal power fails.

B. Battery Charger: Solid-state, fully automatic, variable-charging-rate type. Provide

capacity for 150 percent of the connected system load while maintaining batteries at
full charge. If batteries are fully discharged, the charger recharges them completely
within 4 hours. Charger output is supervised as part of system power supply
supervision.

C. Integral Automatic Transfer Switch: Transfers the load to the battery without loss of
signals or status indications when normal power fails.

D. Capacity: 24 hours under standby and 1/2 hour under full alarm load conditions at the
end of the 24 hours.

FIRE ALARM December 2014 16741-20

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

E. Remote power supply for devices is not recommended. However, if provided in

inevitable circumstances, the remote power supply shall be fully supervised by the
control panel and backed-up by battery as per paragraph 2.12D.

2.13 ADDRESSABLE INTERFACE DEVICES

A. Analog Addressable Circuit Interface Modules (Relay Control Module), generally:

Shall monitor one or more system components that are not otherwise equipped for
addressable communication. Modules shall be used for monitoring of waterflow, valve
tamper, non-addressable devices, and for control of evacuation indicating appliances
and AHU systems.

B. Monitor Module: This module has both its power and its communications supplied by
the system. It provides location specific addressability to an initiating device by
monitoring normally open dry contacts. This module shall be listed for the application
is required for monitoring waterflow and tamper switches.

C. Control Module: This module is an individually addressable module that has both its
power and its communications supplied by the system. The system shall be capable
of energizing 100% of the relays connected to the signaling line circuit in order to
initiate the required function. Control Relay Module shall provide a Form “C” dry relay
contact to control external appliances such as door closers, fans, dampers, elevator
recall or a circuit-breaker shunt trip for power shutdown, etc.

2.14 SYSTEM PRINTER

A. Description: Listed and labeled as an integral part of the fire alarm system.

B. The system is to have a strip printer capable of being mounted directly in the main
FACP enclosure. Alarms are to be printed in easy-to-read RED, other messages,
such as a trouble, are to be printed in BLACK. This printer is to receive power from
the system power supply and shall operate via battery back up if ac mains are lost.

C. The printer is to provide hard-copy printout of all changes in status of the system and
shall time-stamp such printouts with the current time-of-day and date. The printer is
to be standard carriage with 80-characters per line and is to use standard pin-feed
paper. The printer is to be enclosed in a separate cabinet suitable for placement on a
desktop or table. The printer shall communicate with the control panel using an
interface complying with Electrical Industries Association (EIA) standard EIA-232D.

D. The event and status printer shall be a 9 pin, impact, dot-matrix printer with a
minimum print speed of 200 characters per second at 10 characters per inch. Printer
parameters shall be set up with a menu drive program in the printer. The serial cable
connecting the Fire Alarm Control Panel to the Printer shall be supervised. The serial
printer shall support short haul modems or Fiber-Optics modules. The printers shall
list the time, date, type, and user defined message for each event printed. It shall be
possible to support multiple printers per CPU. It shall be possible to define which
event types are sent to the printer(s) including alarm, supervisory, trouble, monitor,
and service groups.

E. The printer shall be powered from 240 VAC, and shall use standard 91/2" x 11" fan
fold paper. Battery backup if required shall use an emergency power unit or
uninterrupted power supply.

2.15 WIRE

A. Non-Power-Limited Circuits: Solid-copper conductors with 600 V rated, 75 deg. C

(167 deg. F), color-coded insulation.

FIRE ALARM December 2014 16741-21

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

1. Initiating devices circuits: 1.5 mm² (No. 16 AWG), minimum, and subject to circuit
load.
2. Notification appliance circuits: 2.5 mm² (No. 12 AWG), minimum, and subject to
circuit load.
3. Loudspeaker circuits: 1.5 mm² (No. 16 AWG), minimum, and subject to circuit
load.

B. Wires and Cables: Comply with NFPA 72 and 101, and certified to have passed IEC
331 and 332 flame resistance and fire retardant tests.

C. Cables are to be silicone rubber insulated, with overall PVC sheath bonding to coated
aluminum foil.

PART 3 - EXECUTION

3.1 EQUIPMENT INSTALLATION

A. Connect the FACP with a disconnect switch with lockable handle or cover.

B. Manual Stations: Mount semiflush in recessed back boxes.

C. Water-Flow Detectors and Valve Supervisory Switches: Connect for each sprinkler
valve station required to be supervised.

D. Ceiling-Mounted Smoke Detectors: Not less than 100 mm from a sidewall to the near
edge. For exposed solid-joist construction, mount detectors on the bottom of joists.
On smooth ceilings, install not more than 9 m apart in any direction.

E. Wall-Mounted Smoke Detectors: At least 100 mm, but not more than 300 mm, below
the ceiling.

F. Smoke Detectors near Air Registers: Install no closer than 1520 mm.

G. The selection and placement of smoke detectors shall take into account both the
performance characteristics of the detector and the areas into which the detectors are
to be installed to prevent nuisance alarms or improper operation after installation.
Smoke detectors shall not be installed in areas where air velocity is greater than
1.5m/sec, and shall not be located in a direct airflow. If siting of detectors in such
areas is unavoidable, use detectors specifically designed for use in such conditions.

H. Duct Smoke Detectors: Comply with manufacturer's written instructions.

1. Verify that each unit is listed for the complete range of air velocity, temperature,
and humidity possible when air-handling system is operating.
2. Install sampling tubes so that they extend the full width of the duct.

I. Heat Detectors in Elevator Shafts: Coordinate temperature rating and location with
sprinkler rating and location.

J. Audible Alarm Devices: Install not less than 150 mm below the ceiling. Install bells
and horns on flush-mounted back boxes with the device-operating mechanism
concealed behind a grille. Combine audible and visible alarms at the same location
into a single unit.

K. Visible Alarm Devices: Install adjacent to each alarm bell or alarm horn and at least
150 mm below the ceiling.

L. Device Location-Indicating Lights: Locate in public space near the device they
monitor.

FIRE ALARM December 2014 16741-22

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

M. MFAC: Surface mount with tops of cabinets not more than 1800 mm above the
finished floor.

N. Annunciator: Install with the top of the panel not more than 1800 mm above the
finished floor.

3.2 WIRING INSTALLATION

A. Wiring Method: Install wiring in raceway according to Division 16 Section "Raceways

and Boxes." Conceal raceway except in unfinished spaces and as indicated.

B. Wiring within Enclosures: Separate power-limited and non-power-limited conductors

as recommended by the manufacturer. Install conductors parallel with or at right
angles to sides and back of the enclosure. Bundle, lace, and train conductors to
terminal points with no excess. Connect conductors that are terminated, spliced, or
interrupted in any enclosure associated with the fire alarm system to terminal blocks.
Mark each terminal according to the system's wiring diagrams. Make all connections
with approved crimp-on terminal spade lugs, pressure-type terminal blocks, or plug
connectors.

C. Cable Taps: Use numbered terminal strips in junction, pull and outlet boxes, cabinets,
or equipment enclosures where circuit connections are made.

D. Color-Coding: Color-code fire alarm conductors differently from the normal building
power wiring. Use one color-codes for alarm circuit wiring and a different color-code
for supervisory circuits. Color-code audible alarm-indicating circuits differently from
alarm-initiating circuits. Use different colors for visible alarm-indicating devices. Paint
fire alarm system junction boxes and covers red.

E. Risers: Install at least 2 vertical cable risers to serve the fire alarm system. Separate
risers in close proximity to each other with a minimum 1-hour-rated wall, so that the
loss of one riser does not prevent the receipt or transmission of signal from other floors
or zones.

3.3 IDENTIFICATION

A. Identify system components, wiring, cabling, and terminals according to Division 16

Section "Basic Electrical Materials and Methods."

B. Install framed instructions and zone layout in a location visible from the FACP.

C. Paint power-supply disconnect switch red and label "FIRE ALARM."

3.4 GROUNDING

A. Ground cable shields and equipment according to system manufacturer's written

instructions to eliminate shock hazard and to minimize, to the greatest extent possible,
ground loops, common-mode returns, noise pickup, cross talk, and other impairments.

B. Signal Ground Terminal: Locate at main equipment rack or cabinet. Isolate from
power system and equipment grounding.

C. Install grounding electrodes of type, size, location, and quantity as indicated. Comply
with installation requirements in Division 16 Section "Grounding and Bonding."

D. Ground equipment and conductor and cable shields. For audio circuits, minimize, to
the greatest extent possible, ground loops, common-mode returns, noise pickup, cross
talk, and other impairments. Provide 5-ohm ground at main equipment location.
Measure, record, and report ground resistance.

FIRE ALARM December 2014 16741-23

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

3.5 FIELD QUALITY CONTROL

A. Manufacturer's Field Service: Engage a factory trained and authorized service

representative to inspect field-assembled components and connections and to
supervise installation, pre-testing, testing, and adjustment of the system. Report
results in writing.

B. Pre-testing: After installation, align, adjust, and balance the system and perform
complete pre-testing. Determine, through pre-testing, the compliance of the system
with requirements of the Drawings and Specification. Correct deficiencies observed in
pre-testing. Replace malfunctioning or damaged items with new ones, and retest until
satisfactory performance and conditions are achieved. Prepare forms for systematic
recording of acceptance test results.

C. Report of Pre-testing: After pre-testing is complete, provide a letter certifying the

installation is complete and fully operable, including the names and titles of witnesses
to preliminary tests.

D. Final Test Notice: Provide a minimum of 10 days' notice in writing when the system is
ready for final acceptance testing.

E. Minimum System Tests: Test the system according to procedures outlined in NFPA
72. Minimum required tests are as follows:
1. Verify the absence of unwanted voltages between circuit conductors and ground.
2. Test all conductors for short circuits using an insulation-testing device.
3. With each circuit pair, short circuit at the far end of the circuit and measure the
circuit resistance with an ohmmeter. Record the circuit resistance of each circuit
on Record (As-Built) Drawings.
4. Verify that the control unit is in the normal condition as detailed in the
manufacturer's operation and maintenance manual.
5. Test initiating and indicating circuits for proper signal transmission under open
circuit conditions. One connection each should be opened at not less than 10
percent of initiating and indicating devices. Observe proper signal transmission
according to class of wiring used.
6. Test each initiating and indicating device for alarm operation and proper response
at the control unit. Test smoke detectors with actual products of combustion.
7. Test the system for all specified functions according to the approved operation and
maintenance manual. Systematically initiate specified functional performance
items at each station, including making all possible alarm and monitoring initiations
and using all communications options. For each item, observe related
performance at all devices required to be affected by the item under all system
sequences. Observe indicating lights, displays, signal tones, and annunciator
indications. Observe all voice audio for routing, clarity, quality, freedom from noise
and distortion, and proper volume level.
8. Test Both Primary and Secondary Power: Verify by test that the secondary power
system is capable of operating the system for the period and in the manner
specified.

F. Re-testing: Correct deficiencies indicated by tests and completely retest work affected
by such deficiencies. Verify by the system test that the total system meets specified
requirements and complies with applicable standards.

G. Report of Tests and Inspections: Provide a written record of inspections, tests, and
detailed test results in the form of a test log. Submit log on the satisfactory completion
of tests.

FIRE ALARM December 2014 16741-24

Electrical Specification MZ & Partners 14151 – 5B+G+38 Al Shahad Tower

H. Tag all equipment, stations, and other components at which tests have been
satisfactorily completed.

I. Experimental period for all systems shall be 3 months, before provisional taking over.

J. Contractor shall be responsible to replace and make operational all damaged

equipment/accessories, if any, which are part of existing, while connecting to existing
system.

3.6 CLEANING AND ADJUSTING

A. Cleaning: Remove paint splatters and other spots, dirt, and debris. Touch up
scratches and marred finish to match original finish. Clean unit internally using
methods and materials recommended by manufacturer.

3.7 DEMONSTRATION AND TRAINING

A. Engage a factory-authorized and trained service representative to train the Employer's

maintenance personnel on procedures and schedules for operating, adjusting,
troubleshooting, and servicing system.
1. Provide a minimum of eight hours' training in operation and maintenance.

B. Demonstrate full functionality of the system as specified to the acceptance of the

Engineer, DCA, and Authorities having jurisdiction.

3.8 ON-SITE ASSISTANCE

A. Occupancy Adjustments: When requested within 1 year of date of Substantial

Completion, provide on-site assistance in adjusting sound levels, controls, and
sensitivities to suit actual occupied conditions. Provide up to 3 requested visits to
Project site for this purpose.

END OF SECTION 16741

FIRE ALARM December 2014 16741-25

Fire

Analogue Sensors
DATA CAP320 / CAH330 / CAPT340
SHEET MAP820 / MAOH850 / MAH830
FXN723 / FXN722 / FXN725

Cooper offers a comprehensive range of analogue Benefits and Features

sensors that are compatible with: Cooper, Menvier and
JSB addressable control panels. > 360º degrees visual LED

The sensors in this range are suitable for most applications > CPD and third party approved to latest EN54 Pt 5 & Pt
giving a fastest response to slow burning or smouldering fires 7 and EN54 pt 17
which give rise to large visible smoke particles. The new
improved designs have dual PCB connectivity, are LPCB > Soft addressing
approved and CE marked.
> Built in short circuit isolator

> Chamber monitoring on all the opto & opto heat

sensors

> Drift compensation on all the opto & opto heat sensors

> Removable sensor chamber for cleaning

> Suitable for installation in ducts

> Compatible with all Cooper latest addressable panels

> Facility to pulse the LED during normal sensor

operation
Technical Specifications

Model CAP320 / MAP820 / FXN723 CAPT340 / MAOH850 / FXN722 CAH330 / MAH830 / FXN725
Description Analogue sensor - Analogue sensor - photo-themal Analogue sensor - heat
CPD approval 0832CPD0177 0832CPD0175 0832CPD0174
Standards EN54: Pt7; 2000 + A1:2002 EN54: Pt7; 2000 + A1:2002 EN54: Pt5; 2000 + A1:2002
EN54: Pt5; 2000 + A1:2002
Area coverage 100m² (subject to local standard) 50m² (subject to local standard)
System wiring Min. 1.5mm², 2 core loop or spur
Indication 360° visibility light pipe
Mounting base CAB300, MAB800, FXN720
Addressing mode auto address
Operating voltage 18 to 30 V dc
Max standby current 220μA
Max alarm current 5mA
Heat class
Rate of rise NA A2S A1R
Fixed 60ºC NA NA BS
Fixed 90ºC NA NA CS
Alarm temperature (static)
AIR NA 60ºC 60ºC
BS NA NA 77ºC
CS NA NA 90ºC
Environmental IP40. -20°C to 60°C IP40. -20°C to 50°C IP40. -20°C to 60°C
0 to 95% (non condensing) 0 to 95% (non condensing) 0 to 95% (non condensing)
Physical
Construction ABS
Colour White
Dimensions
Excluding base (Dia x H) 101mm x 33mm 101mm x 43mm 101mm x 43mm
Including base (Dia x H) 104mm x 45mm 104mm x 55mm 104mm x 55mm
Weight - excluding base 76g
Compatibility Analogue panels

Wiring Diagram - Standard Analogue Base

+VIN Remote Indicator

LED (Optional)

4 4
S+
Analogue addressable

Loop start
fire alarm panel

S- 3 3
Cooper

1 1
F-
Loop finish

F+ 2 2

- VE COM IN - VE COM OUT

Earth screen of cable to be continuous between detectors

Attention: If using the outer connection on terminal 2, ensure the operation of the switch
is not impeded and that there no shorts between terminal 2 and the switch contact.

Ensure that the cable does not short onto the contact

Product Codes
Analogue optical sensor CAP320 / MAP820 / FXN723
Analogue photo-themal sensor CAPT340 / MAOH850 / FXN722
Analogue heat sensor CAH330 / MAH830 / FXN725
Analogue standard base CAB300 / MAB800 / FXN720

Cooper Lighting and Safety

Wheatley Hall Road, Doncaster, South Yorkshire DN2 4NB
www.cooperfire.com
Sales Technical Export
T: +44 (0)1302 303 999 T: +44 (0)1302 303 350 T: +44 (0)1302 303 344
F: +44 (0)1302 303 333 F: +44 (0)1302 303 332 F: +44 (0)1302 303 345
E: sales@cooperfire.com E: techsupport@cooperfire.com E: export@cooperfire.com

DS0020a
Intelligent Addressable Product Range

Micro Single Channel Output Units

MCOM-R - Micro Single Channel Output Unit MCOM - Micro Single Channel Output Unit

Overview Features
An extensive range of micro interfaces are • Soft addressed
available to support the Cooper range of • Integral short circuit isolator
• Single address
control panels, providing solutions for most
• Non latching changeover
design requirements. relay contacts
• Suitable for switching low
The (MCOM) is a single output, soft addressed, volts control gear
micro interface, incorporating integral short • Optional variants:
circuit isolators. It is extremely compact and
MCOM-S therefore ideal for incorporation into other
- MCOM-R
- MCOM-S
MCOM-S - Micro Single Channel Output Unit equipment.

The (MCOM) is fully compatible with the current Benefits

range of Cooper intelligent addressable control
• Quick and simple to install
panels. It is suitable for switching low voltage
• No hard addressing required
(24V dc at 1A maximum), via a set of non
(Plug and play)
latching relay contacts. It is suitable for
• Compact size
switching HVAC control circuits, plant shutdown
control circuits, fire door closure etc.

Optional Variants

The (MCOM-R) gives a 5 second pulse on reset,

and is used for connecting/resetting beam
detectors.

The (MCOM-S) is identified by the panel as a

sounder, and does not reset on silence, resets
on reset only.

63
Intelligent Addressable Micro Single Channel Output Units

Dimensions Technical Specification

H (mm) W (mm) D (mm) Code MCOM

65 35 18.5 Description Micro Single Channel Output Unit

Standards EN54 Pt17 & Pt18
Specification
Operating Voltage 18V dc to 30V dc
D Quiescent Current 310µA
Output Relay
Switching Voltage 24V dc to 30V dc
H
W Contact Rating 1A
Switching Power 30 Watts
Environmental
Operating temperature -10ºC to +60ºC

Mounting Details Humidity (non condensing) 0 to 95% RH

Physical
Construction PC/ABS
Dimensions (H x W x D) 65mm x 35mm x 18.5mm
Weight 0.078kg
Ingress protection IP40
Compatibility
22mm

Suitable for use with Cooper Intelligent Addressable Fire Systems

Installation
1. Suitable for switching 24V dc control circuits
(fire door retainers etc).
37.5mm
2. Connections suitable for single strand
fireproof cable up to 2.5mm2.
3. Loop and output cable screen must be
connected to interface earth terminals.
4. The relay output is a set of change over,
non-latching, volt free contacts which are non
monitored.

Note: No addressing of the interface is required

(see control panel operation for details)

Standard Connections
N/O

N/C
LOOP IN
C

OUTPUT LOOP OUT

Product Codes
Code Description
MCOM Micro Single Channel Output Unit (recognised as output unit)
MCOM-S Micro Single Channel Output Unit (recognised as sounder)
MCOM-R Micro Single Channel Output Unit (5 second reset pulse)

64
 ‫‪2016-02-22 :‬‬‫ﺗﺎﺭﻳﺦ ﺍﻟﻄﺒﺎﻋﺔ‬ ‫ﻭﺯﺍﺭﺓ ﺍﻟﺪﺍﺧﻠﻴــــﺔ‬
‫ﻭﻗـﺖ ﺍﻟﻄﺒﺎﻋﺔ ‪8:17 :‬‬ ‫ﺍﻻﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﻪ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‬
‫ﺭﻗــﻢ ﺍﻟﻄﻠـﺐ ‪PAC16001617 :‬‬ ‫ﺇﺩﺍﺭﺓ ﺍﻟﻮﻗﺎﻳﺔ‬

‫ﺷﻬــــــﺎﺩﺓ ﻋﺪﻡ ﻣﻤﺎﻧﻌﺔ‬

‫ﺇﻋﺘﻤﺎﺩ ﻣﻨﺘﺞ‬ ‫ﻧﻮﻉ ﺍﻟﺸﻬﺎﺩﺓ ‪:‬‬
‫ﺑﻴﺎﻧﺎﺕ ﺍﻟﻤﻨﺸﺄﺓ‬
‫ﺍﻟﺒﻨﺪﺭﻱ ﻟﻤﻌﺪﺍﺕ ﺍﻻﻣﻦ ﻭﺍﻟﺴﻼﻣﺔ‬ ‫ﺍﻻﺳﻢ ﺍﻟﺘﺠﺎﺭﻱ‪:‬‬
‫‪85038‬‬ ‫ﺭﻗﻢ ﺍﻟﺮﺧﺼﺔ ﺍﻟﺘﺠﺎﺭﻳﺔ‪:‬‬ ‫‪54700‬‬ ‫ﺭﻗﻢ ﺍﻟﺴﺠﻞ ﺍﻟﺘﺠﺎﺭﻱ‪:‬‬
‫ﺭﻗﻢ ﺍﻟﻬﺎﺗﻒ‪:‬‬ ‫‪13-9778-00‬‬ ‫ﺭﻗﻢ ﻗﻴﺪ ﺍﻟﻤﻨﺸﺄﺓ‪:‬‬
‫ﺍﻟﺒﺮﻳﺪ ﺍﻹﻟﻜﺘﺮﻭﻧﻲ‪:‬‬
‫‪Fire alarm systems‬‬ ‫ﺍﻟﺘﺼﻨﻴﻒ ‪:‬‬
‫‪Control Unit, Accessories‬‬ ‫ﺇﺳﻢ ﺍﻟﻤﻨﺘﺞ ‪:‬‬
‫ﺗﻔﺎﺻﻴﻞ ﺍﻟﺸﻬﺎﺩﺓ‬
‫ﺗﻢ ﻣﺮﺍﺟﻌﺔ ﺍﻟﻄﻠﺐ ﺍﻟﻤﻘﺪﻡ ﻭﺍﺗﻀﺢ ﺑﺄﻧﻪ ﻻ ﻣﺎﻧﻊ ﻣﻦ ﺍﻋﺘﻤﺎﺩ ﺍﻟﻤﻨﺘﺞ ‪/‬ﺍﻟﻤﻨﺘﺠﺎﺕ ﺍﻟﻤﻮﺿﺤﻪ ﻓﻰ ﺍﻟﺘﻘﺮﻳﺮ ﺍﻟﻔﻨﻰ ﺍﻟﻤﺮﻓﻖ ﺑﻨﺎﺀ ﻋﻠﻰ ﺍﻋﺘﻤﺎﺩﻩ ﻣﻦ ﻗﺒﻞ ﺍﻟﻬﻴﺌﻪ‬
‫ﺍﻟﻤﺨﺘﺒﺮﻳﺔ ﺍﻟﻤﻮﺿﺤﻪ ﻓﻰ ﺍﻟﺘﻘﺮﺭ ﺍﻟﻔﻨﻲ ﺍﻟﻤﺮﻓﻖ ‪.‬‬
‫ﻣﻼﺣﻈﺎﺕ ‪:‬‬
‫‪-‬ﻳﺠﺐ ﻋﻠﻰ ﺍﻟﺸﺮﻛﻪ ﺍﻻﻟﺘﺰﺍﻡ ﻭﺍﻟﻌﻤﻞ ﺑﻤﺎ ﺟﺎﺀ ﻓﻲ ﺍﺷﺘﺮﺍﻃﺎﺕ ﻗﺴﻢ ﺃﻧﻈﻤﺔ ﺍﻟﺴﻼﻣﻪ ﺍﻟﺘﻲ ﺗﻢ ﺍﻻﻃﻼﻉ ﻭﺍﻟﻤﻮﺍﻓﻘﺔ ﻋﻠﻴﻬﺎ ﻣﻦ ﺧﻼﻝ ﺍﻟﻤﻮﻗﻊ ‪.‬‬
‫‪ -‬ﻳﺠﺐ ﺍﻥ ﻳﻘﻮﻡ ﺑﺘﺮﻛﻴﺐ ﻫﺬﺍ ﺍﻟﻤﻨﺘﺞ ﻣﻦ ﻗﺒﻞ ﻣﻬﻨﺪﺳﻴﻦ ﻭﻓﻨﻴﻴﻦ ﻣﻌﺘﻤﺪﻳﻦ ﻣﻦ ﺍﻹﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﺔ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‪.‬‬
‫‪ -‬ﻳﺠﺐ ﺍﻥ ﻳﺤﻤﻞ ﺍﻟﻤﻨﺘﺞ ﺍﻟﻌﻼﻣﺔ ﺍﻟﺘﺠﺎﺭﻳﺔ ﻟﻠﻬﻴﺌﻪ ﺍﻟﻤﺨﺘﺒﺮﻳﺔ ﺍﻟﻤﻌﺘﻤﺪﺓ ﻭﺍﻟﻤﻮﺿﺤﻪ ﻓﻲ ﺍﻟﺘﻘﺮﻳﺮ ﺍﻟﻔﻨﻲ ﺍﻟﻤﺮﻓﻖ ‪.‬‬
‫‪2018-02-21‬‬ ‫ﺗﺎﺭﻳﺦ ﺍﻹﻧﺘﻬﺎﺀ ‪:‬‬ ‫‪2016-02-22‬‬ ‫ﺗﺎﺭﻳﺦ ﺍﻻﻋﺘﻤﺎﺩ ‪:‬‬

‫ﻉ‪/‬‬

‫ﻣﺪﻳﺮ ﺇﺩﺍﺭﺓ ﺍﻟﻮﻗـﺎﻳـــــﺔ‬

‫ﺍﻹﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﺔ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‬
‫‪Page 1 of 2‬‬
 ‫ﺑﺴﻢ ﺍﻟﻠﻪ ﺍﻟﺮﺣﻤﻦ ﺍﻟﺮﺣﻴﻢ‬
DATE : 2016-02-22 : ‫ﺍﻟﺘﺎﺭﻳـــــــﺦ‬ ‫ﻭﺯﺍﺭﺓ ﺍﻟﺪﺍﺧﻠﻴﺔ‬
PERMIT # PAC16001617 : ‫ﺭﻗﻢ ﺍﻟﻄﻠﺐ‬ ‫ﺍﻹﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﺔ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‬
‫ﺇﺩﺍﺭﺓ ﺍﻟﻮﻗﺎﻳﺔ‬

TECHNICAL REPORT ‫ﺍﻟﺘﻘﺮﻳﺮ ﺍﻟﻔﻨﻲ‬

PRODUCT : Control Unit, Accessories : ‫ﺍﻟﻤﻨﺘﺞ‬

PRODUCT APPLICATION : Fire alarm systems : ‫ﺗﺼﻨﻴﻒ ﺍﻟﻤﻌﺪﺓ‬
APPLICANT / P.O .Box ‫ﺍﻟﺒﻨﺪﺭﻱ ﻟﻤﻌﺪﺍﺕ ﺍﻻﻣﻦ ﻭﺍﻟﺴﻼﻣﺔ‬ : ‫ﻣﻘﺪﻡ ﺍﻟﻄﻠﺐ‬
MANUFACTURER /
LOCATION :
Cooper Lighting & Safety Limited / U K :‫ ﺑﻠﺪ ﺍﻟﺼﻨﻊ‬/ ‫ﺍﻟﺸﺮﻛﺔ ﺍﻟﻤﺼﻨﻌﺔ‬

PRODUCT / MODEL : : ‫ﻗﺎﺋﻤﺔ ﺍﻟﻤﻨﺘﺠﺎﺕ‬

‫ﺍﻟﻮﺻﻒ‬ ‫ﺍﻟﻤﻮﺩﻳﻞ‬
Addressable Micro Single Channel
MCOM
Output Unit with Short-circuit Isolator.

3RD PARTY
‫ﺷﻬﺎﺩﺓ ﺍﻟﻤﺨﺘﺒﺮﺍﺕ ﺍﻟﻤﺴﺎﻧﺪﺓ‬
CERTIFICATE / - 0359-CPR-00242 - INTERTEK
: ( ‫)ﻣﻦ ﻫﻴﺌﺎﺕ ﻣﻌﺘﻤﺪﺓ‬
APPROVAL :

RECOMMENDATIONS ‫ﺍﻟﺘﻮﺻﻴﺎﺕ‬
"Notes: Meets the requirements of EN54-17:2005+AC:2007 and EN54-18:2005+AC:2007"

/‫ﻉ‬

‫ﻣﺪﻳﺮ ﺇﺩﺍﺭﺓ ﺍﻟﻮﻗـﺎﻳـــــﺔ‬

‫ﺍﻹﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﺔ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‬
Page 2 of 2
Intelligent Addressable Product Range

Micro Single Channel Input Units

MCIM - Micro Single Channel Input Unit

Overview Features
An extensive range of micro interfaces are • Soft addressed
available to support the Cooper range of • Integral short circuit isolator
• Single address
control panels, providing solutions for most
• Suitable for monitoring:
design requirements. - Flow switches
- Non fire inputs
The (MCIM) is a single input, soft addressed - Auxillary panels
micro interface, incorporating integral short • Up to 200 units per loop
circuit isolators. It is extremely compact and
therefore ideal for incorporation into other
equipment. Benefits
• Quick and simple to install
The (MCIM) is fully compatible with the current
• No hard addressing required
range of Cooper intelligent addressable fire
(Plug and play)
control panels. It is suitable for monitoring a set
• Compact size
of normally open, volt free contacts such as
• Programable by Cooper site
sprinkler system flow switches, auxiliary panel
installer software as
fire/fault signals as well as non fire input signals
technical input/non fire input
such as flow valve open contacts, generator
start up, fire door closed etc.

65
Intelligent Addressable Micro Single Channel Input Units

Dimensions Technical Specification

H (mm) W (mm) D (mm) Code MCIM

65 35 18.5 Description Micro Single Channel Input Unit

Standards EN54 Pt17 & Pt18
Specification
Operating Voltage 18V dc to 30V dc
D Quiescent Current 310µA
Inputs
Trigger Resistance 5K6Ω
H
W End of Line Resistor 22KΩ
Short Circuit Fault
Threshold Resistance 1KΩ
Open Circuit Fault

Mounting Details Threshold Resistance 33KΩ

Environmental
Operating temperature -10ºC to +60ºC
Humidity (non condensing) 0 to 95% RH
Physical
Construction PC/ABS
22mm

Dimensions (H x W x D) 65mm x 35mm x 18.5mm

Weight 0.078kg
Ingress protection IP40
Compatibility
Suitable for use with Cooper Intelligent Addressable Fire Systems

37.5mm
Installation
1. Inputs monitored for open and short circuit fault
conditions.
2. Suitable for monitoring normally open volt free
contacts (flow switches etc).
3. Connections suitable for single strand fireproof
cable up to 2.5mm2.
5. Loop and input cable screen must be connected
to interface earth terminals
6. The end of line monitoring resistor, must always be
fitted at the end of the input wiring, if the input is
unused the end of line resistor must be fitted at the
interface input terminals.

Note: No addressing of the interface is required

(see control panel operation for details)

Standard Connections
5K6
IN+

IN-
22K
EARTH LOOP IN

INPUT
LOOP OUT

Product Codes
Code Description
MCIM Micro Single Channel Input Unit

66
 ‫‪2016-02-22 :‬‬‫ﺗﺎﺭﻳﺦ ﺍﻟﻄﺒﺎﻋﺔ‬ ‫ﻭﺯﺍﺭﺓ ﺍﻟﺪﺍﺧﻠﻴــــﺔ‬
‫ﻭﻗـﺖ ﺍﻟﻄﺒﺎﻋﺔ ‪10:57 :‬‬ ‫ﺍﻻﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﻪ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‬
‫ﺭﻗــﻢ ﺍﻟﻄﻠـﺐ ‪PAC16001613 :‬‬ ‫ﺇﺩﺍﺭﺓ ﺍﻟﻮﻗﺎﻳﺔ‬

‫ﺷﻬــــــﺎﺩﺓ ﻋﺪﻡ ﻣﻤﺎﻧﻌﺔ‬

‫ﺇﻋﺘﻤﺎﺩ ﻣﻨﺘﺞ‬ ‫ﻧﻮﻉ ﺍﻟﺸﻬﺎﺩﺓ ‪:‬‬
‫ﺑﻴﺎﻧﺎﺕ ﺍﻟﻤﻨﺸﺄﺓ‬
‫ﺍﻟﺒﻨﺪﺭﻱ ﻟﻤﻌﺪﺍﺕ ﺍﻻﻣﻦ ﻭﺍﻟﺴﻼﻣﺔ‬ ‫ﺍﻻﺳﻢ ﺍﻟﺘﺠﺎﺭﻱ‪:‬‬
‫‪85038‬‬ ‫ﺭﻗﻢ ﺍﻟﺮﺧﺼﺔ ﺍﻟﺘﺠﺎﺭﻳﺔ‪:‬‬ ‫‪54700‬‬ ‫ﺭﻗﻢ ﺍﻟﺴﺠﻞ ﺍﻟﺘﺠﺎﺭﻱ‪:‬‬
‫ﺭﻗﻢ ﺍﻟﻬﺎﺗﻒ‪:‬‬ ‫‪13-9778-00‬‬ ‫ﺭﻗﻢ ﻗﻴﺪ ﺍﻟﻤﻨﺸﺄﺓ‪:‬‬
‫ﺍﻟﺒﺮﻳﺪ ﺍﻹﻟﻜﺘﺮﻭﻧﻲ‪:‬‬
‫‪Fire alarm systems‬‬ ‫ﺍﻟﺘﺼﻨﻴﻒ ‪:‬‬
‫‪Control Unit, Accessories‬‬ ‫ﺇﺳﻢ ﺍﻟﻤﻨﺘﺞ ‪:‬‬
‫ﺗﻔﺎﺻﻴﻞ ﺍﻟﺸﻬﺎﺩﺓ‬
‫ﺗﻢ ﻣﺮﺍﺟﻌﺔ ﺍﻟﻄﻠﺐ ﺍﻟﻤﻘﺪﻡ ﻭﺍﺗﻀﺢ ﺑﺄﻧﻪ ﻻ ﻣﺎﻧﻊ ﻣﻦ ﺍﻋﺘﻤﺎﺩ ﺍﻟﻤﻨﺘﺞ ‪/‬ﺍﻟﻤﻨﺘﺠﺎﺕ ﺍﻟﻤﻮﺿﺤﻪ ﻓﻰ ﺍﻟﺘﻘﺮﻳﺮ ﺍﻟﻔﻨﻰ ﺍﻟﻤﺮﻓﻖ ﺑﻨﺎﺀ ﻋﻠﻰ ﺍﻋﺘﻤﺎﺩﻩ ﻣﻦ ﻗﺒﻞ ﺍﻟﻬﻴﺌﻪ‬
‫ﺍﻟﻤﺨﺘﺒﺮﻳﺔ ﺍﻟﻤﻮﺿﺤﻪ ﻓﻰ ﺍﻟﺘﻘﺮﺭ ﺍﻟﻔﻨﻲ ﺍﻟﻤﺮﻓﻖ ‪.‬‬
‫ﻣﻼﺣﻈﺎﺕ ‪:‬‬
‫‪-‬ﻳﺠﺐ ﻋﻠﻰ ﺍﻟﺸﺮﻛﻪ ﺍﻻﻟﺘﺰﺍﻡ ﻭﺍﻟﻌﻤﻞ ﺑﻤﺎ ﺟﺎﺀ ﻓﻲ ﺍﺷﺘﺮﺍﻃﺎﺕ ﻗﺴﻢ ﺃﻧﻈﻤﺔ ﺍﻟﺴﻼﻣﻪ ﺍﻟﺘﻲ ﺗﻢ ﺍﻻﻃﻼﻉ ﻭﺍﻟﻤﻮﺍﻓﻘﺔ ﻋﻠﻴﻬﺎ ﻣﻦ ﺧﻼﻝ ﺍﻟﻤﻮﻗﻊ ‪.‬‬
‫‪ -‬ﻳﺠﺐ ﺍﻥ ﻳﻘﻮﻡ ﺑﺘﺮﻛﻴﺐ ﻫﺬﺍ ﺍﻟﻤﻨﺘﺞ ﻣﻦ ﻗﺒﻞ ﻣﻬﻨﺪﺳﻴﻦ ﻭﻓﻨﻴﻴﻦ ﻣﻌﺘﻤﺪﻳﻦ ﻣﻦ ﺍﻹﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﺔ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‪.‬‬
‫‪ -‬ﻳﺠﺐ ﺍﻥ ﻳﺤﻤﻞ ﺍﻟﻤﻨﺘﺞ ﺍﻟﻌﻼﻣﺔ ﺍﻟﺘﺠﺎﺭﻳﺔ ﻟﻠﻬﻴﺌﻪ ﺍﻟﻤﺨﺘﺒﺮﻳﺔ ﺍﻟﻤﻌﺘﻤﺪﺓ ﻭﺍﻟﻤﻮﺿﺤﻪ ﻓﻲ ﺍﻟﺘﻘﺮﻳﺮ ﺍﻟﻔﻨﻲ ﺍﻟﻤﺮﻓﻖ ‪.‬‬
‫‪2018-02-21‬‬ ‫ﺗﺎﺭﻳﺦ ﺍﻹﻧﺘﻬﺎﺀ ‪:‬‬ ‫‪2016-02-22‬‬ ‫ﺗﺎﺭﻳﺦ ﺍﻻﻋﺘﻤﺎﺩ ‪:‬‬

‫ﻉ‪/‬‬

‫ﻣﺪﻳﺮ ﺇﺩﺍﺭﺓ ﺍﻟﻮﻗـﺎﻳـــــﺔ‬

‫ﺍﻹﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﺔ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‬
‫‪Page 1 of 2‬‬
 ‫ﺑﺴﻢ ﺍﻟﻠﻪ ﺍﻟﺮﺣﻤﻦ ﺍﻟﺮﺣﻴﻢ‬
DATE : 2016-02-22 : ‫ﺍﻟﺘﺎﺭﻳـــــــﺦ‬ ‫ﻭﺯﺍﺭﺓ ﺍﻟﺪﺍﺧﻠﻴﺔ‬
PERMIT # PAC16001613 : ‫ﺭﻗﻢ ﺍﻟﻄﻠﺐ‬ ‫ﺍﻹﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﺔ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‬
‫ﺇﺩﺍﺭﺓ ﺍﻟﻮﻗﺎﻳﺔ‬

TECHNICAL REPORT ‫ﺍﻟﺘﻘﺮﻳﺮ ﺍﻟﻔﻨﻲ‬

PRODUCT : Control Unit, Accessories : ‫ﺍﻟﻤﻨﺘﺞ‬

PRODUCT APPLICATION : Fire alarm systems : ‫ﺗﺼﻨﻴﻒ ﺍﻟﻤﻌﺪﺓ‬
APPLICANT / P.O .Box ‫ﺍﻟﺒﻨﺪﺭﻱ ﻟﻤﻌﺪﺍﺕ ﺍﻻﻣﻦ ﻭﺍﻟﺴﻼﻣﺔ‬ : ‫ﻣﻘﺪﻡ ﺍﻟﻄﻠﺐ‬
MANUFACTURER /
LOCATION :
Cooper Lighting & Safety Limited / U K :‫ ﺑﻠﺪ ﺍﻟﺼﻨﻊ‬/ ‫ﺍﻟﺸﺮﻛﺔ ﺍﻟﻤﺼﻨﻌﺔ‬

PRODUCT / MODEL : : ‫ﻗﺎﺋﻤﺔ ﺍﻟﻤﻨﺘﺠﺎﺕ‬

‫ﺍﻟﻮﺻﻒ‬ ‫ﺍﻟﻤﻮﺩﻳﻞ‬
Addressable Micro Single Channel Input
MCIM
Unit with Short-circuit Isolator.

3RD PARTY
‫ﺷﻬﺎﺩﺓ ﺍﻟﻤﺨﺘﺒﺮﺍﺕ ﺍﻟﻤﺴﺎﻧﺪﺓ‬
CERTIFICATE / - 0359-CPR-00242 - INTERTEK
: ( ‫)ﻣﻦ ﻫﻴﺌﺎﺕ ﻣﻌﺘﻤﺪﺓ‬
APPROVAL :

RECOMMENDATIONS ‫ﺍﻟﺘﻮﺻﻴﺎﺕ‬
"Notes: Meets the requirements of EN54-17:2005+AC:2007 and EN54-18:2005+AC:2007"

/‫ﻉ‬

‫ﻣﺪﻳﺮ ﺇﺩﺍﺭﺓ ﺍﻟﻮﻗـﺎﻳـــــﺔ‬

‫ﺍﻹﺩﺍﺭﺓ ﺍﻟﻌﺎﻣﺔ ﻟﻠﺪﻓﺎﻉ ﺍﻟﻤﺪﻧﻲ‬
Page 2 of 2





6DPSOHBattery Calculation
