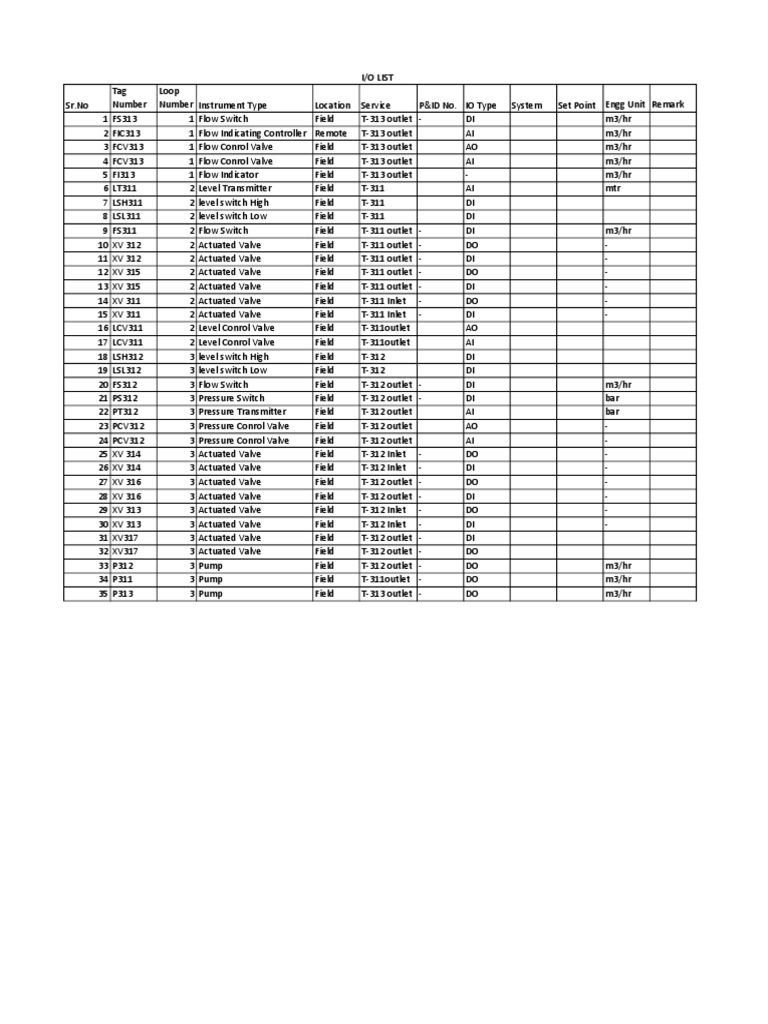

I/O LIST

Tag Loop
Sr.No Number Number Instrument Type Location Service P&ID No. IO Type System Set Point Engg Unit Remark
1 FS313 1 Flow Switch Field T-313 outlet - DI m3/hr
2 FIC313 1 Flow Indicating Controller Remote T-313 outlet AI m3/hr
3 FCV313 1 Flow Conrol Valve Field T-313 outlet AO m3/hr
4 FCV313 1 Flow Conrol Valve Field T-313 outlet AI m3/hr
5 FI313 1 Flow Indicator Field T-313 outlet - m3/hr
6 LT311 2 Level Transmitter Field T-311 AI mtr
7 LSH311 2 level switch High Field T-311 DI
8 LSL311 2 level switch Low Field T-311 DI
9 FS311 2 Flow Switch Field T-311 outlet - DI m3/hr
10 XV 312 2 Actuated Valve Field T-311 outlet - DO -
11 XV 312 2 Actuated Valve Field T-311 outlet - DI -
12 XV 315 2 Actuated Valve Field T-311 outlet - DO -
13 XV 315 2 Actuated Valve Field T-311 outlet - DI -
14 XV 311 2 Actuated Valve Field T-311 Inlet - DO -
15 XV 311 2 Actuated Valve Field T-311 Inlet - DI -
16 LCV311 2 Level Conrol Valve Field T-311outlet AO
17 LCV311 2 Level Conrol Valve Field T-311outlet AI
18 LSH312 3 level switch High Field T-312 DI
19 LSL312 3 level switch Low Field T-312 DI
20 FS312 3 Flow Switch Field T-312 outlet - DI m3/hr
21 PS312 3 Pressure Switch Field T-312 outlet - DI bar
22 PT312 3 Pressure Transmitter Field T-312 outlet AI bar
23 PCV312 3 Pressure Conrol Valve Field T-312 outlet AO -
24 PCV312 3 Pressure Conrol Valve Field T-312 outlet AI -
25 XV 314 3 Actuated Valve Field T-312 Inlet - DO -
26 XV 314 3 Actuated Valve Field T-312 Inlet - DI -
27 XV 316 3 Actuated Valve Field T-312 outlet - DO -
28 XV 316 3 Actuated Valve Field T-312 outlet - DI -
29 XV 313 3 Actuated Valve Field T-312 Inlet - DO -
30 XV 313 3 Actuated Valve Field T-312 Inlet - DI -
31 XV317 3 Actuated Valve Field T-312 outlet - DI
32 XV317 3 Actuated Valve Field T-312 outlet - DO
33 P312 3 Pump Field T-312 outlet - DO m3/hr
34 P311 3 Pump Field T-311outlet - DO m3/hr
35 P313 3 Pump Field T-313 outlet - DO m3/hr
