9.

4-1

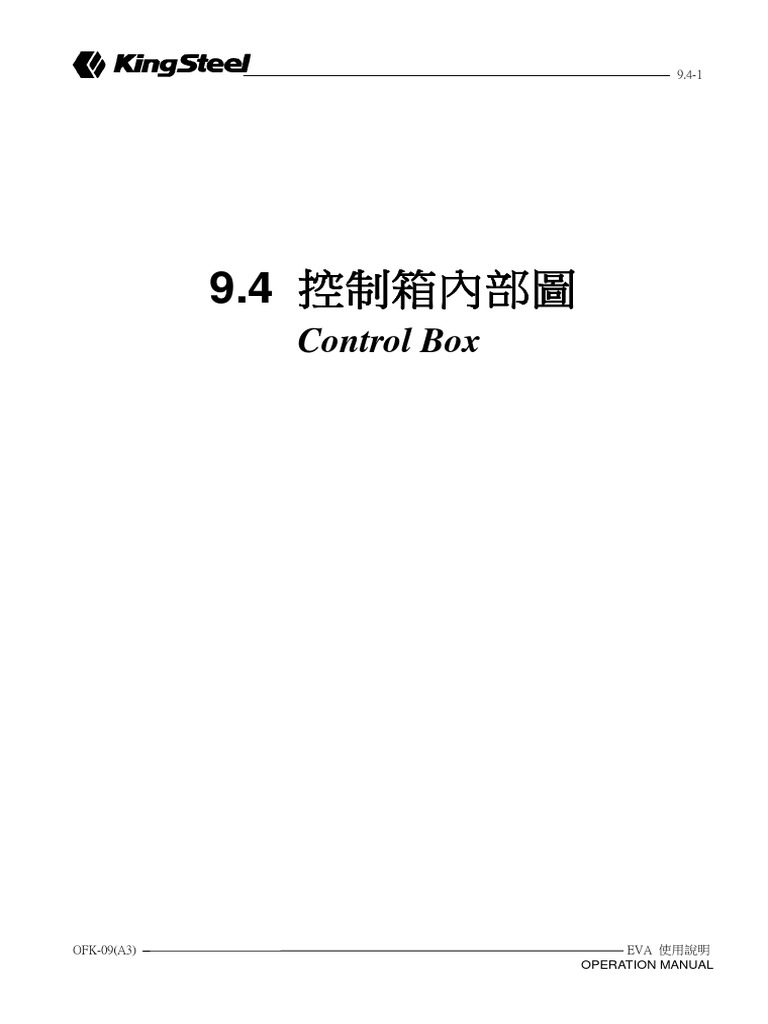

9.4 控制箱內部圖
Control Box

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-2

圖一 A區 B區 D區

C區

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-3
控制箱內部圖 CONTROL BOX
＜A 區＞
NO. 件 號 名 稱 備 註

1 貫通比流器
THOROUGHLY TRANSFEROR
2 NFBO/3P400A 總電源開關(無熔線斷路器)
MAIN POWER
3 NPB5/3P50A 料管電熱電源
INJECTORS HEATING
4 NPB6/2P100A 1.2 站電熱電源
1.2ST HEATING
5 NPB7/2P100A 3.4 站電熱電源
3.4ST HEATING
6 NPB8/2P100A 5.6 站電熱電源
5.6ST HEATING
7 NFB9/2P100A 7.8 站電熱電源
7.8ST HEATING
8 NFB10/2P100A 9.10 站電熱電源
9.10ST HEATING
9 NFB3/3P30A 吸料機電源
AUXPOWER
10 NFB1/3P20A 真空潤滑風扇電源
VACUUM POWER
11 NFB4/3P20A 380V/19V
380V/19V POWER
12 NFB2/3P10A 變頻器電源
INVERTOR POWER
13 MC6 料管加熱
INJECTOR HEATING
14 MC4 機器電源
OPERATION POWER
15 MC4 機器電源
OPERATION POWER
16 F200A:40A 總電源 DC24V
MAIN POWER DC24V
17 F01: 2A 電壓錶
VOLTAGE
18 F02: 6A 電腦電源
PC POWER
19 F03: 6A 電源 AC220V
AC220V POWER

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-4

20 F201: 10A 控制電源

CONTROL POWER
21 F202: 10A 操作電源
OPERATION POWER
22 F204: 2A 料管加溫系統
INJECTOR HEATING
23 F205: 6A 掃描電源
SCAINIG POWER
24 F243: 6A 射座 1.2 射出入料
INJECTORS LOADING

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-5

＜ A 區＞
3 4 5 6 7 8

9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-6
控制箱內部圖 CONTROL BOX
＜B 區＞
NO. 件 號 名 稱 備 註

1 MC7 模具加熱
MOLDS HEATING
2 MC7 模具加熱
MOLDS HEATING
3 MC7 模具加熱
MOLDS HEATING
4 MC7 模具加熱
MOLDS HEATING
5 MC7 模具加熱
MOLDS HEATING
6 MC7 模具加熱
MOLDS HEATING
7 MC7 模具加熱
MOLDS HEATING
8 MC7 模具加熱
MOLDS HEATING
9 MC7 模具加熱
MOLDS HEATING
10 MC7 模具加熱
MOLDS HEATING
11 F11:16A 料管一段
INJECTOR(1) TAIL ZONE
12 F12:16A 料管二段
INJECTOR(1) CENTER ZONE
13 F13:16A 料管三段
INJECTOR(1) HEAD ZONE
14 F14:16A 料管四段
INJECTOR(1) NOZZLE ZONE
15 F15:16A 料管一段
INJECTOR(2) TAIL ZONE
16 F16:16A 料管二段
INJECTOR(2) CENTER ZONE
17 F17:16A 料管三段
INJECTOR(2) HEAD ZONE
18 F18:16A 料管四段
INJECTOR(2) NOZZLE ZONE
19 F21:20A 1ST 上模左
1ST STATION UPPER MOLD(L)
20 F22:20A 1ST 上模右
1ST STATION UPPER MOLD(R)

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-7

21 F23:20A 1ST 下模左

1ST STATION LOWER MOLD(L)
22 F24:20A 1ST 下模右
1ST STATION LOWER MOLD(R)
23 F25:20A 2ND 上模左
2ND STATION UPPER MOLD(L)
24 F26:20A 2ND 上模右
2ND STATION UPPER MOLD(R)
25 F27:20A 2ND 下模左
2ND STATION LOWER MOLD(L)
26 F28:20A 2ND 下模右
2ND STATION LOWER MOLD(R)
27 F31:20A 3RD 上模左
3RD STATION UPPER MOLD(L)
28 F32:20A 3RD 上模右
3RD STATION UPPER MOLD(R)
29 F33:20A 3RD 下模左
3RD STATION LOWER MOLD(L)
30 F34:20A 3RD 下模右
3RD STATION LOWER MOLD(R)
31 F35:20A 4TH 上模左
4TH STATION UPPER MOLD(L)
32 F36:20A 4TH 上模右
4TH STATION UPPER MOLD(R)
33 F37:20A 4TH 下模左
4TH STATION LOWER MOLD(L)
34 F38:20A 4TH 下模右
4TH STATION LOWER MOLD(R)
35 F41:20A 5TH 上模左
5TH STATION UPPER MOLD(L)
36 F42:20A 5TH 上模右
5TH STATION UPPER MOLD(R)
37 F43:20A 5TH 下模左
5TH STATION LOWER MOLD(L)
38 F44:20A 5TH 下模右
5TH STATION LOWER MOLD(R)
39 F45:20A 6TH 上模左
6TH STATION UPPER MOLD(L)
40 F46:20A 6TH 上模右
6TH STATION UPPER MOLD(R)
41 F47:20A 6TH 下模左
6TH STATION LOWER MOLD(L)

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-8

42 F48:20A 6TH 下模右

6TH STATION LOWER MOLD(R)
43 F51:20A 7TH 上模左
7TH STATION UPPER MOLD(L)
44 F52:20A 7TH 上模右
7TH STATION UPPER MOLD(R)
45 F53:20A 7TH 下模左
7TH STATION LOWER MOLD(L)
46 F54:20A 7TH 下模右
7TH STATION LOWER MOLD(R)
47 F55:20A 8TH 上模左
8TH STATION UPPER MOLD(L)
48 F56:20A 8TH 上模右
8TH STATION UPPER MOLD(R)
49 F57:20A 8TH 下模左
8TH STATION LOWER MOLD(L)
50 F58:20A 8TH 下模右
8TH STATION LOWER MOLD(R)
51 F61:20A 9TH 上模左
9TH STATION UPPER MOLD(L)
52 F62:20A 9TH 上模右
9TH STATION UPPER MOLD(R)
53 F63:20A 9TH 下模左
9TH STATION LOWER MOLD(L)
54 F64:20A 9TH 下模右
9TH STATION LOWER MOLD(R)
55 F65:20A 10TH 上模左
10TH STATION UPPER MOLD(L)
56 F66:20A 10TH 上模右
10TH STATION UPPER MOLD(R)
57 F67:20A 10TH 下模左
10TH STATION LOWER MOLD(L)
58 F68:20A 10TH 下模右
10TH STATION LOWER MOLD(R)
59 D 射座位置尺電源
INJ. POTENTION METER
60 R1 機器電源控制
MACHINE POWER
61 R2 射座 1 幫浦
1ST INJECTOR PUMP
62 R3 射座 2 幫浦
1ST INJECTOR PUMP

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-9

63 R4 輔助幫浦轉
ANCILLARY PUMP
64 R5 液壓系統液位
OIL LEVEL
65 R7 循環啟動
CYCLE START
66 R8 油溫太低
OIL TEMP.LOW
67 R30 冷卻風扇 1
COOLING FAN1
68 R31 冷卻風扇 2
COOLING FAN2
69 R32 冷卻風扇 3
COOLING FAN3
70 R33 冷卻風扇 4
COOLING FAN4
71 R34 冷卻風扇 5
COOLING FAN5
72 R35 冷卻風扇 6
COOLING FAN6
73 R43 射座 1 入料
INJECTOR 1 LOADING
74 R47 射座 2 入料
INJECTOR 2 LOADING
75 R50 移座剎車
TRANSLATION BREAKING
76 R51 移座啟動
TRANSLATION ENABLING
77 R55 機器異常警報
ALARM

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-10

＜B 區＞
1 2 3 4 5 6 7 8 9 10

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58

59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-11
控制箱內部圖 CONTROL BOX
＜C 區＞
NO. 件 號 名 稱 備 註

1 MC5 真空泵浦
VACUUM PUMP
2 MC9 冷卻風扇 1
COOLING FAN1
3 MC10 冷卻風扇 2
COOLING FAN2
4 MC11 冷卻風扇 3
COOLING FAN3
5 MC12 冷卻風扇 4
COOLING FAN4
6 MC13 冷卻風扇 5
COOLING FAN5
7 MC14 冷卻風扇 6
COOLING FAN6
8 MC1 輔助幫浦馬達出線(U1 V1 W1)
ANCILLARY PUMP (U1 V1 W1)
9 MC2 射座 1 幫浦馬達出線(U2 V2 W2)
INJECTOR 1 PUMP (U2 V2 W2)
10 MC3 射座 2 幫浦馬達出線(U3 V3 W3)
INJECTOR 2 PUMP (U3 V3 W3)
11 RELAY PCB 射座&油壓控制繼電器
INJECTORS&HYDRULIX RELAYS
12 KS910UE2 PLC

13 CN-05 PLC

14 CN-06 PLC

15 CN-07 PLC

16 CN-08 PLC

17 CN-09 PLC

18 CN-10 PLC

19 CN-01 PLC

20 CN-02 PLC

21 CN-03 PLC

22 CN-04 PLC

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-12

23 AVR/UPS AC220V 電源
供 AVR/UPS(插頭)
POWER SUPPLY AC220V
FOR AVR/UPS
24 AVR/UPS AC220V 電源
供手提電腦(插頭)
POWER SUPPLY AC220V
FOR NOTE BOOK
25 PC 電源
POWER FOR PC
26 螢幕電源
POWER FOR MONITOR
27 變壓器( 380V 18.5V)
TRANSFORMER

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-13

＜C 區＞
1 2 3 4 5 6 7 11

13 14 15 16 17 18

8 9 10
12

19 20 21 22

23
24

25 26

27

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-14

控制箱內部圖 CONTROL BOX

＜D 區＞
NO. 件 號 名 稱 備 註

1 射座 1 壓力
INJECTOR 1 PRESSURE
2 射座 2 壓力
INJECTOR 2 PRESSURE
3 鎖模力
MOLD CLAMPING

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
 9.4-15

＜D 區＞

OFK-09(A3) EVA 使用說明

OPERATION MANUAL
