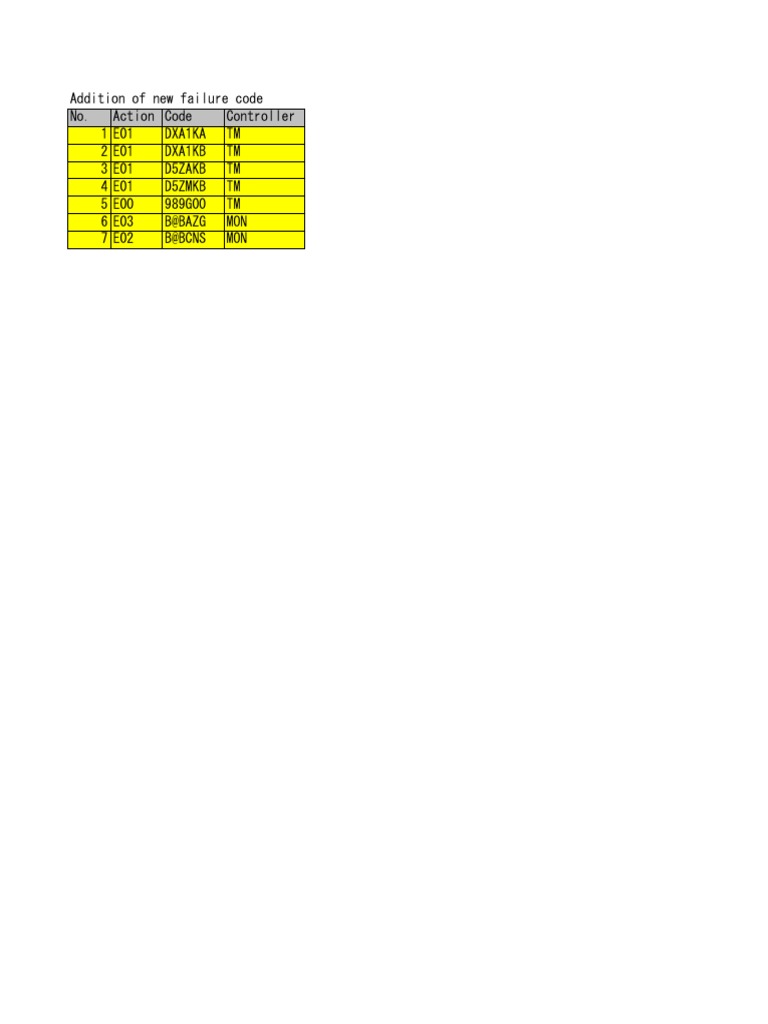

Addition of new failure code

No. Action Code Controller

1 E01 DXA1KA TM
2 E01 DXA1KB TM
3 E01 D5ZAKB TM
4 E01 D5ZMKB TM
5 E00 989G00 TM
6 E03 B@BAZG MON
7 E02 B@BCNS MON
Failure Function
Disconnection of the EPC solenoid system of a loader pump Control of EPC valve
Short-circuit of the EPC solenoid system of a loader pump Control of EPC valve
Short-circuit of the signal output system of low idling Control of shifting
Short-circuit of the output system of a droop signal Changing engine mode
Caution of a direction lever priority circuit Safety
The drop of engine oil pressure Engine lubrication
Overheat of engine water temperature Engine cooling
 ECM Fault Classification of Classification of Classification Status of an The failure history The failure history
No. Item Pin No. Code Code
Lump Color Buzzer a monitor message a KOMNET message of a calling error display of an electrical of an vehicle
Remarks

1 Engine Control Module – hardware Error - ENG C 111 Red ON --- D CALL Displaying ○ ---
2 Engine Speed Circuit - lost signal A 17 ENG C 115 Red ON --- D CALL Displaying ○ ---
3 Engine Position Sensor Circuit - lost signal A 9 ENG C 121 Yellow OFF --- A NO_CALL Displaying ○ ---
4 Boost Pressure Sensor Circuit - shorted high A 45 ENG C 122 Yellow OFF --- A NO_CALL Displaying ○ ---
5 Boost Pressure Sensor Circuit - shorted low A 45 ENG C 123 Yellow OFF --- A NO_CALL Displaying ○ ---
6 Throttle Position Sensor Circuit - shorted high B 30 ENG C 131 Red ON --- D CALL Displaying ○ ---
7 Throttle Position Sensor Circuit - shorted low B 30 ENG C 132 Red ON --- D CALL Displaying ○ ---
8 Engine Oil Pressure Sensor Circuit - shorted high A 33 ENG C 135 Yellow OFF --- A NO_CALL Displaying ○ ---
9 Engine Oil Pressure Sensor Circuit - shorted low A 33 ENG C 141 Yellow OFF --- A NO_CALL Displaying ○ ---
10 Engine Oil Pressure Low - Warning A 33 ENG C 143 Yellow OFF --- B NO_CALL Displaying --- ○
11 Engine Coolant Temperature Sensor Circuit - shorted high A 23 ENG C 144 Yellow OFF --- A NO_CALL Displaying ○ -
12 Engine Coolant Temperature Sensor Circuit - shorted low A 23 ENG C 145 Yellow OFF --- A NO_CALL Displaying ○ -
13 Engine Coolant Temperature High - Warning A 23 ENG C 146 Yellow OFF --- B NO_CALL Displaying - ○ 220ﾟF=104.4℃
A red lamp is turned on at 235
14 Engine Coolant Temperature High – Critical A 23 ENG C 151 Red ON --- C NO_CALL Displaying --- ○
degrees F = 112.8 degrees C.
15 Intake Manifold Temperature Sensor Circuit - shorted high A 34 ENG C 153 Yellow OFF --- A NO_CALL Displaying ○ ---
16 Intake Manifold Temperature Sensor Circuit - shorted low A 34 ENG C 154 Yellow OFF --- A NO_CALL Displaying ○ ---
17 Intake Manifold Temperature High - Critical A 34 ENG C 155 Red ON --- C NO_CALL Displaying --- ○
18 Engine Control Module Identification Input State Error - ENG C 184 Yellow OFF --- A NO_CALL Displaying ○ ---
19 Ambient Air Pressure Sensor Circuit – shorted high A 32 ENG C 221 Yellow OFF --- A NO_CALL Displaying ○ ---
20 Ambient Air Pressure Sensor Circuit – shorted low A 32 ENG C 222 Yellow OFF --- A NO_CALL Displaying ○ ---
21 Engine Over Speed - Critical A 17 ENG C 234 Red ON --- C NO_CALL Displaying --- ○ 3000rpm
22 Fuel Temperature Sensor Circuit - shorted high A 35 ENG C 263 Yellow OFF --- A NO_CALL Displaying ○ ---
23 Fuel Temperature Sensor Circuit - shorted low A 35 ENG C 265 Yellow OFF --- A NO_CALL Displaying ○ ---
24 Accumulator Fuel Pressure - data incorrect A 46 ENG C 268 Yellow OFF --- A NO_CALL Displaying ○ ---
25 Front Pumping Control Valve Circuit - shorted low A 21 ENG C 271 Yellow OFF --- A NO_CALL Displaying ○ ---
26 Front Pumping Control Valve Circuit - shorted high A 21 ENG C 272 Yellow OFF --- A NO_CALL Displaying ○ ---
27 Rear Pumping Control Valve Circuit - shorted low A 15 ENG C 273 Yellow OFF --- A NO_CALL Displaying ○ ---
28 Rear Pumping Control Valve Circuit - shorted high A 15 ENG C 274 Yellow OFF --- A NO_CALL Displaying ○ ---
SPN and FMI are the same at 275 and
29 Front Pumping Control Valve failure A 21 ENG C 275 Yellow OFF --- A NO_CALL Displaying ○ --- 281. It memorizes collectively and
transmits by 275.
30 Fuel Injection Control Valve Circuit - shorted high A 7 ENG C 276 Yellow OFF --- A NO_CALL Displaying ○ ---
31 Fuel Injection Control Valve - failure A 7 ENG C 277 Yellow OFF --- A NO_CALL Displaying ○ ---
32 Lift Pump Control Circuit - Error A 11 ENG C 278 Yellow OFF --- A NO_CALL Displaying ○ ---
33 Fuel Injection Control Valve Circuit - shorted low A 7 ENG C 279 Yellow OFF --- A NO_CALL Displaying ○ ---
34 Front Pumping Control Valve failure A 21 ENG C 281 Yellow OFF --- --- --- Displaying ○ ---
SPN and FMI are the same at 282 and
35 Rear Pumping Control Valve failure A 15 ENG C 282 Yellow OFF --- A NO_CALL Displaying ○ --- 328. It memorizes collectively and
transmits by 282.
SPN and FMI are the same at 283 and
36 Engine Speed Sensor Supply Voltage Circuit - shorted high A8 ENG C 283 Yellow OFF --- A NO_CALL Displaying ○ --- 387. It memorizes collectively and
transmits by 282.
SPN and FMI are the same at 284 and
37 Engine Speed Sensor Supply Voltage Circuit - shorted low A8 ENG C 284 Yellow OFF --- A NO_CALL Displaying ○ --- 443. It memorizes collectively and
transmits by 284.
38 Power to Real Time Clock - Interrupted - ENG C 319 Maintain ON --- D CALL Displaying ○ ---
SPN and FMI are the same at 282 and
39 Rear Pumping Control Valve failure A 15 ENG C 328 Yellow OFF --- --- --- --- ○ --- 328. It memorizes collectively and
transmits by 282.
40 CAPS Pump Over Pumping - ENG C 329 Yellow OFF --- A NO_CALL Displaying ○ ---
41 Engine Position Sensor Supply Voltage Circuit - shorted low A 10 ENG C 352 Yellow OFF --- A NO_CALL Displaying ○ ---
42 Intake Air Heater #1 Relay Enable Circuit - Error B 41 ENG C 381 Yellow OFF --- A NO_CALL Displaying ○ ---
43 Engine Position Sensor Supply Voltage Circuit - shorted high B 10 ENG C 386 Yellow OFF --- A NO_CALL Displaying ○ ---
SPN and FMI are the same at 283 and
44 Throttle Position Sensor Supply Voltage Circuit - shorted high B 29 ENG C 387 Yellow OFF --- A NO_CALL Displaying ○ --- 387. It memorizes collectively and
transmits by 282.
45 Engine Oil Pressure Low – Critical A 33 ENG C 415 Red ON --- D CALL Displaying --- ○
46 Boost Pressure - data incorrect A 45 ENG C 433 Yellow OFF --- A NO_CALL Displaying ○ ---
47 Power Lost without Ignition Off - ENG C 434 Yellow OFF --- A NO_CALL Displaying ○ ---
48 Battery Voltage Low - Warning A 38,39,
40,50 ENG C 441 Yellow OFF --- A NO_CALL Displaying ○ ---
38,39,
49 Battery Voltage High - Warning A 40,50 ENG C 442 Yellow OFF --- A NO_CALL Displaying ○ ---
SPN and FMI are the same at 284 and
50 Throttle Position Sensor Supply Voltage Circuit - shorted low B 29 ENG C 443 Yellow OFF --- A NO_CALL Displaying ○ --- 443. It memorizes collectively and
transmits by 284.
51 Accumulator Fuel Pressure High - Warning A 46 ENG C 449 Yellow OFF --- A NO_CALL Displaying ○ ---
52 Accumulator Fuel Pressure Sensor Circuit - shorted high A 46 ENG C 451 Yellow OFF --- A NO_CALL Displaying ○ ---
53 Accumulator Fuel Pressure Sensor Circuit - shorted low A 46 ENG C 452 Yellow OFF --- A NO_CALL Displaying ○ ---
54 Intake Manifold Temperature High – Warning A 34 ENG C 488 Yellow OFF --- B NO_CALL Displaying --- ○
55 Injection Control Valve　Identifier Circuit - Failure A 38 ENG C 493 - OFF --- --- NO_CALL Un-displaying ○ --- Slight loss of performance.
56 Alternate Droop Switch　- Error A 24 ENG C 524 Yellow OFF --- A NO_CALL Displaying ○ ---
57 Injector Control Valve Circuit - Open A 6 ENG C 539 Yellow OFF --- A NO_CALL Displaying ○ ---
58 Engine Hot Shutdown - ENG C 611 - OFF --- --- NO_CALL Un-displaying --- ○ No effect to performance.

Disposal when SPN and FMI are the same

Since distinction cannot do a monitor when SPN and FMI
are the same, although the Cummins codes differ
①It memorizes collectively in code of the direction
which is easy to detect, and transmission to KOMTRAX is
performed.

②When there is no significant difference, it transmits

by memorizing collectively in code of the smaller one.
 Action cord Caution Classification of Classification of Classification Status of an
Failure system Buzzer A demand to an operator
of monitor lamp monitor message KOMNET message of calling error display
When the 3rd figure A safe stop is carried out immediately,
Un-displaying ON ON --- D CALL Displaying
is except 2 and it checks or fixes.
Over-heat, Over-run Un-displaying ON ON --- C NO_CALL Displaying It avoids by engine half speed.
A safe stop is carried out immediately,
All Un-displaying ON ON --- D CALL Displaying
and it checks or fixes.
Mahine Un-displaying OFF OFF --- B NO_CALL Displaying It checks or fixes after an operation end.
Electrical Un-displaying OFF OFF --- A NO_CALL Displaying It checks or fixes after an operation end.
All Un-displaying OFF OFF --- - NO_CALL Un-displaying With no demand.
