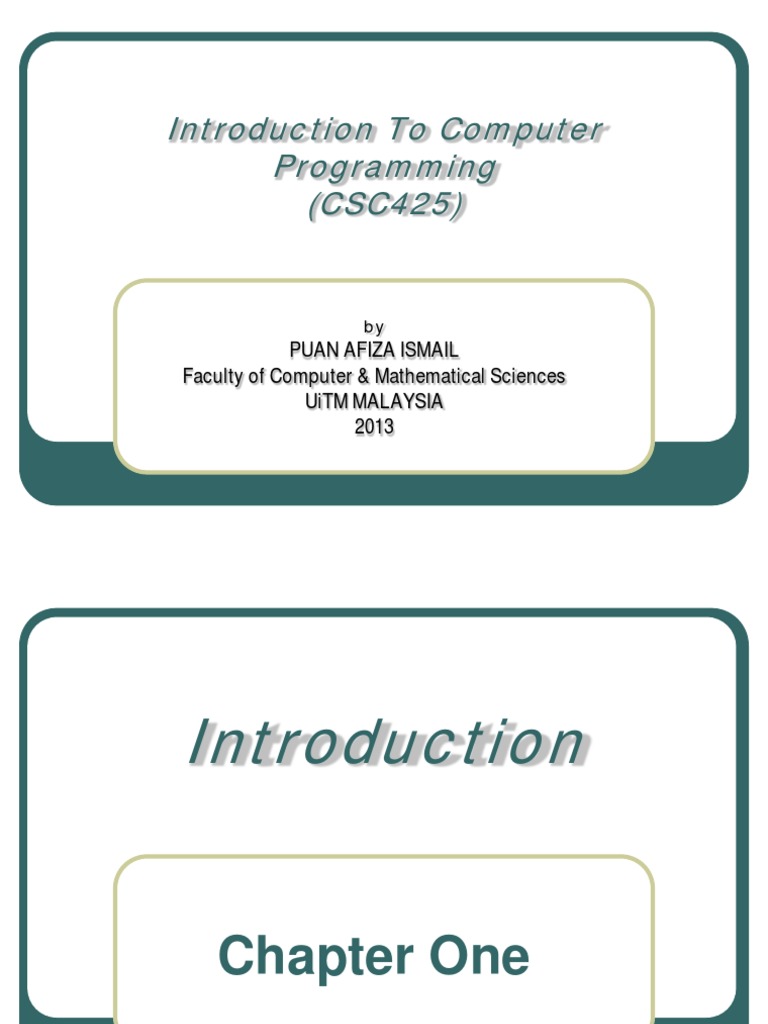

Computer Science Program Chapter 1

Introduction To Computer
Programming
(CSC425)
by
PUAN AFIZA ISMAIL
Faculty of Computer & Mathematical Sciences
UiTM MALAYSIA
2013
Introduction
Chapter One
Contents
 Basic Concept
 Program Development Process
 Program Control Structure
October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 3

PROGRAMMING
Basic Concept
 Computer Programming
 Program
 Programmer
 Programming Language
 Compiler
 Interpreter
 Interactive Programming Environment
 Algorithm

PROGRAMMING
Basic Concept
Reasons for studying Concepts of Programming Languages :
1. Increased capacity to express ideas and solve problems.

 Studying programming languages may increase the capacity
and ability of students to express their ideas in a formal,
computational form.
2. Increased ability to automate process

 Programs are built mainly so that simple, or even complicated
processes to be executed automatically.

PROGRAMMING
Basic Concept
 Computer programming
• Craft of developing a computer program.
• Require knowledge, skill and creativity.
• Both skill and knowledge in problem solving
and programming language.

PROGRAMMING
Basic Concept
 Computer program
• Hanly [2001], “List of instructions that direct
the computer to transform information from
one form to another.”
• Information refers to the contains of specific
memory location.
• It is written using programming language.

PROGRAMMING
Basic Concept
 Computer program
• Turn data (input) into useful information
(output).
• Program uses variables to store data
Input Program Output
Example
Storage

PROGRAMMING
Basic Concept
 Programming Language
• A set of rules, words and symbols are used to
write a computer program.
• Generation of Programming language
• Machine language
• Assembly language
• High Level language (Pascal, C, C++, Java etc)

PROGRAMMING
Basic Concept
 Machine Language
• Binary number codes understood by a
specific CPU.
 Assembly Language
• Mnemonic codes that correspond to machine
language instructions

PROGRAMMING
Basic Concept
 A Machine-language Program Fragment and Its
Assembly-Language Equivalent
Memory Address Machine-Language Assembly-Language
Instructions Instructions
00000000 00000000 CLA
00000001 00010101 ADD A
00000010 00010110 ADD B
00000011 00110101 STA A

PROGRAMMING
Basic Concept
 Type of High-level languages
Language Application Area Origin Name
FORTRAN Scientific Programming Formula Translation
COBOL Business data Processing Common Business-Oriented

Language
Lisp Artificial Intelligent List processing
C System Programming Predecessor Language was named B
Prolog Artificial Intelligent Logic Programming
C++ Support objects and object Incremental modification of C (++ is

oriented programming the C incremental operator)
Java Supports Web Programming Originally name “Oak”

PROGRAMMING
Basic Concept
 Compiler
• A program that translates a high-level language
program into machine language as a complete unit
 Interpreter
• A set of program that executes the instructions as they
were translated. Interpreter executes a program from
its high-level form.
 Interactive Development Environment (IDE)
• A program that provides user with an environment for
editing, debugging and compiling the source code the
program on- line.

PROGRAMMING
Basic Concept
 Source file
• A file containing a program written in a high-level
language; the input for the compiler
 Syntax
• Grammar rules of programming language
 Object file
• File of machine-language instructions that is the
output of a compiler
 Algorithm
• A precise step-by-step action to perform overall task of
the program.

PROGRAMMING
Basic Concept
 Compilation Process
Source File Compiler Object File
(Input) (Output)

PROGRAMMING
Program Development Process
 Computer programming is a process to
develop a computer program.
 5 steps:
1. Problem analysis,
2. Program design,
3. Coding,
4. Testing, and
5. Documentation.

PROGRAMMING
 Problem Analysis
• A process of identifying the output, processes and input of a
program.
• How to identify output?
• Nouns and adjectives
• Keywords – print, display, produce
• How to identify input?
• Nouns and adjectives
• Keywords – accept, enter, receive, read
• Define the storage (variable) and data type to hold data
• Outline the process
• Arithmetic or logic operation
• Input-Process-Output (IPO) chart as tool

PROGRAMMING
 Problem Analysis
• Evaluate the following problem statement and identify the input
and output.
Nation’s Air force has asked you to write a program to

label supersonic aircraft as military or civilian. Your
program is to be given the plane’s observed speed in
km/h and its estimated length in meters. For planes
traveling in excess of 1100km/h, you will label those
longer than 52 meters “civilian” and shorter aircraft
as “military”. For planes traveling at slower speeds,
you will issue an “aircraft type unknown” message.

PROGRAMMING
 Input-Process-Output (IPO) chart
INPUT PROCESSING OUTPUT
 speed  Validate the speed and  Classification
 length length Can be one if the
following values
• Speed >1100km/h AND Civilian

length > 52m
• Speed > 1100km/h AND Military
length <= 52m
• Speed <= 1100km/h Aircraft type unknown

PROGRAMMING
 Program Design
• Developing an algorithm
• Tools used for Program Design are:-
• Flow Chart
• Pseudo Code

PROGRAMMING
 Algorithm is a precise step-by-step
action to perform overall task of the
program.
 Can be represented either using
flowchart or pseudo-code

PROGRAMMING
 A set of symbols and edges used in flow chart:
Terminal (Begin and End) Condition/Evaluation
To represent the process
Direction
Input/Output Operation
Example

PROGRAMMING
 Flow chart
Begin
Read Speed
Read Length
False
Speed > 1100
True
False
Length > 52
Classification = “Aircraft Type Unknown”
True Classification = “Military”
Classification = “Civilian”
Display classification
End

PROGRAMMING
 Desk-Check the algorithm
Speed Length Classification
1170 35 ?
1180 56 ?
900 66 ?
800 34 ?

PROGRAMMING
 Coding
• Implement the flowchart or pseudo code into
specific programming language rules (syntax)
• Identify the storage requirement
• Compilation
• Error correction
• Syntax Error,
• Logic Error or
• Runtime Error Source Code

PROGRAMMING
 Testing
• Program must be freed from syntax error
• Use a set of test data to validate the output.
• Program must produce receive valid input and
produce correct output.
• Program must handle invalid input efficiently.
• Does the program accept out of range value?

PROGRAMMING
 Documentation
• User manual
• Program description
• capability, limitation, user guide

PROGRAMMING
Program Control Structure
 There are SIX basic operation:
1. Accept Input through keyboard or files
2. Produce Output and displayed it on screen
of file
3. Assign value to a storage
4. Perform arithmetic and logic
5. Make decision using selection statement
6. Repeat the same action

PROGRAMMING
 THREE types of control structure:
• Sequential Structure
• Selection Structure
• Iteration Structure (Repetition or loop)

PROGRAMMING
 Sequential Structure
• ALL statement(s) will be executed from top to bottom.
• Statement can be an input/output statement or a processing
statement.

PROGRAMMING
 Sequential Structure
Begin
Statement 1
Statement 2
Statement n
End

PROGRAMMING
 Sequential Structure (Flow Chart)
Begin
Read Number1,
Number2
Compute Total
Compute Average
Print Total
and Average
End

PROGRAMMING
 Selection Structure
• Provides alternative actions
• Only one action will be executed
 Three types:
• One-way Selection
• Two-way Selection
• Multi-way Selection

PROGRAMMING
 One-way Selection
• A set of statements will be executed if and only the
condition is TRUE.
 Two-way Selection
• Either one of two set of statements will be executed if
the condition is TRUE.
 Multi-way Selection
• Has more than one conditions and alternative set
statements.

PROGRAMMING
 One-way Selection (Flow Chart)

Begin
FALSE
Condition
TRUE
Statement (s)
End

PROGRAMMING
 One-way Selection (Example)
Begin
Read Score
FALSE
Score >= 50
TRUE
Status is “Passed”
End

PROGRAMMING
 Two-way Selection (Flow Chart)

Begin
FALSE
Condition
TRUE
Statement (s) Statement (s)
End

PROGRAMMING
 Two-way Selection (Example)
Begin
Read Score
FALSE
Score >= 50
TRUE
Status is “Passed” Status is “Failed”
End

PROGRAMMING
 Two-way Selection (Example)
Begin
Read Score
FALSE
Score >= 50
TRUE
Status is “Passed” Status is “Failed”
End

PROGRAMMING
 Multi-way Selection (Flow Chart)
Begin
FALSE
Condition 1
TRUE FALSE
Condition 2
Statement (s)
TRUE FALSE
Condition n
Statement (s)
TRUE
Statement (s) Statement (s)
End

PROGRAMMING
 Multi-way Selection (Example)

Begin
FALSE
code = ‘M’
TRUE FALSE
code = ‘F’
gender is “Male”
TRUE
gender is “Female” Status is “Unknown”
End

PROGRAMMING
 Iteration or loops
• Perform the same operation more than once
• A set of statements will be executed more
than once
• Example – Read 40 students’ score and
compute the total.
• Can be controlled either by counter or
sentinel value.

PROGRAMMING
 Counter Controlled loop flowchart:
Initialize counter
False
Test
True Exit loop

Statement(s)
update counter

PROGRAMMING
 The following flowchart illustrate the process of reading
five (5) numbers and calculate the total
count = 0
False
count < 5
True
exit loop
Read a
number
Add number to total
Count + 1

PROGRAMMING
 Sentinel Controlled loop flowchart:
False
Test
Sentinel value
True
Statement(s)
Exit loop

PROGRAMMING
 The following flowchart illustrate the process of reading a series
of students’ scores and compute the total score. The process
will stop if the value of score read is equal to 999.
Read score
False
Score <> 999?
True Exit loop
Add score to total
Read Score

PROGRAMMING
 What are the differences between
counter controlled loop and sentinel
controlled loop?

PROGRAMMING
Self Exercise
1. Write a flow chart to calculate and display an average of
three numbers using sequential design
2. Rewrite the above design, determine whether the average is
higher than 50 or not. Display the appropriate message for
each case.
3. Rewrite problem 1 using iteration any iteration approach.
4. Write a flow chart to calculate an average score of 20
students.
5. Write a flow chart to calculate an average of a series positive
numbers. The process will stop if number entered has a
negative value.
6. The cost to send a telegram to UK is RM15.50 for the first 15
letters and RM0.50 for the subsequent letters. Draw a
flowchart to calculate the cost of sending the telegram.

PROGRAMMING
References
 Jeri R. hanly, Essential C++ for Engineers and
Scientists, 2nd Edition, Addison Wesley
 J. Glenn Brookshear, Computer Science An Overview,
8th Edition, Pearson Addison Wesley

PROGRAMMING
Example 1
(Input – Process – Output)
Number1 (40) Calculate Total (70)

Number2 (30) total
Number1 [ 40 ]
Number2 [ 30 ]
Total [70 ]
Back

PROGRAMMING
Example 2 (Flow Chart)
Begin
Read two
numbers
Calculate Total
Print Total
Back
End

PROGRAMMING
Source Code
#include <iostream.h>
#include <string.h>
//program to classify the type of aircraft
main()
{
int speed, length;
char classfication[30];
cout << “Enter Observed speed : ”;

cin >> length;
cout << “Enter estimated length : ”;
cin >> length;
if (speed > 1100)

if (length > 52)
strcpy(classification,“civilian”);
else
strcpy(classification,“Military”);
else
strcpy(classification,“Aircraft type unknown”);
cout << “Classification is ” << classification << endl;
return 0;
}//end main() Back

PROGRAMMING

Computer Science Program Chapter 1

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Computer Science Program Chapter 1

Uploaded by

Copyright:

Available Formats

Introduction To Computer

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 3

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 4

1. Increased capacity to express ideas and solve problems.

2. Increased ability to automate process

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 5

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 6

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 7

Input Program Output

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 8

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 9

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 10

00000000 00000000 CLA

00000001 00010101 ADD A

00000010 00010110 ADD B

00000011 00110101 STA A

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 11

COBOL Business data Processing Common Business-Oriented

C System Programming Predecessor Language was named B

Prolog Artificial Intelligent Logic Programming

C++ Support objects and object Incremental modification of C (++ is

Java Supports Web Programming Originally name “Oak”

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 12

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 13

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 14

Source File Compiler Object File

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 15

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 16

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 17

Nation’s Air force has asked you to write a program to

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 18

• Speed >1100km/h AND Civilian

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 19

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 20

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 21

Terminal (Begin and End) Condition/Evaluation

To represent the process

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 22

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 23

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 24

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 25

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 26

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 27

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 28

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 29

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 30

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 31

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 32

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 33

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 34

 One-way Selection (Flow Chart)

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 35

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 36

 Two-way Selection (Flow Chart)

Statement (s) Statement (s)

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 37

Status is “Passed” Status is “Failed”

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 38

Status is “Passed” Status is “Failed”

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 39

Statement (s) Statement (s)

October 1, 2013 CSC425 : INTRODUCTION TO COMPUTER 40

 Multi-way Selection (Example)
