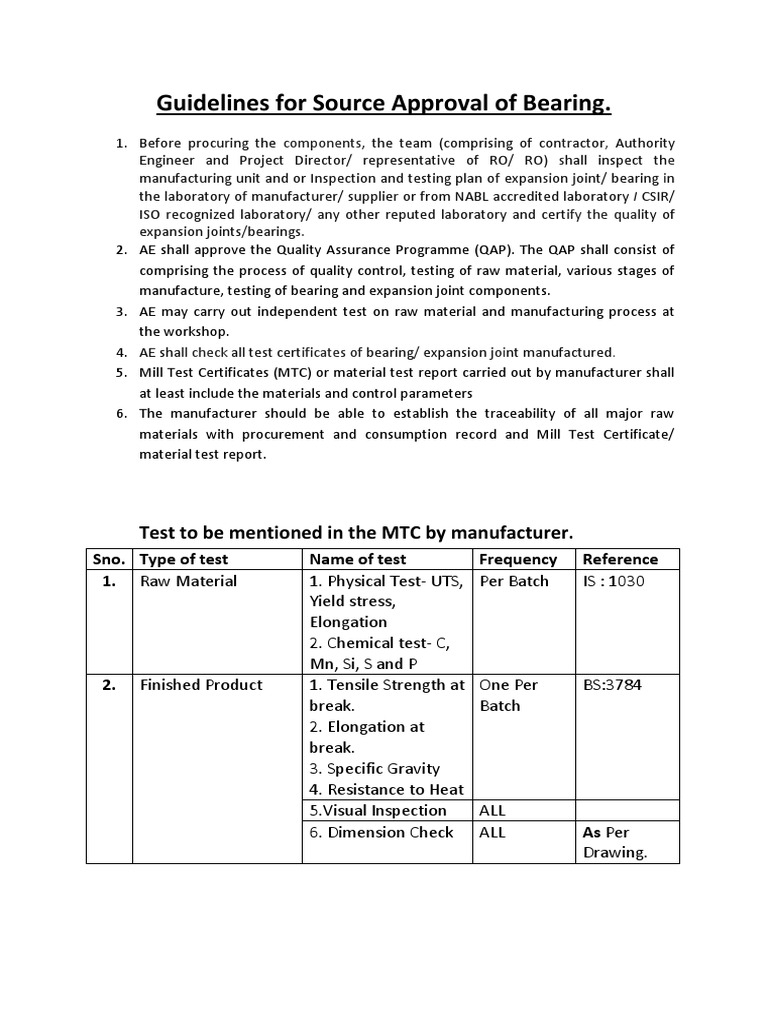

Guidelines for Source Approval of Bearing.
1. Before procuring the components, the team (comprising of contractor, Authority

Engineer and Project Director/ representative of RO/ RO) shall inspect the
manufacturing unit and or Inspection and testing plan of expansion joint/ bearing in
the laboratory of manufacturer/ supplier or from NABL accredited laboratory I CSIR/
ISO recognized laboratory/ any other reputed laboratory and certify the quality of
expansion joints/bearings.
2. AE shall approve the Quality Assurance Programme (QAP). The QAP shall consist of
comprising the process of quality control, testing of raw material, various stages of
manufacture, testing of bearing and expansion joint components.
3. AE may carry out independent test on raw material and manufacturing process at
the workshop.
4. AE shall check all test certificates of bearing/ expansion joint manufactured.
5. Mill Test Certificates (MTC) or material test report carried out by manufacturer shall
at least include the materials and control parameters
6. The manufacturer should be able to establish the traceability of all major raw
materials with procurement and consumption record and Mill Test Certificate/
material test report.
Test to be mentioned in the MTC by manufacturer.

Sno. Type of test Name of test Frequency Reference
1. Raw Material 1. Physical Test- UTS, Per Batch IS : 1030
Yield stress,
Elongation
2. Chemical test- C,
Mn, Si, S and P
2. Finished Product 1. Tensile Strength at One Per BS:3784
break. Batch
2. Elongation at
break.
3. Specific Gravity
4. Resistance to Heat
5.Visual Inspection ALL
6. Dimension Check ALL As Per
Drawing.
Guidelines for Source Approval of Expansion Joint.
1. Before procuring the components, the team (comprising of contractor, Authority
Engineer and Project Director/ representative of RO/ RO) shall inspect the
manufacturing unit and or Inspection and testing plan of expansion joint/ bearing in
the laboratory of manufacturer/ supplier or from NABL accredited laboratory I CSIR/
ISO recognized laboratory/ any other reputed laboratory and certify the quality of
expansion joints/bearings.
2. AE shall approve the Quality Assurance Programme (QAP). The QAP shall consist of
comprising the process of quality control, testing of raw material, various stages of
manufacture, testing of bearing and expansion joint components.
3. AE may carry out independent test on raw material and manufacturing process at
the workshop.
4. AE shall check all test certificates of bearing/ expansion joint manufactured.
5. Mill Test Certificates (MTC) or material test report carried out by manufacturer shall
at least include the materials and control parameters
6. The manufacturer should be able to establish the traceability of all major raw
materials with procurement and consumption record and Mill Test Certificate/
material test report.
Test to be mentioned in the MTC by manufacturer.

Sno. Type of test Name of Frequency Reference
Test
1. Properties of Chloroprene 1 Hardness One Per Lot
Seal 2 Tensile
strength
3 Elongation
2. Ponding Test One Per Lot IRC:SP 69
3. Cyclic Motion One Per Lot
4. Debris Expelling Test One Per Lot
5. Pull Out Test One Per Lot
Guidelines for Source Approval of Bitumen
1. The source of procurement of bitumen/ modified bitumen is always a concern from
the point of view of homogeneity and quality. As such, the bitumen/ modified
bitumen shall be procured from the refineries only.
2. The Supplier of the material shall have the BIS Certificate.
3. Before procuring the components, the AE shall inspect the manufacturing unit and
shall collect the sample which would be tested in Lab or from NABL accredited
laboratory I CSIR/ ISO recognized laboratory/ any other reputed laboratory and
certify the quality of Bitumen.
4. Material test Certificate (MTC) along with Third Party Test Report shall be included
with every lot which shall at least include the materials and control parameters as
per the relevant IS codes.
5. The Submitted Credentials should be of recent years.
Test to be mentioned in the MTC by manufacturer

Sno Tests Specification
1 Penetration at 25 c IS :73
2 Absolute viscosity at 60c IS : 73
3 Kinematic Viscosity at IS : 73
135 c
4 Flash Point IS : 73
5 Softing Point IS : 73
6 Test on residue from IS : 73

rolling
Ductility at 25 c
Viscosity Ratio at 60 C
Test to be mentioned in the Third Party Reports
Sno Tests Specification Frequency
1 Penetration at 25 c IS :73 Selection of samples
Random and No. of
2 Absolute viscosity at 60c IS : 73 samples depends upon
Lot size.
135 c
4 Flash Point IS : 73
6 Test on residue from IS : 73

rolling
Ductility at 25 c
Viscosity Ratio at 60 C
Test to be Conducted in Lab

1 Penetration at 25 c IS :73 Selection of samples
Random and No. of
2 Absolute viscosity at 60c IS : 73 samples depends upon
Lot size.
135 c
Guidelines for Source Approval of Steel
1. Before procuring the components, the AE shall inspect the manufacturing process.
2. Every Consignment Bought to the site shall be supported with MTC which shall
include chemical and Physical properties from NABL approved lab and conform to
specifications laid in relevant IS Codes.
3. The field test of individual batch/lot to be carried out before allowing the material /
product to be used.
4. Only fresh material to be supplied to the site.
5. AE may carry out occasional checks through Third Party, in case any Doubt regarding
the quality of steel.
6. All relevant ISO Certificates shall be included in credentials submitted by the
contractor.

Physical Properties
1 0.2 Proof Stress IS : 1786 For Steel dia. Below
10mm:– 1 sample for
2 Elongation IS : 1786 each 25 tons
For Steel dia. B/w
3 Tensile Strength IS : 1786I 10mm-16mm: - 1
sample for 35 tons.
4 Bend Test IS : 1786 For Steel Dia. Above
16mm :- 1 sample for
5 Re Bend Test IS : 1786 each 45 tons
Chemical Properties
1 Carbon IS : 1786 For Steel dia. Below

2 Sulphur IS : 1786 each 25 tons
For Steel dia. B/w
3 Phosphorous IS : 1786 10mm-16mm: - 1
sample for 35 tons.
For Steel Dia. Above
each 45 tons
Test to be mentioned in the Third Party Test
Physical Properties
1 0.2 Proof Stress IS : 1786 For Steel dia. Below
2 Elongation IS : 1786 each 25 tons
For Steel dia. B/w
3 Tensile Strength IS : 1786I 10mm-16mm: - 1
sample for 35 tons.
4 Bend Test IS : 1786 For Steel Dia. Above
5 Re Bend Test IS : 1786 each 45 tons
Chemical Properties
1 Carbon IS : 1786 For Steel dia. Below

2 Sulphur IS : 1786 each 25 tons
For Steel dia. B/w
3 Phosphorous IS : 1786 10mm-16mm: - 1
sample for 35 tons.
For Steel Dia. Above
each 45 tons
Guidelines for Source Approval of Cement
1. Before procuring the materials, the AE shall inspect the manufacturing process.
3. The field test of individual batch/lot to be carried out before allowing the material /
product to be used.
the quality of cement.
6. All relevant ISO and BIS Certificates shall be included in credentials submitted by the
contractor.

Physical Properties
1 Fineness IS : 4031(2) 1 Sample per Lot
2 Soundness IS : 4031(3)
3 Setting Time IS : 4031(5)
4 Compressive Strength IS : 4031(6)

5 Consistency IS : 4031(4)
Chemical Properties
1 Loss of ignition IS : 4032 1 Sample per Lot
2 Magnesium Oxide IS : 4032

3 Insoluble Residue IS : 4032
4 Chlorides IS : 4032
5 Iron oxide IS : 4032
6 Calcium Oxide IS : 4032
7 Silica IS : 4032
8 Alumina IS : 4032
Physical Properties
1 Fineness IS : 4031(2) 1 Sample per Each
Source of Supply
2 Soundness IS : 4031(3)
4 Compressive Strength IS : 4031(6)

5 Consistency IS : 4031(4)
Chemical Properties
1 Loss of ignition IS : 4032 1 Sample per Each
Source of Supply
2 Magnesium Oxide IS : 4032
3 Insoluble Residue IS : 4032
4 Chlorides IS : 4032
5 Iron oxide IS : 4032
6 Calcium Oxide IS : 4032
7 Silica IS : 4032
8 Alumina IS : 4032
Test to be conducted in Lab

1 Compressive Strength IS : 4031(6) 1 Sample per Each Source
of Supply
Guidelines for Source Approval of MBCB
1. Company profile or any relevant ISO accreditations and certifications to be
attached. Also, Purchase orders of last 1 year and source approvals letters for supply
of materials
2. MTC for the raw material and finished products (Physical, Chemical and Mechanical)
Conforming to MoRTH and relevant IS codes shall be attached.
3. Third Party test reports comprising of physical, chemical and mechanical properties
of Beams shall be submitted from NABL accredited laboratory.
4. The manufacturer or the contractor shall demonstrate the compliance of these
requirements by submission of videos of actual crash testing along with
authenticated crash test reports. The crash tests must have been conducted in
accredited crash test laboratories/ institutions.
5. Factory Visits for the IE shall be arranged to inspect the manufacturing unit and
testing.
Physical Properties
1 Crash Test EN : 1317-2
2 Tensile Strength IS : 2062 1 Test per Lot
3 Yield Strength IS : 2062 1 Test per Lot
4 Elongation IS : 2062 1 Test per Lot

5 Bend Test IS : 2062 1 Test per Lot
6 Galvanization IS : 4826 1 Test per Lot
Chemical Properties
1 Calcium IS : 2062 1 Test per Lot
2 Manganese IS : 2062 1 Test per Lot

3 Sulphur IS : 2062 1 Test per Lot
4 Phosporous IS : 2062 1 Test per Lot
5 Silica IS : 2062 1 Test per Lot
6 Carbon Equivalent IS : 2062 1 Test per Lot
Physical Properties
1 Tensile Strength IS : 2062 1 Test per Lot
2 Yield Strength IS : 2062 1 Test per Lot
3 Elongation IS : 2062 1 Test per Lot

4 Bend Test IS : 2062 1 Test per Lot
5 Galvanization IS : 4826 1 Test per Lot
Chemical Properties
1 Calcium IS : 2062 1 Test per Lot
2 Manganese IS : 2062 1 Test per Lot

3 Sulphur IS : 2062 1 Test per Lot
4 Phosporous IS : 2062 1 Test per Lot
5 Silica IS : 2062 1 Test per Lot
6 Carbon Equivalent IS : 2062 1 Test per Lot
Guidelines for Source Approval of Chemical
Admixtures
include chemical and Physical properties.
2. Admixtures samples shall be sent to the NABL approved lab and conform to
3. Before using the material , Trial mix should be conducted and shall be confirmed by
using and satisfy the compatibility requirement.
contractor.
7. Any consignment which does not conform to the specification to the prescribed test
shall be rejected , no retesting shall be done .
Physical Properties
1 Physical state IS : 9103 1 Test per Batch
2 Dry Material Content IS : 9103
3 Ash Content IS : 9103
4 Relative Density IS : 9103
5 Chloride Ion Content IS : 9103
6 pH IS : 9103

Physical Properties
1 Physical state IS : 9103 1 Test per Batch
3 Ash Content IS : 9103
5 Chloride Ion Content IS : 9103
6 pH IS : 9103
Test to be conducted at Site
Physical Properties
1 Physical state IS : 9103 1 Test per Batch.
4 pH IS : 9103
Guidelines for Source Approval of Mineral Admixtures
include chemical and Physical properties.
2. Admixtures samples shall be sent to the NABL approved lab and conform to
3. Before using the material , Trial mix should be conducted and shall be confirmed by
using and satisfy the compatibility requirement.
contractor.
7. Any consignment which does not conform to the specification to the prescribed test
shall be rejected , no retesting shall be done .
Chemical Properties
1 Sio2 IS:15388 2 sample per 100 tons
2 Moisture IS:15388
3 Loss of Ignition IS:15388
4 Alkalies IS:15388
Physical Properties
1 Specific Surface IS:15388 2 sample per 100 tons
2 Oversize percent IS:15388

retained on 45 microns
3 Compressive Strength IS:15388
4 Bulk Density IS:15388
Test to be mentioned in the Third Party
Chemical Properties
1 Sio2 IS:15388 2 sample per 100 tons
And 1 Sample
2 Moisture IS:15388 thereafter or part
thereof.
3 Loss of Ignition IS:15388
4 Alkalies IS:15388
Physical Properties
And 1 sample
2 Oversize percent IS:15388 thereafter or part
retained on 45 microns thereof
Test to be conducted on Site

Physical Properties
And 1 sample
2 Oversize percent IS:15388 thereafter or part
retained on 45 microns thereof
Guidelines for Source Approval of Road Signs
1. Company profile or any relevant ISO accreditations and certifications to be attached.
Also, Purchase orders of last 1 year and source approvals letters for supply of
materials
2. MTC for the products Conforming to MoRTH, IRC 67 and ASTM shall be attached.
3. Third Party test reports shall be submitted from NABL accredited laboratory.
testing.
5. Concessionaire shall obtain from the manufacturer a ten-year warranty for
satisfactory field performance including stipulated retro-reflectance of the retro-
reflective sheeting of micro- prismatic sheeting and a seven-year warranty for high
intensity grade and submit the same to the Independent Engineer.
Test to be mentioned in the Third Party
Mechanical Test For Aluminium Composite Sheet
Specs for 4MM

Sno. Description AND 3MM Frequency
1 Peel off Strength ASTM D 903
2 Tensile Strength ASTM E 638
3 0.2% Proof Strength ASTM E 638
4 Elongation ASTM E 638
5 Flexural Strength ASTM C 393
Test For Retro Reflective Sheeting

Sno. Observation Entrance Angle Specification Frequency
Angle(Degrees)
1 .1° -4º ASTM D 4956 1 Test per Lot
2 0.1° +30º ASTM D 4956 1 Test per Lot
3 0.2º -4º ASTM D 4956 1 Test per Lot

4 0.2º +30º ASTM D 4956 1 Test per Lot
5 0.5º -4º ASTM D 4956 1 Test per Lot
6 0.5º +30º ASTM D 4956 1 Test per Lot
7 1º -4º ASTM D 4956 1 Test per Lot
8 1º +30º ASTM D 4956 1 Test per Lot
Guidelines for Source Approval of Hume Pipe
Physical Properties
1 Size IS:458 Depending Upon the
no. of Size of lot
2 Length IS:458 Upto 50 :- 8 sample
51-100 :- 13 sample
3 Thickness IS:458 101-300 :- 20 sample
301-500 : - 32 sample
4 Hydrostatic Test IS:458 501 and above:- 50
5 Permeability Test IS:458 sample
6 Three Edge Bearing Test IS:458
Test to be conducted on Site

Physical Properties
1 Size IS:458 Depending Upon the
no. of Size of lot
2 Length IS:458 Upto 50 :- 8 sample
51-100 :- 13 sample
3 Thickness IS:458 101-300 :- 20 sample
301-500 : - 32 sample
501 and above:- 50
sample
Guidelines for Source Approval of Road Paint
2. Only fresh material sto be supplied to the site.
the quality of Paint
contractor.

Chemical Properties
1 Binder Content MoRTH- 1 Test per Lot
2 Glass Beads 803.4 and 1 Test per Lot
3 Titanium Dioxide Table 800-9 1 Test per Lot
4 Calcium Carbonate and 1 Test per Lot
Inert Fillers
Physical Properties
1 Luminance MoRTH- 1 Test per Lot
803.4 and
2 Drying Time Table 800-9 1 Test per Lot
3 Skid Resistance 1 Test per Lot
4 Cracking Resistance 1 Test per Lot
5 Softening Point 1 Test per Lot
6 Yellowness Index 1 Test per Lot
Guidelines for Source Approval of Geocells/Geonets.
of materials
testing.
Physical Properties
1 Density Morth-700-12 1 Test per Lot
2 Environmental stress Morth-700-12 1 Test per Lot
Crack Resistance
3 Carbon Black Content Morth-700-12 1 Test per Lot
4 Cell wall Thickness Morth-700-12 1 Test per Lot
5 Peel Strength thickness Morth-700-12 1 Test per Lot
6 Creep Rupture Strength Morth-700-12 1 Test per Lot
Guidelines for Source Approval of Geosynthetic Mats.
of materials
testing.
Physical Properties
1 Grab Strength Morth-700-1 1 Test per Lot
2 Tear Strength Morth-700-1 1 Test per Lot
3 Puncture Strength Morth-700-1 1 Test per Lot
4 Burst Strength Morth-700-1 1 Test per Lot
Guidelines for Source Approval of
Geostraps/Geocells/Geonets (For Soil
Reinforcements).
of materials
testing.
Physical Properties
1 Elongation ASTM D 6637 At least 300mm in
length per Lot
2 Ultimate Tensile Strength ASTM D 6637 At least 300mm in
length per Lot
Guidelines for Source Approval of HT Strands(For
Prestressing).
materials
testing.

1 Tensile Strength IS:14268,6006 1 sample for every 5
Coils
2 Breaking Strength IS:14268,6006
3 0.2% Proof load IS:14268,6006
4 Elongation IS:14268,6006
5 Modulus of Elasticity IS:14268,6006
6 Chemical Composition IS:14268,6006

Guidelines for Source Approval of HDPE Ducts(For
Prestressing).
materials
testing.

1 Tensile Strength IS:14268,6006 1 sample for every 5
Coils
2 Breaking Strength IS:14268,6006
3 0.2% Proof load IS:14268,6006
4 Elongation IS:14268,6006
5 Modulus of Elasticity IS:14268,6006
6 Chemical Composition IS:14268,6006

Guidelines for Source Approval of Highway lighting
and Poles.
1. For Electrical Poles
1.1. Company profile or any relevant ISO accreditations and certifications to be
attached. Also, Purchase orders of last 1 year and source approvals letters for
supply of materials
1.2. MTC for the raw material and finished products (Physical, Chemical and Mechanical)
1.3. MTC comprising of physical mechanical and galvanizing properties of Poles shall be
submitted .
1.4. Factory Visits for the IE shall be arranged to inspect the manufacturing unit and
testing.
Sno Tests Specification
Physical Properties
1 Tensile Test IS 2713-1
2 Deflection Test IS 2713-1
3 Permanent Set Test IS 2713-1
4 Drop Test IS 2713-1
Galvanization Properties
1 Visual Test IS : 2629:1985
2 Uniformity in Thickness IS : 2629:1985
3 Adhesion Test(Knife Test) IS : 2629:1985

4 Pivoted Hammer test IS : 2629:1985
2. For Electrical Lightings.
2.1. Copy of valid BIS certification marks Licence, if the product carries BIS certification
mark
2.2. Document relating to BEE approval for star rating label.
2.3. Type test report in original from a NABL accredited testing laboratory as per IS
16107 (Part 2/Sec 2).
2.4. Copy of test certificates of important raw materials and components, wherever
applicable.
2.5. Copy of valid NABL certificate of accreditation of manufacturer’s lab and
independent lab.
2.6. Warranty certificate for guarantee of performance of minimum as prescribed by
EESL.

1 Resistance to Dust and IS:10322-5-3 1 Test per Lot
Moisture.
2 Resistance to Heat and IS:10322-5-3 1 Test per Lot
Fire.
3 Resistance to Corrosion IS:10322-5-3 1 Test per Lot
4 Luminaire Efficacy IS:16107-2-2 1 Test per Lot
5 Color Rendering IS:10322-5-3 1 Test per Lot

Index(CRI)
6 Correlated Color IS:10322-5-3 1 Test per Lot
Temperature(CCT)
7 Marking IS:10322-5-3 1 Test per Lot
8 Total Power Input IS:16103-2 1 Test per Lot

9 Luminous Flux IS:16103-2 1 Test per Lot
10 Photometric Test IS:10322-5-3 1 Test per Lot
11 Protection Against IS:10322-5-3 1 Test per Lot
Electric Shock
12 Creepage Distance and IS:10322-5-3 1 Test per Lot
clearances
13 Provisions For Earthing IS:10322-5-3 1 Test per Lot

Guidelines For Source Approval

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Guidelines For Source Approval

Uploaded by

Copyright:

Available Formats

Guidelines for Source Approval of Bearing.

1. Before procuring the components, the team (comprising of contractor, Authority

Test to be mentioned in the MTC by manufacturer.

Test to be mentioned in the MTC by manufacturer.

Test to be mentioned in the MTC by manufacturer

2 Absolute viscosity at 60c IS : 73

6 Test on residue from IS : 73

6 Test on residue from IS : 73

Test to be Conducted in Lab

Test to be mentioned in the MTC by manufacturer

1 Carbon IS : 1786 For Steel dia. Below

1 Carbon IS : 1786 For Steel dia. Below

Test to be mentioned in the MTC by manufacturer

3 Setting Time IS : 4031(5)

4 Compressive Strength IS : 4031(6)

2 Magnesium Oxide IS : 4032

3 Setting Time IS : 4031(5)

4 Compressive Strength IS : 4031(6)

Test to be conducted in Lab

2 Tensile Strength IS : 2062 1 Test per Lot

3 Yield Strength IS : 2062 1 Test per Lot

4 Elongation IS : 2062 1 Test per Lot

2 Manganese IS : 2062 1 Test per Lot

2 Yield Strength IS : 2062 1 Test per Lot

3 Elongation IS : 2062 1 Test per Lot

2 Manganese IS : 2062 1 Test per Lot

Test to be mentioned in the Third Party Test

3 Loss of Ignition IS:15388

2 Oversize percent IS:15388

Test to be conducted on Site

Mechanical Test For Aluminium Composite Sheet

Specs for 4MM

Test For Retro Reflective Sheeting

2 0.1° +30º ASTM D 4956 1 Test per Lot

3 0.2º -4º ASTM D 4956 1 Test per Lot

6 Three Edge Bearing Test IS:458

Test to be conducted on Site

Sno Tests Specification Frequency

Sno Tests Specification Frequency

3 0.2% Proof load IS:14268,6006

5 Modulus of Elasticity IS:14268,6006

6 Chemical Composition IS:14268,6006

Sno Tests Specification Frequency

3 0.2% Proof load IS:14268,6006

5 Modulus of Elasticity IS:14268,6006

6 Chemical Composition IS:14268,6006

2 Deflection Test IS 2713-1

3 Permanent Set Test IS 2713-1

4 Drop Test IS 2713-1

3 Adhesion Test(Knife Test) IS : 2629:1985

Test to be mentioned in the MTC by manufacturer

4 Luminaire Efficacy IS:16107-2-2 1 Test per Lot

5 Color Rendering IS:10322-5-3 1 Test per Lot

8 Total Power Input IS:16103-2 1 Test per Lot

You might also like
