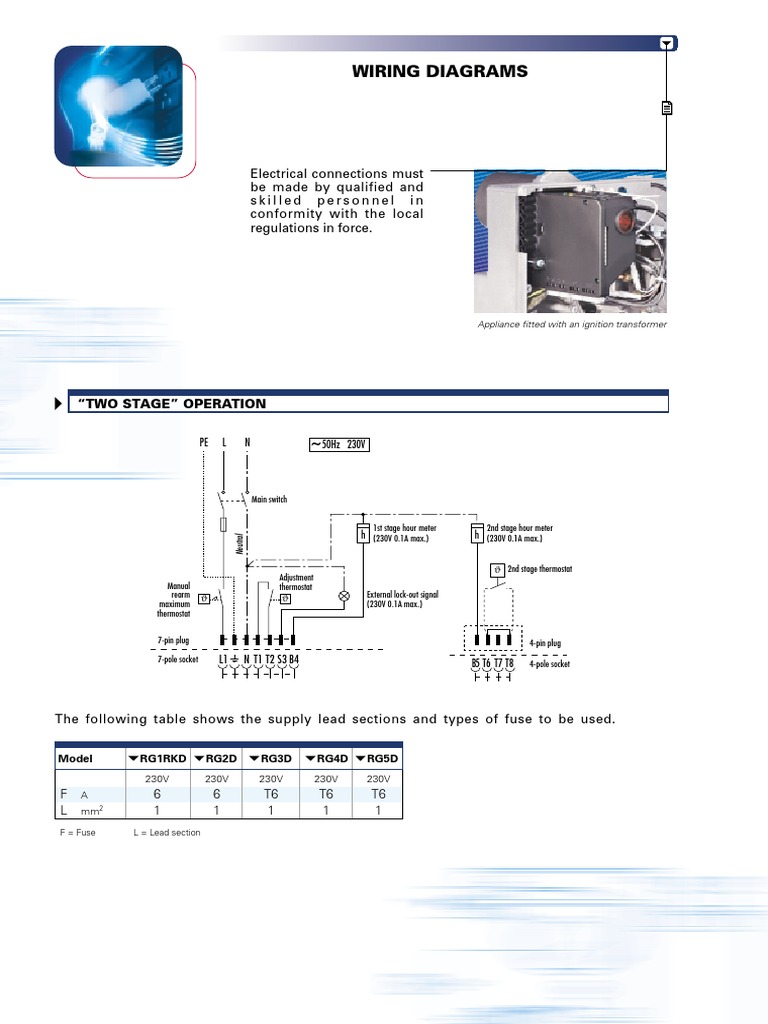

WIRING DIAGRAMS

Electrical connections must

be made by qualified and
skilled personnel in
conformity with the local
regulations in force.

Appliance fitted with an ignition transformer

“TWO STAGE” OPERATION

PE L N ~50Hz 230V

Main switch

1st stage hour meter 2nd stage hour meter

h (230V 0.1A max.) h (230V 0.1A max.)
Neutral

ϑ 2nd stage thermostat

Adjustment
Manual thermostat
rearm ϑ ϑ External lock-out signal
maximum (230V 0.1A max.)
thermostat

7-pin plug 4-pin plug

7-pole socket L1 N T1 T2 S3 B4 B5 T6 T7 T8 4-pole socket

The following table shows the supply lead sections and types of fuse to be used.

Model RG1RKD RG2D RG3D RG4D RG5D

230V 230V 230V 230V 230V
F A 6 6 T6 T6 T6
L mm2 1 1 1 1 1
F = Fuse L = Lead section
