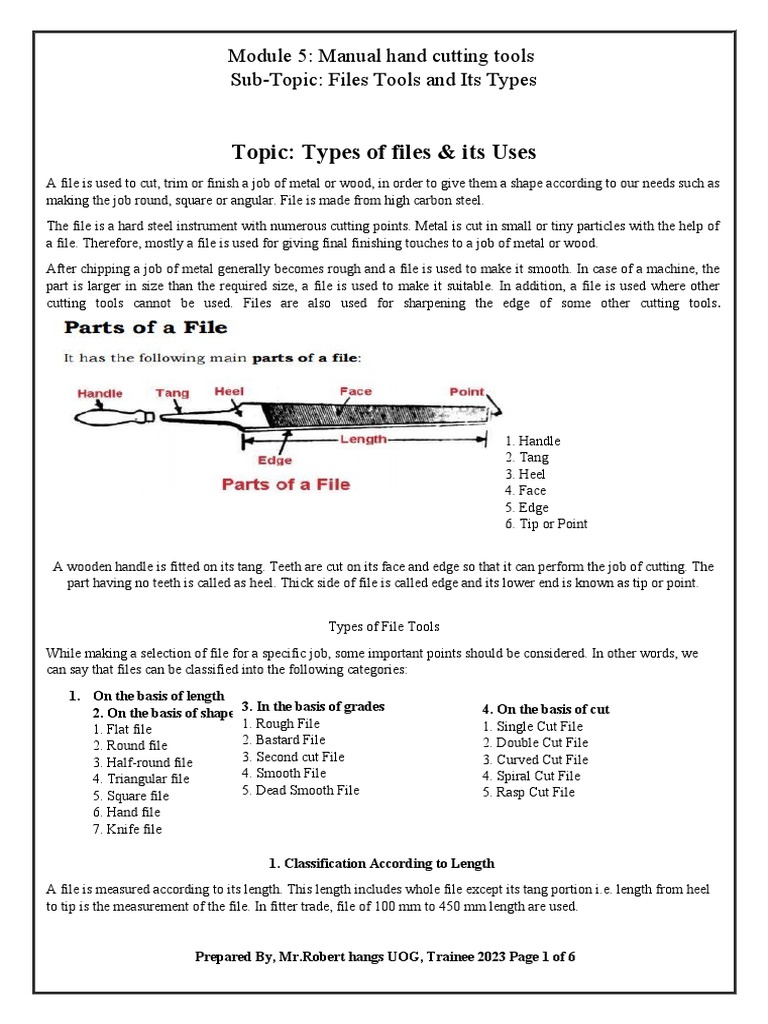

Module 5: Manual hand cutting tools

Sub-Topic: Files Tools and Its Types

Topic: Types of files & its Uses

A file is used to cut, trim or finish a job of metal or wood, in order to give them a shape according to our needs such as
making the job round, square or angular. File is made from high carbon steel.
The file is a hard steel instrument with numerous cutting points. Metal is cut in small or tiny particles with the help of
a file. Therefore, mostly a file is used for giving final finishing touches to a job of metal or wood.
After chipping a job of metal generally becomes rough and a file is used to make it smooth. In case of a machine, the
part is larger in size than the required size, a file is used to make it suitable. In addition, a file is used where other
cutting tools cannot be used. Files are also used for sharpening the edge of some other cutting tools.

1. Handle
2. Tang
3. Heel
4. Face
5. Edge
6. Tip or Point

A wooden handle is fitted on its tang. Teeth are cut on its face and edge so that it can perform the job of cutting. The
part having no teeth is called as heel. Thick side of file is called edge and its lower end is known as tip or point.

Types of File Tools

While making a selection of file for a specific job, some important points should be considered. In other words, we
can say that files can be classified into the following categories:
1. On the basis of length
2. On the basis of shape 3. In the basis of grades 4. On the basis of cut
1. Flat file 1. Rough File 1. Single Cut File
2. Round file 2. Bastard File 2. Double Cut File
3. Half-round file 3. Second cut File 3. Curved Cut File
4. Triangular file 4. Smooth File 4. Spiral Cut File
5. Square file 5. Dead Smooth File 5. Rasp Cut File
6. Hand file
7. Knife file

1. Classification According to Length

A file is measured according to its length. This length includes whole file except its tang portion i.e. length from heel
to tip is the measurement of the file. In fitter trade, file of 100 mm to 450 mm length are used.

Prepared By, Mr.Robert hangs UOG, Trainee 2023 Page 1 of 6

 2. Classification According to Shape
Following are the different types of file tools according to its shape:

This file is of rectangular cross-section in shape. It is made slightly tapered both in width and thickness. Double cut
teeth are cut on the face and simple cut teeth are cut on the edge. These are used to reduce flat surface by filing of
finishing.

This type of file has a round section. It is used for rubbing or finishing keyhole of small diameter.

It is a file which is on the side and curved on the other side. Double cut dents are cut on it and like a round file, it is
also tapered. With this file, the damaged hole can be set in order again.

It is triangular in shape. Its angles are of 60°. Filing of “V” slots job, square and rectangular jobs of above 60° and
below 90° angle are done with this file. It is also known as three square files.

It is square in shape and is somewhat tapered. Filing of rectangular, square groove, slots and key-way is done with this
file.

This file is almost similar to the flat file. It is used for filing of internal right angle side of a job. It is also called safe
edge file.

Prepared By, Mr.Robert hangs UOG, Trainee 2023 Page 2 of 6

Its shape is like the edge of a knife. Its thin edge is about 10° angle. It is used for filing of small grooves and slots
whose angle is less than 60°Error! Filename not specified. It is generally used in lock industry for making keys.

2. Classification According to Grade

Following are the different types of file tools according to the basis of the number of teeth:

In this type of file, teeth are of big size and less in number. It is used for cutting soft
materials because its cutting is rough. Because of rough cutting, it cannot be used for
hard metal.

Teeth of this file are comparatively smaller than those of the rough file. It is used
initially to shed metal (through filing) in large quantity.

This is a file of medium grade. In the filler trade, this file is mostly used to bring the
job in the proper size. As compared to the bastard file, filing done with this file
makes the surface plain.

This file makes the surface quite plain, in addition to making a job of accurate size
through filing.

5. Dead Smooth File

Its teeth are very close to each other and it rubs off the metal in very little quantity. It is used for bringing shinning on
the job after finishing has been done.

4. Classification of Files On The Basis of Cut

Following are the different types of file tools according to the cut:

This is file has parallel lines of teeth running diagonally across its face in one direction only. Metal surface is rubbed
in little quantity and thus the surface becomes smooth. Therefore it is used for hard metal and for finishing.

Prepared By, Mr.Robert hangs UOG, Trainee 2023 Page 3 of 6

2. Double-cut File
This file has two rows of teeth crossing each other at an angle of 40° to 45° and the other row has angles of 70° to 80°.

Because of double teeth, this file cuts metal quickly but it cannot make the surface very smooth. That is why it is
generally used for normal filing as shown in fig (B).

It is also called a coarse type file. In 30° to 35° and the other row is of 80° to 87° angles as shown in fig (C).

It is also known as Vixen file. The curved-cut file is used for filing of the wide surfaces of soft metal like aluminium,
zinc, copper and brass. It has circular teeth as shown in fig.

These types of teeth are cut in round or semi-round files. The shape of their teeth is like that of threads.

Prepared By, Mr.Robert hangs UOG, Trainee 2023 Page 4 of 6

This is a file of special thick teeth. These teeth are of triangle shape and are in a bulging state. It is used for jobs of
woods, plastic, fibre, hard rubber, and job of horns and hoof of animals.

Methods of Filing
In order to get the proper surface through filing, the following points need consideration:
 1. Choose the right type of file, according to the job.
2. There should be handling fitted on the tang of the file. In small files, a small handle should be fitted and a
larger handles in a larger file. Otherwise, proper and power would be unnecessarily wasted.
3. Hold the handle of the file with the right hand and keep the file end balanced with the left hand.
4. At the time of filing, the left leg should be kept ahead and the right leg a little behind as shown in fig.
5. Pressure on the file should be exerted while moving it ahead, not while driving it back.
6. Only your hands should move with the file and not your whole body. As far as possible, keep rest of your
body still.
7. Speed of moving the file should be at the rate of 30 to 35 strokes per minute.

Precautions of Using Files

Following are the precautions of using files:
1. Select the file according to the job.
2. Do not use a file without a handle. According to the size, the complete handle should be fixed on the file.
3. First, a new file should be used on soft metal, and then it can use on solid metal.
4. If substantial material is to be cut then first chipping should be done and then filing.
5. For filing of sheet metal jobs, the job should be fixed in a vice by using wood on both its sides. It should also be
ensured that the sheet should not be higher than vice.
6. While filing a sheet, we should cut it in length.
7. We should make use of chalk in order to save the job from pinning. If there are metal particles on the file there
should be cleaned with a brush.
8. Keep and file away from other tools. They should not be heaped together.
9. The file should not be heated.
10. Do not apply oil or grease to the file.

Applications of Files
Following are the applications of files:
1. A file is used for giving final finishing touches to a job of metal or wood.
2. After chipping a job of metal generally becomes rough and a file is used to make it smooth.
3. In case of a machine, the part is larger in size than the required size, a file is used to make it suitable.
4. In addition, a file is used to where other cutting tools cannot be used.
5. Files are also used for sharpening the edge of some other cutting tools.
Prepared By, Mr.Robert hangs UOG, Trainee 2023 Page 5 of 6
That’s it, thanks for reading. If you have any questions about “Types of File Tools” you can ask in the comments.
