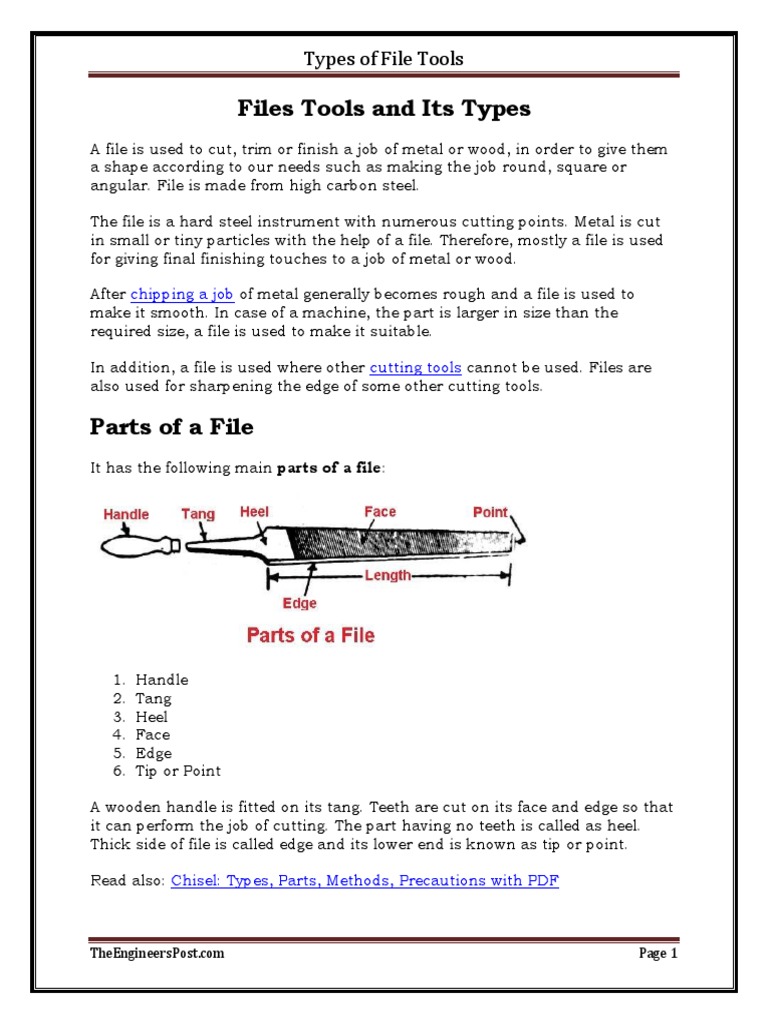

Types of File Tools

Files Tools and Its Types

A file is used to cut, trim or finish a job of metal or wood, in order to give them
a shape according to our needs such as making the job round, square or
angular. File is made from high carbon steel.

The file is a hard steel instrument with numerous cutting points. Metal is cut
in small or tiny particles with the help of a file. Therefore, mostly a file is used
for giving final finishing touches to a job of metal or wood.

After chipping a job of metal generally becomes rough and a file is used to
make it smooth. In case of a machine, the part is larger in size than the
required size, a file is used to make it suitable.

In addition, a file is used where other cutting tools cannot be used. Files are
also used for sharpening the edge of some other cutting tools.

Parts of a File
It has the following main parts of a file:

1. Handle
2. Tang
3. Heel
4. Face
5. Edge
6. Tip or Point

A wooden handle is fitted on its tang. Teeth are cut on its face and edge so that
it can perform the job of cutting. The part having no teeth is called as heel.
Thick side of file is called edge and its lower end is known as tip or point.

Read also: Chisel: Types, Parts, Methods, Precautions with PDF

TheEngineersPost.com Page 1
 Types of File Tools

Types of File Tools

While making a selection of file for a specific job, some important points should
be considered. In other words, we can say that files can be classified into the
following categories:

1. On the basis of length

2. On the basis of shape
1. Flat file
2. Round file
3. Half-round file
4. Triangular file
5. Square file
6. Hand file
7. Knife file
3. In the basis of grades
1. Rough File
2. Bastard File
3. Second cut File
4. Smooth File
5. Dead Smooth File
4. On the basis of cut
1. Single Cut File
2. Double Cut File
3. Curved Cut File
4. Spiral Cut File
5. Rasp Cut File

1. Classification According to Length

A file is measured according to its length. This length includes whole file except
its tang portion i.e. length from heel to tip is the measurement of the file. In
fitter trade, file of 100 mm to 450 mm length are used.

2. Classification According to Shape

Following are the different types of file tools according to its shape:

1. Flat File

TheEngineersPost.com Page 2
 Types of File Tools

This file is of rectangular cross-section in shape. It is made slightly tapered

both in width and thickness. Double cut teeth are cut on the face and simple-
cut teeth are cut on the edge. These are used to reduce flat surface by filing of
finishing.

2. Round File

This type of file has a round section. It is used for rubbing or finishing keyhole
of small diameter.

3. Half-round File

It is a file which is on the side and curved on the other side. Double cut dents
are cut on it and like a round file, it is also tapered. With this file, the damaged
hole can be set in order again.

3. Triangular File

It is triangular in shape. Its angles are of 60°. Filing of “V” slots job, square and
rectangular jobs of above 60° and below 90° angle are done with this file. It is
also known as three square files.

4. Square File

TheEngineersPost.com Page 3
 Types of File Tools

It is square in shape and is somewhat tapered. Filing of rectangular, square

groove, slots and key-way is done with this file.

5. Hand File

This file is almost similar to the flat file. It is used for filing of internal right
angle side of a job. It is also called safe edge file.

6, Knife Edge File

Its shape is like the edge of a knife. Its thin edge is about 10° angle. It is used
for filing of small grooves and slots whose angle is less than
60°Error! Filename not specified.. It is generally used in lock industry for
making keys.

Read also: 9 Different Types of Sheet Metal Operations with Diagrams

3. Classification According to Grade

Following are the different types of file tools according to the basis of the
number of teeth:

1. Rough File

In this type of file, teeth are of big size and less in number. It
is used for cutting soft materials because its cutting is
rough. Because of rough cutting, it cannot be used for hard
metal.

TheEngineersPost.com Page 4
 Types of File Tools

2. Bastard File

Teeth of this file are comparatively smaller than those of

the rough file. It is used initially to shed metal (through
filing) in large quantity.

3. Second-cut File

This is a file of medium grade. In the filler trade, this file is

mostly used to bring the job in the proper size. As
compared to the bastard file, filing done with this file
makes the surface plain.

4. Smooth File

This file makes the surface quite plain, in addition to

making a job of accurate size through filing.

5. Dead Smooth File

Its teeth are very close to each other and it rubs off the metal in very little
quantity. It is used for bringing shinning on the job after finishing has been
done.

Read also: 13 Main Difference between NC, CNC and DNC Machine

TheEngineersPost.com Page 5
 Types of File Tools

4. Classification of Files On The Basis of Cut

Following are the different types of file tools according to the cut:

1. Single-cut File

This is file has parallel lines of teeth running diagonally across its face in one
direction only. Metal surface is rubbed in little quantity and thus the surface
becomes smooth. Therefore it is used for hard metal and for finishing.

2. Double-cut File

This file has two rows of teeth crossing each other at an angle of 40° to 45° and
the other row has angles of 70° to 80°.

Because of double teeth, this file cuts metal quickly but it cannot make the
surface very smooth. That is why it is generally used for normal filing as shown
in fig (B).

It is also called a coarse type file. In 30° to 35° and the other row is of 80° to
87° angles as shown in fig (C).

3. Curved-cut File

TheEngineersPost.com Page 6
 Types of File Tools

It is also known as Vixen file. The curved-cut file is used for filing of the wide
surfaces of soft metal like aluminium, zinc, copper and brass. It has circular
teeth as shown in fig.

4. Spiral-cut File

These types of teeth are cut in round or semi-round files. The shape of their
teeth is like that of threads.

5. Rasp-cut File

This is a file of special thick teeth. These teeth are of triangle shape and are in
a bulging state. It is used for jobs of woods, plastic, fiber, hard rubber, and job
of horns and hoof of animals.

Methods of Filing
In order to get the proper surface through filing, the following points need
consideration:

1. Choose the right type of file, according to the job.

2. There should be handle fitted on the tang of the file. In small files, a
small handle should be fitted and a larger handle in a larger file.
Otherwise, proper and power would be unnecessarily wasted.
3. Hold the handle of the file with the right hand and keep the file end
balanced with the left hand.
4. At the time of filing, the left leg should be kept ahead and the right leg a
little behind as shown in fig.
5. Pressure on the file should be exerted while moving it ahead, not while
driving it back.
6. Only your hands should move with the file and not your whole body. As
far as possible, keep rest of your body still.
7. Speed of moving the file should be at the rate of 30 to 35 strokes per
minute.

TheEngineersPost.com Page 7
 Types of File Tools

Precautions of Using Files

Following are the precautions of using files:

1. Select the file according to the job.

2. Do not use a file without a handle. According to the size, the complete
handle should be fixed on the file.
3. First, a new file should be used on soft metal, and then it can use on
solid metal.
4. If substantial material is to be cut then first chipping should be done and
then filing.
5. For filing of sheet metal jobs, the job should be fixed in a vice by using
wood on both its sides. It should also be ensured that the sheet should
not be higher than vice.
6. While filing a sheet, we should cut it in length.
7. We should make use of chalk in order to save the job from pinning. If
there are metal particles on the file there should be cleaned with a brush.
8. Keep and file away from other tools. They should not be heaped together.
9. The file should not be heated.
10. Do not apply oil or grease to the file.

Applications of Files
Following are the applications of files:

1. A file is used for giving final finishing touches to a job of metal or wood.
2. After chipping a job of metal generally becomes rough and a file is used
to make it smooth.
3. In case of a machine, the part is larger in size than the required size, a
file is used to make it suitable.
4. In addition, a file is used to where other cutting tools cannot be used.
5. Files are also used for sharpening the edge of some other cutting tools.

That’s it, thanks for reading. If you have any questions about “Types of File
Tools” you can ask in the comments.
