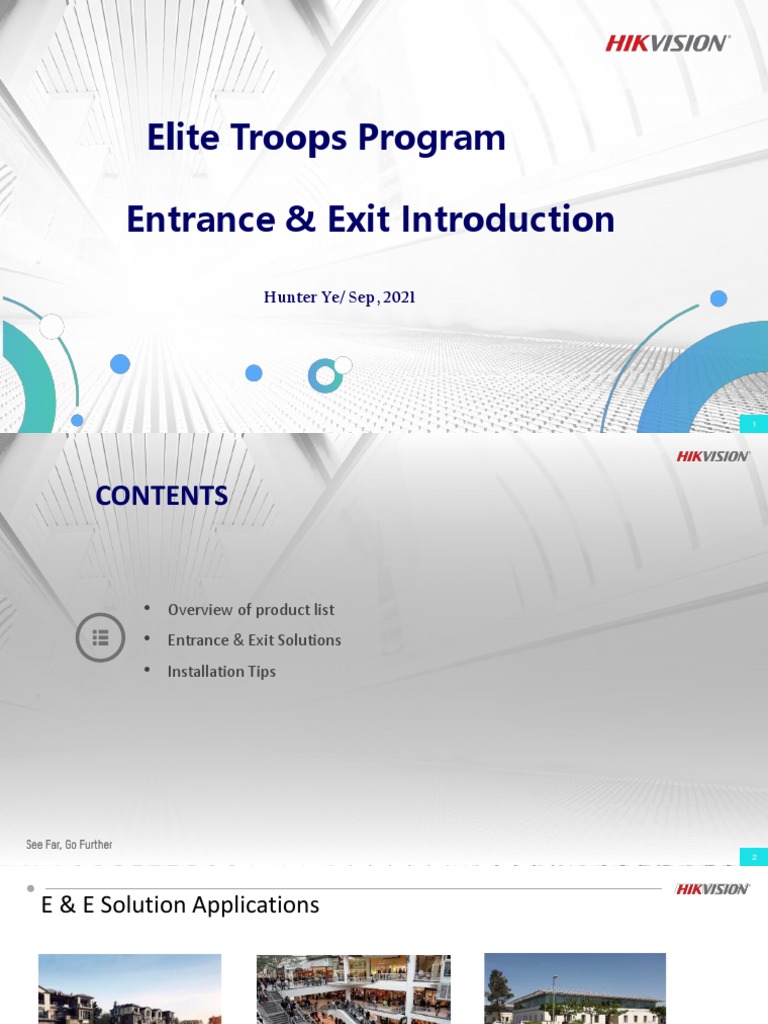

Elite Troops Program

Entrance & Exit Introduction

Hunter Ye/ Sep, 2021

1
CONTENTS

• Overview of product list

• Entrance & Exit Solutions
• Installation Tips

2
E & E Solution Applications

Residence Community Shopping Mall Industrial Park

Airport Stadium School

3
Why Entrance & Exit System?
Traditional Entrance

4
Why Entrance & Exit System?
Because traditional entrance system is …..

Low-efficiency for
Vehicle Passing

Lack of Safety guarantee

of entering vehicle
Lack of Vehicle
Management
Lack of Charge
Management

5
Why Entrance & Exit System?

• Reduced administrative effort and ticket costs at the entrance & exit
• Non-stop passing the barrier with the authorization via ANPR
• Captures reliable, high-definition footage for post-event investigation

6
Contents

Part 1

Product Overview

7
 Solution Achitechture -- E&E Solution
The system supports multiple
trigger mechanisms– coil,
Entrance Booth/Center Exit
radar, video.

Entrance Station & Barrier Exit Station & Barrier

ANPR Camera

Radar
Vehicle Detector
(Anti-Fall)

Radar
(Trigger)
Bluetooth
Reader

Entrance LED Entrance & Exit ANPR Camera

Control Terminal

Ethernet Cable
Exit LED Other Cable
* The coil and radar can be
selected one.

* ANPR camera can connect to

barrier as well

8
Product Showcase – Capture Unit
Entrance & Exit

ANPR, Access Management , Monitoring

• Detects approaching vehicle with coil，radar & video , Recognize the vehicle plate with video
• Built-in AI License Plate Recognition algorithm based on video
• Blacklist/Whitelist configuration and comparison in the camera
• Available number is counted by software and displayed on the outdoor screen
Dark Fighter and True WDR technologies , as well as optional IR, ensures crisp and clear images
and video of each vehicle for recognition and recording.

9
Product Showcase

• 4 MP, CMOS
• 2688 x 1520, 25fps, built-in LPR algorithm
new
• 3.1~6 mm motorized lens, to recognize 2.5 to 15 m
DS-TCG405-E(12V/POE) • 2 built-in high-performance IR and white light switchable
DS-TCG405-E(220V) LEDs
ANPR Unit
• Supports vehicle type, vehicle color, and vehicle brand
recognition.
• Integrated shield, lights, and TF card (up to 128 GB)
• Working temperature: -30℃~70℃
• IP67, IK10

10
Product Showcase – Parking Control Terminal
Access Control Terminal

- Supports multiple parking fee rules for temporary vehicles

- Supports configuring additional time and fee after initial time ends.
- Vehicle’s number plate & vehicle picture storage
- Black/white list management, alarm notification (support up to 20000 plate numbers)
- Simple road barrier control via I/O interface
- Available parking lots counting, support data output to 3rd party LED indicators
- Support data analysis, including vehicle traffic flow report, average parking time report etc.

11
Product Showcase – Parking Control Terminal

 Built-in parking management software

 4 Channels of lanes access
DS-TPE104
 4 x 10/100 Mbps Ethernet ports, 2 x 1000 Mbps
Ethernet ports, dual NICs
 2 x RS485 ports, 3 x RS232 ports
 4 x Relay ports support barrier / gate control
 1 x Audio Output
 2TB HDD included

12
 E&E Management Solution Applications
Manual Charge Management -- Flexible and configurable payment rules
 Payment rule examples for temporary parking at tollbooth：

Charge by unit Charge by parking Charge by time Charge by parking No Payment Charge by parking Charge by time
time time periods and sessions in time sessions periods
daytime and
nighttime
 Payment rule for parking pass：
Customers can pay for a annual pass, 6monthly pass, 3 monthly pass, monthly pass, or other custom periods.

 Personalized payment rule：

More payment rules can be personalized as the customers need.

 The system also supports discount management, card cost management, etc.
13
 Product Showcase – Parking Control Terminal
Temporary Backup Video
Uploading High Data Safety
Auto Network Replenishment (ANR)
- Auto backup on SD card when network is disconnected
- Picture data will be transferred from SD card to NVR when
network connection is restored
- Using Hikvision Micro SD cards for ANR storage is
X recommended for best performance

Disconnected

Business Operation Assistance

DS-TPE104
Business Intelligence Reports
- Generation of multiple parking area reports, including reports
of multiple entries & exits, etc.
… - Business reports inform management personnel of daily
parking and visitor statistics, such as normal parking times, etc.
Entrance1 Entrance2 Entrance N

14
Product Showcase – Parking Control Terminal

DS-TPE104
lane1
……

lane4 DS-TPE104
DS-TPE104

One DS-TPE104 supports to manage up to maximum 4 lanes in one single Entrance & Exit.
 The system volume <= 12 lanes or <= 3 Entrance & Exit: 3 DS-TPE104
 The system volume > 12 lanes or > 3 Entrance & Exit : DS-TPE100, Hik-Central Enterprise
15
Product Showcase – LED Display

Outdoor LED Display Panel Integration

• By integrating an LED display panel at the entrance, all available parking resources and
information can be easily displayed for customers
• Show the vehicle plate recognition result for drivers , to indicate driver related information when
barrier doesn’t open and help driver to acknowledge the vehicle plate and parking fee clearly

16
Product Showcase – LED Screen

 Display 4 lines, each line up to 8 characters

DS-TVL224-4-5Y/J  Support display available parking space number,
passing vehicle info and greeting words
 Communication through network/RS485 protocol
 Standard grey appearance
 Dimensions: 364 x 484 x 60mm
 Integrates with speaker

17
Product Showcase - Radar

Barrier Trigger Radar & Anti-Fall Radar

• Easier installation and maintenance – No pavement removal required for the sensing coil
• Extra Safety – Both vehicles and pedestrians benefit from protection
• Robust Design – Free from environmental influences including light, dust, rain and snow
• Trigger raider detects approaching vehicle and triggers ANPR and barrier
• Safety sensor ensures the barrier remains open when passageway is not clear
• Support filter pedestrian from the vehicles

18
Product Showcase - Radar

DS-TMG034 DS-TMG034
Capture-trigger Anti-fall

• 79GHZ MMIC • 79GHZ MMIC

• The maximum Trigger distance : 6m • The maximum Trigger distance : 6m

• Adjustable Detection Range • Adjustable Detection Range

• Distinguish the Vehicle from pedestrian and • To avoid the accident of fall Vehicle and
only capture Vehicle Pedestrian

19
Product Showcase - Barrier

Barrier Housing Specifications

DS-TMG5A0-K(Z)  Cold rolled steel material
DS-TMG5A1-Z  Standard grey appearance
Running Speed (depend on pole length)
 DS-TMG5A0-K
Rising: 0.9-2s Falling:1-2.5s
 DS-TMG5A0(1)-Z
Rising: 2-3s Falling:2.5-3.5s
General Specifications
 Straight/90°crank-arm optional
 Pole length 2m/3m/4m optional
 Built-in vehicle coil detector
 IP54

20
 Product Showcase – Ticket Dispenser
LED & Audio LED & Audio
Card/Paper

Distributed Cards or Paper Tickets / Two-way Audio Barrier Helper/ LED Display Panel
• Various charging standards configurable to distinguish the charging standards for different vehicle & display the recharge fee via LED panel.
• Stops card dispatch automatically when there is no available parking space to control and manage the vehicle number
• Flexible management strategies for vehicle entering and exiting with various vehicle passing rules to satisfy the requirements in different
situations such as card or paper ticket for double check.
• Two-way audio communication to register for barrier gate open.

21
Product Showcase – Ticket Dispenser

DS-TME40X-TPC DS-TME40X-TRL
Control Terminal Control Terminal

• Entrance/ Exit, HDD not included
• Various type of interface
• Support offline charge, speaker, LED word display, car
detect, paper ticket printing and scanning, audio chat
• Barrier gate control
• Entrance/ Exit, HDD not included
• Distributed 350 cards at most.
• Support offline charge, speaker, LED word display,
car detect, take and read card, audio chat
• Barrier gate control

22
Contents

Part 2

Entrance & Exit Solutions

23
 Solution Achitechture -- Overview

Management Center HiK-Central Hik-Central

Client Platform Controller/
Decoder TV Wall

INTERNET
Parking
Entrance & Exit #1
Parking Area & Perimeter Monitoring
ANPR DS-TPE104 Barrier
Camera

Parking ANPR
Camera
Parking
Entrance & Exit #2 TPM400-P

ANPR
Camera DS-TPE100 Barrier

24
Solution Design - On Duty & No Camera Solution
Barcode Scanner E&E Control Terminal

Temporary vehicle Registered vehicle

IN 1. Getting the ticket/card 1. Swiping the card
2. The system controls barrier to open 2. The system automatically opens barrier

1. Read ticket/card via barcode scanner(optional) 1. Swiping the card/scan the ticket
OUT 2. The operator collects money 2. The system automatically opens barrier
3. The operator opens barrier

25
 Solution Design - On Duty & ANPR Solution
ANPR
Temporary vehicle
IN 1. ANPR captures license plate
2. The system controls barrier according to
configured rule
1. ANPR captures the license plate
2. The system shows parking fee (Charging
OUT mode) and the operator collects money
3. The operator opens barrier
E&E Control Terminal
Registered vehicle
1. ANPR captures license plate
2. The system automatically opens barrier
1. ANPR captures license plate
2. The system automatically opens barrier
ANPR
Blacklist vehicle
1. ANPR captures license plate
2. The system generates alarm
3. The system prevents vehicle from entering
26
 Solution Design - Off Duty & ANPR Solution
Audio Intercom ANPR

LED Screen
E&E Intercom Terminal

Operator Client
Central Station
E&E Control
Terminal

Temporary Vehicle Registered Vehicle Blacklist Vehicle Exception Handling

1. ANPR captures license plate 1. ANPR captures license plate/IC card 1. ANPR captures license plate In emergency situation, drivers
IN 2. The system controls barrier to being read 2. The system generates alarm can press the button on
open or not according to 2. The system automatically opens barrier 3. The system prevents the intercom terminal to reach the
configured rule vehicle from entering management center for asking
1. Pay at the auto pay machine or 1. ANPR captures license plate/IC card for assistance.
OUT charge (Charging mode optional) being read
2. ANPR captures the license plate 2. The system automatically opens barrier
3. Barrier auto open(in 15 mins)

27
 Solution Design - On Duty & Ticket/Card Solution
ANPR Scanning Code Gun
E&E Control Terminal

All the visitors can access after

picking up the card without
limitation, suitable for entrances and
exits that focus on efficiency

E&E Station

Temporary Vehicle Registered Vehicle Blacklist Vehicle

1. Get the ticket/card 1. Parking pass being swapped card being 1. ANPR captures license plate
IN 2. ANPR captures license plate for record read/ANPR captures license plate 2. The system generates alarm
3. The system controls barrier to open or not 2. The system automatically opens barrier 3. The system prevents the vehicle from
according to configured rule entering
1. Reading the ticket/card 1. Parking pass being swapped card being
2. ANPR captures the license plate for record read/ANPR captures license plate
OUT
3. The system shows parking fee (Charging mode) 2. The system automatically opens barrier
and the operator collects money
4. The operator opens barrier

28
 Solution Design - Off Duty & Ticket/Card Solution
ANPR
LED Screen

Operator Client
Central Station
E&E Control
BOM for reference Terminal

Temporary vehicle Registered vehicle Blacklist vehicle Exception Handling

1. Get the ticket/card 1. Parking pass being swapped card being 1. ANPR captures license plate In emergency situation, drivers can
IN 2. ANPR captures license plate for record read/ANPR captures license plate 2. The system generates alarm press the button on intercom
3. The system controls barrier to open or not 2. The system automatically opens barrier 3. The system prevents the terminal to reach the management
according to configured rule vehicle from entering center for asking for assistance.

1. Pay at the auto pay machine(Charging mode) 1. Parking pass being swapped card being
2. Reading the ticket/card read/ANPR captures license plate
OUT 3. ANPR captures the license plate for record 2. The system automatically opens barrier
4. Barrier auto open(in 15 mins)

29
Management Center
Multiple Parking Violation Alarms to Expedite Response
Whitelist Expiration / Blacklist Alarm
ANPR Camera Barrier
LED Display
- An alarm will be triggered when a vehicle is recognized as included on blacklist;
the barrier can remain closed to prohibit entry by that vehicle
- Whitelist Expiration Alarm: When a vehicle on a time-limited whitelist
attempts to enter and/or park after expiration, an alarm will be triggered. This
function is especially useful for hotel parking, visitor parking in residential areas,
etc.
Parking After Closing Time / Forbidden Parking Periods
Parking schedule
- An alarm will be triggered when a vehicle remains in a parking
area after business hours or other specified period
- Helps parking area management personnel quickly identify how
many and which vehicles remain in a parking area after business
hours or other specified period
30
Contents

Part 3

Installation Tips

31
Entrance & Exit Solutions

Regular E&E Mixed E&E Single In/Out

32
Regular E&E
70%

30%
Entrance and exit are in the same
location but different lane, one
equipment island controls two lanes
with entrance and exit separately.

33
Mixed E&E

Entrance and exit are in the same

location and same lane, one
equipment island controls both
entrance and exit. Logical coil will be
used for direction differentiation.

34
Single In/Out

Entrance and exit are in the different

location and different lane, one
equipment island controls one lane
with entrance or exit only.

35
Installation Height
The ANPR camera is recommended to installed by the height of 1.3 m and up, which could be
adjusted by real situation.

1.5m

36
Installation Distance

The distance between capture unit to trigger coil/radar is 3.5 – 5 m

37
 Coil Installation

• 5-8cm Deep
• Fixed and Stable
• Coil channel should be cut like P3
• Cable can not be broken

P3

38
Coil Installation
Cables Out the loop must be twisted

The right way to twist the cables

The wrong way to twist the cables

39
Coil Installation

For areas with trucks:

Usually we can increase the area of the coil or install more coils to correctly detect these
kinds of vehicle.

40
Coil Installation

70%

30%

41
Capture Unit Installation

Wrong Angle of Camera Right Angle of Camera

If there is no more space to adjust the angle between the camera and license plate,
it has to increase one more camera.
42
Barrier Installation

 Height Limitation
 The width of the Lane

3m
3m
1.8m

3.5m

43
Cable Materials

 Cable Requirement

No. Cable Usage Cable Type

1 Power Cable RVV3*1.0

2 Coil Cable FVN49/0.26

3 Net Cable STP CAT-5E/6

3m

5 Signal Cable RVVSP 4*1.0

6 RS 485 Cable RVVSP 2*1.0

44
Cable Materials

R V V (S) (P) 4 * 0.5

Soft
wire
cross
insulating layer sectional
(PVC)
Core area
number
Protect layer Shield Note：
(PVC) layer Temperature：-15℃ --- 65℃
twisted-pair Voltage：≤ AC 250V, ≤DC 500V

45
Cable Materials- RVV

 Core number from 2 to 24, according to

international standard colors.
 In common use wire diameter 0.2²0.3²0.4² 0.5²
0.75²1.0²1.5²

46
Cable Materials - RVVP

 Core number from 2 to 24, according to

international standard colors.
 In common use wire diameter 0.2²0.3²0.4² 0.5²
0.75²1.0²1.5²

47
Cable Materials - RVVSP

Wire Material --- RVVSP

 Core number from 2 to 24, according to international standard colors.
 In common use wire diameter 0.2²0.3²0.4²0.5²0.75²1.0²1.5²

48
Cable Materials

 Cable Requirement

No. Cable Usage Cable Type

1 Power Cable RVV3*1.0

2 Coil Cable FVN49/0.26

3 Net Cable STP CAT-5E/6

3m

5 Signal Cable RVVSP 4*1.0

6 RS 485 Cable RVVSP 2*1.0

49
Materials - RVVSP

Wire Material --- FVN49/0.26

 Soft cable, high temperature tolerance
 In common use wire diameter 1.0²- 1.5²

50
Successful Story
The Parking Lot Guidance Solution, Zabrze, Poland

HIKVISON’s Access control system provide the efficiency of

access such as video recognition making non-stopping for
entrance & exit , replace manual entrance control with ANPR
technique, automatic control enhances the efficiency

51
Accurate LPR under Aside Entrance

52
Accurate LPR under Standard Condition In Poland

53
Accurate LPR under Dark Condition

54
Accurate LPR For Old Version

55
Accurate LPR Under Aside In Italy

56
THANKS

57
