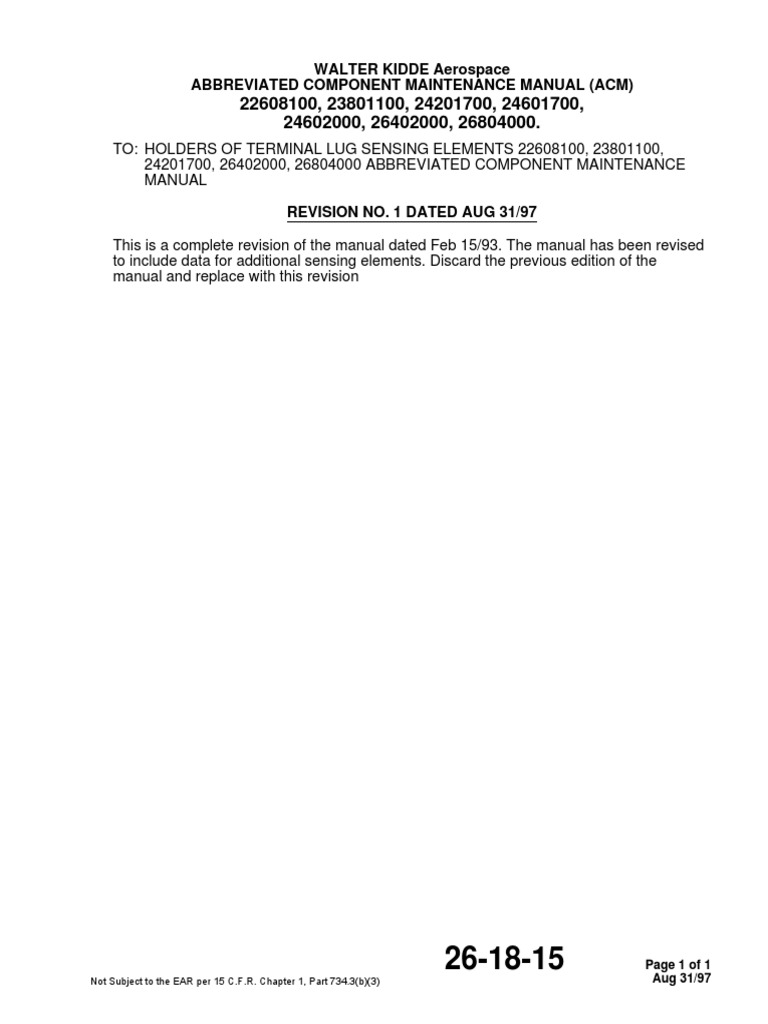

WALTER KIDDE Aerospace

ABBREVIATED COMPONENT MAINTENANCE MANUAL (ACM)

22608100, 23801100, 24201700, 24601700,
24602000, 26402000, 26804000.
TO: HOLDERS OF TERMINAL LUG SENSING ELEMENTS 22608100, 23801100,
24201700, 26402000, 26804000 ABBREVIATED COMPONENT MAINTENANCE
MANUAL

REVISION NO. 1 DATED AUG 31/97

This is a complete revision of the manual dated Feb 15/93. The manual has been revised
to include data for additional sensing elements. Discard the previous edition of the
manual and replace with this revision

26-18-15 Page 1 of 1
Aug 31/97
Not Subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3)
 WALTER KIDDE Aerospace
Division of KIDDE Technologies, Inc.
4200 Airport Drive NW
Wilson, North Carolina 27896-9643 U.S.A.

TERMINAL LUG SENSING ELEMENTS

PART NO. ROHR SPEC NO.

22608100 290D8011-511
26402000 290D8011-513
26804000 290D8011-515
23801100 290D8011-517
24201700 290D8011-519
24602000 290D8011-521
24601700 290D8011-523

ABBREVIATED

COMPONENT MAINTENANCE MANUAL

IAE APPROVED

F-50239A 26-18-15 1 of 6
Not Subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3) Aug 31/97
 WALTER KIDDE Aerospace
ABBREVIATED COMPONENT MAINTENANCE MANUAL (ACM)

22608100, 23801100, 24201700, 24601700,

24602000, 26402000, 26804000
1. Description and Operation

A. Description

The sensing element, Figure 1, has an Inconel sheath that contains two electrical
conductors in a thermistor material. One conductor is welded to the terminal lug
ring. The other is the ground conductor and is welded to the shell of the sensing
element.

Sensing Element
Figure 1
B. Theory of Operation

The thermistor material decreases in resistance as its temperature increases. At

the usual ambient temperatures, the resistance of the sensing element is high.
The resistance decreases quickly as the sensing element is heated. The resis-
tance will continue to decrease as the ambient temperature increases. When the
resistance value agrees with the alarm temperature, the related detection circuit
will give an alarm signal.

Table 1. Specified Data

Sensing Length Max. Continuity

Rohr Spec. Element Resistance,
No. Part No. In. cm Ω @ 70°F (21°C)
290D8011-511 22608100 81.00 205.74 6.75
290D8011-513 26402000 20.00 50.80 3.33
290D8011-515 26804000 40.00 101.60 6.67
290D8011-517 23801100 11.00 27.94 0.92
290D8011-519 24201700 17.00 43.18 1.42
290D8011-521 24602000 20.00 50.80 1.67
290D8011-523 24601700 17.00 43.18 1.42

26-18-15 Page 2 of 6
Not Subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3) Aug 31/97
 WALTER KIDDE Aerospace
ABBREVIATED COMPONENT MAINTENANCE MANUAL (ACM)

22608100, 23801100, 24201700, 24601700,

24602000, 26402000, 26804000
2. Testing and Fault Isolation

A. Test Equipment and Materials

The necessary test equipment and materials are given in Table 2. All test equip-
ment must have an applicable calibration approval label.

NOTE: You can use alternative test equipment and materials for those given
in Table 2.

Table 2. Test Equipment and Materials

MODEL OR RANGE AND

NOMENCLATURE PART NO. TOLERANCE MANUFACTURER
Digital Multimeter 8012A John Fluke Co., Inc.
Everett, WA
Megohmmeter L8-X2 Beckman Instruments
Los Angeles, CA
Thermometer, Mercury 0-150°F (-18° to Commercial
Type +66°C) Range
Accuracy ±0.5°F
(0.5°C)

B. Preparation for Test

1. Let the temperature of the sensing element become stable at ambient room
temperature. Write the ambient temperature.
C. Functional Tests

1. Continuity and Short Test

The continuity test measures the maximum resistance between each termi-
nal lug for each sensing element shown in Table 1, Specified Data. Replace
a sensing element that has more resistance than the specified value.
a. Connect the ohmmeter test leads to the sensing-element terminal lug at
each end of the sensing element.

b. Measure the continuity resistance of the sensing element and make sure
the resistance is at or lower than the specified maximum resistance
shown in Table 1.

c. Connect the ohmmeter test leads to the sensing-element terminal lug

and sensing element shell. If a short is shown, replace the sensing ele-
ment.

26-18-15 Page 3 of 6
Not Subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3) Aug 31/97
 WALTER KIDDE Aerospace
ABBREVIATED COMPONENT MAINTENANCE MANUAL (ACM)

22608100, 23801100, 24201700, 24601700,

24602000, 26402000, 26804000
2. Insulation Resistance Test

The insulation resistance test measures the resistance between the conduc-
tor that is not grounded and the grounded conductor of the sensing element.
Refer to Table 3, Minimum Insulation Resistance. Replace a sensing ele-
ment that has a lower resistance than that given.
a. Connect the negative megohmmeter lead to the sensing element shell.
See Figure 2.

Insulation Resistance Test Setup

Figure 2
b. Connect the positive megohmmeter lead to one of the two sensing-ele-
ment terminal lugs.

c. Apply the applicable voltage given in Table 3 to the sensing element.

d. Monitor the megohmmeter indication during the test. The resistance

value must not be more than that given in Table 3.

Table 3. Minimum Insulation Resistance

Sensing Element Minimum Insulation Resistance (In Meghohms) Vs Temperature (°F/°C) Test
Part No. 65/18 70/21 75/24 80/27 85/29 90/32 95/35 100/38 VDC
22608100 0.31 0.27 0.229 0.20 0.17 0.15 0.12 0.11 500
23801100 11.47 9.78 8.33 7.10 6.05 5.15 4.39 3.74 500
24201700 17.42 14.91 12.76 10.92 9.34 7.99 6.84 5.85 500
24601700 28.13 24.09 20.63 17.67 15.13 12.96 11.10 9.51 500
24602000 23.58 20.18 17.29 14.81 12.68 10.86 9.30 7.97 500
26402000 >100 >100 >100 >100 >100 >100 >100 >100 250
26804000 >100 >100 >100 >100 >100 >100 >100 >100 250

26-18-15 Page 4 of 6
Not Subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3) Aug 31/97
 WALTER KIDDE Aerospace
ABBREVIATED COMPONENT MAINTENANCE MANUAL (ACM)

22608100, 23801100, 24201700, 24601700,

24602000, 26402000, 26804000
3. Automatic Test Requirements (ATLAS)

A. Not Applicable.

4. Disassembly

A. Remove the nuts, screws, and washers from the terminal lug ends to disassem-
ble the sensing elements. Keep the nuts, screws and washers for assembly.

5. Cleaning

A. No special cleaning is necessary.

6. Check

A. Visually examine the sensing elements for deep abrasions or cuts. Replace cut
sensing elements or sensing elements that have thermistor material that you can
see.

B. Visually examine the sensing elements for signs of wear. If wear is found, put the
sensing element in position so that it will not touch adjacent components.

C. Visually examine the sensing elements to make sure that they have not been
twisted. If damage is shown, replace the sensing element.

D. Visually examine the sensing element terminal lugs for contamination; clean as
necessary.

E. Examine the ceramic portion of the terminal lugs. Make sure that the terminal
lugs are correctly attached. If the terminal lugs are loose or damaged, replace the
sensing element.

F. Visually examine the sensing-element terminal lug ends for hardware that is not
there. Replacement parts numbers are given below:

Lug Terminations
Item #8 #10
Screw NAS 1802-08-6 NAS 1802-3-6
Nut MS21043-08 MS21043-3
Washer NAS1149CN816R NAS1149C0316R

7. Repair

A. Not Applicable.

8. Assembly

A. Procedures

26-18-15 Page 5 of 6
Not Subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3) Aug 31/97
 WALTER KIDDE Aerospace
ABBREVIATED COMPONENT MAINTENANCE MANUAL (ACM)

22608100, 23801100, 24201700, 24601700,

24602000, 26402000, 26804000
1. Assemble the sensing element with the screws, nuts, and washers that were
removed from the terminal lugs during disassembly.

B. Packaging, Storage and Handling

1. Keep the sensing element in a dry environment at a temperature between

0°F and 125°F (-18°C and +52°C).

2. If the sensing element is to be shipped, make sure that the storage container
and cushioning material is satisfactory for shipment by commercial carrier.
Make sure that the sensing element does not touch the storage container.

9. Fits and Clearances

A. Torque values are given in Table 5.

Table 5. Torque Values

DESCRIPTION PART NO. TORQUE VALUE

Nut, #8 MS21043-08 25 in. lb. (2.82 Nm)
Nut, #10 MS21043-3 35 in. lb. (3.9 Nm)

10. Special Tools, Fixtures and Equipment

A. General

This section describes special tools, fixtures and equipment that are not usually
included in a mechanic’s tool box, but are necessary to test and assemble the
component.

B. Special tools, fixtures and equipment are given in Table 6.

NOTE: You can use alternative special tools, fixtures and equipment for
those given in Table 6.

Table 6. Special Tools, Fixtures and Equipment

DESCRIPTION PART NO. SOURCE

Digital Multimeter 8012A John A. Fluke Co.
Megohmmeter L8-X2 Beckman Industries
Thermometer Commercial

11. Illustrated Parts List

A. Not Applicable.

26-18-15 Page 6 of 6
Not Subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3) Aug 31/97
