Types of Reactors

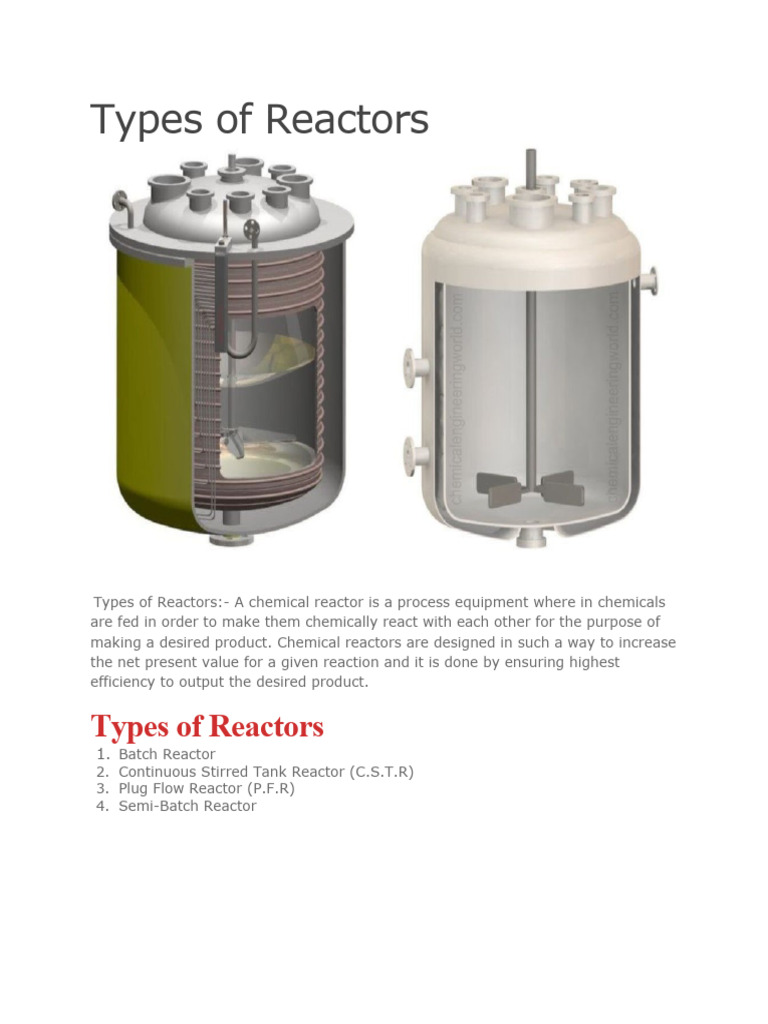

Types of Reactors:- A chemical reactor is a process equipment where in chemicals

are fed in order to make them chemically react with each other for the purpose of
making a desired product. Chemical reactors are designed in such a way to increase
the net present value for a given reaction and it is done by ensuring highest
efficiency to output the desired product.

Types of Reactors
1. Batch Reactor
2. Continuous Stirred Tank Reactor (C.S.T.R)
3. Plug Flow Reactor (P.F.R)
4. Semi-Batch Reactor
1. Batch Reactor
A batch reactor is a closed vessel in which reactions happen and it is a non-
continuous type of reactor. The reactants are fed in to the reactor all at once
initially. The vessel contains an agitator. The purpose of the agitator is to
mix the reactants thoroughly so that the contact makes them react together
efficiently and produce products.

Types of Reactors:- Batch Reactor Types of Reactors:- Batch Reactor

In order to handle exothermic reactions the batch reactor is often equipped

with cooling coils. In order to work with endothermic reactions the batch
reactor has provisions for heating the reaction mixture.

The batch reactor is a non-steady, transient reactor. It means the extent of

conversion within the reactor depends on time. Due to agitator the batch
reactor is highly uniform in nature. It means the extent of conversion does
not depend on location within the reactor. At a given time the extent of
reaction at any location of the volume of the reactor will be equal to each
other.

Advantage
The greatest advantage of operating a batch reactor is its versatility. Same
batch reactor can be used to chemically react quite different variety of
reactants. Batch reactors are especially used in cases where the reaction
produces lots of products. Batch reactors are often used in labs to study
kinetics of the liquid phase reaction systems.

Disadvantage
The disadvantage of batch reactor is that it requires lots of labour force to
constantly charge reactants, discharge products and then to clean the
reactor for the next batch.
2. Continuous Stirred Tank Reactor (C.S.T.R)
A continuous stirred tank reactor (C.S.T.R) is also often called a mixed flow
reactor (M.F.R). In this reactor also the reaction occurs in a closed tank.
The tank also has agitator in order to mix the reactants thoroughly. It is
different from batch reactor in the sense that the name itself indicates it is
continuous type of equipment.

Types of Reactors:- Continuous Stirred Tank Reactor

The reactants enter the reactor at a certain mass flow rate, the react inside
the vessel for sometime dictated by the space time of the reactor and then
they form products. The products flow out of the reactor at the same mass
flow rate. One space time is the time required to process one reactor
volume.

The C.S.T.R is steady sate equipment. It means the extent of conversion

does not depend on the time. The agitator makes the concentration uniform
throughout the reactor. It means the extent of conversion does not depend
on the location also. The extent of conversion depends on the volume of the
reactor.

Advantage
The biggest advantage of using a C.S.T.R in industries is that it can produce
a large amount of products and being a continuous steady state reactor the
reactor can keep on operating hours on end.

Disadvantage
The disadvantage is that a C.S.T.R cannot be used for reactions which have
very slow kinetics because it will require a reactor of very large volume. The
fabrication and operational cost of the reactor may make it infeasible. Batch
reactor is used in this case.
3. Plug Flow Reactor (P.F.R)
A plug flow reactor (P.F.R) is also sometime called a continuous tubular
reactor (C.T.R). In an idealised model, the profile of the reaction mixture can
be considered to be made up of a number of plugs and each plug having a
uniform concentration.

Types of Reactors:- Plug Flow Reactor (P.F.R)

The idealized P.F.R model has an assumption that there is no axial mixing. It
means that there is no back mixing inside the reactor.

Advantage
The advantage of P.F.R over C.S.T.R is that for same space time and same
level of conversion, the volume of the P.F.R is relatively smaller than a
C.S.T.R, It means a smaller space is needed for the reactor also for same
volume of reactor the level of conversion is higher in P.F.R than in C.S.T.R.
Often the P.F.R are used to study kinetics of gas phase catalytic reactions.

Disadvantage
The disadvantage is that if we carry out an exothermic reaction in a P.F.R
then the temperature gradients are difficult to control. The operational and
maintenance cost of a P.F.R are also greater than a C.S.T.R.
4. Semi-Batch Reactor
A semi-batch reactor is a semi-flow reactor. It is a modification of batch
reactor. It is also a closed vessel which contains agitator for the purpose of
mixing the reactants thoroughly. The difference is that one of the reactants
is charged completely initially in the reactor and the other reactant is
charged continuously in the reactor as the time progresses.

Types of Reactors:- Semi-Batch Reactor

Advantage
The advantage of using a semi-batch reactor is that if we are carrying out
multiple reactions then we have a greater control over yield or selectivity of
the products. This reactor is extremely useful when we are carrying out an
exothermic reaction as the continuous flow of the other reactant can be
varied to better control the exothermic reaction

Disadvantage
If we want to scale up the semi-batch process then disadvantage over the
continuous process reactors (C.S.T.R and P.F.R) is that capital costs per unit
scales up relatively a lot. Greater man power is required to charge and
discharge the contents of the reactor, to clean blades, to clean reactors etc.
